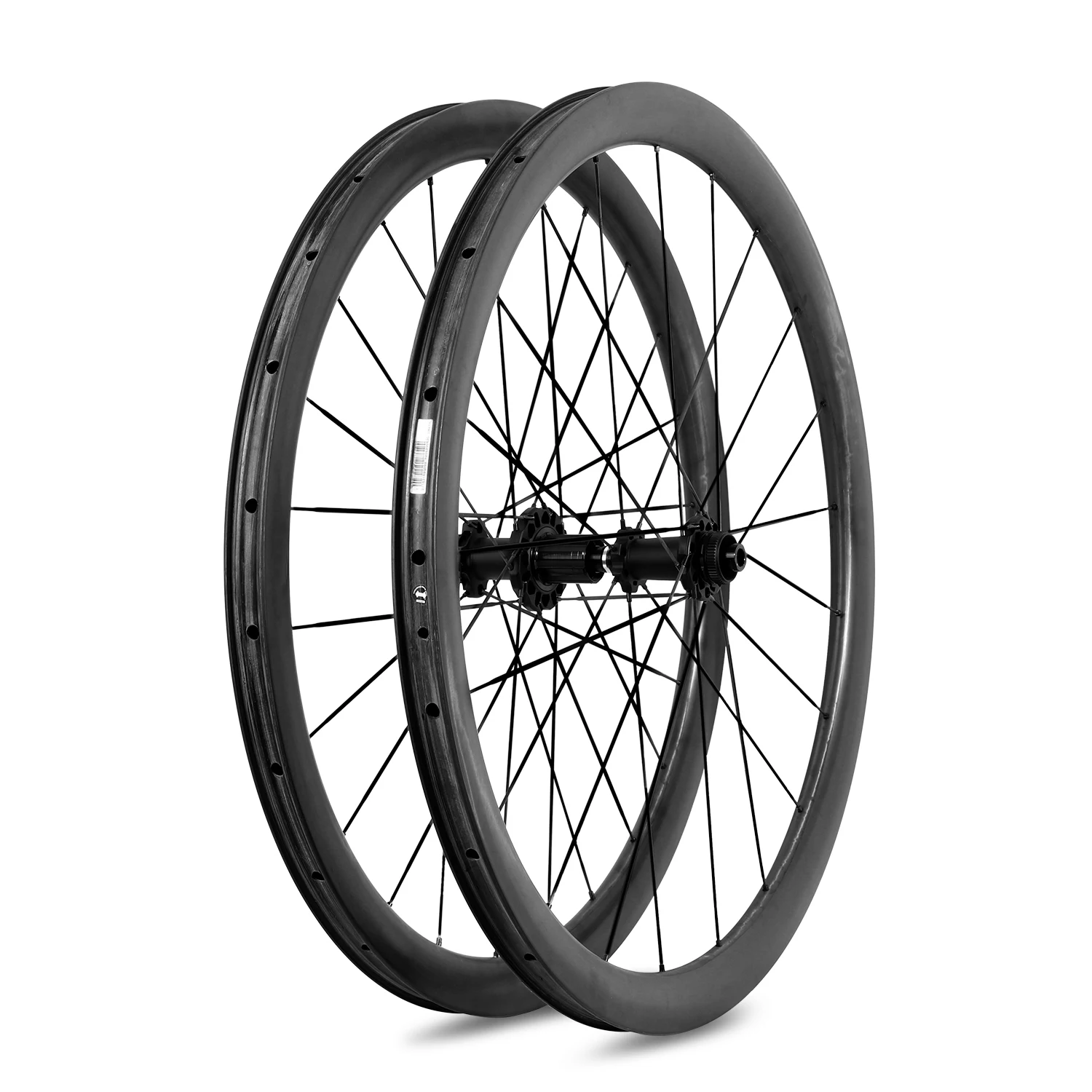

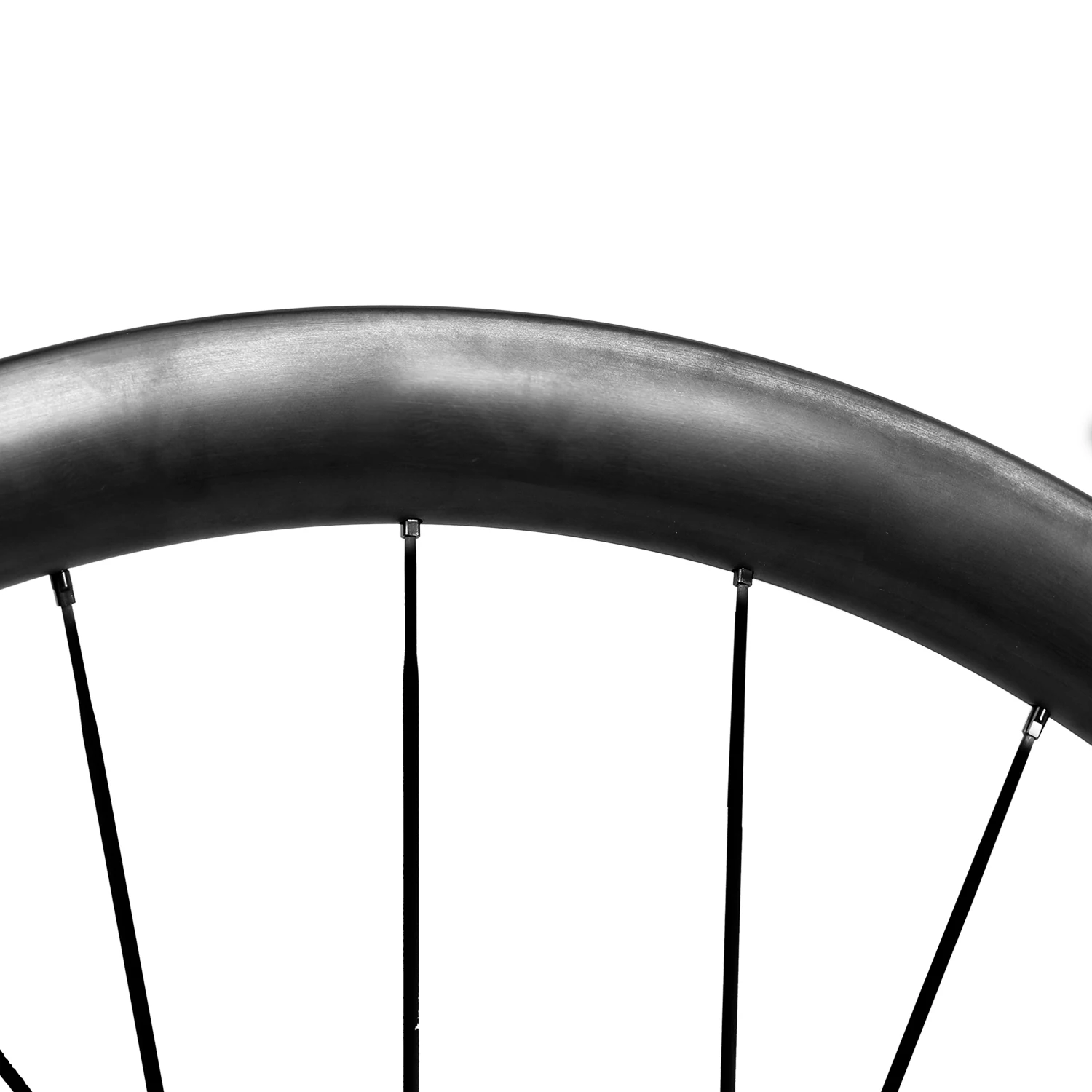

ICAN new design paintless carbon wheels with carbon spoke for road disc bicycle
- Category: >>>
- Supplier: Shenzhen Ican Sports Equipment Co. LimitedShenzhen Limited
Share on (1600660587391):
Product Overview
Description
Parameters
No. | 40C |
Hub | ICAN brand with ceramic bearing |
Spoke Material | Toray T700 carbon fiber |
Spoke detials | φ：2.2mm; Length:260mm; Weight:2.68g |
Bearing | S&S Ceramic F:2*6803 R:1*6803+1*6903+2*6803(Body) |

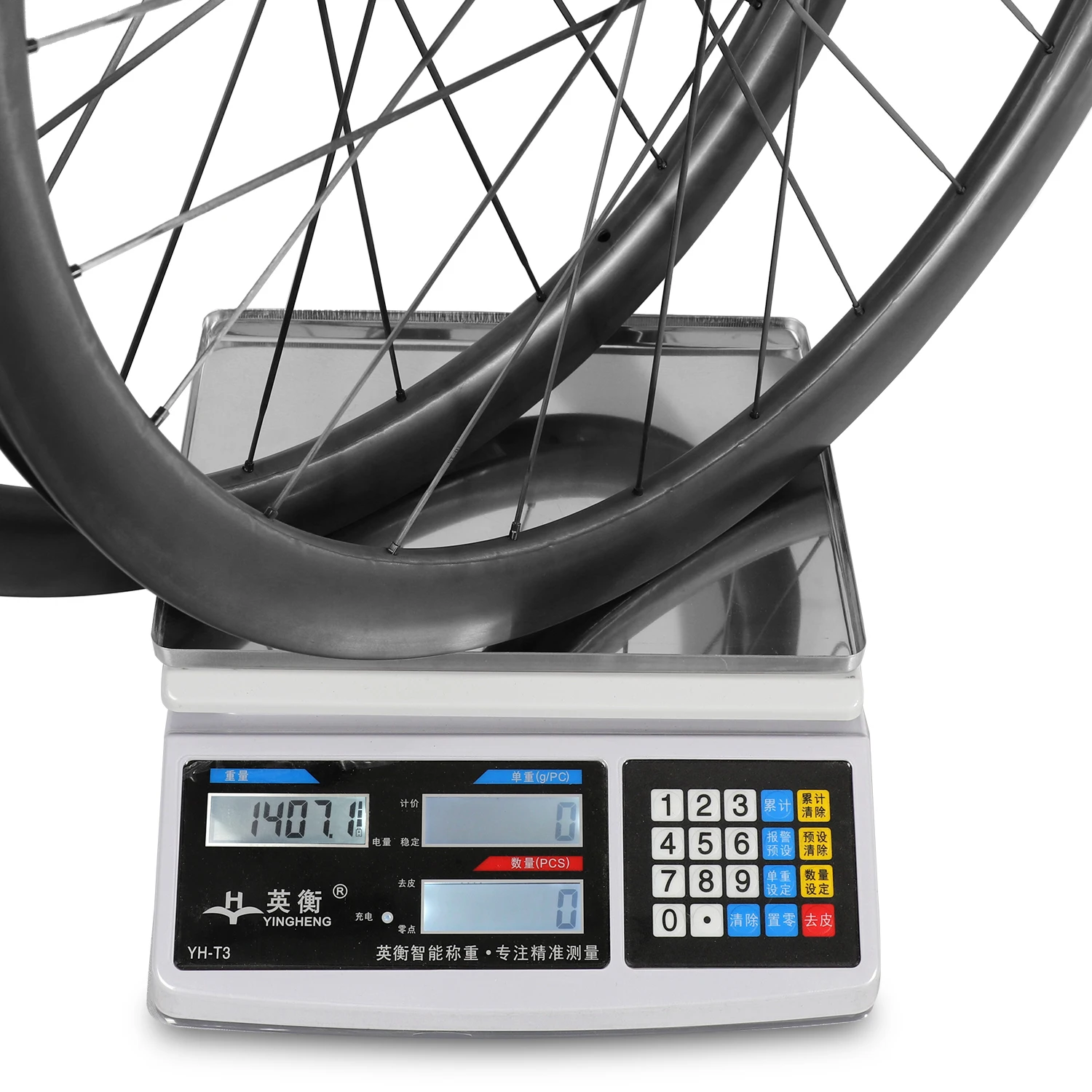

Weight | 1407g ±30g (common); 1316g±30g (SL) |
Max Tire Size | 700C*25mm |
Suitable style | Road Disc Brake Bicycle |
Color | Paintless |
Rider weight limit | 285lbs/130kg |
Certificate | SGS/ISO4210-6 Or UCI standard |
Warranty | 2 Years |
Description

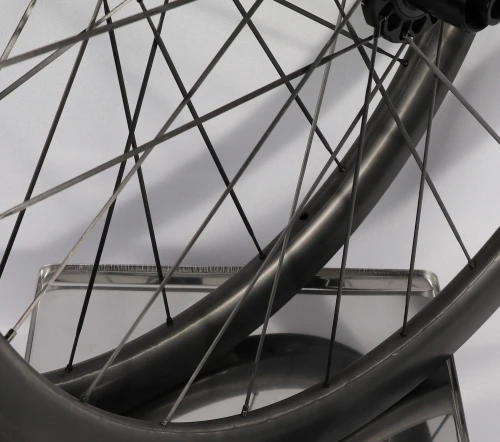

Carbon spokes have higher stiffness and higher tensile strength. Lateral response is improved by 7% over the same steel spokes, and carbon spokes have better high frequency vibration absorption than steel spokes. It is also more stable and aerodynamically superior, giving you an advantage in all-out sprinting and high-powered off-roading.
Both front and rear hubs use S&S ceramic bearings, which further improve the hub's rolling efficiency and reduce rolling resistance. Also, the front and rear hubs have bearing preload side covers on the non-driving side.

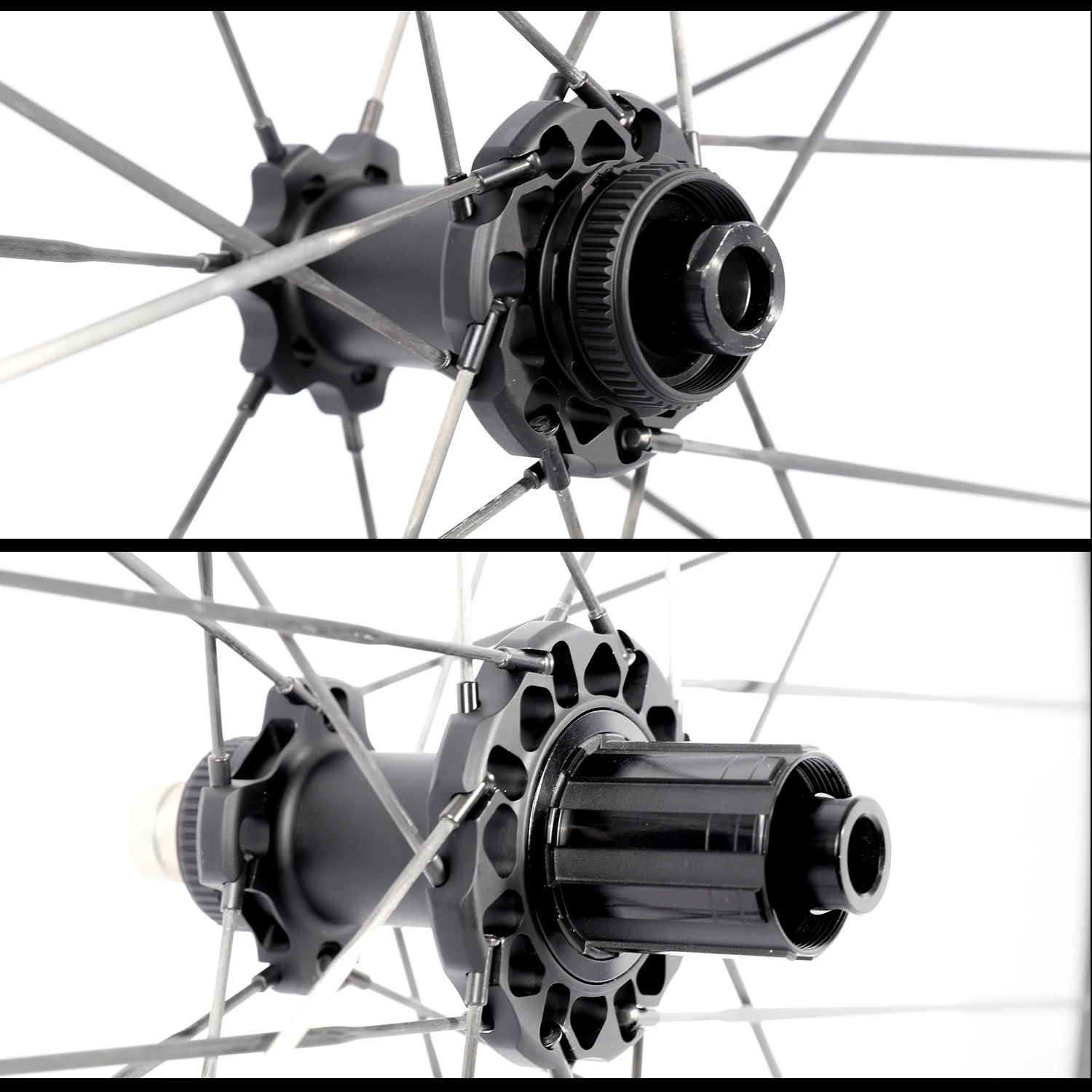

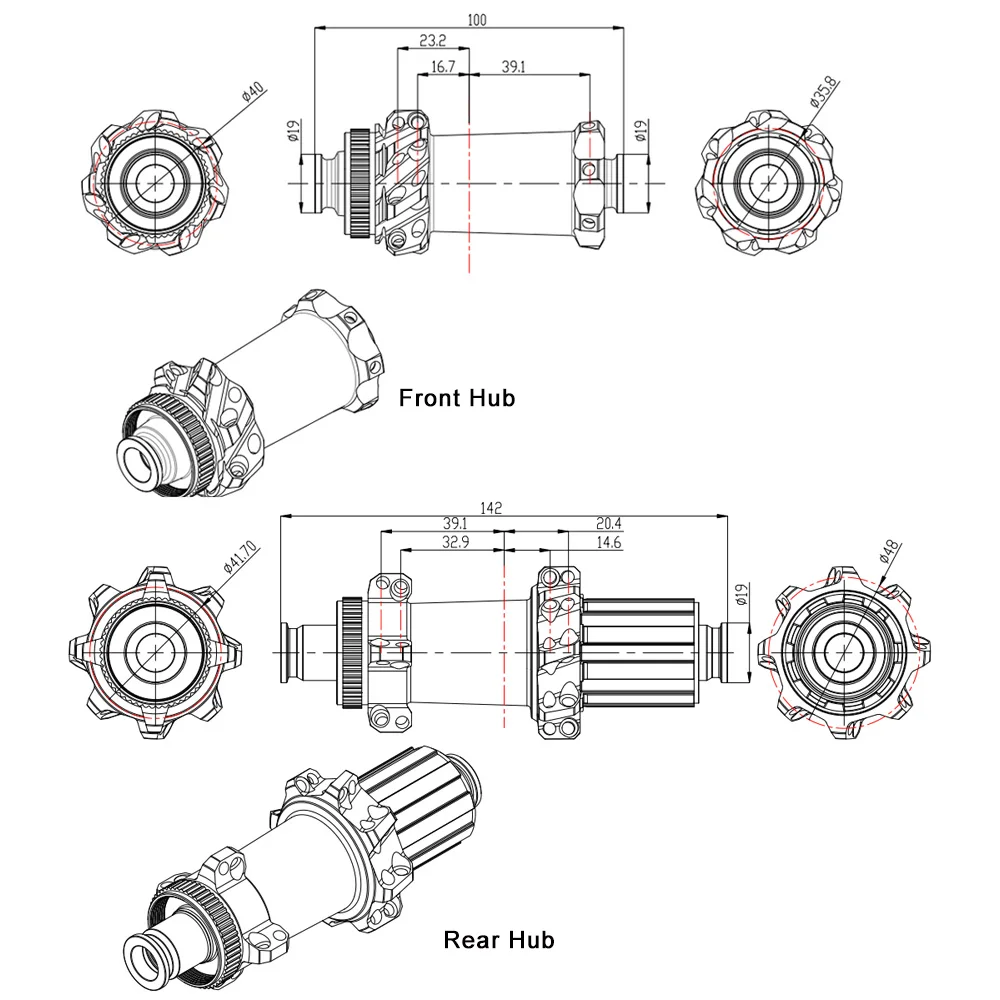

ICAN D417 & D418 Hub
Disc brake hubs use 21 spokes on the front wheel, 14 spokes on the drive side and 7 spokes on the non-drive side. The rear hubs have 24 spokes, 16 on the drive side and 8 on the non-drive side.
We have found the optimal geometry angle for the hub so that the spoke tension on the drive side is the same as the spoke tension on the non-drive side, which is very important. This allows for a greater degree of wheel stability when entering corners quickly.
We have found the optimal geometry angle for the hub so that the spoke tension on the drive side is the same as the spoke tension on the non-drive side, which is very important. This allows for a greater degree of wheel stability when entering corners quickly.
All AERO wheel ranges are tubeless compatible and if you wish to use tubeless tyres, we will equip them with tubeless rim bands and tubeless valves..

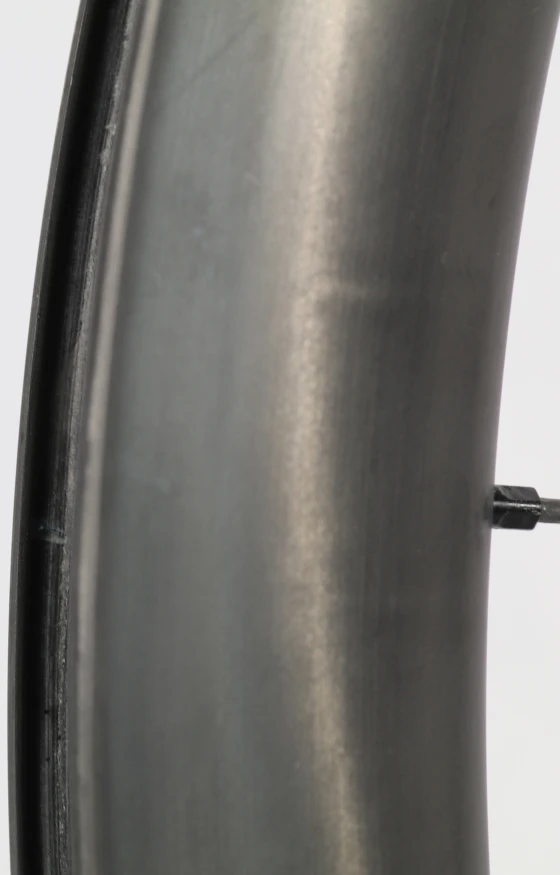

Paintless wheels, saving the time and cost of painting. But still has a paint-like effect.

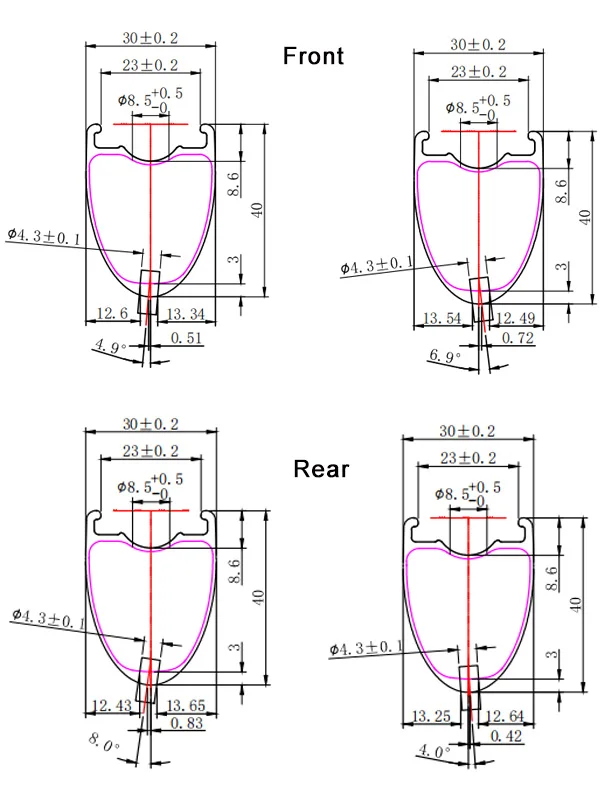

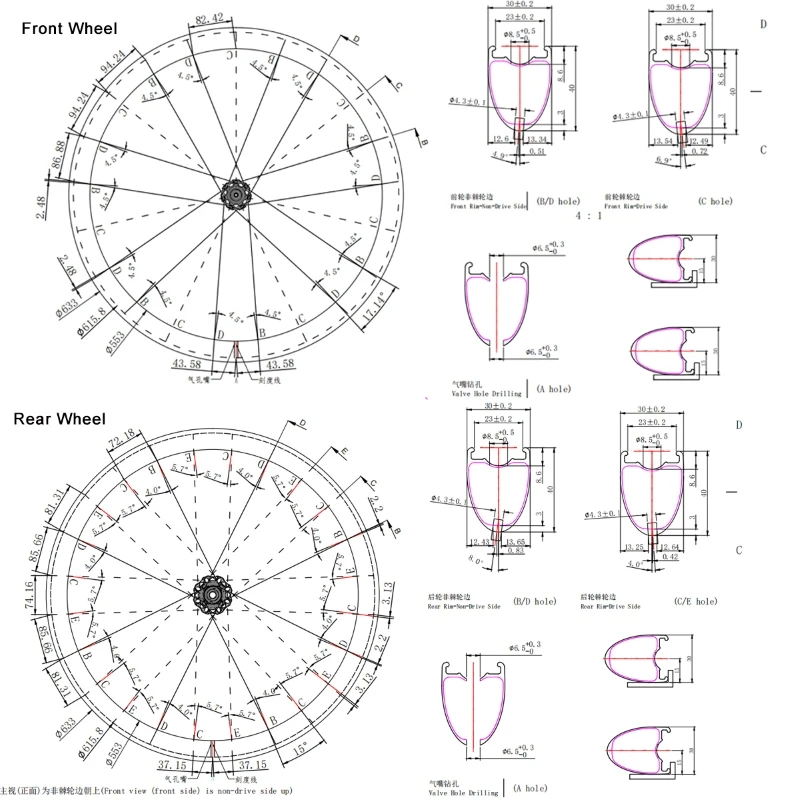

Geometry
Company Information
Certificates and exhibition
Shipping & Payment
Choose our factory,you will choose one of the quality same with famous brand. We are the original producing of them. So we can provide three years warranty for frame，two years for wheels. You can not only buy our bikes with confidence but also sell our bikes with confidence. Welcome to inquiry.
