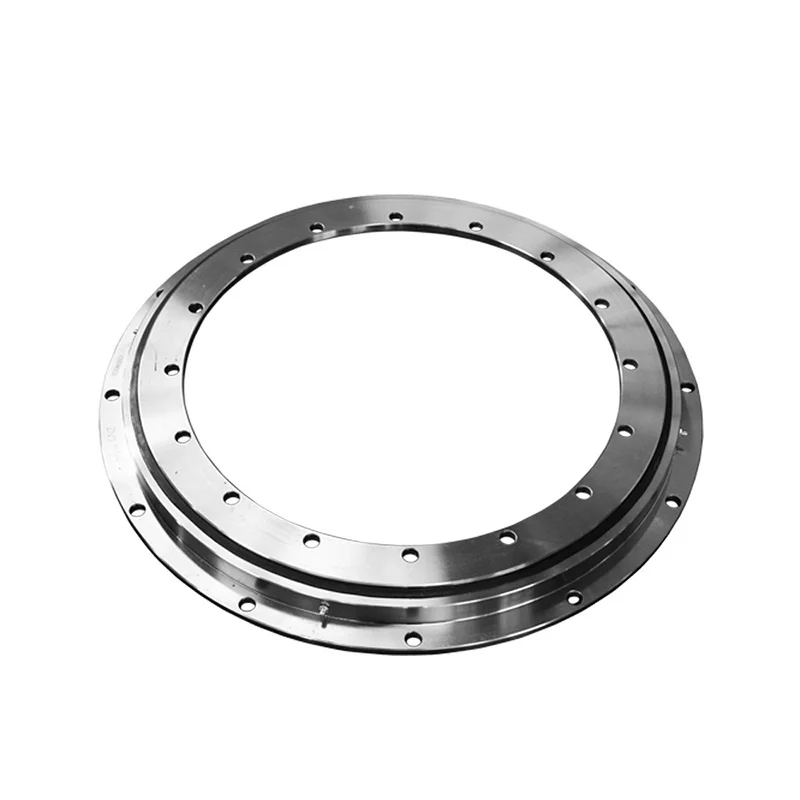

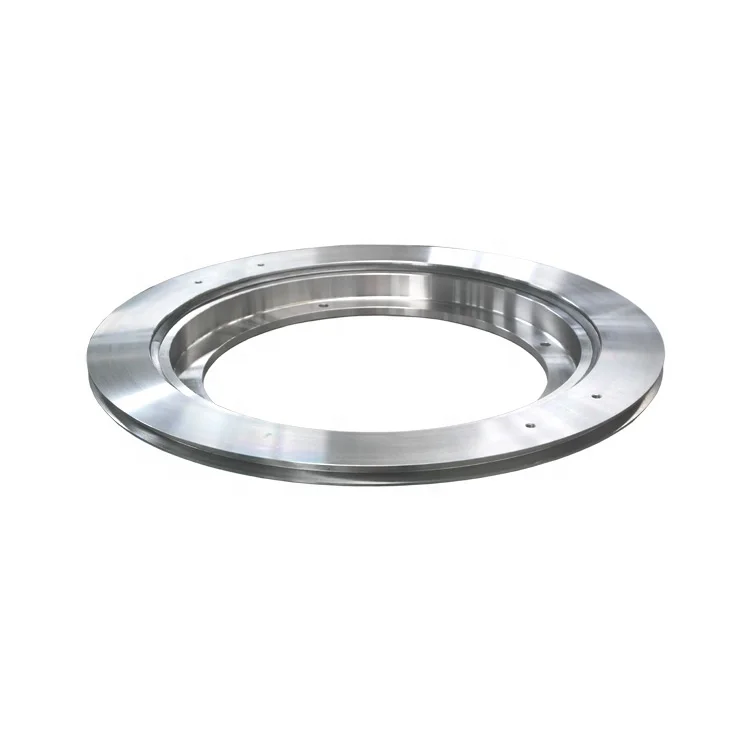

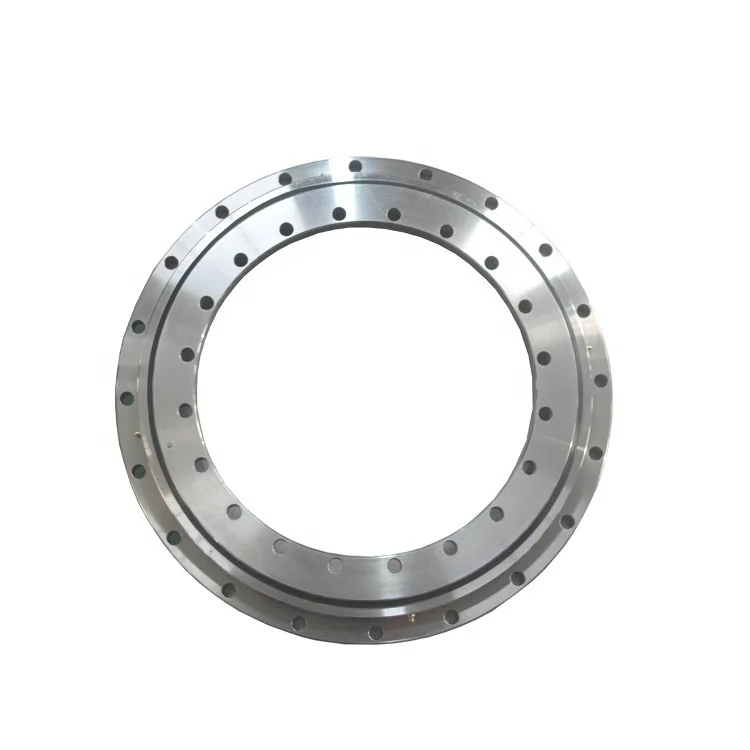

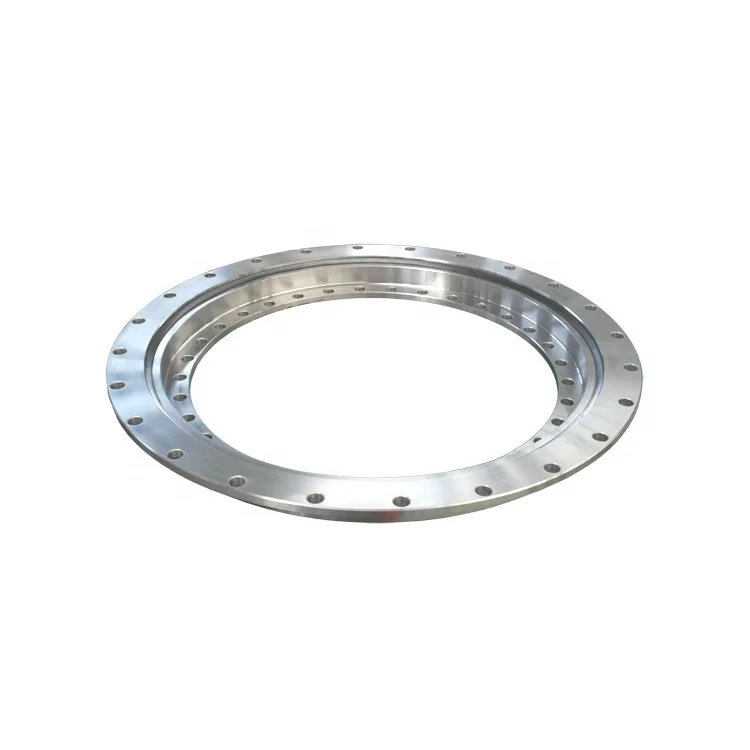

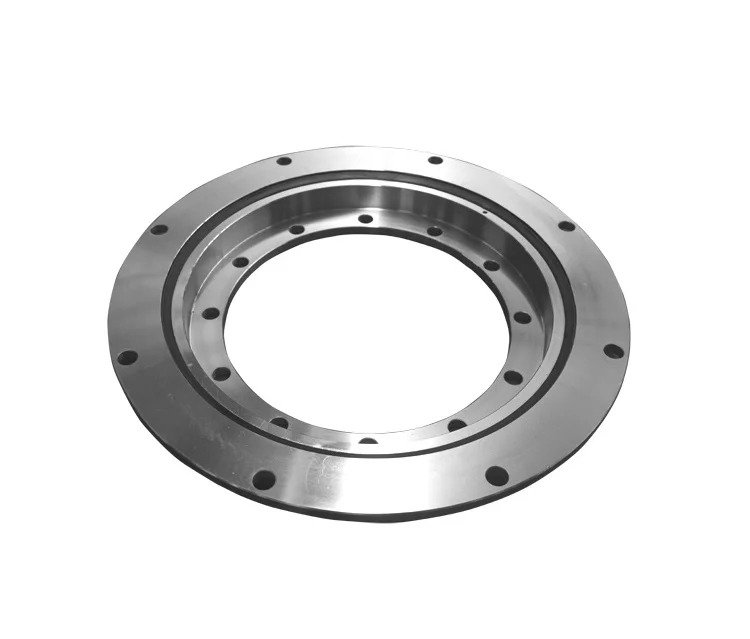

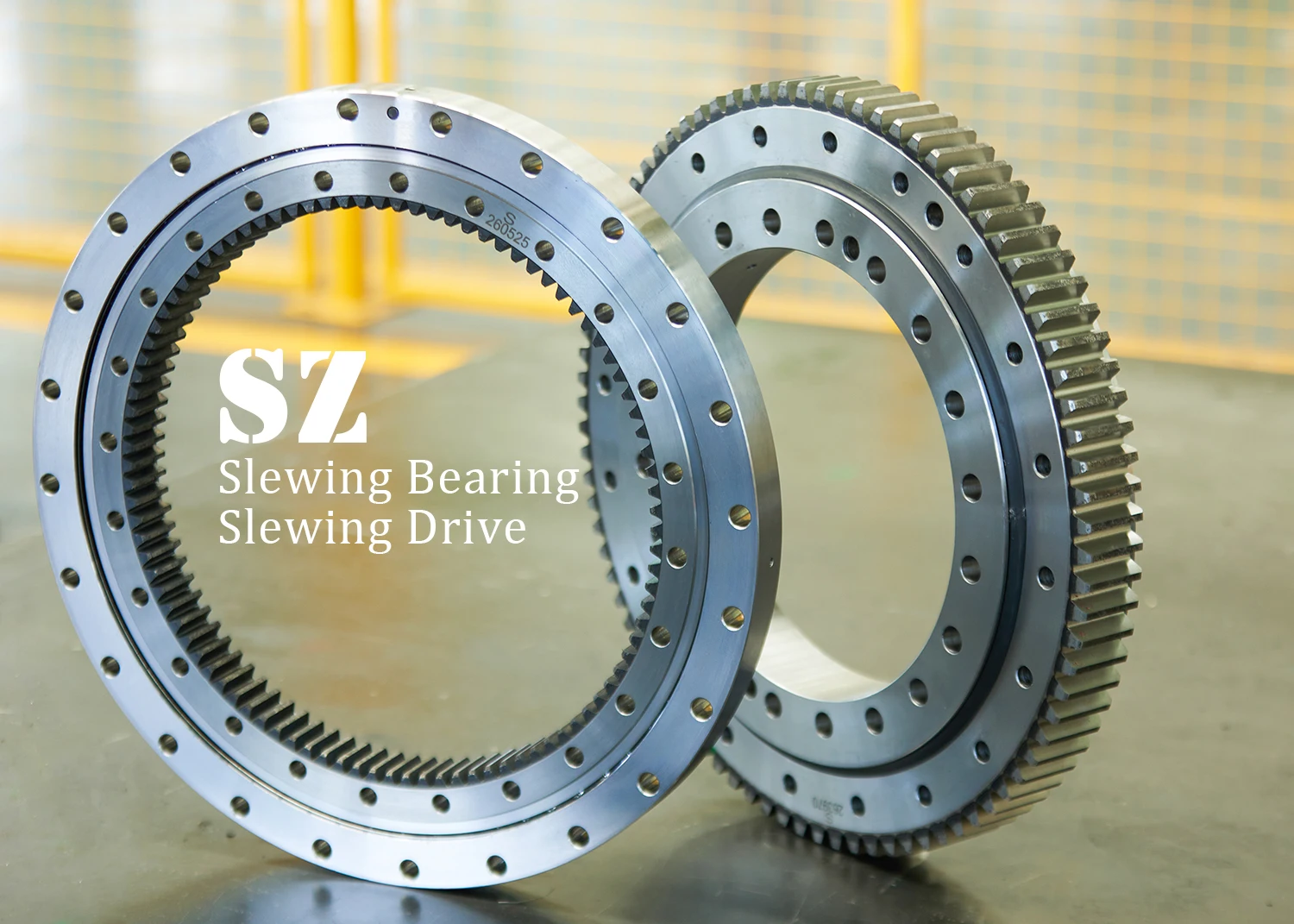

Non gear Flange type single row ball Slewing ring bearing WD 230.20.0844
- Category: >>>
- Supplier: Jiangsu Shuangzheng Machinery Co. Ltd.
Share on (1600660667630):
Product Overview
Description
Products Description
Single-row ball
Double-row different ball
Three-row roller
Cross roller
Ball & roller
Double-row ball
Raceway center diameter | Plane deviation of mounting bracket P (mm) | ||||
DL(mm) | single row four ball | double row ball | cross roller | ||
~1000 | 0.15 | 0.20 | 0.1 | ||
>1000~1500 | 0.19 | 0.25 | 0.12 | ||
>1500~2000 | 0.22 | 0.30 | 0.15 | ||
>2000~2500 | 0.25 | 0.35 | 0.17 | ||
>2500~4000 | 0.30 | 0.40 | 0.20 | ||
>4000~6000 | 0.40 | 0.50 | 0.30 | ||
>6000~8000 | 0.50 | 0.60 | 0.40 | ||
Production Process
Forging
Forging material: 50Mn, 42CrMo, etc.
Rough Turning
Processing rang: 100-4500mm
Processing precision: Grade IT 10

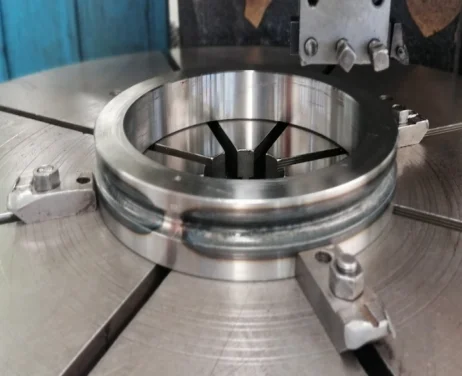

Raceway Rough Turning
Processing range: 100-4500mm
Processing precisiong: Grade IT 8
Raceway Heat Treatment
Hardness range: 55-62HRC
Quenching depth: 2-8mm
Automatic tracking
Real-time monitoring
Gear Making
Processing range:100-3500mm
Processing precisiong: Grade 8-10
Gear Heat Treatment
Hardness range: 50-60HRC
Quenching depth: 0.6-4mm
Automatic tracking
Real-time monitoring

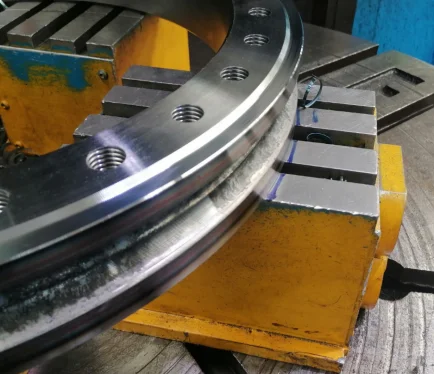

Surface Finish Turning
Processing range: 100-4500mm
Processing precision: Grade IT 7-IT 10
Surface roughness:3.2, 6.3
Hole Drilling
Processing range:100-4500mm
Position precision: 0.5mm
Raceway Finish Turning
Processing range:100-4500mm
Processing precision: Grade 7-8
Surface roughness: 0.8-1.6
Deburring and Cleaning
Deburring items: plug, soft zone, tooth chamfer, descaling, cleaning, etc.
Assembling
Assembling range:100-4500mm

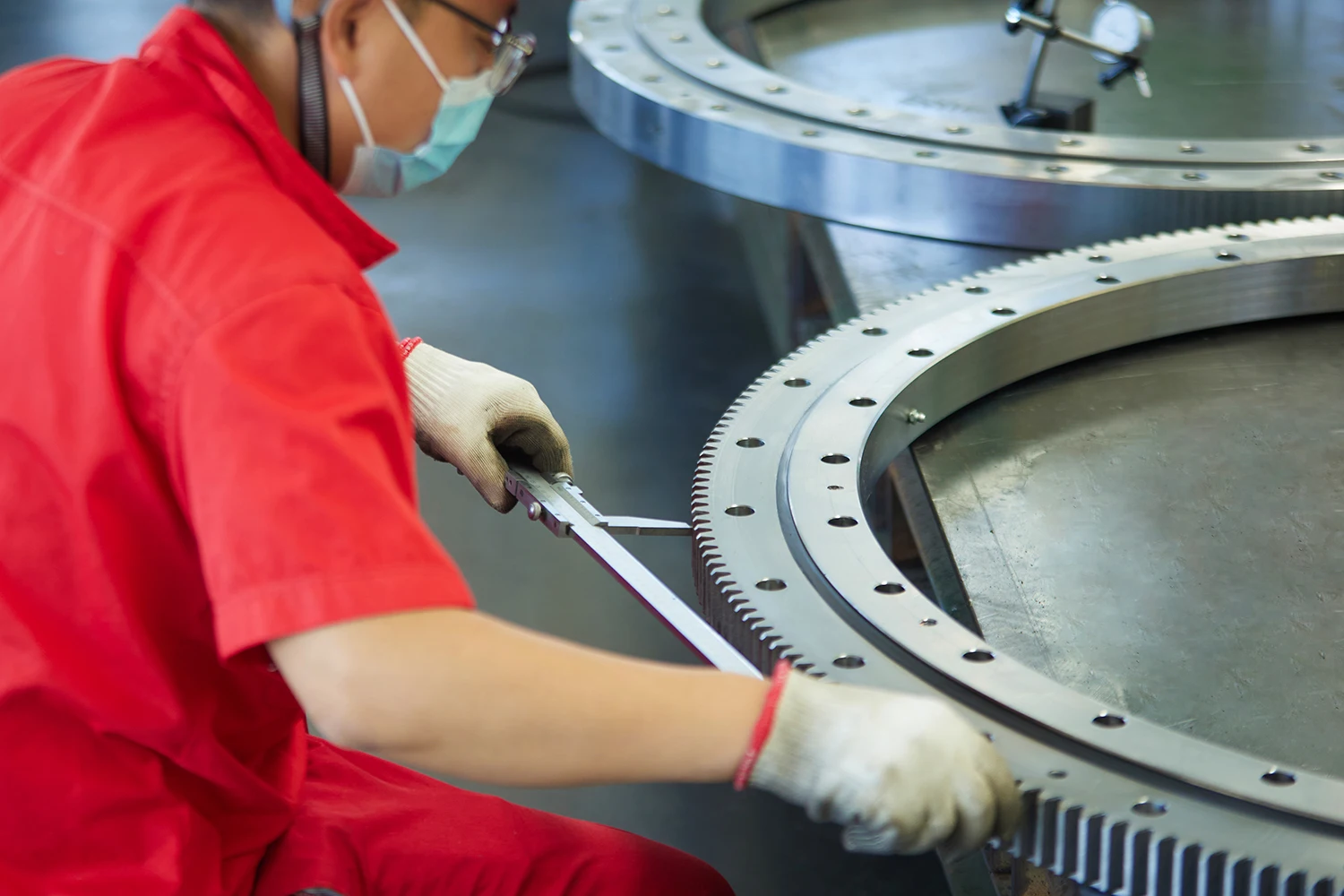

Inspection
Full size inspection: dimensional accuracy, raceway hardness, axial clearance, radial clearance, axial runout, gear radial runout, gear accuracy, tooth surface hardness, rotational flexibility, appearance, documentation, etc.
Product Advantages

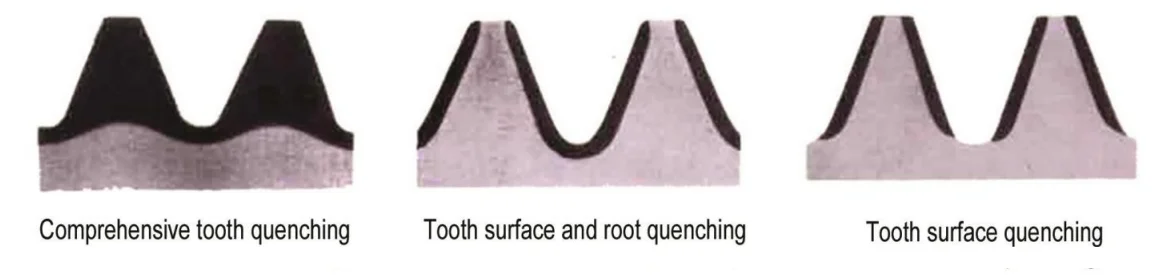

Special heat treatment design according to the different needs of specific industries for gears，It mainly includes induction single-tooth quenching and induction-type integral tooth quenching. Single-tooth quenching is further divided into tooth surface quenching (FH) and tooth root quenching (GH).After quenching, tempering treatment is carried out to make the surface hardness and the depth of the hardened layer meet the design standards.
The most advantageous is the special process of integral tooth quenching, which can improve the transmission efficiency, increase the wear resistance and impact resistance of the tooth surface. So as to meet the needs of customers.
Improve the machining program, shorten the machining path, reduce the clamping time of the tool, and improve the machining efficiency.
Improve the design tool processing technology to meet the different needs of customers, thereby increasing market share. For example: processing of wind power, medical equipment, military and other supporting products.
The development and production of magnetic chucks to change tooling can effectively solve the problem of deformation of slewing bearings.
Improve the design tool processing technology to meet the different needs of customers, thereby increasing market share. For example: processing of wind power, medical equipment, military and other supporting products.
The development and production of magnetic chucks to change tooling can effectively solve the problem of deformation of slewing bearings.
Quality Control

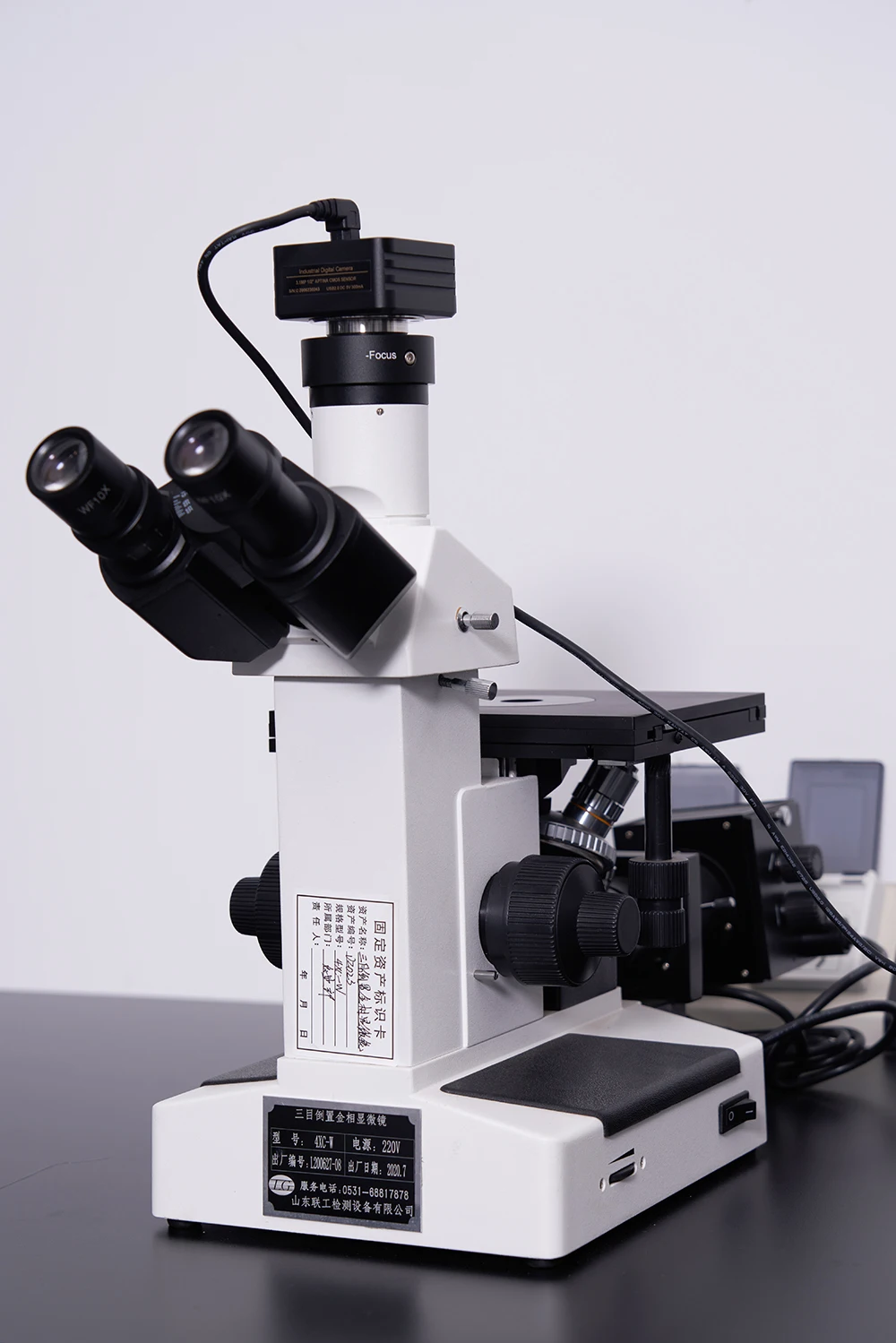

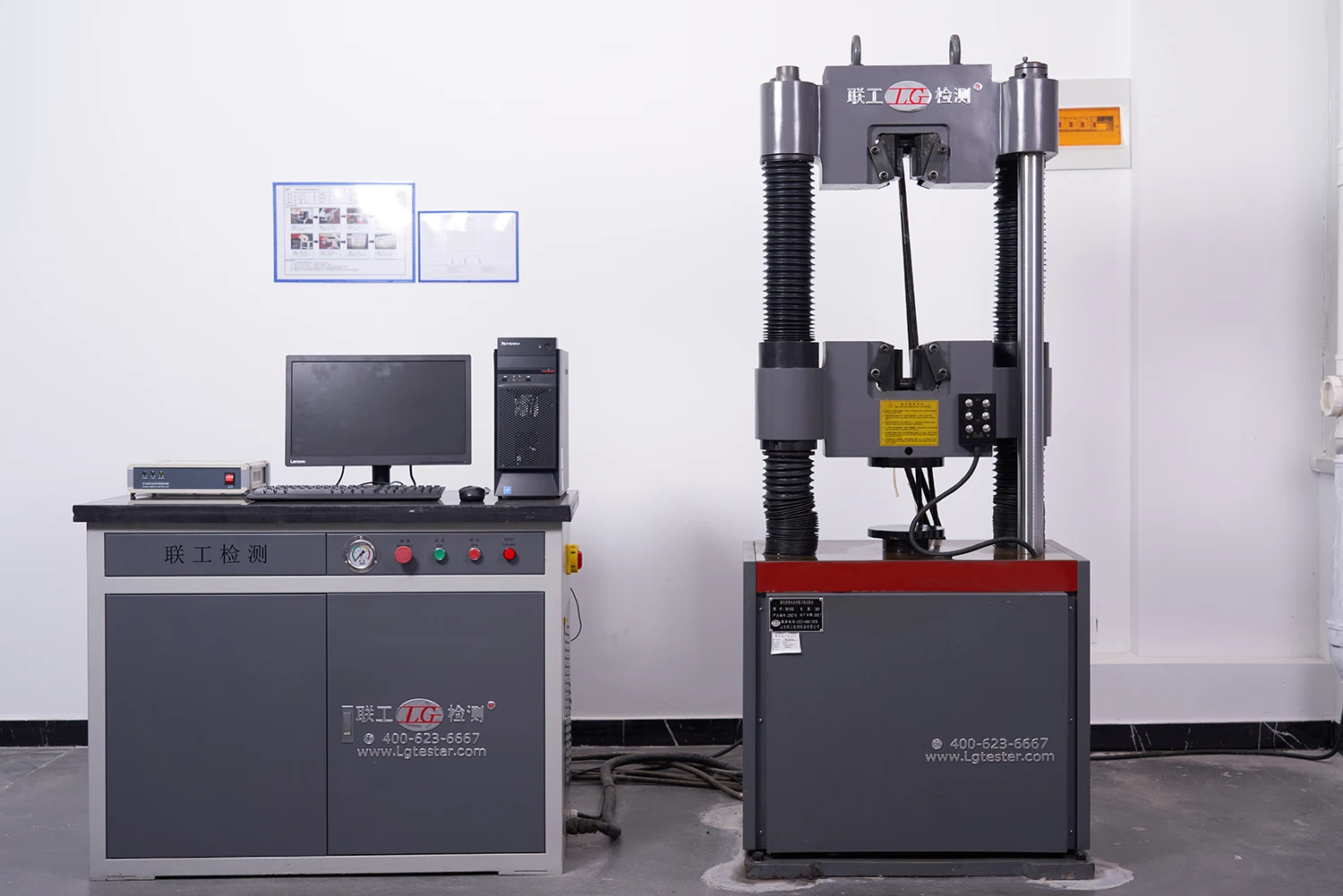

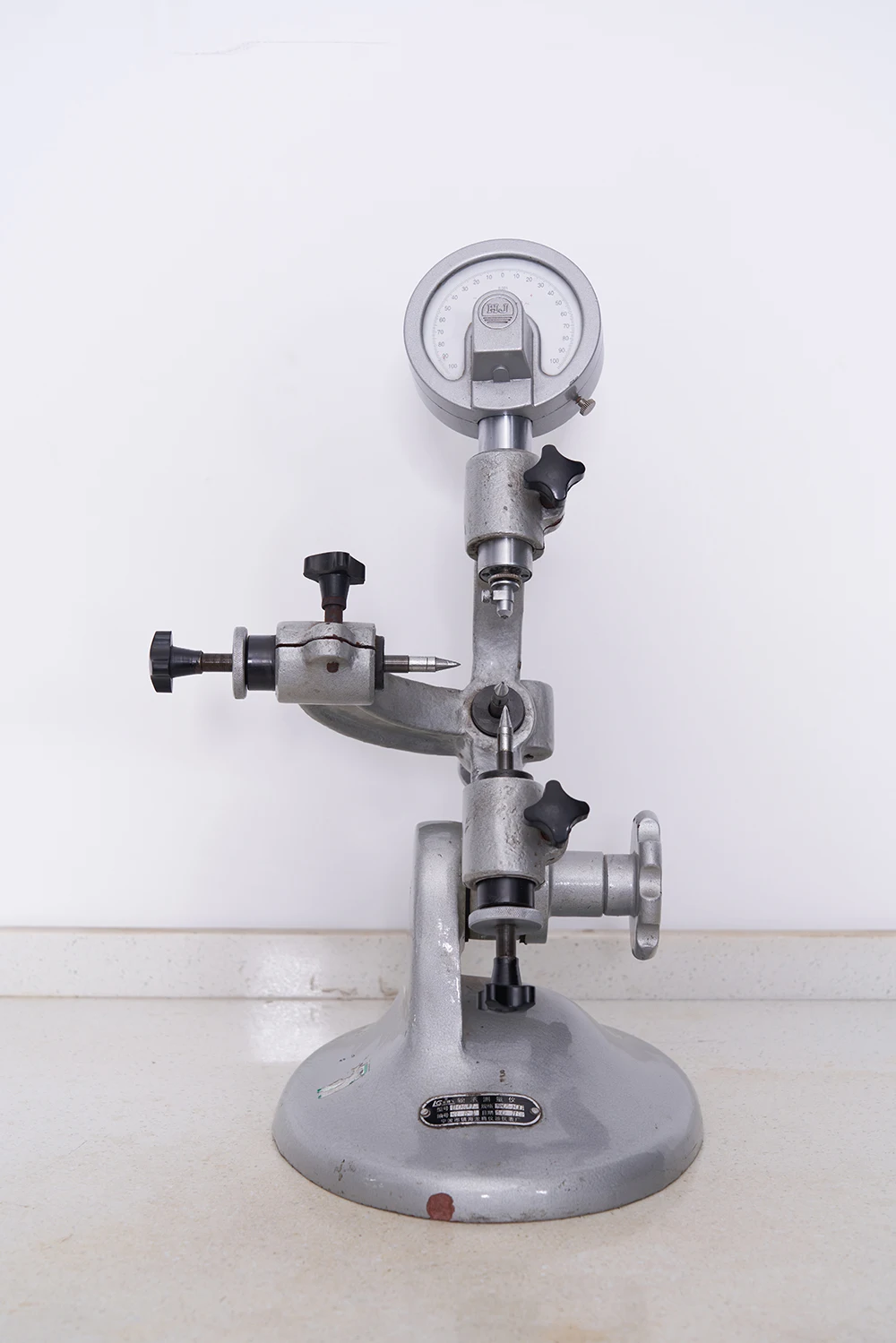

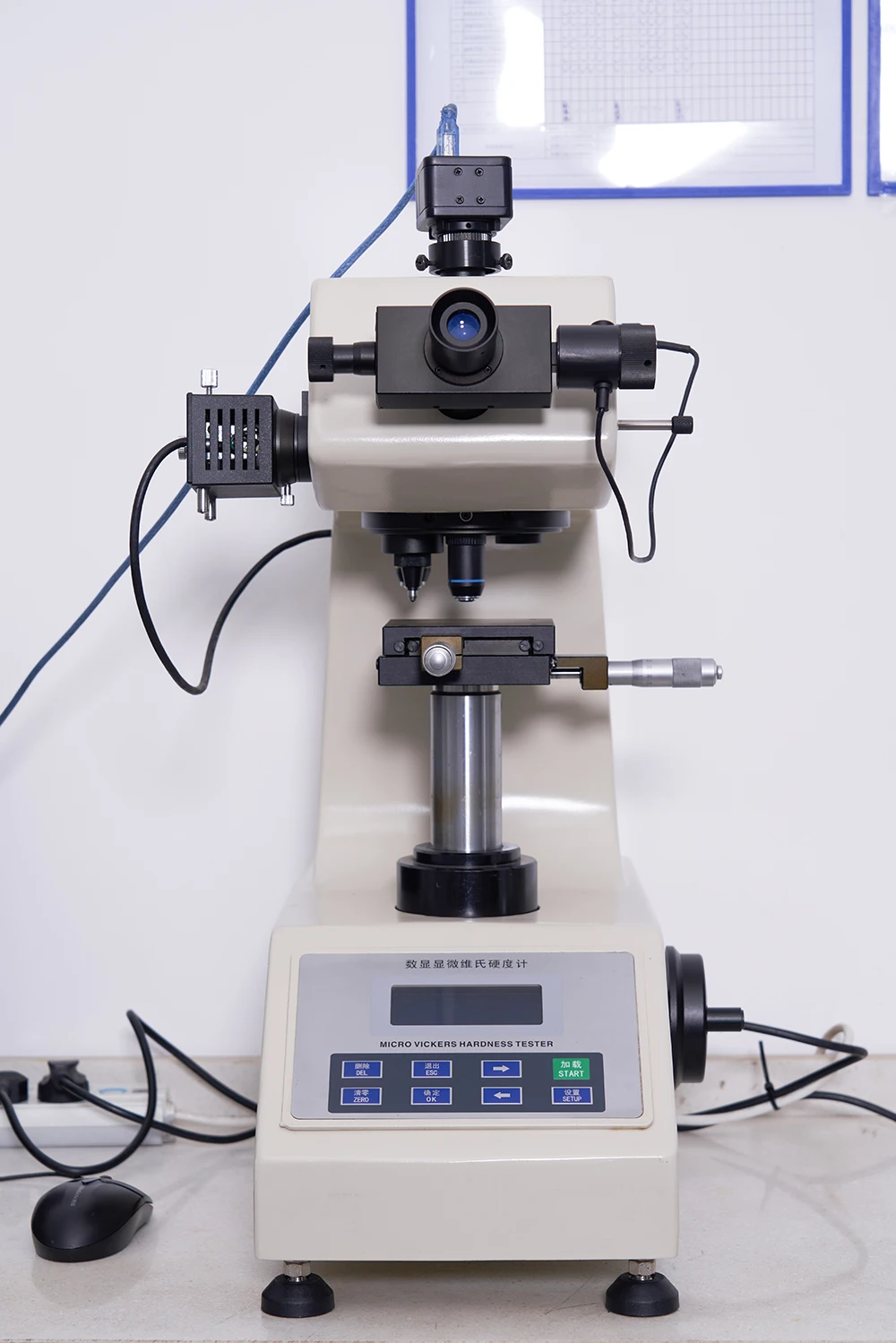

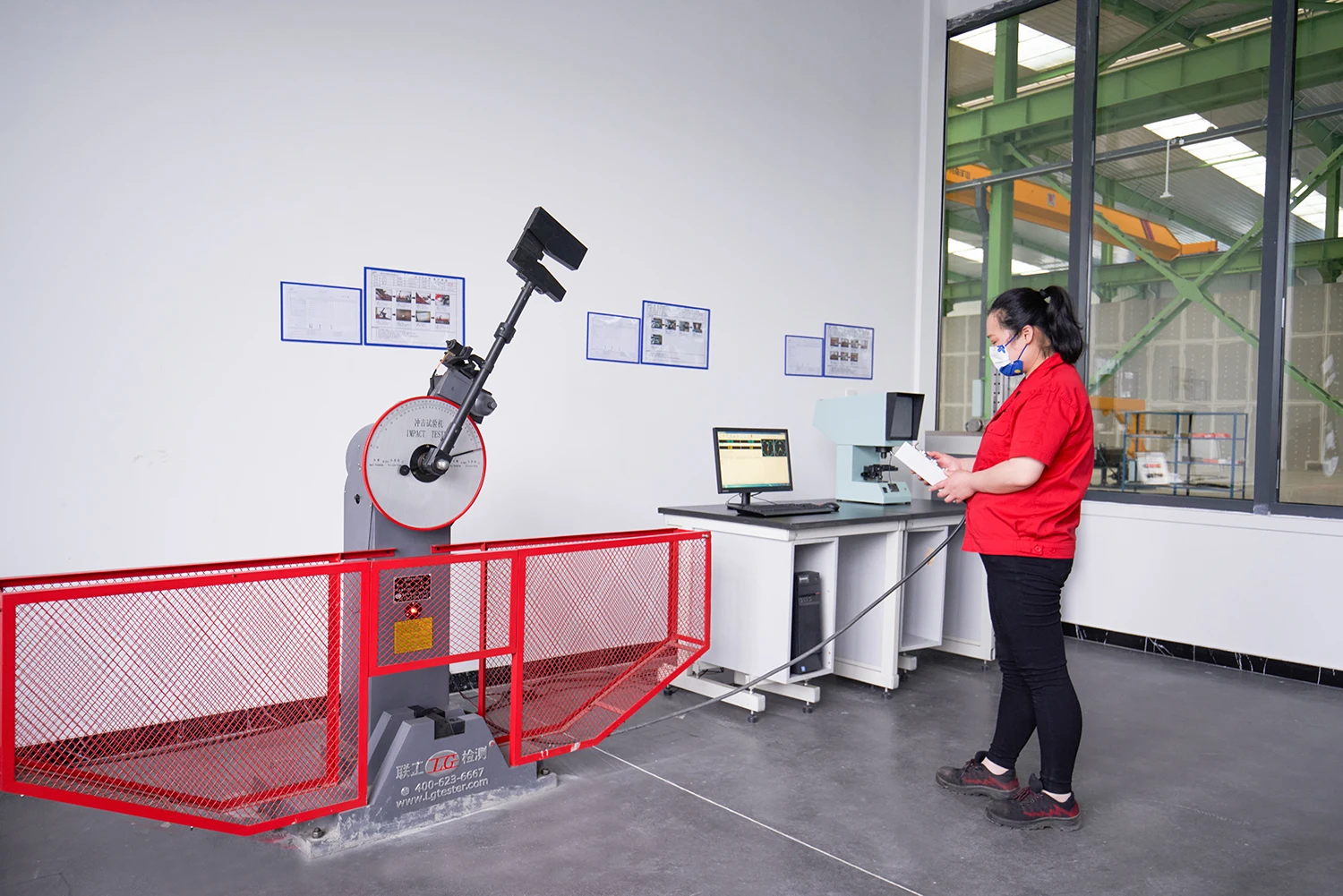

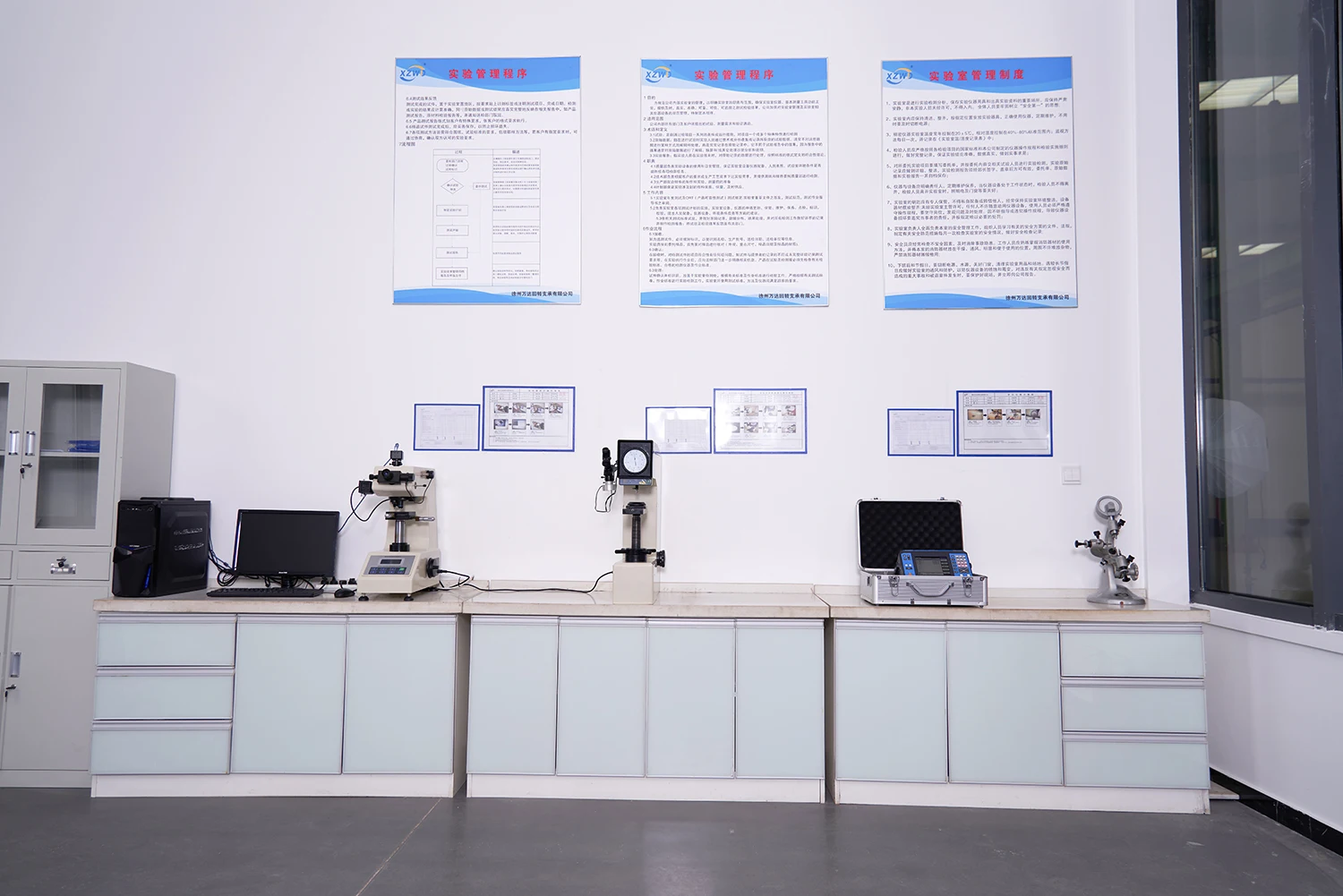

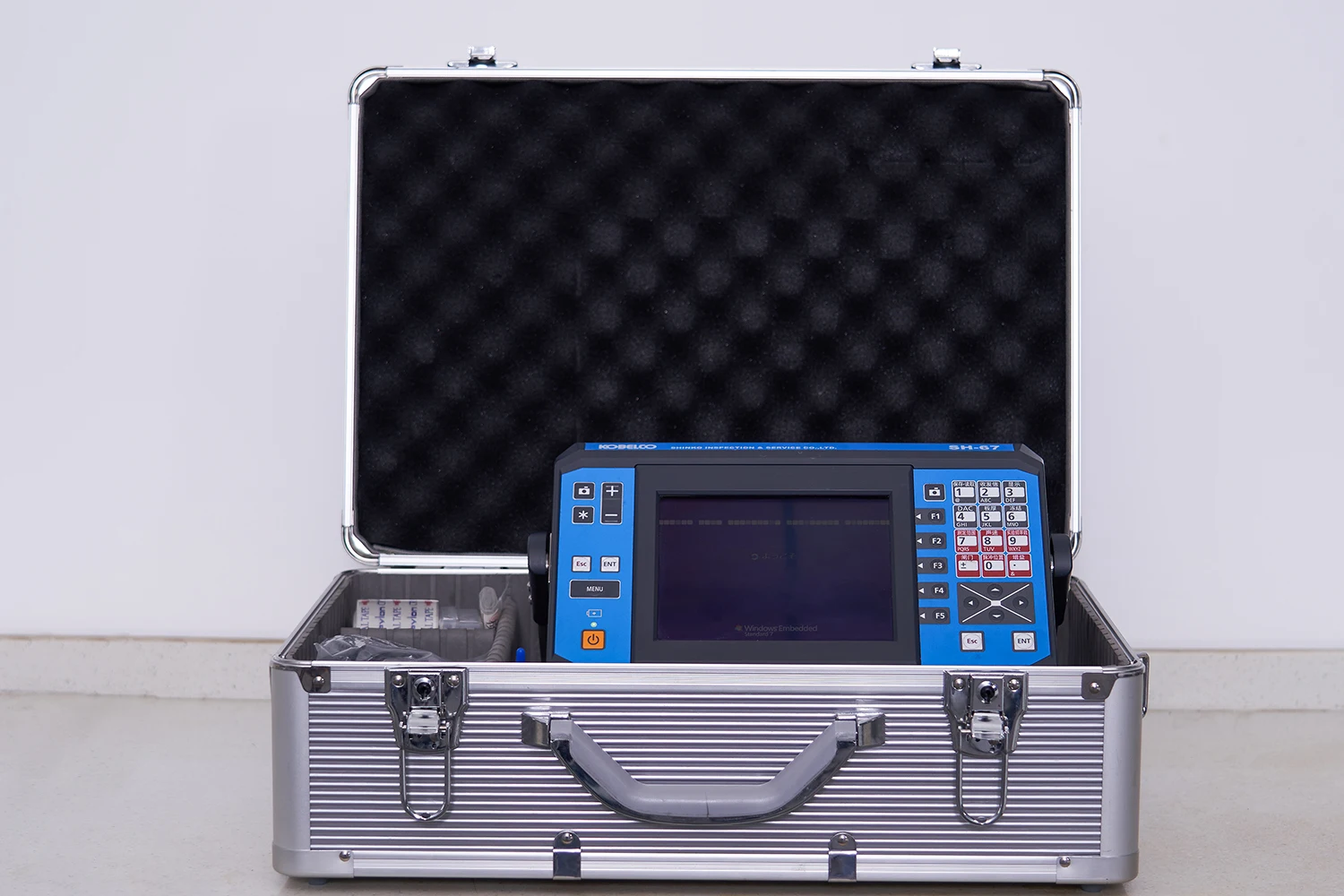

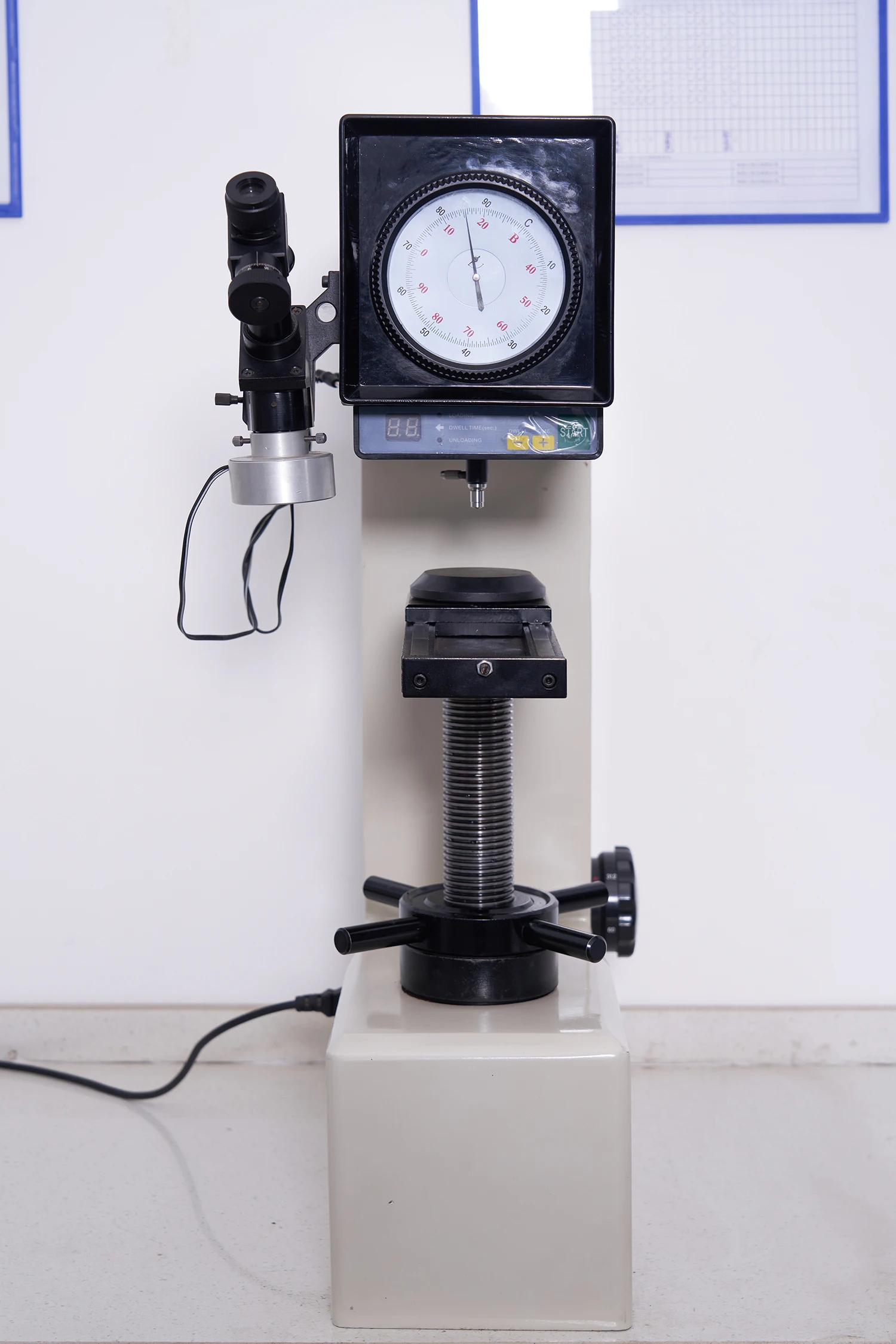

The company has complete research and development, verification and inspection equipment, and currently there are more than 20 kinds of equipment in the factory. Including automatic turret microhardness tester, microcomputer-controlled universal testing machine, metallographic microscope, magnetic particle flaw detector, digital ultrasonic flaw detector, bearing measuring instrument, Leeb hardness tester, ultrasonic surface quenching layer thickness gauge, three coordinates, etc. A detection and control method to escort the manufacture of high-quality products.
Through the construction of a new testing center and experimental platform, the speed of raw material quality testing can be greatly improved, the flow of unqualified materials into the processing workshop is avoided, and waste products are reduced. Rate. From 90% in the past to 98% now.
Through the construction of a new testing center and experimental platform, the speed of raw material quality testing can be greatly improved, the flow of unqualified materials into the processing workshop is avoided, and waste products are reduced. Rate. From 90% in the past to 98% now.

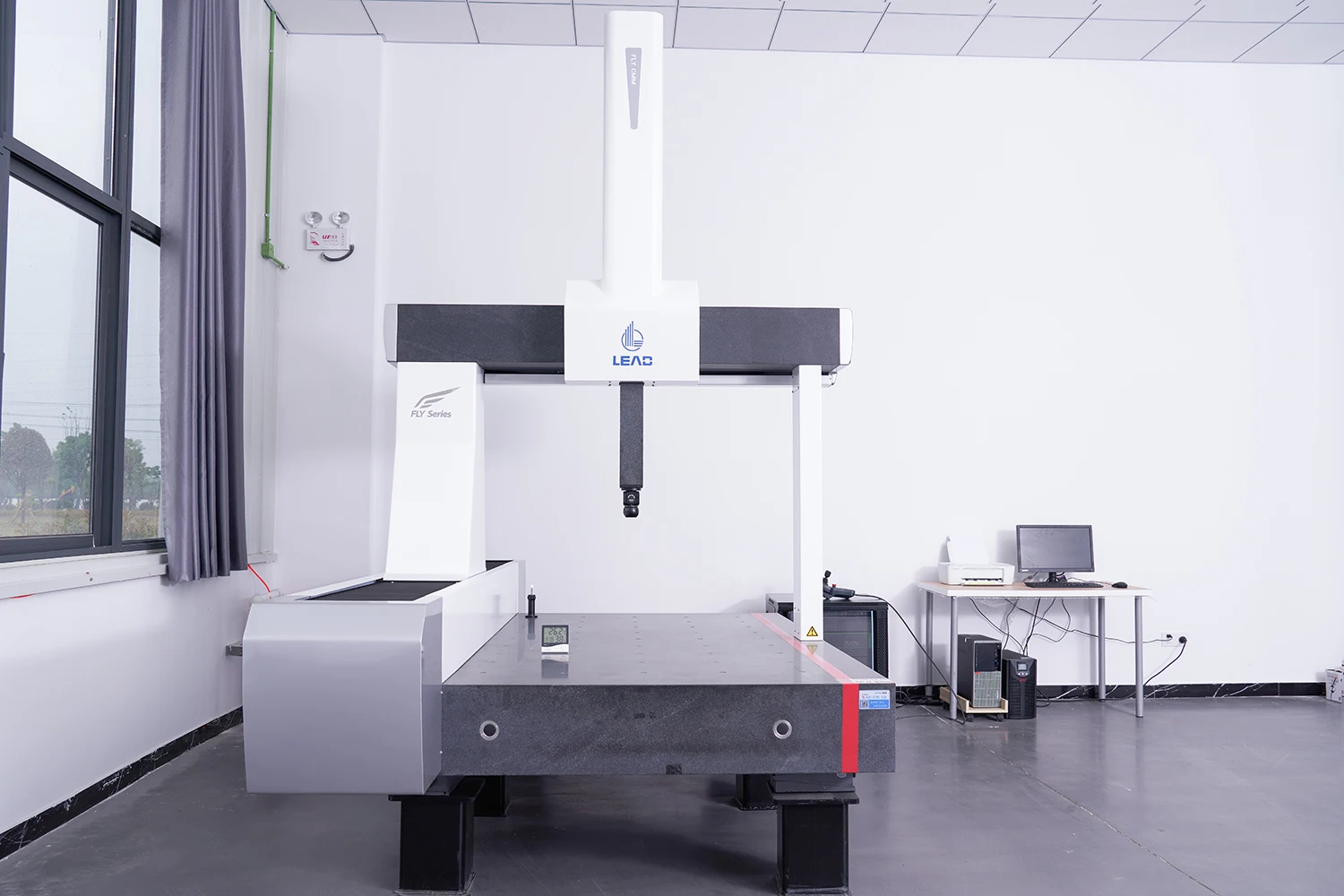

Three coordinates
It is used to detect the straightness, flatness, roundness, cylindricity, profile, perpendicularity, parallelism, inclination, coaxiality, concentricity, symmetry, position, compound position, curve profile, Surface profile, radial circular runout, radial full runout, end face circular runout, end face full runout, etc.
Measuring range: X=1000, Y=2000, Z=800mm;
Measurement accuracy: 3.0 + L/250 µm (L:mm)
Jiangsu Shuangzheng Machinery Co., Ltd., the three-coordinate is mainly used to measure the position, shape and position tolerance of finished products and semi-finished products, as well as the tooth shape, tooth profile and tooth direction deviation of teeth and gears.
Measuring range: X=1000, Y=2000, Z=800mm;
Measurement accuracy: 3.0 + L/250 µm (L:mm)
Jiangsu Shuangzheng Machinery Co., Ltd., the three-coordinate is mainly used to measure the position, shape and position tolerance of finished products and semi-finished products, as well as the tooth shape, tooth profile and tooth direction deviation of teeth and gears.
Imported advanced equipment is used to detect the depth of induction hardened layer on the surface of various steel materials (non-destructive testing)
Hard layer depth detection after rail heat treatment (no slicing, direct measurement)
Hard layer depth detection after rail heat treatment (no slicing, direct measurement)

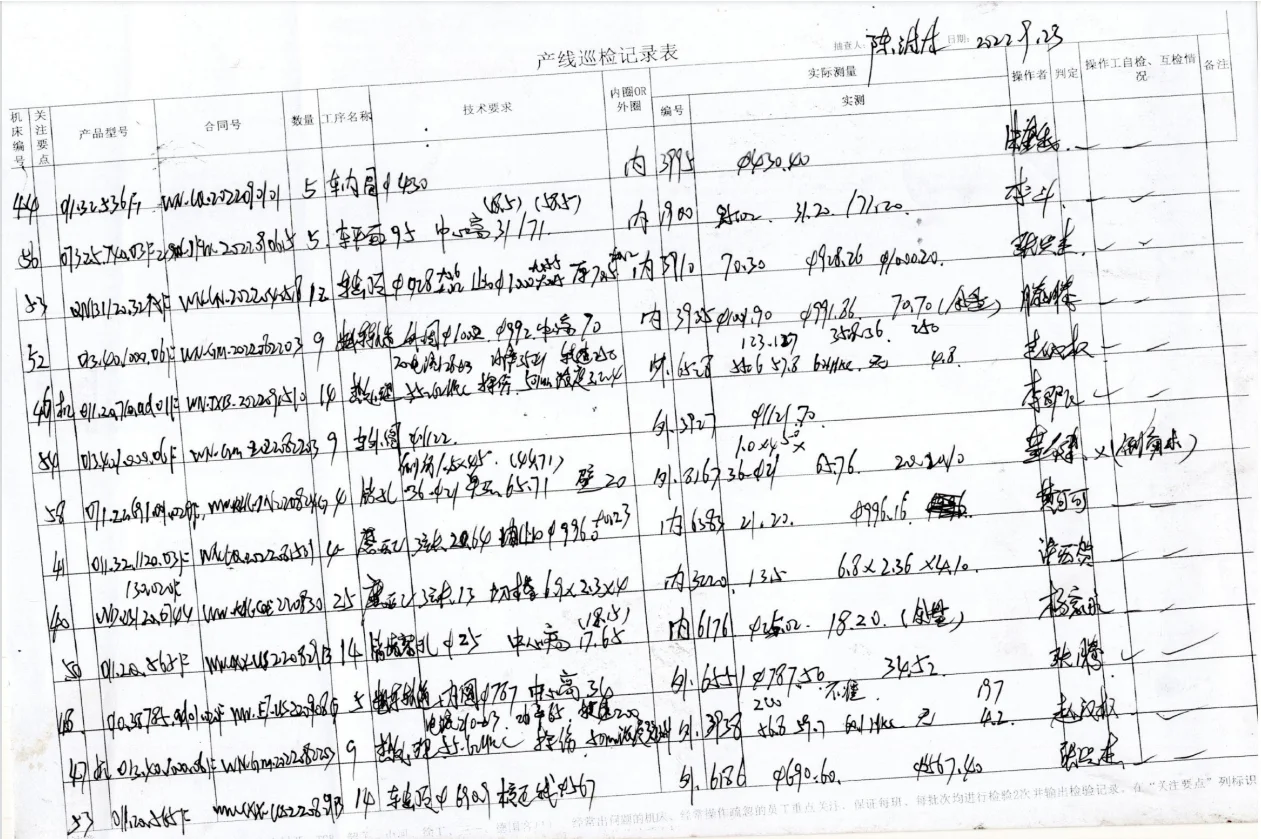

Traceable process inspection. From raw materials to in-process to final products, production process inspection (IPQC) is performed and recorded for each process. Thereby ensuring the reliability of each product.
Company Profile

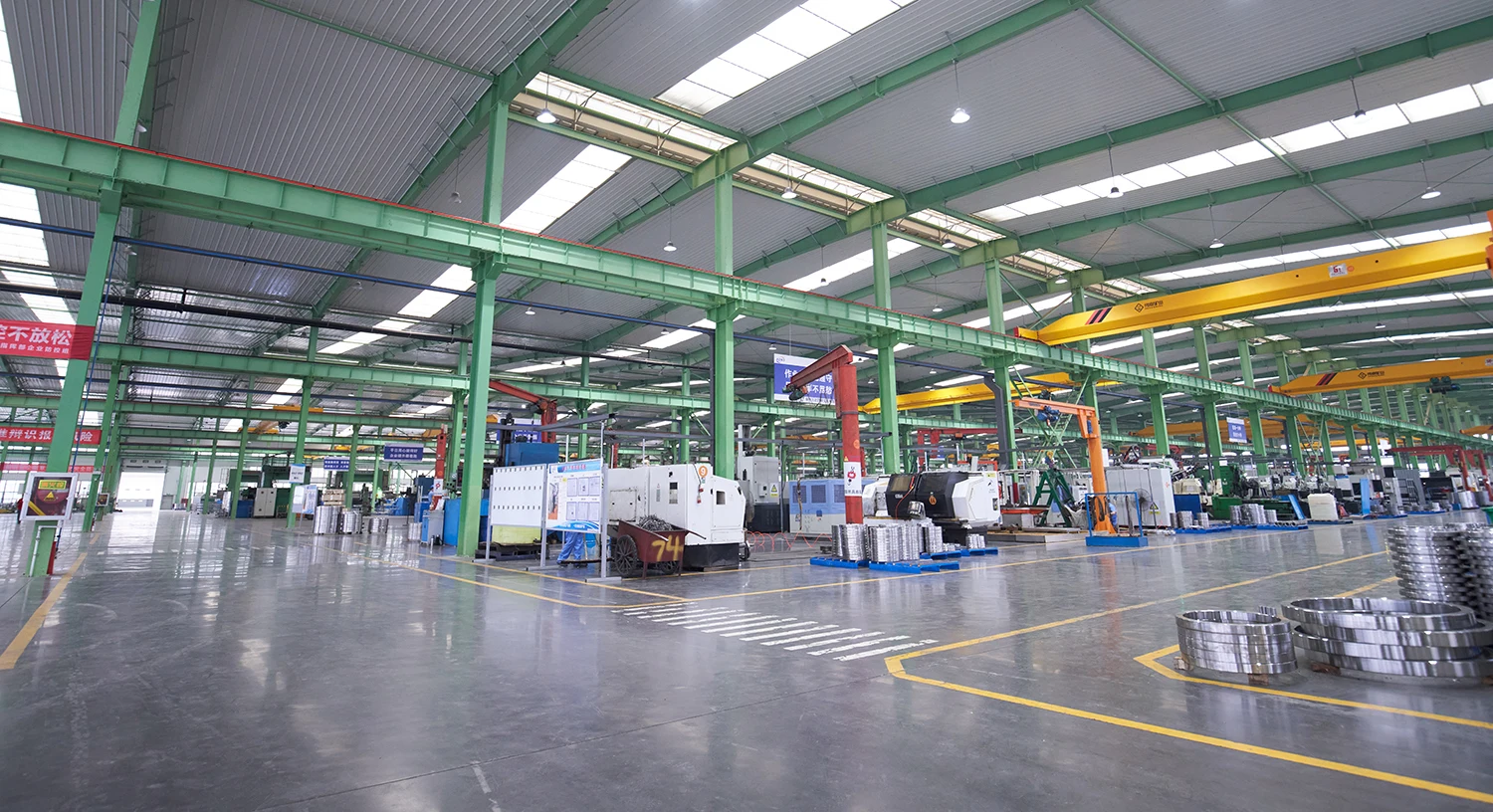

Jiangsu Shuangzheng Machinery Co.,Ltd. is specializing in standard and non-standard slewing bearing for many years. we supplied high quality product & good service to every end user and valued distributors all over the world.
Jiangsu Shuangzheng Machinery Co.,Ltd located in XUZHOU, we are proud of our designing team and our past achievements and continuous development, we are strongly motivated for the challenges to come. Adaptation to changes in the environment, we do have our own ability to customize varieties specific needs, we will do our best to provide you the most and unparalleled slewing bearing with competitive price, high quality and on-time delivery !
Our slewing bearings are ranging from 200mm to 5000mm, strongly motivated for the challenges to come. Adaptation to changes in the environment, we do have our own ability to there are nine (9) different sizes available from 3" to 25" with more than 60 models to meet both regular and precise tracking requirements in PV, CPV and solar thermal power tracking fields.

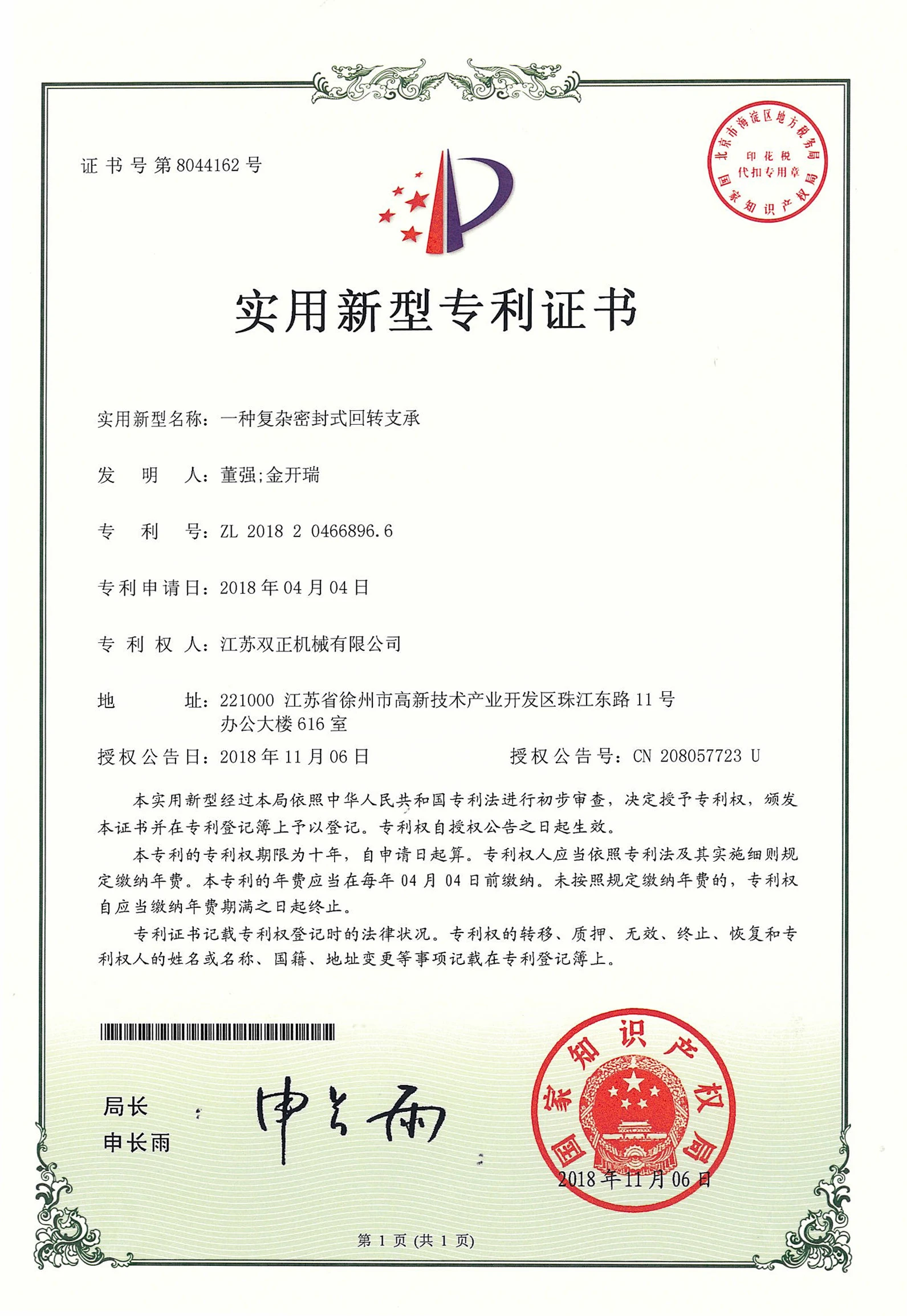

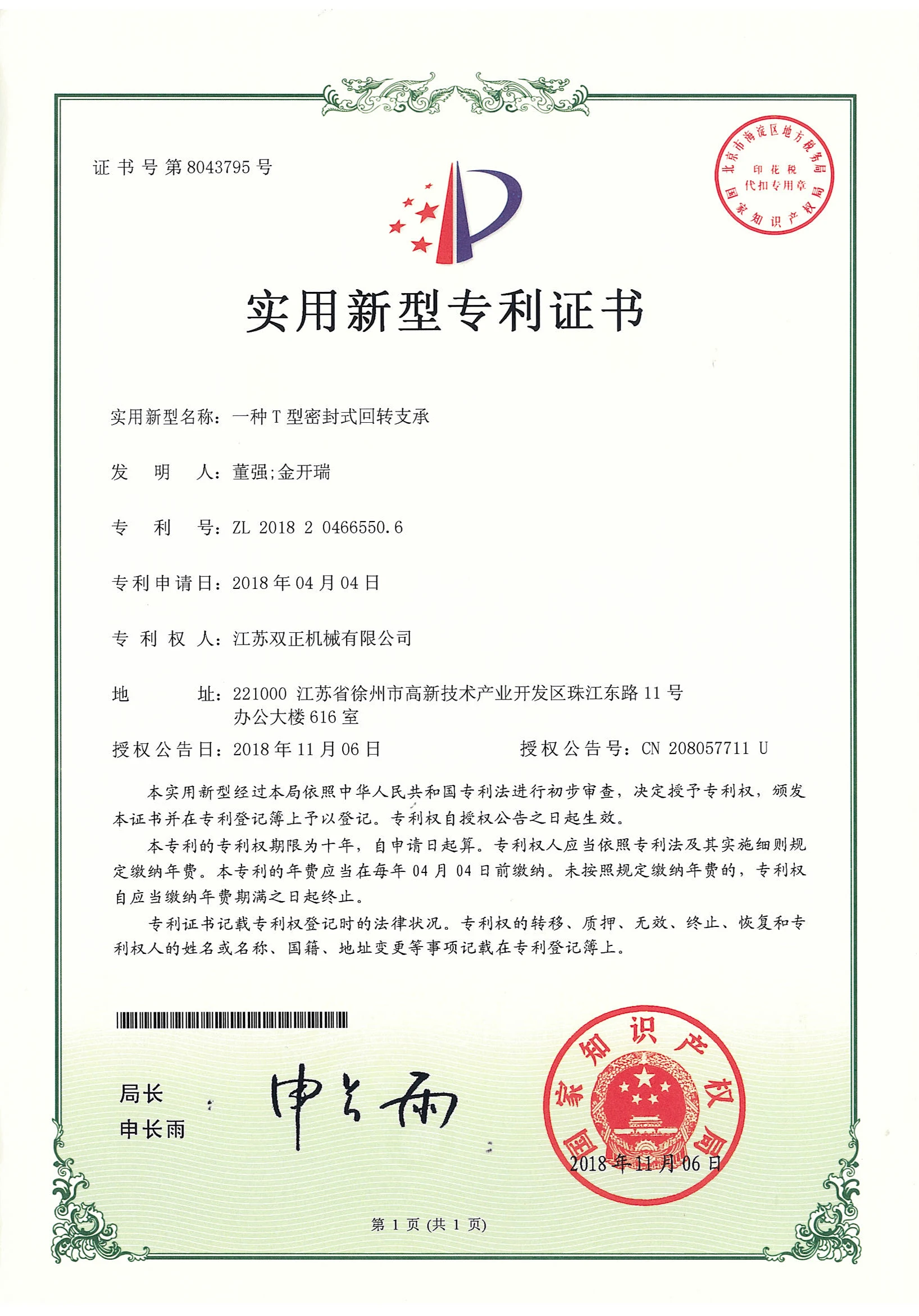

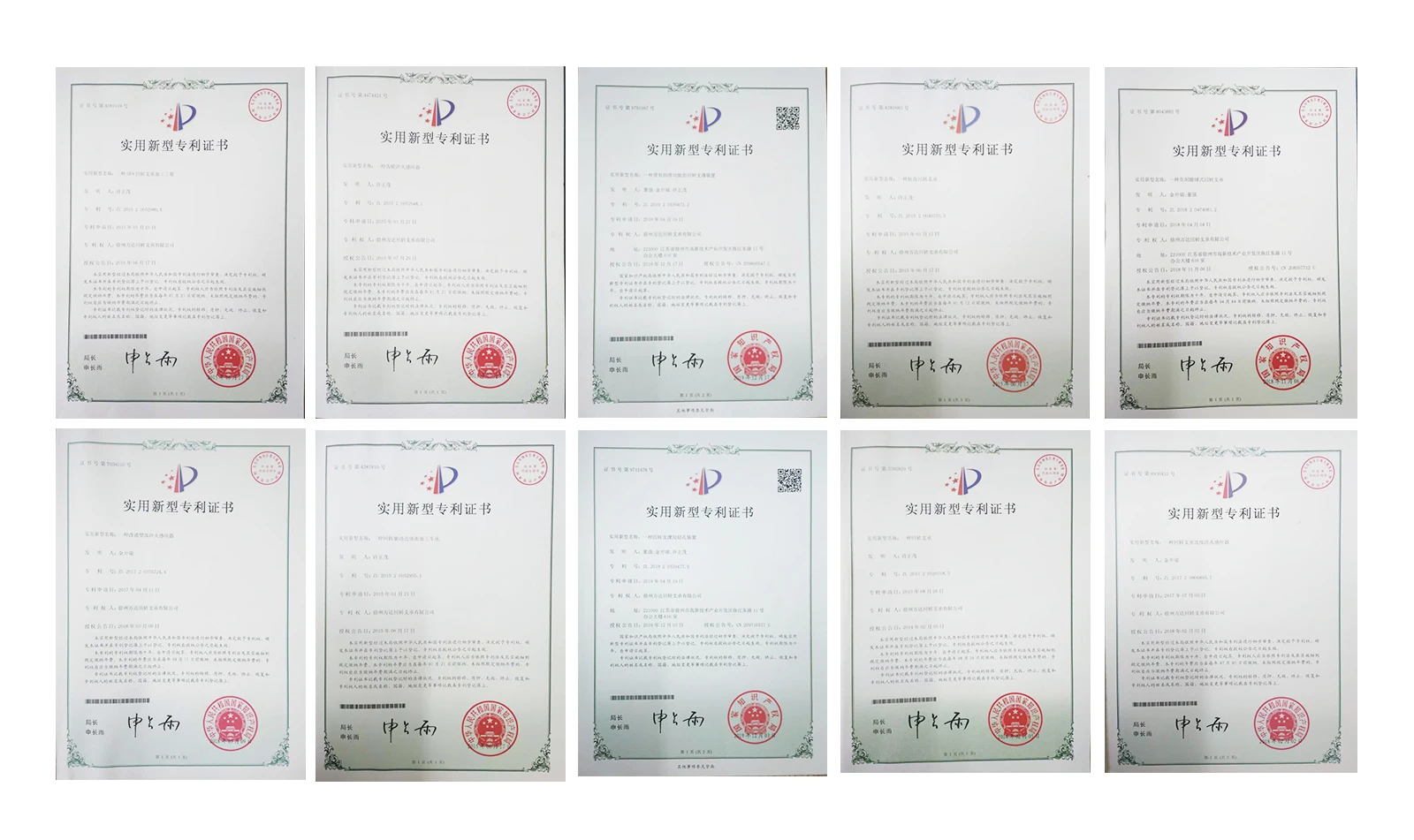

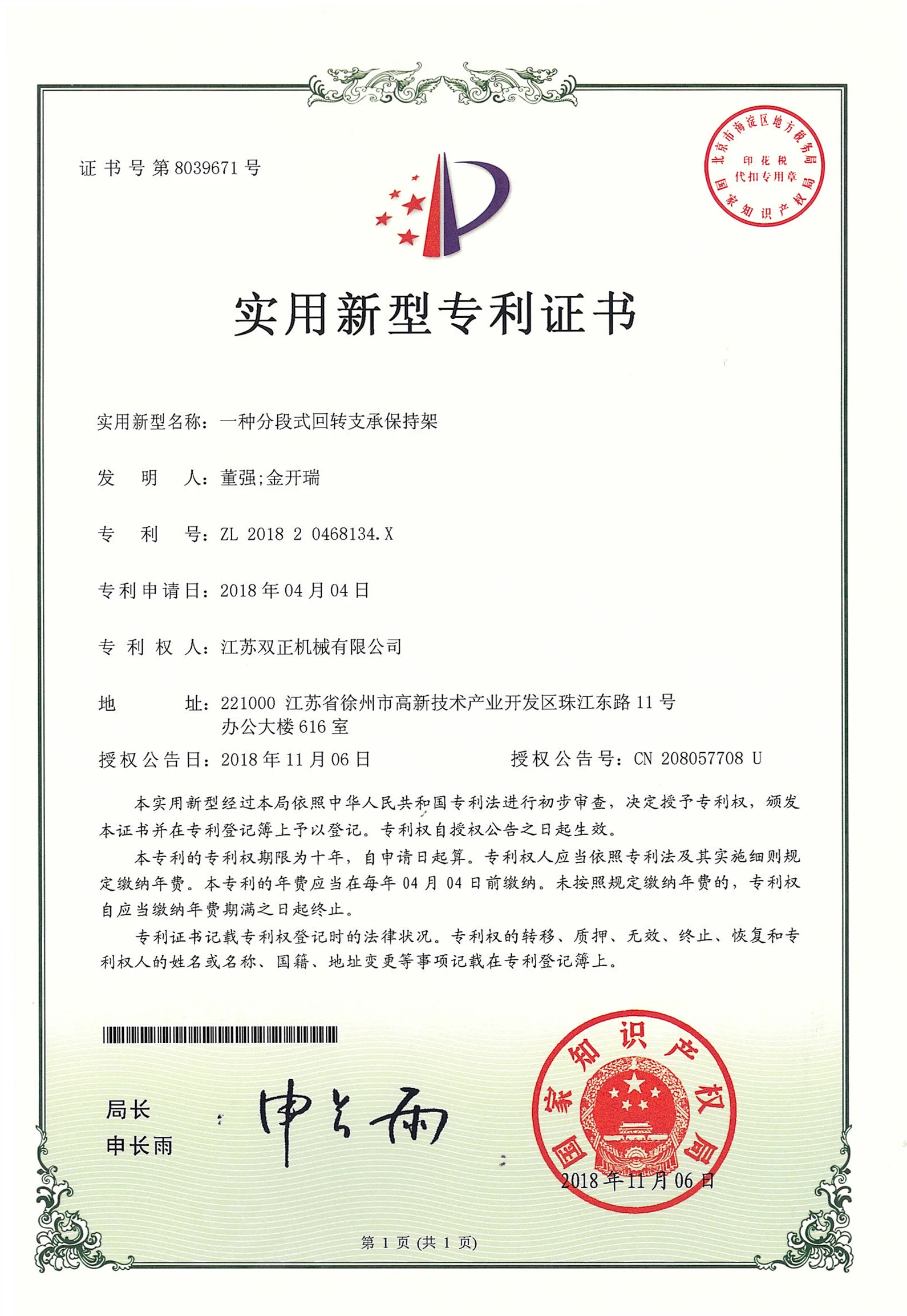

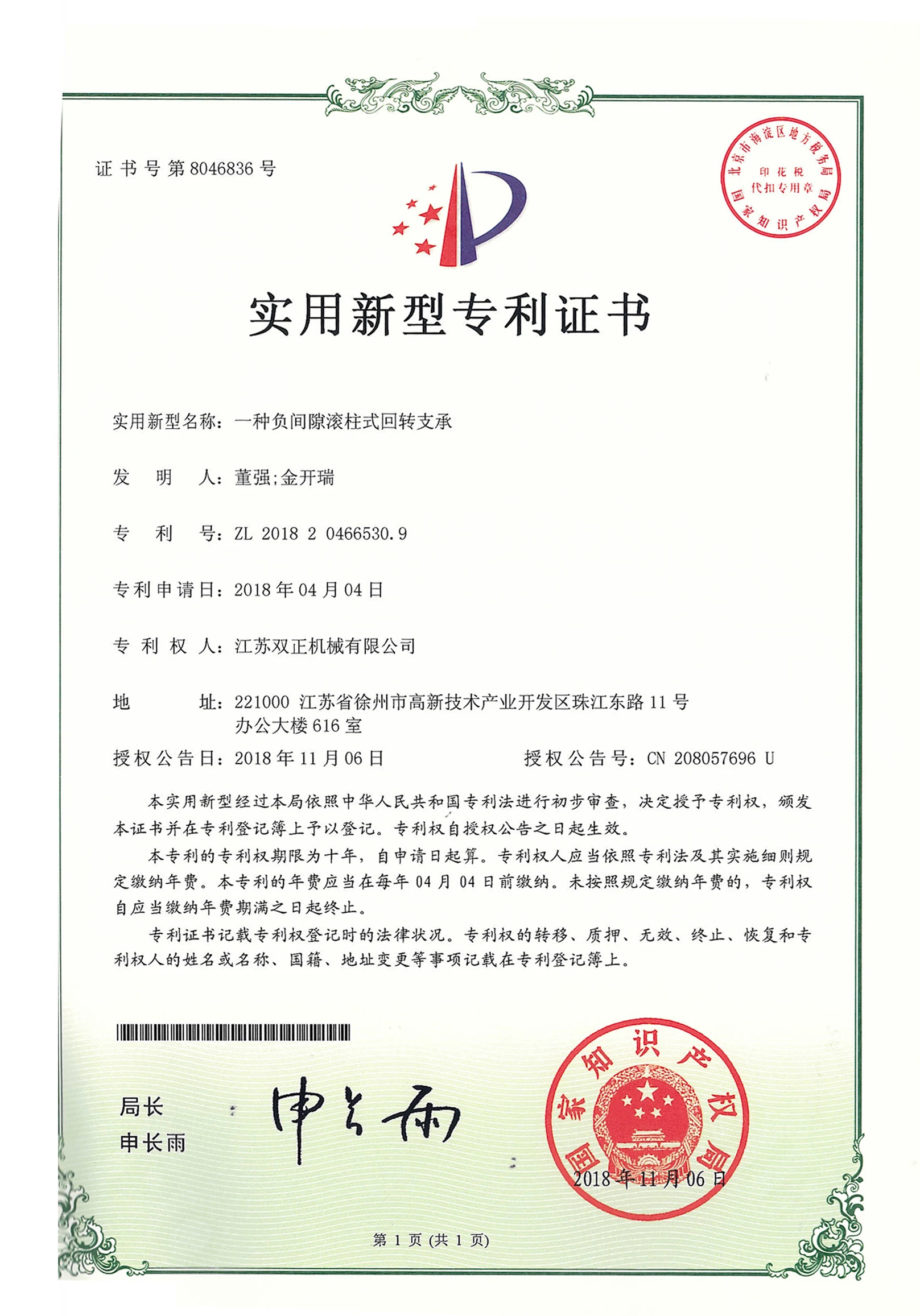

Patent
