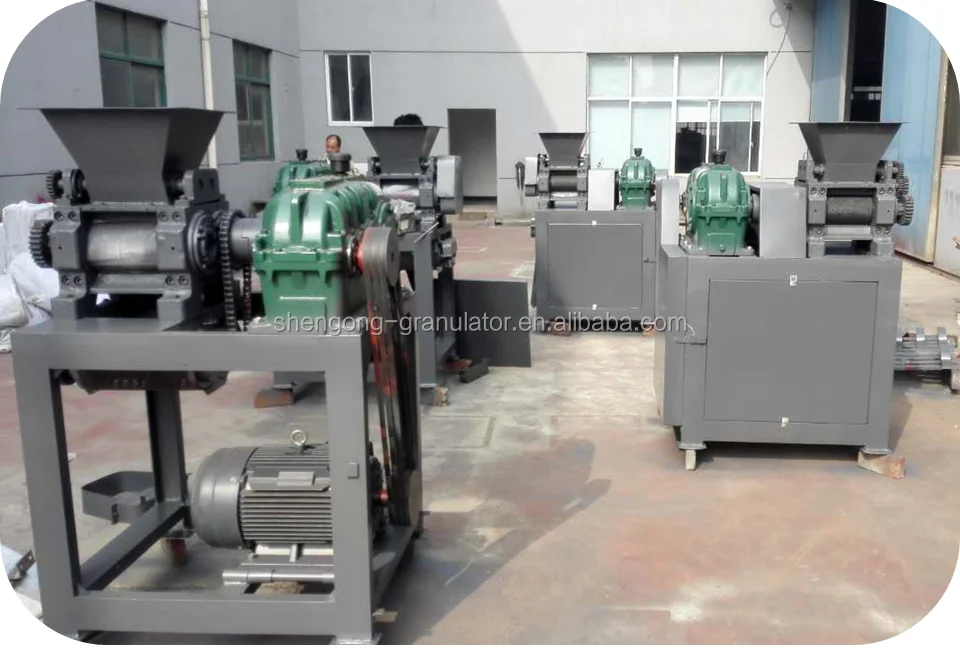

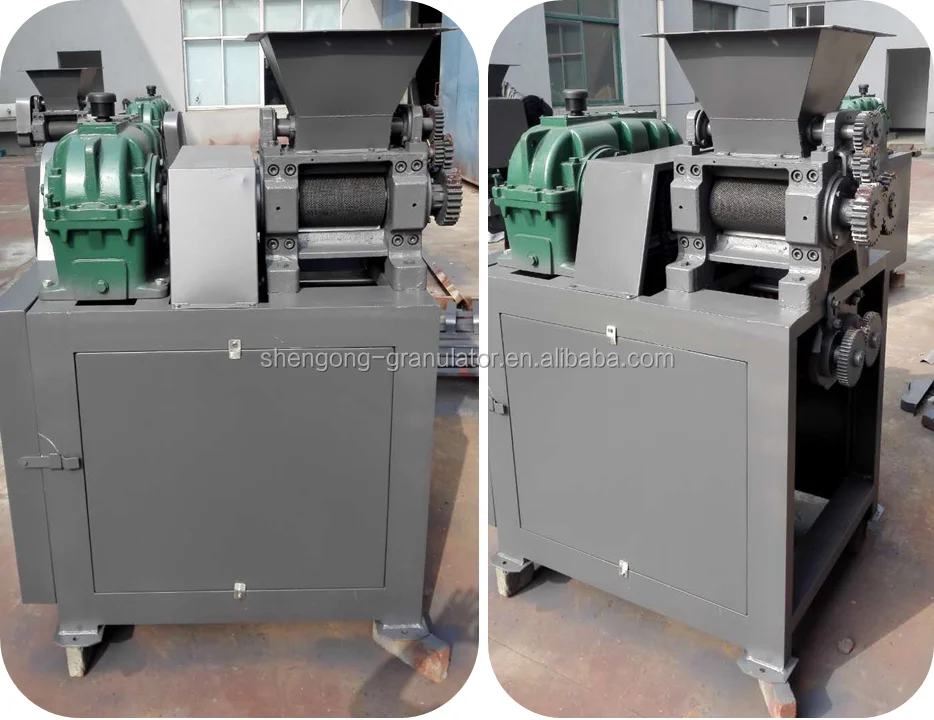

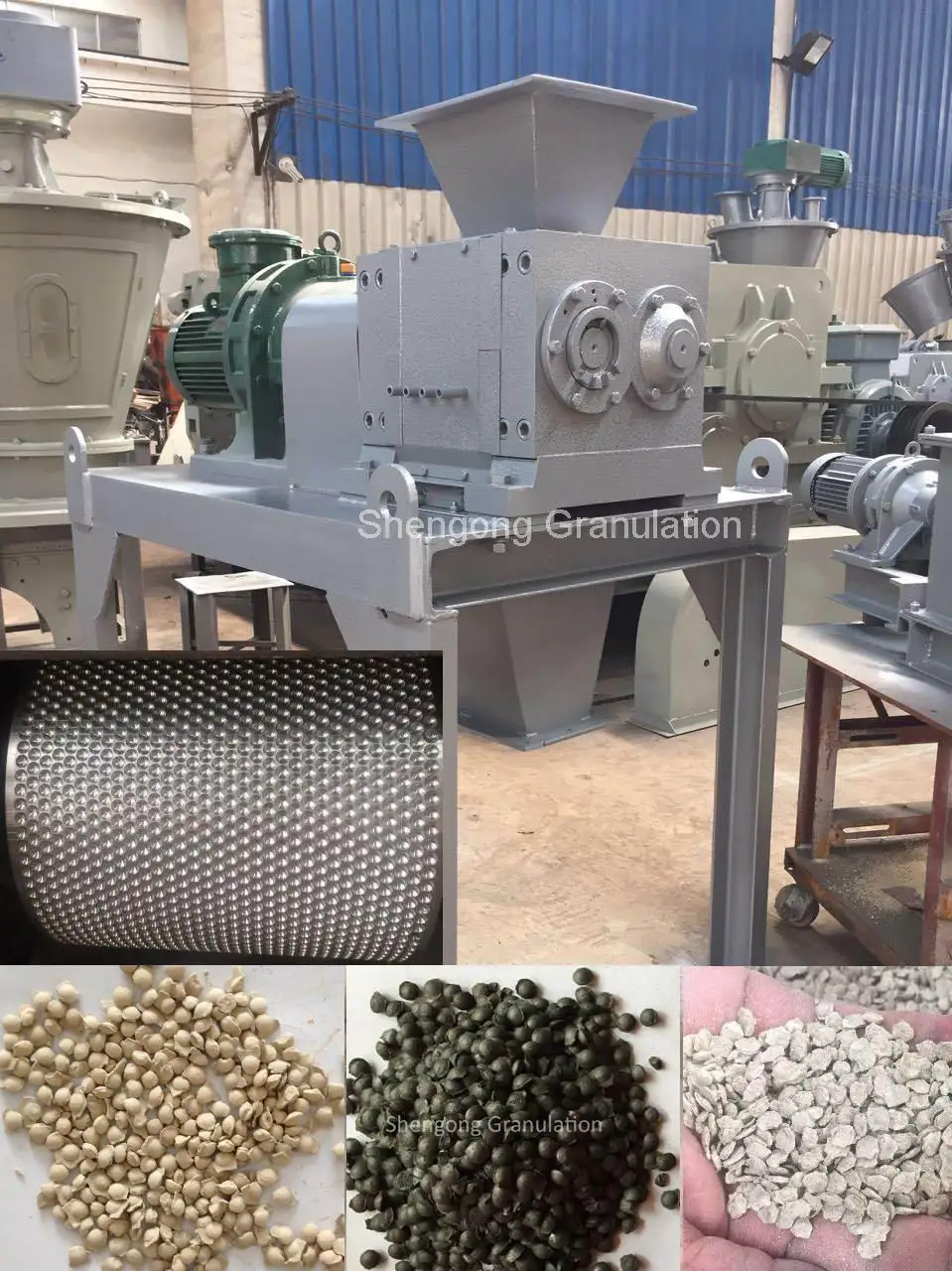

Organic and inorganic fertilizer powder double roller small dry granulator machine production line

Product Overview

Description

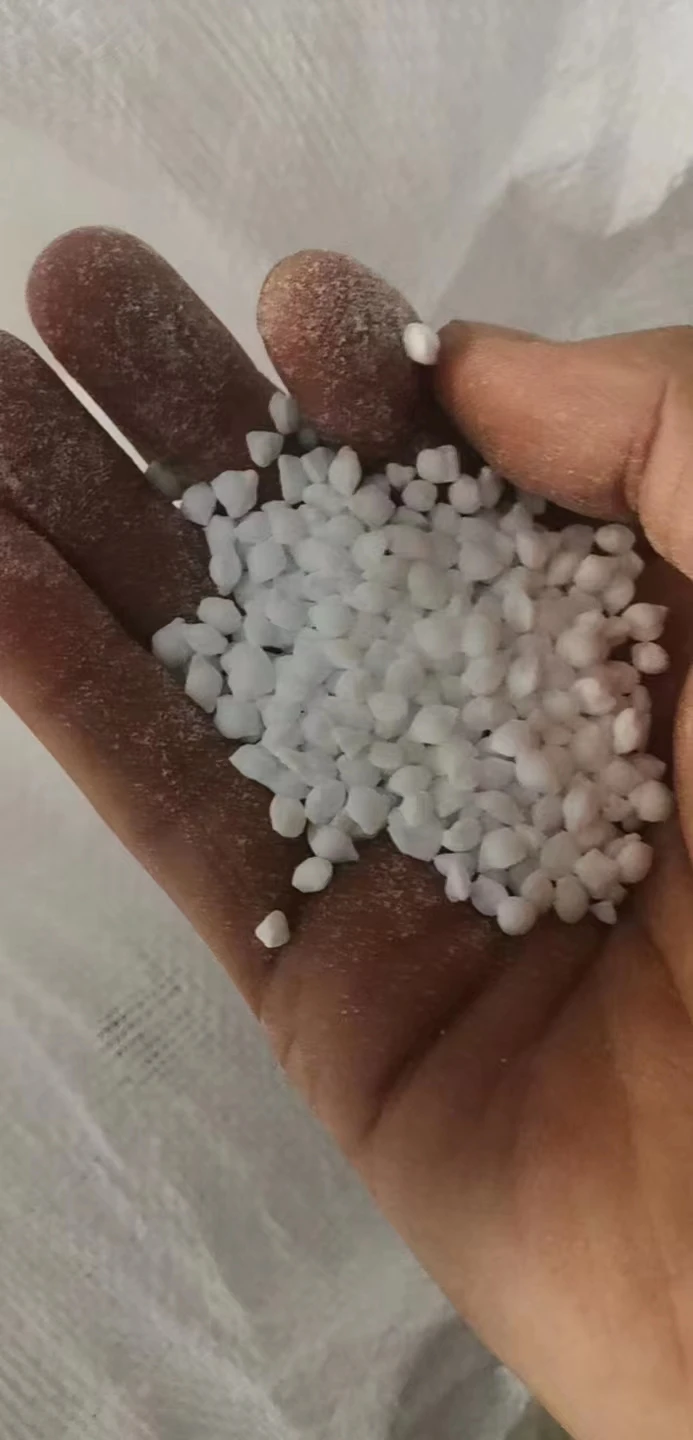

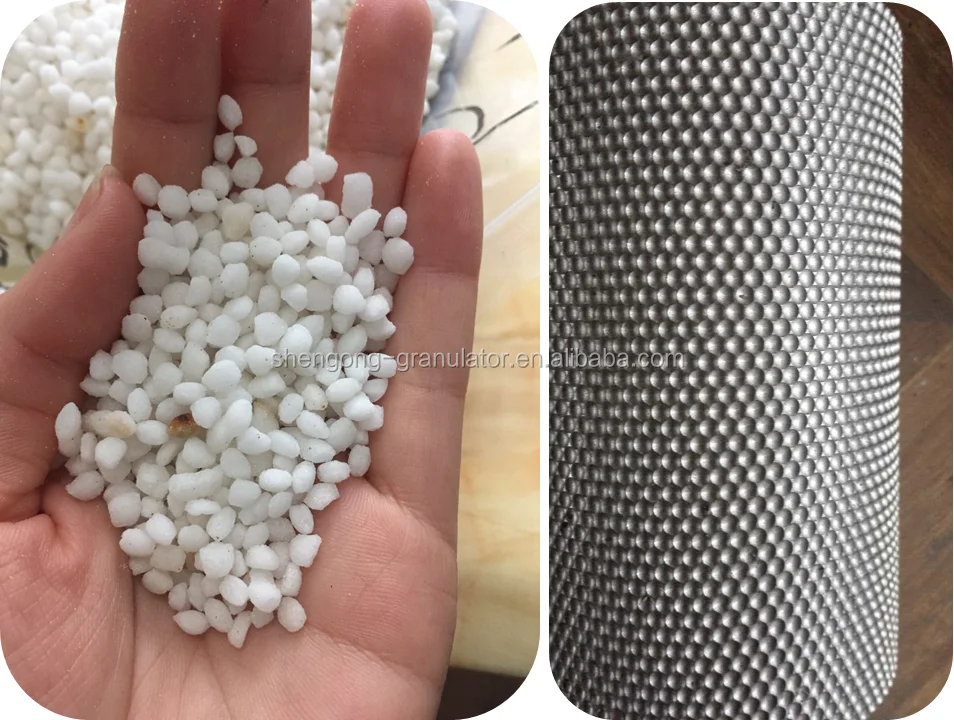

Ammonium sulfate final shape

How is the uniform shape produced?

The dry granulator adopts two rollers compaction. Between 2 rollers, there is a gap.  In the surface of the roller, it is profiled with plenty of die cavities. Feedstock (powders) is fed into the gap between two rollers by gravit and anti-caking device. With rotating in reverse of two rollers, powder are compacted into final granules directly. Powder in granules will be screened finally.

Double roller granulator technical parameter:

a).roller diameter: 136mm

b). roller width: 200mm
c). roller gap: regulable
d). power: 15kw
e).dimension (L×W×H) :1200*830*1400mm.
f).weight: 600kg
g). final granules output: 800-1200kg/h
h).final granules size: 4 or 5mm
i). granule shape: uniform

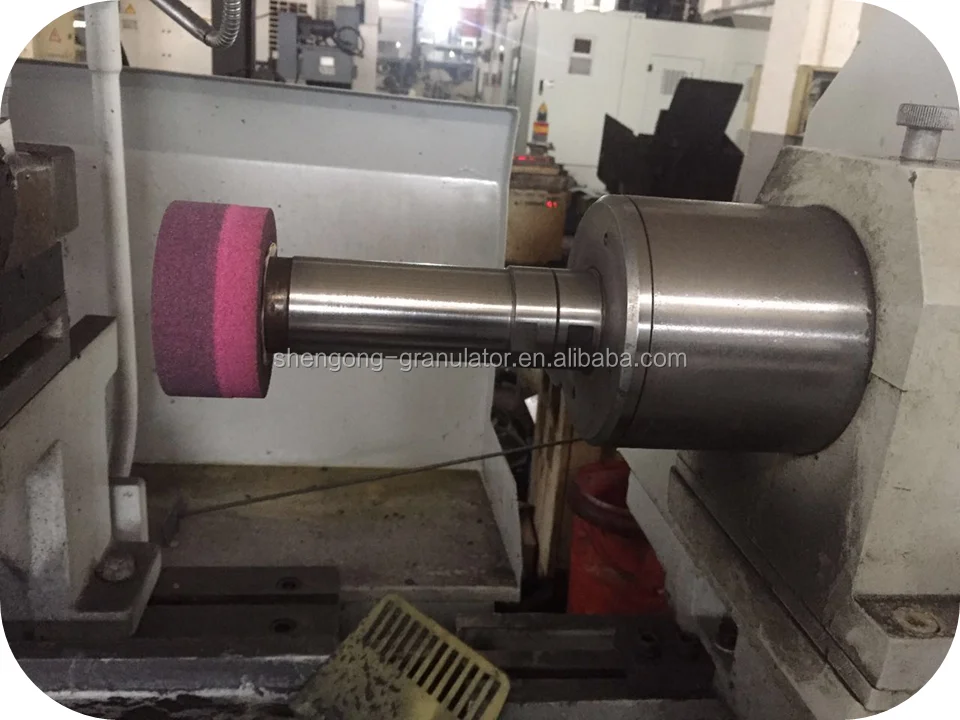

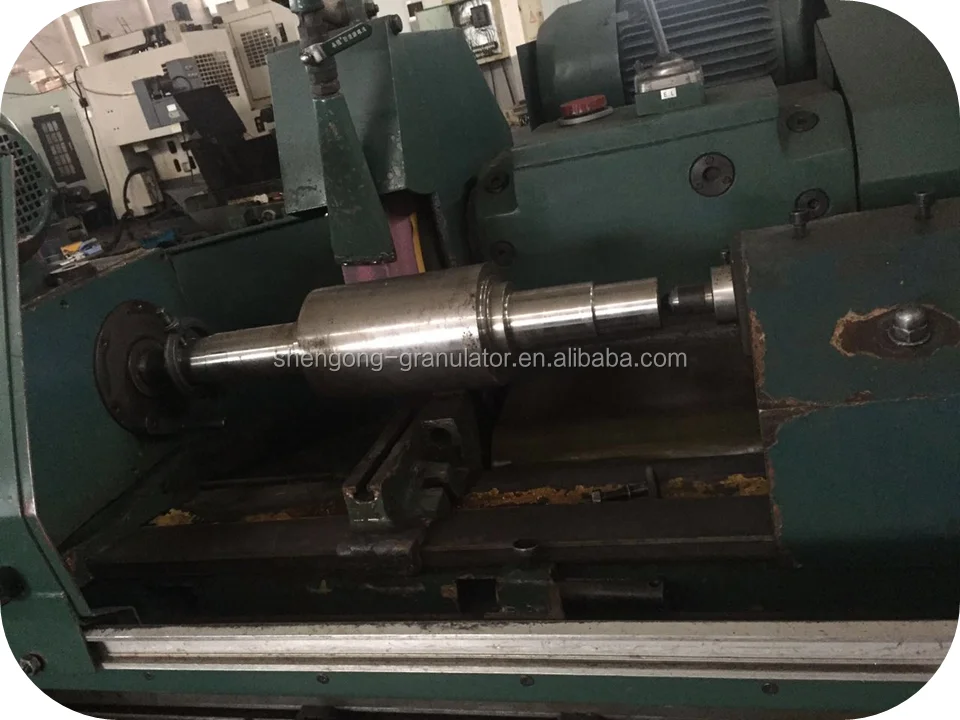

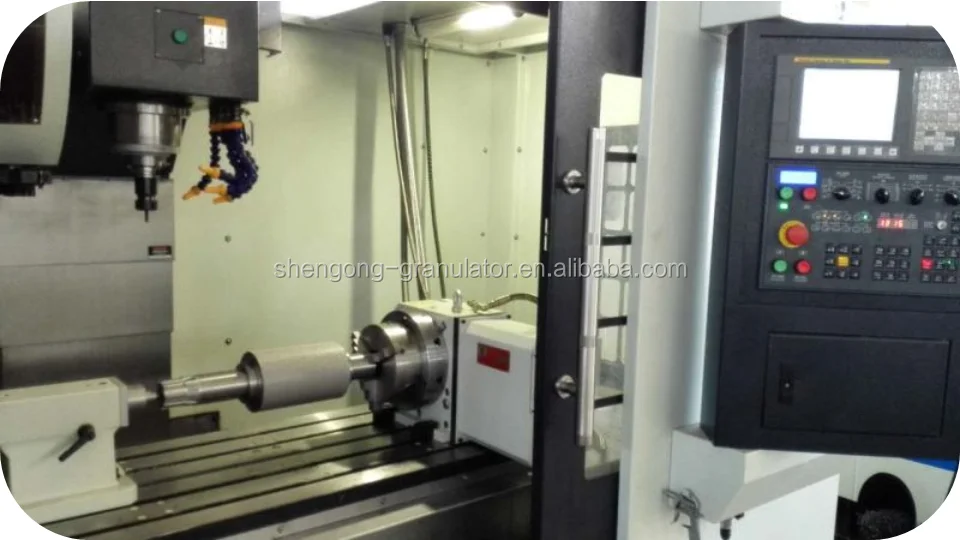

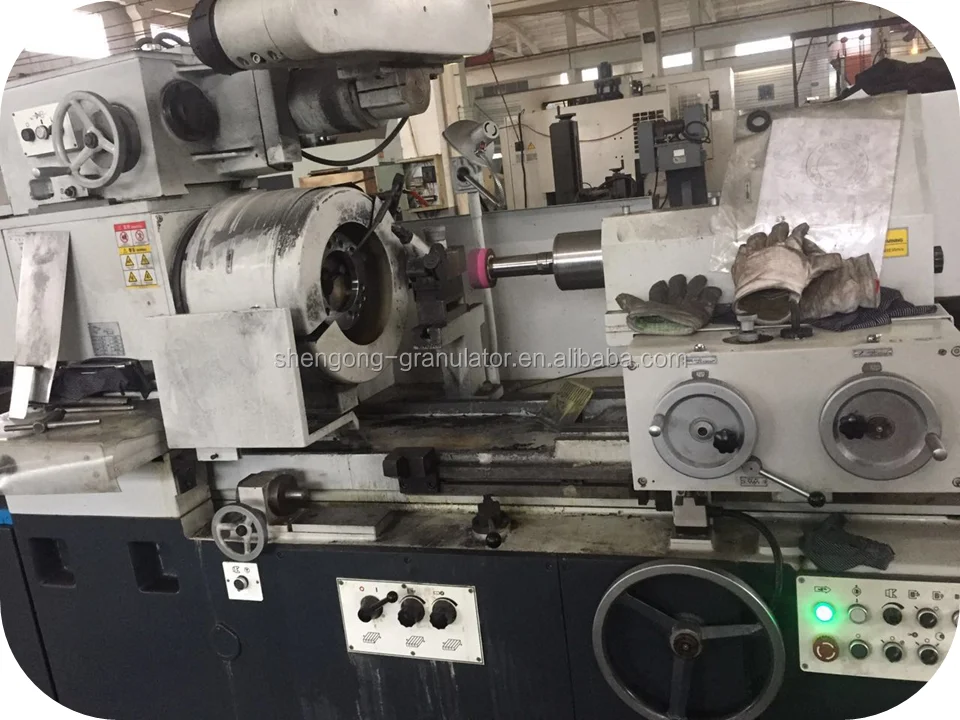

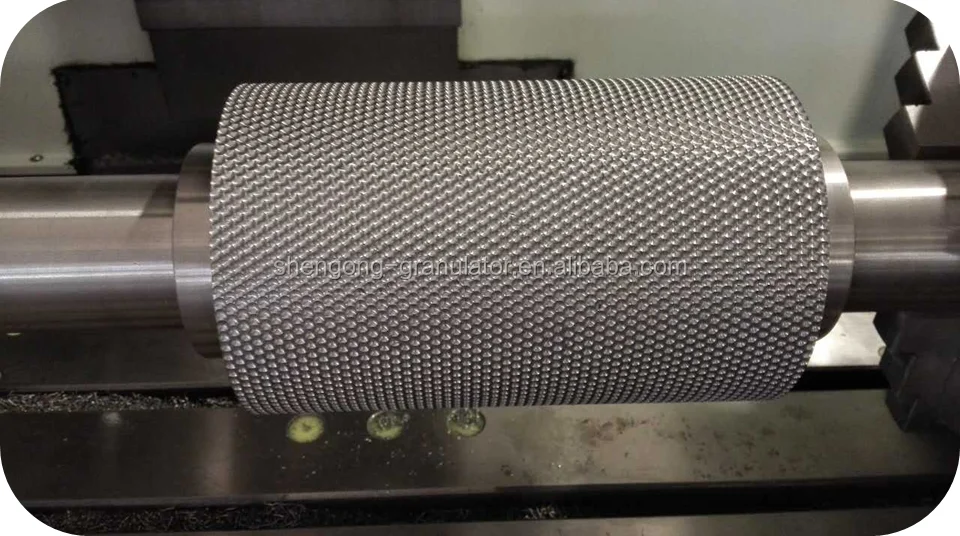

Rollers

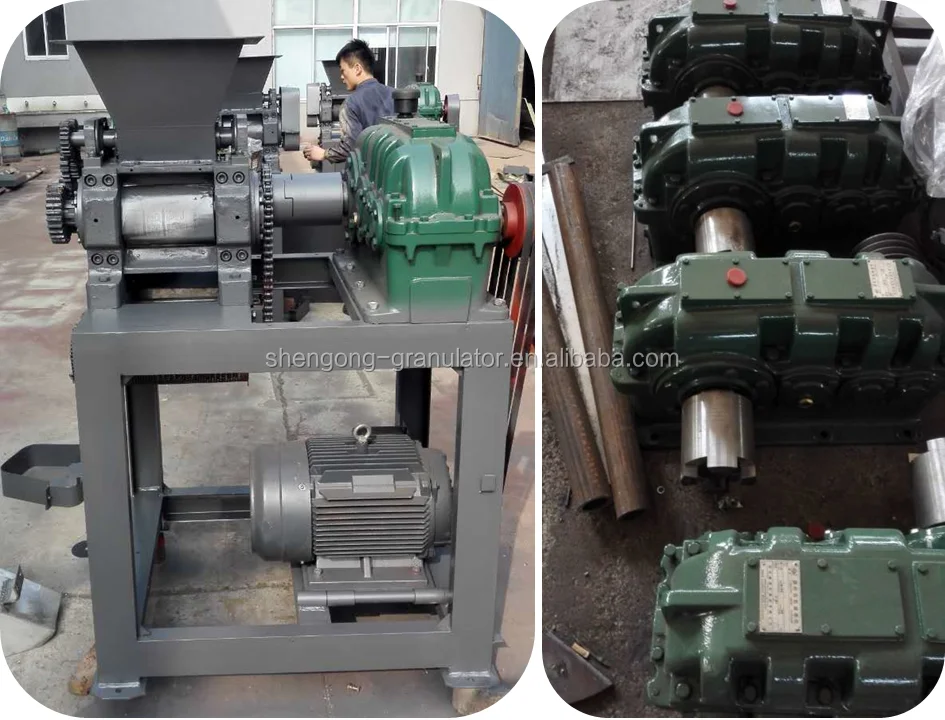

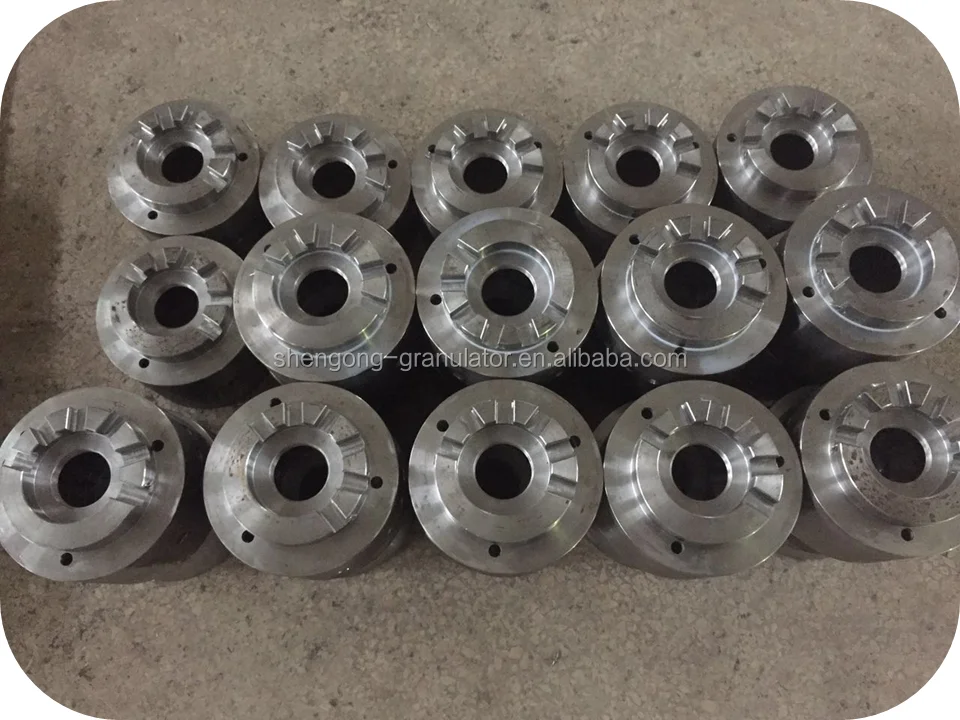

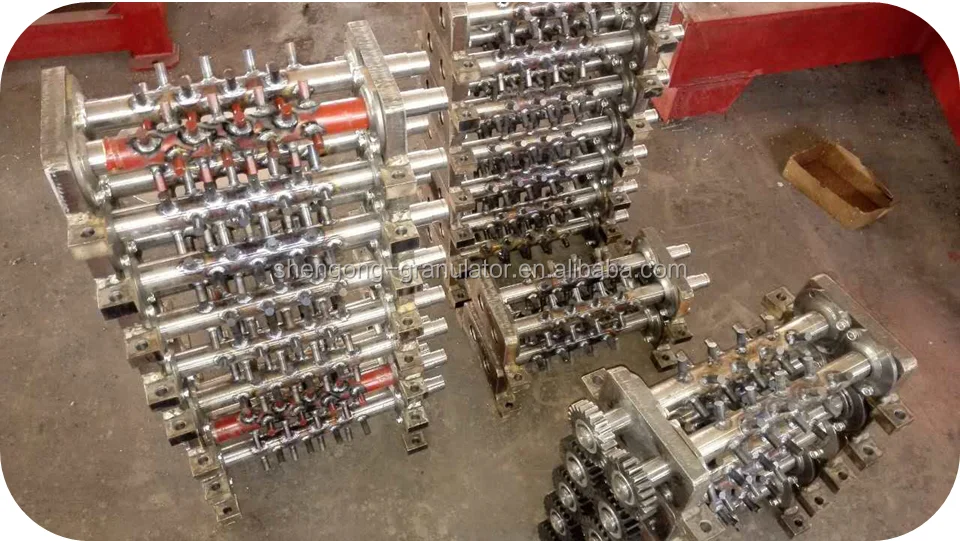

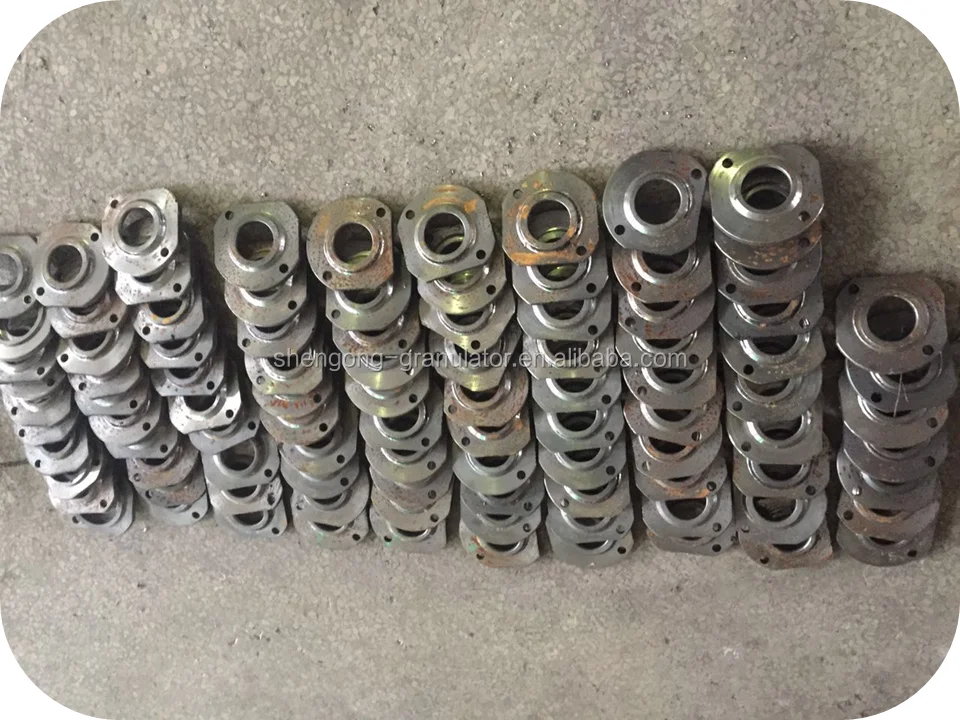

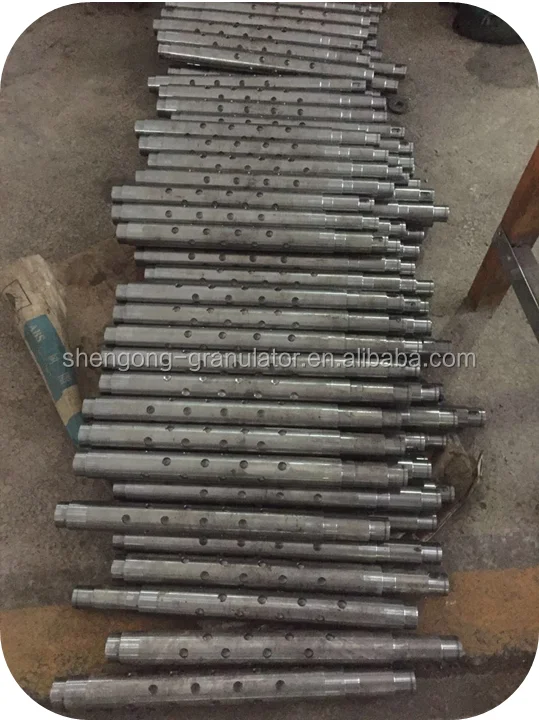

Parts on double roller granulator

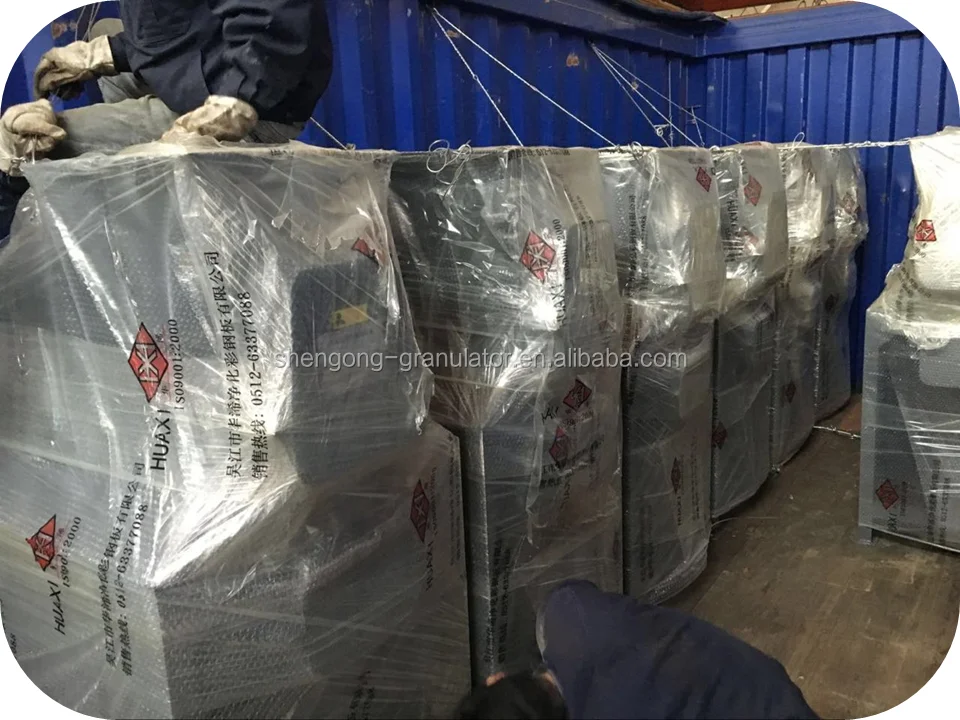

Double roller granulator and its peripheral equipments are being loaded in one 40ft. container

More information are available on Youtube "Briquetting & granulating by compaction".
