Product Overview

Description



Product Description

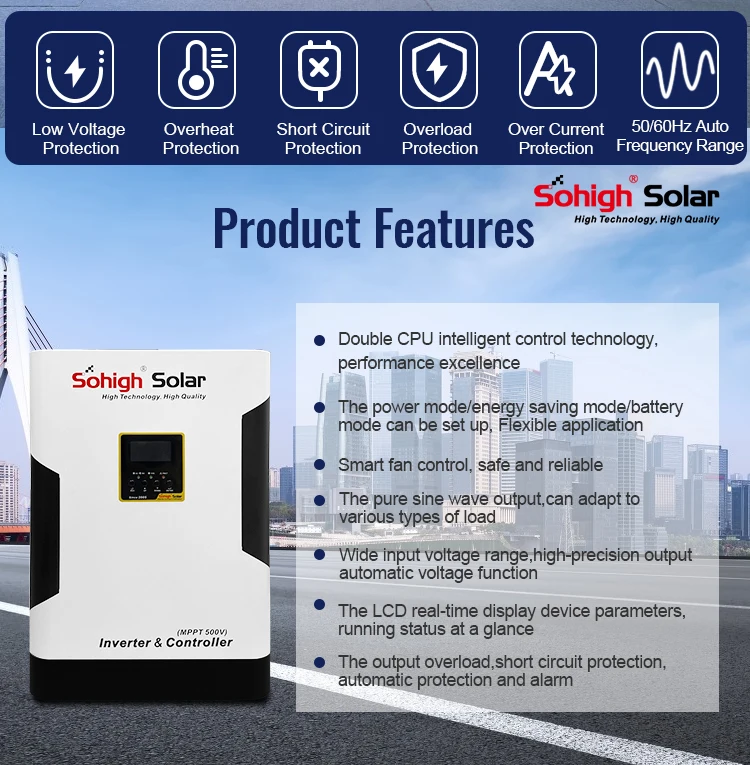

Feature of solar inverter
The hybrid inverter series all in one solar system is the perfect go-to solution for off-grid,backup power for homes,small business,and it also delivers a value added,easy to install system that provides efficient power globally for every need.




Model
Sohigh Off Grid 2KVA
Sohigh Off Grid 3KVA
Sohigh Off Grid 3.5KVA
Rated Power
2KVA(1500W)
3KVA(2400W)
4KVA(3000W)
Parallel Capability
No
No
No
Work without Battery
No
No
No
INPUT
Voltage
12VDC
24VDC
Voltage Range
176-280 VAC at 100% load110-280 VAC at 50% load
Frequency Range
50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode)
220VAC~230VAC
Surge Power
3000VA for 5 sec
4800VA for 5 sec
6000VA for 5 sec
Efficiency(Peak)
>95% ( Rated R load, battery full charged）
Transfer Time
10ms typical (UPS)
20ms typical (Appliances)
Waveform
Pure sine wave
BATTERY
Battery Voltage
12 VDC
24 VDC
Floating Charge Voltage
13.5 VDC
27 VDC
Overcharge Protection
16 VDC
32 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type
MPPT
Maximum PV Array
Open Circuit Voltage
430 VOC
Max PV Charge Current
80A
Maximum PV Array Power
200W
3000W
3000W
MPPT Range Operating
Voltage
90V-430VDC
120-450VDC
Maximum AC Charge
Current
60A
PHYSICAL
Communication (Additional)
RS232/GPRS/Wifi
Humidity
5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
0℃ to 55℃
-10℃ to 50℃
Storage Temperature
-10℃ to 60℃
-15℃ to 60℃
Weight (kgs)
6.5


Noted
1.The appearance and price of the product link corresponding to the product link are not displayed in details.
2.Appearance and color random.
Model
Sohigh Off Grid 3K(Pro)
Sohigh On-Off Grid 4K
Sohigh On-Off Grid 7K
Sohigh On-Off Grid 6P
Rated Power
3KVA(2400W)
4KVA(3500W)
7KVA(5500W)
6KVA(5000W)
Parallel Capability
No
No
No
Yes, up to 6 units
Parallel Mode
No
No
No
Yes, Single phase or Three Phase (Flexible)
Work without Battery
No
Yes
Yes
Yes
INPUT
Voltage
24VDC
24VDC
48VDC
48VDC
Voltage Range
176-280 VAC at 100% load 110-280 VAC at 50% load
Frequency Range
50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode)
220~230VAC / 110~120VAC (Optional)
Surge Power
4800VA for 5 sec
7000VA for 5 sec
11000VA for 5 sec
10000VA for 5 sec
Efficiency(Peak)
>95% ( Rated R load, battery full charged）
Waveform
Pure sine wave
BATTERY
Battery Voltage
24 VDC
48 VDC
Floating Charge Voltage
27 VDC
54 VDC
Overcharge Protection
32 VDC
64 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type
MPPT
Maximum PV Array Open Circuit Voltage
120 VOC
500 VOC
Maximum PV Array Power
1500W
5000W
6000W
5000W
Maximum PV Charge Current
60A
100A
100A
80A
MPPT Range Operating Voltage
60-115VDC
120-450VDC
Maximum AC Charge Current
60A
PHYSICAL
Communication (Additional)
Removable OTG USB/RS232/RS458/BLE/Dry-contact,BMS interface
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
'0℃ to 55℃
'-10℃ to 50℃
Storage Temperature
'-10℃ to 60℃
'-15℃ to 60℃
Humidity
5% to 95% Relative Humidity(Non-condensing)






Related Products




Certifications

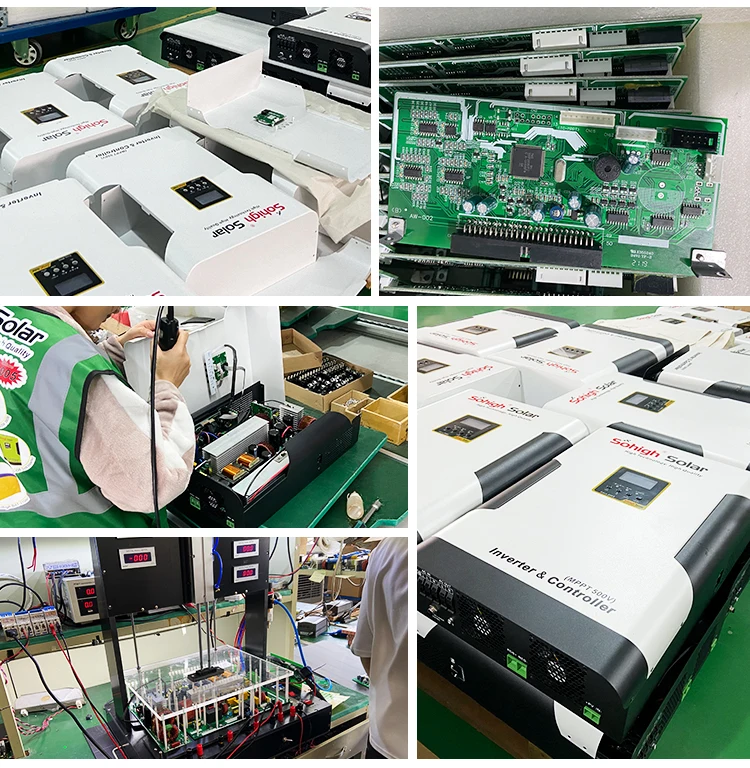

Factory




Product packaging




Global Projects




Customer Photos




FAQ


1.Q: How to install and use the solar inverter?
A: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.

2.Q: Can you get the the solar inverter customized for us ?
A: Of course, brand name, machine color, designed unique patterns available for customization.

3.Q:How to become your agent?
A:Contact us through Alibaba, we will give you the best price and look forward to your greetings

4.Q:Do you have your own factory?
A:Yes, we are professional manufacturer mainly in power inverter for many years. Our factory is located in Guangdong, China.

5.Q:What kind of certification you have?
A:ISO9001,CE,ROHS and so on.

6.Q:Where we can use the system?
A:You can use the system for home, for power station, for lighting system and so on, where the grid power is expensive.

7.Q:How about your warranty?
A: We provide 1.5 and 5 years warranty for different products and whole life technical support.

8.Q:How to do the installation?
A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.
