Сельскохозяйственная машина Водонепроницаемая цепь клавиатуры мембранный переключатель клавиатуры для ремонта

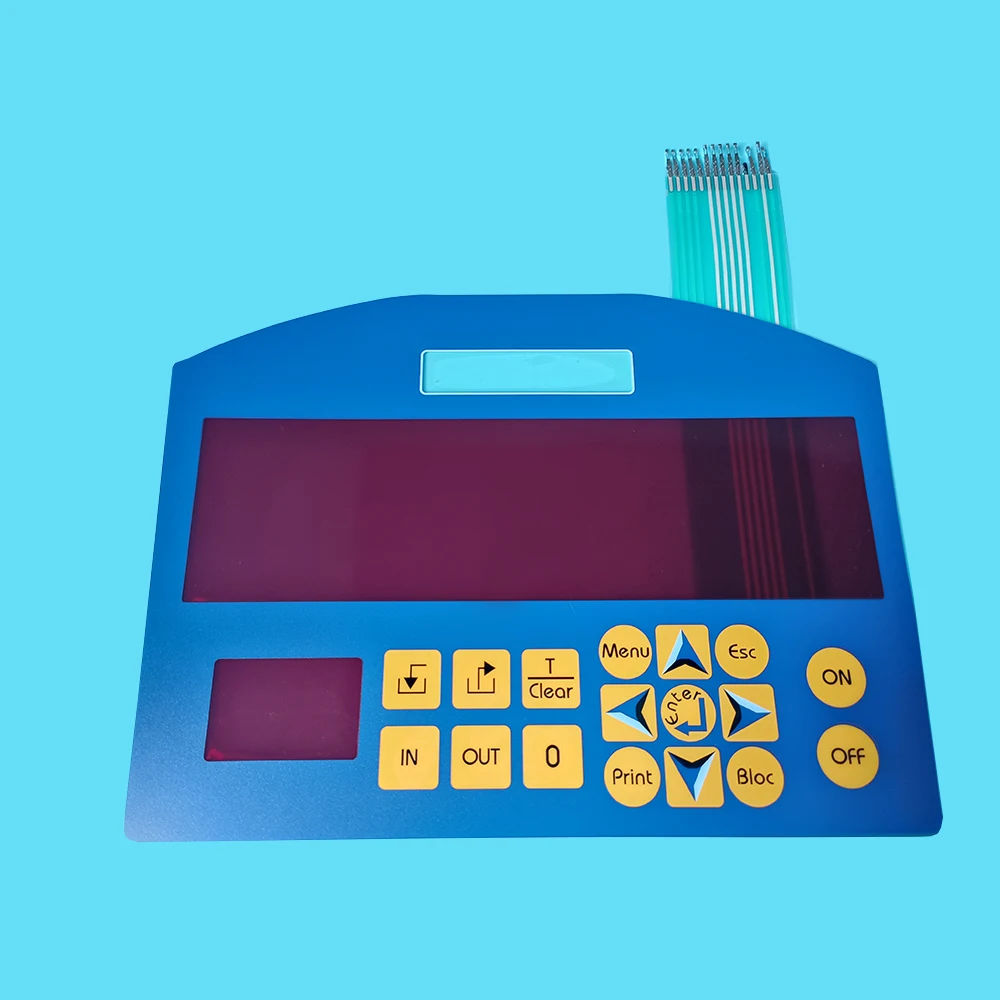

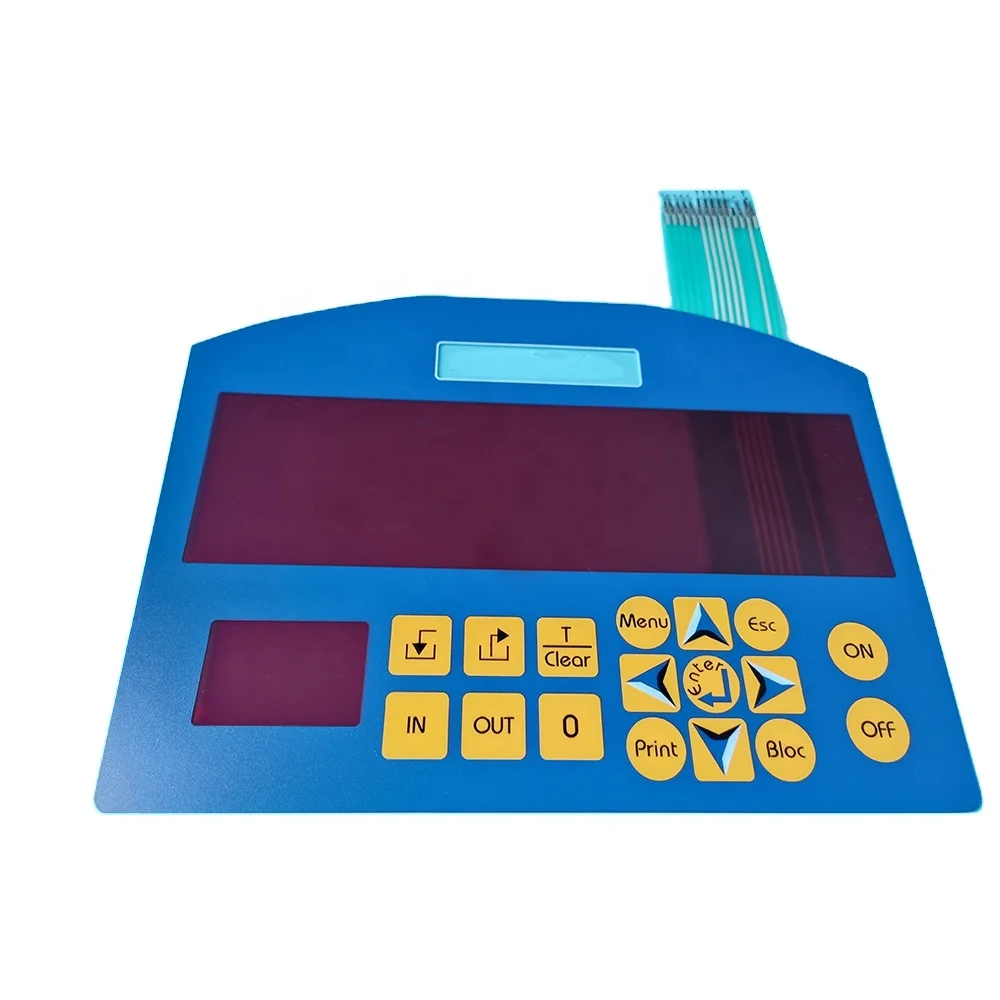

Custom Agricultural Tactile Membrane Keyboard With LCD Display

The graphic overlay indicates the location of the keys and is the esthetic component of the keypad or device. MBR selects the best inks and most appropriate materials to manufacture them. Graphic overlays, which are particularly necessary for membrane switches, are also useful for instruments with mechanical keys, product identification, labels, and dashboards.
The image is silk screened and placed behind a transparent surface, ensuring permanent identification.

Materials:

Finishes:

Embossing:

Graphic overlays can be embossed in order to insert domes (tactile), leave space for mechanical keys and provide tactile indications.
Pedestal embossing
Rim embossing
Pillow embossing
Dimple embossing : Braille

Windows:

1.Graphic Overlay – PET/PC is usually the material of choice due to its superior chemical resistance and flex life . MEIBORUI can either digitally print, screen-print, or employ a combination of both methods to ensure you get the right colors, textures and finishes your design requires.
2.Overlay Adhesive – This adhesive layer bonds the graphic overlay to the top circuit layer, and is typically an acrylic adhesive. The material is same as the fourth layer. Only the thickness will be different according to the physical truth.
3.Top Circuit Layer – The material of this layer is special. This is a 0.1mm heat stabilized PET printed with silver-filled electrically conductive inks and also dielectric inks, which used for fastening metal domes.
4.Circuit Spacer – This layer separates the top circuit from the bottom circuit so the switch remains normally open until the keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides.
5.Lower Circuit Layer – This layer is a 0.1mm--0.25mm heat stabilized polyester printed with silver-filled electrically conductive inks and also dielectric inks. This layer terminates as a flexible tail that serves as the interconnect to controller PCBs or other electronics.

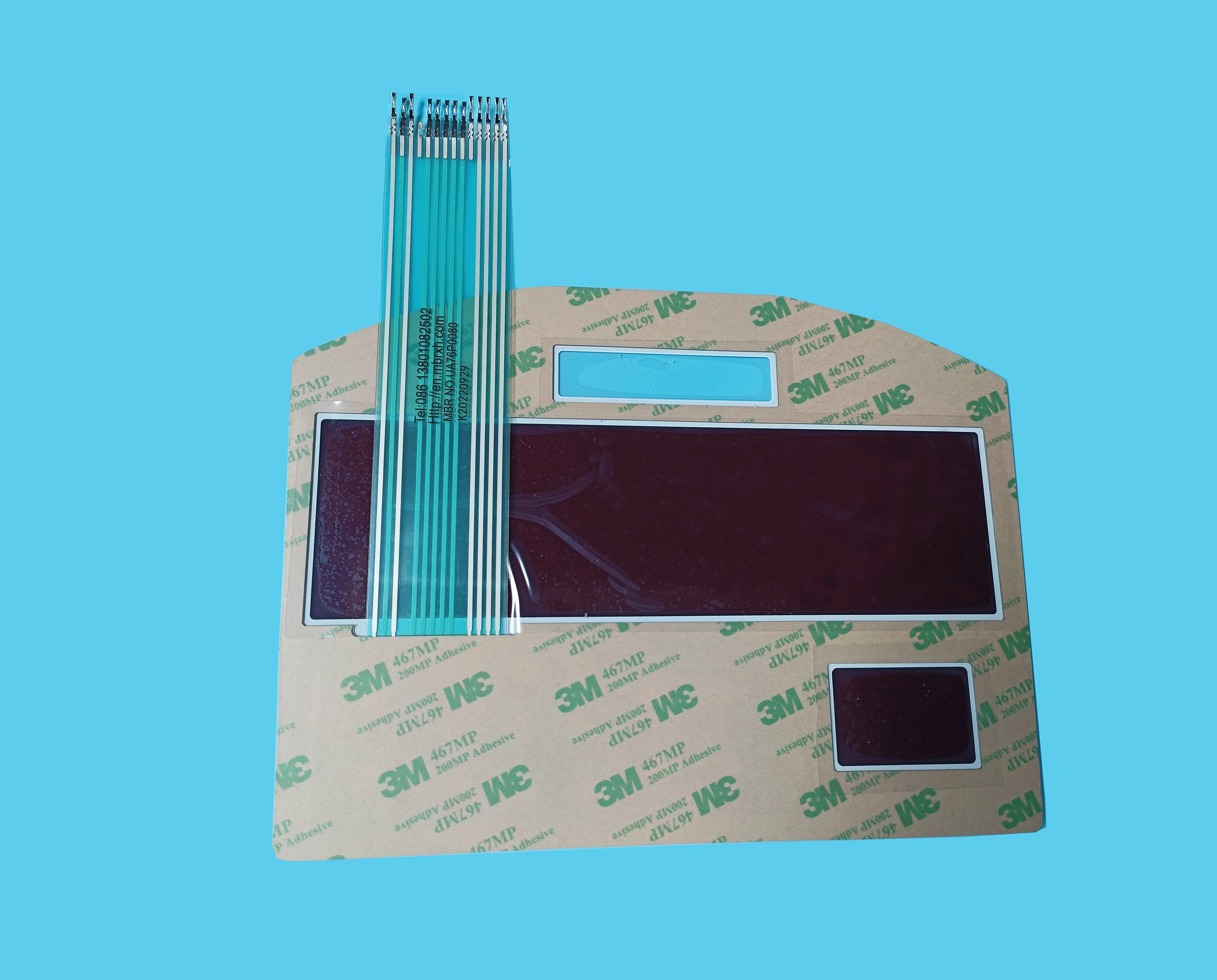

6.Rear Adhesive Layer – This adhesive layer bonds the entire membrane switch package to the product enclosure, housing, or to a rigid support panel. MEIBORUI can specify the appropriate adhesive type and thickness to bond your membrane keypad to your equipment.

Chinese products wholesale custom push button membrane switches

Custom OEM high quality momentary membrane switch with transparent window

Customized High Quality LED Embedded Digital Membrane Switch

Meiborui Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products. MEMBRANE has been a golden member of Alibaba Trade Pass for more than 15 years which is the first company in the same industry. Early in 2003, MEMBRANE passed the international ISO 9001 certifications and we have been a member of it till now.Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.

From establishment, our company is continuously expanding, so our products won the international market’s recognition including Siemens, ABB, Haier and some well known enterprise. We took part in high speed railway locomotive control, three gorges project, aerospace industry and other state-owned project, and formed our own stable client base. The products exported to Germany and America reached 1 million pieces annually.

 15 Years Experience

Member of Alibaba Trust Pass

Enjoy High Reputation

Payment & Shipping Term
Price:1.5-5.0/piece
Minimum Order Quantity:10pieces
Packaging Details:PE bag, Carton, Wooden crate
Delivery Time:5-20 days
Payment Terms:T/T Western Union
Supply Ability:100000 pieces per Month

1.How can i get a sample to check your sample?
