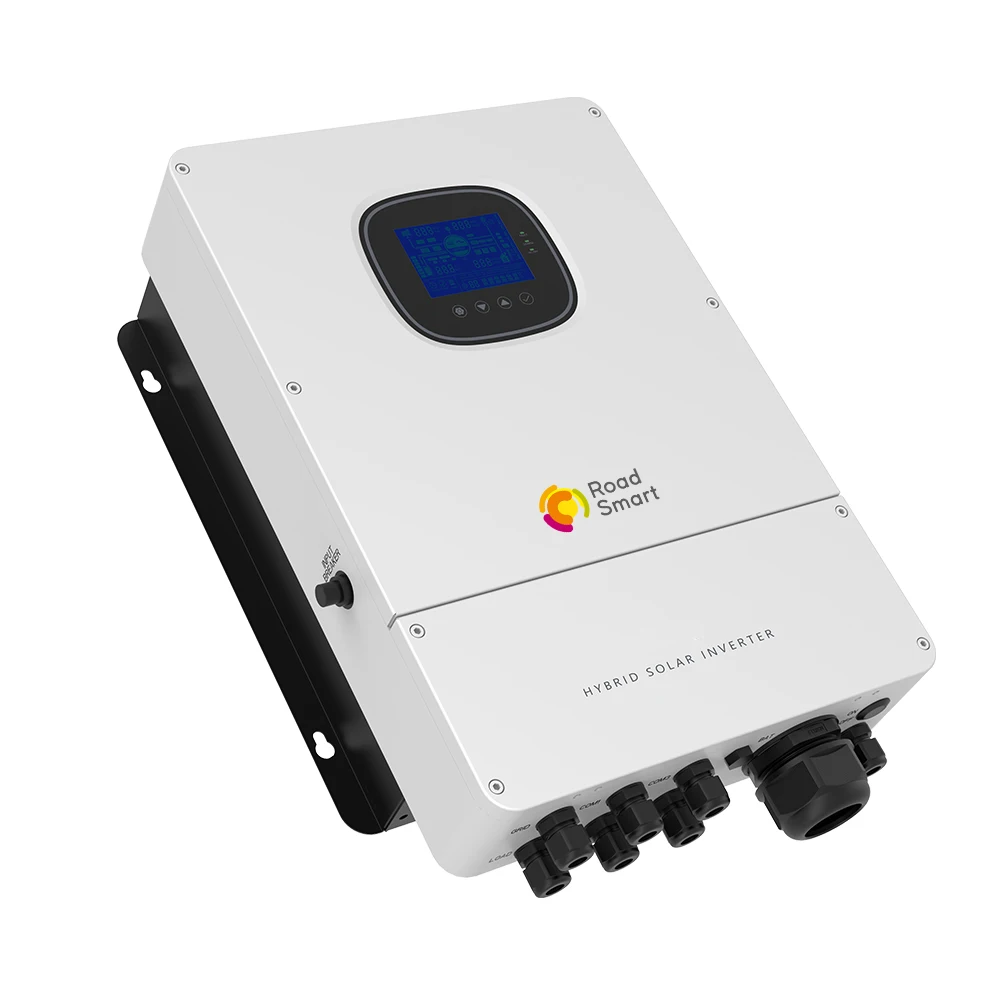

All in one off grid inverter charger solar converter 3kw 5kw MPPT hybrid solar inverter hybrid
- Category: >>>
- Supplier: Roadsmart Co. Ltd.
Share on (1600660764588):
Product Overview
Description
Specification
MODEL | RS-HES4855S100-H | CAN BE SET | ||
INVERTER OUTPUT | ||||
Rated Output Power | 5500W | |||
Max.Peak Power | 11000W | |||

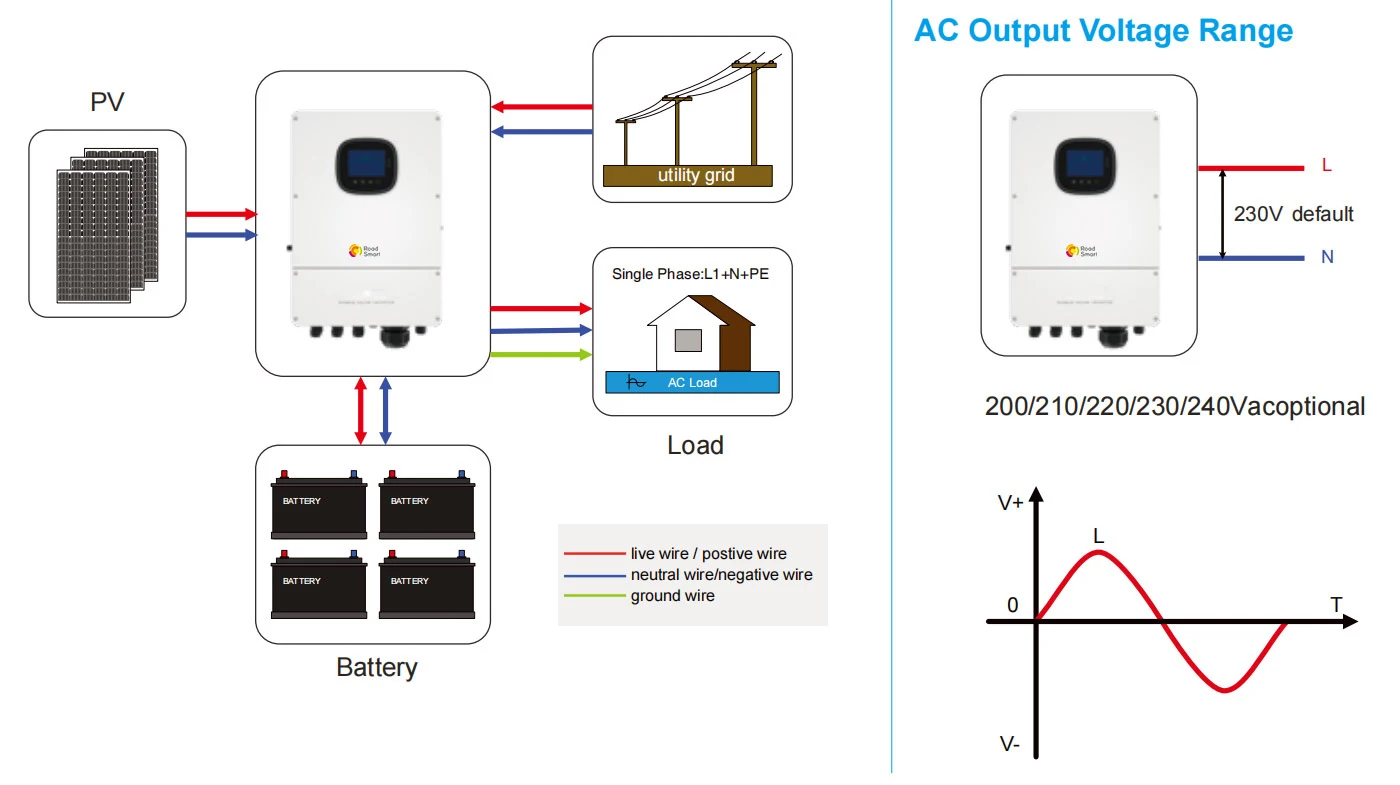

Rated Output Voltage | 230Vac (single-phase L+N+PE) | Y | ||
Load Capacity of Motors | 4HP | |||
Rated AC Frequency | 50/60Hz | Y | ||
Waveform | pure sine wave | |||
Switch Time | 10ms（typical） | |||
Parallel capacity | / | |||
BATTERY | ||||
Battery Type | Lead-acid / Li-ion / User Defined | Y | ||
Rated Battery Voltage | 48Vdc | |||
Voltage Range | 40-60Vdc | Y | ||
Max.MPPT Charging Current | 100A | Y | ||
Max.Mains/Generator Charging Current | 60A | Y | ||
Max.Hybrid Charging Current | 100A | Y | ||
PV INPUT | ||||
Num. of MPP Trackers | 1 | |||
Max.PV array power | 6000W | |||
Max.input current | 22A | |||
Max.Voltage of Open Circuit | 500Vdc | |||
MPPT Voltage Range | 120-450Vdc | |||
MAINS / GENERATOR INPUT | ||||
Input Voltage Range | UPS mode：170～280Vac；APL mode：90～280Vac | Y | ||
Frequency Range | 50/60Hz | |||
Bypass Overload Current | 40A | |||
EFFICIENCY | ||||
MPPT Tracking Efficiency | 99.9% | |||
Max. Battery Inverter Efficiency | ＞90% | |||
GENERAL | ||||
Dimensions | 556*345*182mm | |||
Weight | 20Kg | |||
Protection Degree | IP65 | |||
Operating Temperature Range | -25~55℃,>45℃ derated | |||
Humidity | <60dB | |||
Cooling Method | Internal Fan | |||
Warranty | 2 Years | |||
COMMUNICATION | ||||
Embedded Interfaces | RS485 / CAN / USB / Dry contact | Y | ||
External Modules （Optional） | Wi-Fi / GPRS | Y | ||
CERTIFICATION | ||||
Safety | IEC62109 | |||
EMC | EN61000,FCC part 15 | |||
Efficient
●Advanced MPPT technologty with up to 99.9% efficiency
●Up to 22A PV input current perfect for high power
All-in-one
●Solar Charge Controller up to 100A charging current
●Support for Li-ion battery BMS communication
Reliable
●Outputs high quality pure sine wave AC power
●8-10kW load power to meet the needs of most
Intelligent
●Exclusive Li-ion battery BMS dual activation

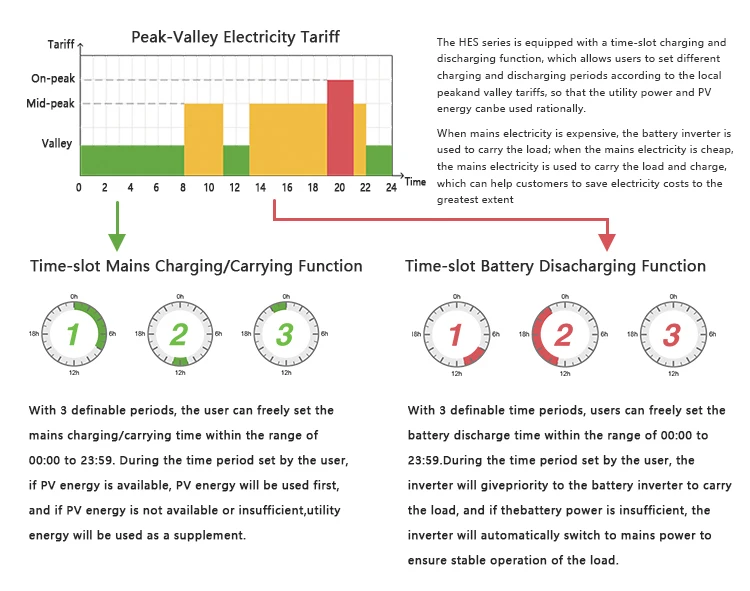

●Time-slot function to save cost with peak-valley tariff
●Advanced MPPT technologty with up to 99.9% efficiency
●Up to 22A PV input current perfect for high power
All-in-one
●Solar Charge Controller up to 100A charging current
●Support for Li-ion battery BMS communication
Reliable
●Outputs high quality pure sine wave AC power
●8-10kW load power to meet the needs of most
Intelligent
●Exclusive Li-ion battery BMS dual activation
●Time-slot function to save cost with peak-valley tariff
Company Profile
Who are we?
RoadSmart Co., Ltd. is a professional manufacturer of smart solar street lights and energy storage, established in 2012, with 10 years of rich experience in the field of solar energy. The brand name Road Smart is world-renowned.
This latest design solar hybrid inverter, it is modern and stylish modular design, attractive price, easy to maintain, transport and install, welcome to contact us immediately.
This latest design solar hybrid inverter, it is modern and stylish modular design, attractive price, easy to maintain, transport and install, welcome to contact us immediately.
