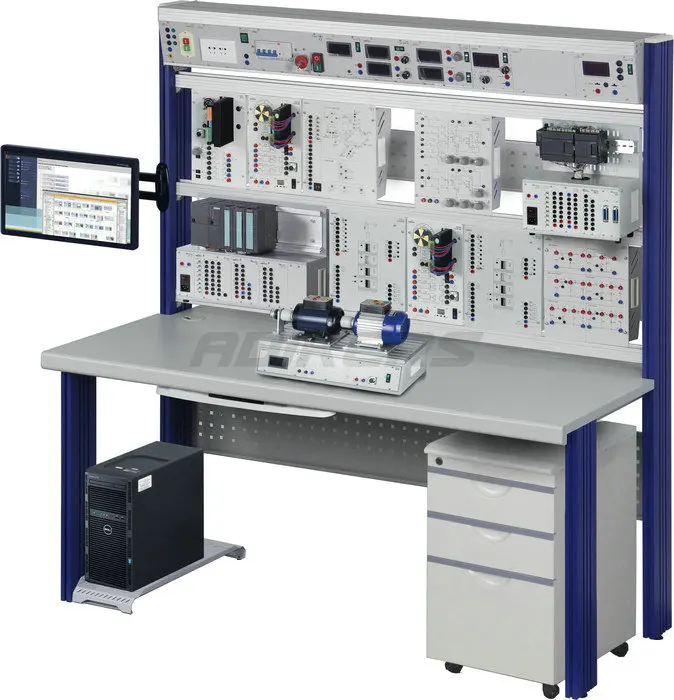

ADIKERS educational equipment electrical automation electrician technical training device three phase ac circuit trainer

Electric drag training project

(1) Direct start control of three-phase asynchronous motor
(2) Three-phase asynchronous motor contactor jog control circuit
(3) Three-phase asynchronous motor contactor self-locking control circuit
(4) Y-Δ start manual / automatic control circuit
(5) Contactor interlocked three-phase asynchronous motor forward and reverse control circuit
(6) Push-button interlocked three-phase asynchronous motor forward and reverse control circuit
(7) Double interlocking three-phase asynchronous motor forward and reverse control circuit
(8) Reverse-reverse control circuit for three-phase asynchronous motor controlled by reverse switch
(9) Three-phase asynchronous motor energy consumption braking circuit
(10) Three-phase asynchronous motor series resistance step-down starting control circuit
(11) Multi-ground control of three-phase asynchronous motor
(12) Workbench automatic round-trip control line
(13) Student's own design circuit installation, wiring and debugging

Instrument lighting training project

(1) Use of common tools for electricians
(2) Installation of incandescent lighting circuit
(3) Two switches control one lamp
(4) Controlling one lamp in two places
(5) voice-activated switch control lighting circuit
(6) Fluorescent lamp circuit
(7) Watt-hour principle and wiring
(8) Direct wiring of single-phase watt-hour meter
(9) Single-phase watt-hour meter is connected by current transformer
(10) Residential lighting circuit training
