Product Overview
Description
1. The blending system adopts single-direction or double direction s craping blending and frequency conversion speed adjustment, so as to satisfy product of different technological requirements
2. According to technological requirements, the materials can be heated or cooled. The heating method can be chosen steam or electric heating according to customer.
3. Various forms of blending vanes are suitable for production of different types of products.

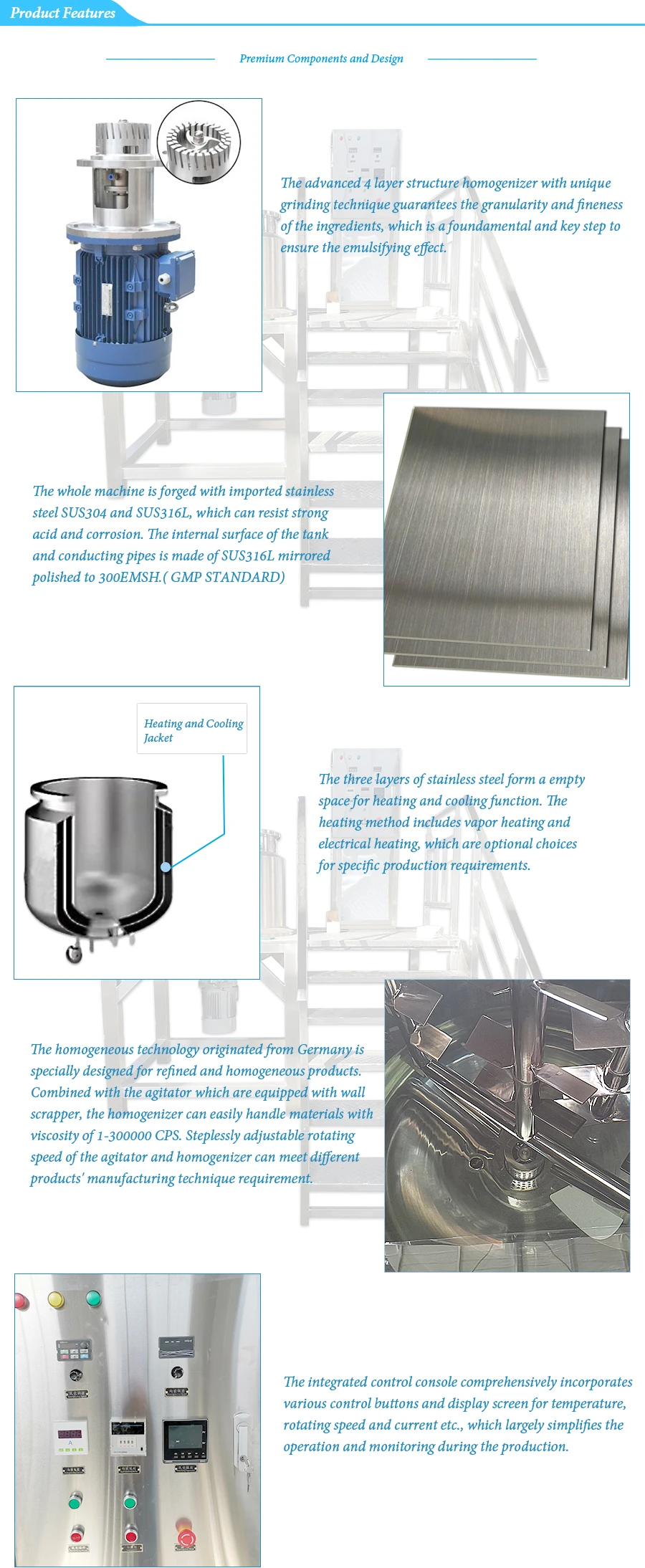

4. Made of imported SUS304 or SUS306L stainless steel. The tank body and pipe are carried out mirror polishing.

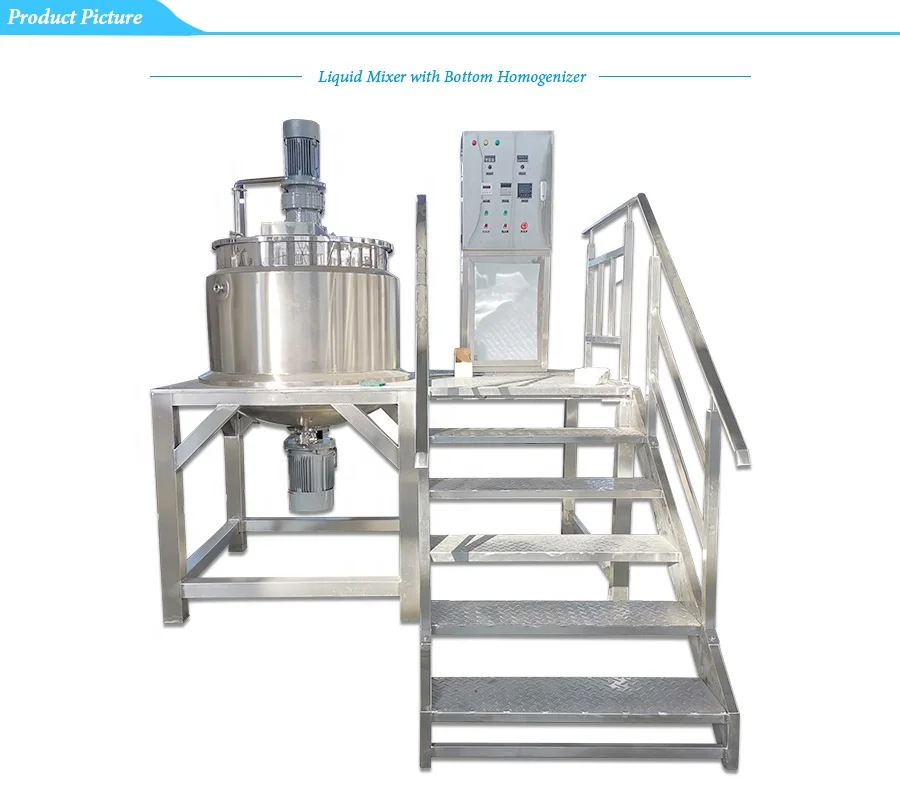

5. Bottom installation type dispersing head and FLUKO pipeline type emulsifying head are optional to speedup dissolution and emulsification of materials.

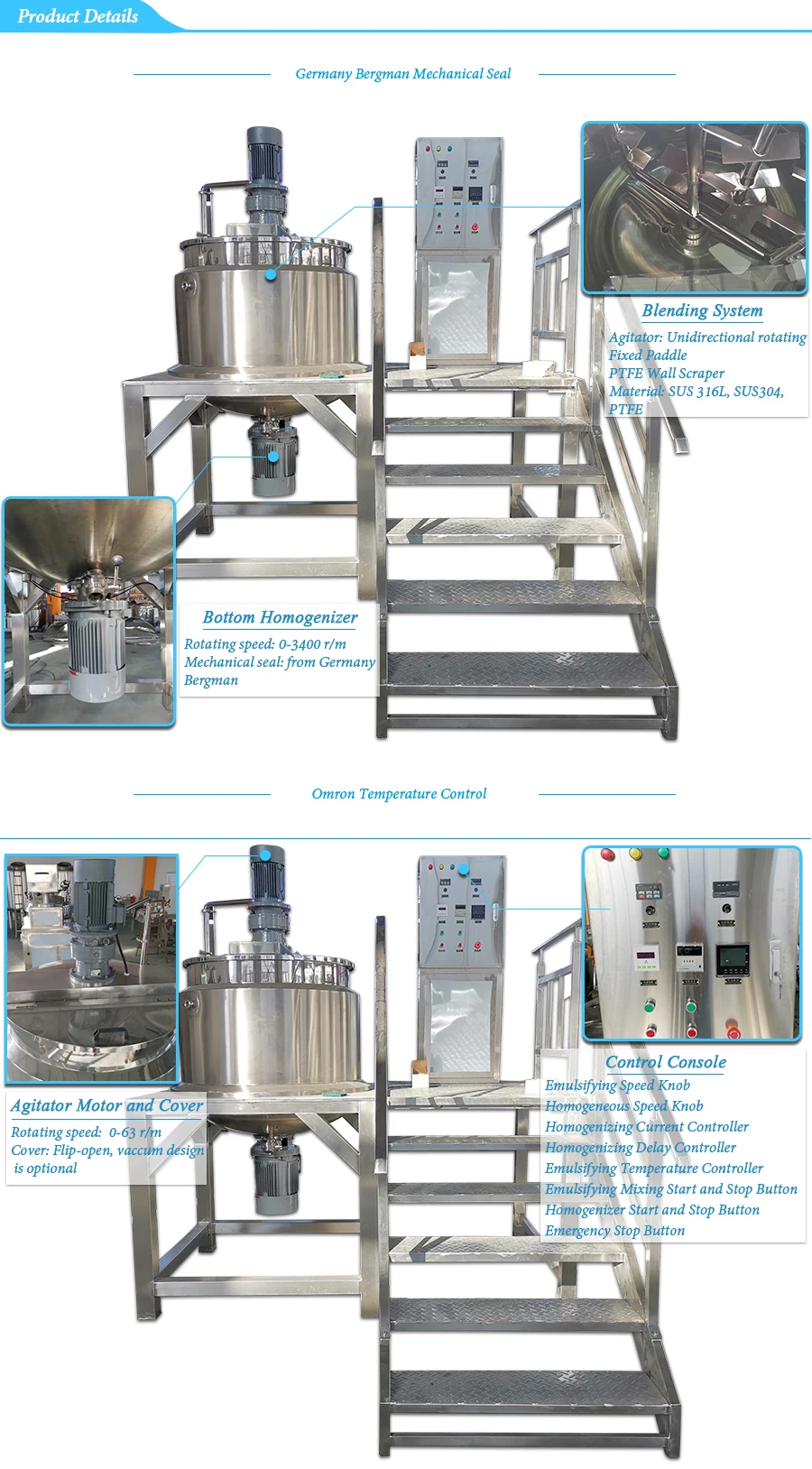

6. The stainless steel electric control cabinet can completely supervise the operation of equipment, and display data, such
temperature and blending rotation speed etc.
2. According to technological requirements, the materials can be heated or cooled. The heating method can be chosen steam or electric heating according to customer.
3. Various forms of blending vanes are suitable for production of different types of products.
4. Made of imported SUS304 or SUS306L stainless steel. The tank body and pipe are carried out mirror polishing.
5. Bottom installation type dispersing head and FLUKO pipeline type emulsifying head are optional to speedup dissolution and emulsification of materials.
6. The stainless steel electric control cabinet can completely supervise the operation of equipment, and display data, such
temperature and blending rotation speed etc.
Model | YHYXG-300 | YHYXG -500 | YHYXG -1000 | YHYXG -2000 | |||
Volume of Mixer | 300 L | 500L | 1000 L | 5000 L | |||
Inside Material (Japan) | SUS316L | SUS316L | SUS316L | SUS316L | |||
Outside Material (Shanghai Baogang) | SUS304 | SUS304 | SUS304 | SUS304 | |||
Paddle Material | SUS316L | SUS316L | SUS316L | SUS316L | |||
Homogenizer Speed(SIEMENS) | 0-2880 r/min | 0-2880 r/min | 0-2880 r/min | 0-2880 r/min | |||
Homogenizer Power | 7.5kw | 11kw | 15kw | 18kw | |||
Blender speed (frequency converter) | 0-63 r/min | 0-63 r/min | 0-63 r/min | 0-63 r/min | |||
Blender Power(SIEMENS) | 3kw | 4kw | 5.5kw | 7.5kw | |||
Temperature of Mixer | ≤100 ℃ | ||||||
Pressure of Jacket | normal pressures | ||||||
Voltage | 50-60Hz 380V±10%-15% | ||||||
