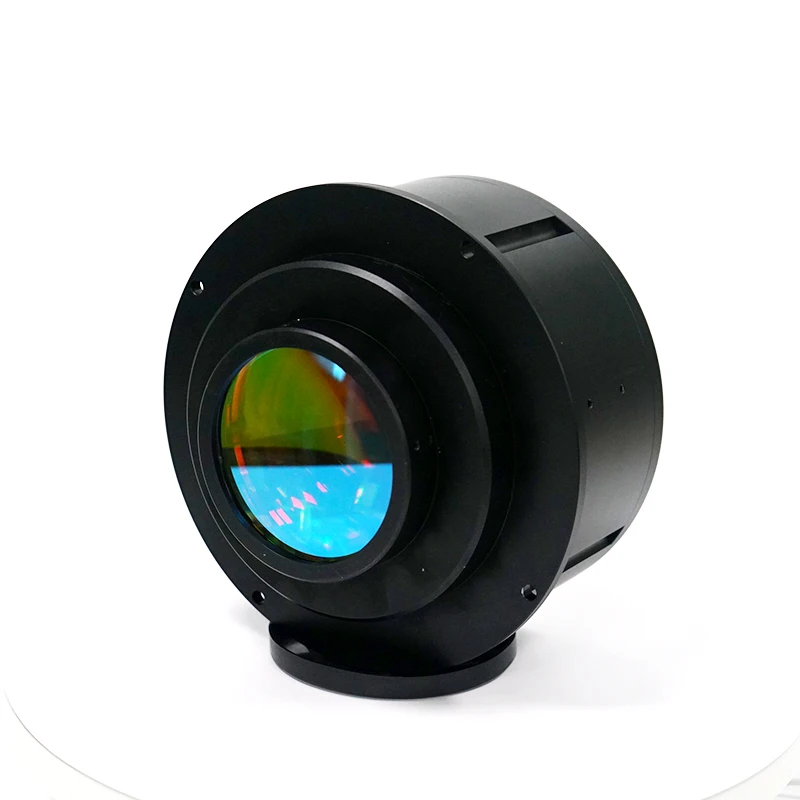

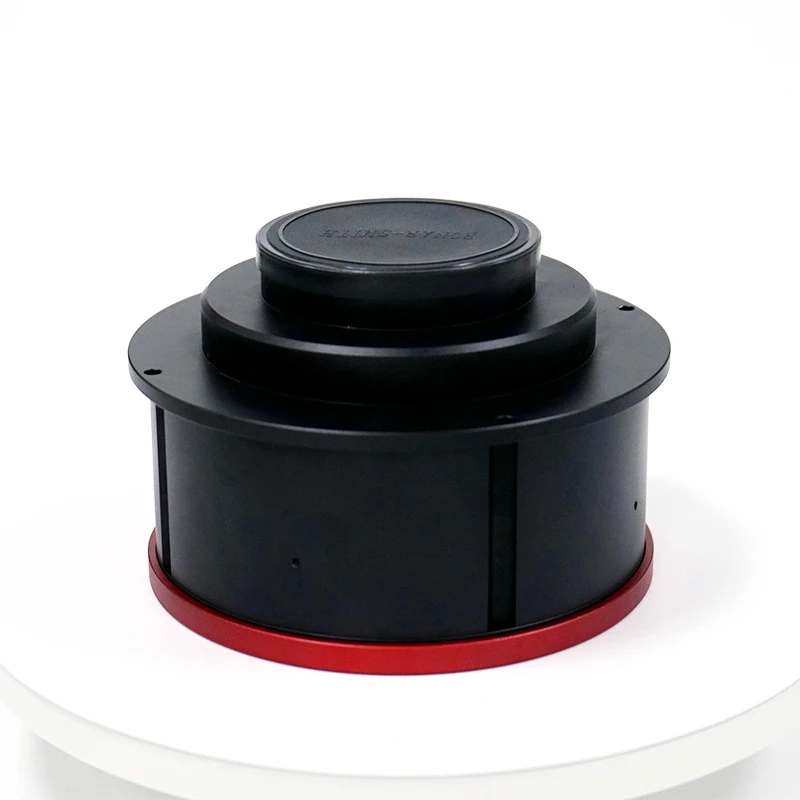

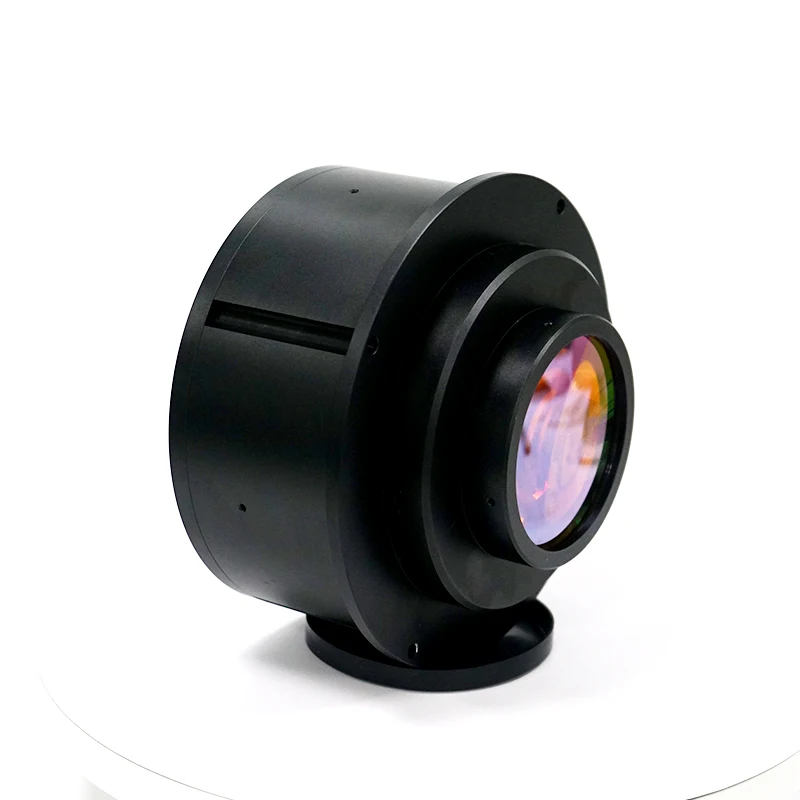

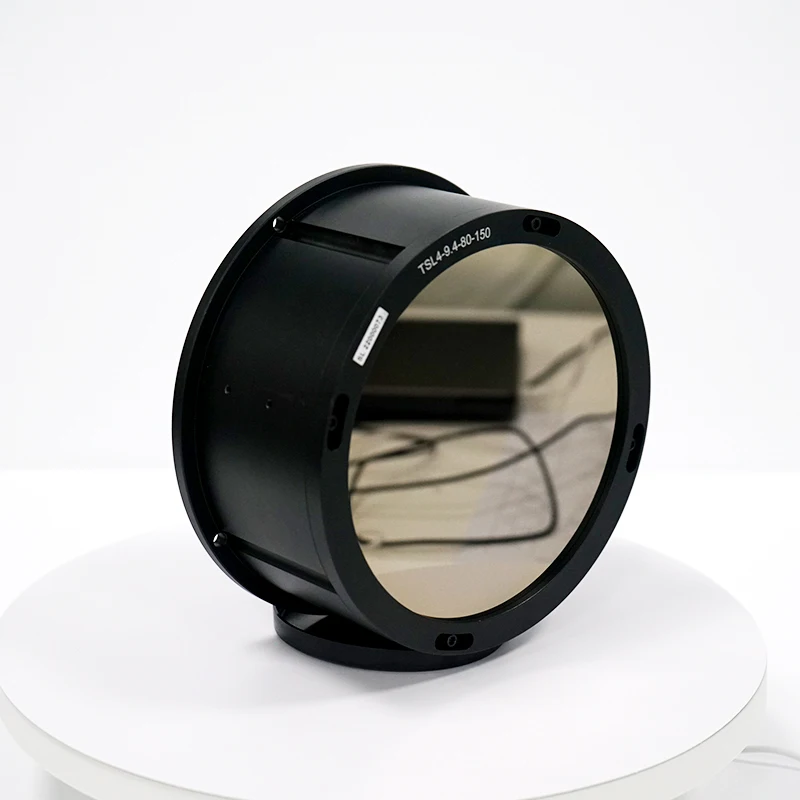

9.4um Telecentric Scan F theta Lens for CO2 Laser Drilling

Share on (1600660806099):


Price:$9,650.00 - $10,715.00

Quantity:


Product Overview

Description



Product Description


Telecentric Scan Lens for CO2 Laser
Telecentric scanning lenses are special configurations in which the arrangement of optics is designed to focus down
the beam so that it is always perpendicular to the flat field. This is accomplished by ensuring that the system 'stop' is
located at the front focal point of the lens system. The 'stop' is located at the position where the beam is deflected from
the axis. In a single-axis scanning system, this location is at the scanning mirror. For two-axis scanning, the stop is mid
-way between the mirrors. Adaptors for major scan head providers are available upon request.

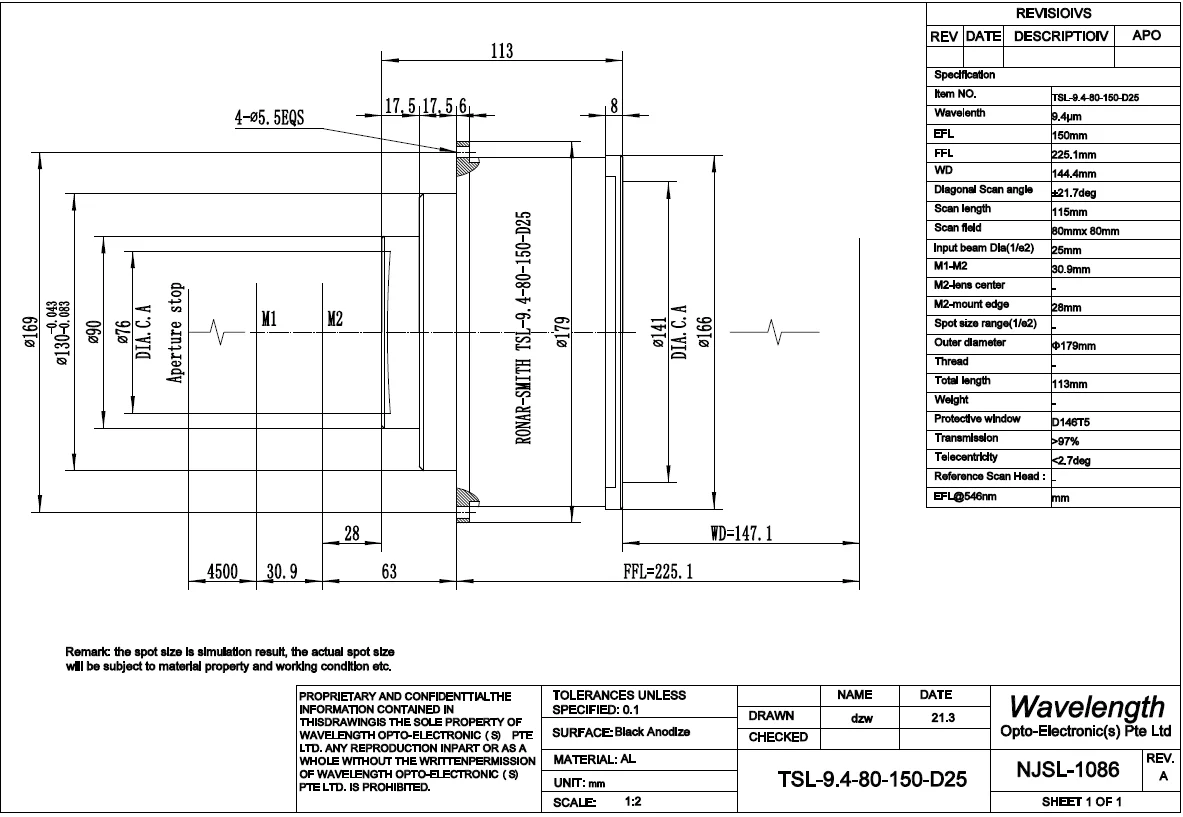

Specification


Item
TSL-9.4-80-150-D25
Wavelength
9.4um
EFL
150mm
FFL
225.1mm
Scan Length
115mm
Scan Field
80*80mm
Input Beam
25mm
M1-M2
30.9mm
Total Length
113mm
WD
144.4mm
Diagonal scan angle
±21.7deg
Transmission
>97%@9.4um


Packing & Delivery






Company Profile




Nanjing Wavelength Opto-Electronic Science & Technology Co., Ltd. covers 13,000 square meter facility including cutting, grinding, polishing, centering, coating, assembly etc. Products contain scanning lens, beam-expander, focus lens, mirror, IR lens, high power lens etc. The products are used for laser marking, laser cutting, IR camera and so on. Our products are exported to the USA, Europe and East Asia.

We have been in the laser and image optics market for 10years, Based in Singapore, the hub of South East Asia, We have embedded quality and customer service grains deeply in our organization, We conduct Research Development scale assembly and test in Singapore facility which is certified ISO92001 since 2004, and ISO14000 since 2006.

Trainning employee is a high focus among our organization, from basic manufacturing skills to sophisticated capacity management system are provided in regular basis, we believe quality to customers is delivered from quality employee's hand. Thus, we put training high priority in each year.

We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us

Wavelength Opto-Electronic Co., Ltd (WOE), announced its company listing in National Equities Exchanges & Quotations (NEEQ) on Dec 16, 2014 under the stock code 831518. WOE is the first Singapore based Photonics company to be successfully listed in the China Stock Market.

Robert Huang, Chief Executive Officer of WOE, commented, "It took us 10 years to make the day happen. As a new start, we will focus on our mission to broaden the Wavelength group and make the company a major player in the global photonics industry."
