DC 12V 24V 50MM Stroke Worm Drive Types of Linear Actuators
- Category: >>>
- Supplier: Sike Intelligent Hardware (shaoxing) Co. Ltd.
Share on (1600660840739):
Product Overview
Description
Specification
Load Capacity Push | 500N | 1000 N | 1250 N | 1500 N | 2000N | ||||
Load Capacity Pull | 500 N | 1000 N | 1250 N | 1500 N | 2000 N | ||||
Self-lock Capacity Push | 600 N | 1200 N | 1500 N | 1700 N | 2200 N | ||||
Self-lock Capacity Pull | 600 N | 1200 N | 1500 N | 1700 N | 2200 N | ||||
Input | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC | ||||
No Load Speed | 22 MM/S | 15 MM/S | 11 MM/S | 6 MM/S | 4 MM/S | ||||
Input | 12 VDC | 12 VDC | 12 VDC | 12 VDC | 12 VDC | ||||
Full Load Speed | 22 MM/S | 14 MM/S | 10 MM/S | 6 MM/S | 3.5 MM/S | ||||
Stroke | 20 - 1500 MM, Accept Customized | ||||||||

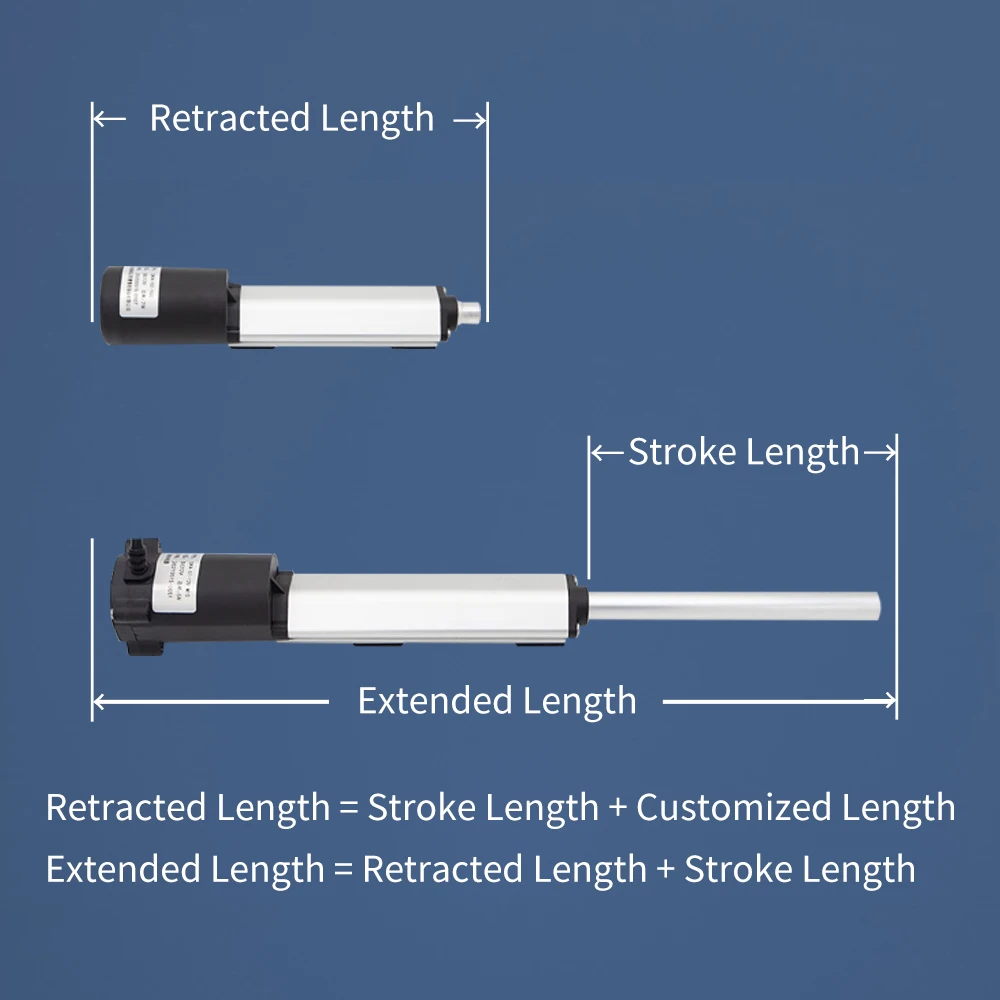

Minimum Installation Length | 150MM(S<50); S + 100MM (S≥50MM),150MM(S<50); S+100MM(S>50MM),Accept Customized | ||||||||
Color | Black,Grey | ||||||||

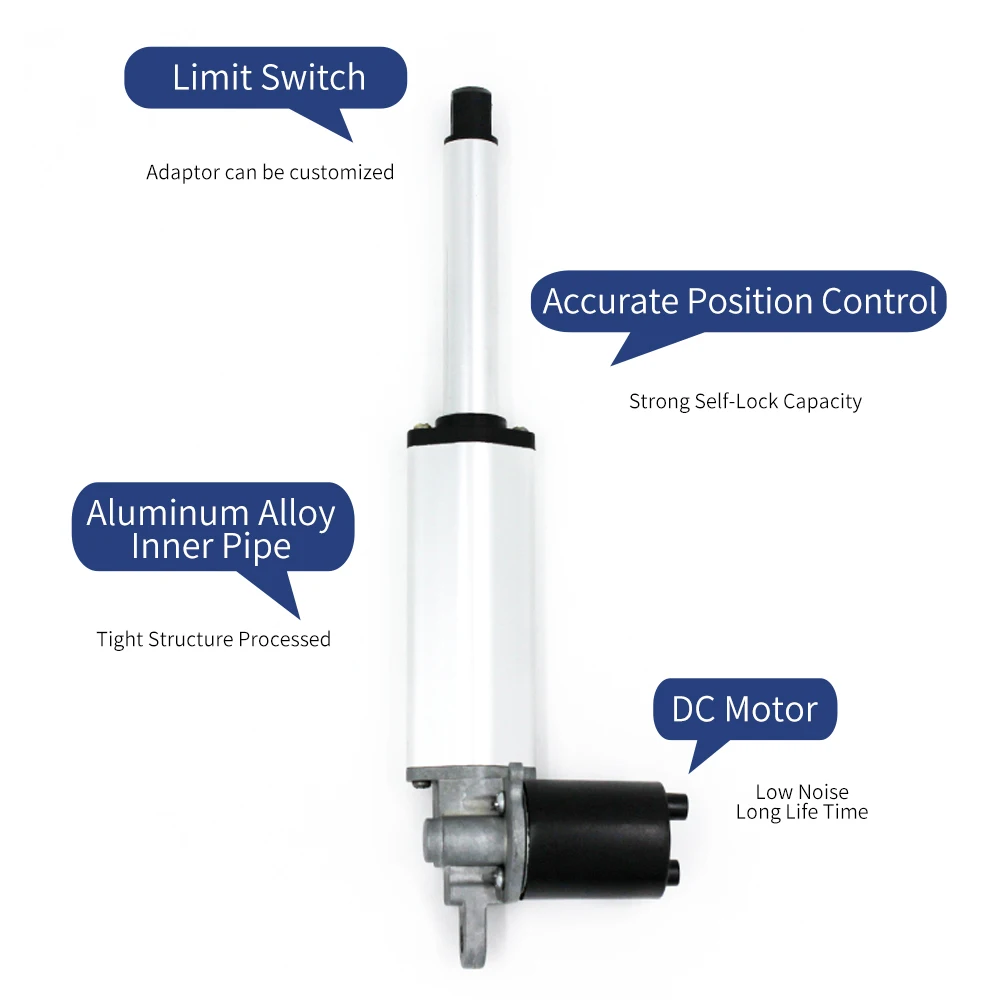

Limit Switch | Built In | ||||||||

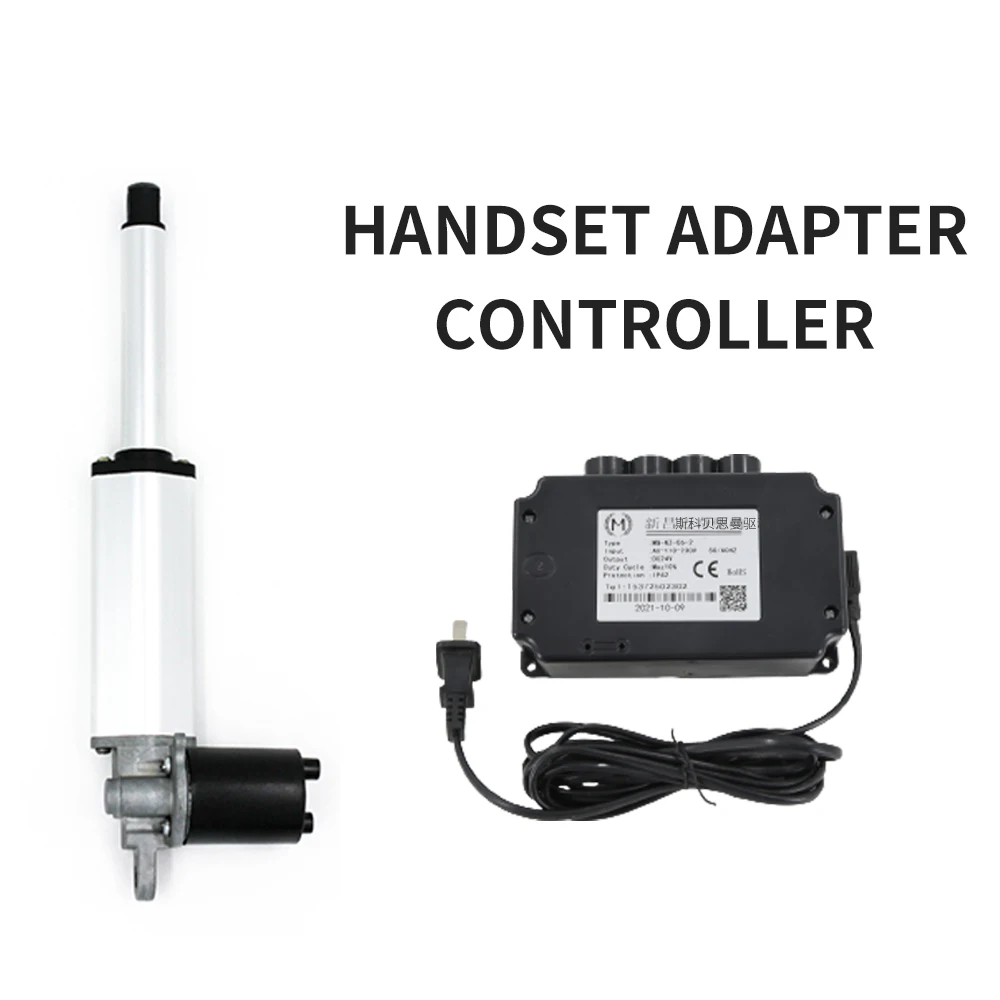

Overload Protection | Integrated in Control Box | ||||||||
Duty Cycle | 10% Max 2 Min / 18 Min Off | ||||||||
Inner Pipe | Aluminium Alloy | ||||||||
End Clevis | Steel | ||||||||
IP Grade | IP54 ～ IP65 | ||||||||
Operation Temperature | ﹣26℃ ～ 65℃ | ||||||||
Standard | CE / Rohs | ||||||||

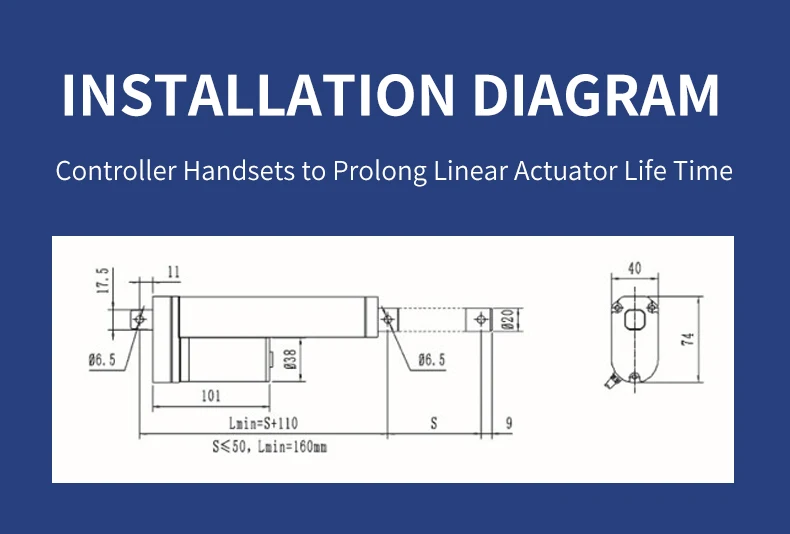

Item No. | Stroke | Min Install Length | Item No. | Stroke | Min Install Length |
SKW | 20mm | S + 110 MM | SKW | 800mm | S + 110 MM |
SKW | 50mm | SKW | 850mm | ||
SKW | 100mm | SKW | 900mm | ||
SKW | 150mm | SKW | 950mm | ||
SKW | 200mm | SKW | 1000mm | ||
SKW | 250mm | SKW | 1050mm | ||
SKW | 300mm | SKW | 1100mm | ||
SKW | 350mm | SKW | 1150mm | ||
SKW | 400mm | SKW | 1200mm | ||
SKW | 450mm | SKW | 1250mm | ||
SKW | 500mm | SKW | 1300mm | ||
SKW | 550mm | SKW | 1350mm | ||
SKW | 600mm | SKW | 1400mm | ||
SKW | 650mm | SKW | 1450mm | ||
SKW | 700mm | SKW | 1500mm | ||
SKW | 750mm | SKW |
