LANDTEK цифровой прибор для измерения силы и пуш-ап динамометр FM-204 дистанция поездки (1K--1000K)

LANDTEK цифровой прибор для измерения силы и пуш-ап динамометр FM-204 дистанция поездки (1K--1000K)

Category: Force Measuring Instruments >>>
Supplier: Guangzhou,Landtek,Instruments,Co.,Ltd.

Price:85,00 $ - 130,00 $

Price in USD:Details

Quantity:

Product Overview

Description

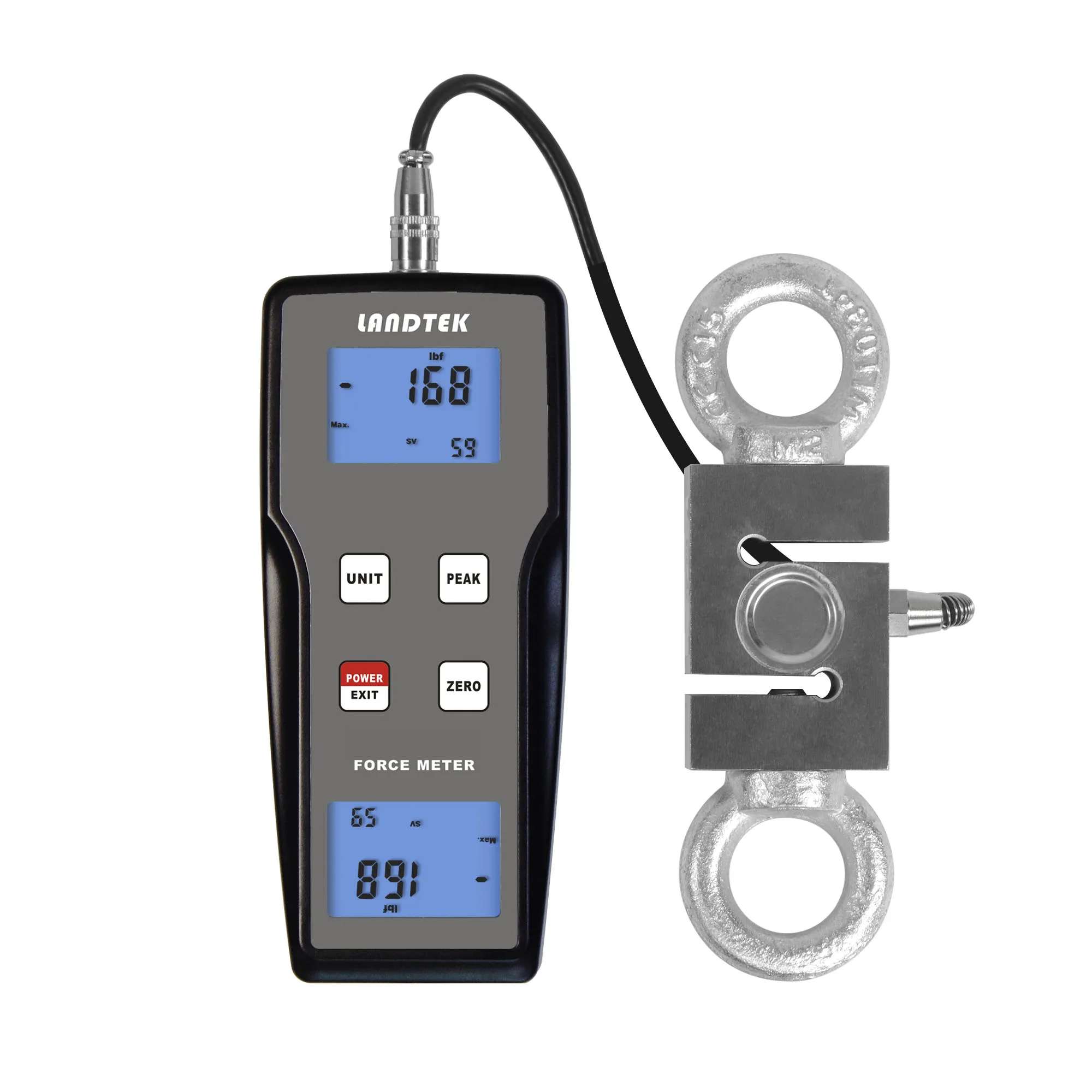

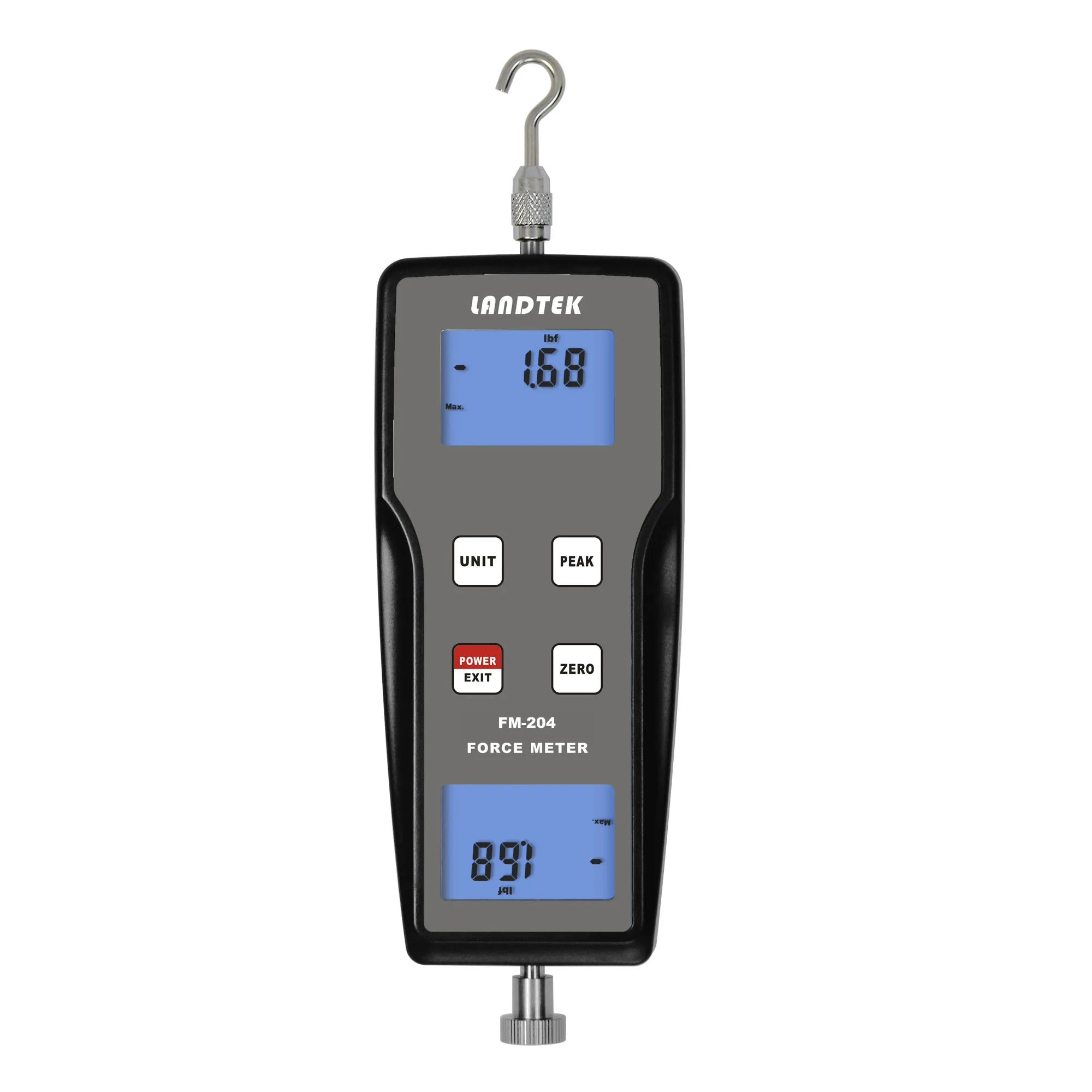

Digital Force Gauge. Model : FM-204 ( 1K,2K, 5K, 10K, 20K, 50K, 100K, 200K, 500K, 1000K )

Spec: The digital force gauge is a kind of simple and convenient multi-functional instrument for high-accuracy push force and pull force test. It is widely used in electronics, building hardware, etc.

FM-204

Product Description

Features

* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With data memory function, can memorize 99 groups of data.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 5V DC power.
* Use USB/RS-232 data output to connect with PC.
* Provide BT data output choice.

Specifications

Model	FM-204-1K	FM-204-2K	FM-204-5K	FM-204-10K	FM-204-20K	FM-204-50K
Force Range	±1kgf	±2kgf	±5kgf	±10kgf	±20kgf	±50kgf
	±1000gf	±2000gf	±5000gf
	±9.8N	±19.6N	±49N	±98N	±196N	±490N
	±2.2Lbf	±4.4Lbf	±11Lbf	±22Lbf	±44Lbf	±110Lbf
Resolution	0.001kgf	0.001kgf	0.001kgf	0.001kgf	0.01kgf	0.01kgf
	1gf	1gf	1gf
	0.01N	0.01N	0.01N	0.01N	0.1N	0.1N
	0.001Lbf	0.001Lbf	0.01Lbf	0.01Lbf	0.01Lbf	0.1Lbf
Accuracy	±0.5% FS ±1 Digit
Unit	Kgf, gf, N, Lbf
Measurement State	Peak Value Measurement, Real Time Measurement
Display	2 Reversed 4 Digit LCD
Power Off	10 Minutes Auto Power Off, Manual Power Off
Backlight	Blue Backlight
Safe Load	150% FS ( Buzzer Alarm Over 110% FS )
Data Output	USB, BT
Power Supply	2 x 1.5 AA( UM-3 ) Battery or 6VDC Power Supply
Operating Conditions	Temperature: 0 °C~ 40°C
Operating Conditions	Humidity: <80%
Surrounding	No Vibration Source or Corrosive Medium Around
Weight	390 g
Size	211mm x 80mm x 36 mm

Accessories

Standard Accessories	Digital Force Gauge
	Pulling Hook
	Flat Tip
	Cone Tip
	V-shaped Groove Tip
	V-shaped Wedge Tip
	Lengthening Connection Rod	Screw Rod
		Cap Nut
	Manual
	Carrying Case
Optional Accessories	Force Gauge Stand
