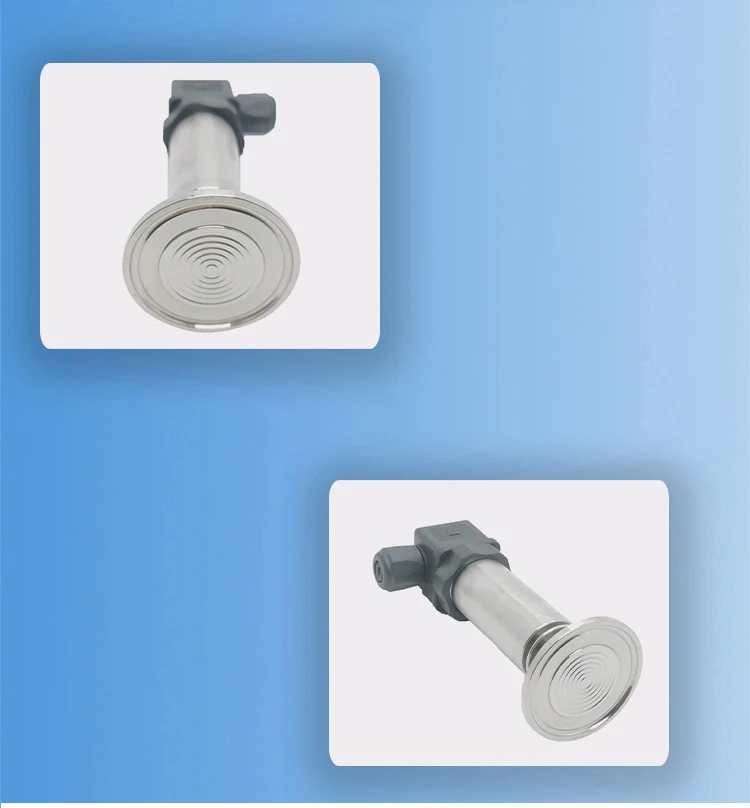

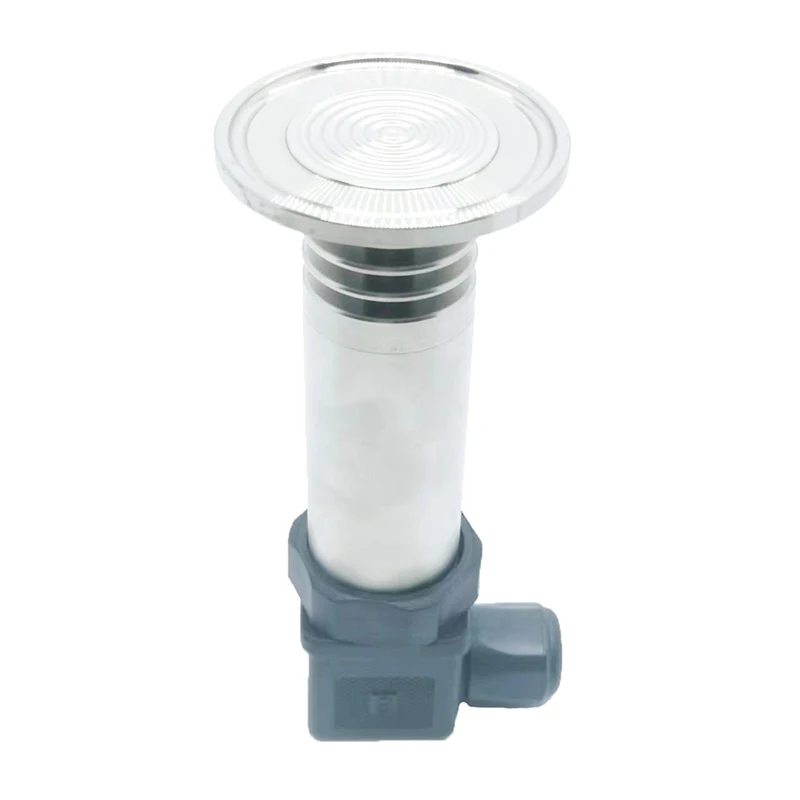

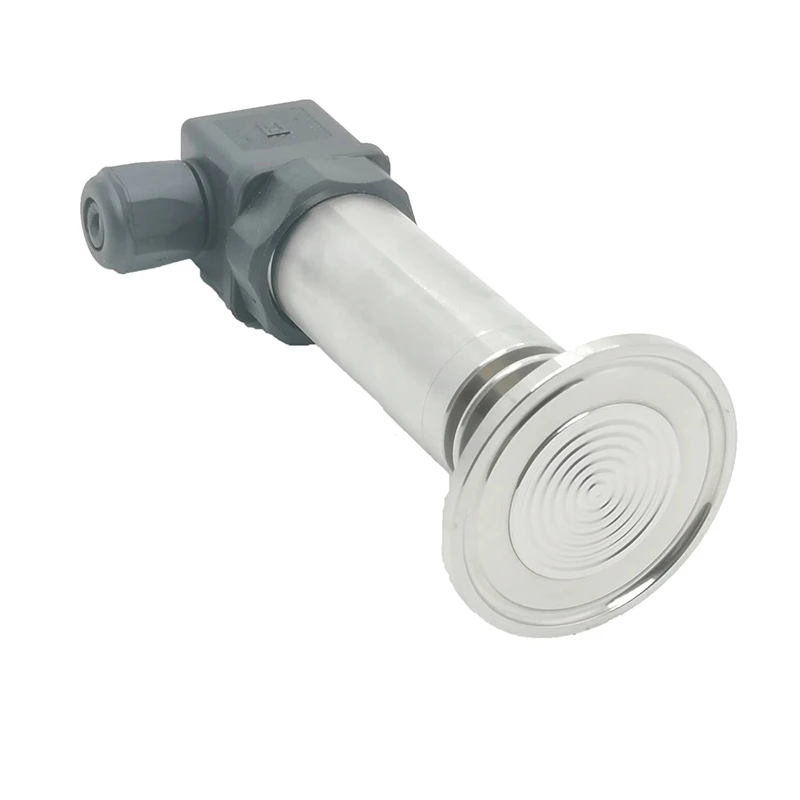

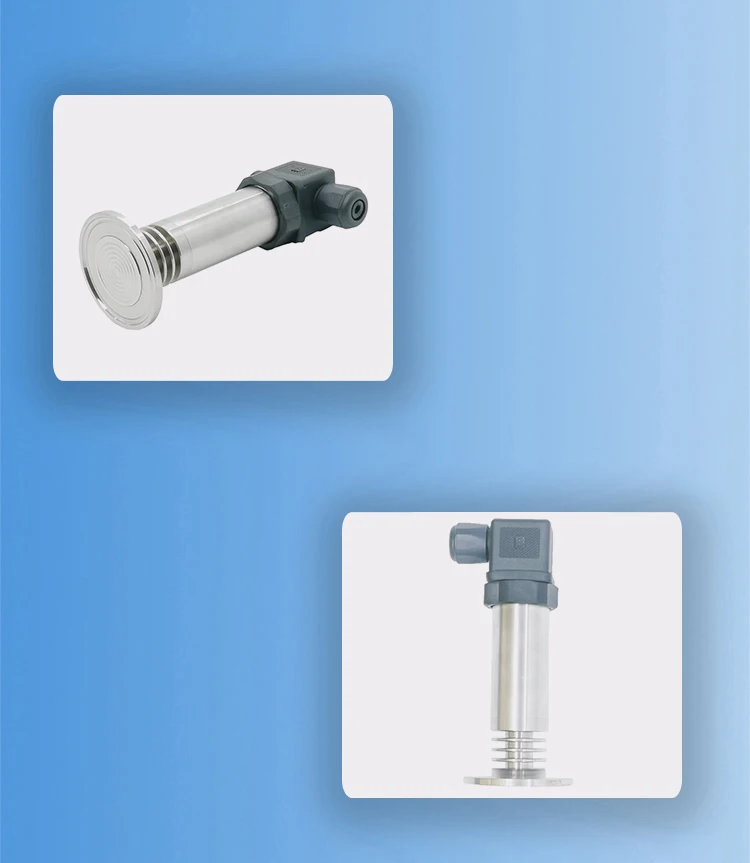

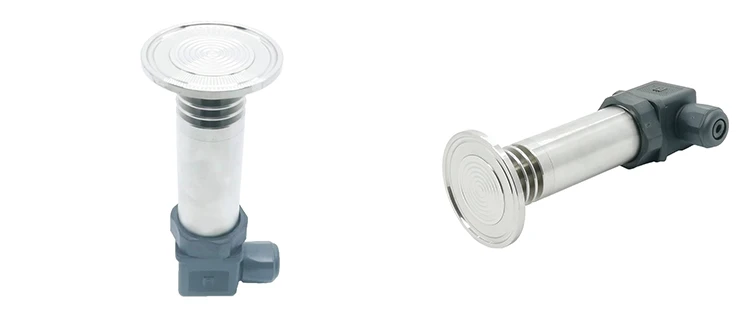

High Temperature Type Flat Film Diffusion Silicon Pressure Transmitter Sensor Sanitary Diaphragm Liquid Level Transmitter

Product Overview

Description

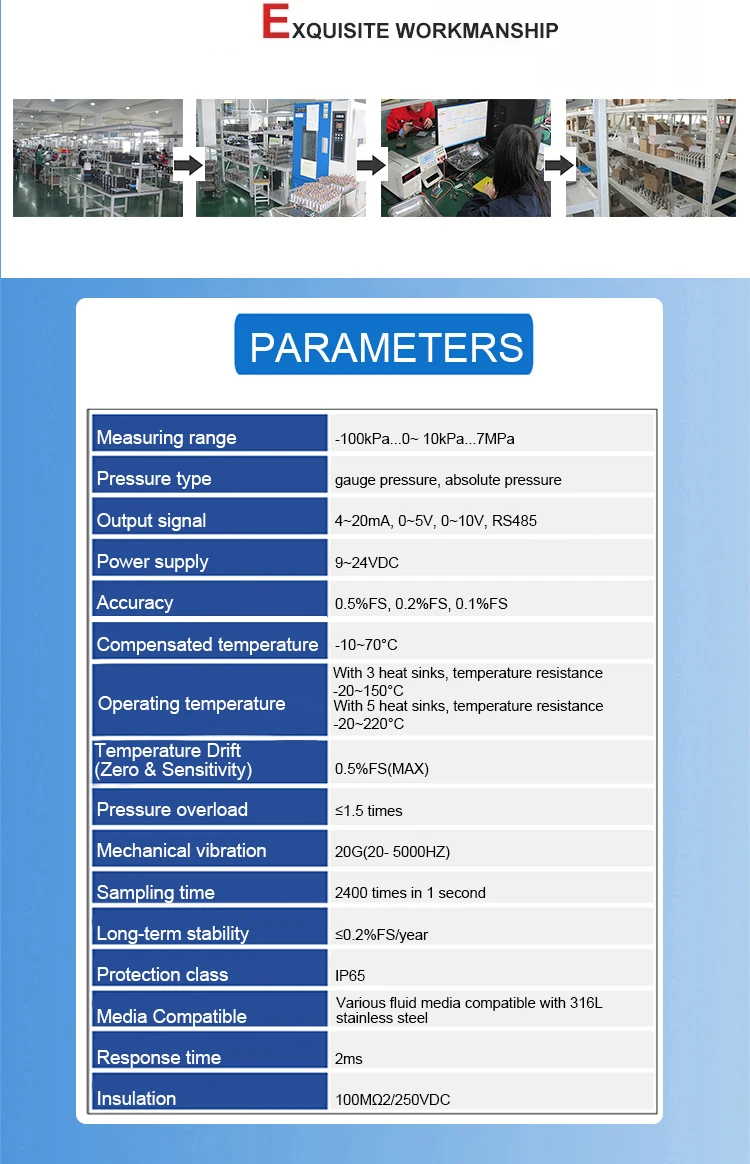

Parameters



Measuring range	-100KPa...0~ 10kPa...7MPa
Pressure type	gauge pressure, absolute pressure

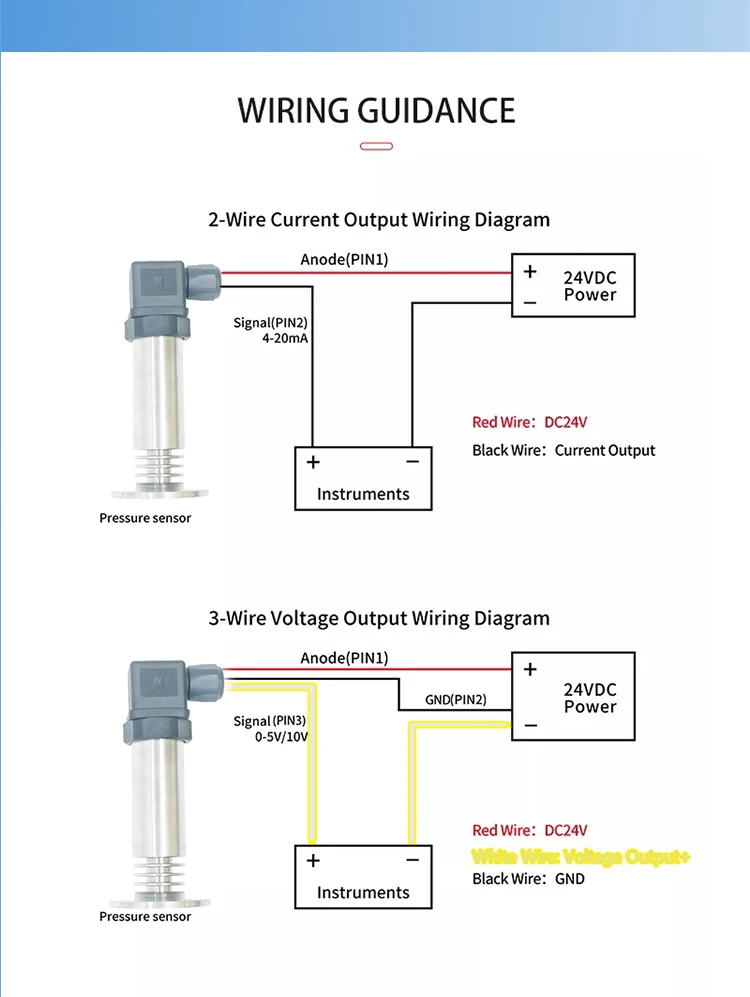

Output signal	4~20mA,0~5V,0~10V,RS485
Power supply	9~24VDC
Accuracy	0.5%FS,0.2%FS,0.1%FS
Compensated temperature	-10~70°c
Operating temperature	With 3 heat sinks, temperature resistance-20~150°c With 5 heat sinks, temperature resistance-20~220°c
Temperature Drift(Zero & Sensitivity)	0.5%FS(MAX)
Pressure overload	≤1.5 times
Mechanical vibration	20G(20-5000HZ)2400 times in 1 second
Sampling time	2400 times in 1 second
Long-term stability	≤0.2%FS/year
Protection class	IP6Protection class
Media Compatible	Various fluid media compatible with 316Lstainless steel
Response time	2ms
Insulation	100MΩ2/250VDC

Q1: What's your business range?

We have piezoresistive ceramic pressure sensor production lines and MEMS technology to provide customers with high-quality, low-price pressure sensors and transmitter products.

Q2: May I visit your factory?

Of course, welcome to Shanghai, China. Our factory and sales are two separate professional companies.

Q3: Why should I use Alibaba Trade Assurance orders?

Trade Assurance order is a guarantee to buyer by Alibaba,For after-sales, returns, claims etc.

Q4: Why choose us?

1. We have been engaged in the field of pressure sensors for more than 10 years.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.

Q5: Can you accept ODM & OEM service ?

We professional provide OEM &ODM service for all of items.

If you have other questions, please feel free to contact us, thank you!
