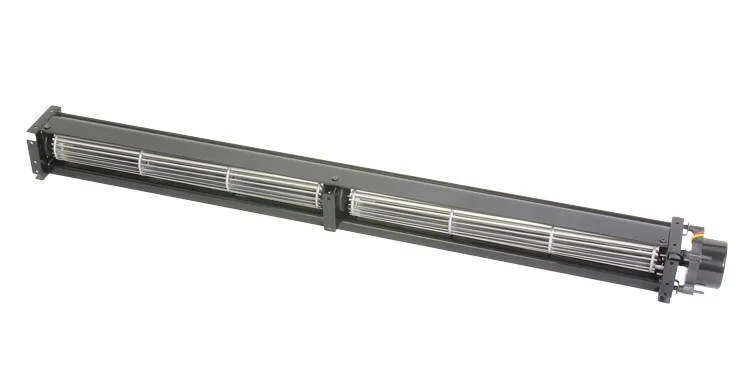

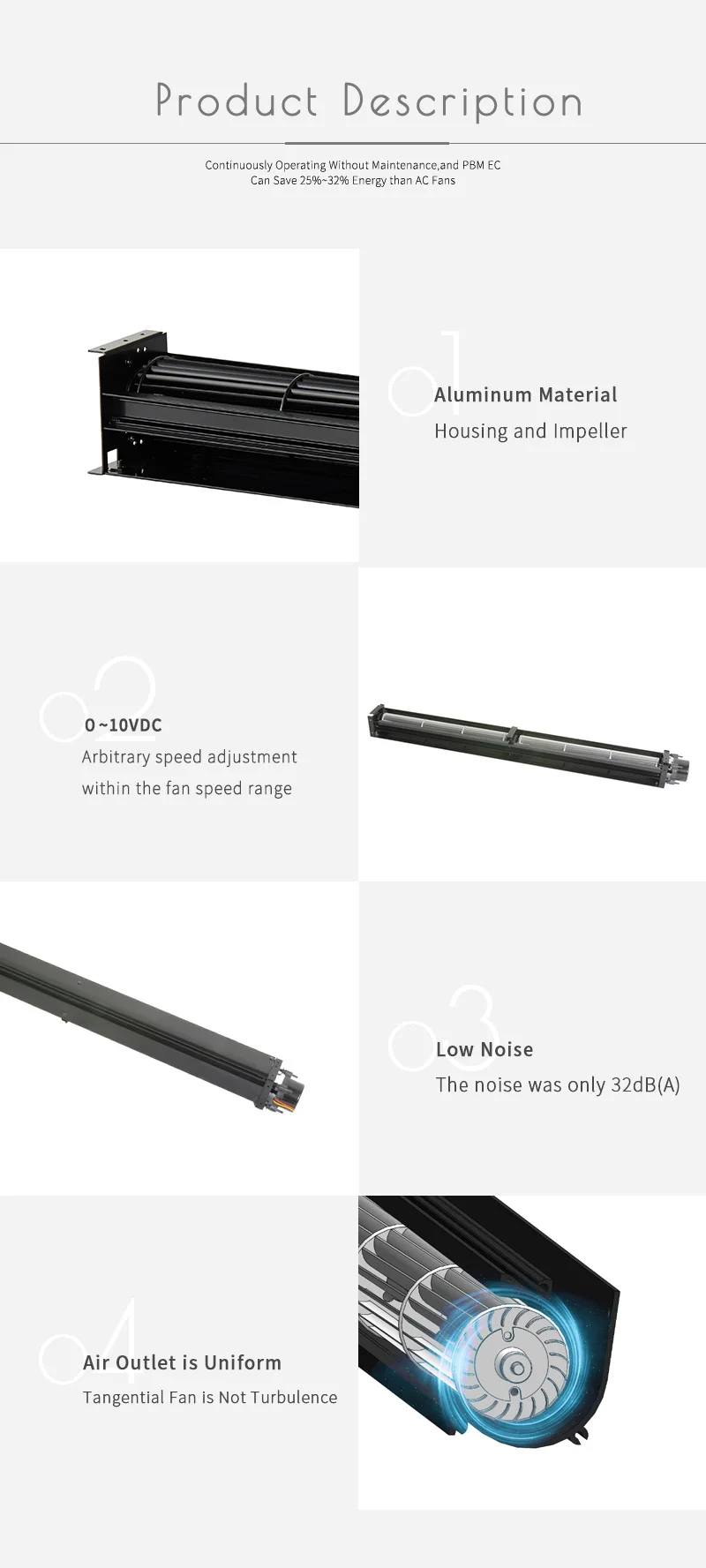

Model No: PC3N30B24530
Motor Type: Φ37.5mm
PRODUCT SPECIFICATIONS
1.General Characters
1-1 | Rated Voltage | 24 VDC |
1-2 | Rated Speed | 2500 RPM |
1-3 | lnput Current | 0.12A |
1-4 | Input Power | 2.88 w |
1-5 | Acoustical Noise | 32 dB(A) |
1-6 | Life Expectance | 50,00OHours(L10) At 40℃ room, humidity 15%~65%RH. |
1-7 | Direction of Air Flow | All around |
1-8 | lnsulation Resistance | 50 Mega Ohm minimum at 50oVDc Between frame and (+) terminal |
1-9 | Motor Protection | Locked rotor protection Polarity protection Automatic restart capability |
1-10 | Speed Control | Control input 0~10VDC |
2.Mechanical Characters
2-1 | Dimension | see dimension drawing |
2-2 | Material of lmpeller | Aluminum alloy |
2-3 | Bearing System | NMB ball bearing |
2-4 | Lead Wire | Red , Black,WhiteAWG22# |
3.Environmental Characters
3-1 | Operating Temperature | -25℃ to 70℃ |
3-2 | Storage Temperature | -4o℃ to 75℃ |
3-3 | Operating Humidity | 5% to 90%RH |
3-4 | Storage Humidity | 5% to 95%RH |

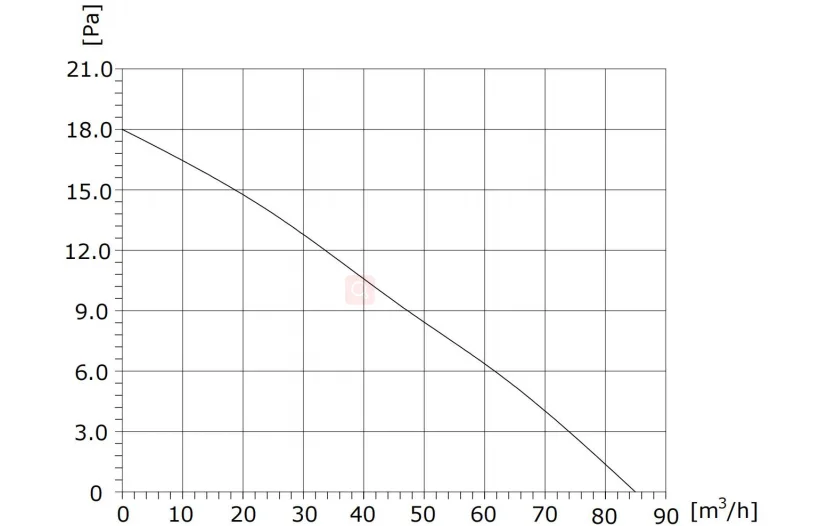

4.Airflow Curve
Testing Condition
Input Voltage----Operating voltage (24VDC)
Temperature-----Room temperature
Humidity---------65%RH
Test distance-----1m
Temperature-----Room temperature
Humidity---------65%RH
Test distance-----1m

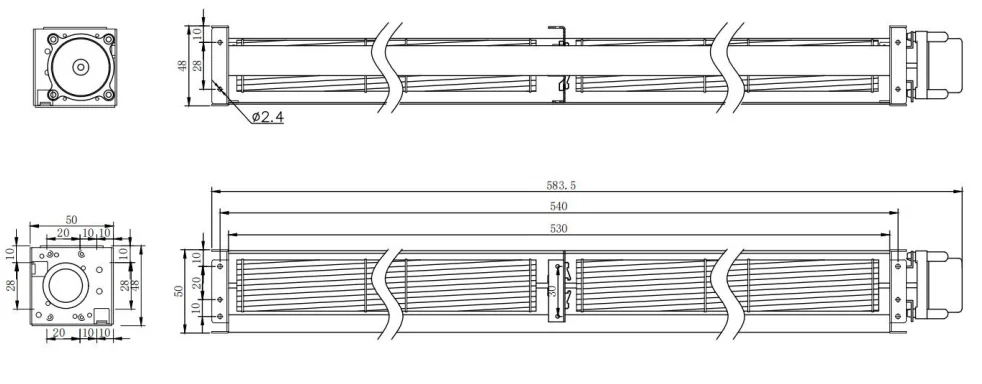

5.Outline Drawing
Note
1. Connection line 3X (Red, Black, White AWG22#);
Red=+24VDC, White=0-10VDC, Blue=GND.
Red=+24VDC, White=0-10VDC, Blue=GND.
6.Connection Diagram
7.Safety Requirements
1. Make sure that the metal casing of the stator connected to the ground before being powered on.
2. If the fan doesn’t work after been powered on, please check the speed control input voltage, it may not be well connected. To prevent the suddenly start of the fan to hurt hands or other personal injury; do not touch the impellers or rotor when the power is on.
3. Fan needs a few seconds to start after being powered on. To prevent personal injury, do not touch the impellers or rotor when the power is on or in a low speed.
4. Unless they are instructed by the person(s) responsible for their safety, those who are lack of physical, mental or sensory capacities and proper practical experience or expertise cannot use this appliance. Please do not let the children play with this product.
5. If the power cord be damaged, the power cord must be replaced by the manufacturer in order to avoid accident of the proxy service personnel or the equivalent qualification maintenance personnel.
6. As an integral part of the fan, this DC motor cannot be used alone without impeller or load.
7. Please carefully read this technical specification before using the product.
2. If the fan doesn’t work after been powered on, please check the speed control input voltage, it may not be well connected. To prevent the suddenly start of the fan to hurt hands or other personal injury; do not touch the impellers or rotor when the power is on.
3. Fan needs a few seconds to start after being powered on. To prevent personal injury, do not touch the impellers or rotor when the power is on or in a low speed.
4. Unless they are instructed by the person(s) responsible for their safety, those who are lack of physical, mental or sensory capacities and proper practical experience or expertise cannot use this appliance. Please do not let the children play with this product.
5. If the power cord be damaged, the power cord must be replaced by the manufacturer in order to avoid accident of the proxy service personnel or the equivalent qualification maintenance personnel.
6. As an integral part of the fan, this DC motor cannot be used alone without impeller or load.
7. Please carefully read this technical specification before using the product.
