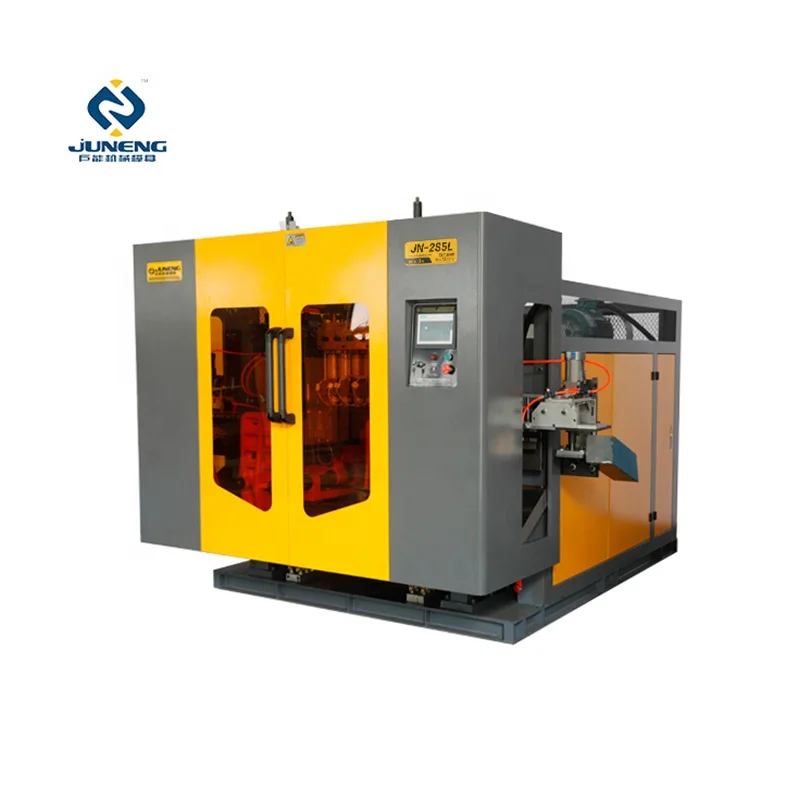

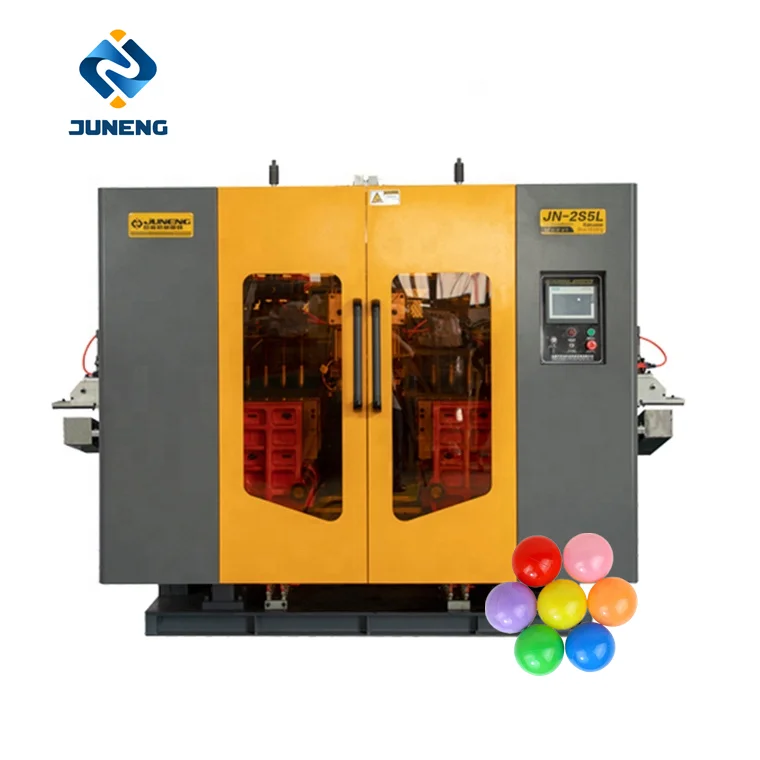

2S5L Extrusion Blow Molding Machine Plastic bottle making machine Jerrycan with view trip line
- Category: >>>
- Supplier: Taizhou Huangyan Juneng Machine & Mould Co. Ltd.
Share on (1600660891348):
Product Overview
Description
5 Liter Extrusion Blow Molding Machines for engine oil and lubricant bottles with view trip
| Max. Product Volume | L | JN-2S5L |
| Dry cycle | PC/H | 600 |
| Screw diameter | MM | 90 |
| screw L/D ratio | L/D | 24-26 |
| screw motor power | KW | 37-45 |
| screw heating capacity | KW | 7.3-9 |
| No. of heating zone | Zone | 4 |
| output of HDPE | KG/H | 120-130 |
| oil pump driver power | KW | 22 |
| clamping force | KN | 120 |
| mold stroke | MM | 180-600 |
| size of mold(W*H) | MM | 450*500 |
| Moving distance | MM | 550 |
| Max. Die diameter(W*H) | MM | 220 |
| Die heat capacity | KW | 4.5-5.5 |
| Blowing pressure | MPA | 0.6-0.8 |
| Air volume | M3/Min | 0.8 |
| Cooling water pressure | MPA | 0.5 |
| water consumption | L/Min | 70 |
| weight of machine | Ton | 11.2 |
| size of machine | M | 3.5*3.5*2.6 |
