Product Overview
Description
■ Hydraulics Trainer

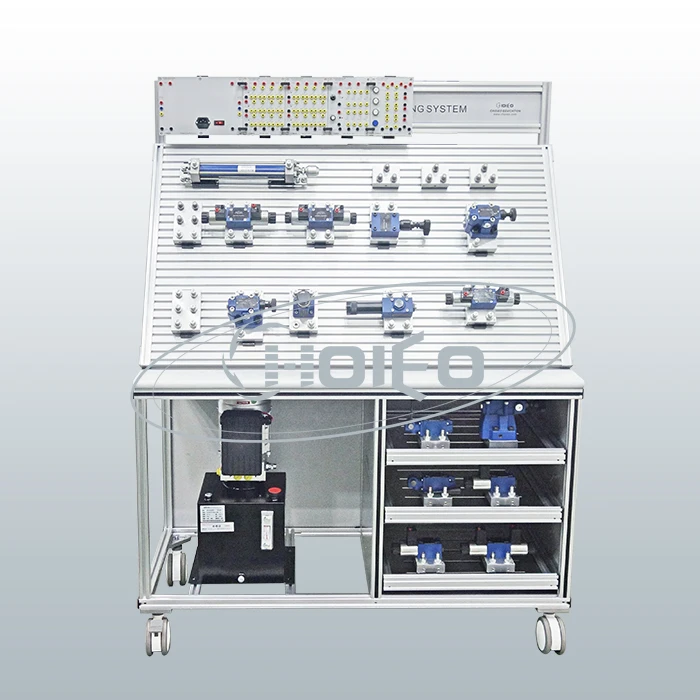

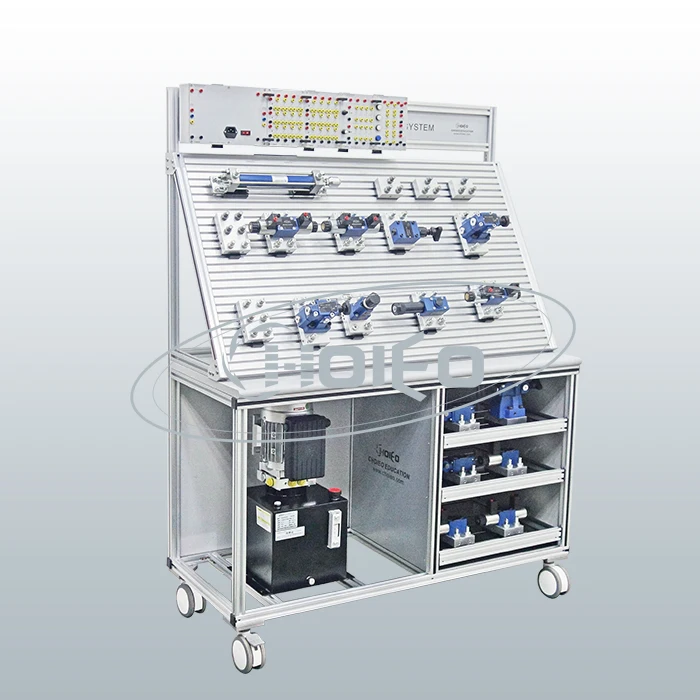

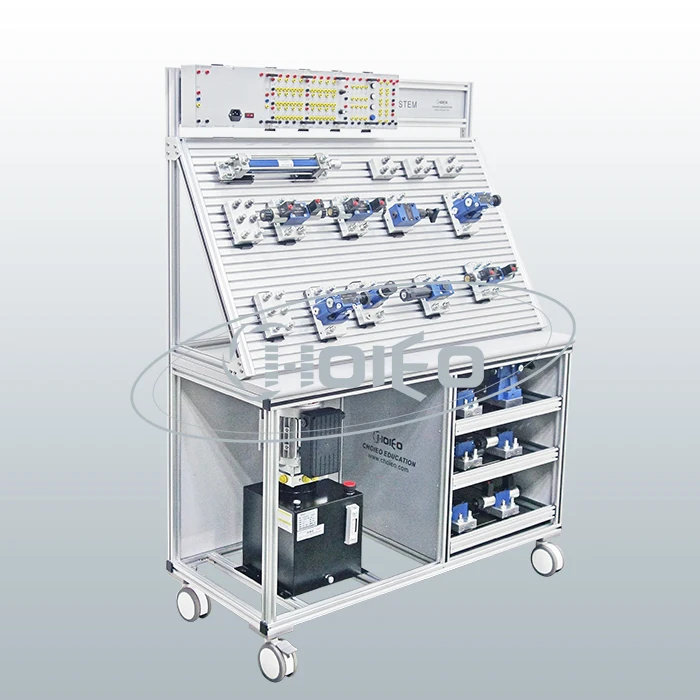

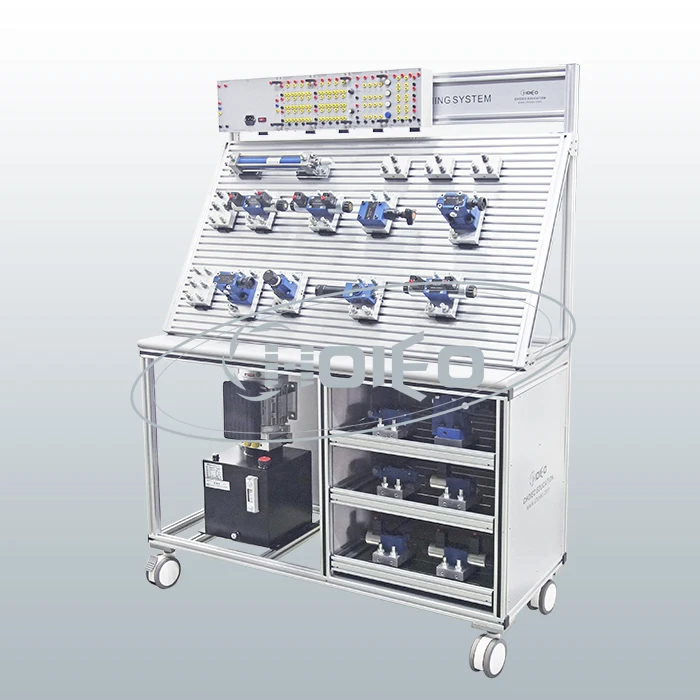

CFH-113 Electro Hydraulics Trainer
• This is a flexible hydraulics teaching system, the complete structure is formed by aluminium profiles, as well as the storage drawer unit, universal and silent castors are adopted to achieve movable ability.
• Quick mounting system is adopted to realize all components to be mounted easily and securely on the grooved profile plate in any direction without tools. The connection between hydraulic tube and hydraulic components is achieved by fast connecting and self-sealing couplings without leakage, thanks to its lockable and spring design, the insertion of hydraulic tubes can be realized simply by pushing the female coupling only and the extraction can be achieved easily by pulling the spring ring with one hand.
• The electrical units are clamped into the top frame and sequenced individually, the supports and the electrical units are the same for both hydraulics and pneumatics, single investment with double the functionality.
• A variety of hydraulic and electrical/electronics parts are available for experiment extension, help achieve skills of different levels from elementary to advanced hydraulic engineering.
• Quick mounting system is adopted to realize all components to be mounted easily and securely on the grooved profile plate in any direction without tools. The connection between hydraulic tube and hydraulic components is achieved by fast connecting and self-sealing couplings without leakage, thanks to its lockable and spring design, the insertion of hydraulic tubes can be realized simply by pushing the female coupling only and the extraction can be achieved easily by pulling the spring ring with one hand.
• The electrical units are clamped into the top frame and sequenced individually, the supports and the electrical units are the same for both hydraulics and pneumatics, single investment with double the functionality.
• A variety of hydraulic and electrical/electronics parts are available for experiment extension, help achieve skills of different levels from elementary to advanced hydraulic engineering.
• Understanding of hydraulic system structure and characteristics
• Function and use of hydraulic control valves
• Recognizing and drawing of hydraulic symbols
• Single stage pressure regulating loop of overflow valve
• One-stage pressure regulating loop of reducing valve
• Reversing loop of 4/3way solenoid valve
• Speed regulating loop of flow control valve
• Speed regulating loop of throttle valve
• Hydraulic controlled one-way valve controlled locking loop
• Pressure relay controlled sequential loop
• Function and use of hydraulic control valves
• Recognizing and drawing of hydraulic symbols
• Single stage pressure regulating loop of overflow valve
• One-stage pressure regulating loop of reducing valve
• Reversing loop of 4/3way solenoid valve
• Speed regulating loop of flow control valve
• Speed regulating loop of throttle valve
• Hydraulic controlled one-way valve controlled locking loop
• Pressure relay controlled sequential loop
FAQ
Q: Are you trading company or manufacturer?A: We are factory. We are specialized for vocational training equipment 8 years in China, our products including Automation trainer, Hydraulics& Pneumatics trainer, Renewable Energy Trainer, PLC technology trainer and so on.
Q: How long is your delivery time?
A: Generally, it is 10-15 days if the goods are in stock. Or it is 30-50 days if the goods are not in stock, it is according to
quantity.
Q: Can I have my own logo on products?
A: Of course, we provide OEM service, we can according your requirement.
Q:How can you guarantee the product quality?
A:We have 8 years experiences, we have strictly quality control system in our production process and test for each finished product before package.
Q:Can I get any instruction book?
A:Yes, We have manual book, which indicate the introduction of trainer and experiments content details.
