China Best Quality Optical Equipments China Ophthalmic Ultrasound AB Scan SW 2100
- Category: >>>
- Supplier: Yancheng Loudly Instruments Co. Ltd.
Share on (1600660936433):
Product Overview
Description
Product Description
Features

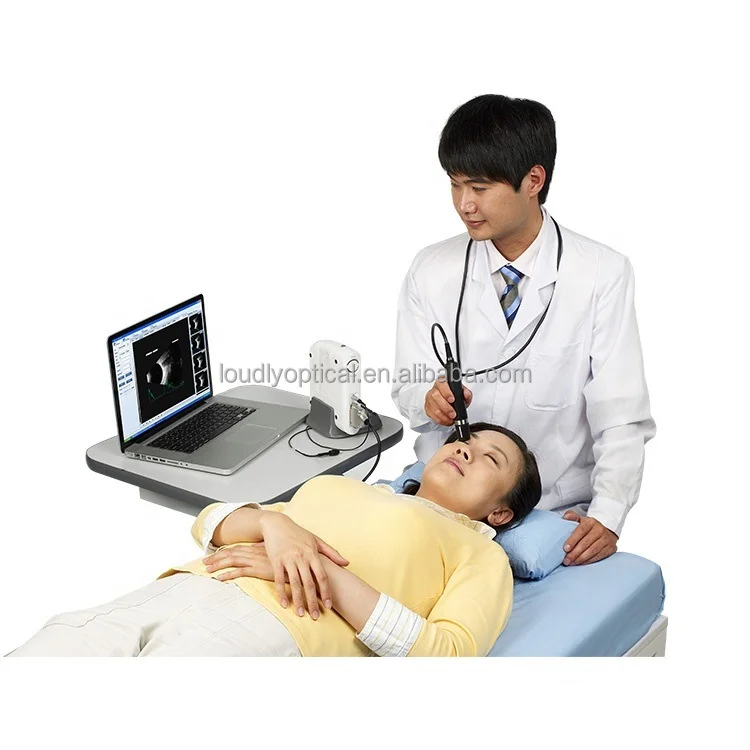

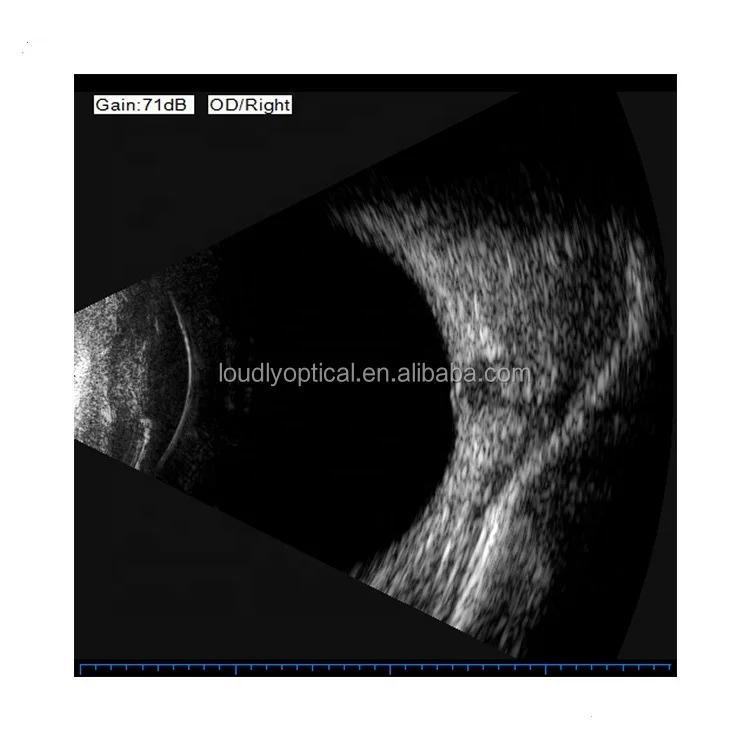

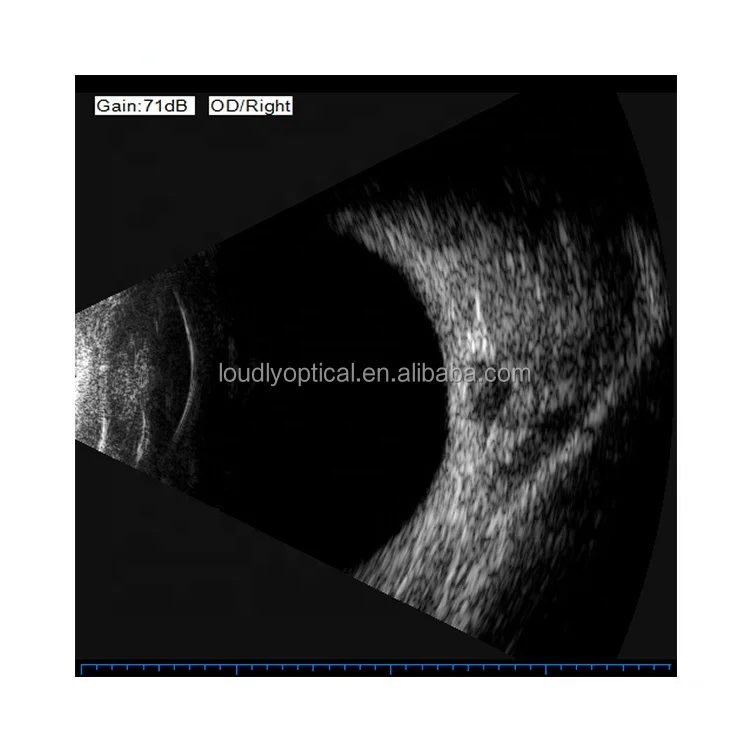

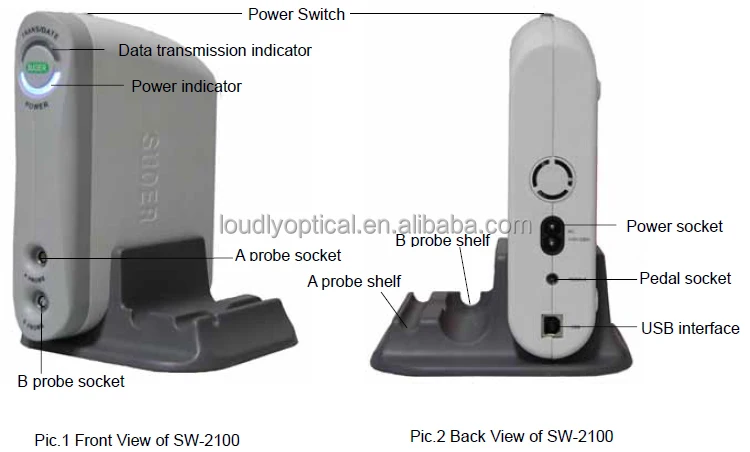

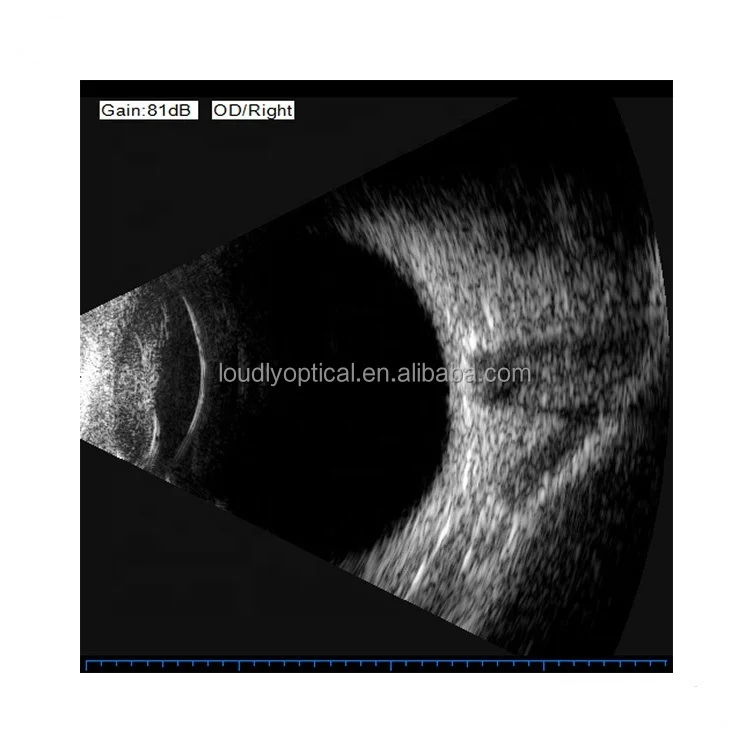

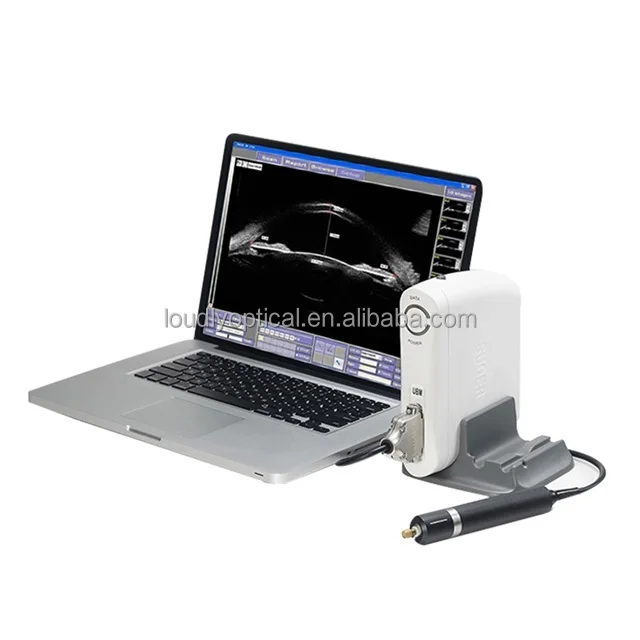

1. USB interfaced ophthalmic A/B scan & image workstation is composed of main unit, A probe, B probe, image workstation and so on. The probe contacts the cornea and sends out ultrasound of 10MHz. In A scan mode, the echo wave from front surface and back surface of lens and retina is detected. The signal is processed and then we get the depth of chamber, thickness of lens and axial length. While in B scan mode, the B probe emits and receives the fan scanning waveform. After the signal procession, the transverse images of the eye are presented on the LCD. And the doctors could observe the eye disease as well as the location of the focus.

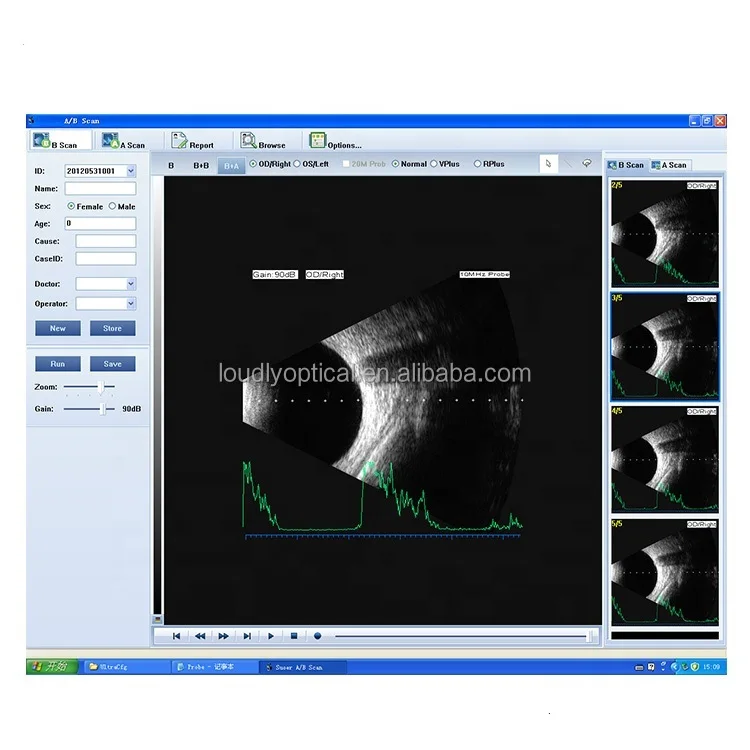

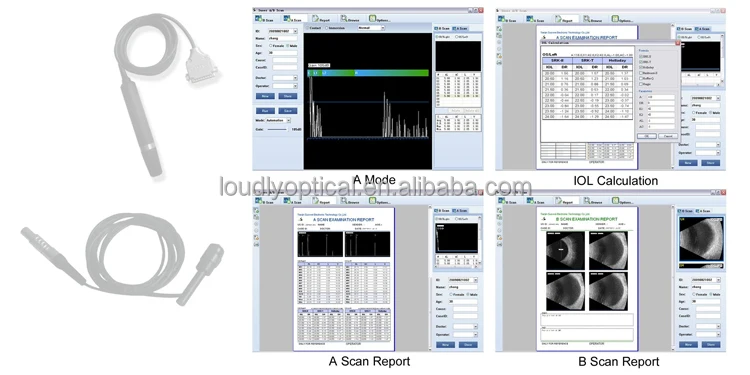

2. The ultrasound signal is pre-processed by main unit and then transported to image workstation through USB interface. The image workstation is composed of portable computer and professional ultrasound image procession software. The image process function is as powerful as to review images, measuring multiple groups of data, case output and archiving.
Specifications
\t\t\t A Scan \t\t\t | \t\t\t B Scan \t\t\t | ||
\t\t\t Frequency \t\t\t | \t\t\t 10MHz, with LED \t\t\t | \t\t\t Frequency \t\t\t | \t\t\t 10MHz \t\t\t Magnetic driven, noiseless \t\t\t \t\t\t |
\t\t\t Depth \t\t\t | \t\t\t AL 15-35mm \t\t\t | \t\t\t Scanning Mode \t\t\t | \t\t\t Sector Scanning \t\t\t |
\t\t\t Precision \t\t\t | \t\t\t ±0.05 mm \t\t\t | \t\t\t Magnify \t\t\t | \t\t\t Multi continuous magnification,Real-Time magnification \t\t\t |
\t\t\t Measurement \t\t\t | \t\t\t Anterior chamber depth, lens thickness \t\t\t | \t\t\t Resolution \t\t\t | \t\t\t Lateral ≤0.3mm; Vertical≤0.2mm \t\t\t |
\t\t\t Geometry position precision \t\t\t | \t\t\t Lateral ≤10%; Vertical≤5% \t\t\t | ||
\t\t\t Vitreous body length, total length and average \t\t\t | \t\t\t Detect depth \t\t\t | \t\t\t ≥ 50mm \t\t\t | |
\t\t\t Gain of probe \t\t\t | \t\t\t 20dB-105dB \t\t\t | ||
\t\t\t Eye mode \t\t\t | \t\t\t Phakic / Aphakic / Dense / Various IOL \t\t\t | \t\t\t Scanning Angle \t\t\t | \t\t\t 53° \t\t\t |
\t\t\t IOL Formula \t\t\t | \t\t\t SRK-II, SRK-T, HOFFER-Q,HOLLADAY BINKHORST-II,HAIGIS-STD \t\t\t | \t\t\t Gray Scale \t\t\t | \t\t\t 256 \t\t\t |
\t\t\t False Color \t\t\t | \t\t\t 7 colors \t\t\t | ||
\t\t\t Measurement type \t\t\t | \t\t\t Multigroup distances, \t\t\t perimeters and areas \t\t\t \t\t\t | ||
\t\t\t Stat. Calculation \t\t\t | \t\t\t Average and standard deviation \t\t\t | \t\t\t Movies \t\t\t | \t\t\t 100 images movie review, AVI JPG.format image output. \t\t\t |
\t\t\t Store \t\t\t | \t\t\t 10 Scanning results for each eye \t\t\t | \t\t\t Image postprocessing \t\t\t | \t\t\t Multiple curves processing,Pseudo-color processing curve \t\t\t |

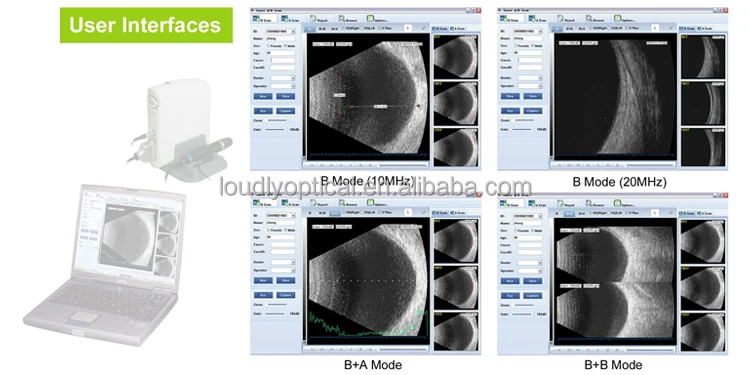

\t\t\t Display Mode \t\t\t | \t\t\t B, B+B, B+A, A \t\t\t | ||
\t\t\t Hint \t\t\t | \t\t\t Preset keyword \t\t\t | ||
\t\t\t Case Search \t\t\t | \t\t\t Multi-keywords \t\t\t | ||
\t\t\t Working Platform \t\t\t | \t\t\t Windows XP, VISTA, WINDOWS7 \t\t\t | ||
\t\t\t User-defined report template \t\t\t | \t\t\t With \t\t\t | ||
Packaging & Shipping
Our Services
Company Information
FAQ
Statement:
The time of delivery is 4-10 days after received your payment, by fast express.
We will full test all products before send out and use the best packaging materials to ensure that the receipt of goods is in good condition.
Payment:
You could make payment by Credit Card by Alibaba Assurance.
When make payment using Escrow, your money is deposited securely in your account. Money is only released to us after you confirm delivery.
Please contact us anytime if any problems with the payment.
Shipping:
Please provide correct delivery address and postal code.
If you have any special requirement, please tell me when you place order.
All Voltage will fit for buyer's country's standard, unless you have special request.
Warranty:
We offer you 1 year warranty and 18 months warranty for some devices.
We have spare parts for all items, within warranty time, if your item suddenly won't work, firstly, you provide photos and video to us to check.
what's the problem of your equipment, then we will give you a solution within 3 working days, promise 100% free solve your problems.
Most time you don't need send back your equipment to repair, we will send spare parts and send video to you to teach you how to repair it.
Most time you don't need send back your equipment to repair, we will send spare parts and send video to you to teach you how to repair it.
If can not repair, we will change new one for you, and no charge all cost.
Custom duty:
In principle, we are according to the actual payment amount to making a declaration, if you need change, please indicate the amount of customs declaration, we will consider the circumstances for making a declaration.
Customs duties and brokerage fees might be possible for some countries.
If refuse to pay import duties and cause the product return. All aliability to the buyer. all expenses for goods returned need paid by the buyer, including return freight and custom fees.
Service:
Loudly Optical is a top Brand certified by Alibaba. The machines we sell are all genuine products. The machine sold do not have the manufacturer's logo. If you need to bring the manufacturer's logo Please note.
