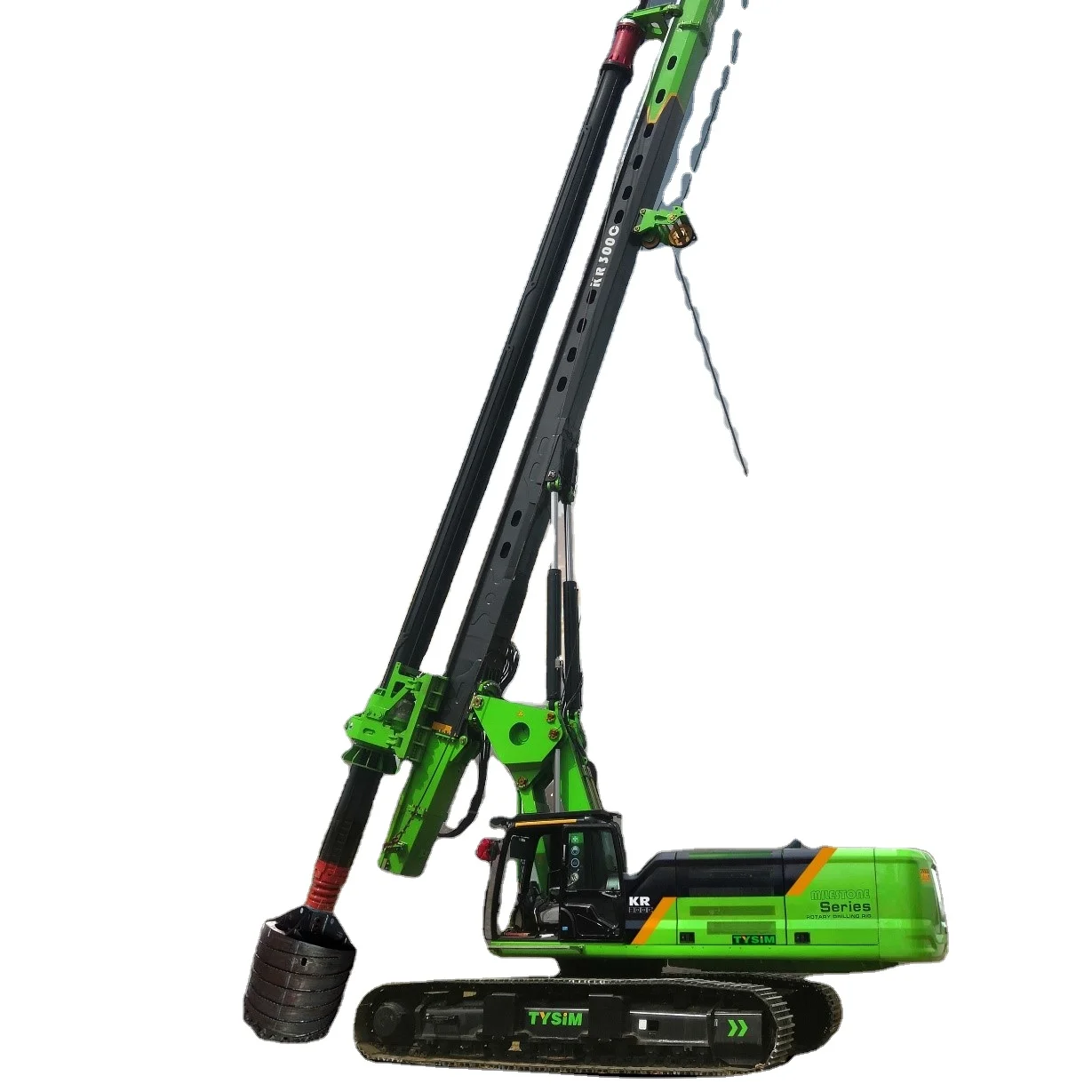

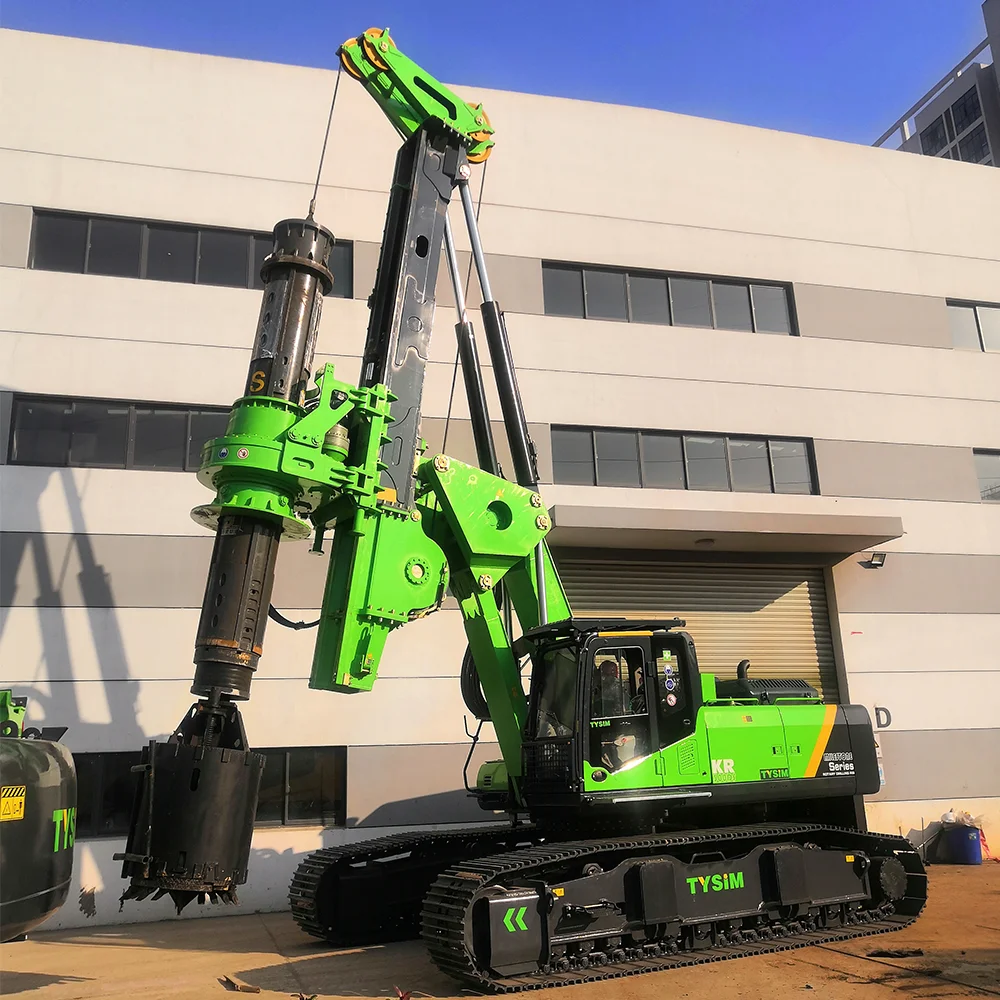

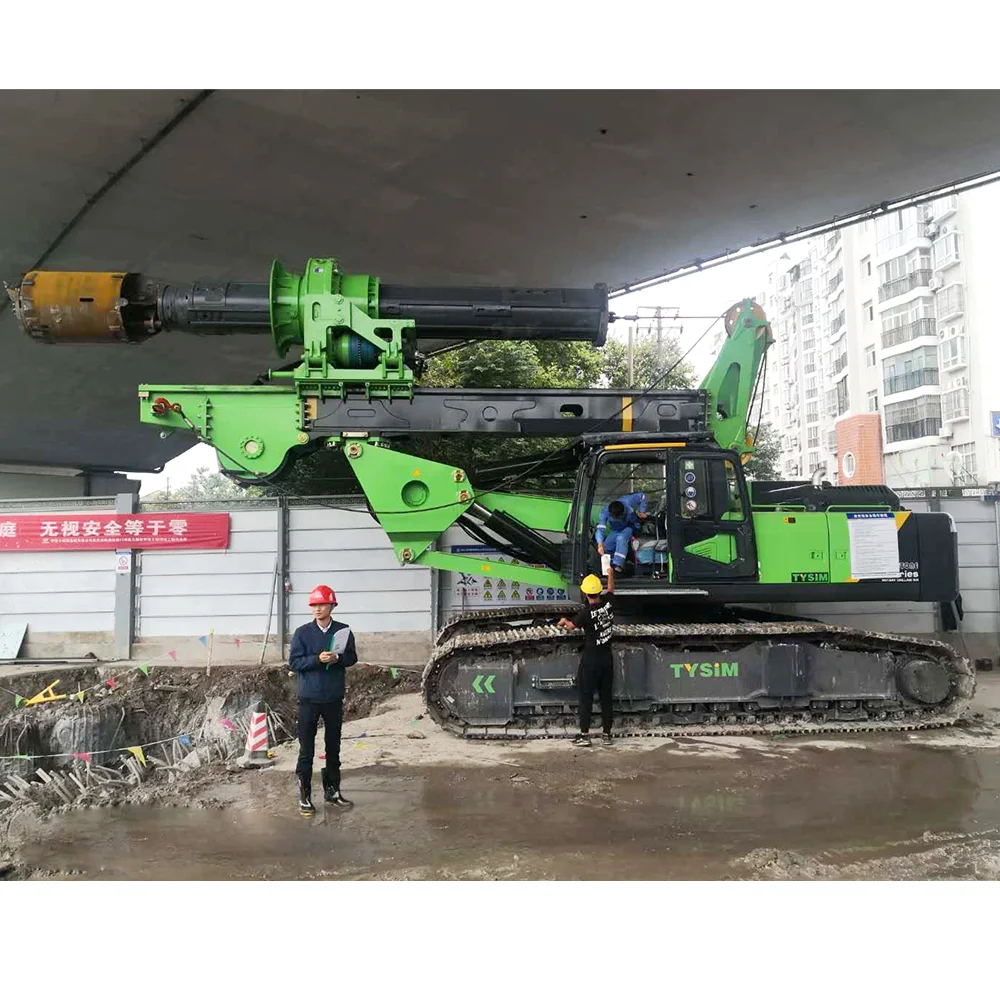

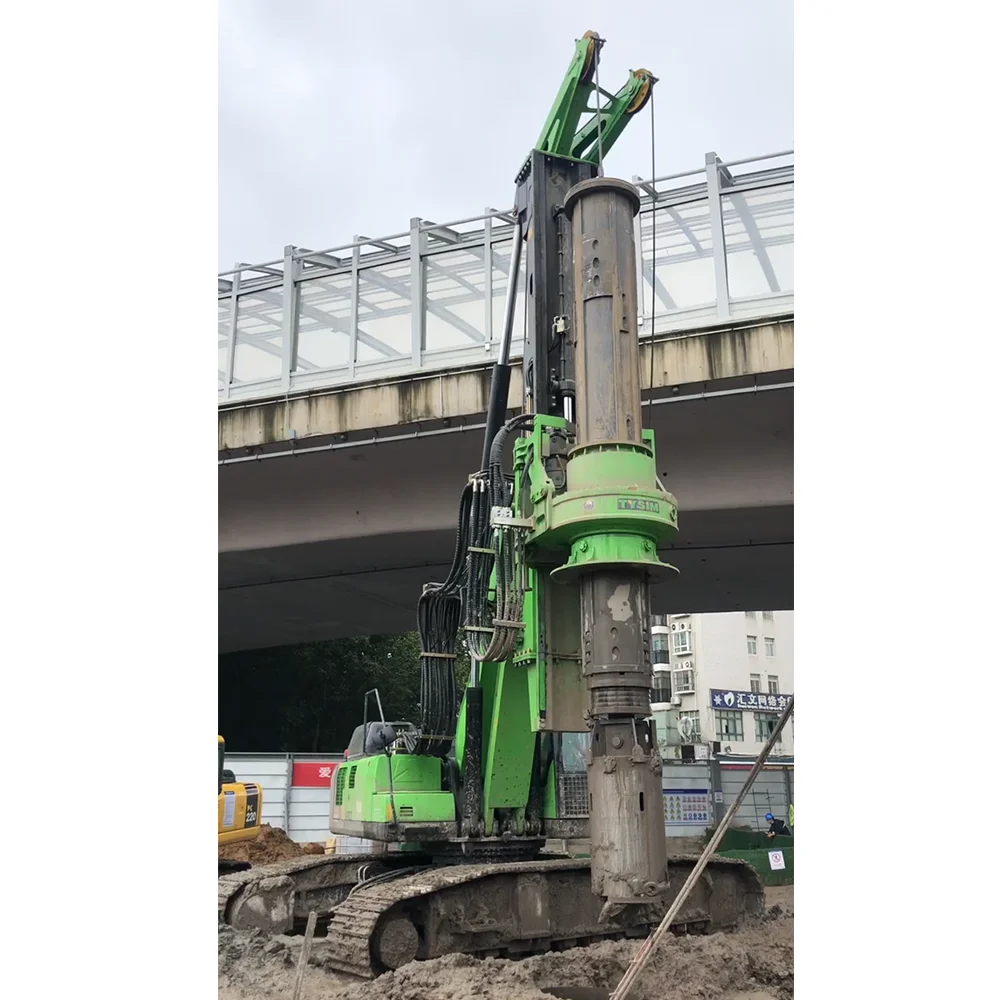

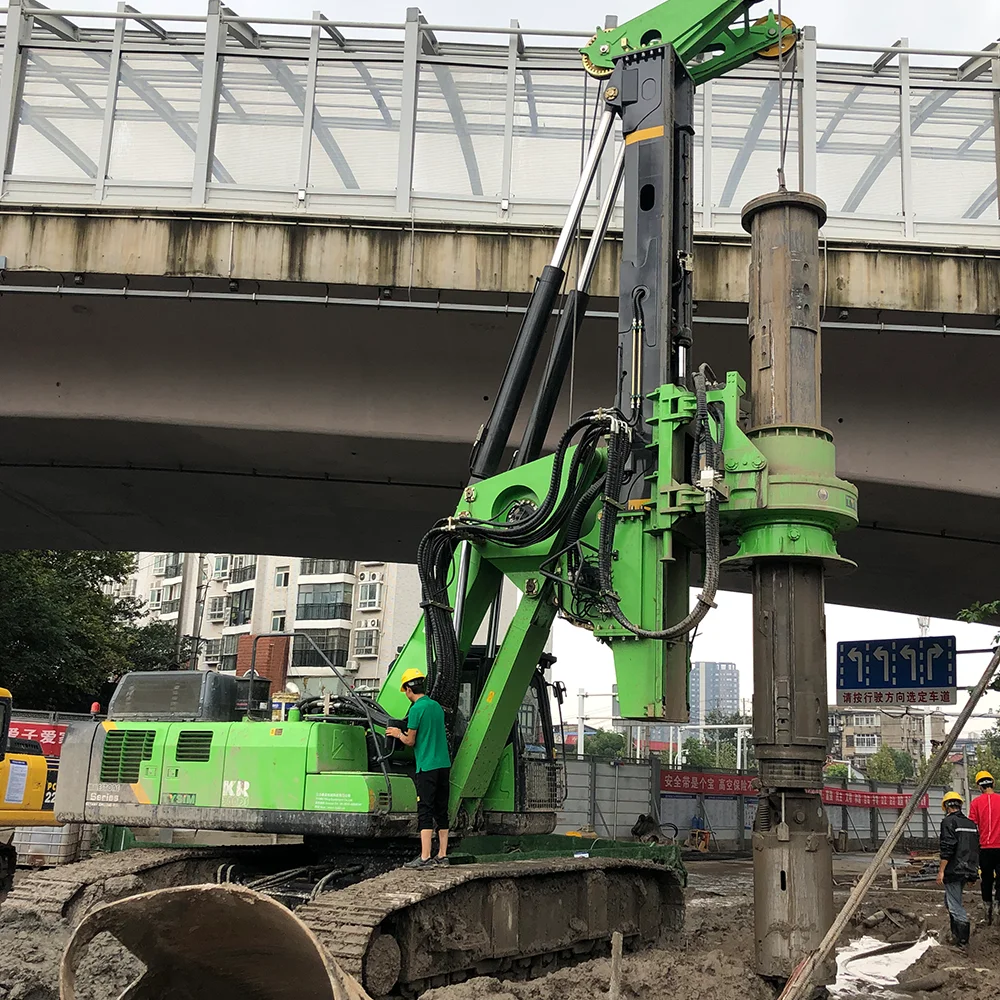

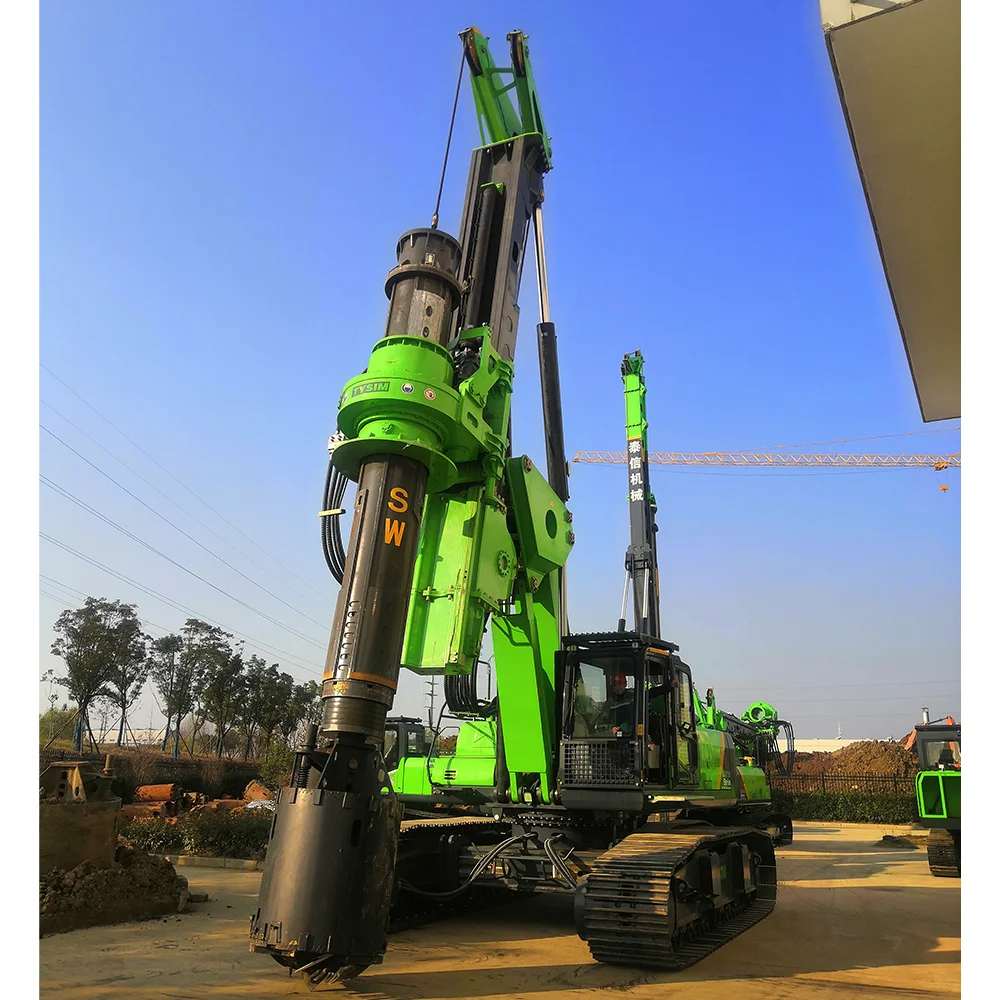

Construction Works Main Winch Speed 66 m/min Low Headroom Hydraulic Rotary Rock Drilling Rig Machine

Share on (1600660941682):


Price:$584,616.00 - $615,385.00

Quantity:


Product Overview

Description















Performance Parameter
Unit
Value
Max. torque
kN.m
320
Max. drilling diameter
mm
2000
Max. drilling depth
m
31.2
Working speed
rpm
6~26
Max. cylinder pressure
kN
220
Max. hoist capacity
kN
220
Main winch pull force
kN
230
Main winch speed
m/min
66
Auxiliary winch pull force
kN
110
Auxiliary winch speed
m/min
70
Max. cylinder stroke
mm
2000
Mast side raking
°
±5
Mast raking forward
°
5
Mast raking backward
°
90
System pressure
mpa
34.3
Pilot pressure
mpa
3.9
Rotating speed
rpm
5
Max. walking speed
km/h
1.5
Max. pull force
kN
560
Operating height
mm
11087
Operating width
mm
4300
Transport height
mm
3590
Transport width
mm
3000
Transport length
mm
10651
Total weight
t
76


Engine
Cummins
Engine type
QSM11
Engine form
Water cooled, 6 cylinder line, turbocharged, air to air cooled
Cylinder number*cylinder diameter*stroke
mm
6×125×147
Rated power
L
10.8
Emission standard
kw/rpm
280/2000
Max. torque
N.m/rpm
1898/1400
Emission standard
EUⅢ


Chassis
Chassis type
ZG485LC -9C
Width of track plate
mm
800
Tail radius of rotation
mm
3604


Kelly bar
Interlocking
Outer diameter
φ650
Layers*Length of each section
8×5.3
Max.depth
31.2














Q: Are you a trading company or a manufacturer?
A:
We are a professional manufacturer, and our factory mainly produces hydraulic pilling rig, hydraulic pile breaker, telescopic arm and related piling equipment etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and have developed a good world wide reputation.

Q: What kind of product certification do you have?
A:
All our products have passed ISO9001 and CE certifications and also passed the inspection by the Chinese National Construction Machinery Quality Inspection Center. We have strict quality inspection process including a load test for every machine before leaving our factory in order to offer the best quality machines to our customers.

Q: Do you have after sales service?
A:
Yes, we have special service team which will offer you professional guidance. If need be, we can dispatch our engineer to your worksite to provide training for your staff. For the chassis, eg CAT chassis, we take advantage of their global presence to ensure prompt after service support. During the epidemic, we provided video for machine installation and operations.

Q: How about the warranty policy ?
A: Most of our products support 1 year warranty, please consult customer service for specific products

Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.
