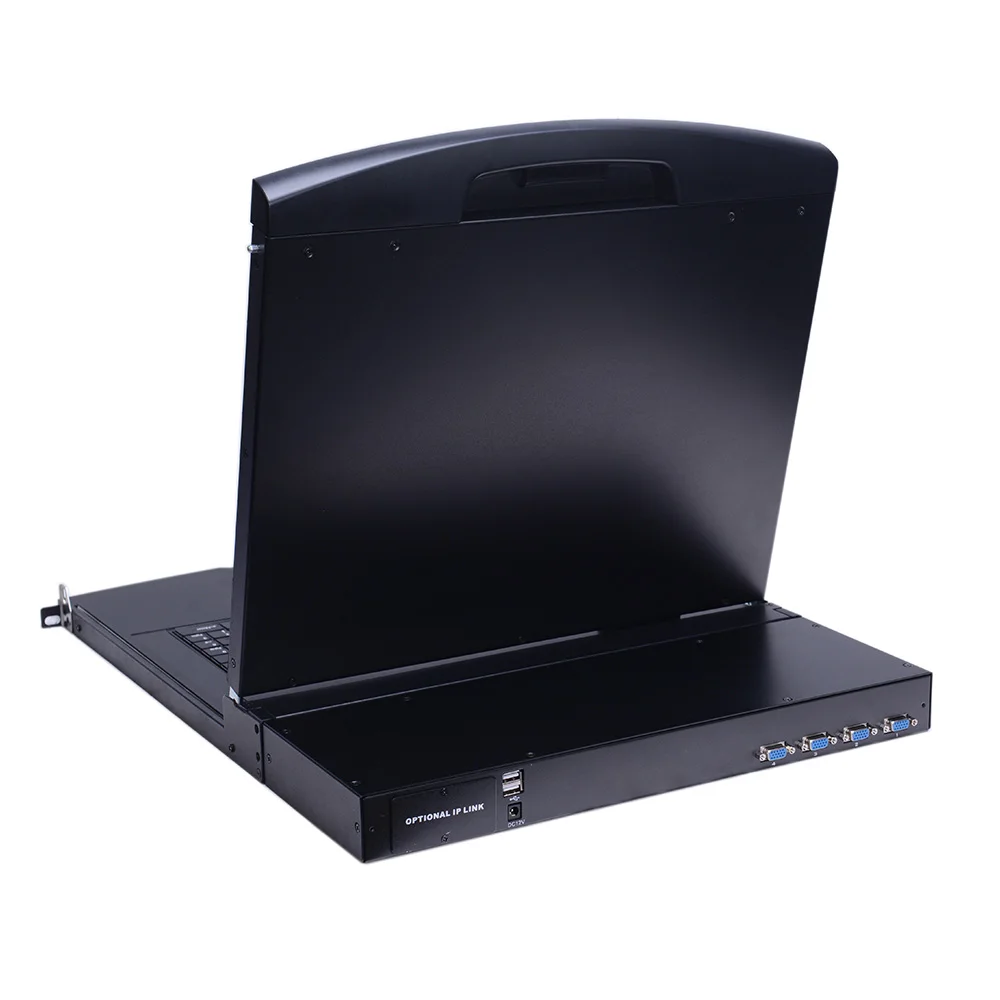

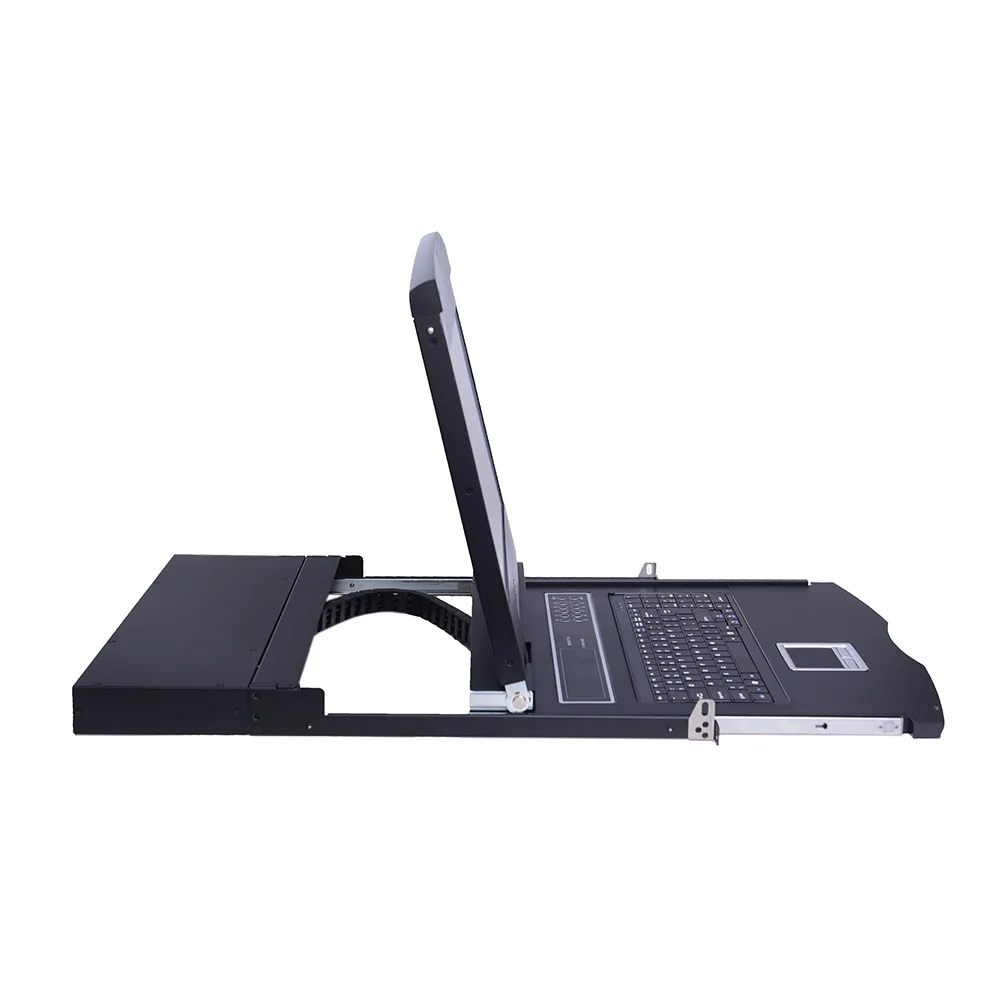

Metal Housing Portable 17 Inches Screen 4 Ports Singlerial LCD KVM Console Switch
- Category: >>>
- Supplier: Suzhou Switek Electronics&Technology Co. Ltd.
Share on (1600660964639):
Product Overview
Description
*Front LCD Console (keyboard, mouse, monitor 17” ) + 4ports KVM Module design
*It’s very flexible and convenient for combination
*IP optional ( IP card could be installed inside KVM module)
*The front USB design
*Cascade function support
*Total length: 611mm, fit for 800-1200mm cabinet
*Cable: 1.8/3/5m are available
*IP optional ( IP card could be installed inside KVM module)
*The front USB design
*Cascade function support
*Total length: 611mm, fit for 800-1200mm cabinet
*Cable: 1.8/3/5m are available

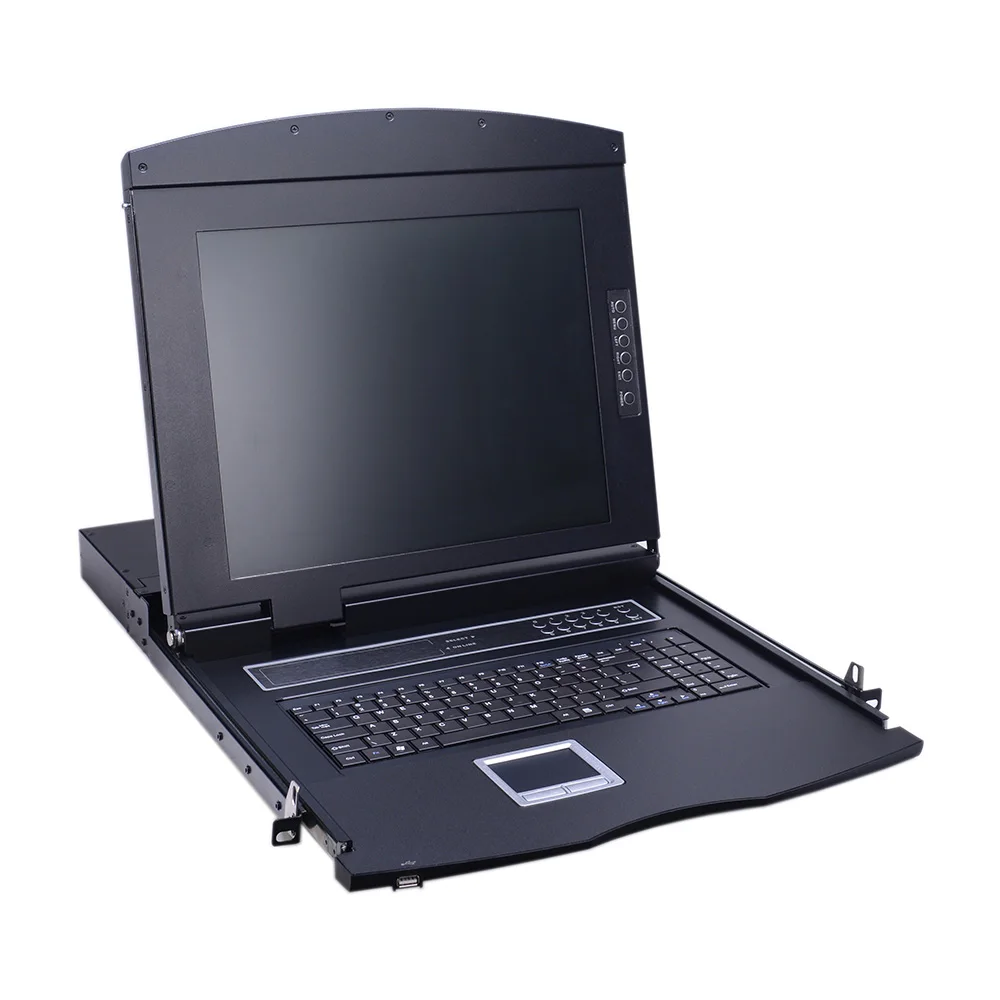

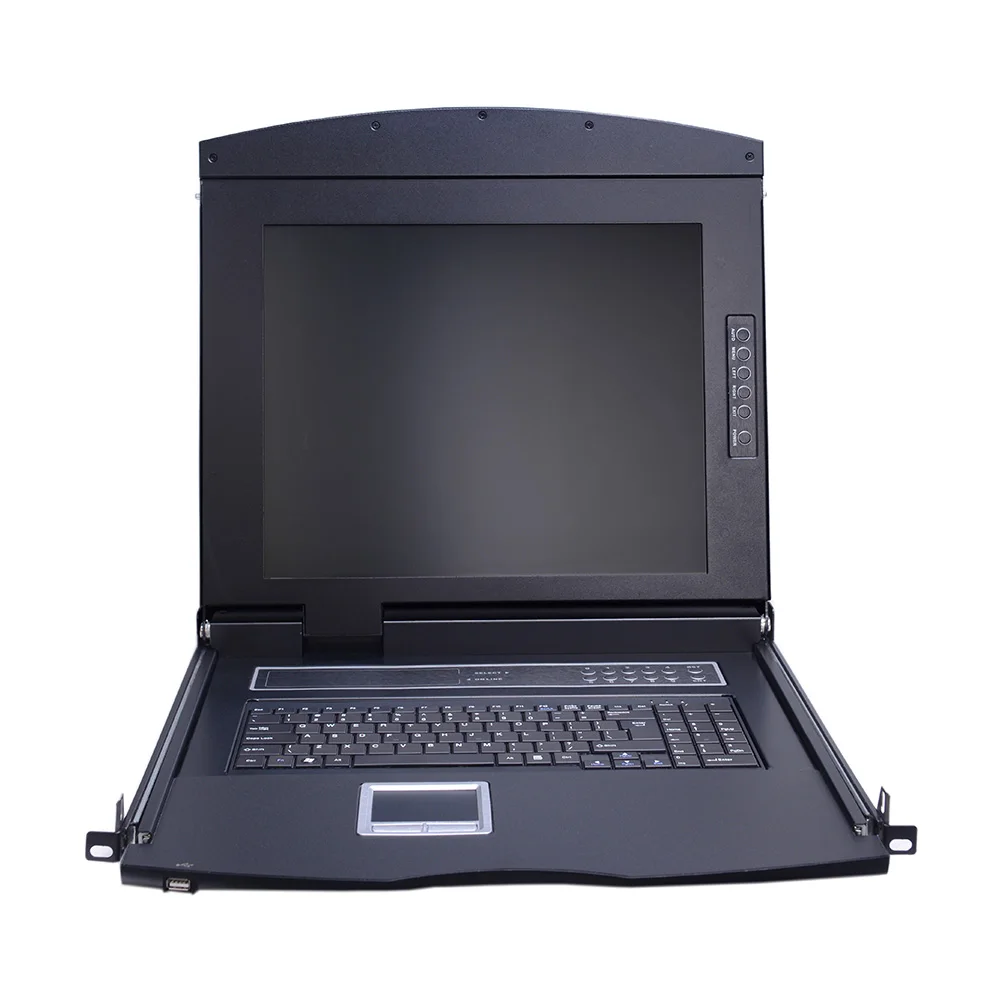

17” LCD Console
Type | 17” LCD Console-AS7100ULS(F) | ||
LCD Monitor | Ratio | 17” Screen, 4:3 | |
Video | SXGATFT-LCD | ||
Visible Square | 337.920(H) × 270.336(V) | ||
Resolution | 1280*1024@60HZ(Opitmum)/1920*1200@60HZ(Max) | ||
Support Color | 16.7M (RGB 6 bit + Hi_FRC) | ||
Contrast | 1000 : 1 (Typ) | ||
Backlight | LED | ||
Pixel Pitch | 0.264x0.297mm | ||
LEDMTBF | 100,000 hours | ||
Input power | 12V | ||
Keyboard | 100Keys, detachable (9 different languages for choose) | ||
Compatible IBM/AT | Microsoft Windows9, Me/NT/2000/XP, WIN7, Server2003, WIN8, WIN10 | ||
Port | Standard PS/2; USB | ||
Using life | >1,000,000 Times | ||
Type | Touch Screen | ||
Port | Standard PS/2 | ||
X/Y Resolution | >1000dots/inch, (40x40/mm) | ||
Using life | >1,000,000 Times | ||
Installation Dimension | 407*445*45mm | ||
Weight | 6.15kg | ||

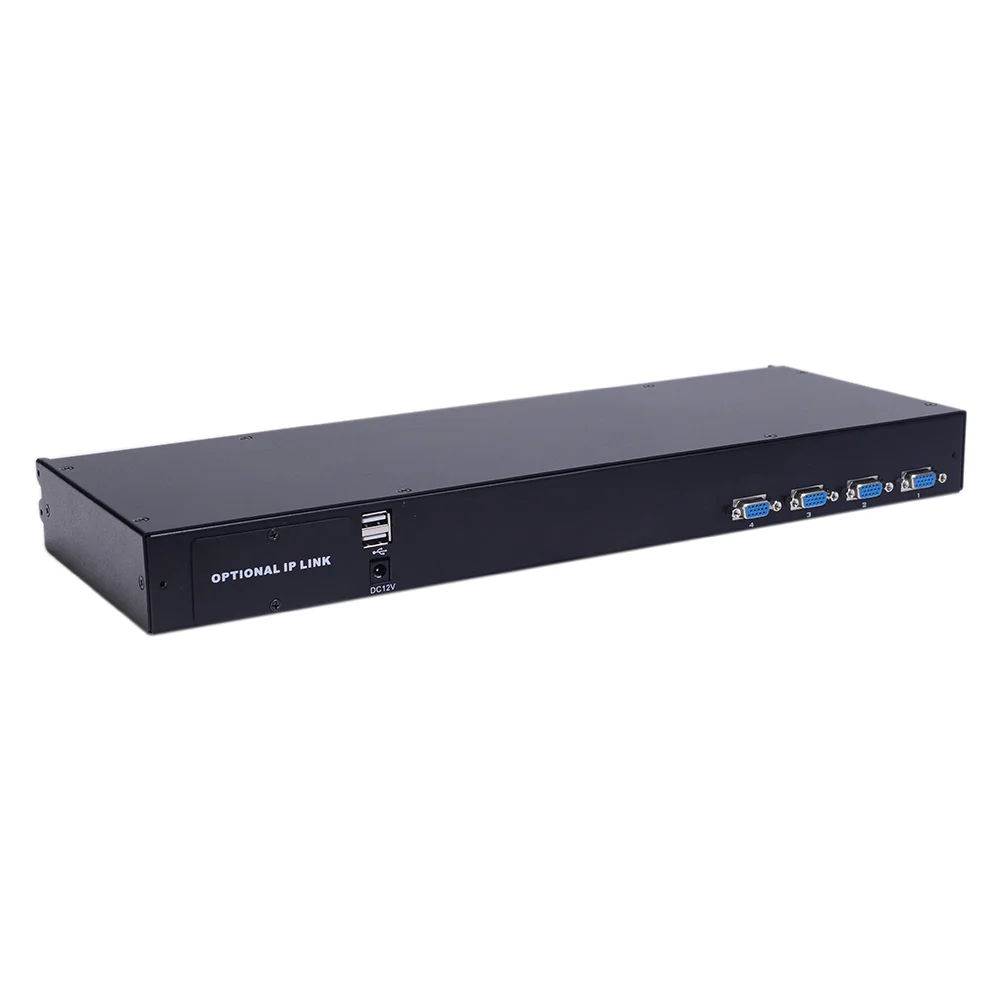

KVM Module
Type | 4 Port(ULSV04) | ||||||
Model No.(Completed Device) | AS7100ULS(F)+ULSV04 (AS-7104ULS) | ||||||
Computer Connection | Direct Connects | 4 | |||||
Maximum Connects | 64 | ||||||
CPU Port Selection | OSD Menu, Front panel buttons, Hot Key, IP Remote Control (Optional) | ||||||
Connectors | Console Connector | DB 37PIN | |||||
PC Connector | Monitor, Keyboard/Mouse Switch Module | 4 x VGA DB15, Female Blue | |||||
Power | 1 x DC Jack | ||||||
Network Port | 1 x RJ45(Optional) | ||||||
Key Switch | Connection Port Selection | KVM Operation Panel Digital keys | |||||
KVM Reset | KVM Operation Panel Function Keys | ||||||
IP Module Reset | 1 x semi-embedded key | ||||||
IP Module Default | 1 x semi-embedded key | ||||||
LED’s | Selected | Nixie Tube Display | |||||
Online | 4 x Red | ||||||
IP Network | 1 x Green, 1 x Orange | ||||||
Analog Mode | Keyboard/Mouse | USB, PS/2 | |||||
Resolution (Max) | 1920 x 1200 @ 60HZ Local & Remote | ||||||
Scan time interval | 3, 5, 10, 15, 20, 30, 40, 60s (3s by default) | ||||||
Operating Environment | Operating temperature | -10-50˚C | |||||
Storage temperature | -20-60˚C | ||||||
Humidity | 0-80%RH, No Condensation | ||||||
Physical Properties | Housing | Metal | |||||
Dimension | 148.4*445*45mm | ||||||
Weight | 2.7kg | ||||||
