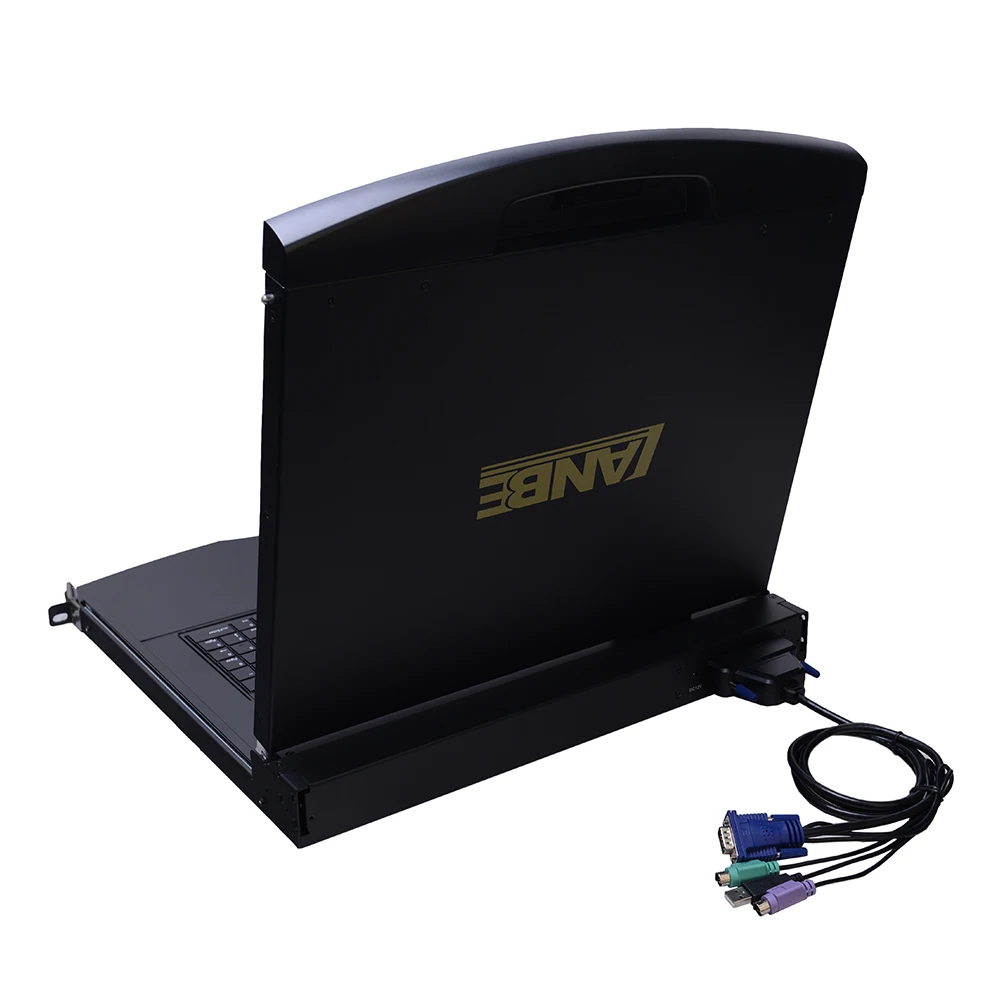

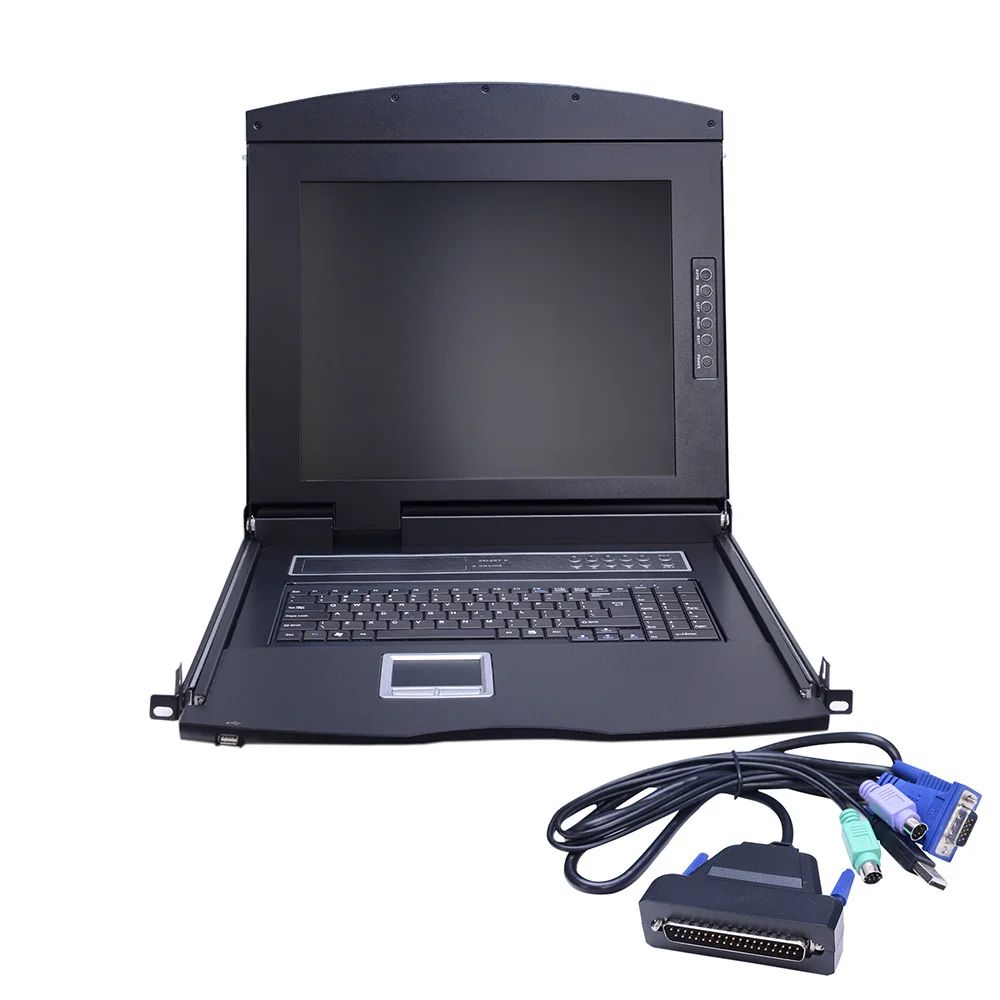

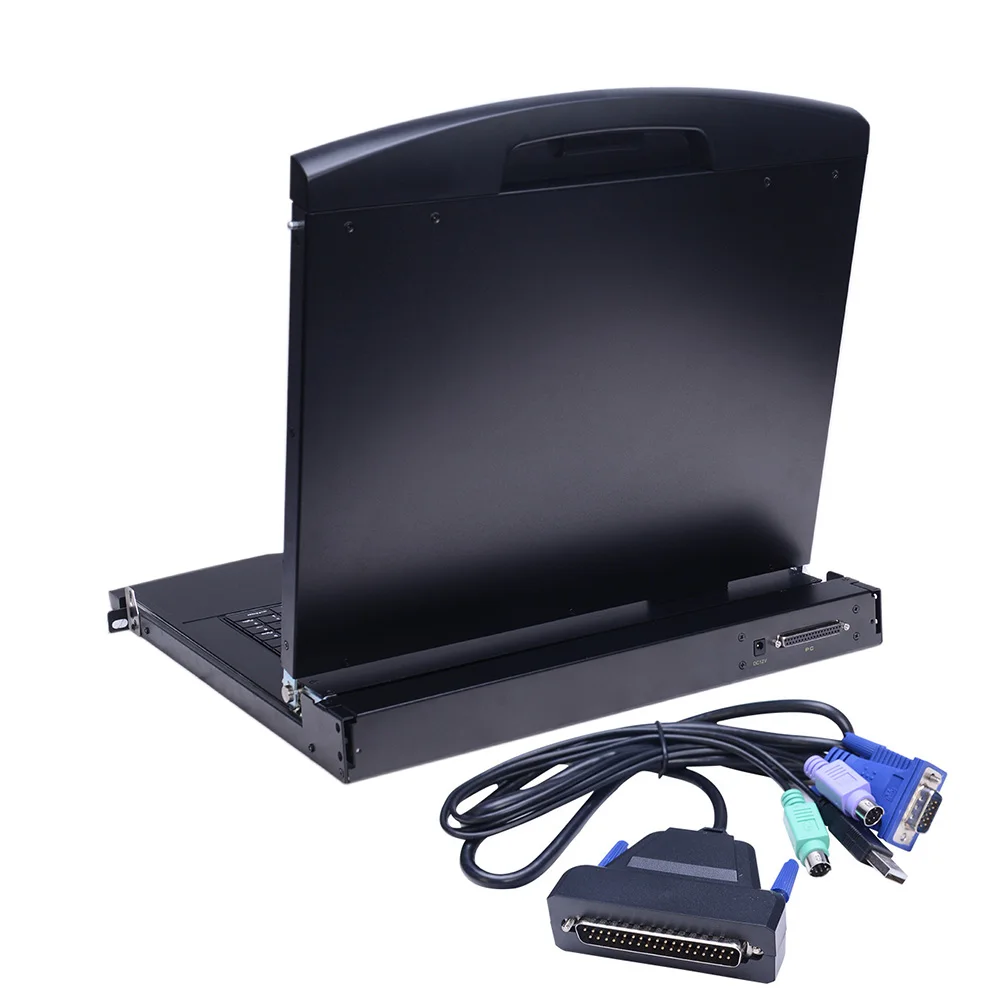

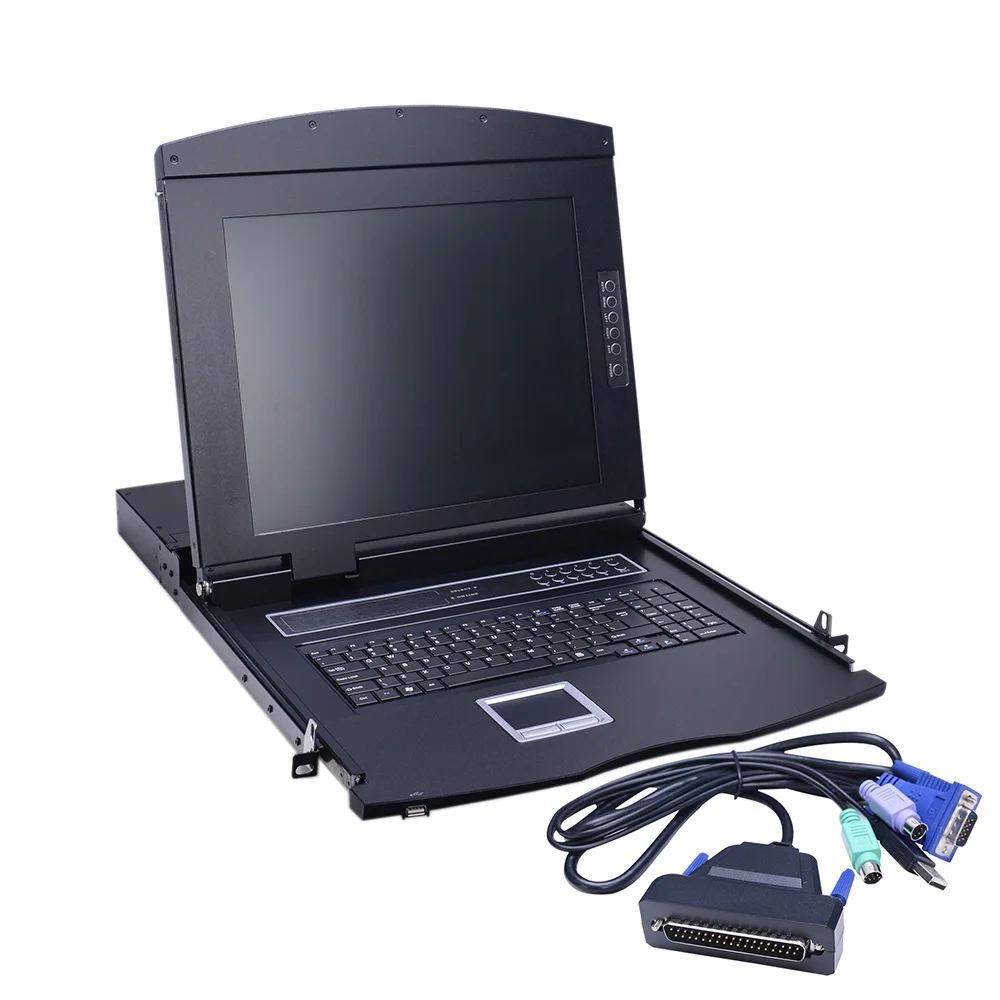

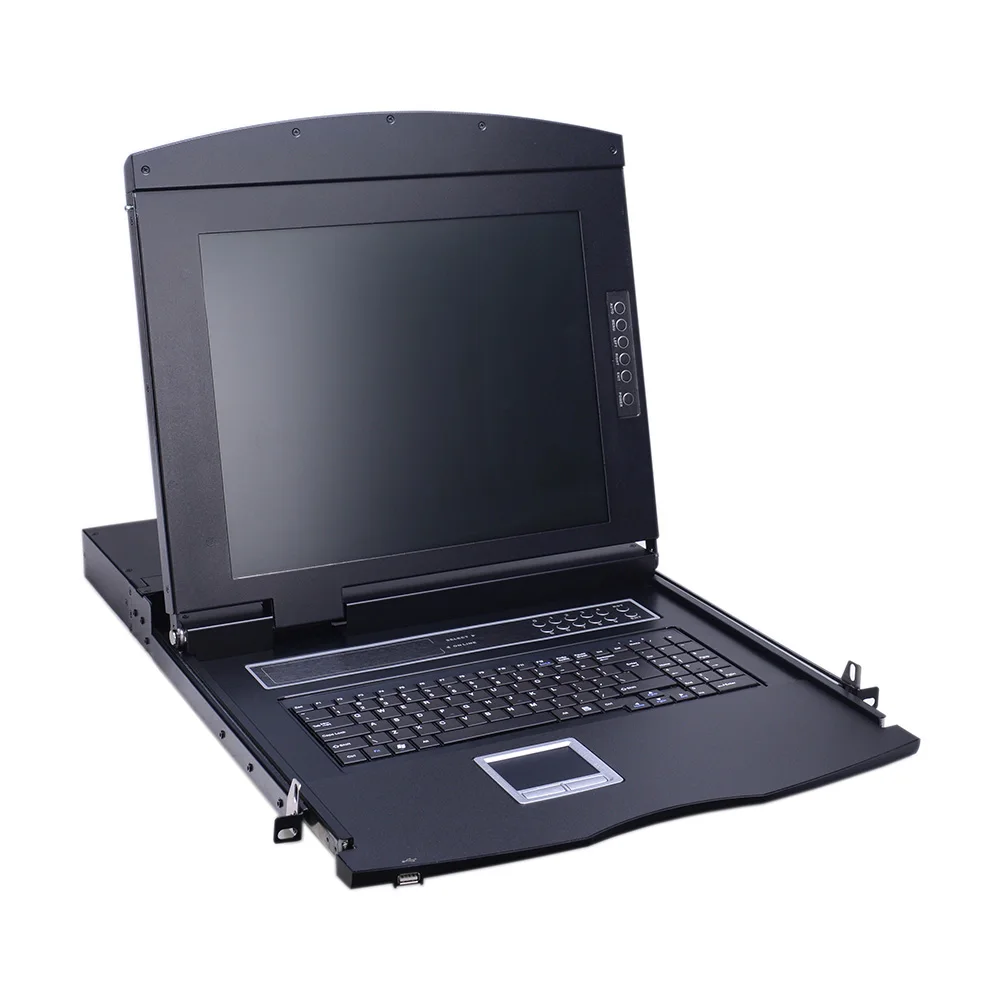

Module Design 1280*1024@60Hz 17 Inch Singlerail VGA LCD KVM Console With Monitor
- Category: >>>
- Supplier: Suzhou Switek Electronics&Technology Co. Ltd.
Share on (1600660968420):
Product Overview
Description

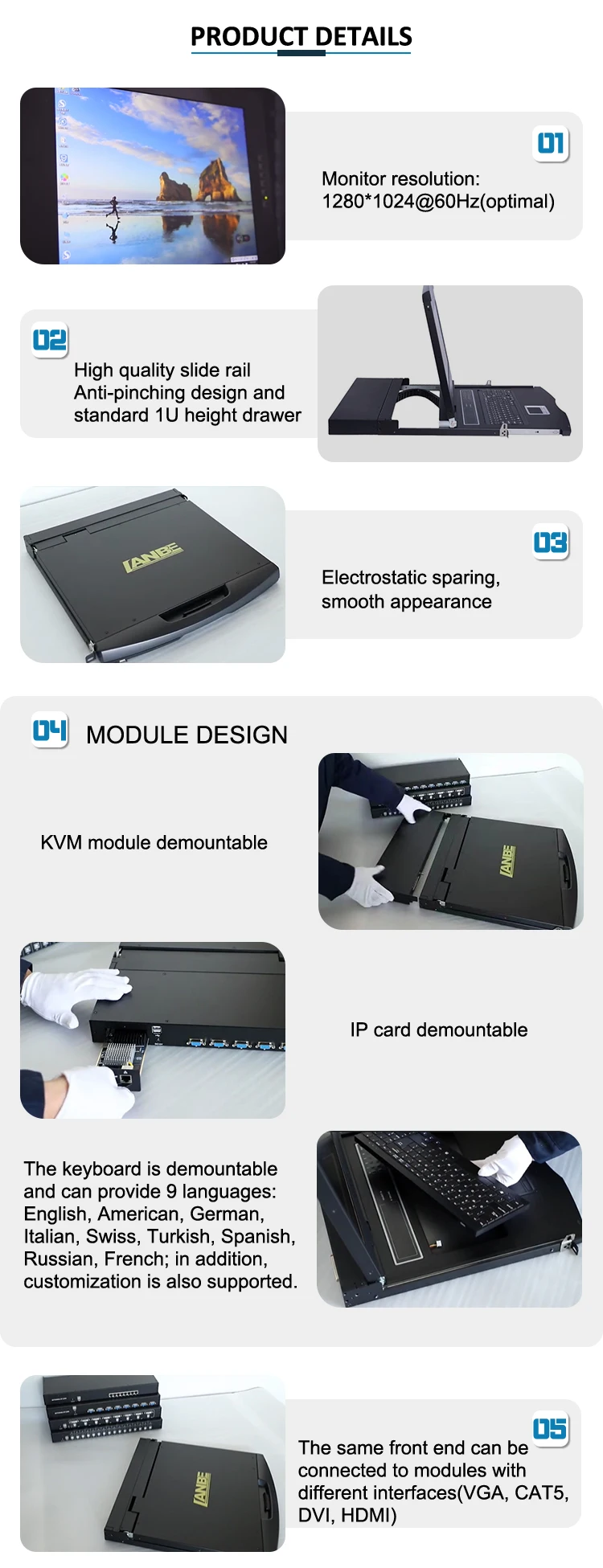

*Front LCD Console (keyboard, mouse, monitor 17”) + single port KVM Module design
*It’s very flexible and convenient for combination
*IP optional ( IP card could be installed inside KVM module)
*Extra prepositive USB mouse interface
* Cascade function support
*Total length: 462.6mm, fit for 600-1200mm cabinet
*IP optional ( IP card could be installed inside KVM module)
*Extra prepositive USB mouse interface
* Cascade function support
*Total length: 462.6mm, fit for 600-1200mm cabinet
LCD CONSOLE
Type | 17” LCD Console-AS7100ULS(F) | ||
LCD Monitor | Ratio | 17” Screen, 4:3 | |
Video | SXGATFT-LCD | ||
Visible Square | 337.920(H) × 270.336(V) | ||
Resolution | 1280*1024@60HZ(Opitmum)/1920*1200@60HZ(Max) | ||
Support Color | 16.7M (RGB 6 bit + Hi_FRC) | ||
Contrast | 1000 : 1 (Typ) | ||
Backlight | LED | ||
Pixel Pitch | 0.264x0.297mm | ||
LEDMTBF | 100,000 hours | ||
Input power | 12V | ||
Keyboard (demountable design) | Keyboard | 100Keys, detachable (9 different languages for choose) | |
Compatible IBM/AT | Microsoft Windows9, Me/NT/2000/XP, WIN7, Server2003, WIN8, WIN10 | ||
Port | Standard PS/2; USB | ||
Using life | >1,000,000 Times | ||
Mouse | Type | Touch Screen | |
Port | Standard PS/2 | ||
X/Y Resolution | >1000dots/inch, (40x40/mm) | ||
Using life | >1,000,000 Times | ||
Installation Dimension | 407*445*45mm | ||
Weight | 6.15kg | ||
KVM Module
Type | 1 Port(ULSV01) | ||||
Model No.(Competed Device) | AS7100ULS(F)+ULSV01 (AS-7100ULS) | ||||
Computer Connection | Direct Connects | 1 | |||
Maximum Connects | 1 | ||||
CPU Port Selection | / | ||||

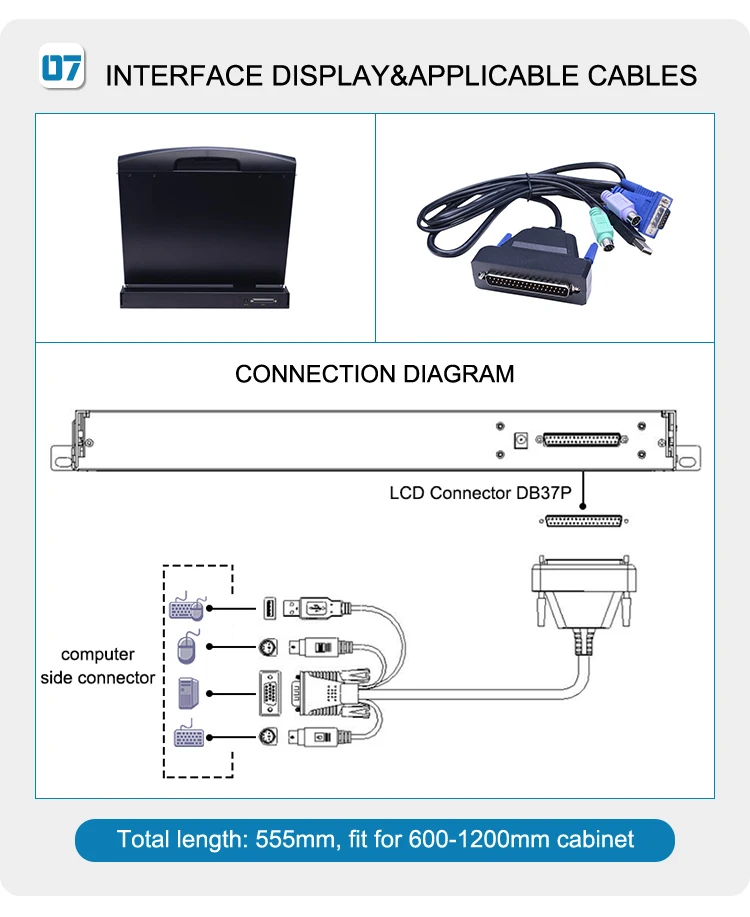

Connectors | Console Connector | DB 37PIN | |||
PC Connector | Monitor, Keyboard/Mouse Switch Module | 1 x VGA DB15, USB/PS.2 | |||
Power | 1 x DC Jack | ||||
Network Port | / | ||||
Key Switch | Connection Port Selection | / | |||
KVM Reset | KVM Operation Panel Function Keys | ||||
IP Module Reset | / | ||||
IP Module Default | / | ||||
LED’s | Selected | / | |||
Online | / | ||||
IP Network | / | ||||
Analog Mode | Keyboard/Mouse | USB, PS/2 | |||
Resolution (Max) | 1920 x 1200 @ 60HZ Local & Remote | ||||
Scan time interval | 3, 5, 10, 15, 20, 30, 40, 60s (3s by default) | ||||
Operating Environment | Operating temperature | -10-50˚C | |||
Storage temperature | -20-60˚C | ||||
Humidity | 0-80%RH, No Condensation | ||||
Physical Properties | Housing | Plastic | |||
Dimension | 50*77*24.5mm | ||||
Weight | 0.18kg | ||||
