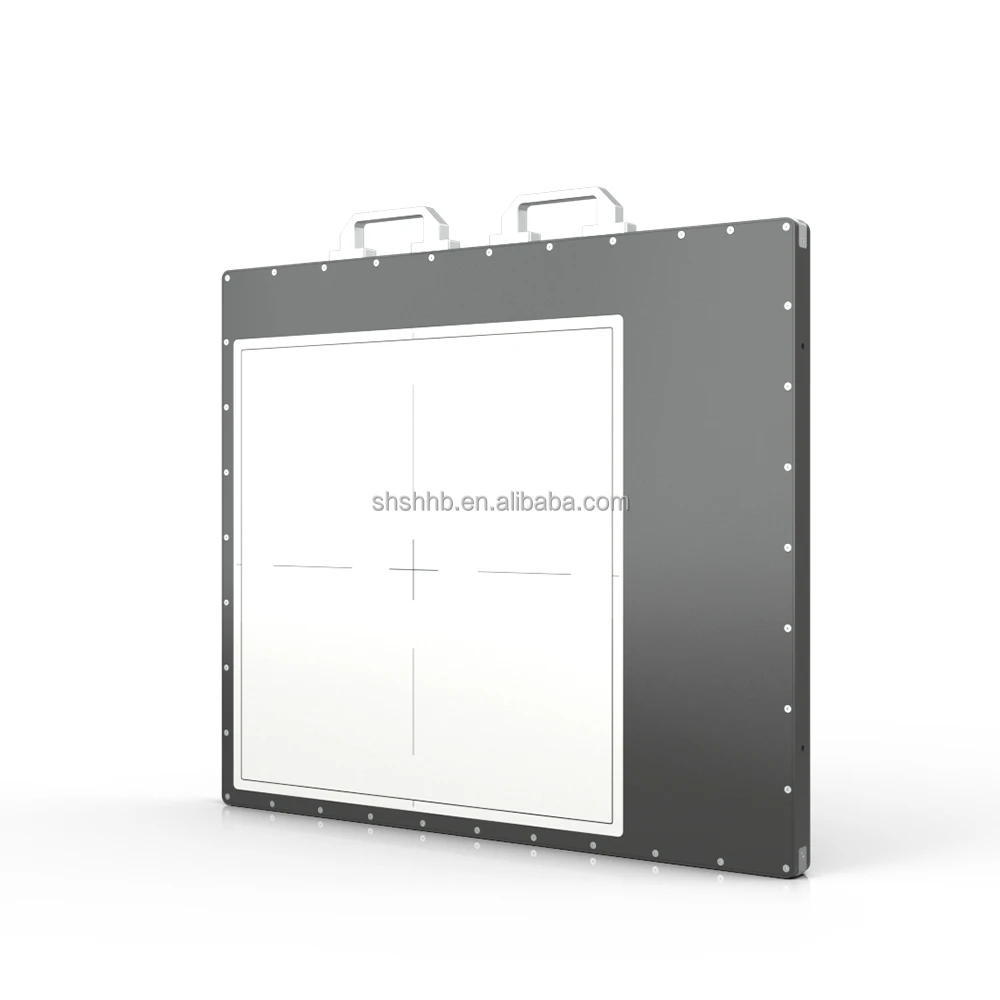

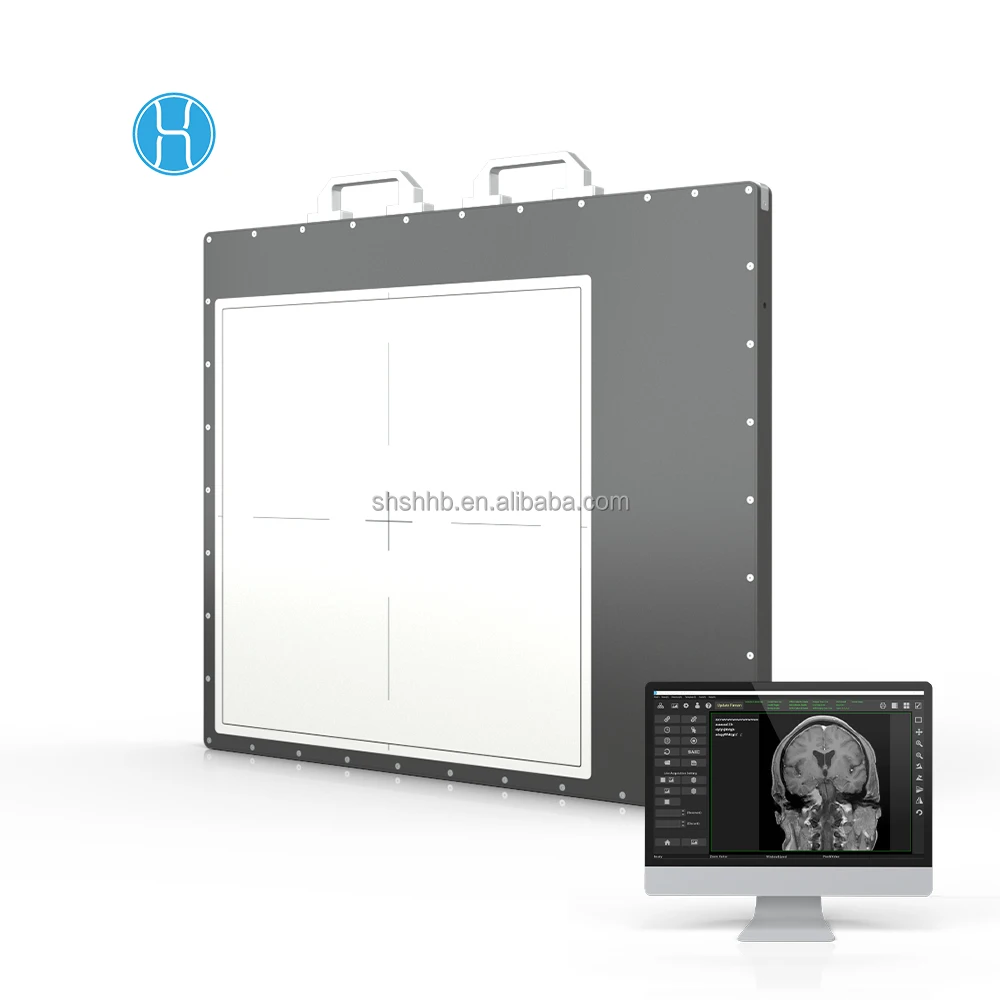

Name | Haobo 17*17 Inch Wired Digital X Ray Flat Panel Flaw Detector Ndt For Industrial X-Ray Machine |
Model Number | Whale4343FQM-H |
Sensor | A-Si |
Active Area | 430 x 430 mm |
Communication Interface | Optical Fiber; High voltage generator; Power |
Whale4343FQM-H Haobo 17*17 Inch Wired Digital X Ray Flat Panel Flaw Detector Ndt For Industrial X-Ray Machine
* Pixel Pitch: 140 μm
* Pixel Matrix: 3072x3072
* ADC:16-bit
* Gain Stage: Multi-Gain
* Scintillator: GOS/CSI
* Water Proof: IP65
* Calibration: Software, Firmware
* Radiation Hardness：≥10000Gy
* Pixel Matrix: 3072x3072
* ADC:16-bit
* Gain Stage: Multi-Gain
* Scintillator: GOS/CSI
* Water Proof: IP65
* Calibration: Software, Firmware
* Radiation Hardness：≥10000Gy
Sensor Protection Material:
Carbon Fiber
Housing Material:
High Strength Aluminum Alloy
Dimension: 630 x 540 x 30 mm
Weight: 18 Kg

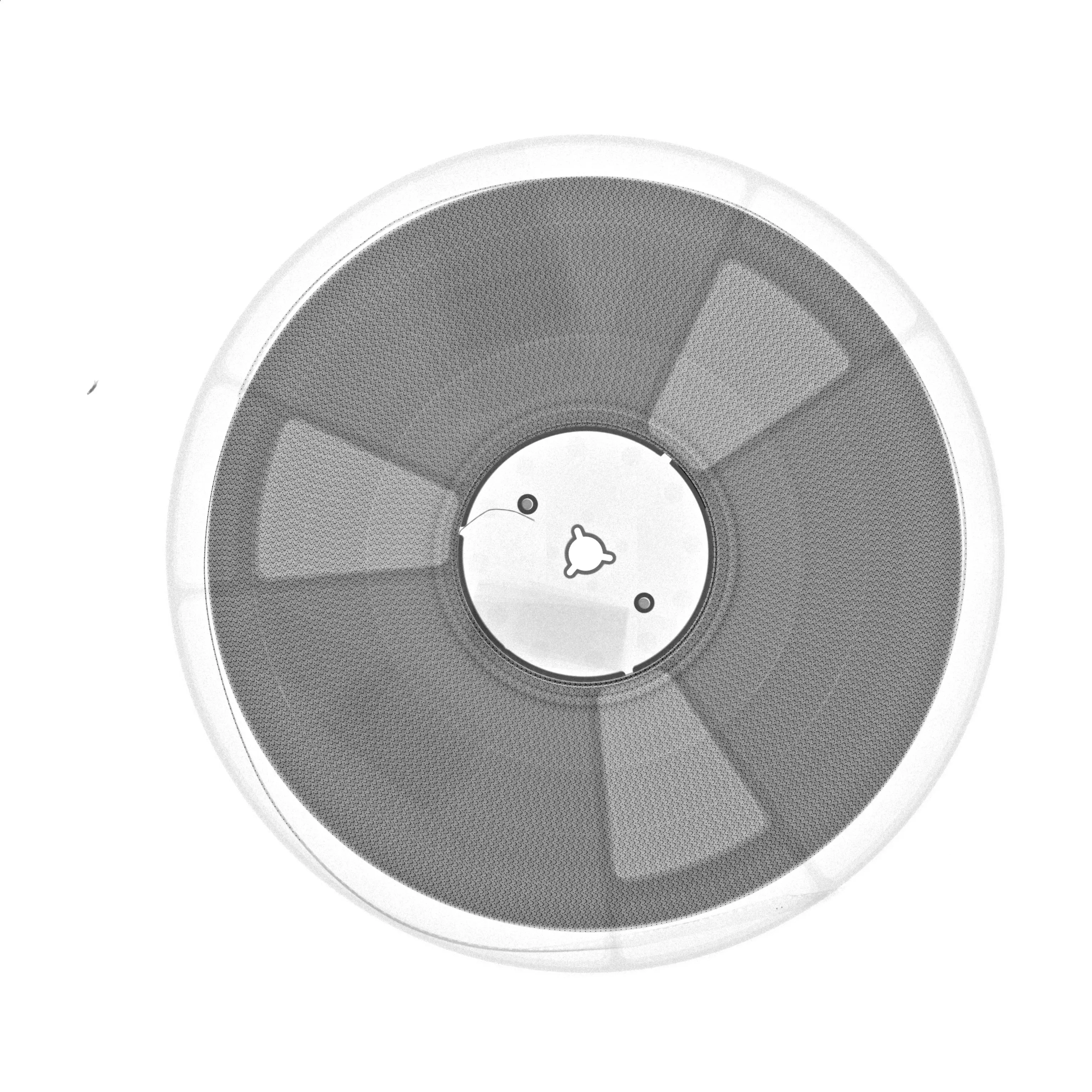

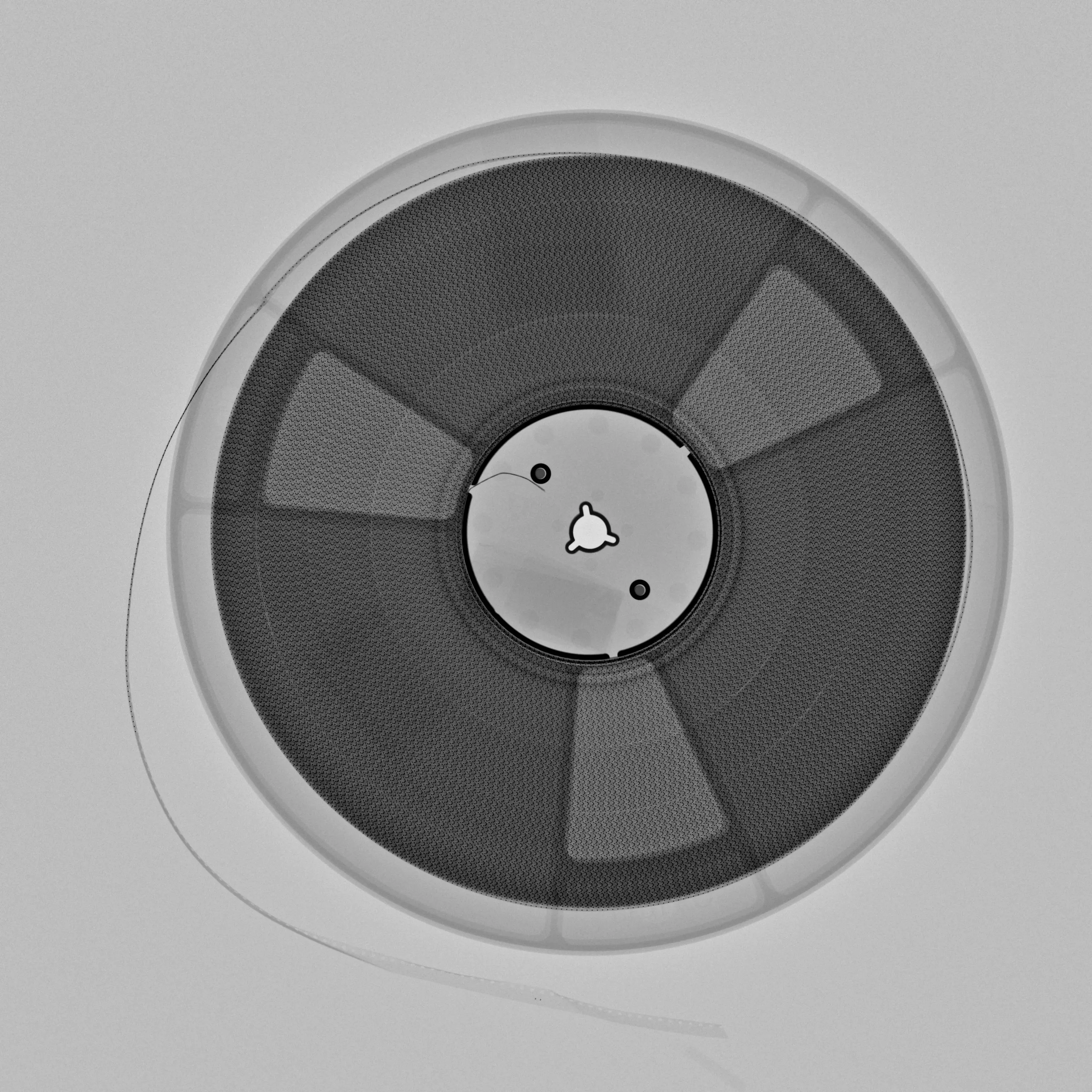

Haobo 17*17 Inch Wired Digital X Ray Flat Panel Flaw Detector Ndt For Industrial X-Ray Machine---Whale4343FQM-H
A-Si (amorphous silicon) has a lot of advantages such as
higher image quality,
higher image quality,
larger dynamic range
LONG life span
multi-gain stage
Multi-gain stage makes the flat panel detector be suitable for high sensitivity and large dynamic range requirements.
Whale4343FQM-H flat panel detectors are widely used in widely used in Accelerator and IGRT.
LONG life span
multi-gain stage
Multi-gain stage makes the flat panel detector be suitable for high sensitivity and large dynamic range requirements.
Whale4343FQM-H flat panel detectors are widely used in widely used in Accelerator and IGRT.

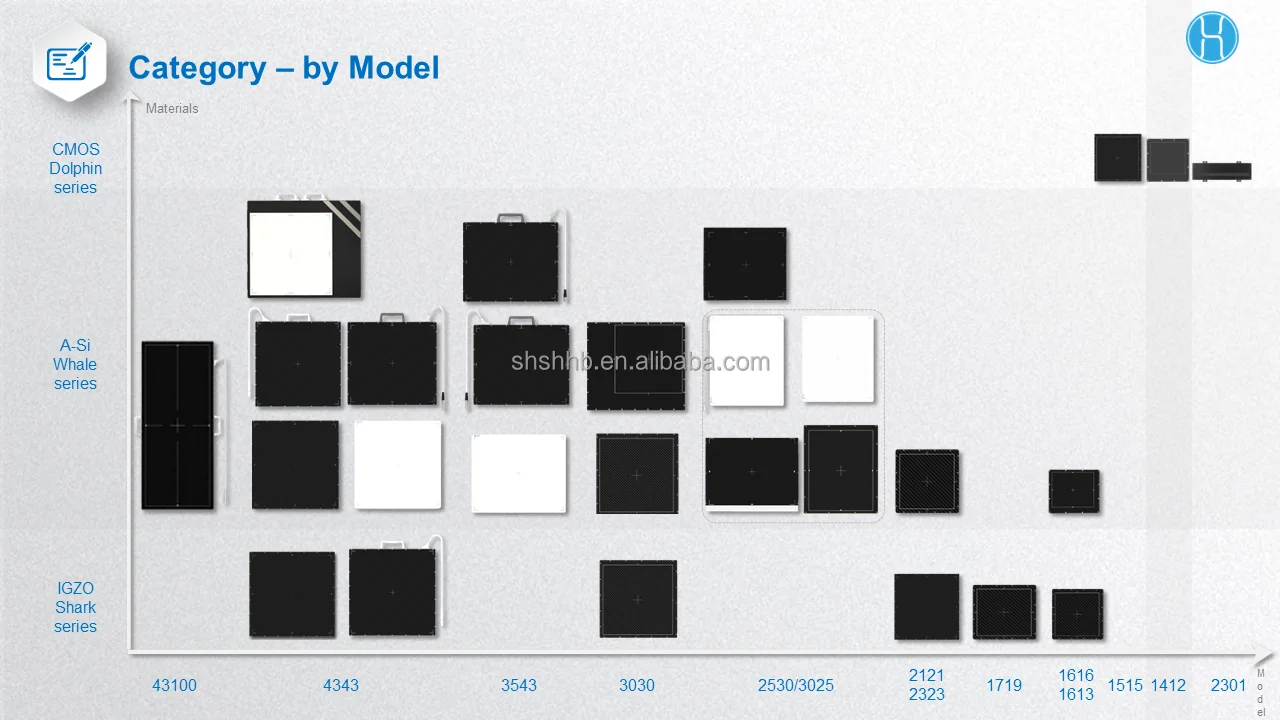

Technology | ||
Sensor | A-Si | |
Scintillator | CSI / GOS | |
Active Area | 430 x 430 mm | |
Pixel Matrix | 3072 x 3072 | |
Pixel Pitch | 140 μm | |
AD Conversion | 16 bits | |
Interface | ||
Communication Interface | Optical Fiber | |
Exposure Control | Pulse Sync In(Edge or Level) / Pulse Sync Out(Edge or Level) | |
Mode | Software Mode / HVG Sync Mode / FPD Sync Mode | |
Frame Speed | 12fps(1x1) / 24fps(2x2) | |
Operating System | Windows7 / Windows10 OS 32 bits or 64 bits | |
Technical Performance | ||
Resolution | 3.5 lp/mm | |
Energy Range | ≤16MV | |
Lag | 0.8% @1st frame | |
Dynamic Range | ≥86dB | |
Sensitivity | 620 lsb/uGy | |
SNR | 48 dB @(20000lsb) | |
MTF | 72% @(1 lp/mm) | |
44% @(2 lp/mm) | ||
25% @(3 lp/mm) | ||
DQE | 55% @(0 lp/mm) | |
41% @(1 lp/mm) | ||
28% @(2 lp/mm) | ||
Mechanical | ||

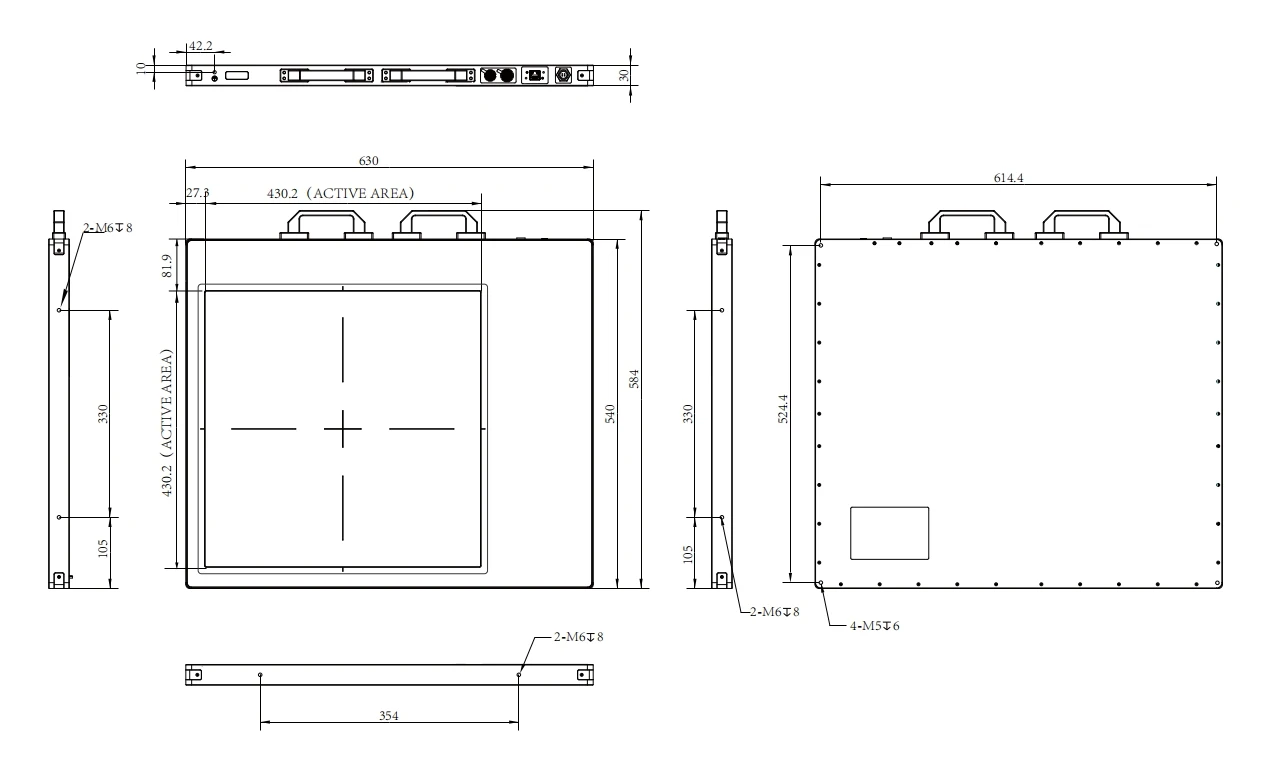

Dimension(H x W x D) | 630 x 540 x 30 mm | |
Weight | 18 Kg | |
Sensor Protection Material | Carbon Fiber | |
Housing Material | Aluminum Alloy | |
Environmental | ||
Temperature Range | 10~35℃(operating);-10~50℃(storage) | |
Humidity | 30~70% RH(non-condensing) | |
Vibration | IEC/EN 60721-3 class 2M3(10~150 Hz,0.5 g) | |
Shock | IEC/EN 60721-3 class 2M3(11 ms,2 g) | |
Dust and Water Resistant | IP65 | |
Power | ||
Supply | 100~240 VAC | |
Frequency | 50/60 Hz | |
Consumption | 14W | |
Application | ||
Medical | Accelerator IGRT | |
