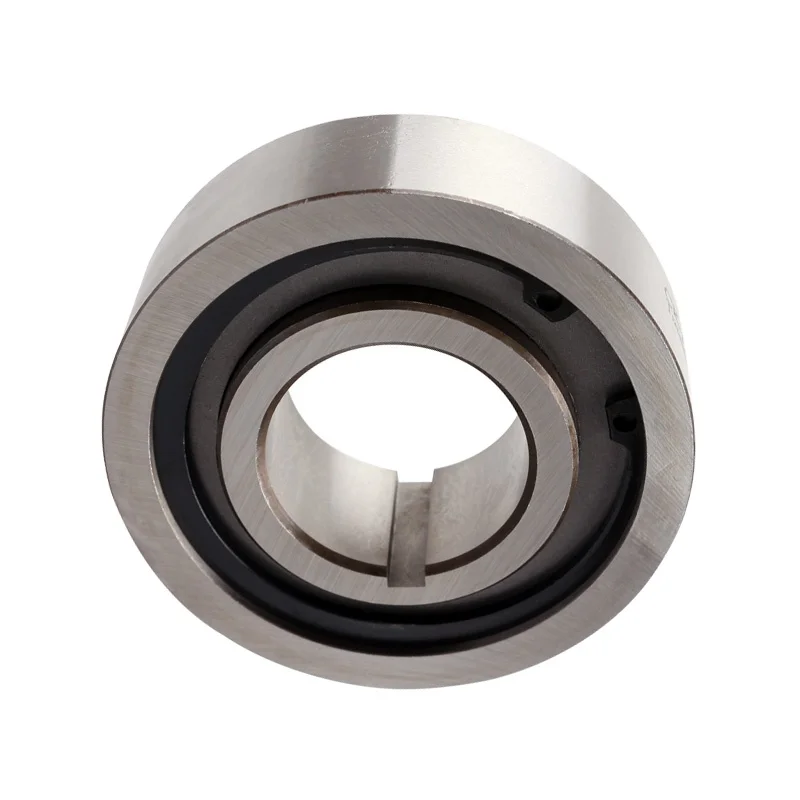

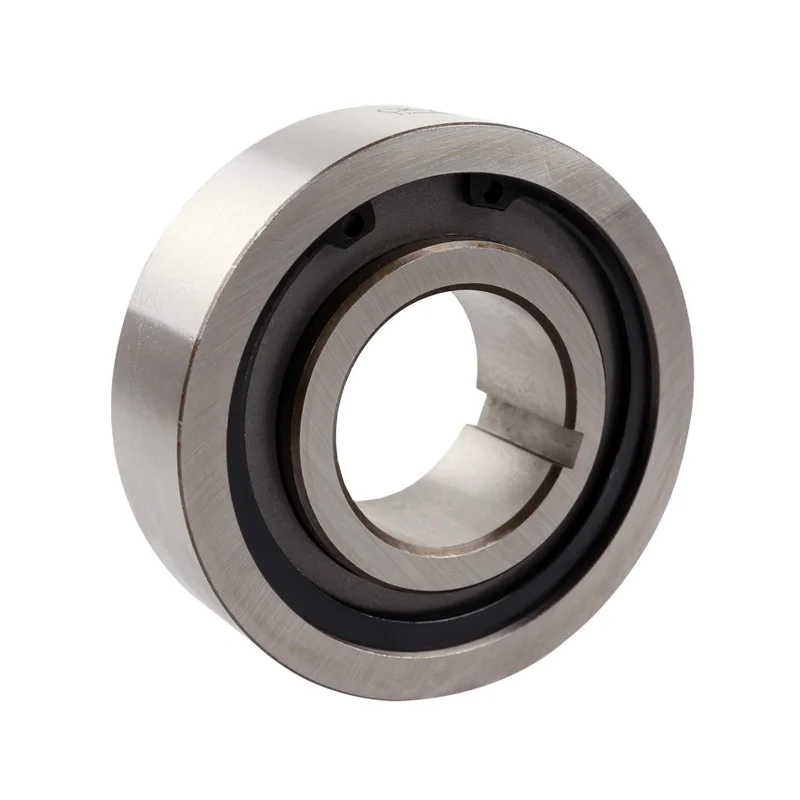

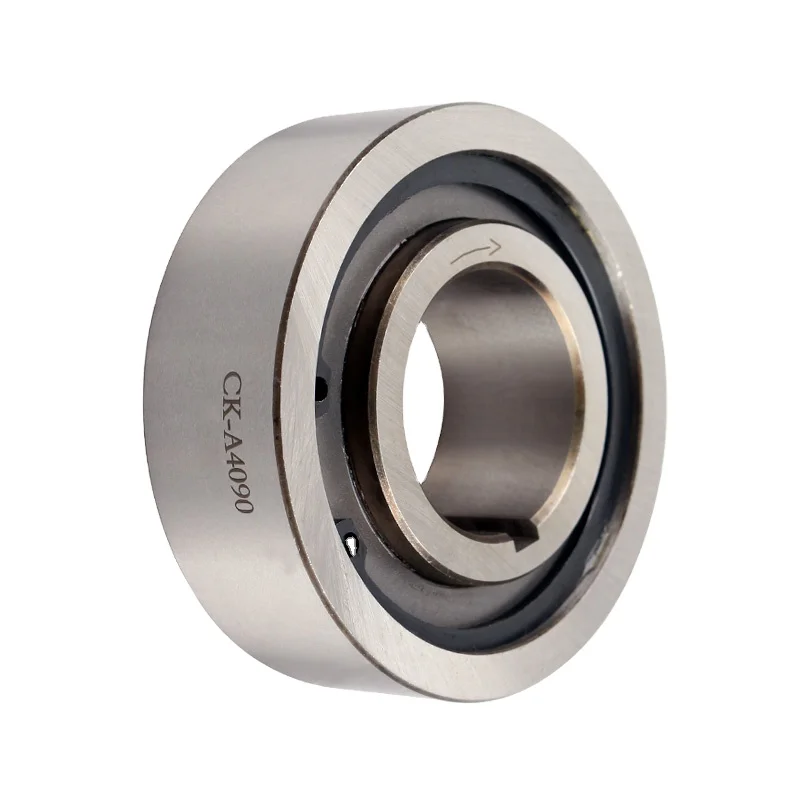

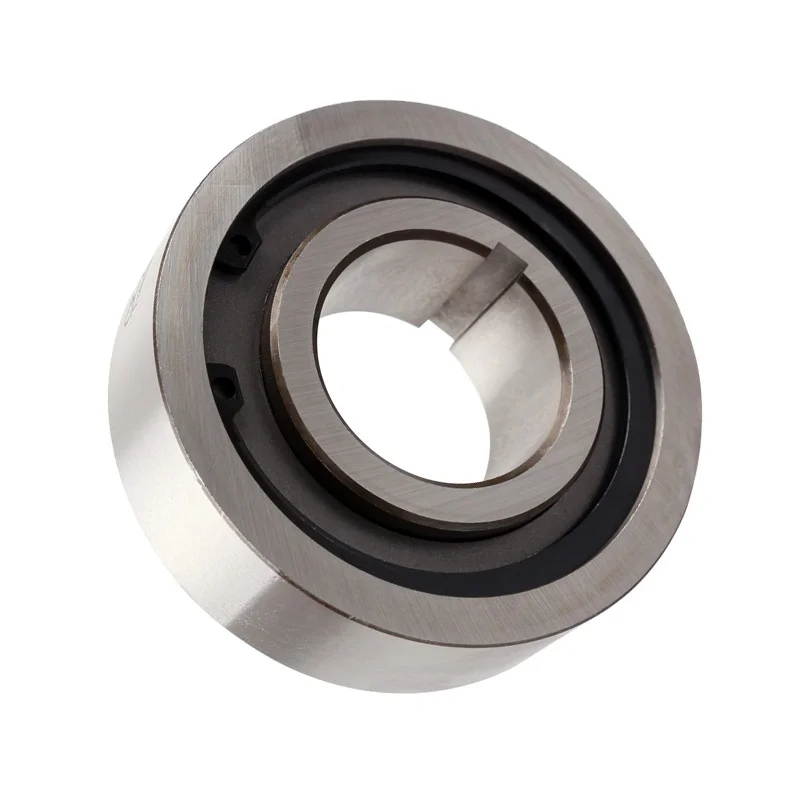

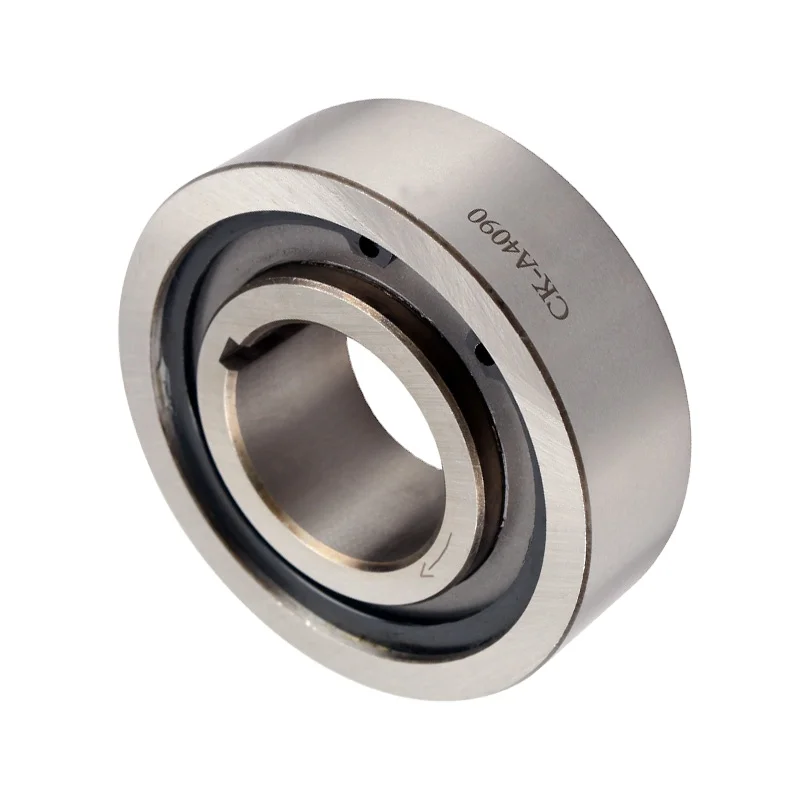

CK A series Sprag Type one way freewheel clutch bearing CK A4090
- Category: >>>
- Supplier: Changzhou Tianniu Transmission Equipment Co. Ltd.
Share on (1600660978728):
Product Overview
Description
Product Description
Technical Datas
| Item | CK-A50130 |
| Material | GCr15 |
| Bore dia. | 50 mm |
| Outer dia. | 130 mm |
| Width (B) | 36 mm |
| Torque capacity | 1050 N.m |
| Overrunning limiting speed (inner race) | 560 r/min |
| Overrunning limiting speed (outer race) | 180 r/min |
| Weight | 3.02 kg |
| Package | Carton box or as your requirements |
Brief Introduction
Type CK-A is a sprag type freewheel non-bearing supported. Nominal dia.-Direction diameter is a standard ball bearings dimension. Bearings are required to support axial and radial loads. Units are delivered grease Iubricated.
The standard arrangement is to install this type besides a bearing with the same housing diameter tolerance. The inner race and the outer race are keyed to the shaft and hole.
This series extensive used in machinery system of conveyer, hosting, packing, printing,paper making, weaving, chemical, medical, food and so on.
Dimensions and Capacities
Model
| Nominal Torque
| Overrunning Limiting Speed (r/min)
| Dimension [mm] | Bearing
| Weight
| ||||||
Outer race | Inner race | ||||||||||
[N.m] | Inner race | Outer race | D[h7] | B | bwxtw | d[h7] | C | bnxtn |
| [kg] | |
CK-A1542 | 54 | 1750 | 500 | 42 | 23 | 3x1.8 | 15 | 24 | 3x1.4 | 6302 | 0.17 |
CK-A1747 | 75 | 1575 | 400 | 47 | 23 | 3x1.8 | 17 | 24 | 3x1.4 | 6304 | 0.21 |
CK-A2052 | 95 | 1400 | 400 | 52 | 23 | 3x1.8 | 20 | 24 | 3x1.4 | 6305 | 0.25 |
CK-A2562 | 145 | 1260 | 350 | 62 | 23 | 4x2.5 | 25 | 24 | 4x1.8 | 6306 | 0.35 |
CK-A3072 | 208 | 1050 | 300 | 72 | 23 | 5x3.0 | 30 | 24 | 5x2.3 | 6307 | 0.47 |
CK-A3580 | 340 | 815 | 200 | 80 | 28 | 8x4.0 | 35 | 30 | 6x2.8 | 6308 | 0.69 |
CK-A4090 | 462 | 700 | 200 | 90 | 28 | 8x4.0 | 40 | 30 | 6x2.8 | 6309 | 0.87 |
CK-A45100 | 783 | 560 | 200 | 100 | 28 | 8x4.0 | 45 | 30 | 6x2.8 | 6310 | 1.07 |
CK-A50110 | 850 | 525 | 180 | 110 | 28 | 10x5.0 | 50 | 30 | 8x3.3 | 6311 | 1.59 |
CK-A60130 | 1050 | 490 | 180 | 130 | 34 | 10x5.0 | 60 | 36 | 8x3.3 | 6312 | 2.16 |
CK-A65140 | 1224 | 490 | 180 | 140 | 34 | 10x5.0 | 65 | 36 | 10x3.3 | 6313 | 2.49 |
CK-A 70150 | 1850 | 455 | 150 | 150 | 40 | 10x5.0 | 70 | 42 | 10x3.3 | 6314 | 3.36 |
CK-A 75160 | 2140 | 455 | 150 | 160 | 40 | 12x5.0 | 75 | 42 | 12x3.3 | 6315 | 3.81 |
CK-A80170 | 2450 | 420 | 150 | 170 | 40 | 12x5.0 | 80 | 42 | 12x3.3 | 6316 | 4.29 |
CK-A1250 | 31.5 | 1750 | 400 | 50 | 22 | 3x1.8 | 12 | 24 | 3x1.4 |
| 0.24 |
CK-A1855 | 50.0 | 1575 | 350 | 55 | 22 | 4x2.5 | 18 | 24 | 4x1.8 |
| 0.28 |
CK-A2060 | 63.0 | 1600 | 350 | 60 | 22 | 6x3.5 | 20 | 24 | 6x2.8 |
| 0.33 |
CK-A 2563 | 100 | 1260 | 350 | 63 | 24 | 6x3.5 | 25 | 26 | 6x2.8 |
| 0.37 |
CK-A2563T | 140 | 1260 | 350 | 63 | 30 | 6x3.5 | 25 | 32 | 8x3.3 |
| 0.68 |
CK-A2870 | 180 | 1050 | 300 | 70 | 30 | 8x4.0 | 28 | 32 | 8x3.3 |
| 0.60 |
CK-A3080T | 340 | 875 | 200 | 80 | 30 | 8x4.0 | 30 | 32 | 8x3.3 |
| 0.75 |
CK-A3585 | 400 | 815 | 200 | 85 | 30 | 8x4.0 | 35 | 32 | 8x3.3 |
| 1.00 |
CK-A35100 | 780 | 875 | 200 | 100 | 32 | 10x5.0 | 35 | 34 | 10x3.3 |
| 1.34 |
CK-A35140 | 1000 | 490 | 180 | 140 | 35 | 8x4.0 | 35 | 35 | 10x3.5 |
| 3.28 |
CK-A40100 | 780 | 560 | 200 | 100 | 34 | 10x5.0 | 40 | 34 | 10x3.3 |
| 1.20 |
CK-A40110 | 850 | 700 | 180 | 110 | 32 | 10x5.0 | 40 | 34 | 10x3.3 |
| 1.19 |
CK-A50125 | 1000 | 490 | 180 | 125 | 36 | 14x5.5 | 50 | 35 | 14x3.8 |
| 2.21 |
CK-A50130 | 1050 | 560 | 180 | 130 | 36 | 14x5.5 | 50 | 38 | 14x3.8 |
| 3.02 |
CK-A55160 | 2000 | 455 | 150 | 160 | 52 | 16x6.0 | 55 | 55 | 16x4.3 |
| 6.96 |
CK-A58130 | 1050 | 490 | 180 | 130 | 36 | 14x5.5 | 58 | 38 | 14x3.8 |
| 2.60 |
CK-A60180 | 2000 | 420 | 140 | 180 | 52 | 18x6.0 | 60 | 52 | 18x4.4 |
| 7.40 |
Mounting
Product Display
Packaging & Shipping
Production Flow
Clients Visit
Certifications
FAQ
Q: Why do we choose your company?
A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.
Q: What is the delivery time?
A: For small quality or samll size of clutches, we can deliver upon receiving advance.
For large quantity or large size, we have to produce 10-15 working days.
Q: Can you supply with sample clutch?
Of course! We can provide with a sample to your checking quality.
Q: What is the warranty period of the clutches?
One-year Guarantee.
