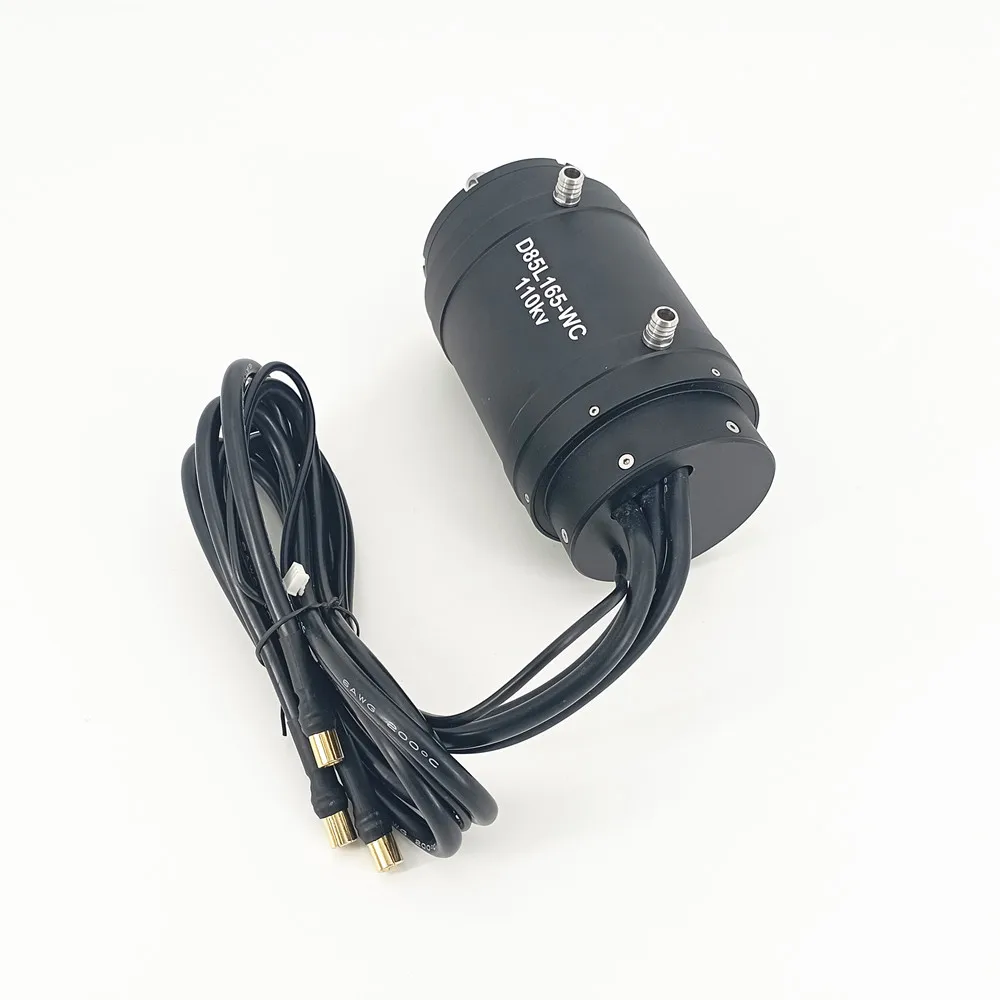

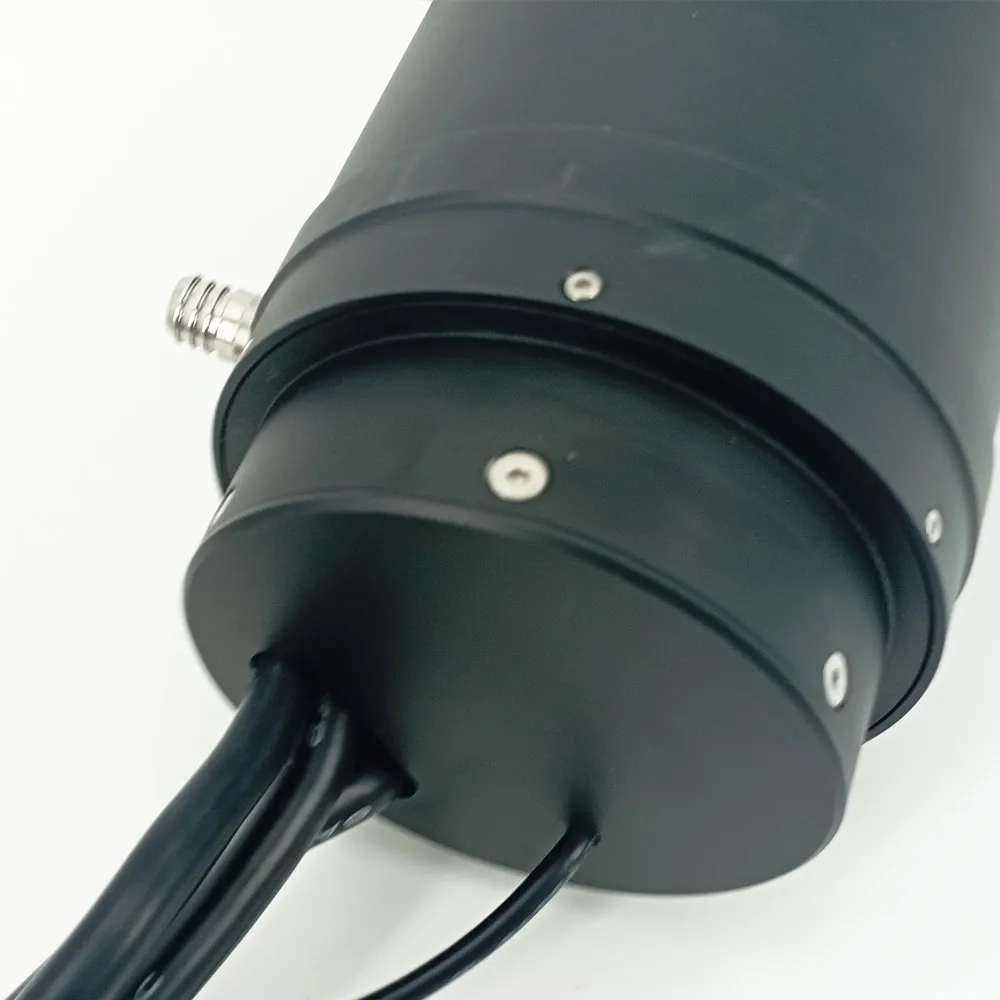

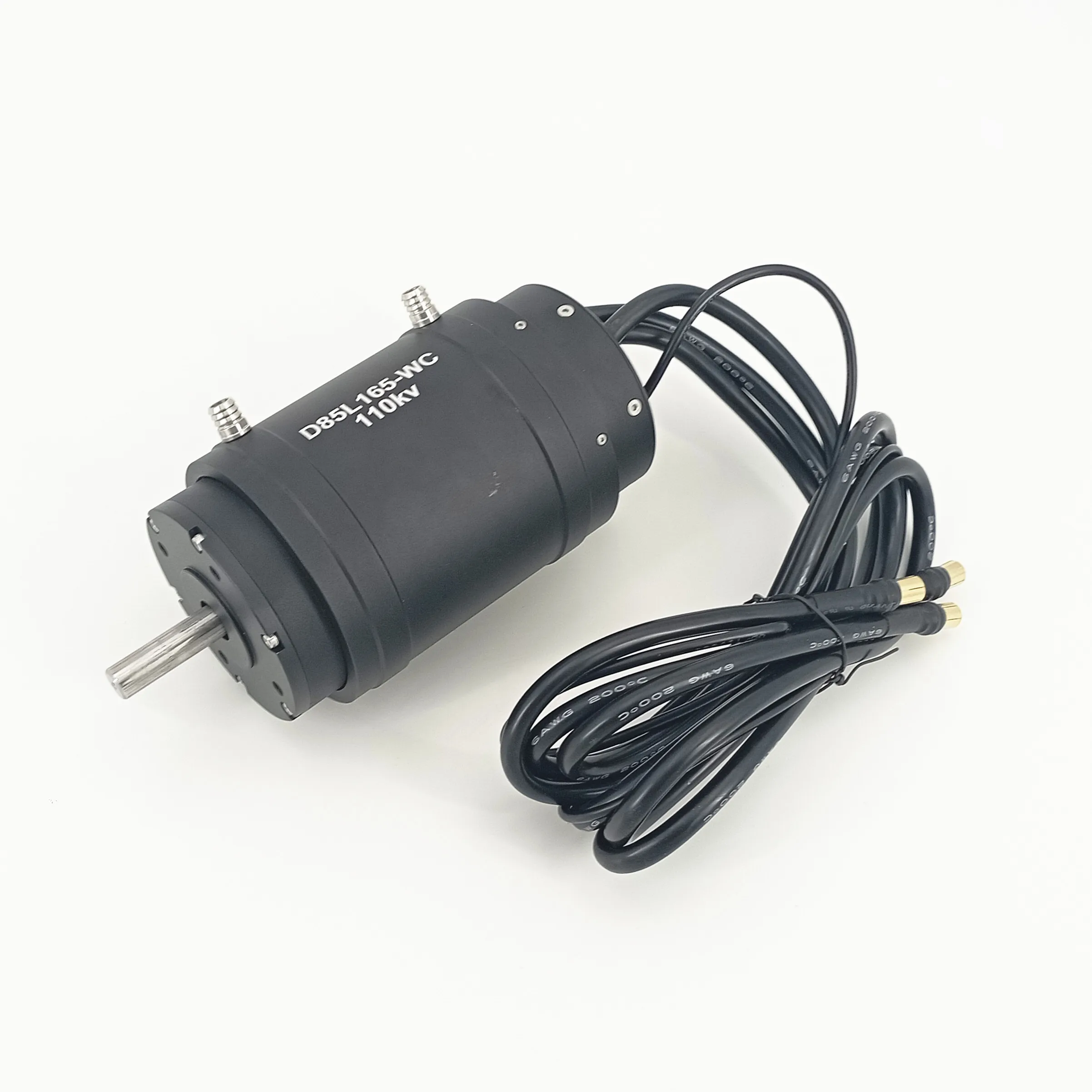

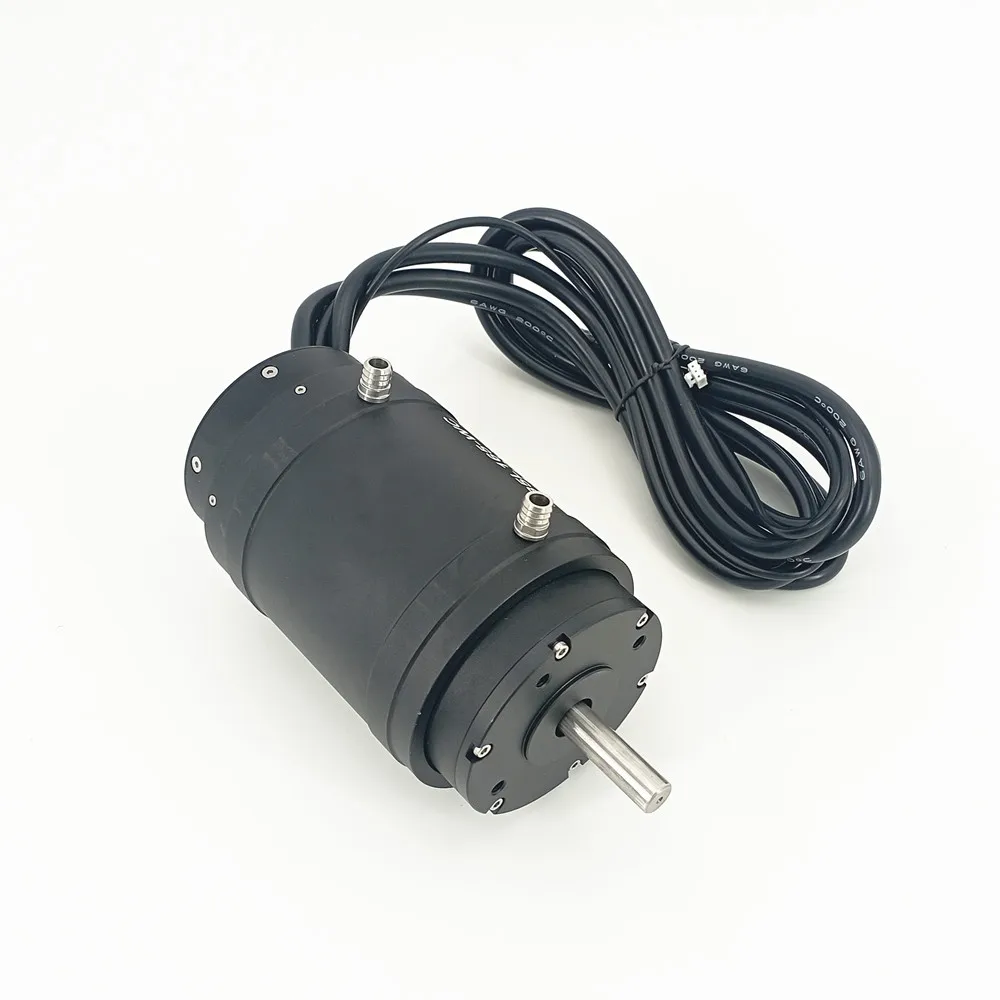

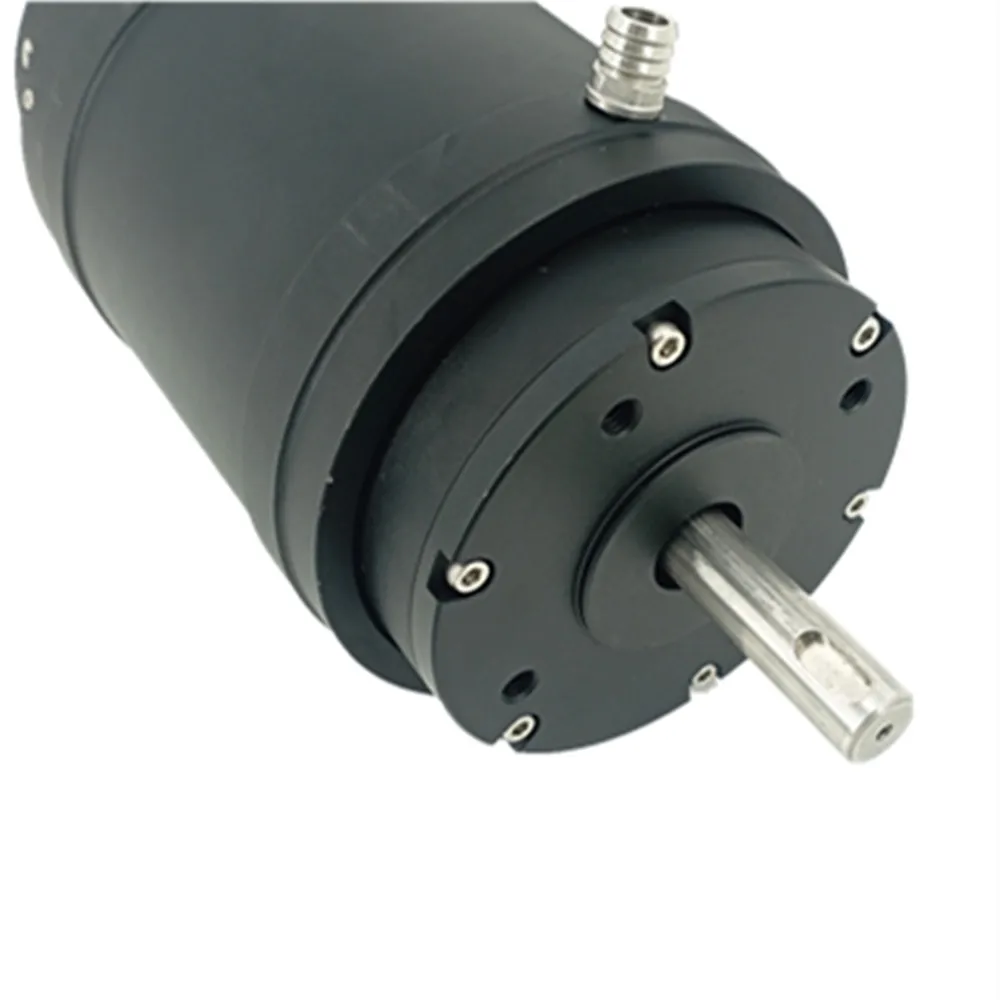

240KV D85L165 Sensored Snowmobile Ev Water Cooled Bldc Motor 72v
- Category: >>>
- Supplier: Hangzhou Reacher Technology Co. Ltd.
Share on (1600661022018):
Product Overview
Description
Reacher Tech D85L165-WP/WC IP68 waterproof Inner-runner Motor Specification | ||||||||||
Model P/N | D85L165-143 | D85L165-95 | D85L165-72 | D85L165-240 | D85L165-160 | |||||
Turn | 2T-Y | 3T-Y | 4T-Y | 2T-D | 3T-D | |||||
Voltage range (LiPo Cells) | 6-18S （20-75.6V） | 12-28S （40-117.6V） | 18-36S （60-151.2V） | 6-12S （20-50.4V） | 8-16S （28-67.2V） | |||||
Max Spin Speed(RPM) | 10810 | 11172 | 10886 | 12096 | 10752 | |||||
Speed Constance kV(RPM/V) | 143 | 95 | 72 | 240 | 160 | |||||
Torque Constance Kt(N*M/A) | 0.1111 | 0.1667 | 0.2222 | 0.0666 | 0.1 | |||||
8.4V No Load Current(A) | 3.9 | 2. 5 | 2.1 | 5.3 | 4.5 | |||||
Max Power（KW） | 13.8 | 13.5 | 12.9 | 13.4 | 13 | |||||
Peak current（A） | 380 | 330 | 285 | 230 | 190 | |||||
Max Effeciency | 87% | 87.0% | 88% | 89% | 89% | |||||
Max torque@60%(N*M) | 26 | 26.8 | 27.5 | 25.3 | 24.8 | |||||
Rating Power(W) | 10800 | 10300 | 9800 | 11000 | 10000 | |||||
Weight(KG) | 3.9 | 3.85 | 3.76 | 3.87 | 3.8 | |||||
Construction | 12N/10P | |||||||||
Cooling Solution | Water cooling | |||||||||
Max working temperature | 120︒C | |||||||||
Dimension(mm) | D85*L165 | |||||||||
Shaft Output Size (mm) | D10*L30 | |||||||||
Phase Wires Size (mm) | 150±5MM | |||||||||
Connector | AC500V/10MA/3S | |||||||||
Service Life | 10mm golden plug | |||||||||
Insulation voltage & leak current | 10000h | |||||||||
Sample | 10pcs | 50pcs | 100pcs | |
D85L165-WC | US$610.00 | US$440.00 | US$400.00 | US$360.00 |
D85L165S-WC | US$660.00 | US$480.00 | US$430.00 | US$390.00 |
D85L165-WP | US$620.00 | US$450.00 | US$400.00 | US$370.00 |
D85L165S-WP | US$670.00 | US$480.00 | US$435.00 | US$400.00 |
