Super Capacitor Home Lithium Iron Phosphate Lifepo4 Batteries 48V 5KWh 10Kwh 100Ah 200Ah Power Wall Lithium Solar Battery
- Category: >>>
- Supplier: Sunpal Energy Co. Ltd.
Share on (1600661130031):
Product Overview
Description
Products Description
Equipped with high-quality pirsmatic battery cell
Each battery with independent BMS system manages power output smartly and effectively
Equipped with first class design, bring stable and reliable operation to the equipment
Model | PP-Y1-5kWh | PP-Y1-10kWh | |
Nominal Voltage | 48V | ||
Rated Capacity | 100AH | 200AH | |
Battery Cell | 3.2V 100Ah Prismatic Battery Cell | ||
Parallel Capacity | Yes,15units maximum | ||
Max Charging Current | 100A | ||
Max Discharging current | 100A | ||
Discharge Voltage Range | 41-54.5V | ||
Charge Voltage Range | 53.5-54.5V | ||
Design Life | 15+ Years(25°C/77°F) | ||
Cycle Life | ＞6000 Cycles,25°C | ||
Communication Port | CAN,RS485,RS232 | ||

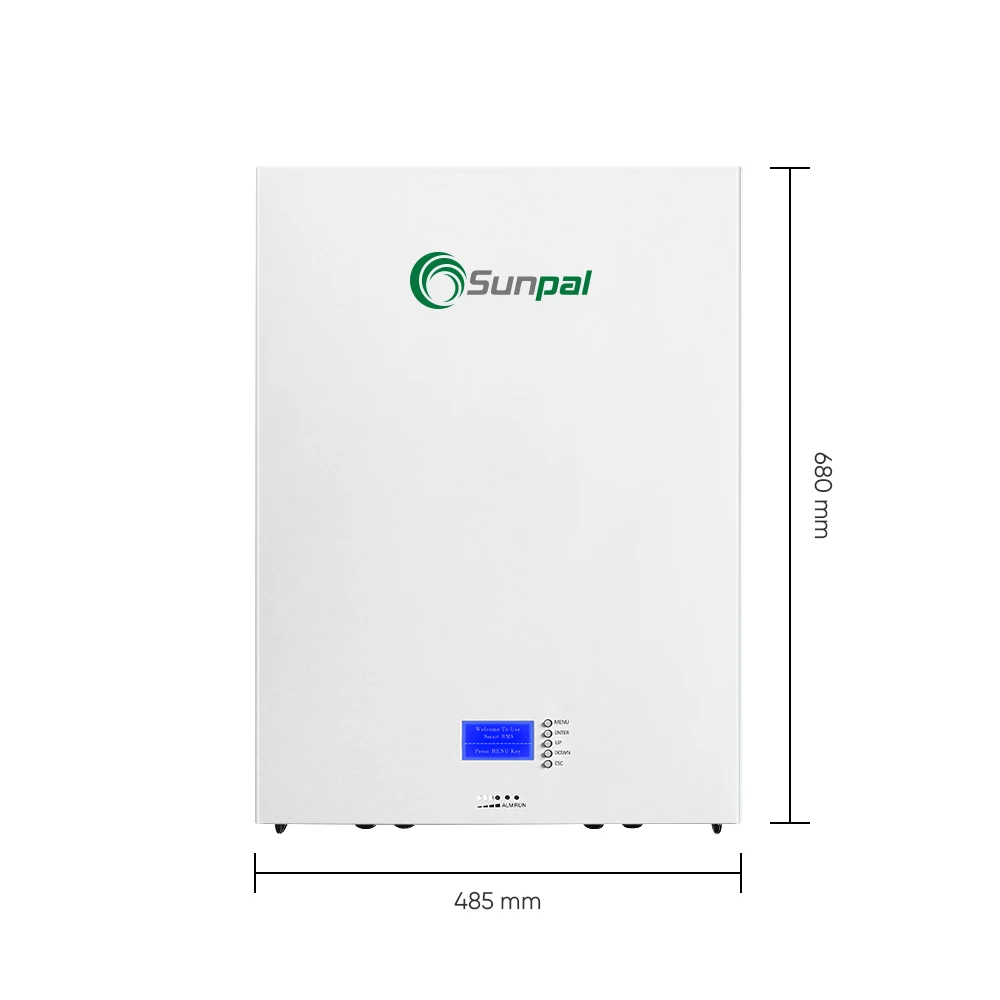

Size(L*W*H) | 685*485*220mm | ||
Weight | 68Kg±1Kg | 98Kg±1Kg | |
Operation Temperature Range | Charge:0~55℃/Discharge: -20~55℃ | ||
Certification | CE/IEC62619/UN38.3/MSDS | ||

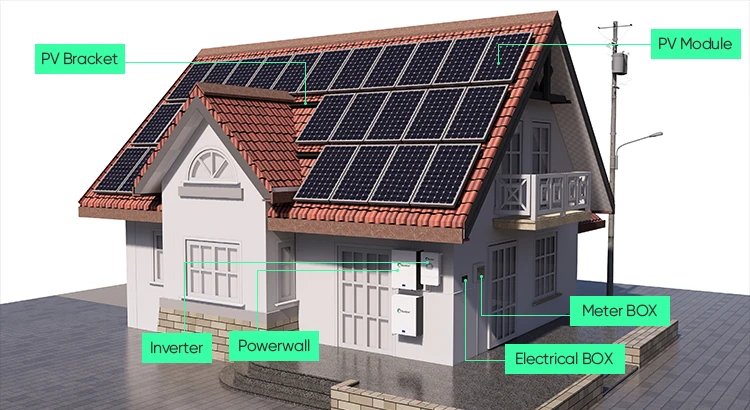

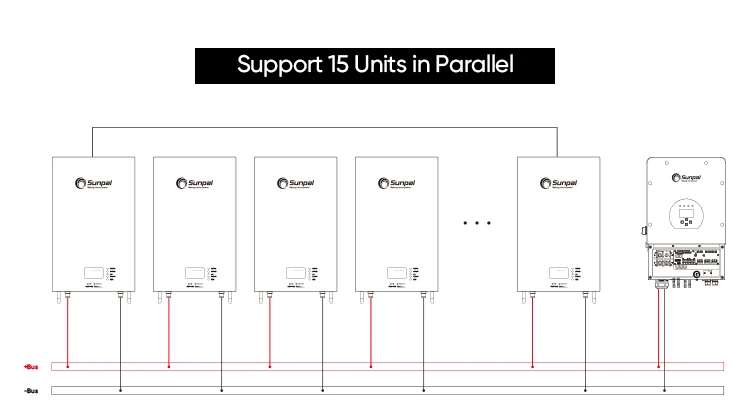

System Drawing
Backup Power
Sunpal powerwall use stored solar energy to power your home during an outage, recharge with solar energy you produce, keep appliances running seamlessly. PowerPal Y1 is a compact home Lithium Ion battery that reduces your reliance on the grid by storing your solar energy for use when the sun is not shining.

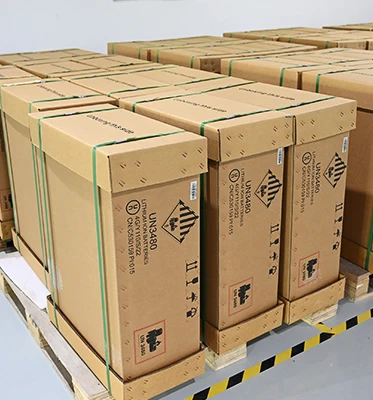

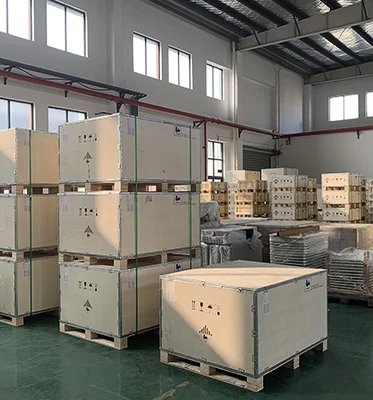

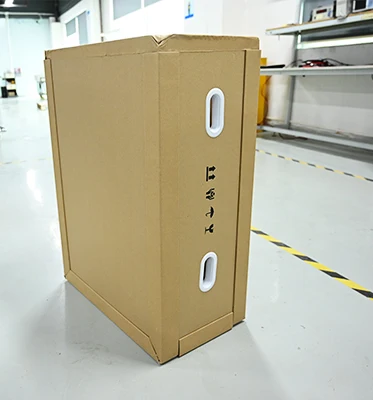

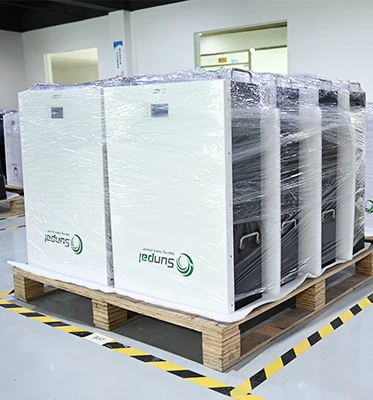

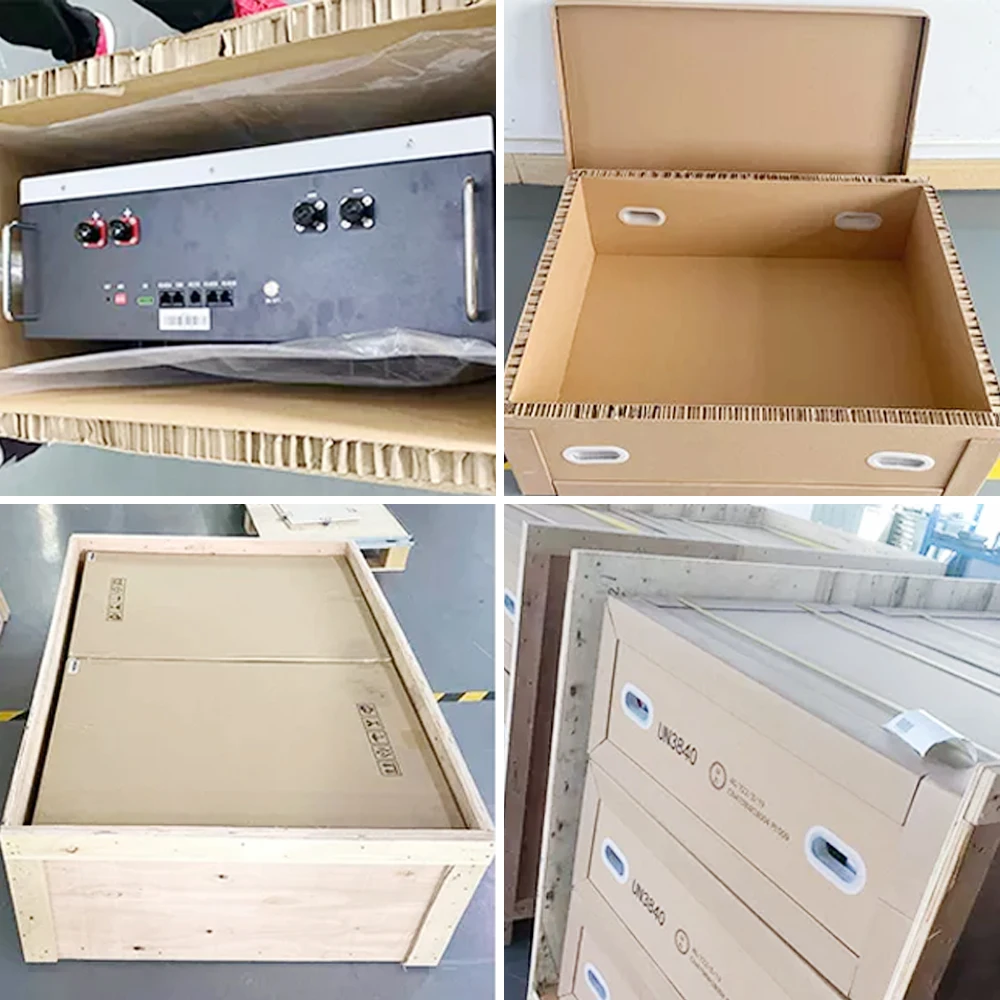

Professional Packing

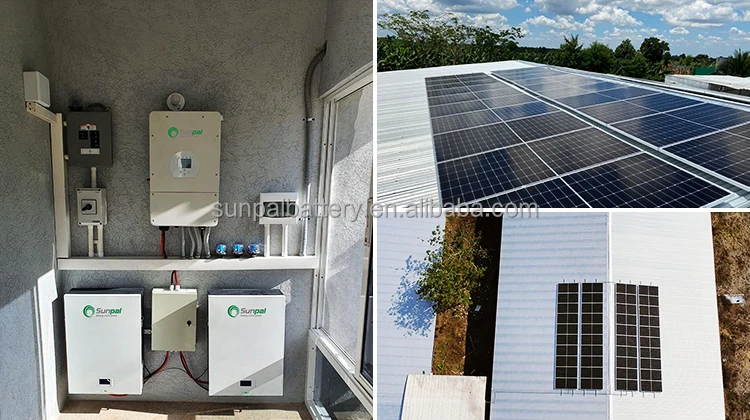

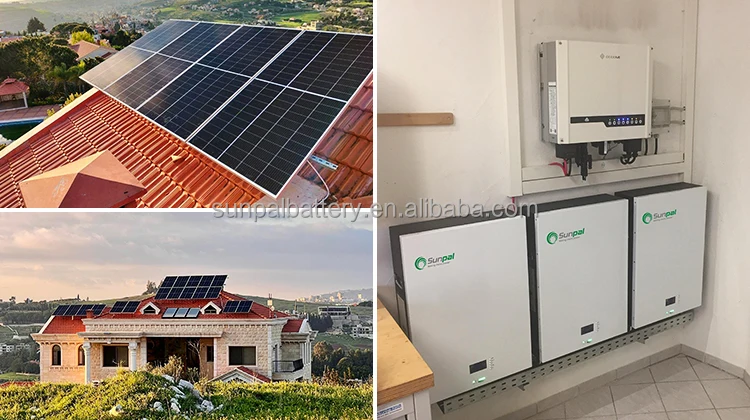

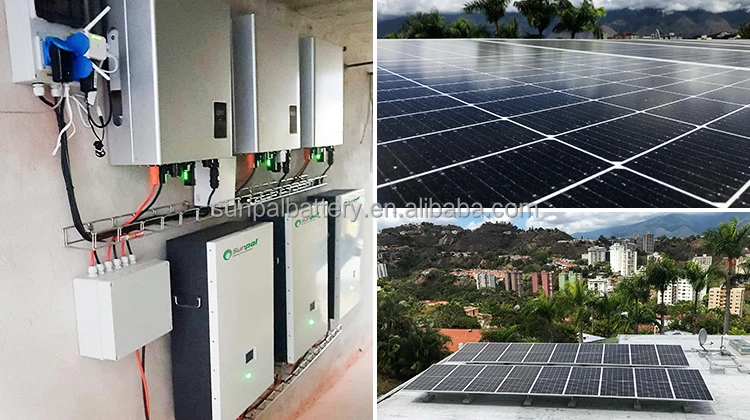

Sunpal Project Case
10kWh Home Energy Storage Lithium Battery System In Thailand
15kWh Powerwall Home Battery System In Germany
15kWh Lithium Ion Lifepo4 Battery System In Jamaica

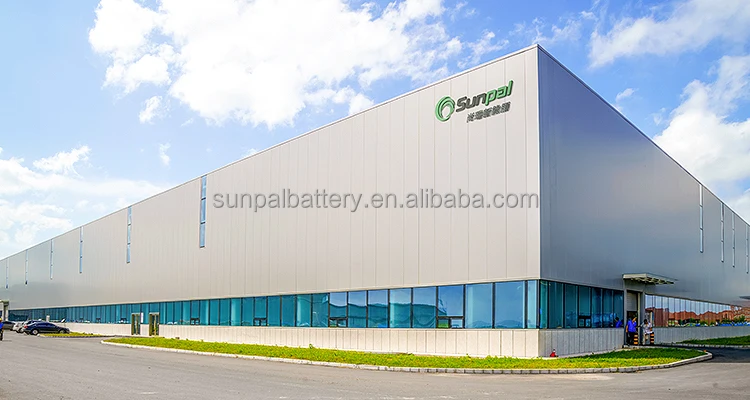

Company Profile
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels. Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.

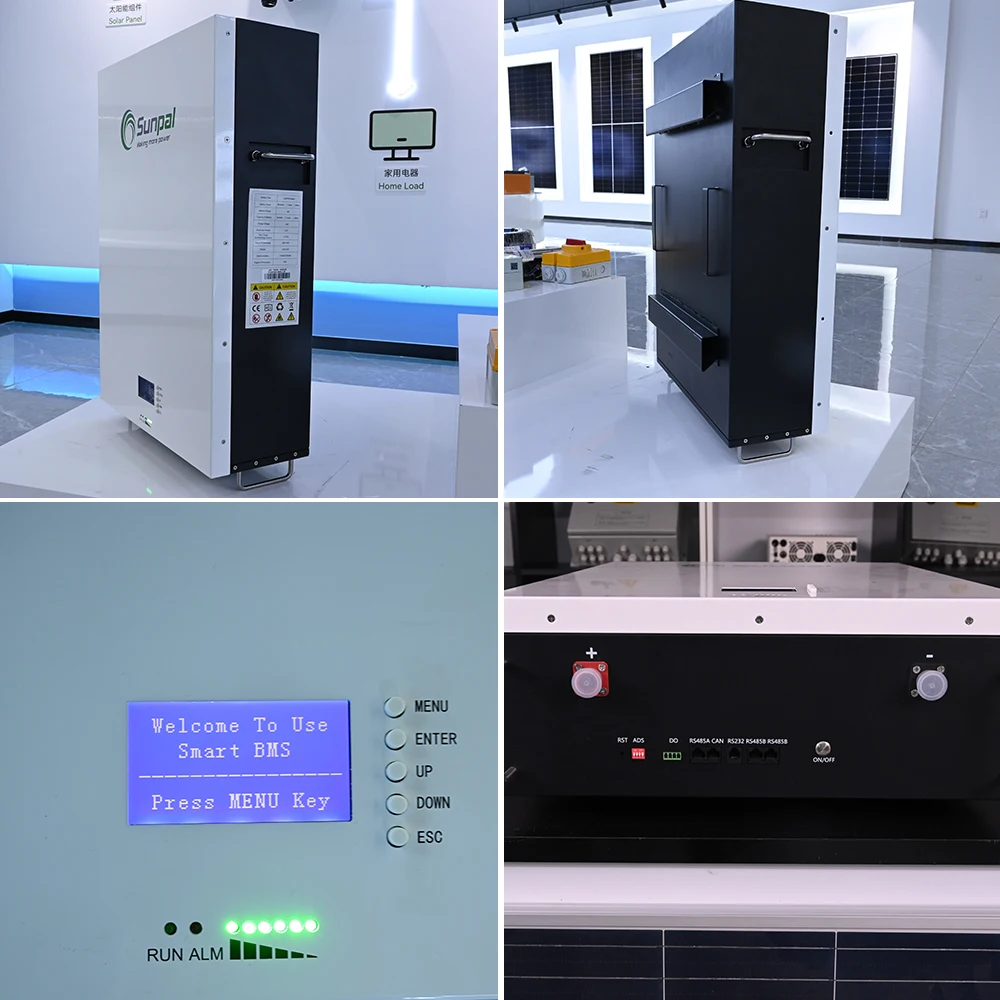

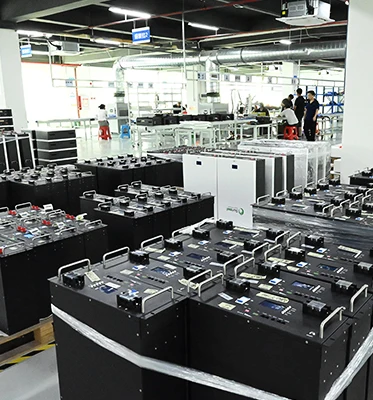

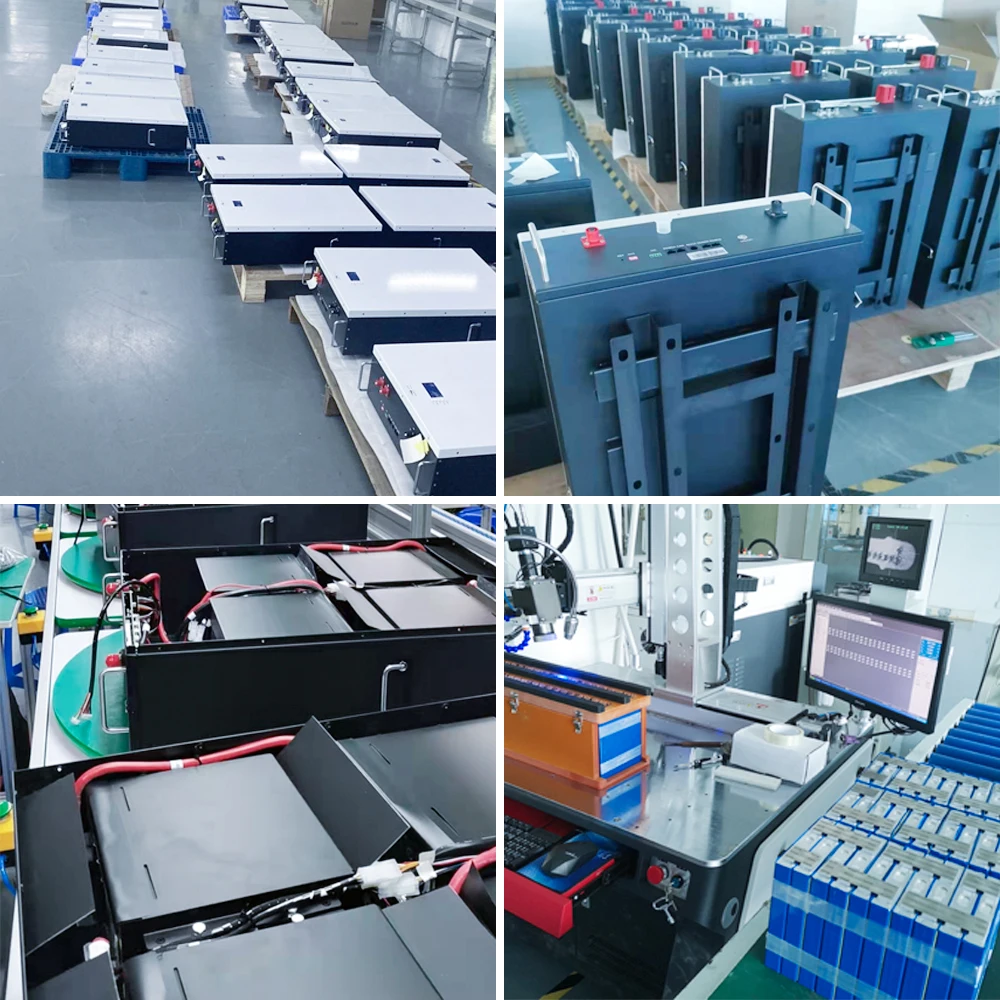

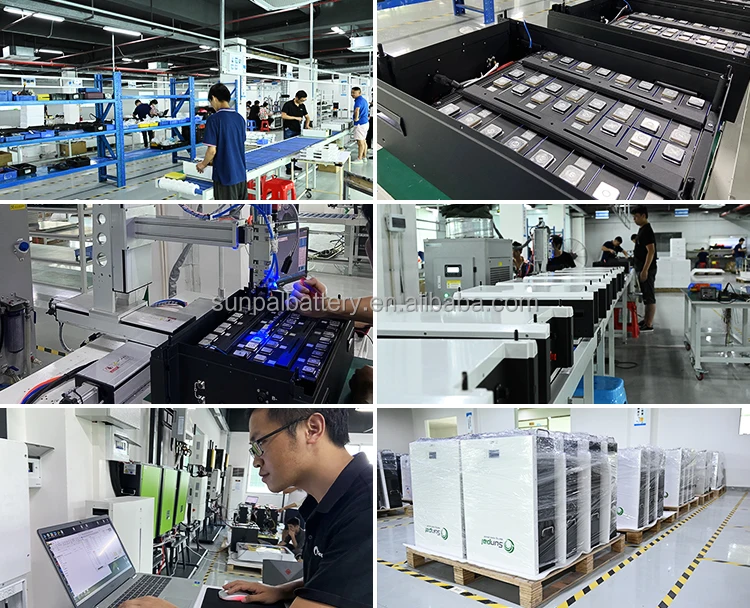

Production Line

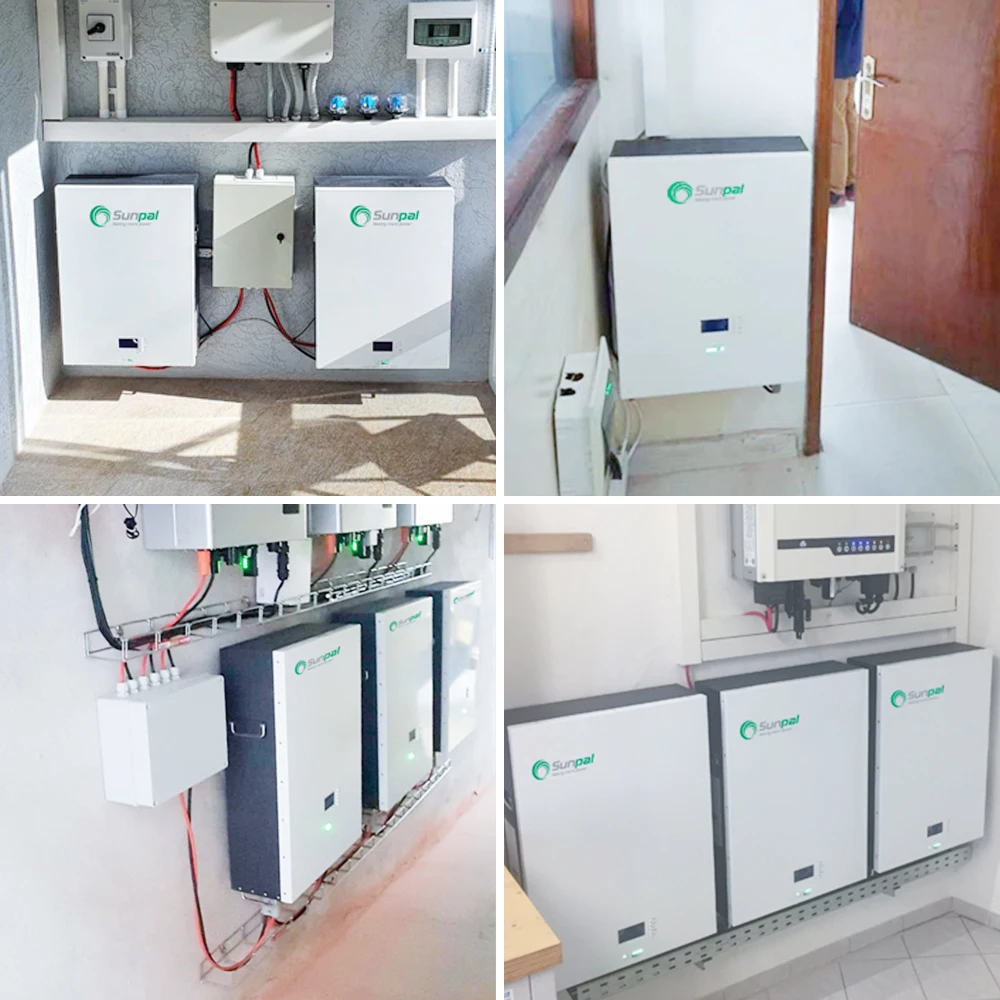

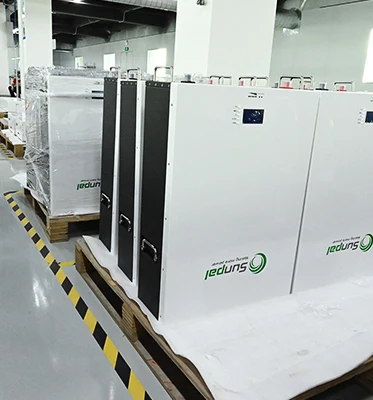

Customer Photos
