5" Superior Quality Skiful 115*1.0*22.2mm china cutting disc
US $0.10-$0.50
Коленчатый вал, чаша распредвала, стекловидный корундовый шлифовальный круг
- Category: Grinding Wheels >>>
- Supplier: Zhengzhou,Ruizuan,Diamond,Tool,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Vitrified bond CBN grinding wheels are used for grinding the cam lobes and journals of automobile camshaft. Optimum bond specifications have been set for each type of cam material, and since the CBN wheels are used for high-speed grinding, bond quality, adhesives, and the materials used for the core are carefully designed for safety.
Vitrified CBN Grinding Wheel for Cam Crank Shaft:
High grinding efficiency/high precision of grinding workpiece, good surface quality/easy to dress.
Wheel shape: 1A1, 3A1, 14A1
Grinding wheel diameter range: 300mm ~ 650mm
Wheel speed: 35m/s-160m/s
Supporting grinder: JUNKER, SCHAUDT, LANDIS, TOYODA.
High grinding efficiency/high precision of grinding workpiece, good surface quality/easy to dress.
Wheel shape: 1A1, 3A1, 14A1
Grinding wheel diameter range: 300mm ~ 650mm
Wheel speed: 35m/s-160m/s
Supporting grinder: JUNKER, SCHAUDT, LANDIS, TOYODA.
Product Features.
1. High precision
2. Stable processing
3. Long life
4. Easy dressing
5. long dressing interval
2. Stable processing
3. Long life
4. Easy dressing
5. long dressing interval
CBN grinding wheel has obvious advantages in grinding ferrous metals. CBN parallel grinding wheel has good shape retention, good self-sharpening, low dressing frequency and high grinding efficiency.
Application

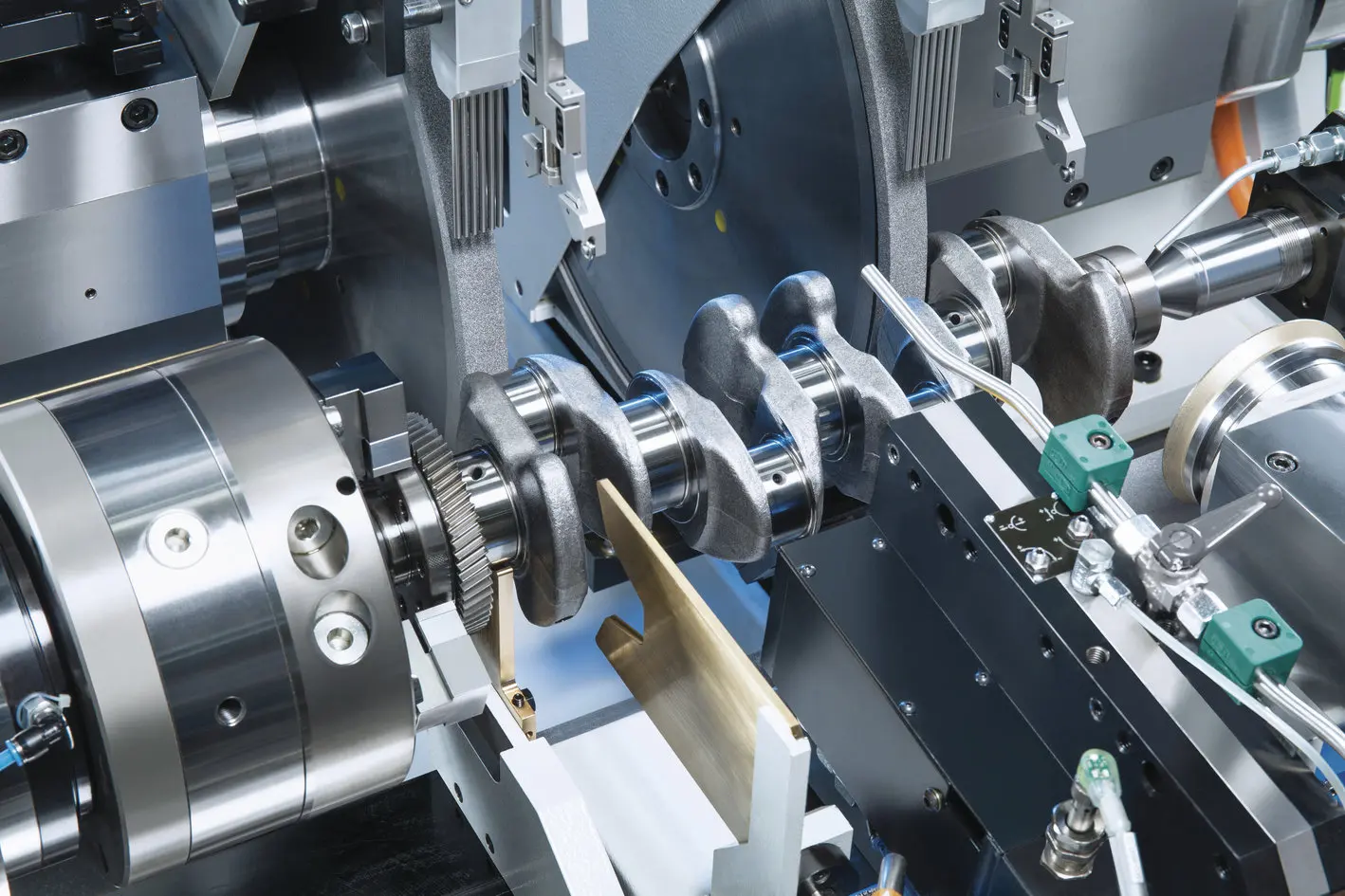

Used for automotive industry. workpiece material include cast iron, gray iron, steel, powder metallurgy...wheels can be used for roughness gridning, finishing grinding and large feed grinding. normal speed is 80-160m/s. wheels can be single, double, group used. a series of vitrified bond can be provided.
Notice
1. Before use, make sure that the grinding wheel is fixed in place and will not shake
2. Use the grinding wheel at the required speed
International Leading Trade Fair
for Grinding Technology
Company Profile
Our Advantages
Packing & Delivery
PACKAGE:
SINGLE BOX PER WHEEL,
10 t0 20 WHEELS PER CARTON
DELIVERY TIME:
3-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
SINGLE BOX PER WHEEL,
10 t0 20 WHEELS PER CARTON
DELIVERY TIME:
3-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
