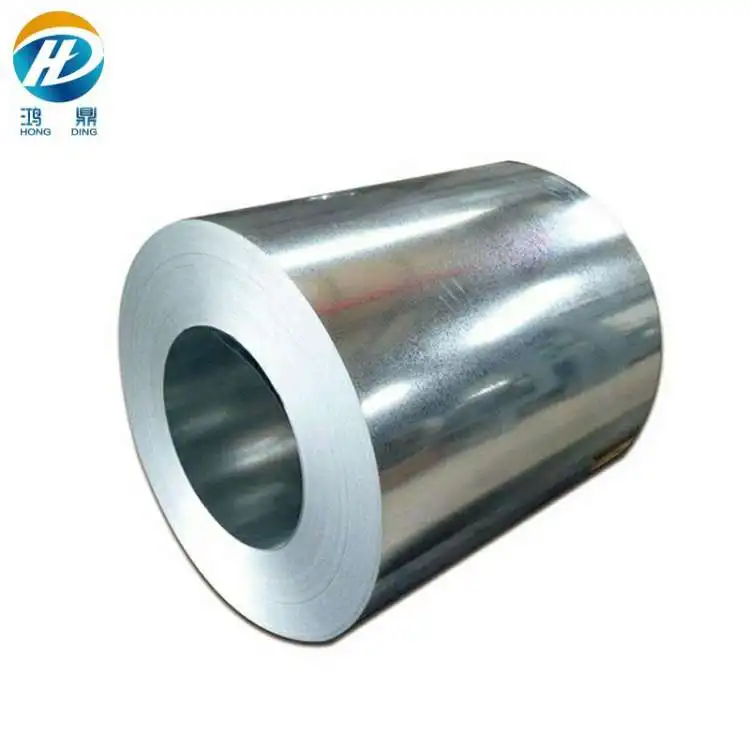

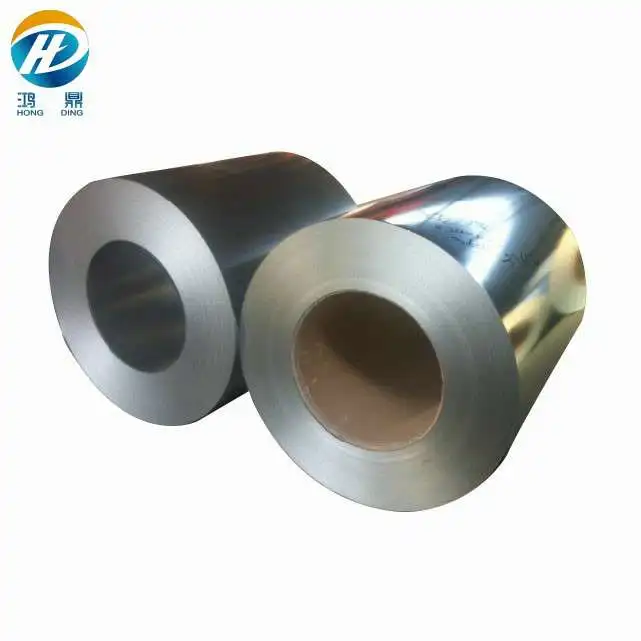

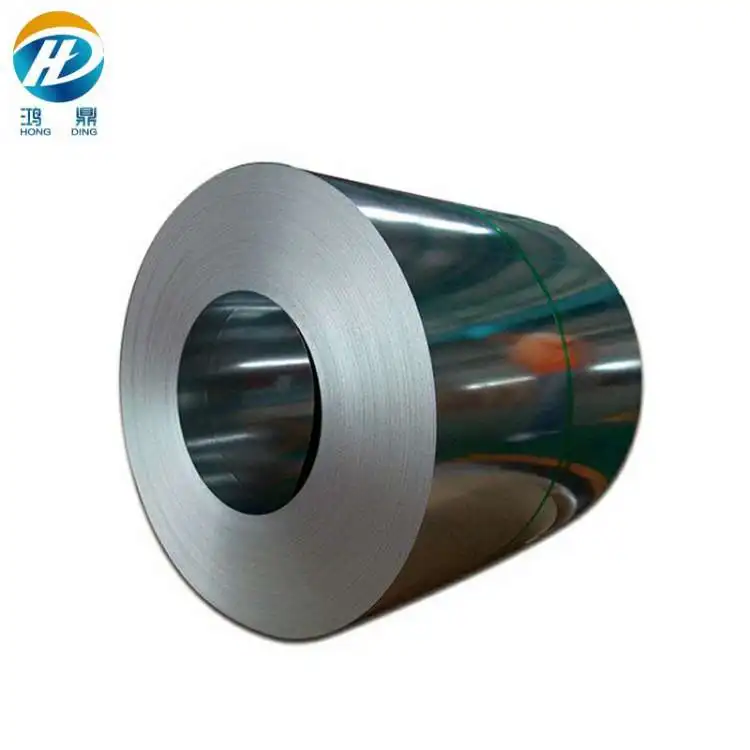

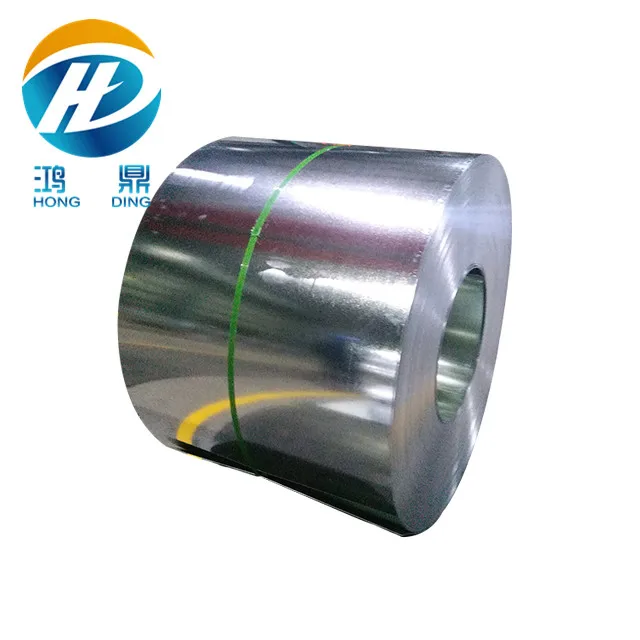

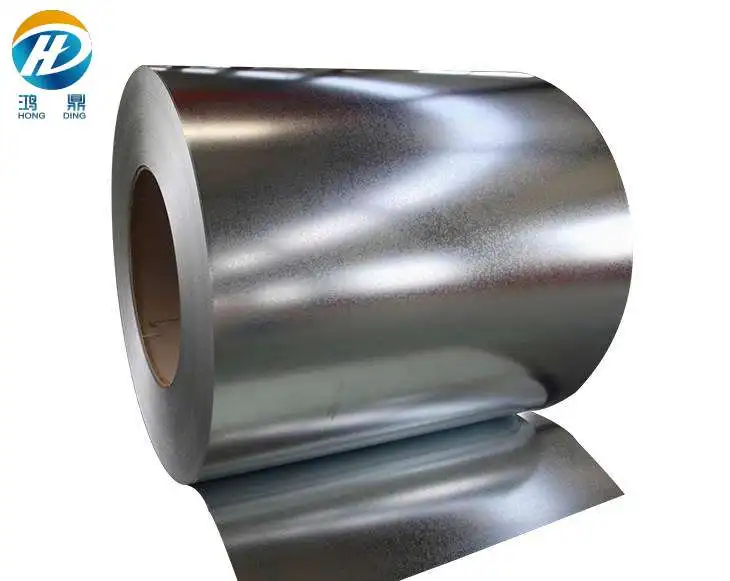

28 gauge BHU SHAN BWG 28 gi coil galvanized steel zinc coating
- Category: >>>
- Supplier: Shandong Hongding Steel Co. Ltd.
Share on (1600662015273):
Product Overview
Description
Product Specifications
Capacity | 28 gauge BHU SHAN BWG 28 gi coil galvanized steel zinc coating |
Grade | SGHC, SGCC, DX51D, Q195, all according to the customer's request |
Standard | JIS G3302 1998, ASTM A653M/A924M 2004, all according to the customer's request |

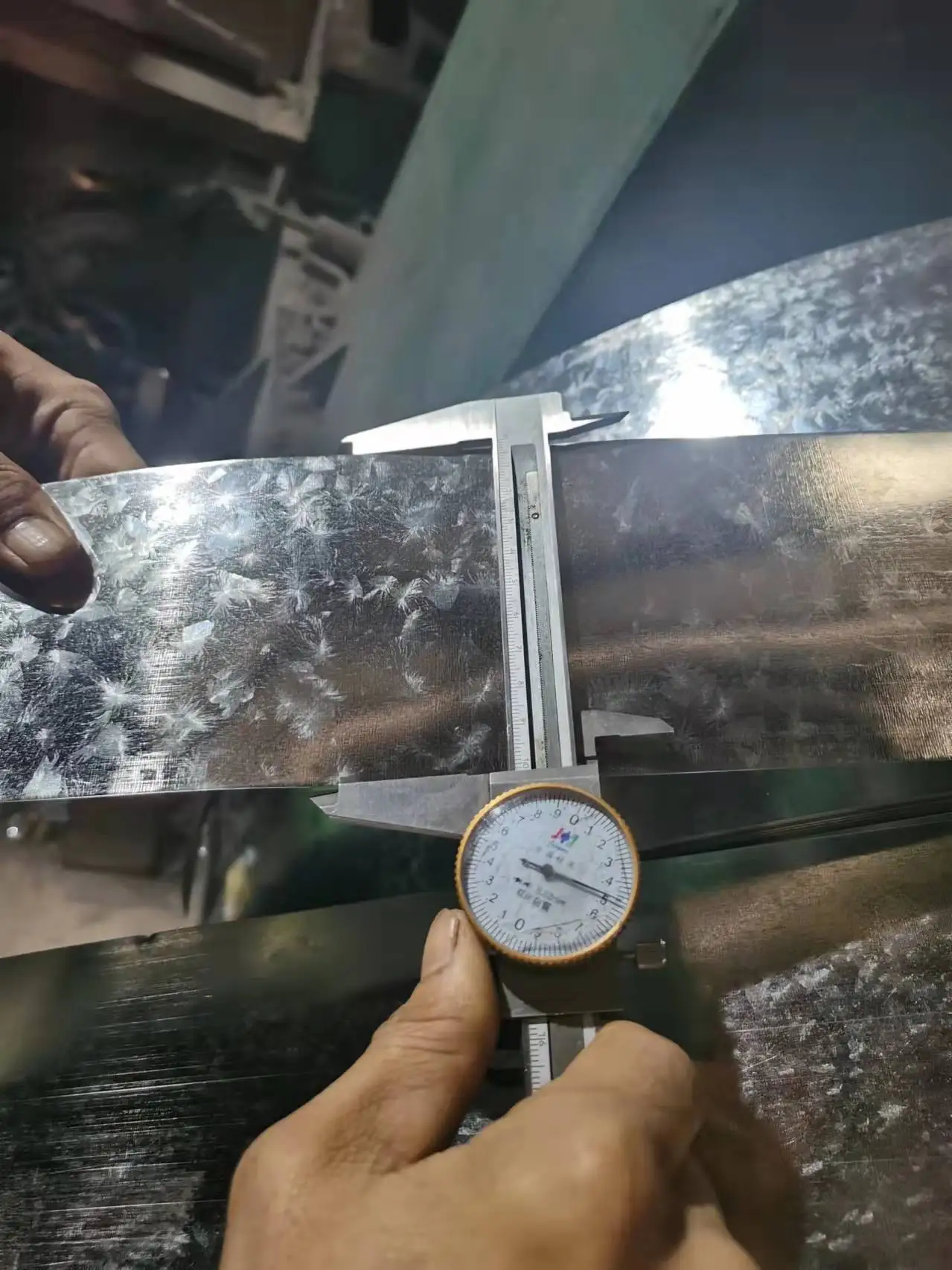

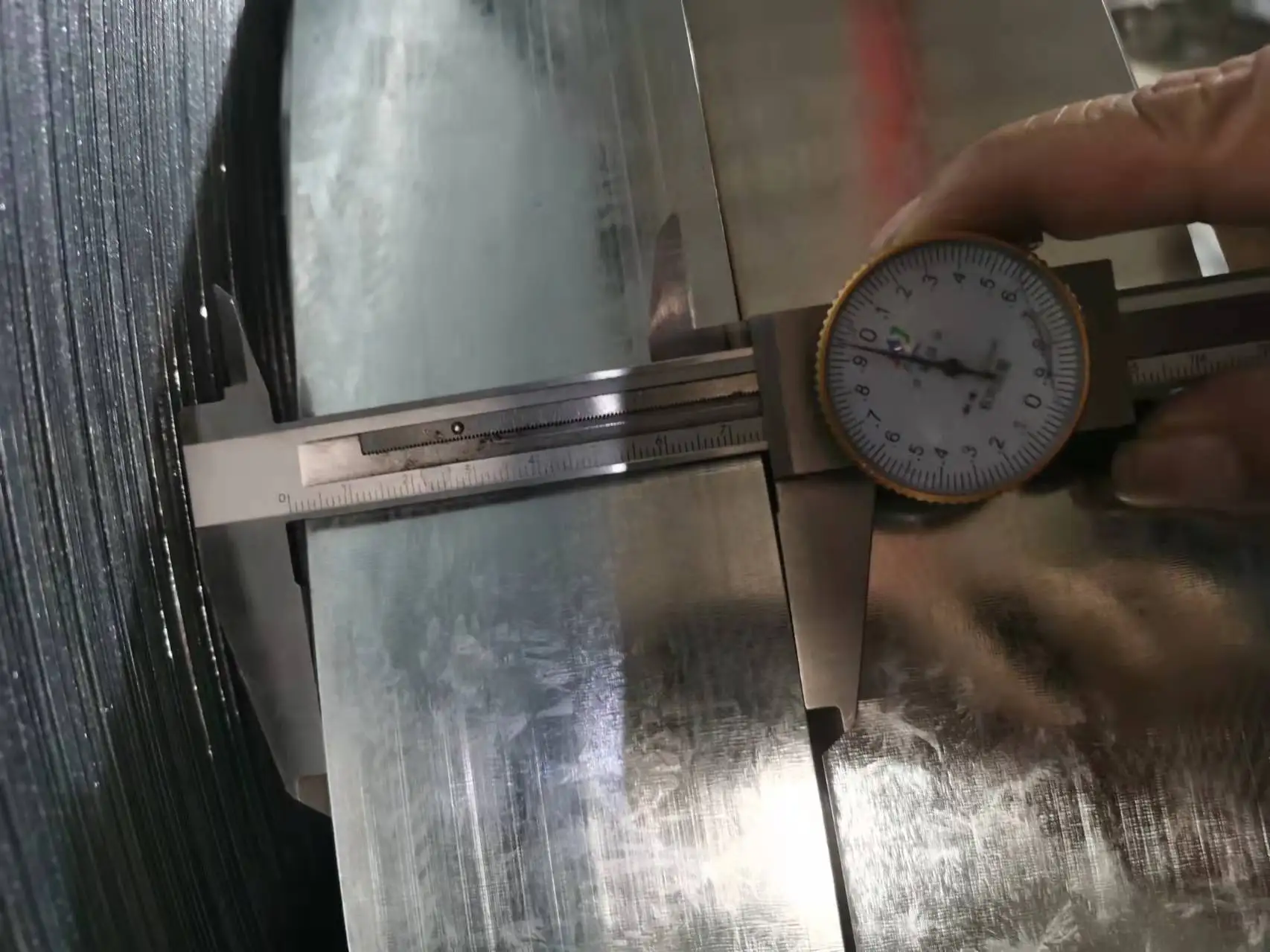

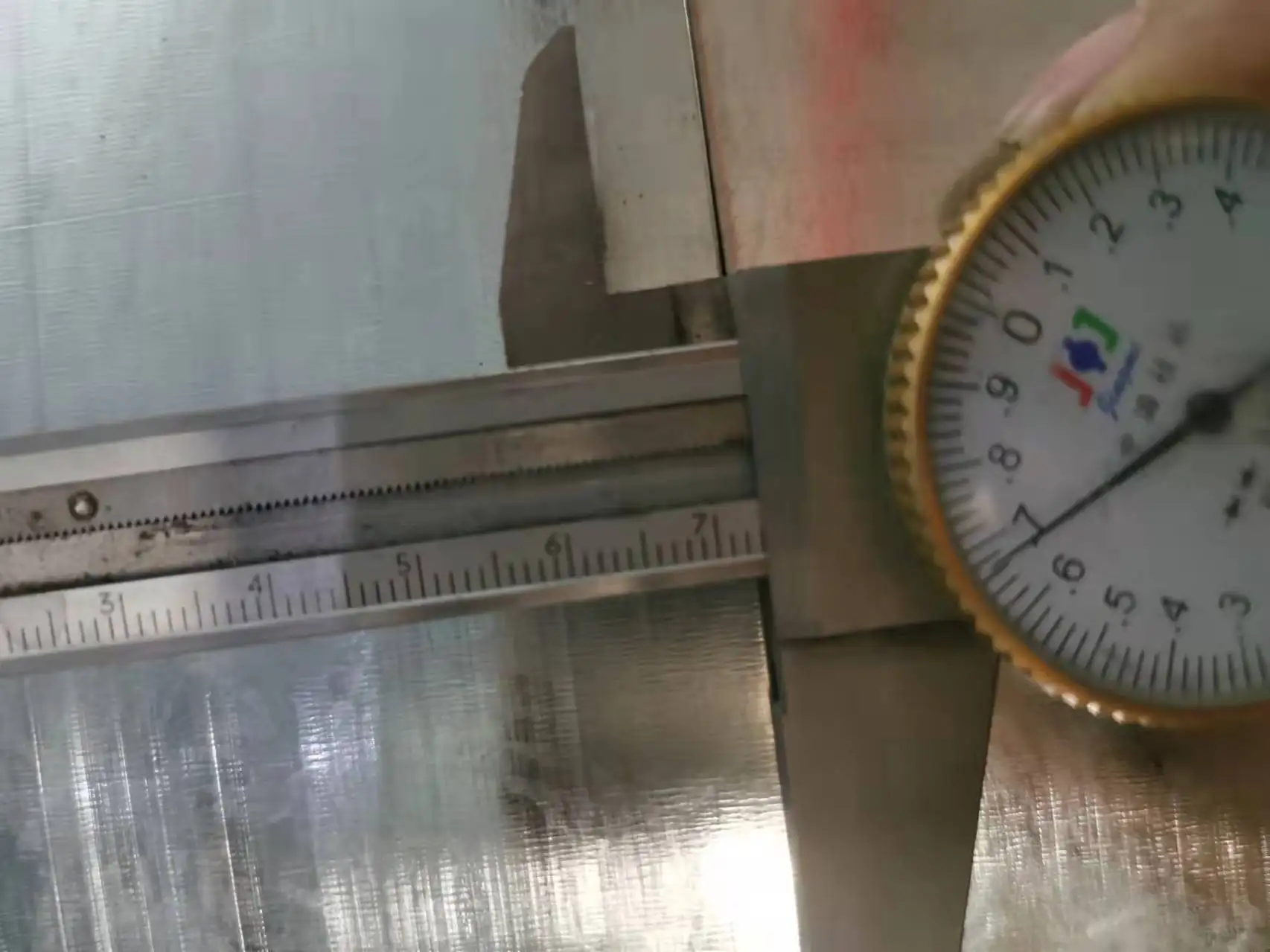

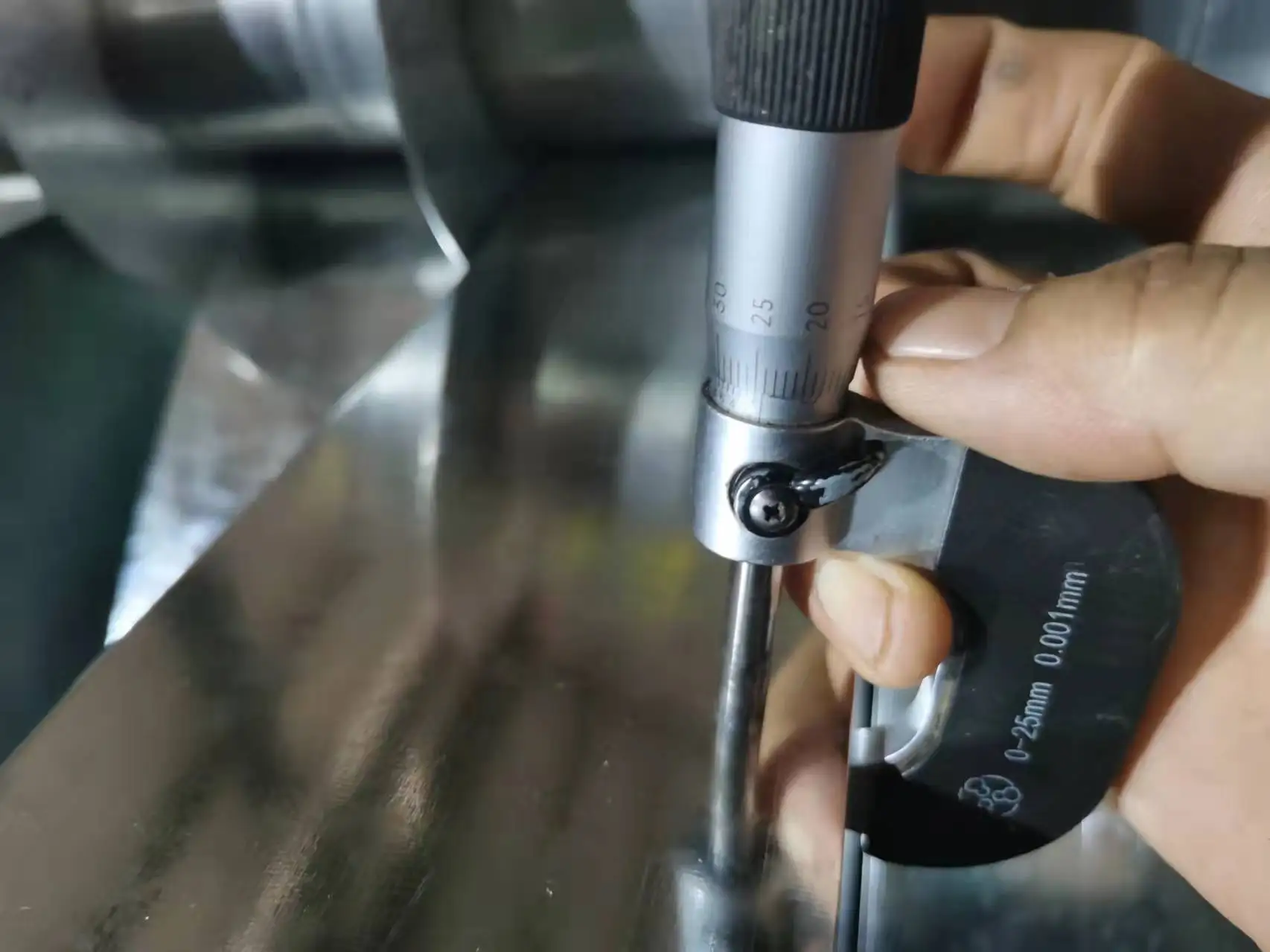

Thickness | from 0.12mm to 5.0mm, all available |
Width | from 600mm to 1500mm, all available |
Coil ID | 508mm/610mm |
Coil weight | from 2-10MT, according to the customer's request |
Zinc coating weight | 30g/m2-275g/m2, double side |
Spangle | big spangle, normal spangle, small spangle, non-spangle |
Surface treatment | Chemical passivating, oils, passivating + oils |
Edge | mill edge, cut edge |
MOQ | Min trial order 10 ton each thickness, 1x20' per delivery |
Surface treatment | Features |
Chemical passivating treatment | minimize the chance of white rust forming during the transit and storage |
maintain the bright shiny appearance for a longer time | |
Oils | minimize the tendency for storage and transit stain |
passivating + oils | provide the protection from the storage and transit stain by special chemicals called corrosion inhibitors |
JISG3302 SGCC zinc coated 0.2mm | ||||
Surface finish | Pattern | Application | ||
Normal spangle | Standard spangles with flower pattern | General uses | ||
Small spangle | Minimized spangles than regular | General painting applications | ||
Non-spangle | Extremely minimized spangles | Special painting applications | ||

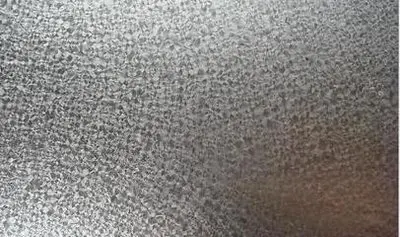

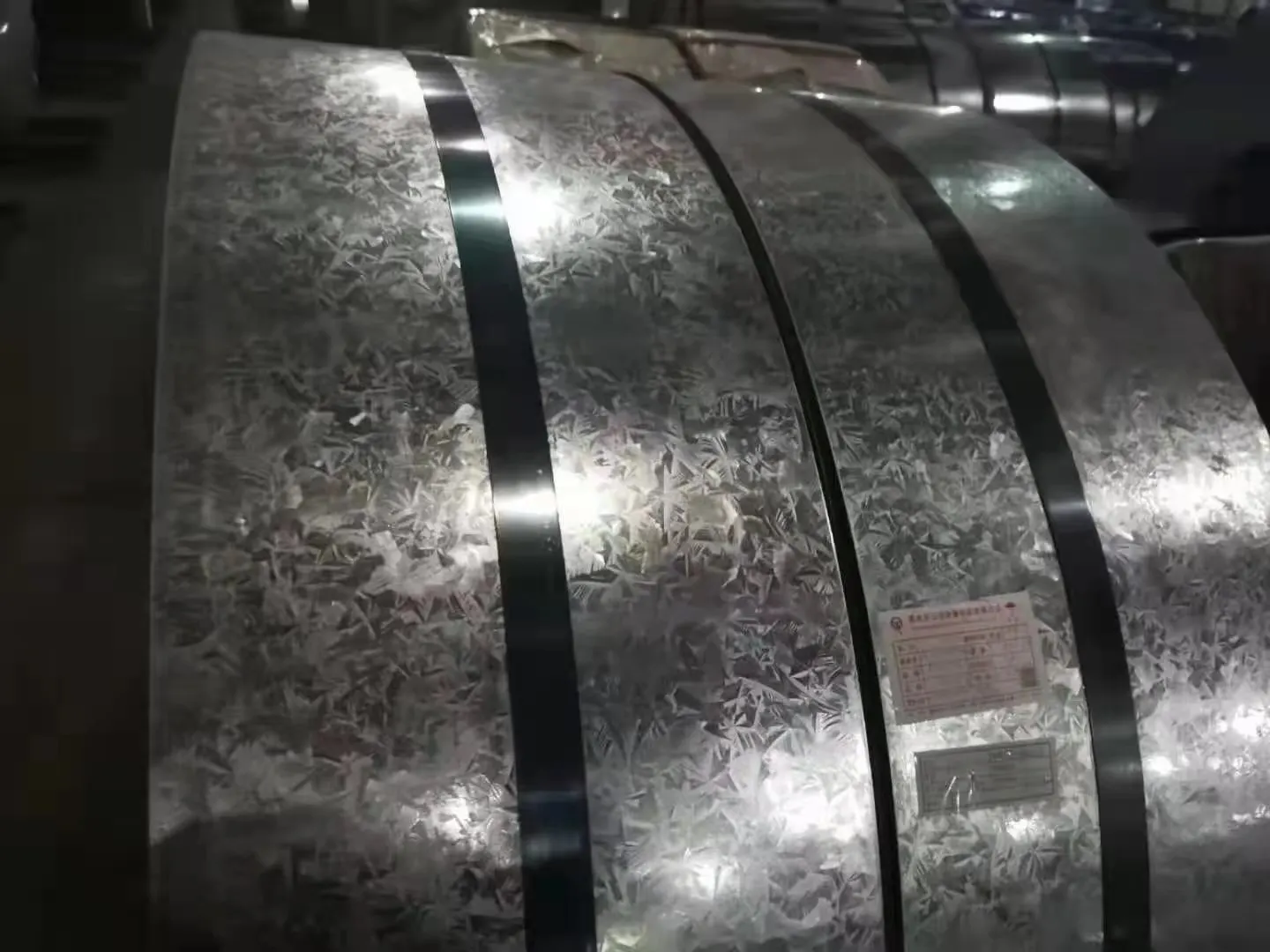

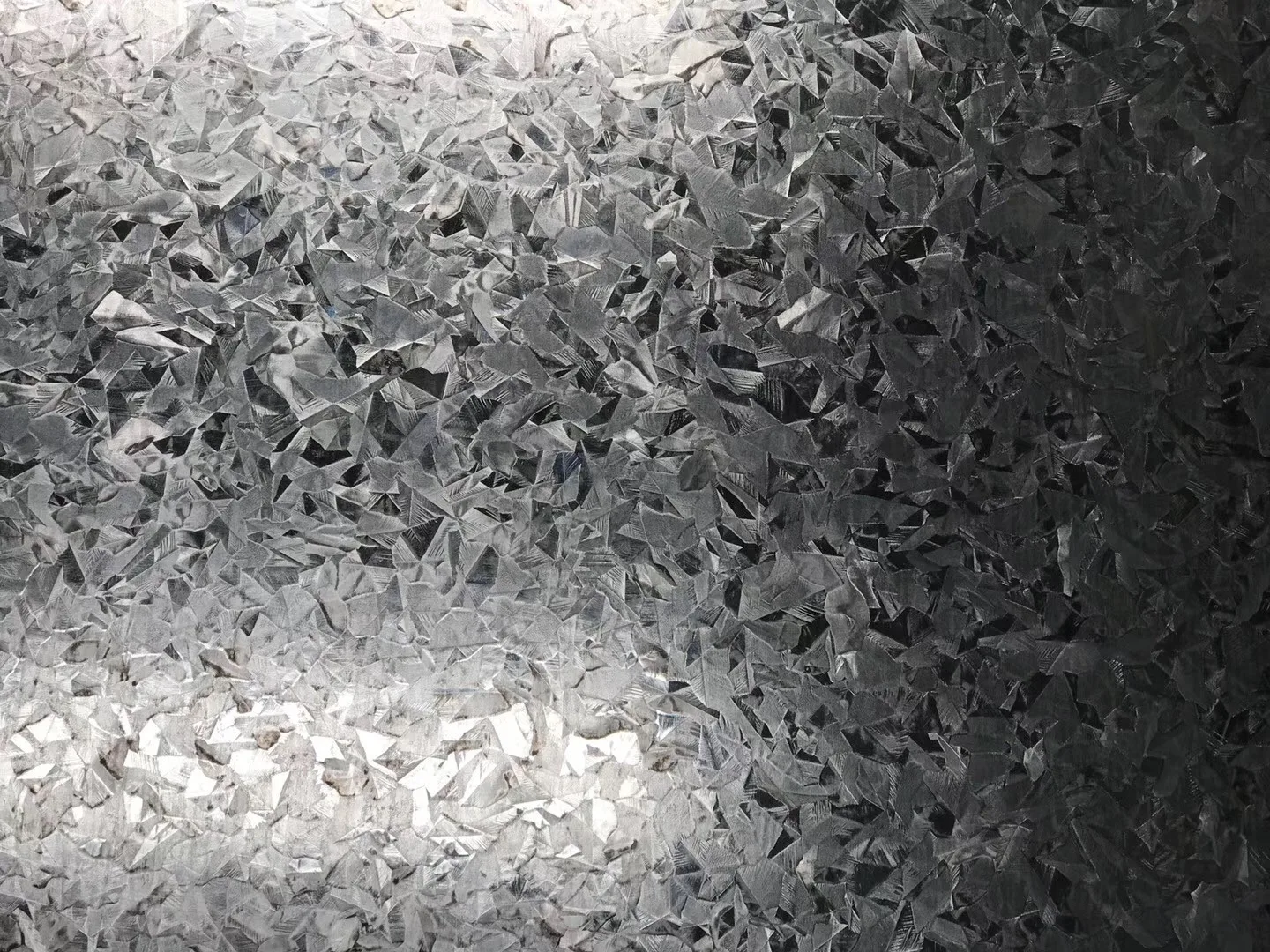

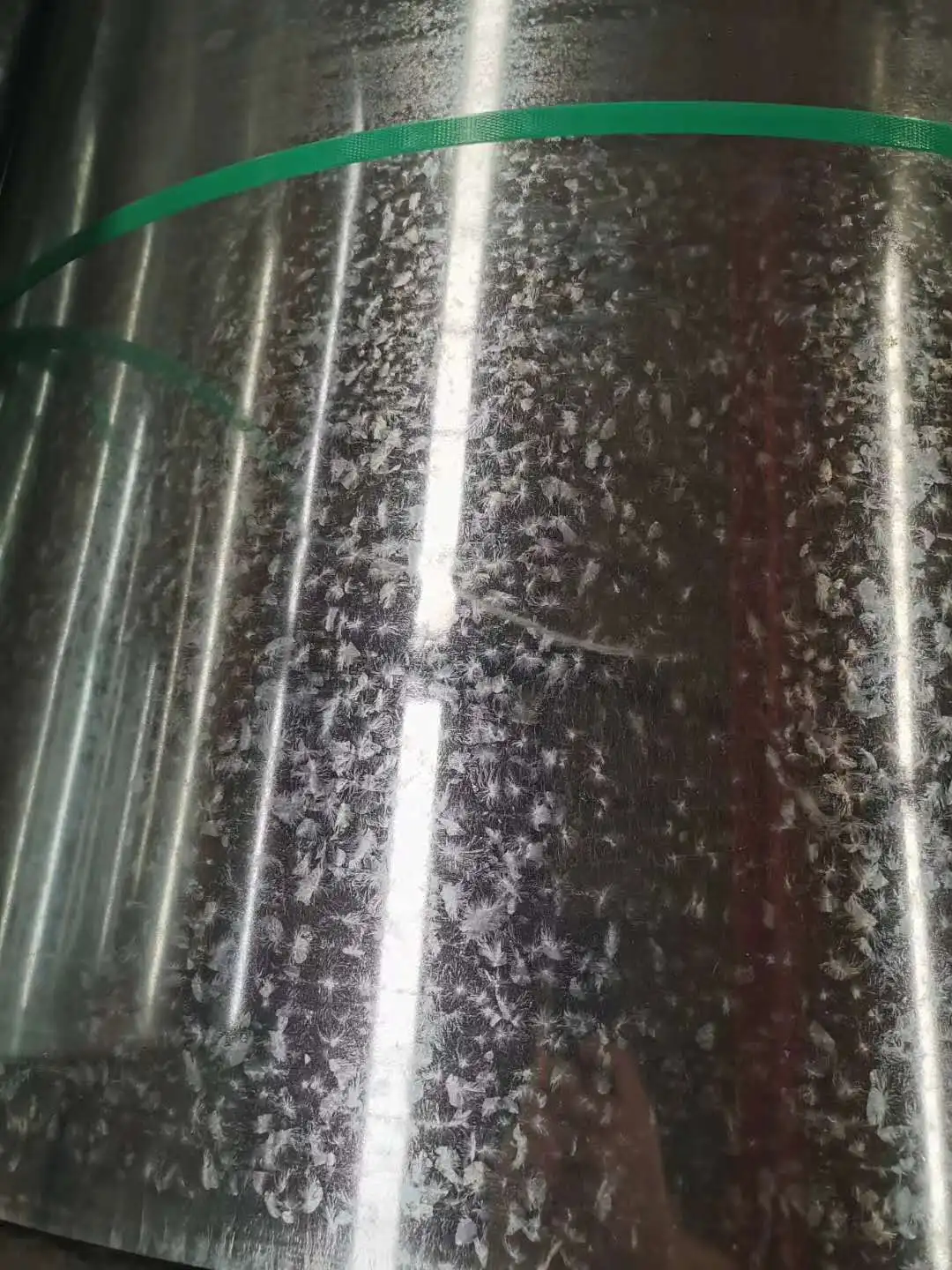

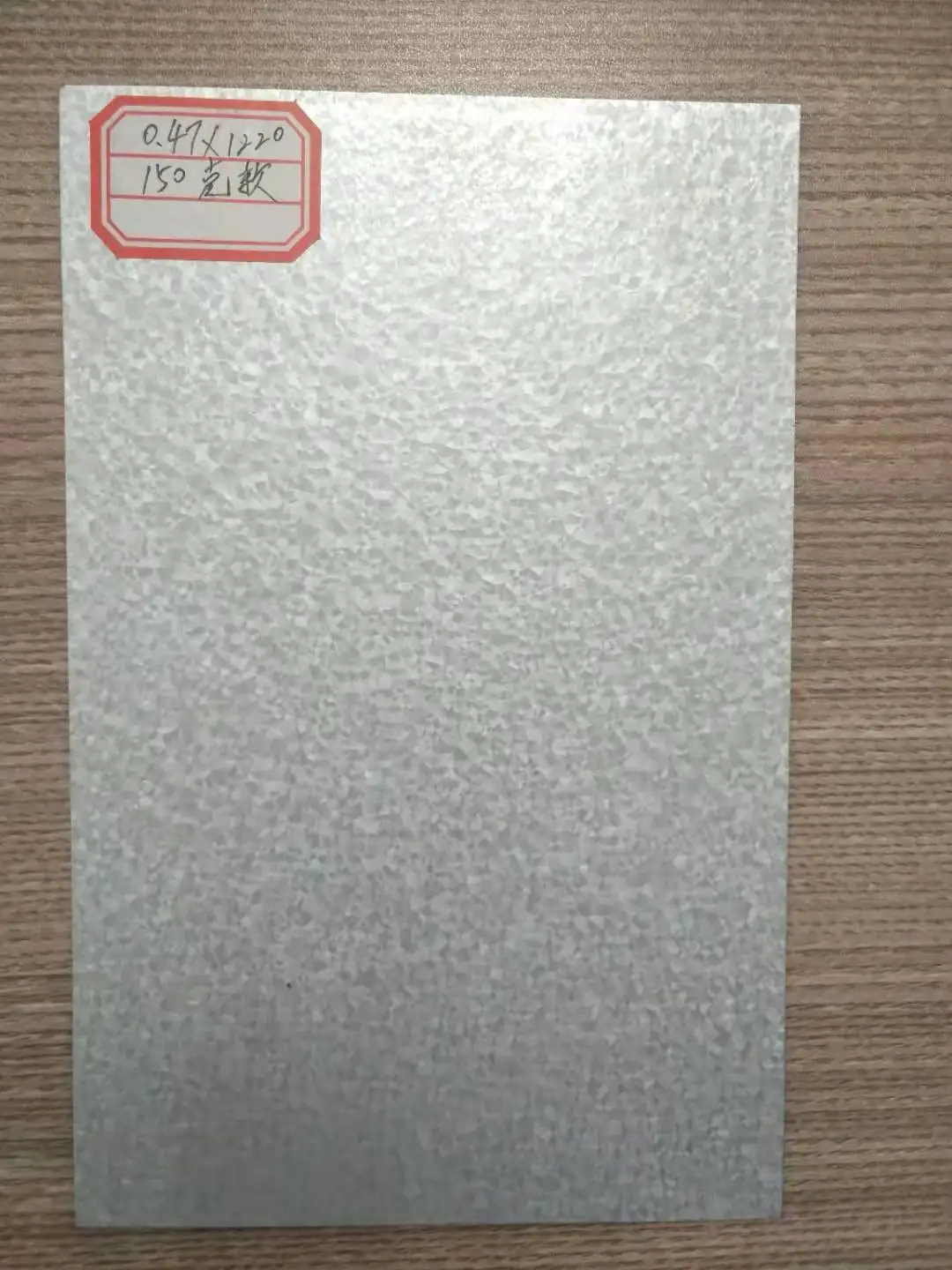

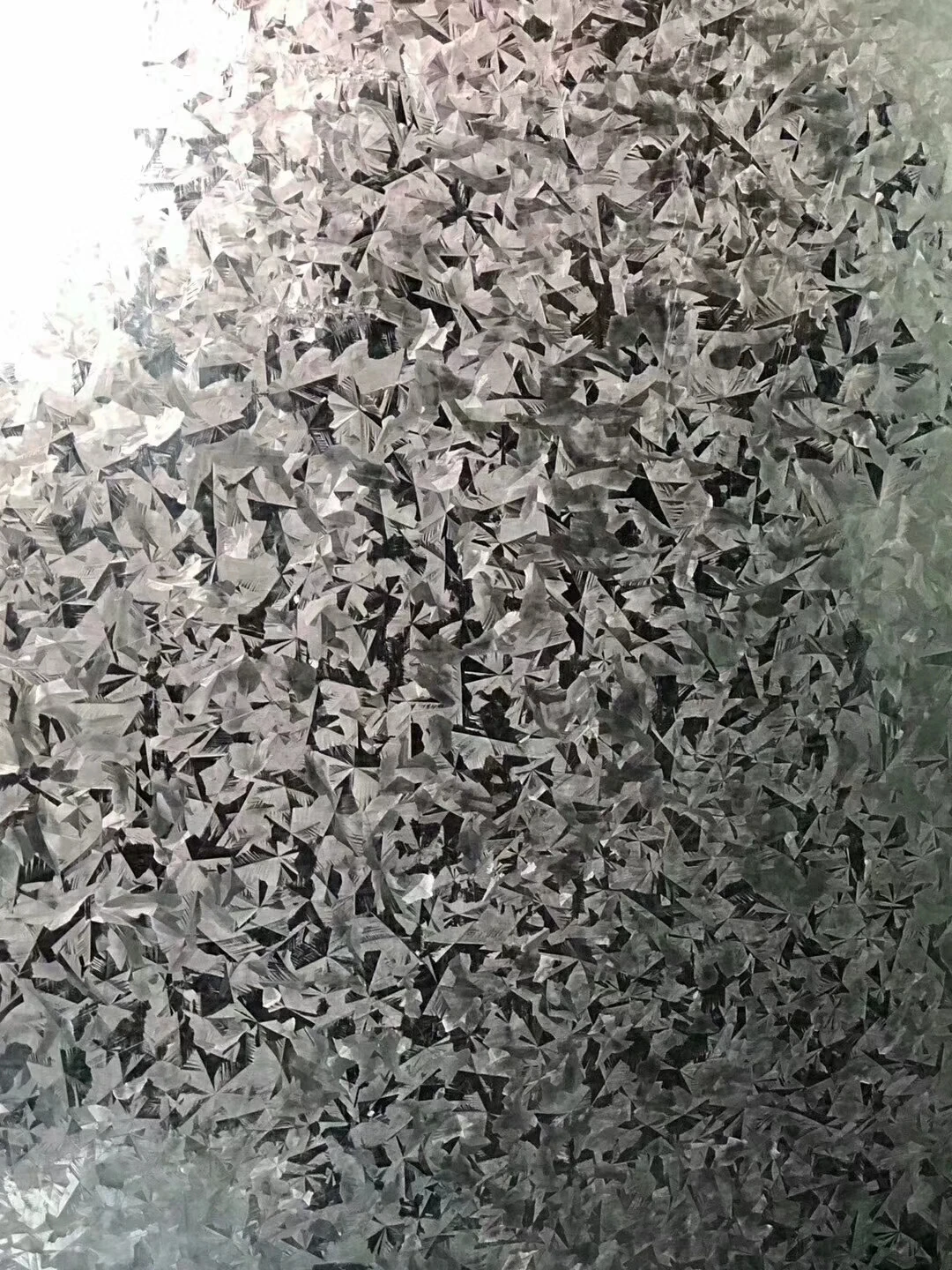

zero spangle | big spangle | medium spangle | small spangle |

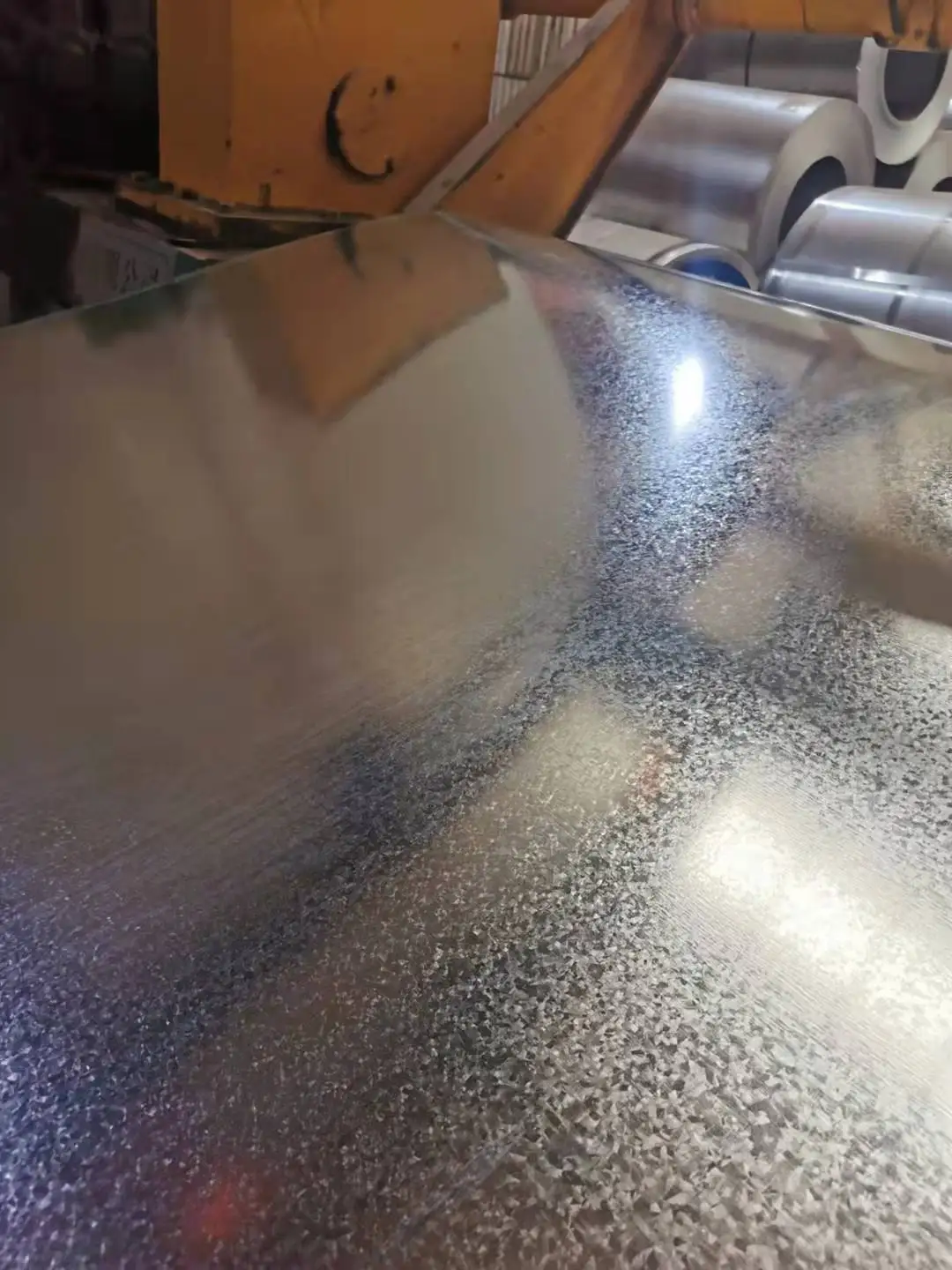

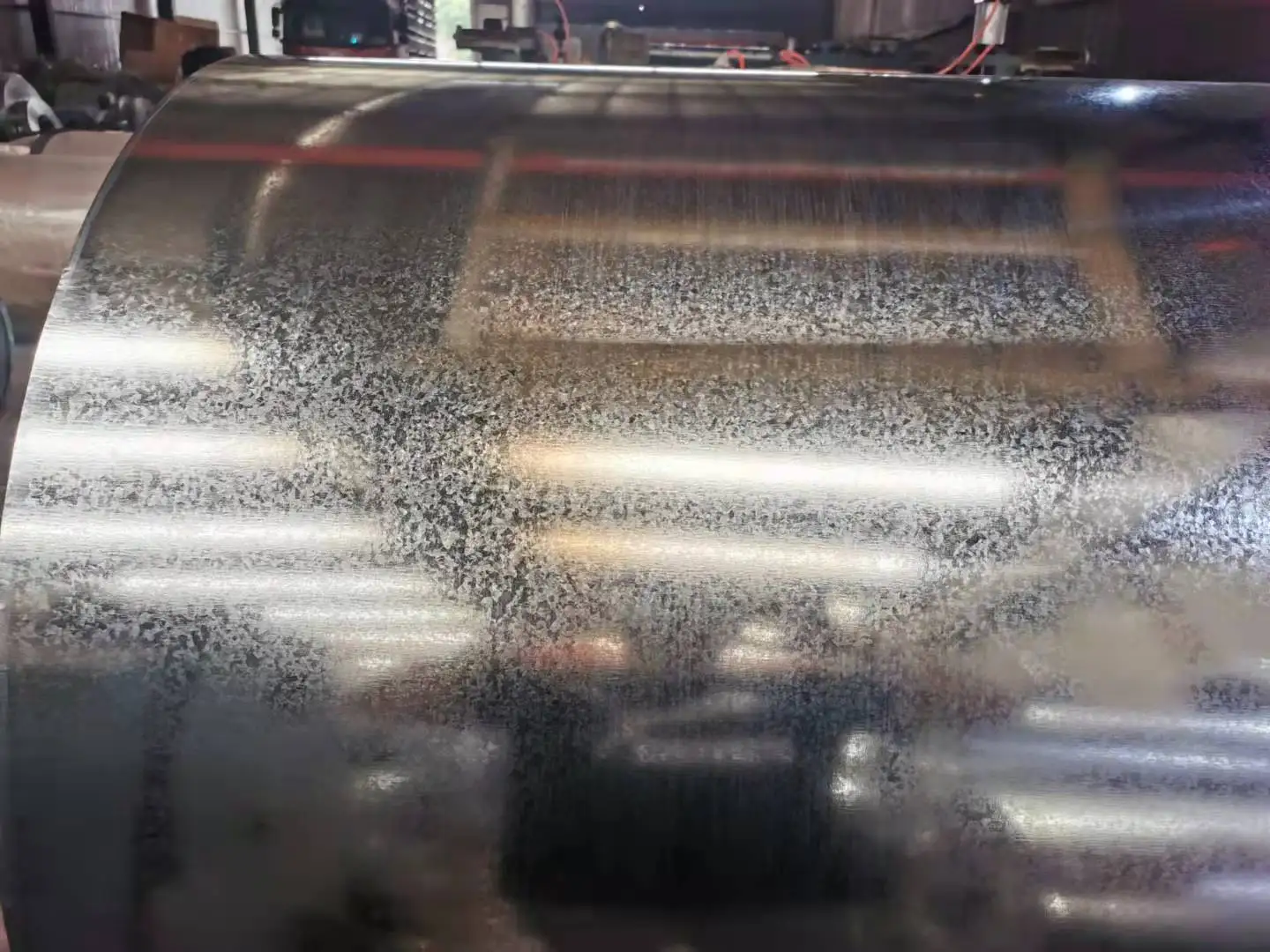

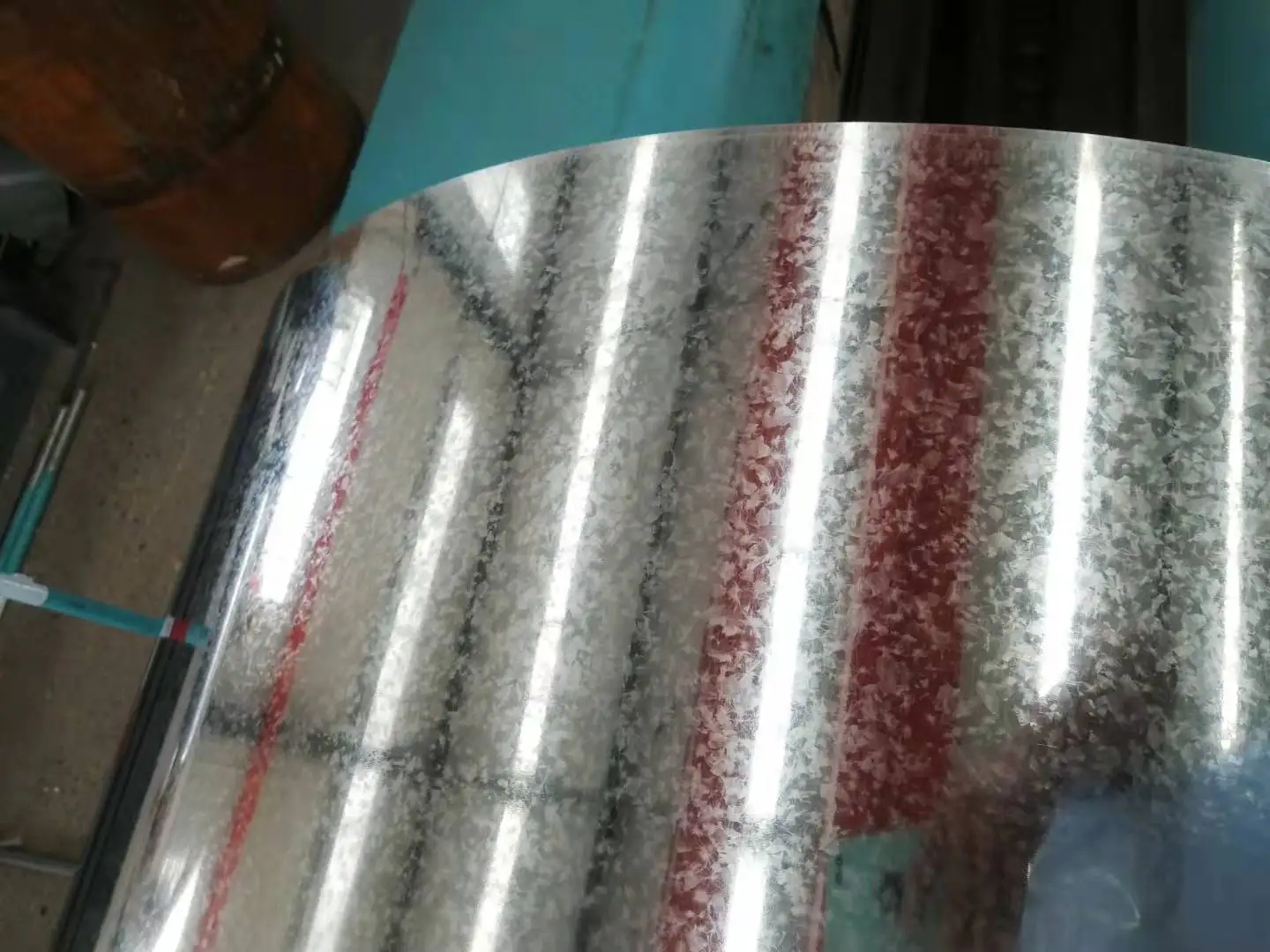

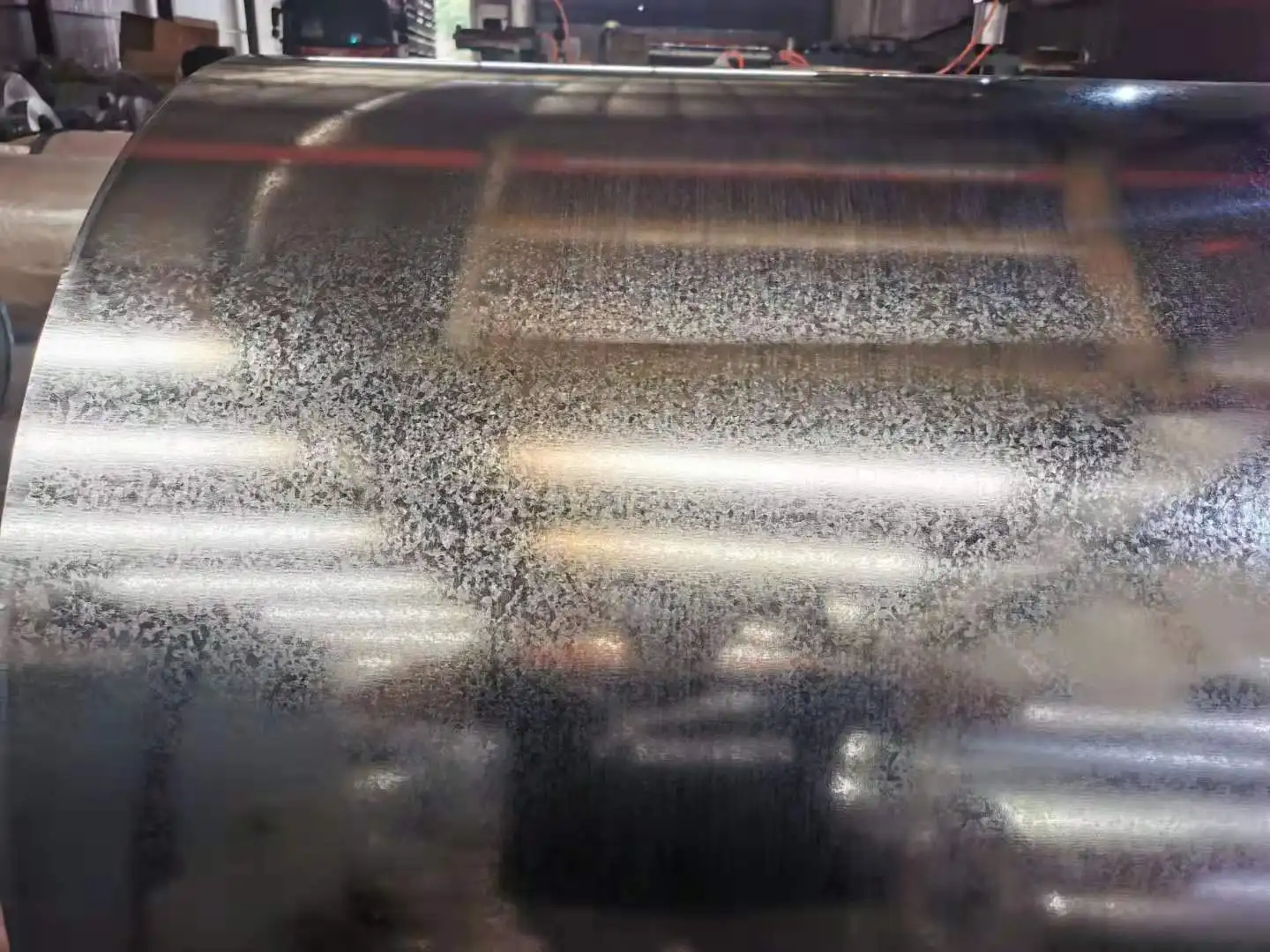

Surface condition: Due to the different treatment methods in the coating process, the surface condition of the galvanized sheet is also different, such as ordinary spangle, fine spangle, flat spangle, no spangle and phosphating surface, etc.
Specification | Zinc layer | material |
0.20-0.5*1000-1200-1250*C | 30-75 | DX51D+Z S280GD+Z S350GD+Z |
0.6-3.5*1000-1200-1250*C | 80-275 | DX51D+Z CSB CSB S280GD+Z S350GD SGCC |
Galvanized steel plate is to prevent the surface of the steel plate from being corroded and prolong its service life. The surface of the steel plate is coated with a layer of metal zinc, which is called galvanized steel plate.
①Hot dip galvanized steel sheet. The sheet steel is immersed in a molten zinc bath, and a sheet of zinc is adhered to its surface. At present, it is mainly produced by continuous galvanizing process, that is, galvanized steel plate is made by continuously immersing the rolled steel plate in a plating tank where zinc is melted;
②Alloyed galvanized steel sheet. This kind of steel plate is also made by hot-dip method, but after it is out of the tank, it is heated to about 500 ℃ immediately to form an alloy film of zinc and iron. This galvanized sheet has good paint adhesion and weldability;
③ Electro-galvanized steel sheet. The galvanized steel sheet produced by the electroplating method has good workability. However, the coating is thin, and the corrosion resistance is not as good as that of the hot-dip galvanized sheet;
④Single-sided and double-sided differential galvanized steel. Single-sided galvanized steel sheet, that is, a product that is galvanized on only one side. In welding, painting, anti-rust treatment, processing, etc., it has better adaptability than double-sided galvanized sheet. In order to overcome the disadvantage that one side is not coated with zinc, there is another galvanized sheet coated with a thin layer of zinc on the other side, that is, double-sided differential galvanized sheet;
⑤Alloy, composite galvanized steel sheet. It is made of zinc and other metals such as aluminum, lead, zinc, etc. to make alloys or even composite plated steel plates. This kind of steel plate has both excellent anti-rust performance and good coating performance;
②Alloyed galvanized steel sheet. This kind of steel plate is also made by hot-dip method, but after it is out of the tank, it is heated to about 500 ℃ immediately to form an alloy film of zinc and iron. This galvanized sheet has good paint adhesion and weldability;
③ Electro-galvanized steel sheet. The galvanized steel sheet produced by the electroplating method has good workability. However, the coating is thin, and the corrosion resistance is not as good as that of the hot-dip galvanized sheet;
④Single-sided and double-sided differential galvanized steel. Single-sided galvanized steel sheet, that is, a product that is galvanized on only one side. In welding, painting, anti-rust treatment, processing, etc., it has better adaptability than double-sided galvanized sheet. In order to overcome the disadvantage that one side is not coated with zinc, there is another galvanized sheet coated with a thin layer of zinc on the other side, that is, double-sided differential galvanized sheet;
⑤Alloy, composite galvanized steel sheet. It is made of zinc and other metals such as aluminum, lead, zinc, etc. to make alloys or even composite plated steel plates. This kind of steel plate has both excellent anti-rust performance and good coating performance;
Aluminized zinc coil is a kind of high value-added corrosive-resistant composite sheet formed by physical reaction of cold rolled sheet. It consists of 55% aluminum,43.5% zinc, and 1.5% silicon. Spraying on the surface of cold rolled plate can protect the substrate well. Most of them are used for roof and wall maintenance of steel structures. Now it's also about the frame of the electrical surface. Like refrigerator, TV, microwave oven, washing machine and so on.
The requirements for the chemical composition of galvanized sheet substrates vary from country to country. The national standard is generally to detect the content of carbon, manganese, phosphorus, sulfur and silicon.
Galvanized sheet steel products are mainly used in construction, light industry, automobile, agriculture, animal husbandry, fishery and commercial industries. Among them, the construction industry is mainly used to manufacture anti-corrosion industrial and civil building roof panels, roof grilles, etc.; the light industry industry uses it to manufacture household appliance shells, civil chimneys, kitchen utensils, etc., and the automotive industry is mainly used to manufacture corrosion-resistant parts for cars, etc. ; Agriculture, animal husbandry and fishery are mainly used for food storage and transportation, meat and aquatic products freezing processing tools, etc.;
Company Profile
Our located in Guanxian Industrial Park, Liaocheng City, Shandong Province. It is aprofessional manufacturer and exporter of Caituplate, color steel plate, color coated roll, color steel coil, Aluminum Coil， Aluminum Foil ，Stainless Steel Plate，galvanized sheet,galvanized coil, galvanized steel strip, Zinc plate and other products ofmodern private enterprises. Can provide points, slitting, Kaiping, film andother services we have the industry's first-class workforce. From seniormanagement to the workshop staff, their professionalism with our humanizedassessment of the management system, so as to ensure that our products andservices can be presented in front of customers. The company after severalyears of efforts to develop, and constantly introduce a series of supportingthe advanced production equipment, quality, technology and design have reachedthe domestic advanced level. Products at reasonable prices, diverse styles,complete specifications, practical and strong, over the years has been thedomestic and foreign market customers praise, support and trust.
Our Advantages

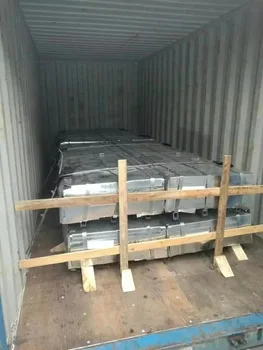

Packing and Shipping:

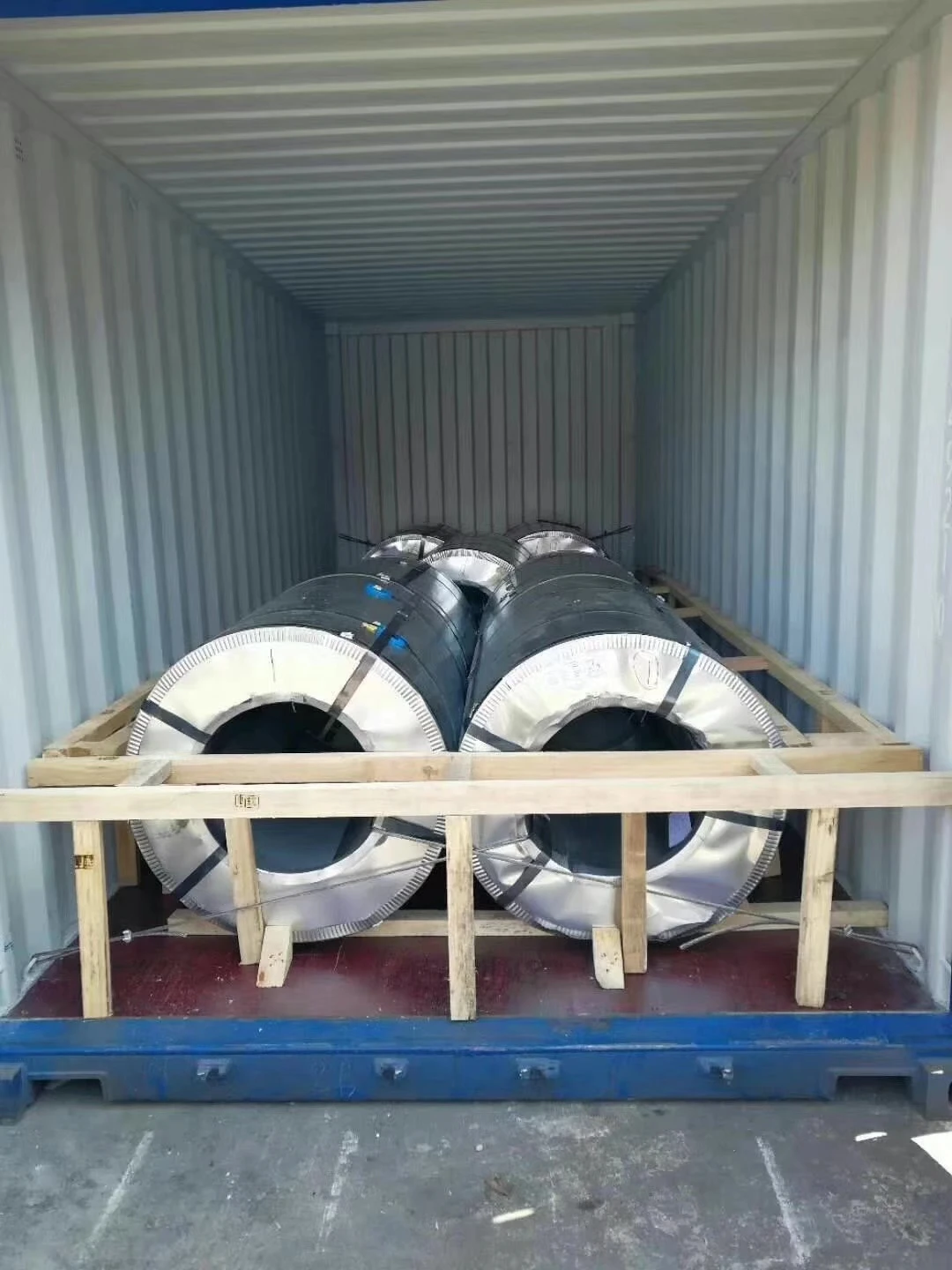

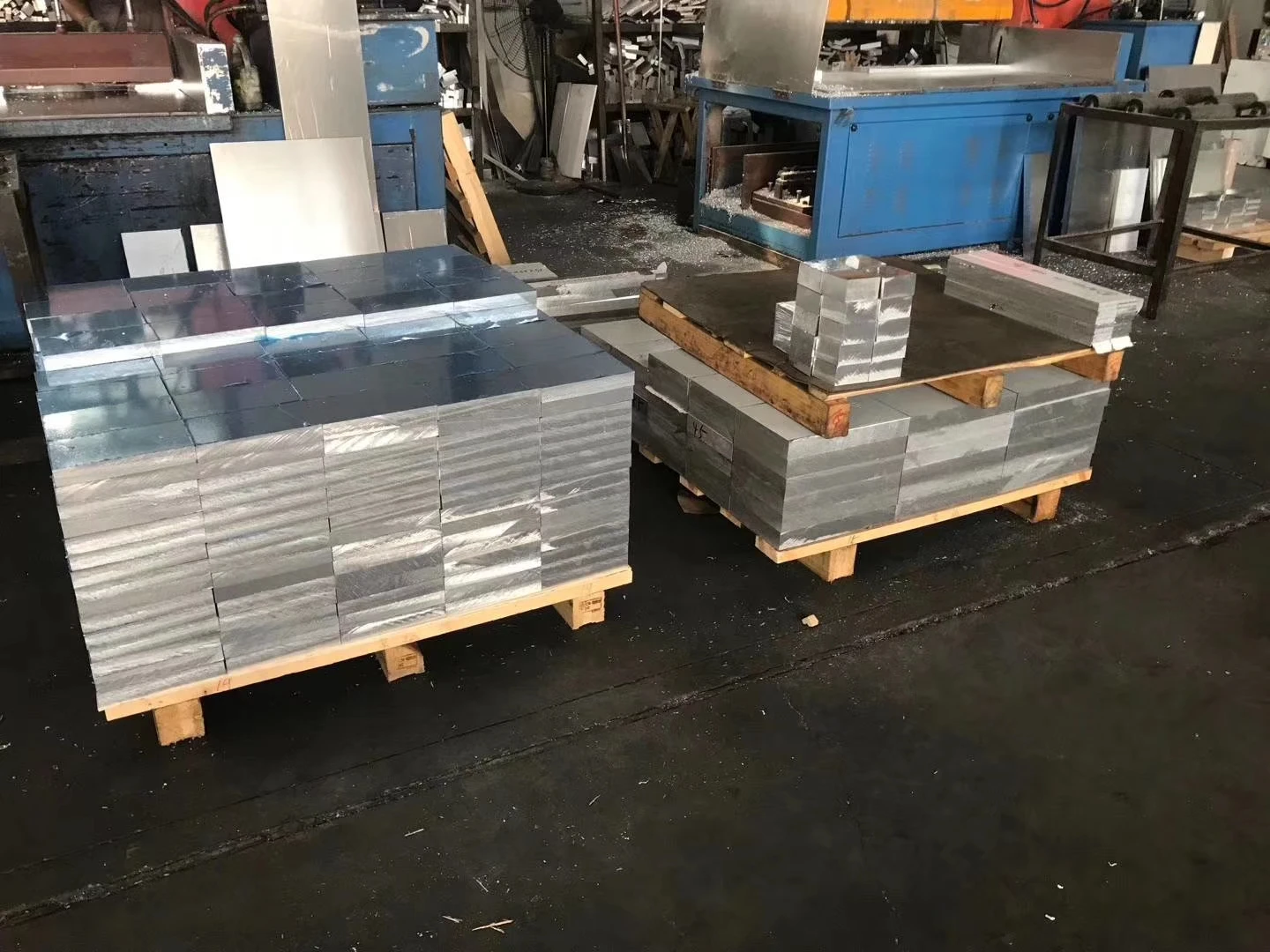

It is divided into two types: galvanized sheet cut to length and coiled galvanized sheet packaging. It is generally packed in iron sheet, lined with moisture-proof paper, and tied on the bracket with an iron waist. The binding should be firm to prevent the galvanized sheets from rubbing against each other.
FAQ
1.Can you supply what is the service?
We can supply the kinds of metal materials and products,and we also can supply other process services.
2.Can you supply the free sample?
We can supply the free sample,but the sample express freight should be by you.
3.What about your the fast lead time if we place order?
It is normal 7-10 days after receive your deposit.
4.Which payment terms can you accept?
We can accept the TT,Western Union now or Negotiation.
We can supply the kinds of metal materials and products,and we also can supply other process services.
2.Can you supply the free sample?
We can supply the free sample,but the sample express freight should be by you.
3.What about your the fast lead time if we place order?
It is normal 7-10 days after receive your deposit.
4.Which payment terms can you accept?
We can accept the TT,Western Union now or Negotiation.
