With 12.5V low voltage protection 12V 24V to 58V dc to dc step up boost battery charger for 48V Life po4 RVs Auxiliary battery

Brand

IDEALPLUSING

Type

Non-Isolate

Model (IPS-***)

IPS-DTD1224S5820

INPUT

Rate Volts

12/24VDC

Volts range

12/24VDC Battery

OUTPUT

Efficiency

92%

Output volts

58VDC

Output current

20A

Rated Power

1160W

OTHERS

 Working Temp

-40°c ~ +80°c

Waterproof rating

IP65

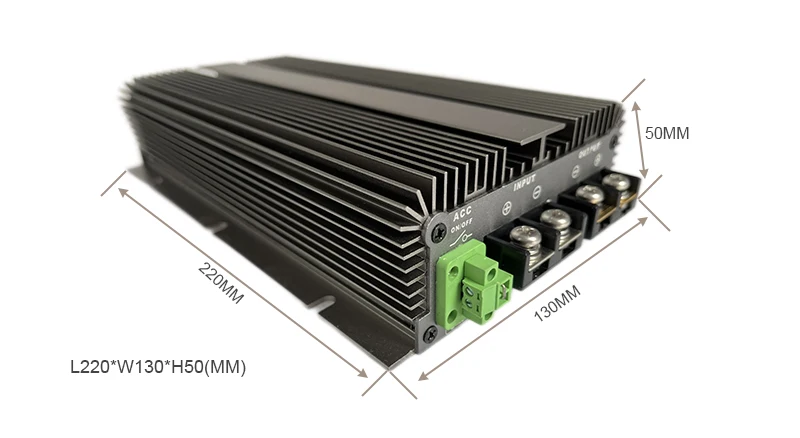

 Machine size

220*130*50MM

 NW

2.6KG

Cooling way

Free air convection

 Certifications

CE, RoHS

 Customize

Support

Sample order

Support

OEM & ODM

Support

Package

White & colorful package optional
