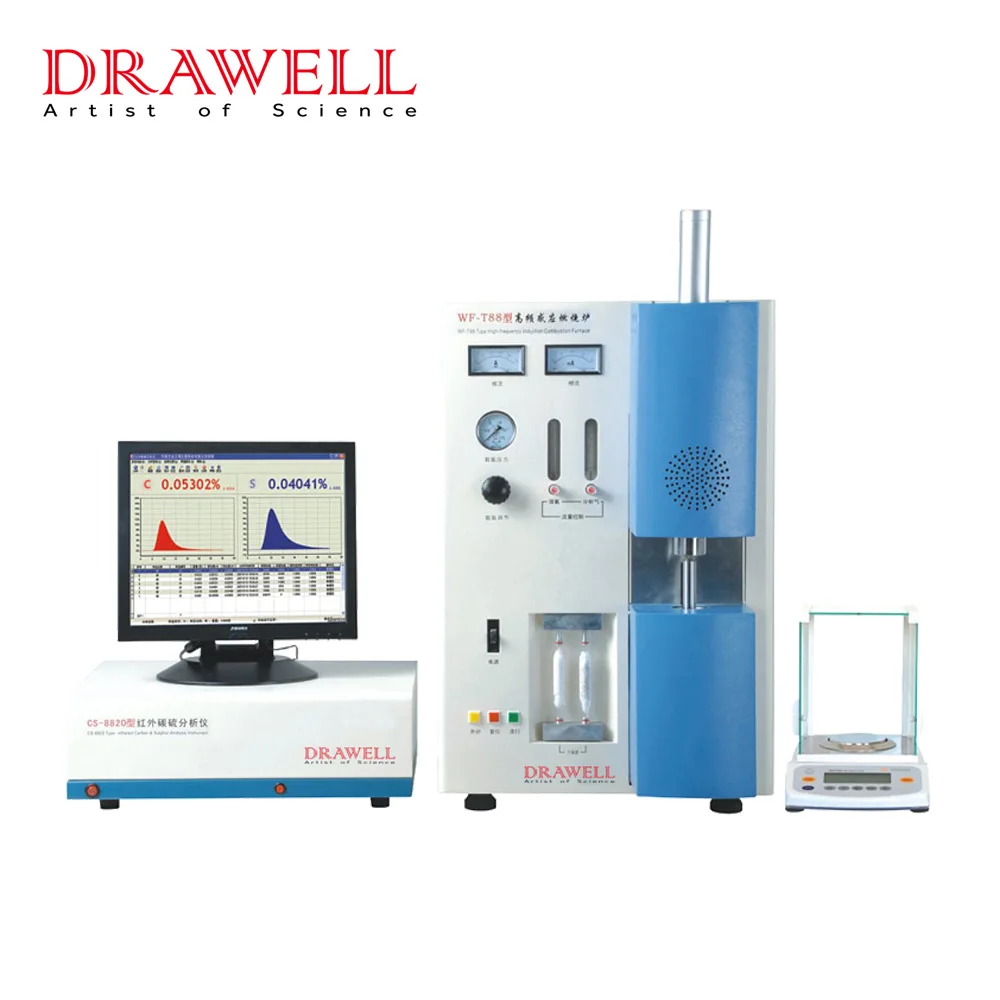

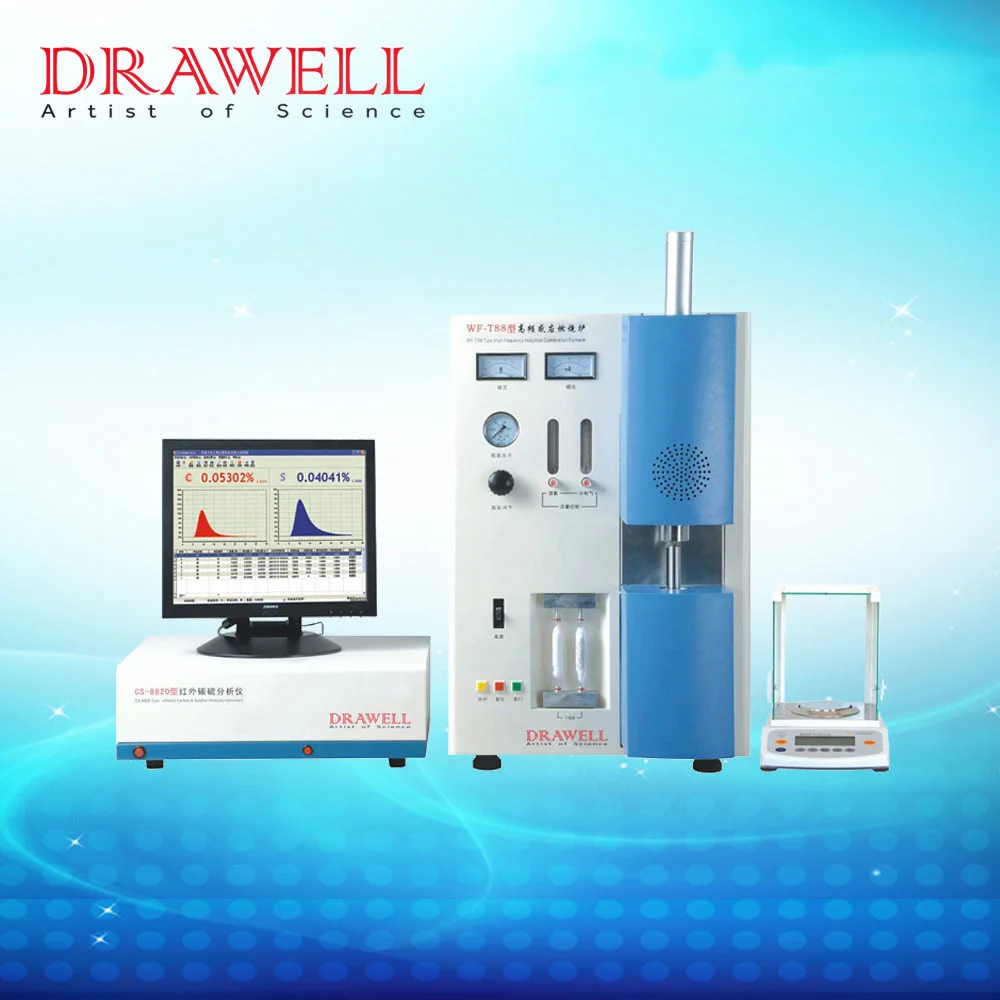

DW CS 8820 High Frequency Lab Steel Material Analyzer Carbon Sulfur Element Infrared Carbon Sulfur Analyzer
- Category: >>>
- Supplier: Chongqing Drawell Instrument Co. Ltd.
Share on (1600663509206):
Product Overview
Description
Infrared Carbon & Sulfur Analyzer
Product Description
Application:
Infrared Carbon & Sulfur Analyzer, with infrared analysis techniques and arc burner, Testing the mass fraction of C, S of steel, iron, alloy, mold and cores, nonferrous metal, cement, ore, coke, catalyst, magnetic materials, ceramic, inorganic substance, black lead, refractory matter, battery matter, plant and other materials.
Main features:
(1). Adopting the double CPU design, electronic circuit integration degree is highly, steady and reliable, which can settle the high-frequency interference thoroughly.
(2). The special new platinum infrared light source, Gold plated carbon sulfur analysis pool and high precision pyroelectric infrared detector to make the apparatus' measurement more accurate.
(3). Adopting the high power and quick frequency circuit design, which using 6KVA high frequency power tube(actual use of power is about 2.5KVA, it can turn on to work itself), to reduce the high frequency combustion system load and to increase the using time.
(4). Furnace head automatic cleaning device, patent technology supply system and -0.4mm amd hole metal filter to make the dust and gas seperated, reducing the dust on the result of analysis.
(5). Specialized analysis software of many different language owns following functions: curve/data storage, blank deduction, parameter determination, channel choosing, data statistics, results correction, breakpoint correction, curve comparison, system diagnosis, automatic/manual printing analysis results etc.
(1). Adopting the double CPU design, electronic circuit integration degree is highly, steady and reliable, which can settle the high-frequency interference thoroughly.
(2). The special new platinum infrared light source, Gold plated carbon sulfur analysis pool and high precision pyroelectric infrared detector to make the apparatus' measurement more accurate.
(3). Adopting the high power and quick frequency circuit design, which using 6KVA high frequency power tube(actual use of power is about 2.5KVA, it can turn on to work itself), to reduce the high frequency combustion system load and to increase the using time.
(4). Furnace head automatic cleaning device, patent technology supply system and -0.4mm amd hole metal filter to make the dust and gas seperated, reducing the dust on the result of analysis.
(5). Specialized analysis software of many different language owns following functions: curve/data storage, blank deduction, parameter determination, channel choosing, data statistics, results correction, breakpoint correction, curve comparison, system diagnosis, automatic/manual printing analysis results etc.
Model | DW-CS-8820 |
Measuring range | C: 0.0001%-10.0000% (can extend to 99.9999%) S: 0.0001%-3.5000% (can extend to 99.9999%) |
Analysis of error | With GB / T20123-2006/ ISO15350: 2000 standard |
Analysis time | 25-60 seconds can be set ( usually 35 seconds) |

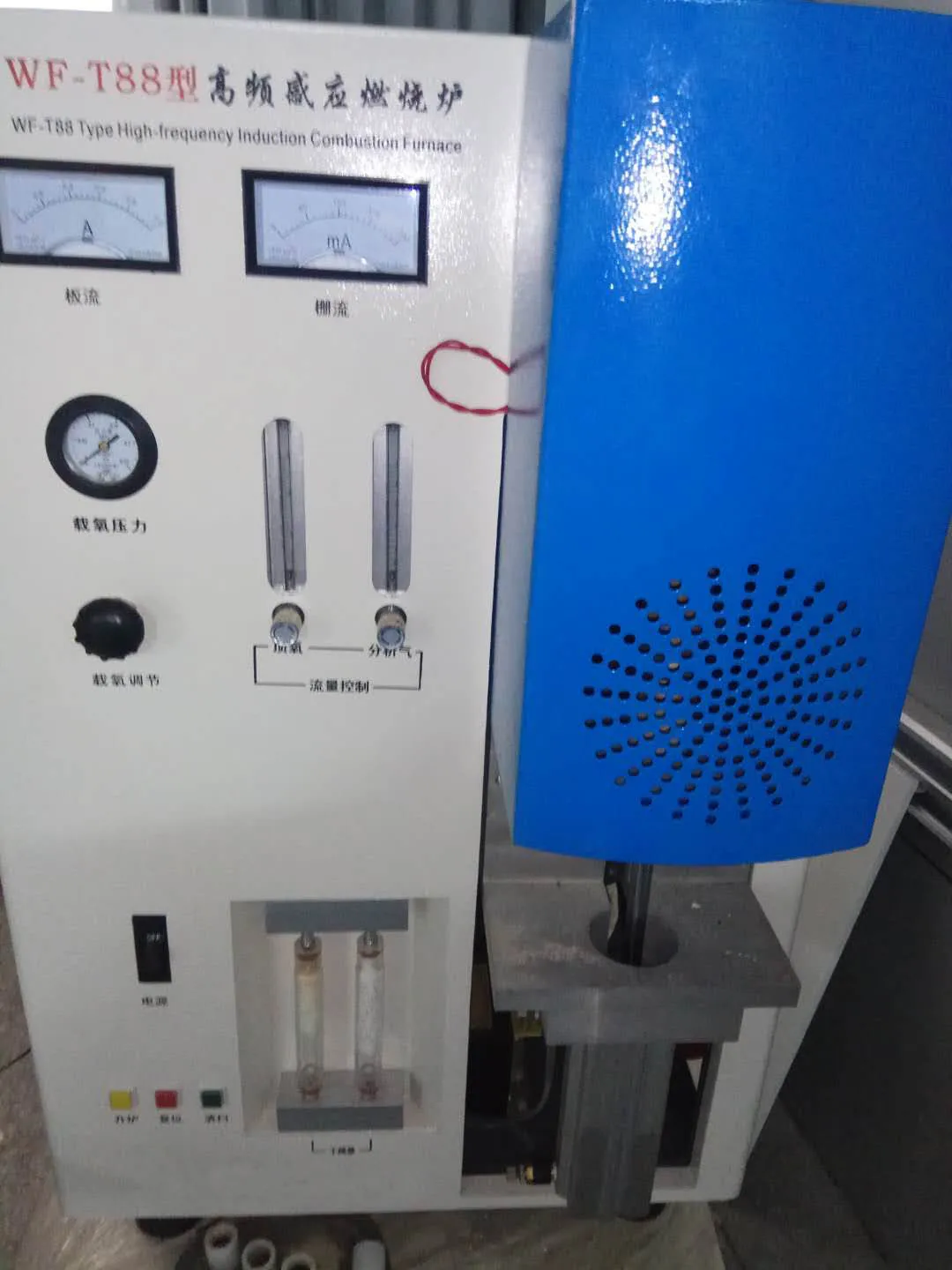

High frequency furnace | power ≥2.7KVA Oscillation frequency:20MHz |
Electronic balance | weight the sample in variable amount Accuracy of reading：0.0001g |
Working environment | indoor temperature：10-30℃，relative humidity：＜90% |
Power supply | voltage：AC220V±5%，frequency：50Hz±2% |
Oxygen | Purity: ≥99.5%, input pressure : 0.18MPa + 5% |
Certificate
Company Profile
Drawell International Technology Limited is a leading company of manufacturing and selling laboratory equipment and scientific instruments, founded in year 1999 in China, then has become an joint venture company after being invested by US company since 2014.
DRAWELL is specialized in laboratory equipment and medical instruments: Face Mask, Stirrer, PCR, Spectrophotometer, Refratometer, Chromatography, Centrifuge, Incubator, Balance, Raman, AAS, FTIR, XRF and etc. They are widely used in Pharmaceutical &food QC, educational research, environmental science, chemical industry and other areas. Meanwhile, we are committed to explore the different markets by attending the exhibitions oversea including Arablab, PICCTON, Analytica Russia, Lab Africa, Analytica Germany , Analytica Latin America etc.
Now DRAWELL already has established business relationships with customers from more than 50 countries, and has enjoyed the good reputation through reliable quality, reasonable price and professional service .
DRAWELL is specialized in laboratory equipment and medical instruments: Face Mask, Stirrer, PCR, Spectrophotometer, Refratometer, Chromatography, Centrifuge, Incubator, Balance, Raman, AAS, FTIR, XRF and etc. They are widely used in Pharmaceutical &food QC, educational research, environmental science, chemical industry and other areas. Meanwhile, we are committed to explore the different markets by attending the exhibitions oversea including Arablab, PICCTON, Analytica Russia, Lab Africa, Analytica Germany , Analytica Latin America etc.
Now DRAWELL already has established business relationships with customers from more than 50 countries, and has enjoyed the good reputation through reliable quality, reasonable price and professional service .
Exhibitions
Evaluation
Logistics & payment
FAQ
Q1. Are you factory or trading company?
We are a factory.
Q2. What's the MOQ ?
(1). Normally,MOQ is 1 piece. But if the items are in stock,there is no MOQ.
The quantity is according to the clients requires.
(2). If there is no stock,the general MOQ are in big difference due to the different
products. But the quantity still can be negotiated.
Q3. What is your principle for the samples ?
We do not provide free sample.
Q4.Which payment can be acceptable ?
We could accept the payment by L/C, T/T, Paypal, Western Union,etc.
Q5. How about your delivery time?
Generally, it will take 7 to 15 working days after receiving your advance payment.
Depend on the quantity.
Q6. Certificate & Quality.
CE and ISO certified for most products. Good quality firstly to avoid any defective
products, Protective packaging to avoid destroy during delivery.
Q7.Language.
Pure English operation panel, display , manuals ; installation & operation videos will
be provided to you as a guidance
Q8.Service
We could provide Online instruction; Real-time support by video-call or voice-chat,
During warranty time, we can send product accessories when you need for free;
Technical guidance is free and ready forever.
Q9.Training
Your technicians can come to our factory for training , Drawell engineers can go
your place for local support( installation , training, debugging, maintenance );
Products can be customized according to your requirements; OEM service is
available with customers' brand.
