Stud Link Marine Anchor Chain for Ship
US $10.00
Подъемная цепь G80 из термообработанной легированной стали
- Category: Chains >>>
- Supplier: Shandong,Lisheng,Machinery,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Product Display

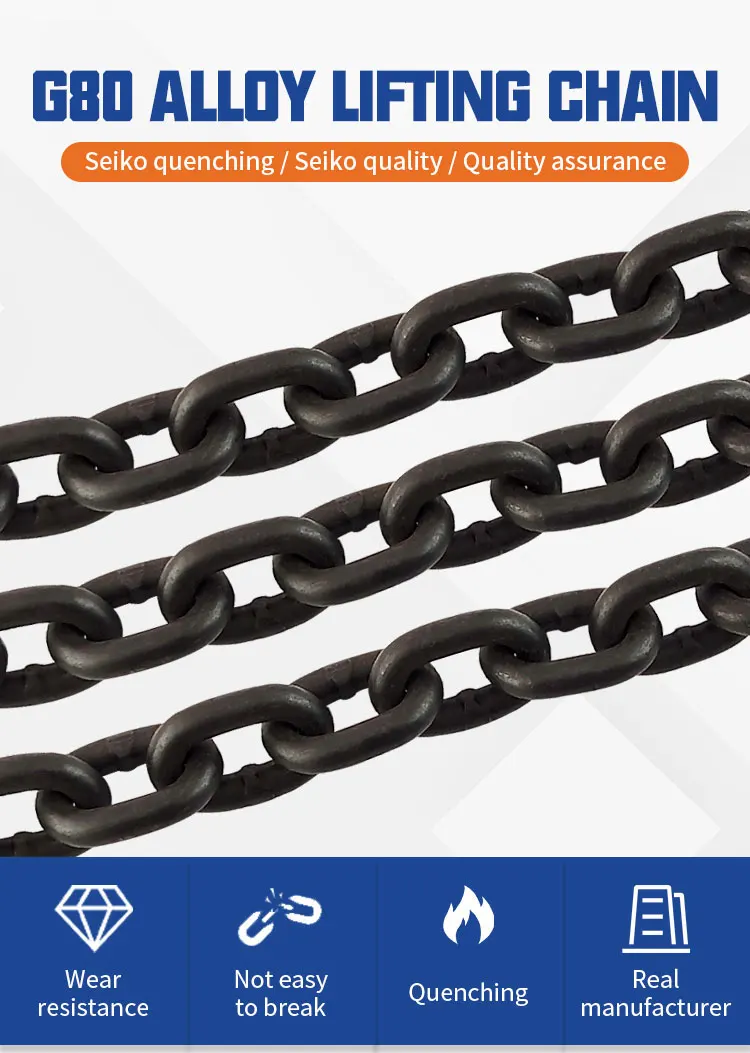

G80 alloy lifting chain is a kind of high grade welded link chain. The chain is suitable for all general purposes. Engineering,
industrial, agricultural and marine applications in conjunction with our accessories.
industrial, agricultural and marine applications in conjunction with our accessories.
Product Paramenters
SIZE | DIA | Inside Length | Inside Width | Outside Width | Working Load Max | Proof Test Max | Breaking Load (MIN) | WEIGHT PER 100FT | WEIGHT PER METER |
MM | MM | MM | MM | KG | KN | KN | KG | KG | |
1/4 | 6 | 18 | 7.8 | 22.2 | 1150 | 22.5 | 45 | 24.3 | 0.8 |
1/4 | 7 | 21 | 9.1 | 25.9 | 1570 | 30.8 | 61.6 | 33 | 1.08 |
5/16 | 8 | 24 | 10.4 | 29.6 | 2050 | 40.3 | 80.4 | 43.5 | 1.43 |
9 | 27 | 11.7 | 33.3 | 2500 | 50.8 | 102 | 54.8 | 1.8 | |
3/8 | 10 | 30 | 13 | 37 | 3200 | 63 | 126 | 67.6 | 2.22 |
1/2 | 13 | 39 | 16.9 | 56 | 5400 | 107 | 214 | 113.6 | 3.73 |
5/8 | 16 | 48 | 20.8 | 59.2 | 8200 | 161 | 322 | 170.3 | 5.58 |
18 | 54 | 23.4 | 66.6 | 10000 | 203.5 | 407 | 222.5 | 7.1 | |
3/4 | 19 | 57 | 24.7 | 70.3 | 11200 | 227 | 454 | 243.8 | 8 |
3/4 | 20 | 60 | 26 | 74 | 12500 | 250 | 500 | 274.3 | 9 |
7/8 | 22 | 66 | 28.6 | 81.4 | 15000 | 300 | 600 | 332 | 10.9 |
1 | 26 | 78 | 33.8 | 96.2 | 2000 | 400 | 800 | 463 | 15.2 |
Product Details
Customer Feedback
Other Products
Product packaging
Certifications
Company Profile
Shandong Lisheng Machinery Co., Ltd. is a new generation enterprise committed to the hardware industry. Located in Jining, Shandong Province, the hometown of Confucius and Mencius.
Our factory produces hardware products with advanced technology, complete equipment and stable quality, which sell well all over the world.
Our factory produces hardware products with advanced technology, complete equipment and stable quality, which sell well all over the world.
