GENERAL DESCRIPTION

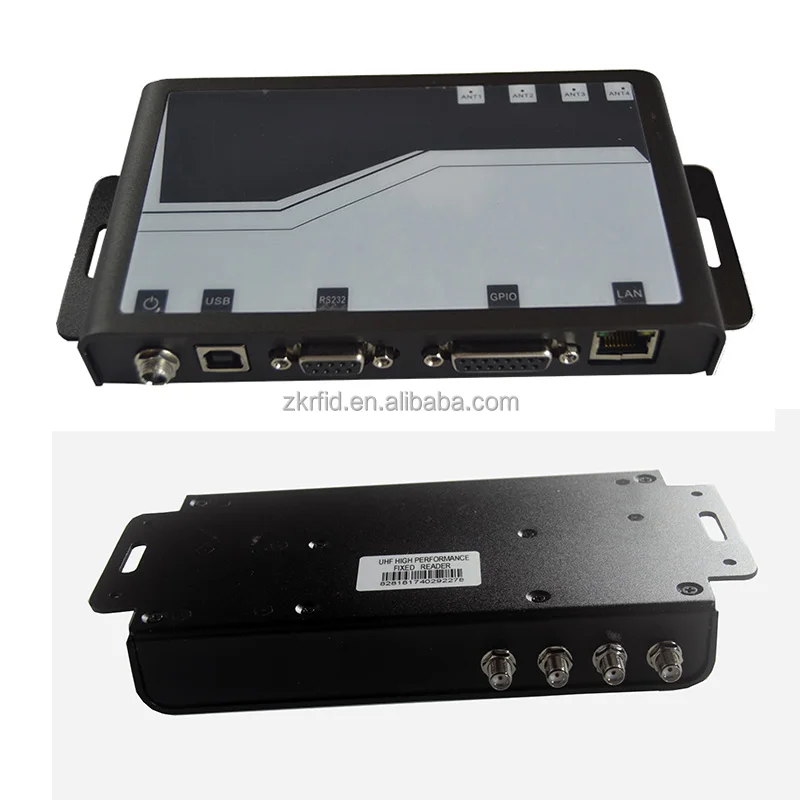

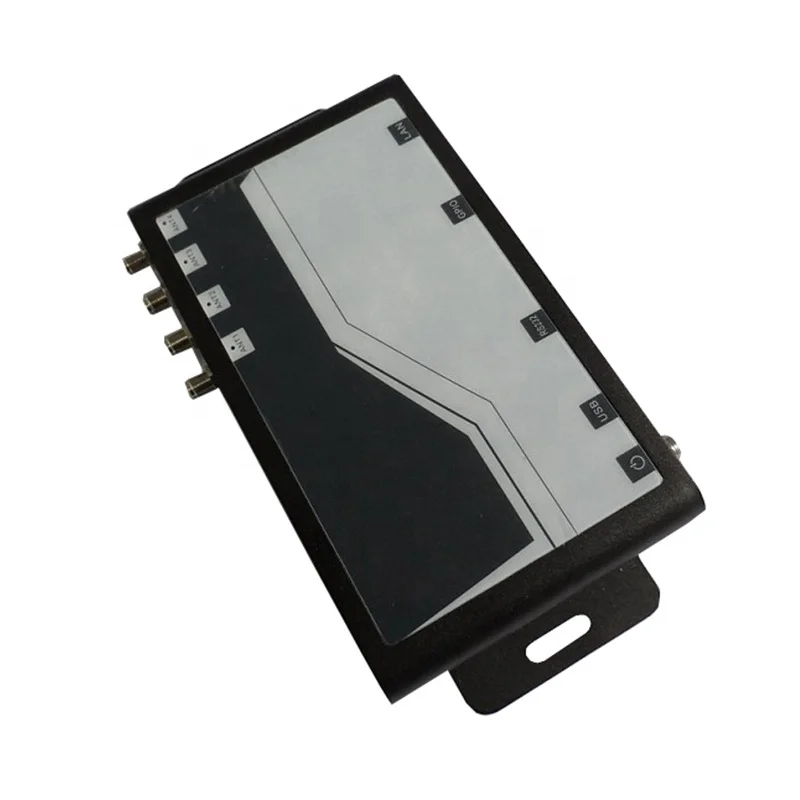

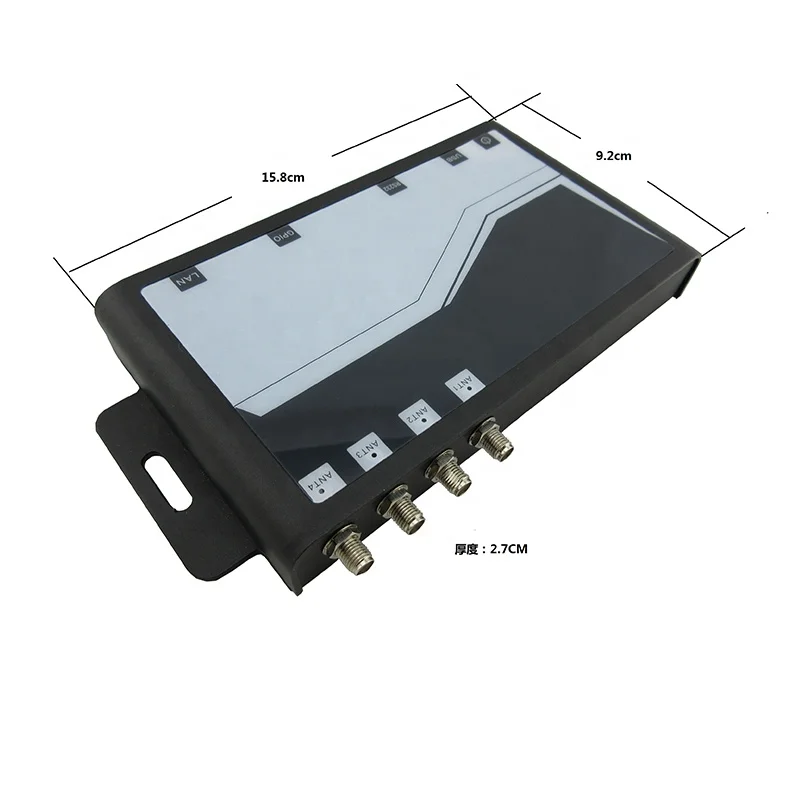

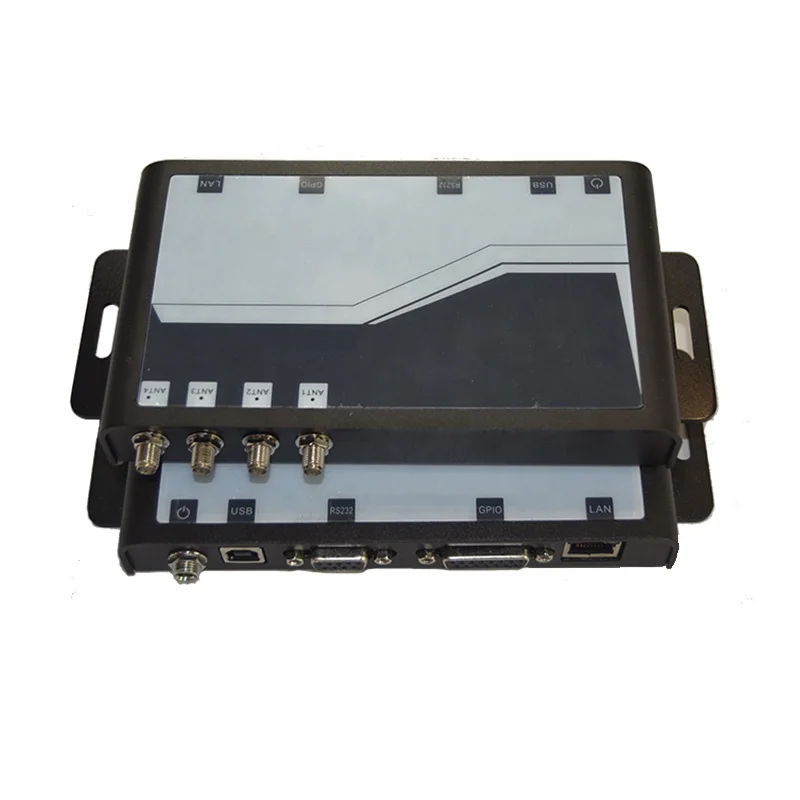

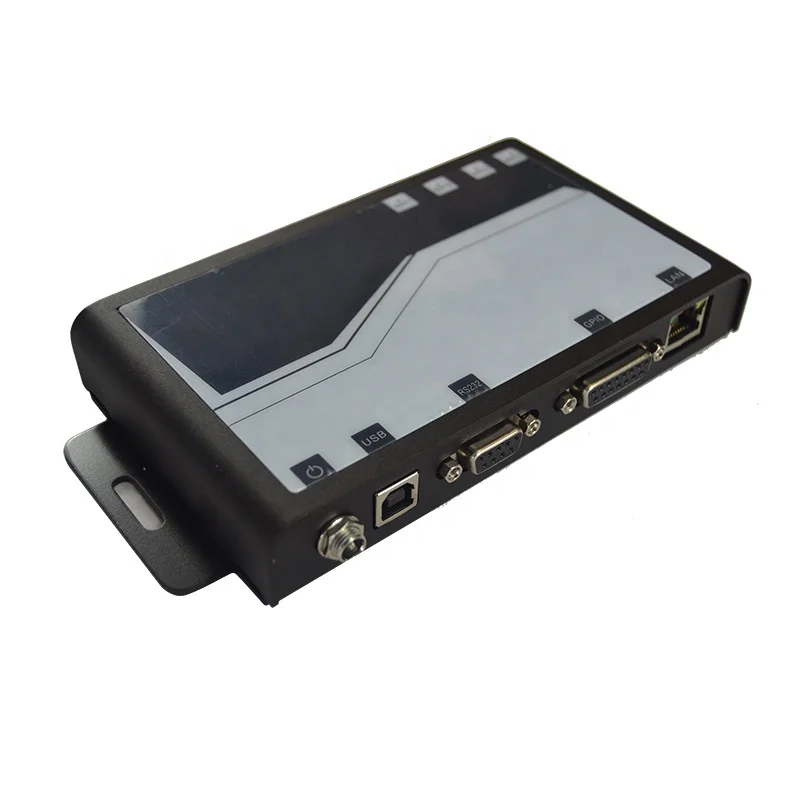

    ZK_RFID403 is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

FEATURES

l Self-intellectual property;

l Based on Impinj R2000 high performance RF engine;

l Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;

l 860~868MHz/902~928MHz frequency band(frequency customization optional);

l FHSS or Fix Frequency transmission;

l RF output power up to 30dbm(adjustable);

l Support 4 SMA antenna port with antenna failure-detection;

l Support answer and real-time-inventory work mode;

l Support RSSI;

l Maximum inventory speed over 500pcs;

l Tag buffer: 600pcs@max. 128bitsEPC or 180pcs@max.496bitsEPC;

l Low power dissipation with single +9 DC power supply;

l Support USB(Slave), RS232, RJ45(TCPIP) with POE optional;

l High reliability design.

FEATURES

l Self-intellectual property;

l 840~960MHz frequency band (frequency customization optional);

l Based on Impinj R2000 high performance RF engine, excellent multi-tag anti-collision operation, fully support EPC CLASS1 G2 \\ ISO18000-6B protocol tags

l FHSS or Fix Frequency transmission, support RSSI,  Maximum inventory speed over 700pcs;

l RF output power up to 33dbm (adjustable);

l Support 4 TNC antenna port with antenna auto-tuning and failure-detection;

l Support answer and real-time-inventory work mode;

l Tag buffer: 1000pcs@96bitsEPC;

l Support EPC and TID anti-collision mode

l Low power dissipation with single +9 DC power supply, POE (Power over Ethernet) is optional;

l Support RS232, USB(Slave), RJ45 (TCP/IP) interface;

l Provide DLL and Demonstration Software Source code to facilitate further development;

l High reliability design, meet the requirements of harsh working environment.

Shenzhen ZKHY RFID Technology Co.,Ltd is committed to RFID (Radio Frequency Identification Devices)

products development and exploitation production and distribution. With 150 workers and more than 20 sales.

After 11 years of development, our company not only has the domestic leading RFID core technology, but also

has independent intellectual property rights of RFID. At the same time, our company can provide complete

solution and timely after-sale service for project. Based on special idea in design and function, the main

technical indexes of ZKHY RFID products has achieved or exceeded world level.

1. Are you manufacturer?
Yes, We are a professional manufacture of UHF RFID reader in Shenzhen China.

2. What is your mainly products
Our products mainly include UHF RFID Reader, RFID Gate Device , RFID Antenna and UHF Tag etc.

3. What is your advantage?
We are professional RFID hardware solution provider, having strong technical team, which can provide

good after sale technical support online, and also we can provide different customized service.

4. Which Payment and Shipping acceptable?
TT Bank, Via Paypal, Alipay or Wechat are acceptable.
