juxin Factory Wholesale Trailer Parts American Type Axle 13t Safe Axle Tube High Strength Trailer Axles
- Category: >>>
- Supplier: Liangshan Juxin Machinery Co. Ltd.
Share on (1600663755151):
Product Overview
Description

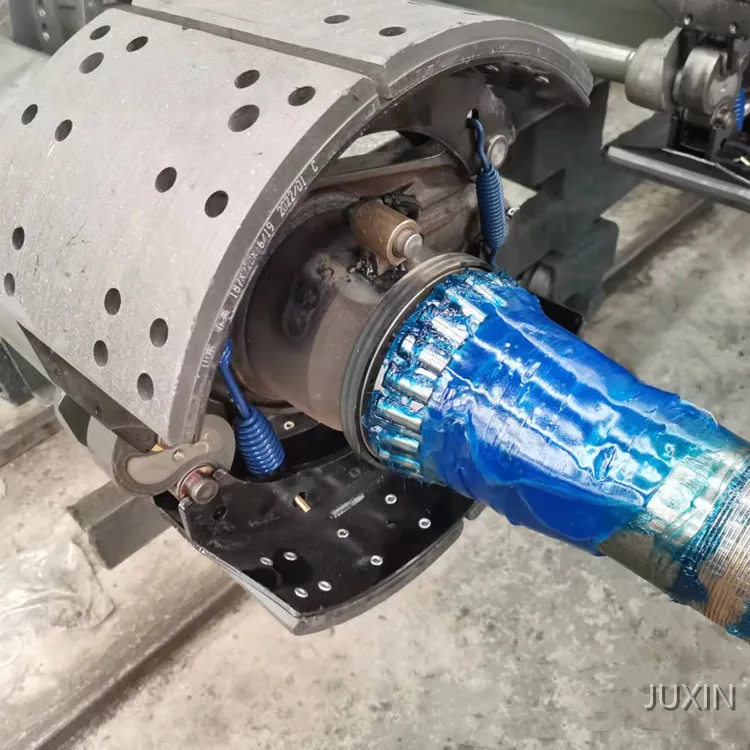

Description:Strong one-piece or welded axle head, exceeding the industry standard for hardness and tensile strength.Stable and
reliable brake system with non-absestos brake linings.
1. Products Name: Trailer Axle Parts Standard Size 13T Axle
2. Axle Track: 1840mm
3.Axle Beam: Square 150mm/127mm Round 127mm
4. Product type:American,Germany and Europe type
5.Max.capacity you can choose:12T,13T,14T,15T,16T
6.Stud:10*M20*1.5
7.Material: Steel
8.Products Capacity Available: 13T/14T/16T/18T/20T
reliable brake system with non-absestos brake linings.
1. Products Name: Trailer Axle Parts Standard Size 13T Axle
2. Axle Track: 1840mm
3.Axle Beam: Square 150mm/127mm Round 127mm
4. Product type:American,Germany and Europe type
5.Max.capacity you can choose:12T,13T,14T,15T,16T
6.Stud:10*M20*1.5
7.Material: Steel
8.Products Capacity Available: 13T/14T/16T/18T/20T

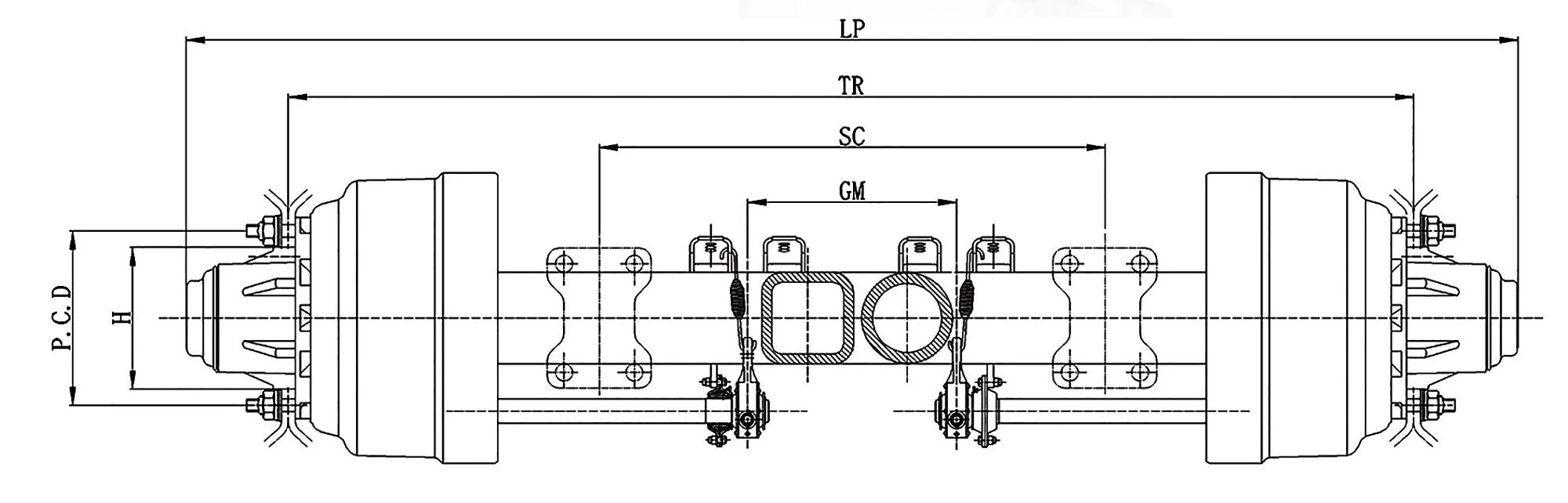

Model | Capacity (mm) | Brake Size (mm) | P.C.D (mm) | Axle Tube (mm) | Track (mm) | Spring Center (mm) |
FJX1-13T | 13T | 420*180 | 335 | Square150 | 1840 | 950 |
FJX2-13T | 13T | 420*180 | 335 | Round/Square127 | 1840 | 930 |
FJX-14T | 14T | 420*220 | 335 | Square150 | 1840 | 930 |
FJX-16T | 16T | 420*220 | 335 | Square150 | 1840 | 940 |
FJX-20T | 20T | 420*220 | 335 | Square150 | 1840 | 940 |
Noted:
1. The Trailer Axle track can be customized according to customer requirements
2. Axles can install ABS brake.
3. Axles can install Air brake chamber
1. The Trailer Axle track can be customized according to customer requirements
2. Axles can install ABS brake.
3. Axles can install Air brake chamber
