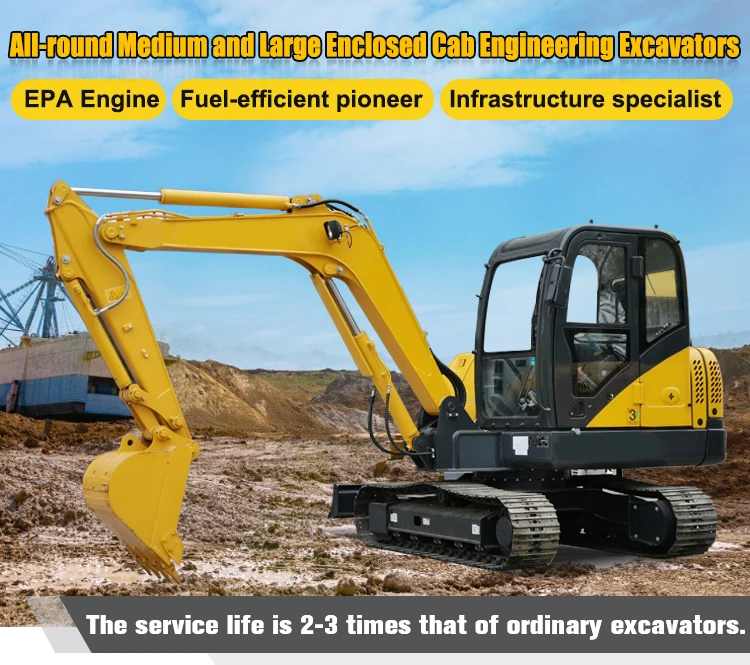

High Productivity excavator operator micro excavator 2 ton 4 ton 5 ton 6 ton excavator machine
- Category: Excavators >>>
- Supplier: Jining,Nicosail,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

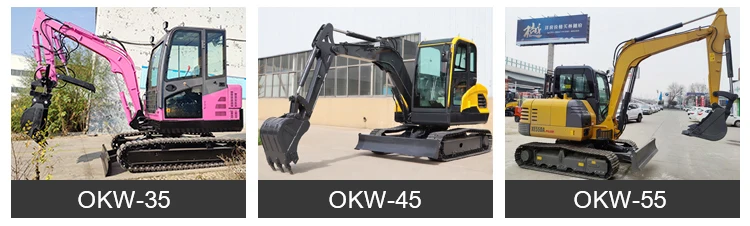

Model | OKW-35 | OKW-45 | OKW-55 |
Machine weight | 3980kg | 4000kg | 5700kg |
Power | 21.2kw/2400rpm | 27.2kw/2200rpm | 36.2kw/2100rpm |
Bucket capacity | 0.11m³ | 0.12m³ | 0.18m³ |
Swing speed | 10rpm | 11.1rpm | 9.2rpm |
Travel speed | 4.6/2.7km/h | 4.4/2.7km/h | 3.65/2.33km/h |
Gradeability | 30° | 30° | 35° |
Length | 4810mm | 5150mm | 5900mm |
Width | 1700mm | 1600mm | 1900mm |
Height | 2500mm | 2500mm | 2630mm |
Max. digging radius | 5385mm | 5350mm | 6205mm |
Max. digging depth | 3085mm | 3100mm | 3875mm |
Max. digging height | 4710mm | 5000mm | 5790mm |
Max. unloading height | 3310mm | 3600mm | 4135mm |
Min. digging of gyration | 2416mm | 2070mm | 2430mm |
Engine model | Yanmar 3TNV88-BPLY | Yanmar 4TNV88-BSBKC | Yanmar 4TNV94L-BVLY |

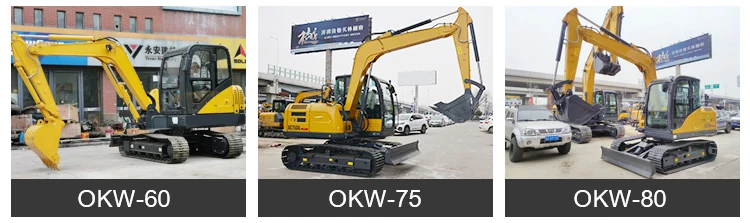

Model | OKW-60 | OKW-75 | OKW-80 |
Machine weight | 5900kg | 7500kg | 7800kg |
Power | 36.2kw/2100rpm | 46.3/2200 kw/rpm | 56.5/2200 kw/rpm |
Bucket capacity | 0.21m³ | 0.32m³ | 0.32m³ |
Swing speed | 9.2rpm | 11rpm | 12.5rpm |
Travel speed | 4.1/2.5km/h | 4.8/2.8km/h | 4.2/3.0km/h |
Gradeability | 35° | 35° | 35° |
Length | 5900mm | 6100mm | 6130mm |
Width | 1900mm | 2260mm | 2275mm |
Height | 2630mm | 2700mm | 2625mm |
Max. digging radius | 6205mm | 6270mm | 6375mm |
Max. digging depth | 3875mm | 4030mm | 4150mm |
Max. digging height | 5790mm | 7115mm | 7150mm |
Max. unloading height | 4135mm | 5080mm | 5080mm |
Min. digging of gyration | 2430mm | 1785mm | 1815mm |
Engine model | Yanmar 4TNV94L-BVLY | Yanmar 4TNV98T-ZCSLY | Yanmar 4TNV98T-ZCSLY |

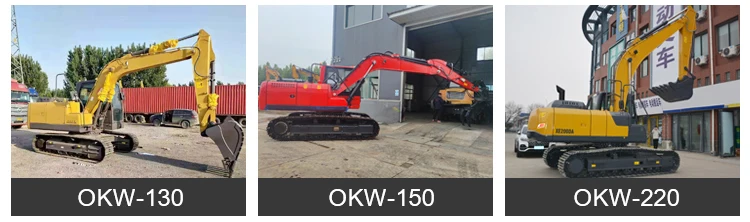

Model | OKW-130 | OKW-150 | OKW-220 |
Machine weight | 13200kg | 13800kg | 22000kg |
Power | 74kw/2200rpm | 86kw/2200rpm | 125kw/1850rpm |
Bucket capacity | 0.55m³ | 0.6m³ | 1m³ |
Swing speed | 12rpm | 12.94rpm | 10.5rpm |
Travel speed | 4.4/2.8km/h | 5.1/3.3km/h | 5.3/3.0km/h |
Gradeability | 35° | 35° | 35° |
Length | 7750mm | 7750mm | 9570mm |
Width | 2490mm | 2490mm | 2990mm |
Height | 2930mm | 2930mm | 3140mm |
Max. digging radius | 8300mm | 8300mm | 9870mm |
Max. digging depth | 5470mm | 5470mm | 6562mm |
Max. digging height | 8760mm | 8760mm | 9945mm |
Max. unloading height | 6310mm | 6310mm | 7170mm |
Min. digging of gyration | 2470mm | 2470mm | 3090mm |
Engine model | Cummins QSF3.8 | Cummins QSF3.8 | Cummins QSB7 |
Product Details

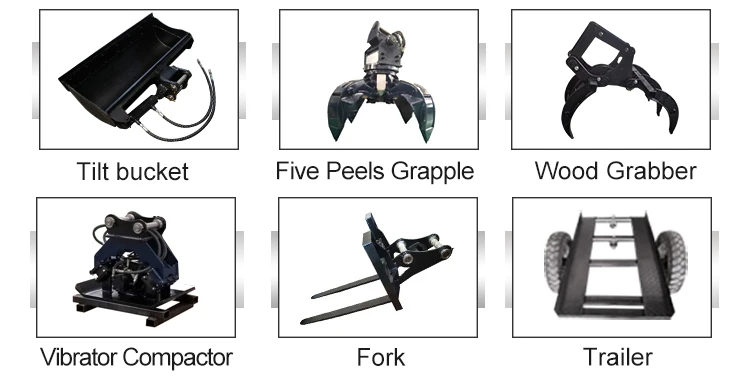

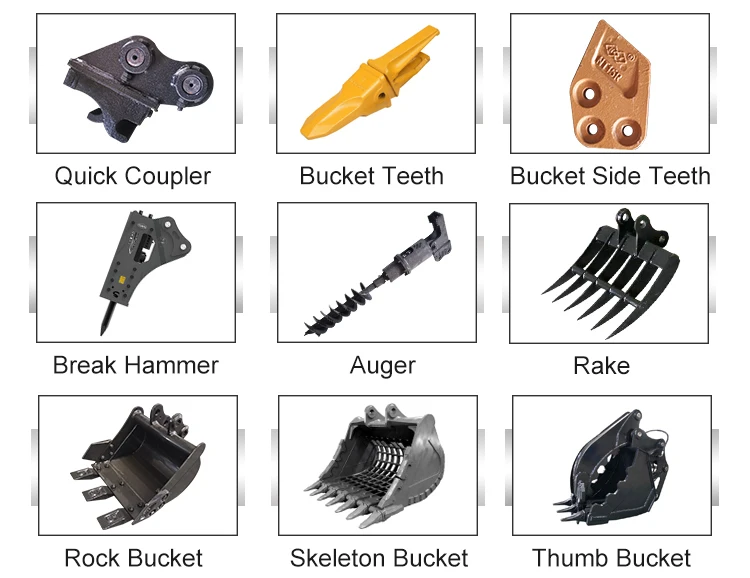

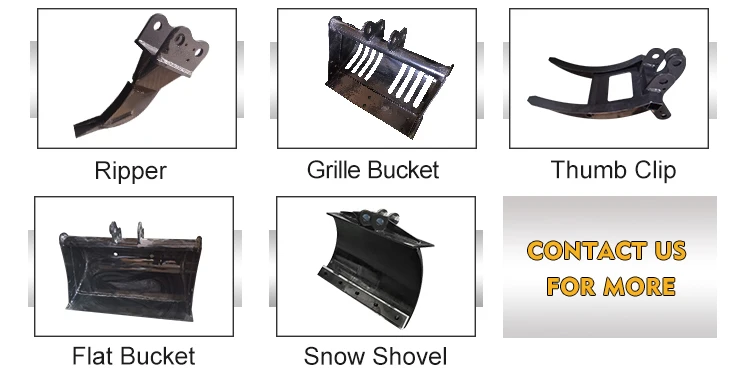

Common Attachments
Certifications
Customer Feedback

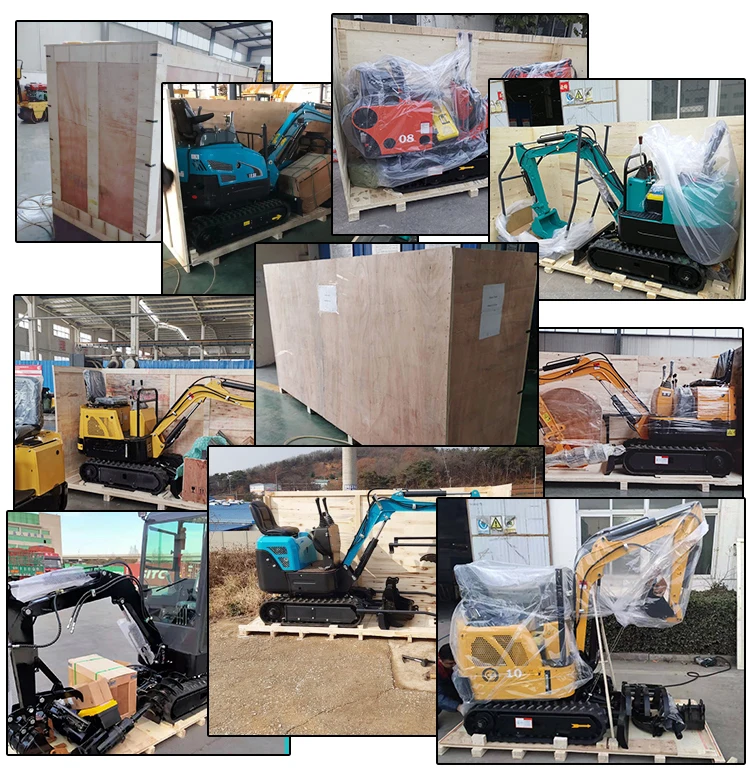

Packing & Delivery

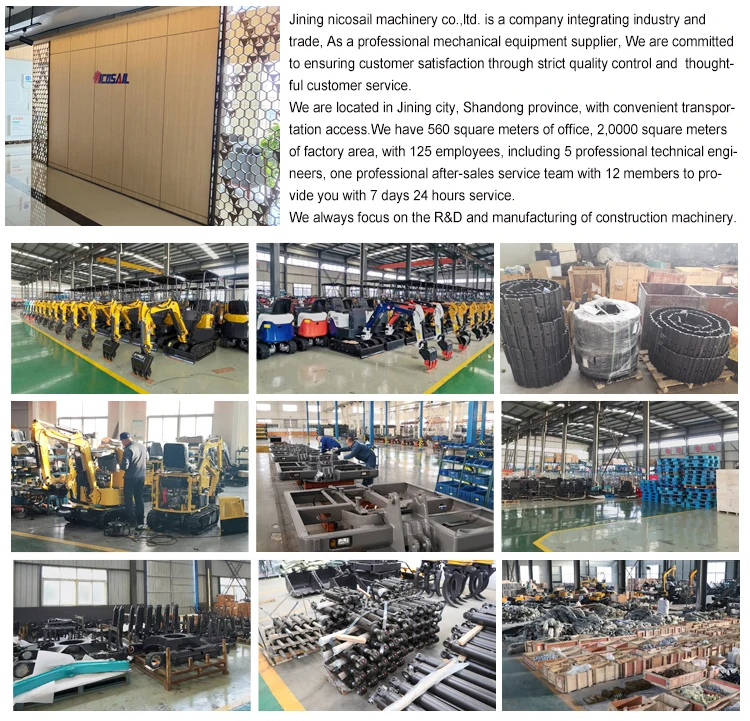

Company Profile
