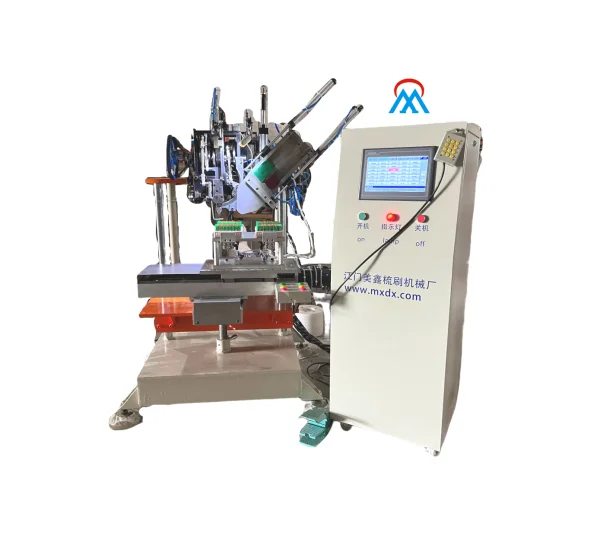

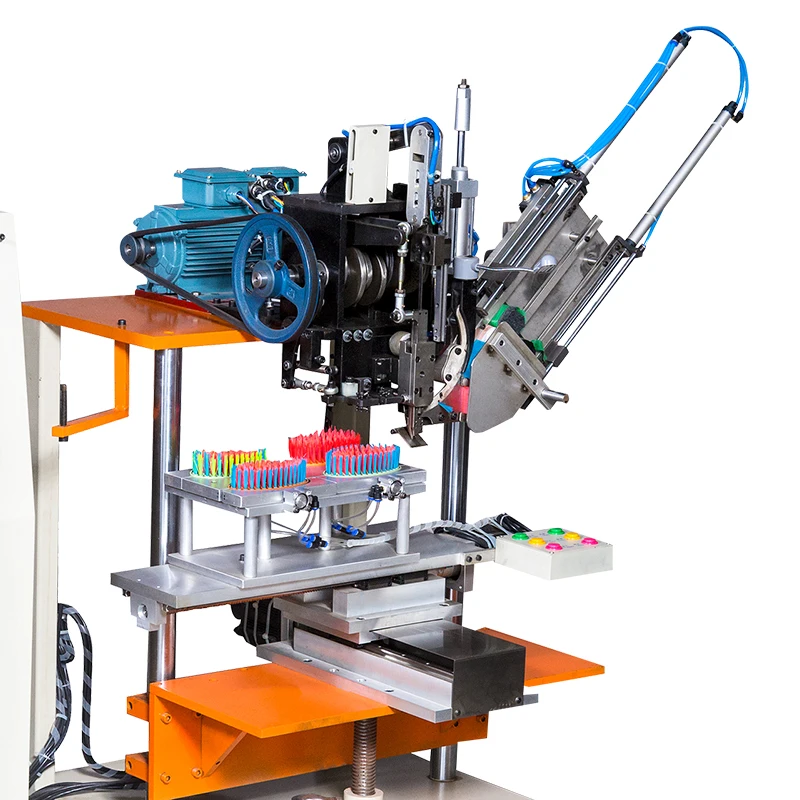

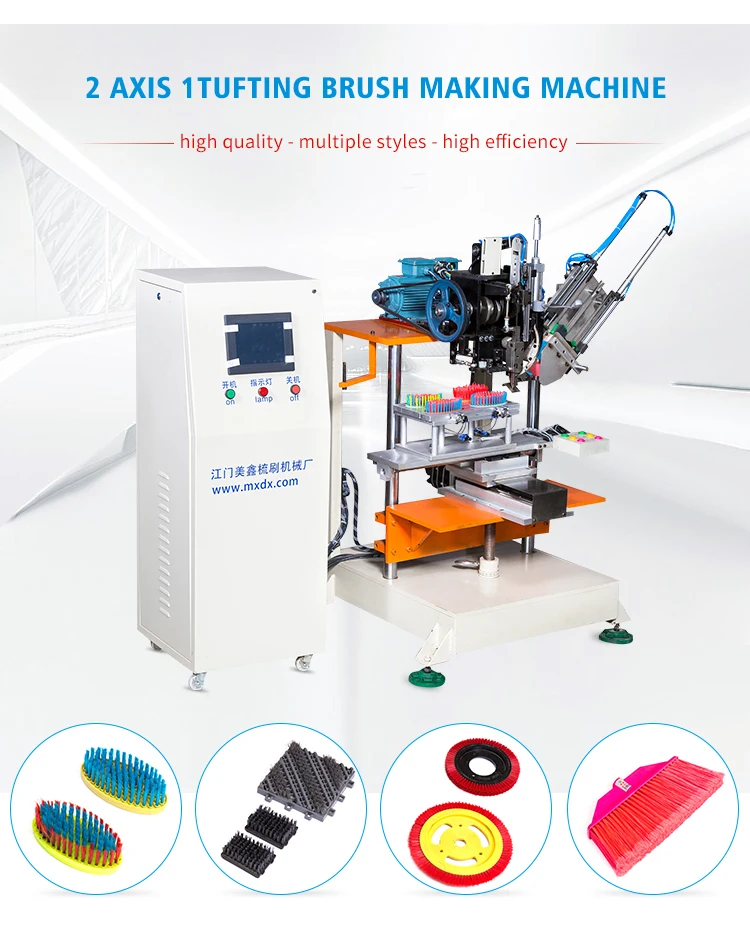

Автоматическая машина для изготовления плоских щеток по индивидуальному заказу, 2 оси, 1 дюйм
- Category: >>>
- Supplier: Jiangmen Meixin Comb Brush Machinery Co. Ltd.
Share on (1600664018728):
Product Overview
Description
Description: | ||
Model | MX-2AT001 | |
NO. of axis | 2 axis | |
Qty of heads | 1 tufting | |

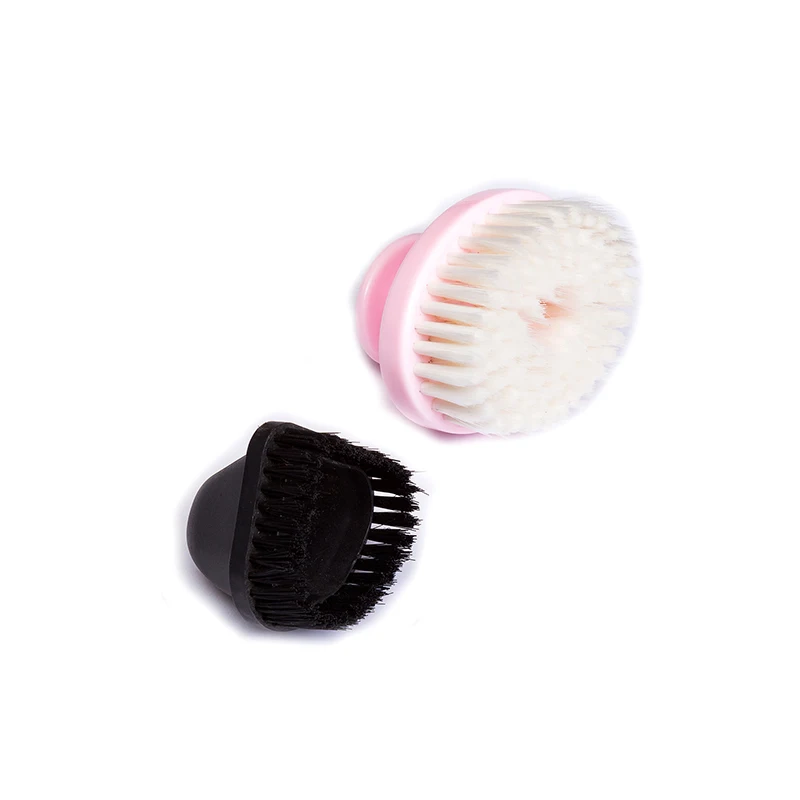

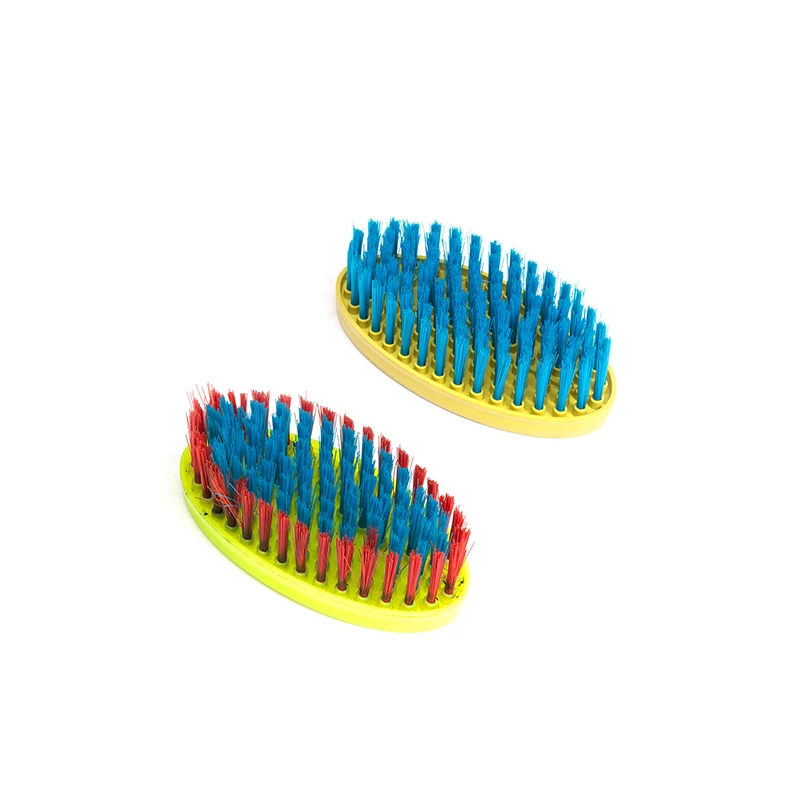

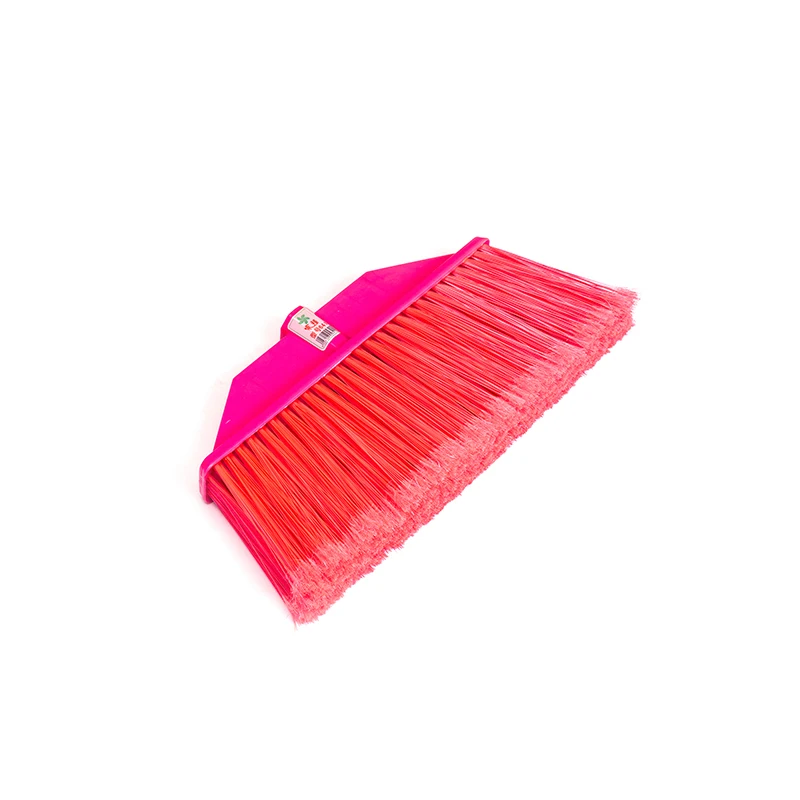

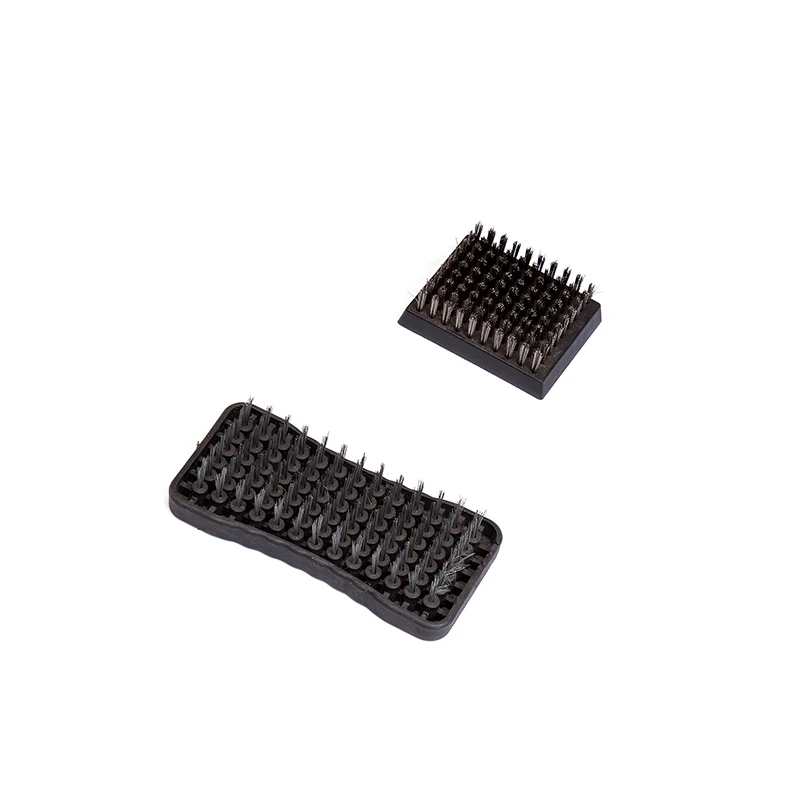

Application | Flat brush,broom，paint brush | |
Brush types | Flat brush base with holes | |
Brush base materials | Plastic | |
Filament materials | PP, PET, Nylon, animal hair plant fiber, steel wire,etc. | |
The mold fixture size | 380*180mm | |
Diameter of hole | 4~6mm | |
The length of filament(outside the hole) | 10-200mm | |
Colors of Brush Filaments | 2 colors | |
Parameter: | ||
Drilling and tufting speed | 4~6 holes/sec. | |
Power voltage, frequence | 220/380v , 50/60HZ (customer choose) | |
Main motor power | 0.75kw | |
Air Source Input | 0.4~0.5Mpa | |
Equipment size | 1400*1000*1650mm | |
Weight | 400kg | |
Electrical parts: | ||
Control System(PLC) | MEIXIN Chinese, English and Russian version | |
Touch screen | MEIXIN Chinese, English and Russian version | |
Main motor | SNMA | |
Servo motor | Maxsine | |
Relay | IDEC (Janpan) | |
Variable-Frequency | DELTA (Taiwan) | |
Safety Protection | Schneider (France brand) | |
Q1: Are you manufacturer or trading company?
A: It is a comprehensive enterprise integrated with R & D, manufacturing, installation, sales and service.
Q2: What is your main products?
A: We focus on all kinds of household and industrial cleaning brushes making machines, such as broom making machine, toilet brush machine, ect.
Q3: Do you have R & D team?
A: Yes, we have. With the first-class technology and over 20 years’ experience, our R & D team is leading the industry.
Q4: Where is your factory?
A: Our factory is located in Jiangmen, China, near Guangzhou.
Q5: What is the MOQ?
A: The MOQ is one set machine.
Q6: What is the trade term?
A: EXW Jiangmen, China/FOB Jiangmen,China.
Q7: What about the payment term?
A: The payment term is T/T.
Q8: What is the lead time?
A: It is about 35-60 days after the deposit received.
Q9: What is the packing for shipment?
A: The packaging is with film, iron frame and wooden case.
