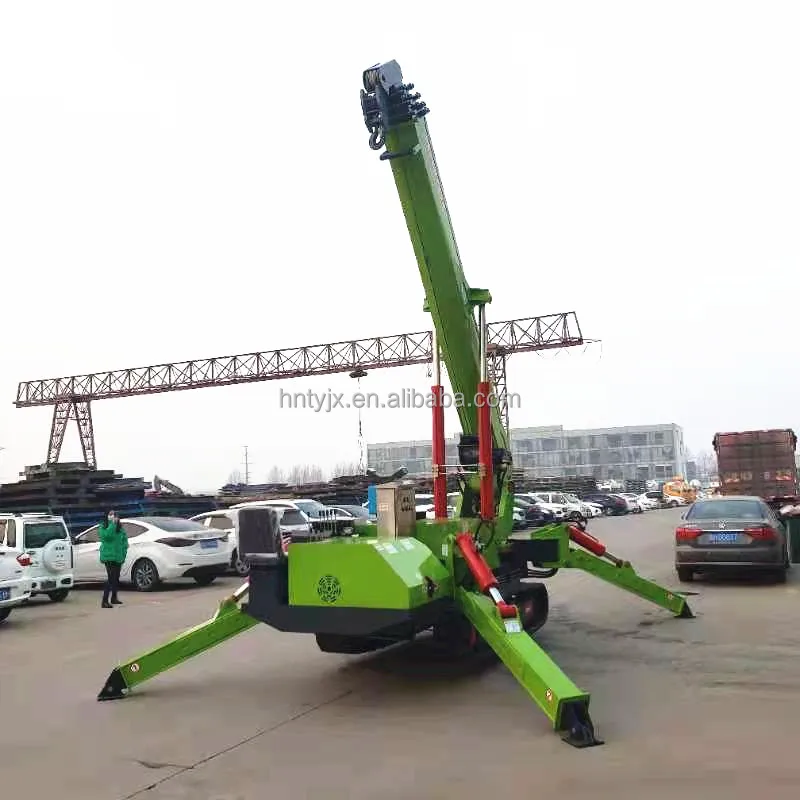

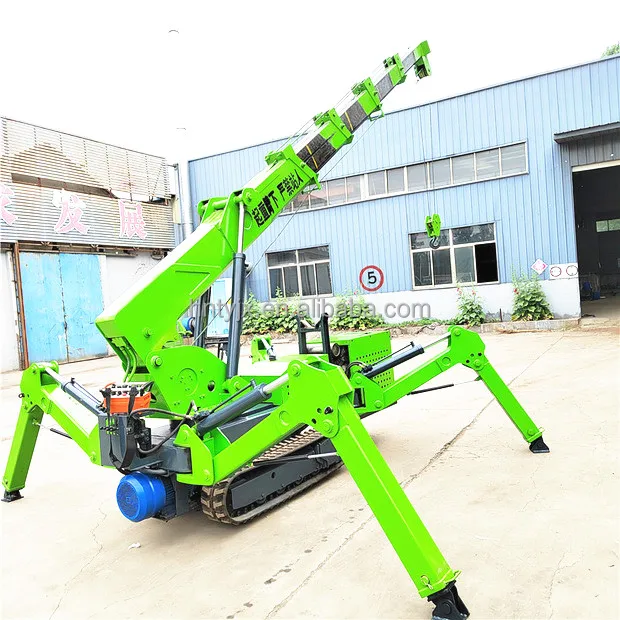

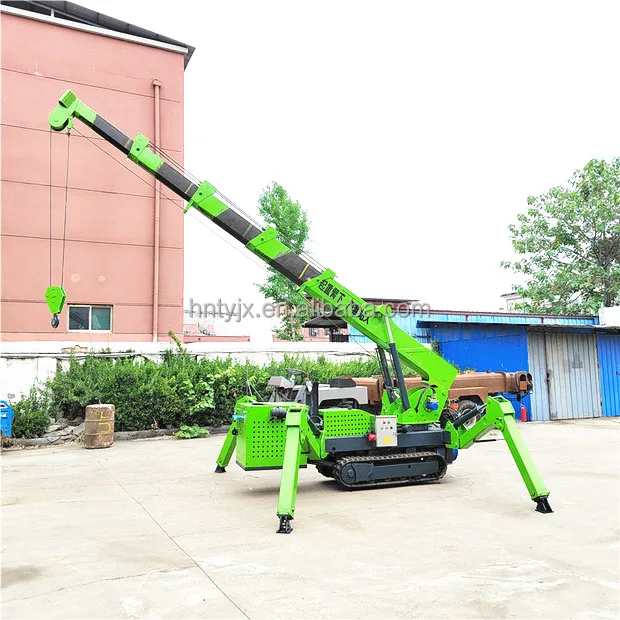

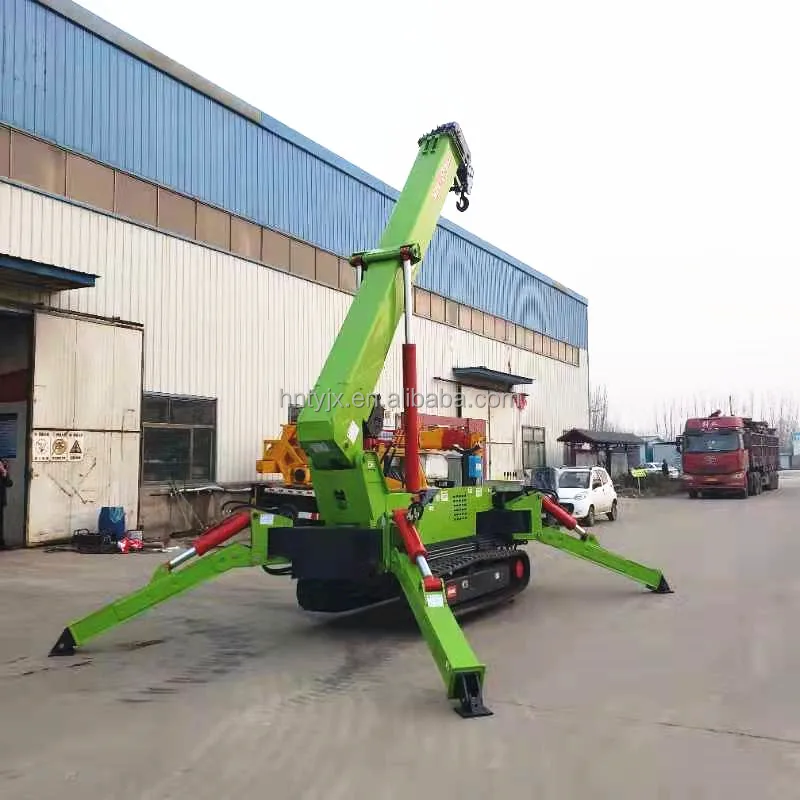

High Performance Cranes Construction Crane Mini Lifting Machine for Narrowed Spaces
- Category: >>>
- Supplier: Henan Tianyuan Filter Co. Ltd.
Share on (1600664099151):
Product Overview
Description

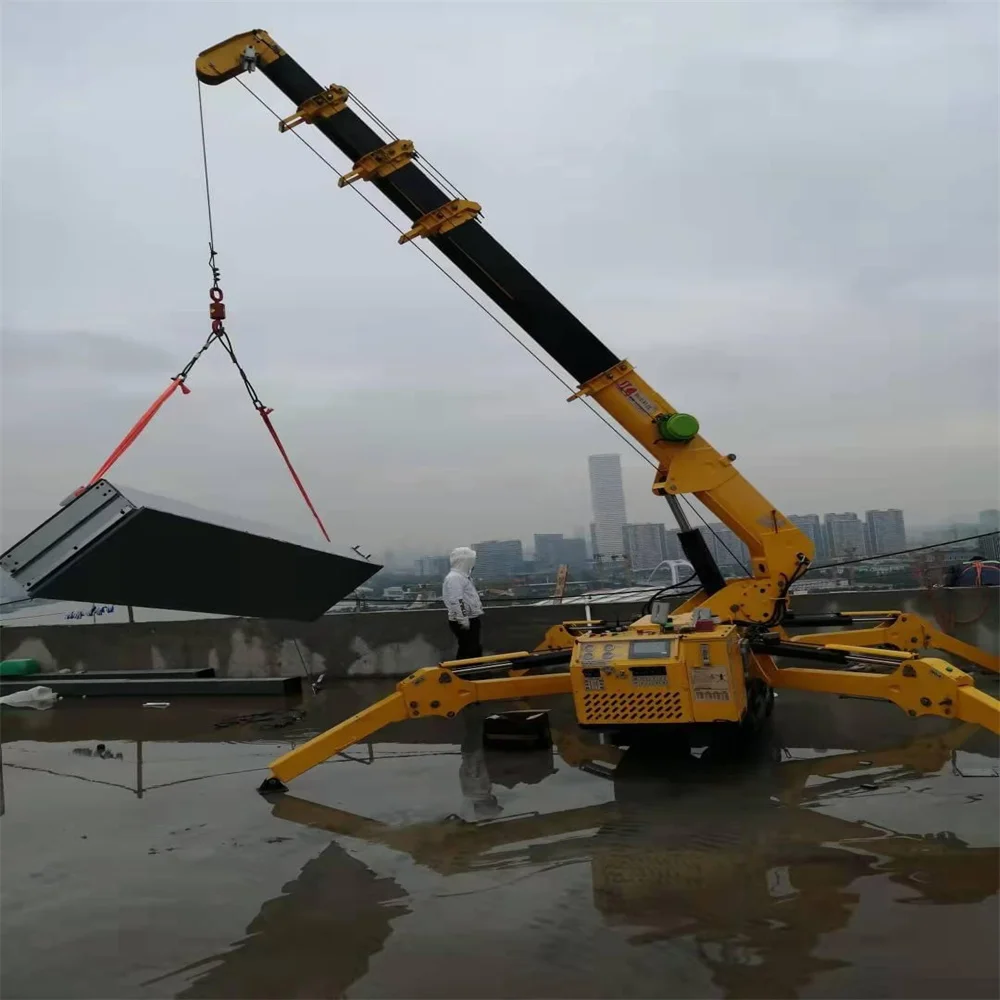

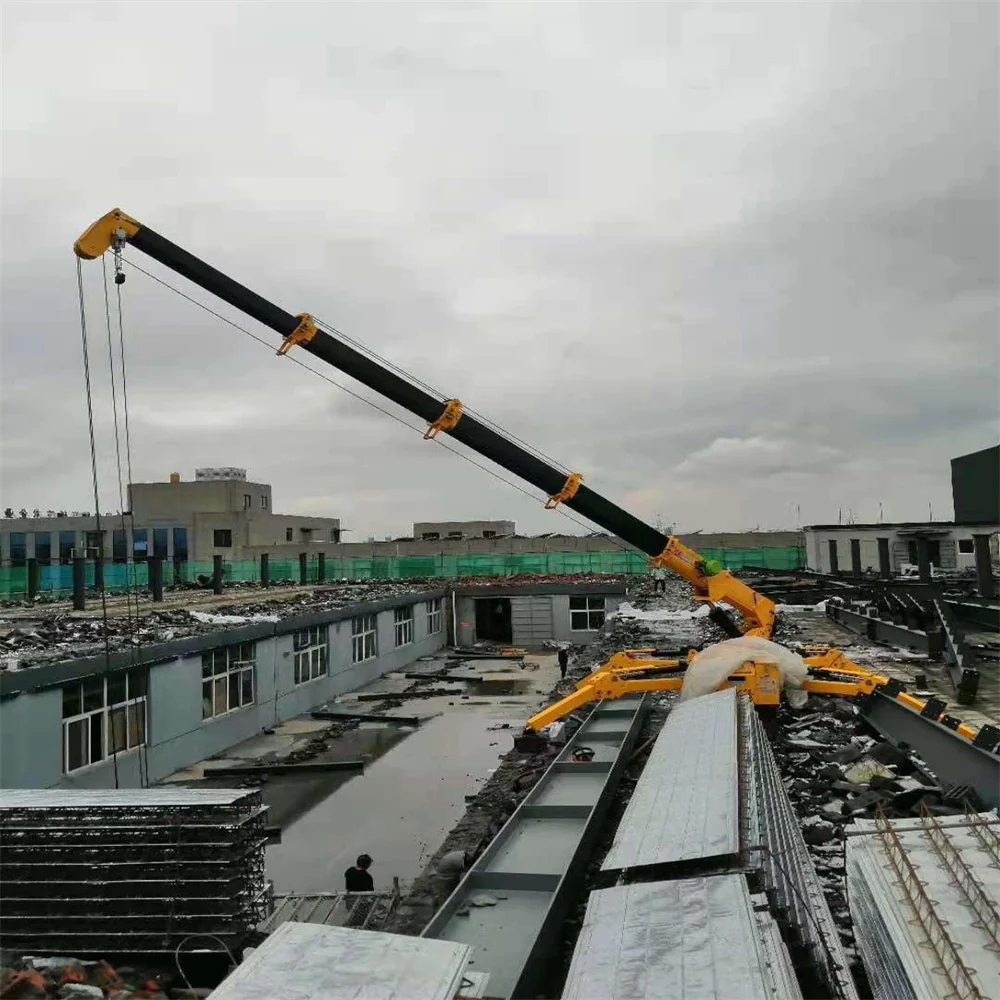

Spider Crane are suitable for cargo handling in the transportation industry, material movement in the construction industry, and heavy equipment assembly in the manufacturing industry. It is especially effective for operation in narrow spaces. It can be used in installing glass curtain wall, petrochemical pipes, railway construction, machine inspection and maintenance in workshop,electric power construction or municipal construction.
1.Equipped with a hydraulic cooling system, which can fully reduce the working temperature of hydraulic oil and improve work efficiency.
2.Equipped with a driving deceleration slewing mechanism, which is more durable and rotates more smoothly.
3.Equipped with 4 fully hydraulic automatic legs, which are enlarged and lengthened, with a larger span, safer and more stable.
4.Equipped with an air brake system, the brakes are more sensitive.
2.Equipped with a driving deceleration slewing mechanism, which is more durable and rotates more smoothly.
3.Equipped with 4 fully hydraulic automatic legs, which are enlarged and lengthened, with a larger span, safer and more stable.
4.Equipped with an air brake system, the brakes are more sensitive.
Model | 3.0 | ||
Specification | 3t×1.3m | ||
Maximum Working Radius | 8.83m | ||
Maximum Ground Lifting Height | 9.5m | ||
Winch Device | Lifting hook | 3.6m/min | |
Diameter and length of wire rope | Φ8mm×50m | ||
Telescopic System | Boom Type | Full automatic 5 section | |
Boom Length | 9m | ||
Up and Downs | Boom Angle | 0-75° | |
Slew System | Slew Angle | 360° continuous | |
Outrigger | Outrigger Active Form | manual adjustment for the 1 section. Automatic for the 2 section | |
Maximum Extended Dimensions | 4.04m*3.47m | ||
Diesel Engine | Walking Way | Hydraulic motor | |
Walking Speed | 0-3km/h | ||
walking device | Track synthetic rubber | ||
Grade Ability | 20° | ||
Ground Pressure | 36kPa | ||
Hydraulic tank capacity | 38L | ||
Dimension | Length x Width x Height | 2950×900×1500(mm) | |
Weight | Vehicle Weight | 2500KG | |
