Industrial Grade Laser Safety Window Shield Sample for 1064nm Acrylic Optical Fiber Infrared Laser Protection Shield

Product Overview

Description

The sample size is random and not exact (the size does not exceed 100*90mm), it is just for test and evaluation.
Please don’t buy if you mind.
Laser Window Sample
There is no guarantee policy for sample.
The sample size is about:

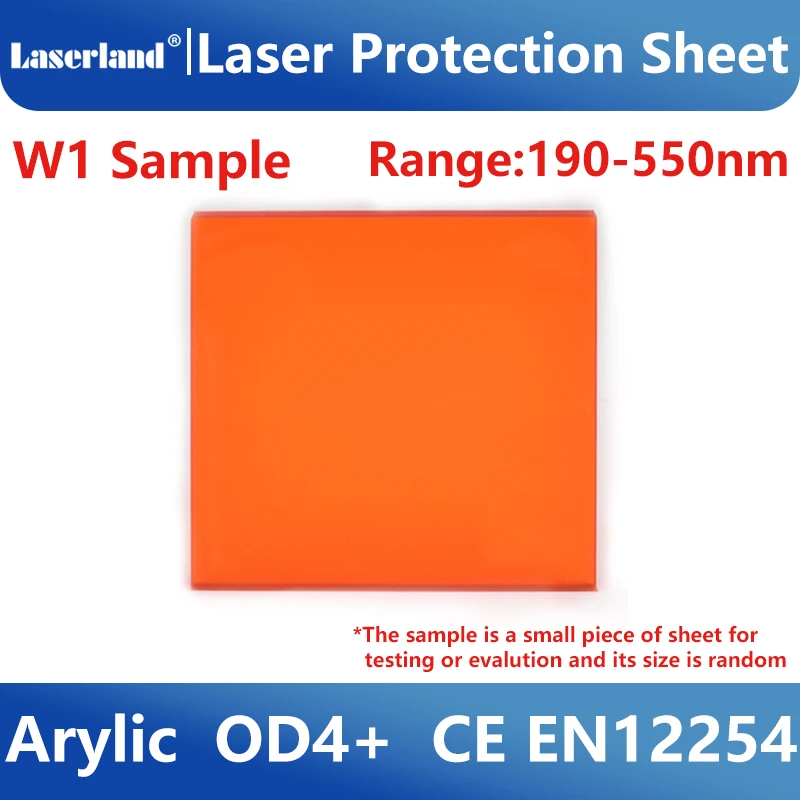

W1:approx. 100X70X3mm Protection Range 190-550nm OD4

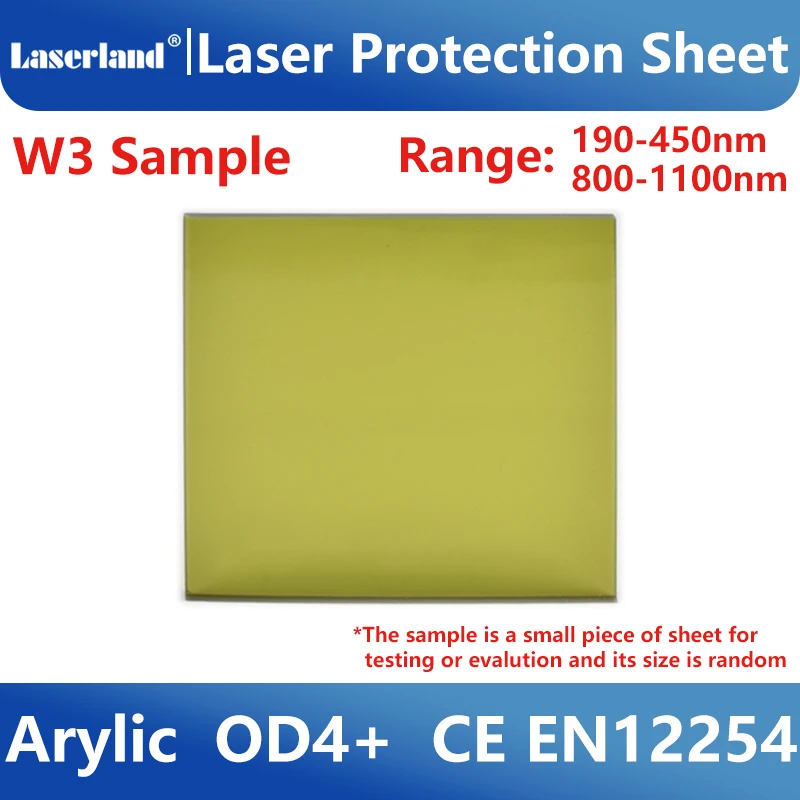

W3:approx. 80X80X5mm Protection Range190-450nm & 800-1100nm OD4

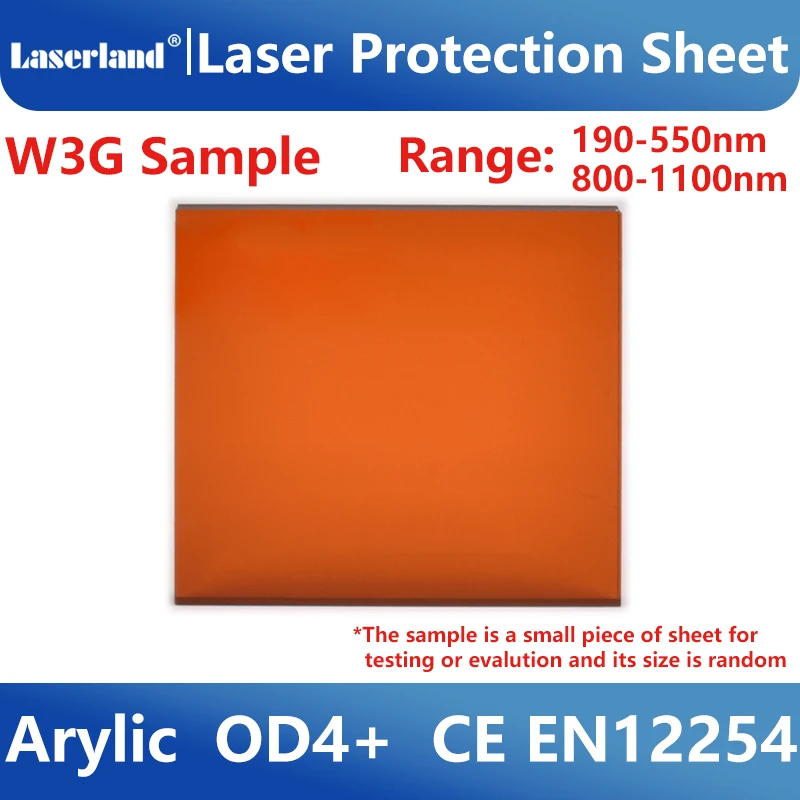

W3G:approx. 100X80X5mm Protection Range190-550nm & 800-1100nm OD4

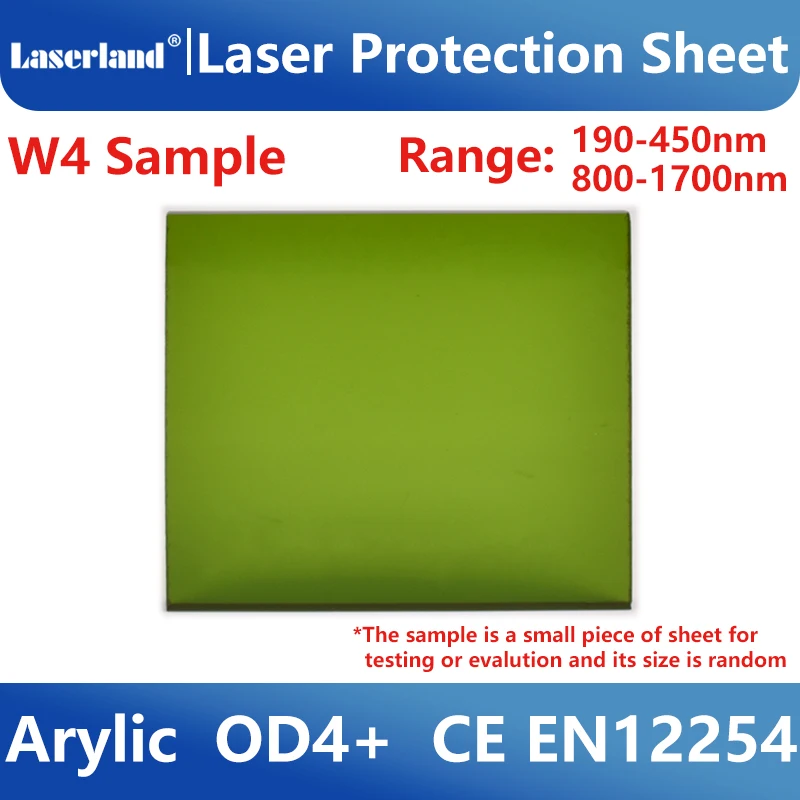

W4:approx. 100X76X5mm Protection Range190-450nm & 800-1700nm OD4

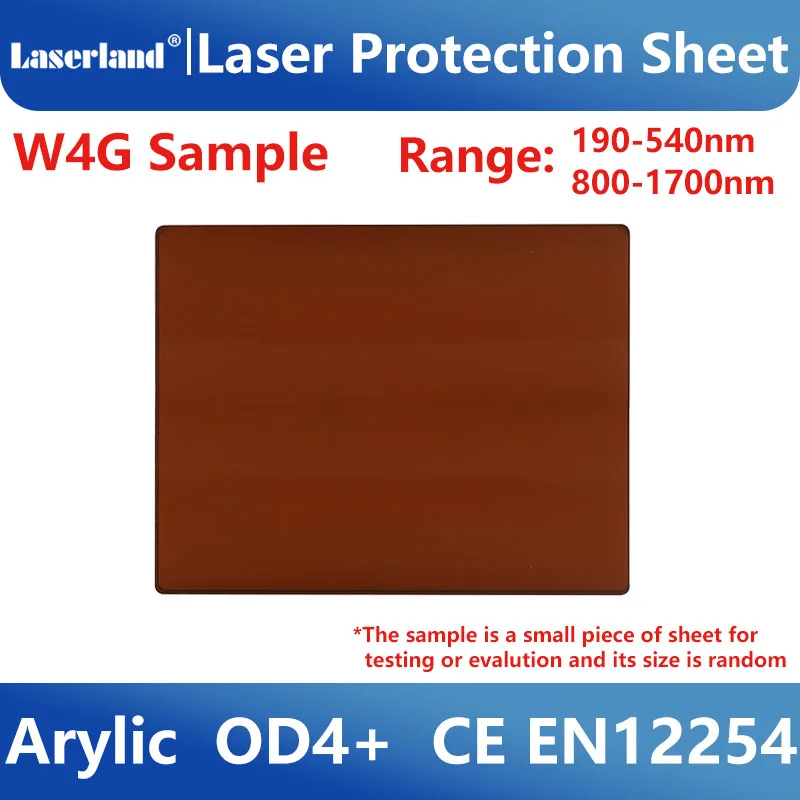

W4G: Protection Range190-540&800-1700nm

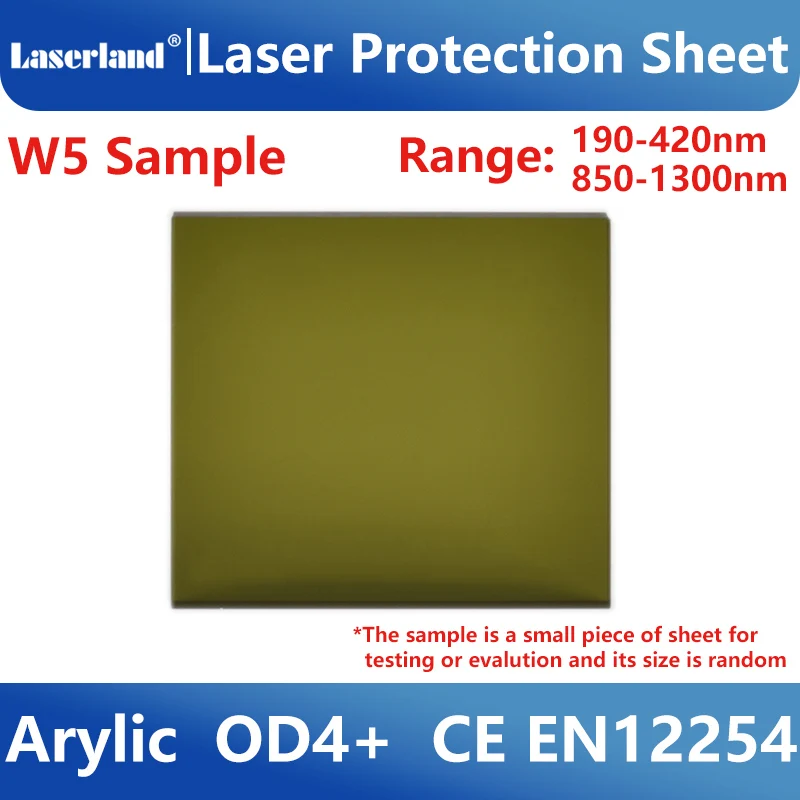

W5:approx. 100X80X5mm / 200×75×5mm Protection Range 190-420nm & 850-1300nm OD4

Standard size Laser Window Introduction:
The standard size is length 1280mm, width 1000mm, thickness 5mm, different models offer different prices. Cutting the standard window into the size according to your requirements is free. If you need the standard size and need to cut the sheet, please contact us for customization.
