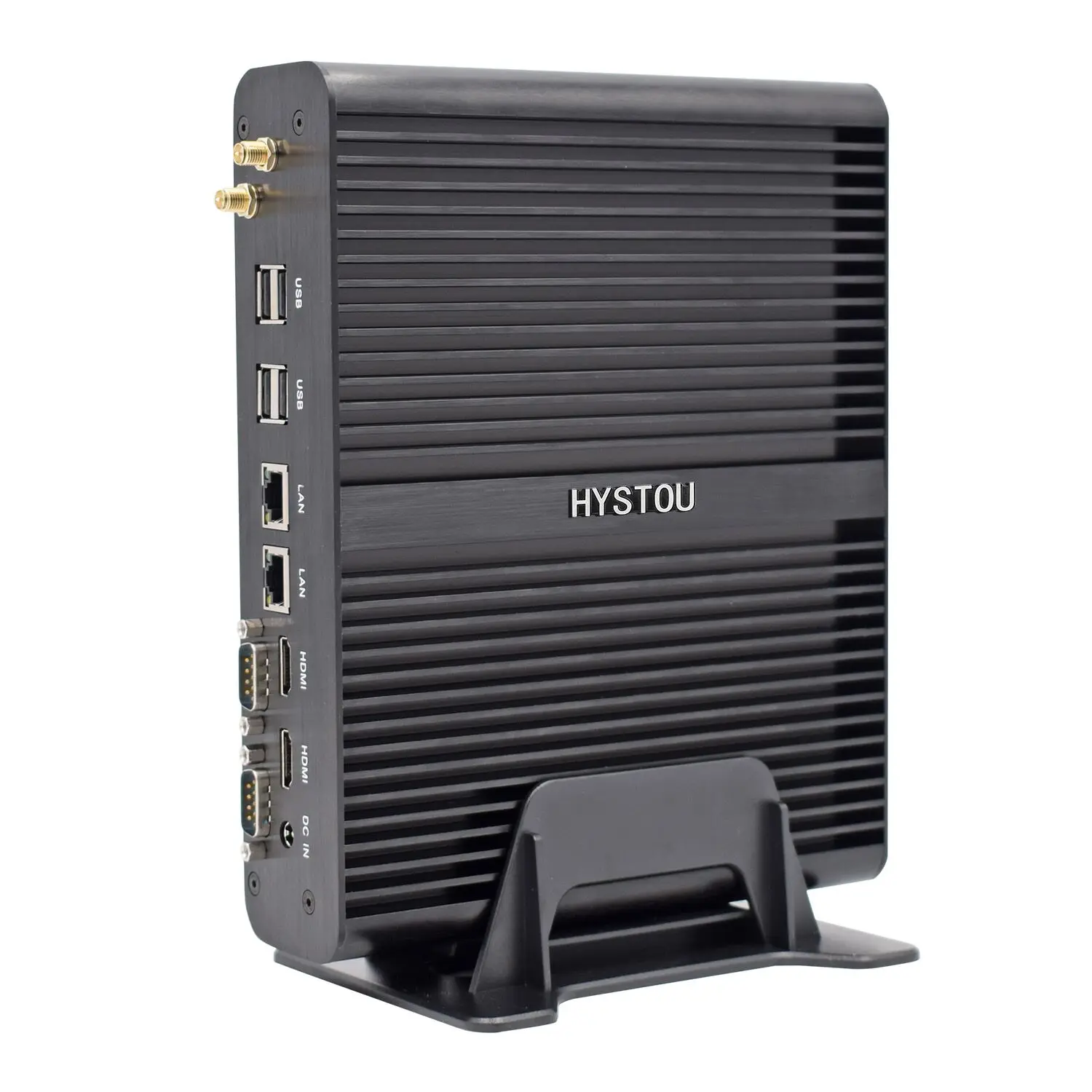

Cheap Mini Computer Fanless 2HD Display Computadora Escner Core I7 5500U Barebone Industrial PC
- Category: >>>
- Supplier: Shenzhen Hystou Technology Co. Limited
Share on (1600664623918):
Product Overview
Description
Products Description

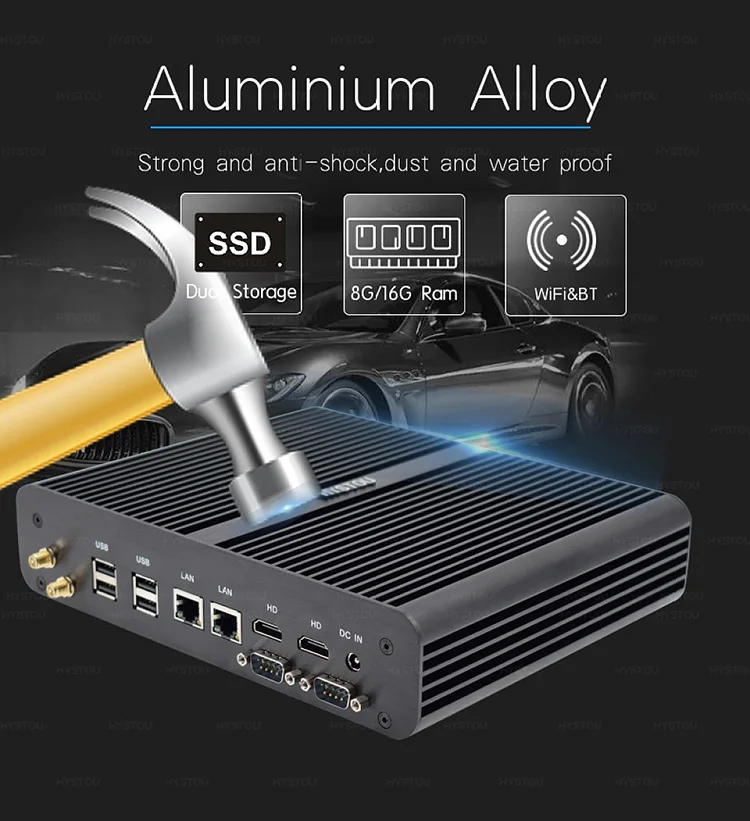

Strong and Sturdy
P05B is made of the same type of aluminum alloy in the aviation industry. It adopts newer process methods, improves the original alloy, develops new alloys, and gives newer and more perfect performance. Make the shell of P05B harder and can face more complex changes

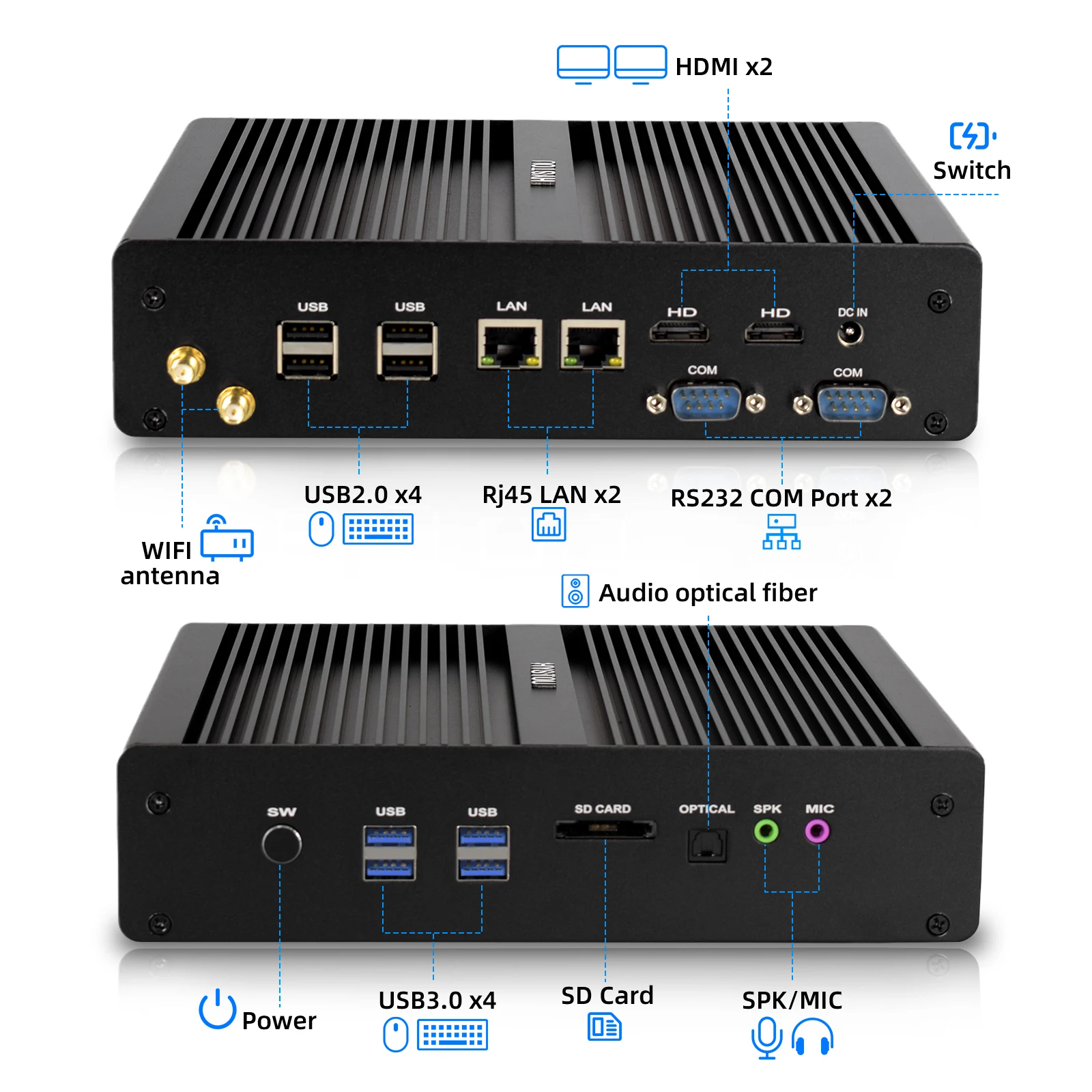

Multiple expansion interfaces
P05B has 4xUSB 3.0, 4xUSB 2.0, the expansion of rich USB interface, can connect more devices at the same time

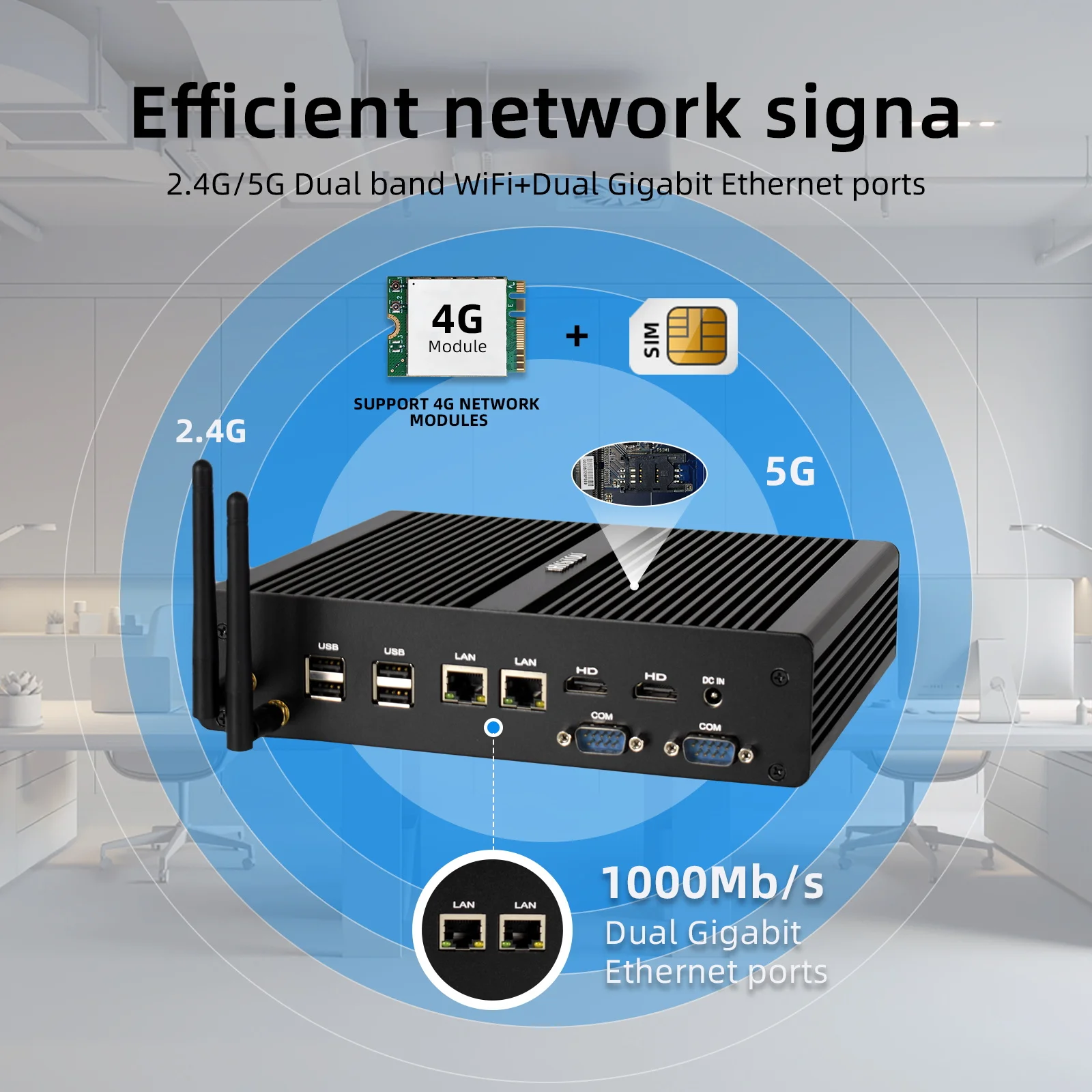

Built-in 2 x HDMI 4K Ports, 1 x SD Card Reader Slot, 2 x RJ45 Lan, RTL8168/8111/8112 Gigabit Ethernet Controller, 2.4G&5G 300Mbps and Bluetooth, 2 x External Wi-Fi Antennas.
High transfer speed

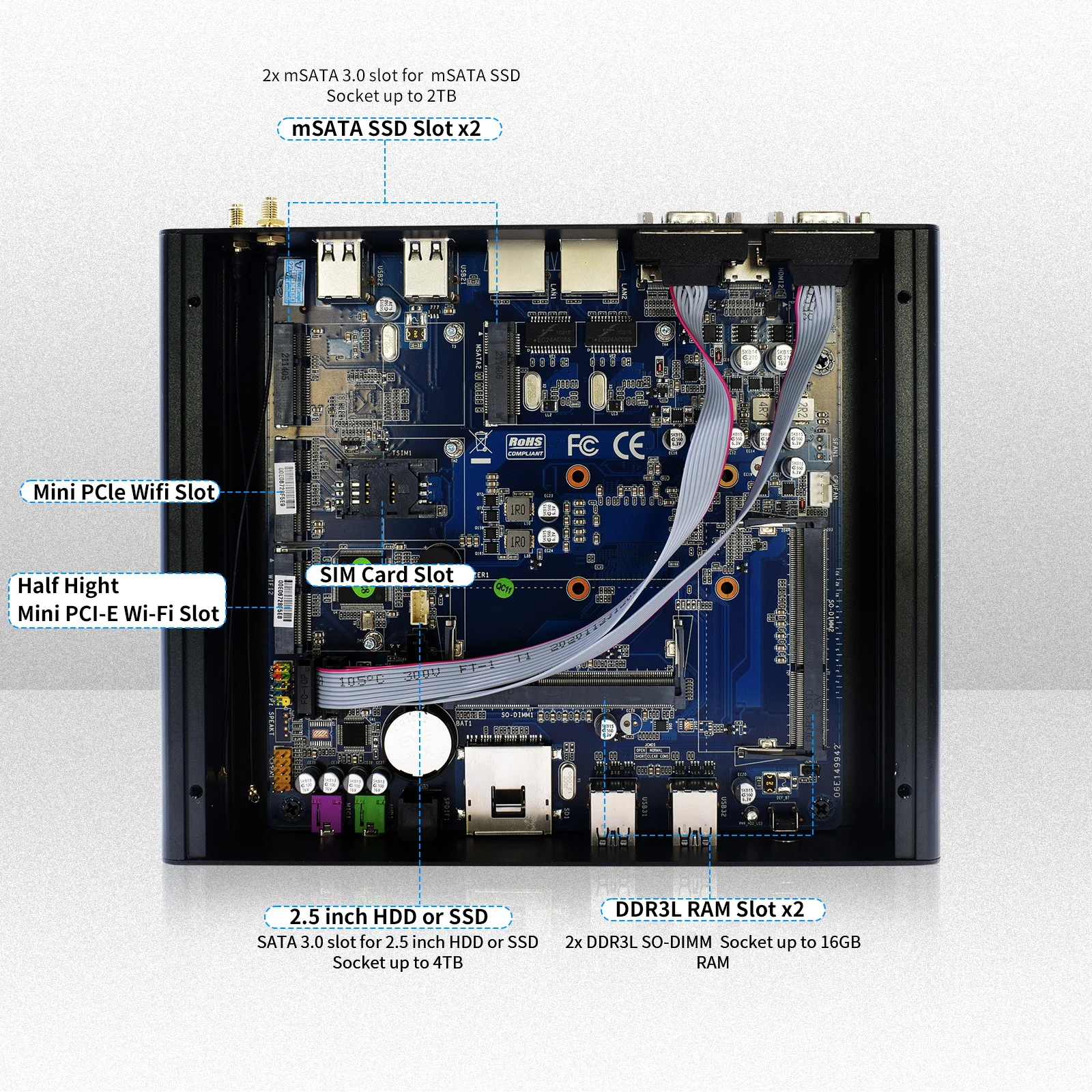

Dual 204-pin DDR3L SO-DIMM slots.
1 x SATA3.0 for 2.5" HDD/SSD, 2 x mSATA slots. Large-capacity expansion can be carried out at will, and files can be transferred at high speed.
Details Images
Processor (Any questions or customization? ) | ||
CPU | Intel Broadwell Core i7-5500U (4M Cache, 2 Cores 4 Threads, Base Frequency 2.40 GHz Turbo Frequency 3.0 GHz) Intel Broadwell Core i5-5200U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.20 GHz Turbo Frequency 2.70 GHz) Intel Broadwell Core i3-5005U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.0 GHz) | |
Chipset | Intel 5th Generation Intel Core SOC Chipset | |
TDP | 15W | |
CPU Lithography | 14 nm | |
Memory Specifications | ||
Max Memory Size | 16GB | |
Memory Types | 204 pin DDR3L SO-DIMMs | |
Memory Channels | Dual Channels | |
ECC Memory | Don’t support | |
Storage Specification | ||
m.2 SSD | No | |
SATA | 1 x SATA3.0 for 2.5 inch HDD/SSD | |
mSATA | 2 x mSATA SSD | |
Graphics | ||
Processor Graphics | Intel HD Graphics 5500 | |
HDMI | 2 x HDMI (4K) | |
Power Specification | ||
Power Adapter | 12V Power Input, supply 12V 5A power adapter within the package | |
Auto Power On | Support Auto Power On Function | |

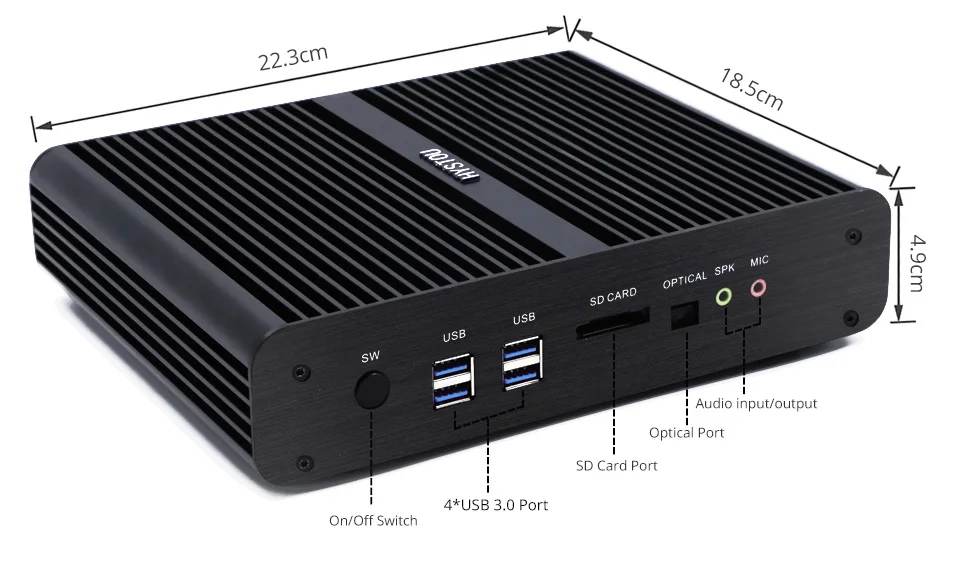

In & Out interfaces | ||
USB Port | 4 x USB 3.0 port, 4 x USB 2.0 port | |
SD Card | 1 x SD card reader slot | |
Audio | 1 x Optical audio port 1 x 3.5mm MIC in & SPK out | |
Video | Dual HD-MI 4K output | |
Power Input | 12V In | |
Switch | 1 x Power On/Off switch | |
Lan Port | 2 x RJ45 Lan, RTL8168/8111/8112 Gigabit Ethernet Controller | |
Wi-Fi | 2.4G&5G 300Mbps & Blue-tooth 2 x external Wi-Fi antennas | |
Others | ||
System | Support Windows 7/10, Linux | |
Case Material | Aluminum Alloy | |
Dimension | Mini PC size 224 x 185x50mm Package size 320 x 258 x 78mm | |
Weight | Gross weight 2.6 kg | |

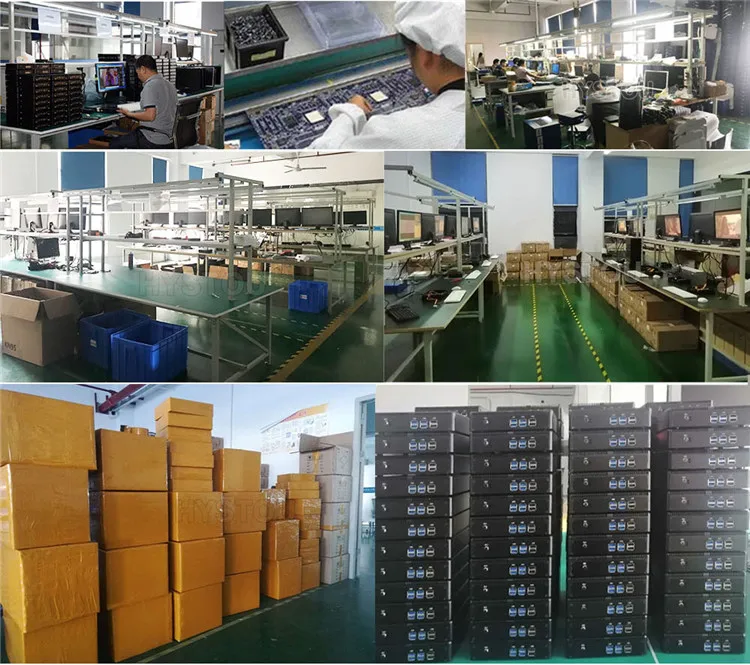

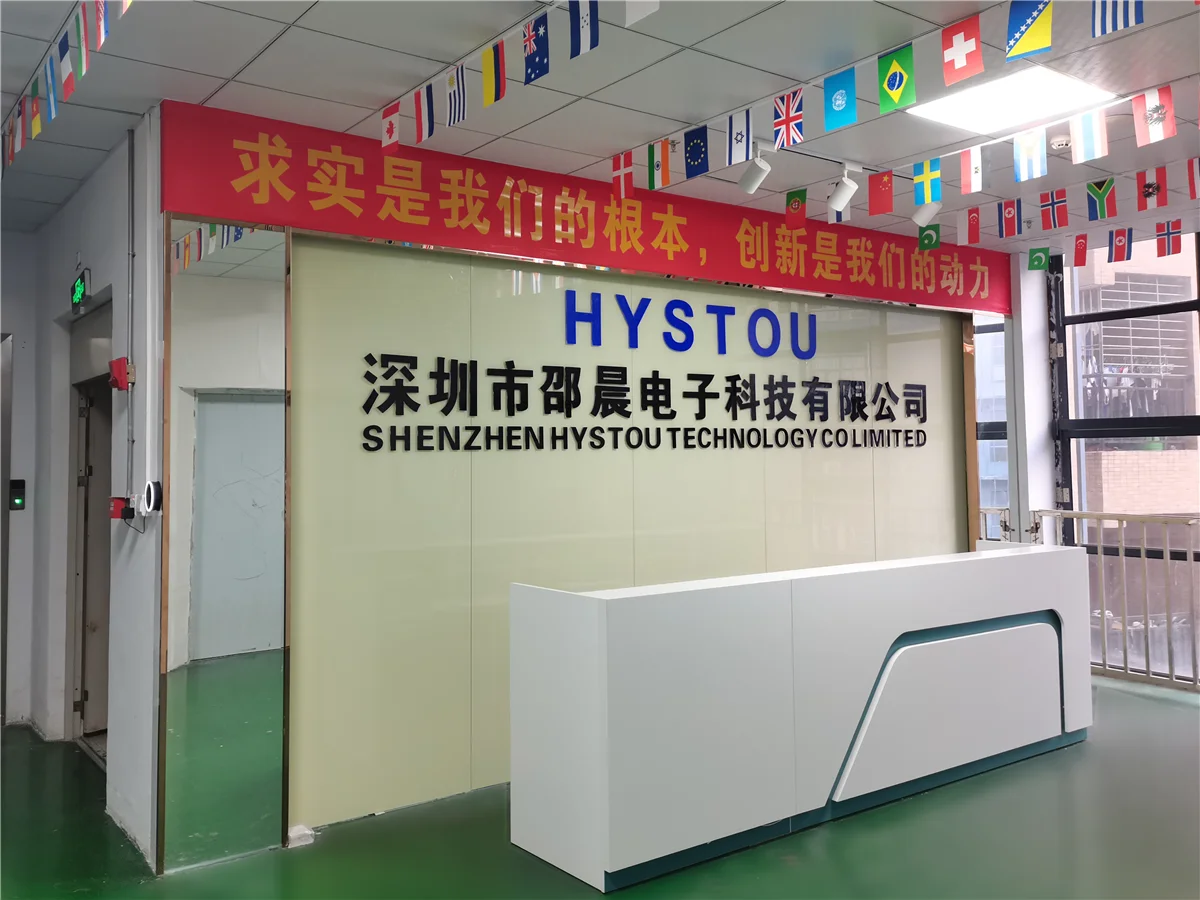

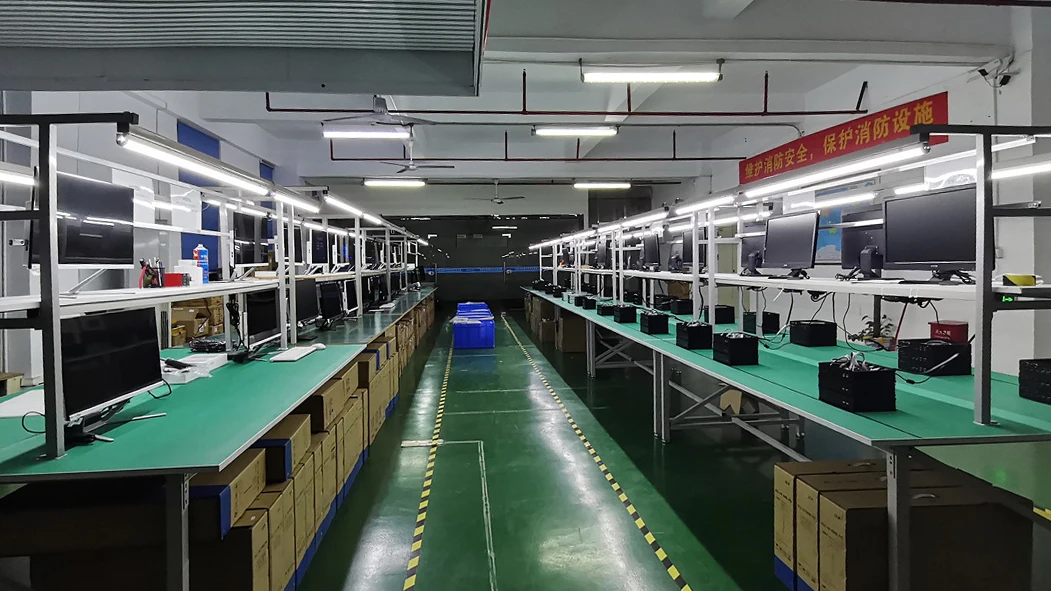

Company Introduction
Hystou is a professional manufacturer and exporter of desktop mini PC.OEM and ODM orders are welcomed.The more you purchase, the cheaper the prlce.
Product Usage
Packing&Shipping
PackIng Llst:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card &user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card &user manual
