1.6 inch tft lcd display panel ST77903 drive IC 1.6' 400x400 tft lcd display module
- Category: >>>
- Supplier: Dongguan Shineworld Innovations Co. Limited
Share on (1600664638946):
Product Overview
Description
Display General Description

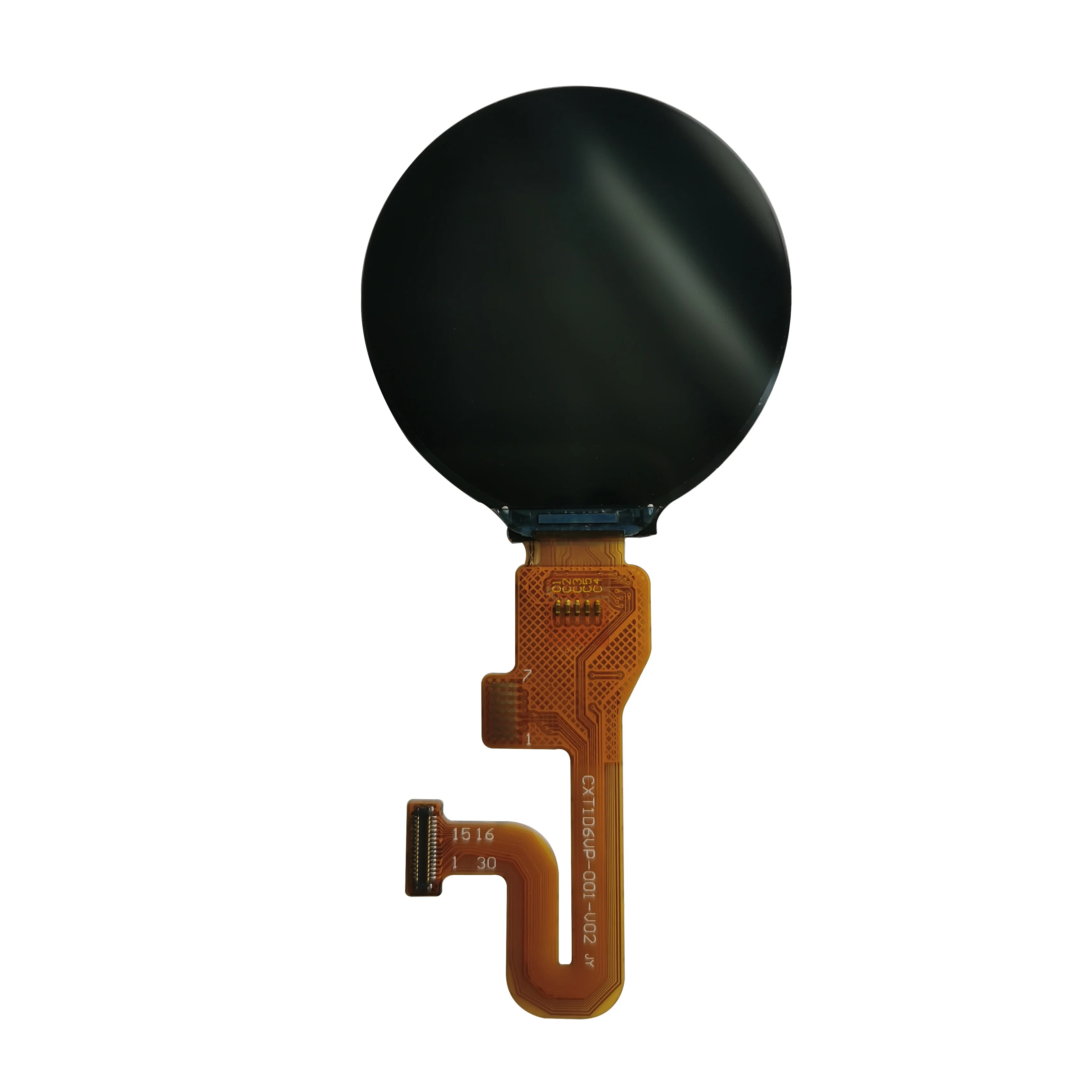

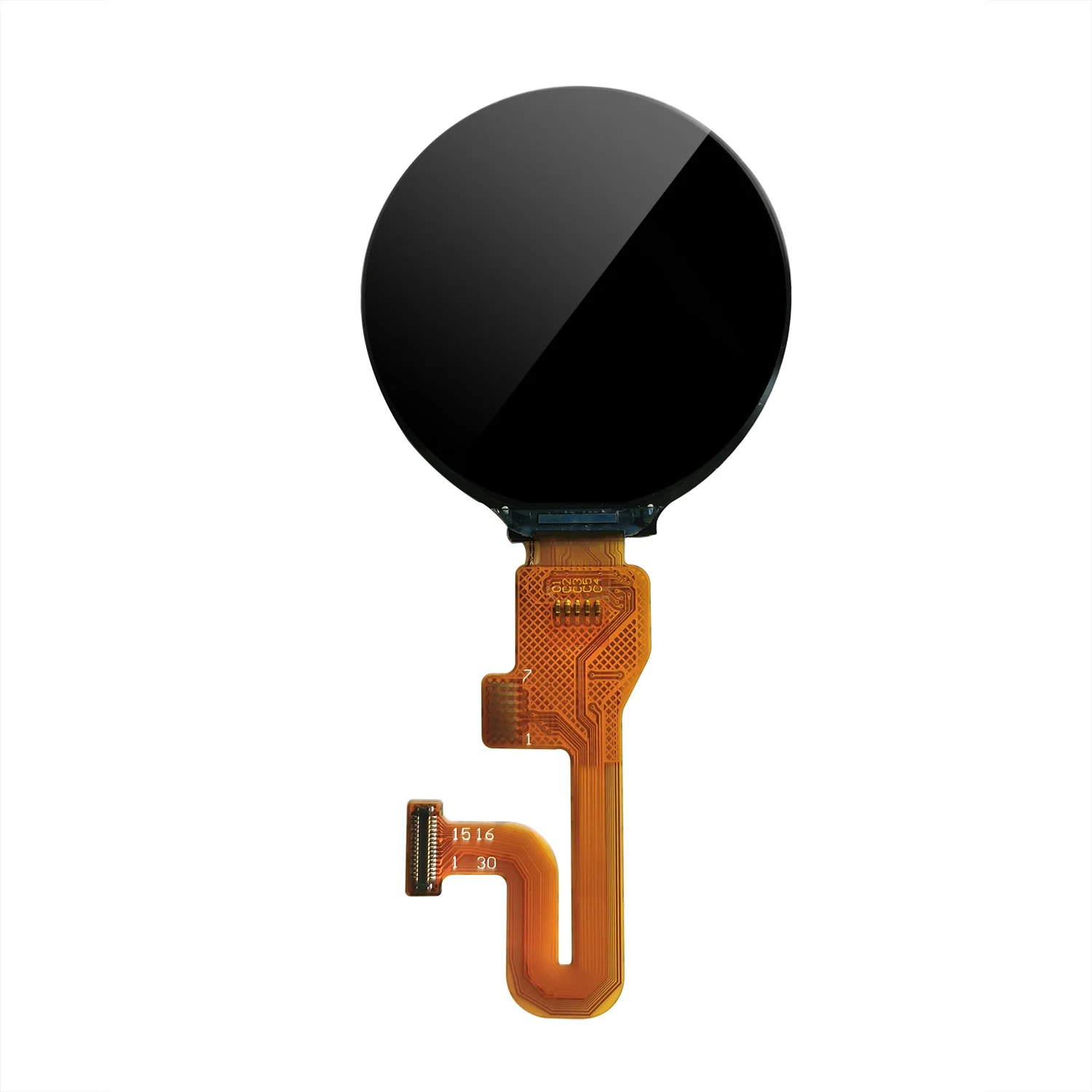

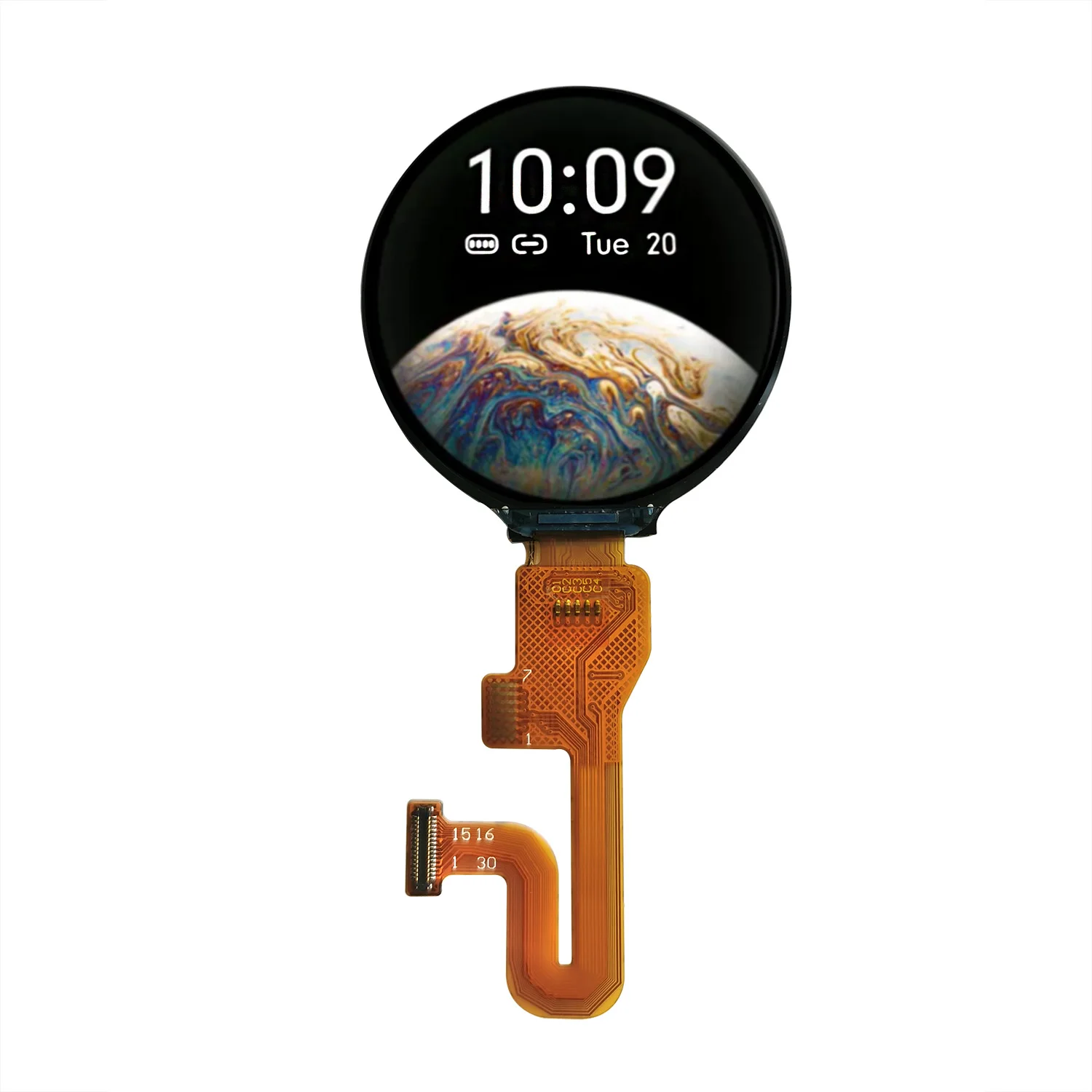

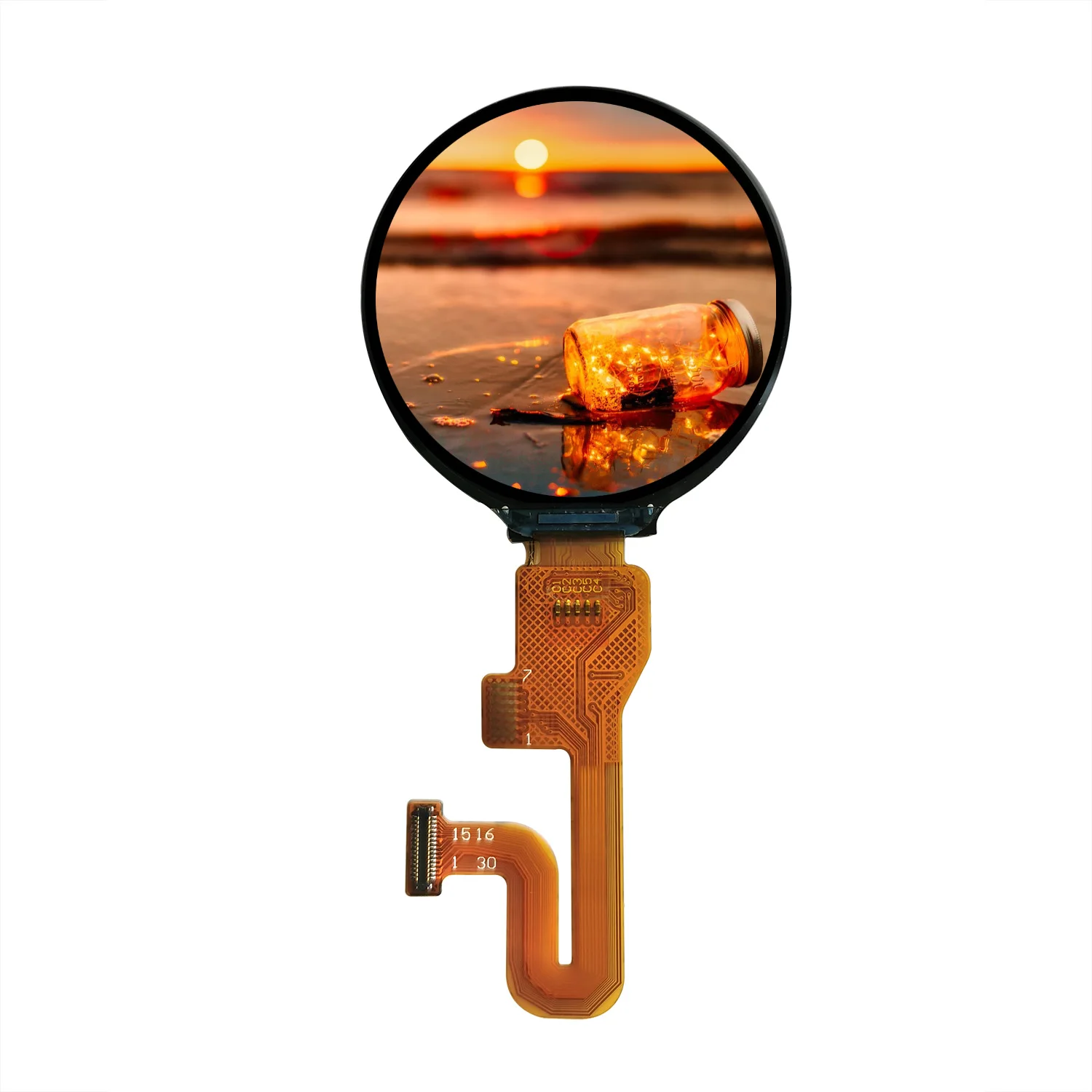

The SCXT1D6VP-001 is a circular module with a 1.6-inch IPS TFT LCD display. Manufactured by SWICN, this module showcases a 400x400 RGB pixel resolution on a black backdrop, offering an attractive visual encounter. It offers clear visibility under various lighting conditions. Equipped with the ST77903 driver IC and supporting the QSPI interface, this module ensures dependable performance.
The SCXT1D6VP-001 is compatible with a variety of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This broad compatibility makes it suitable for a wide array of applications, such as embedded systems, industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, and handheld devices.

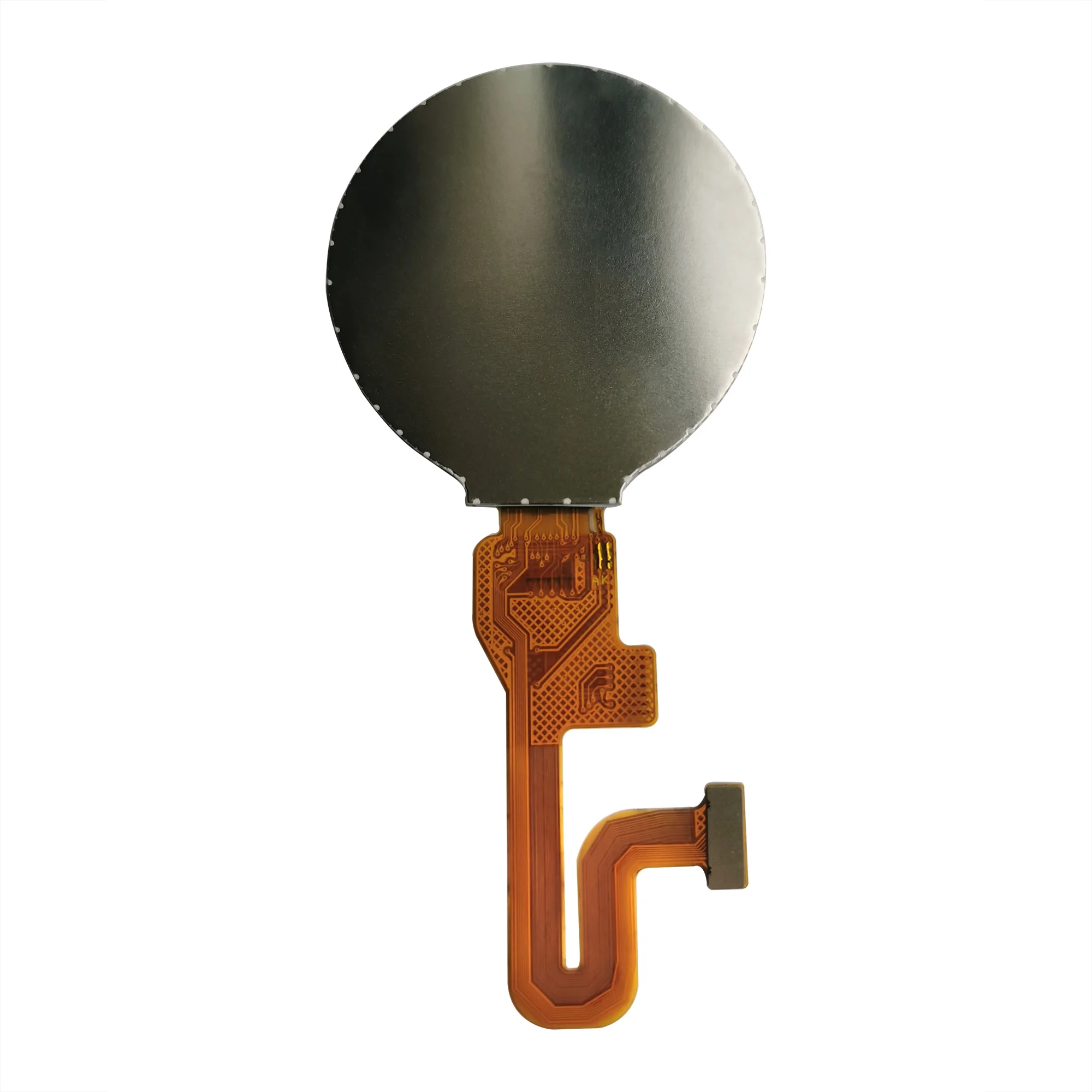

The module's Flexible Printed Circuit (FPC) is designed with a Board to Board (BTB) connector, allowing for effortless and direct connection to the B2B connector on your PCB. This simplifies the integration process and ensures a secure and reliable connection.
Shineworld Innovations Limited offers customization options to meet specific requirements. We provide tailored solutions,
including customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility allows customers to receive an optimized display solution that perfectly matches their unique needs and preferences. Additionally, SWI can provide customized demo kits upon customer request.
The SCXT1D6VP-001 is compatible with a variety of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This broad compatibility makes it suitable for a wide array of applications, such as embedded systems, industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, and handheld devices.
The module's Flexible Printed Circuit (FPC) is designed with a Board to Board (BTB) connector, allowing for effortless and direct connection to the B2B connector on your PCB. This simplifies the integration process and ensures a secure and reliable connection.
Shineworld Innovations Limited offers customization options to meet specific requirements. We provide tailored solutions,
including customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility allows customers to receive an optimized display solution that perfectly matches their unique needs and preferences. Additionally, SWI can provide customized demo kits upon customer request.
General Data
NO. | ITEM | SPECIFICATIONS | UNIT | ||
1 | Display Mode | IPS TFT | |||
2 | Diagonal Size | 1.60 | Inch | ||
3 | Resolution | 400(RGB)x 400 | Dots | ||
4 | Active Area | 39.84(W) x 39.84(H) | mm | ||
5 | Outline Dimension | 42.94(W) x 45.89(H) | mm | ||
6 | Thickness | 1.56±0.2 | mm | ||
7 | Pixel Pitch | 0.107(W) x 0.107(H) | mm | ||
8 | Pixel Size | 0.107(W) x 0.107(H) | mm | ||
9 | Display Driver IC | ST77903 | - | ||
10 | Touch Driver IC | No Touch | - | ||
11 | Display Color | 262K | - | ||
12 | Gray Scale | 8 | Bit | ||
13 | Brightness | 400(min) | cd /m2 | ||
14 | Contrast Ratio | 800:1 | - | ||
15 | Interface | QSPI | - | ||
16 | IC Package Type | COG | - | ||
17 | Module Connecting Type | BTB | - | ||
18 | Weight | TBD | g | ||
19 | Pins | 30 | Pins | ||
20 | Operating Temperature | -20~70 | ℃ | ||
21 | Storage Temperature | -30~80 | ℃ | ||

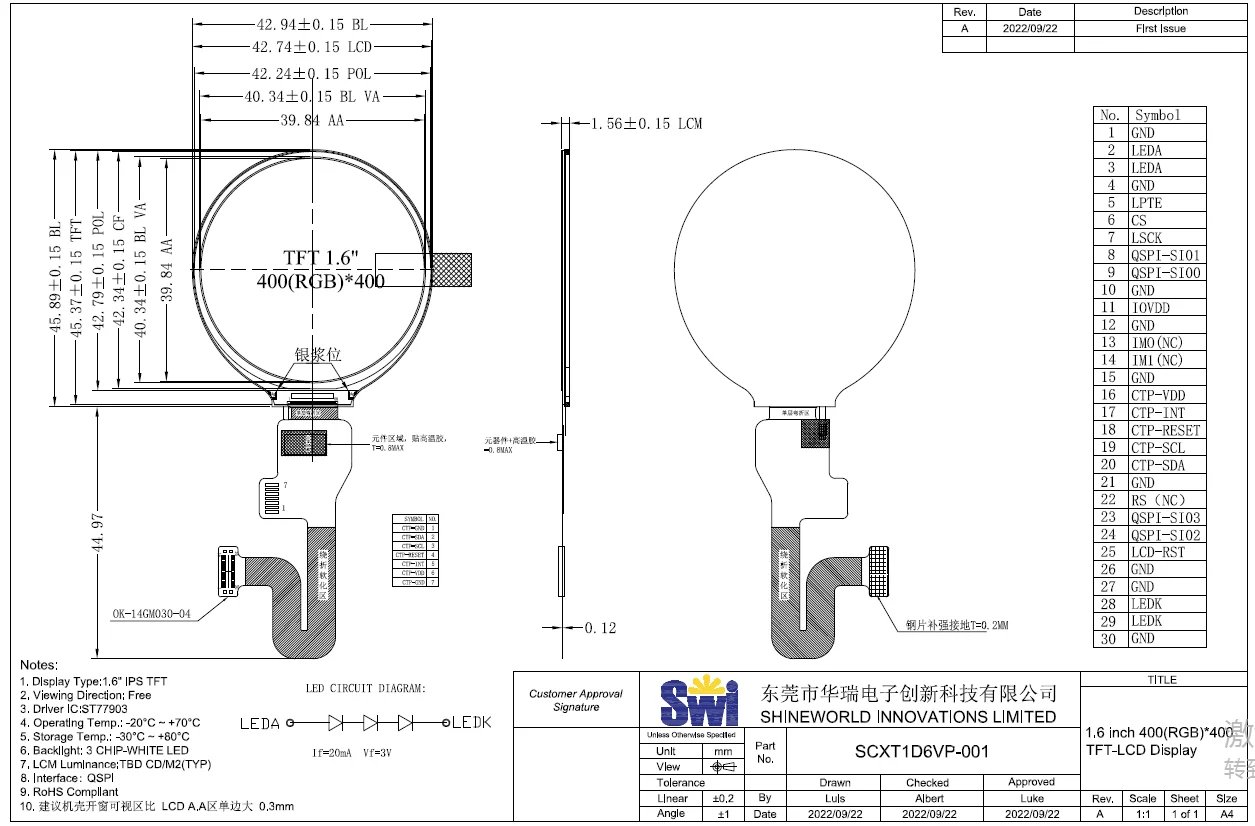

Drawing
