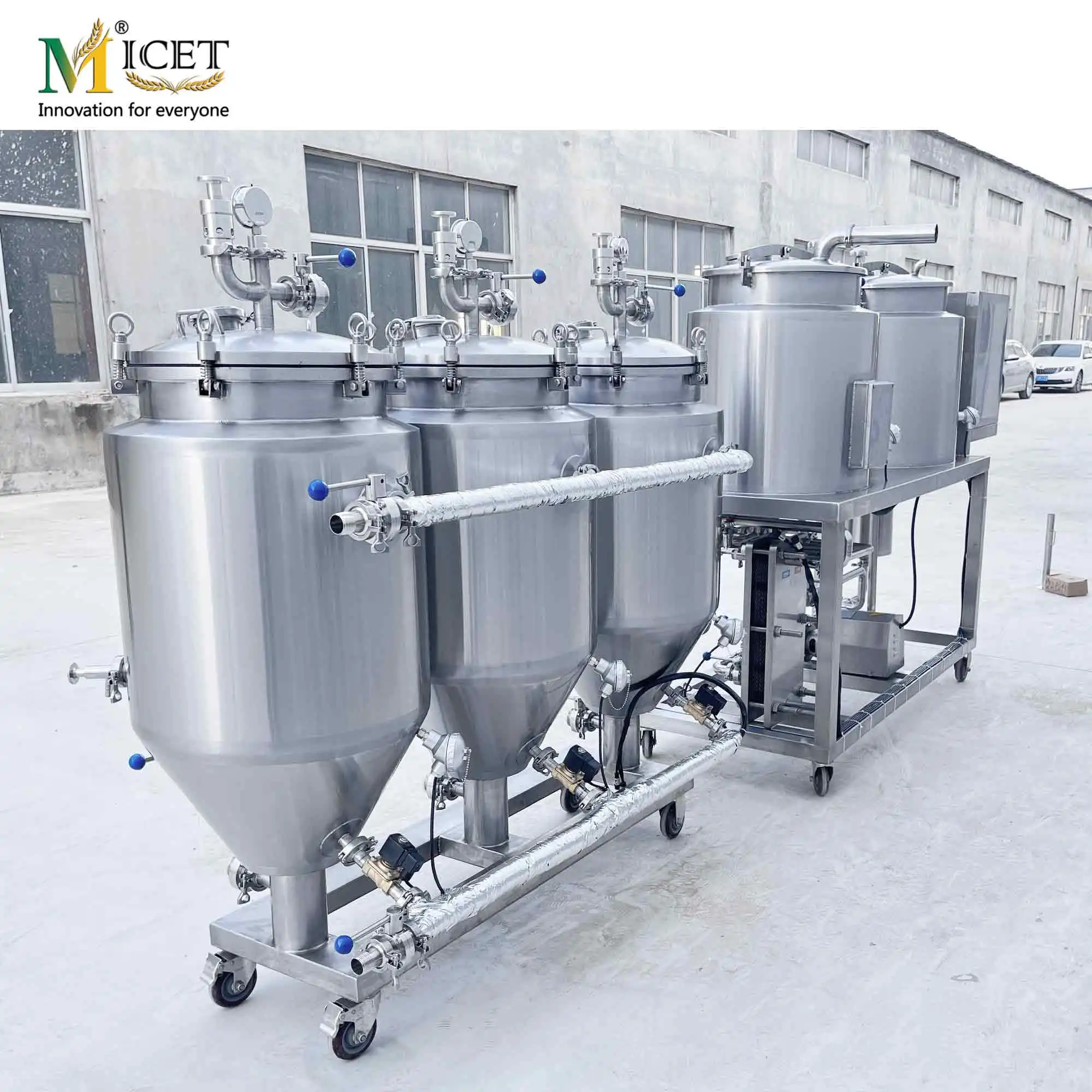

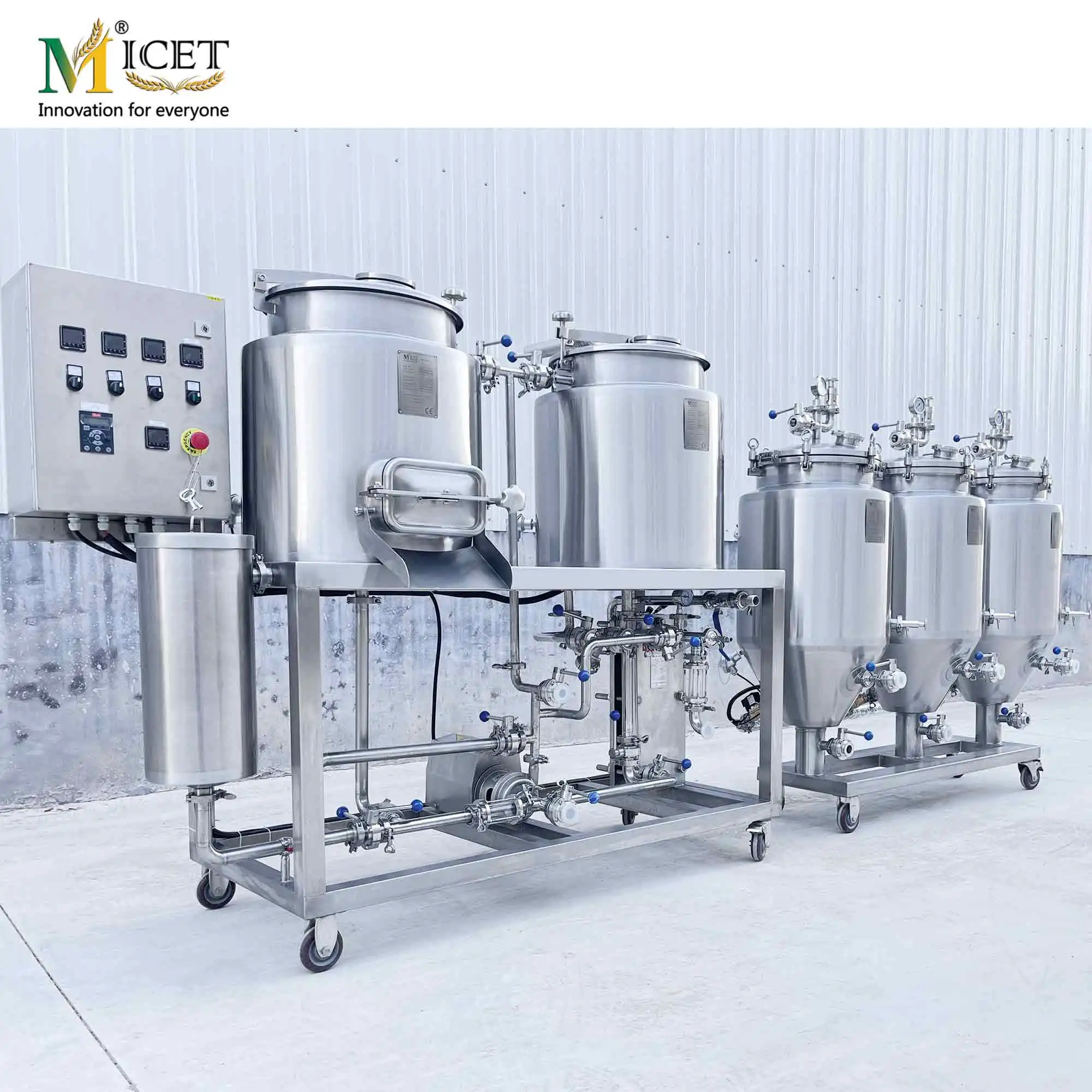

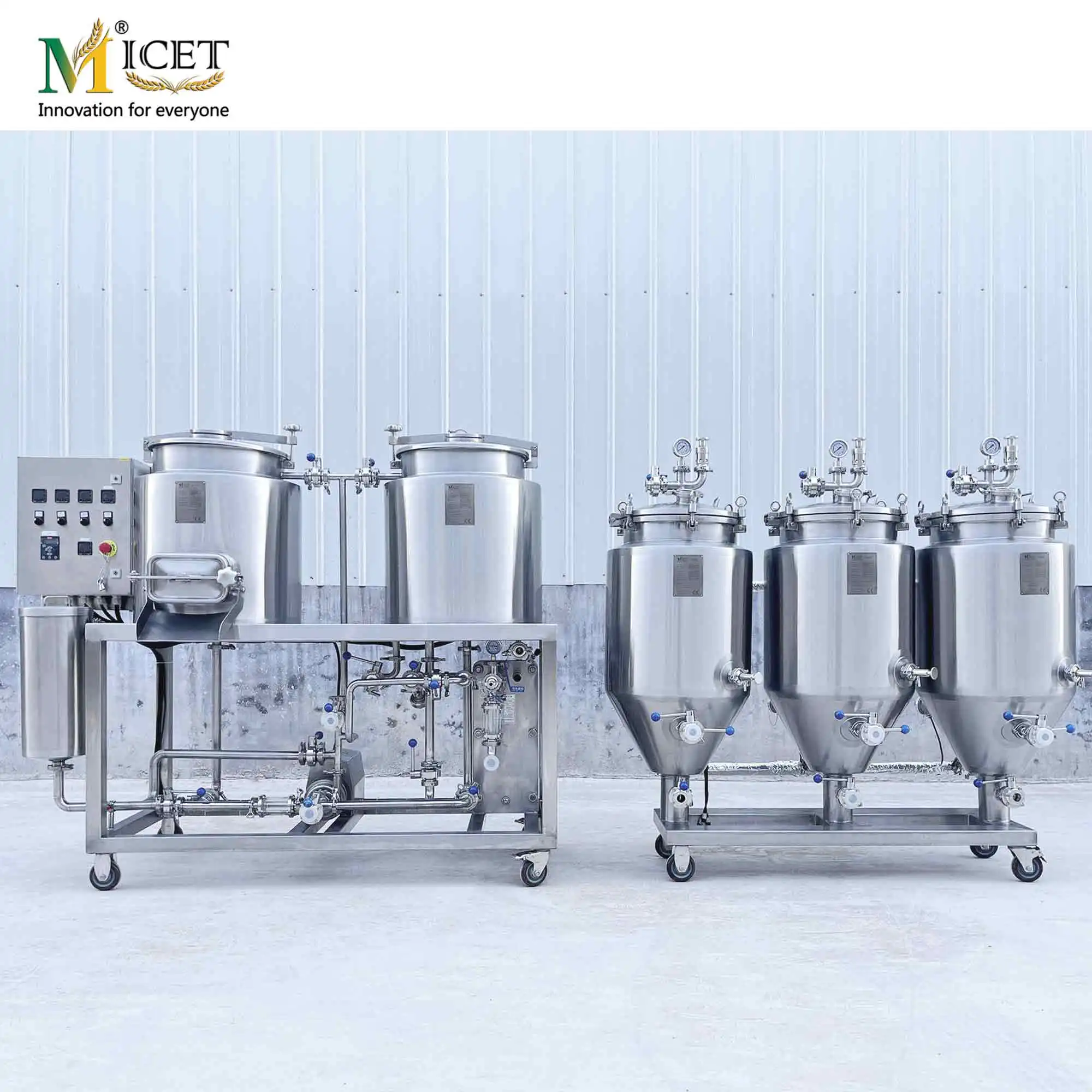

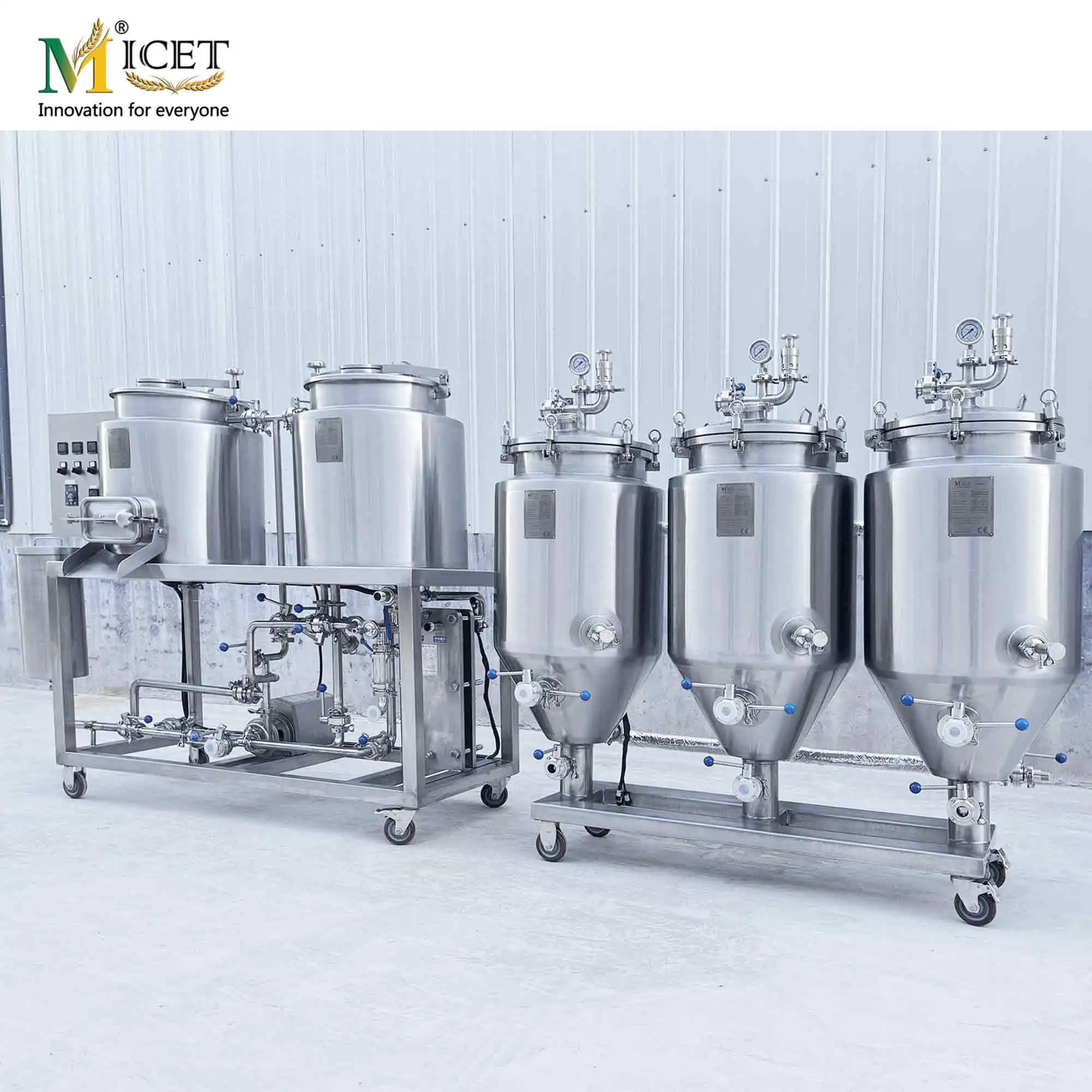

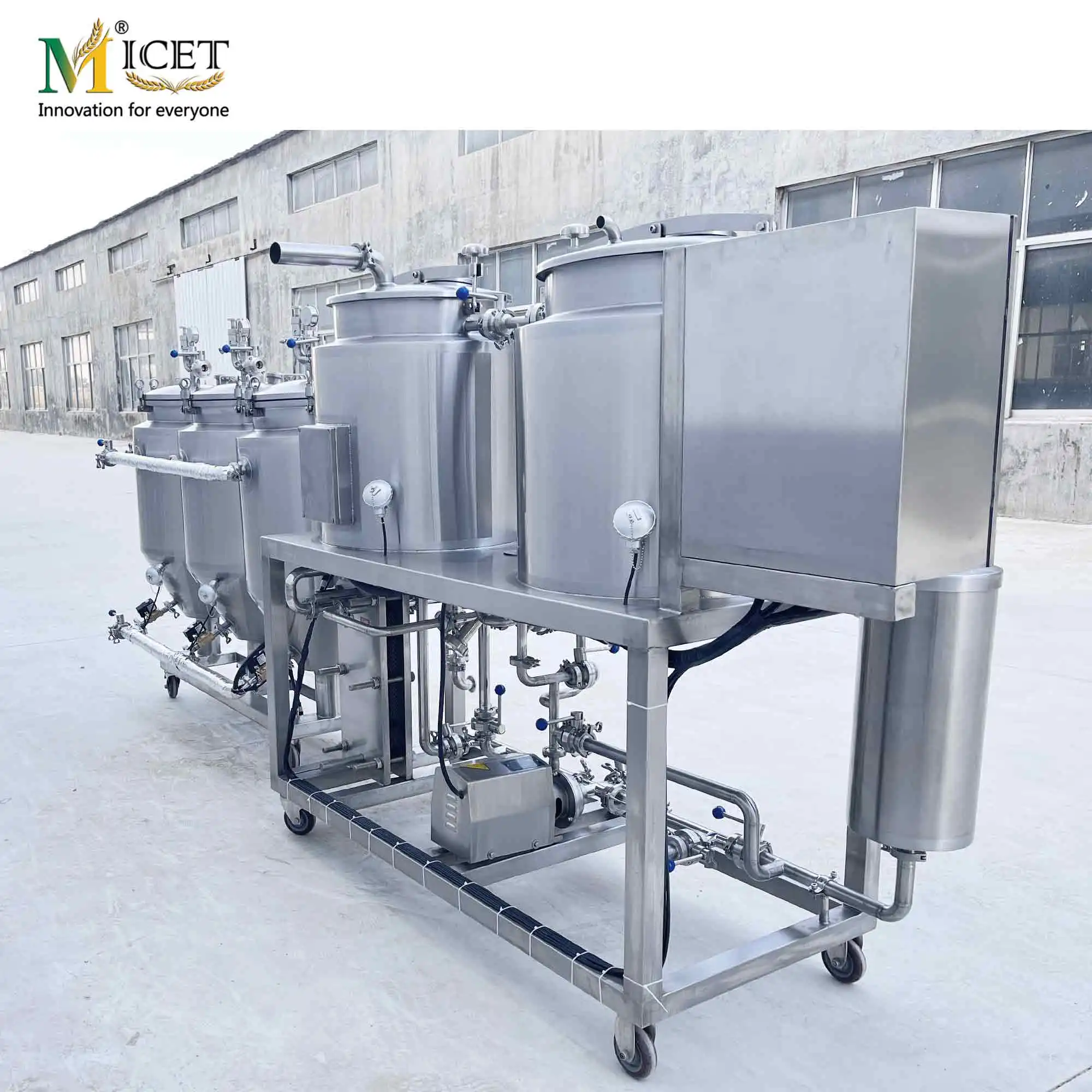

Stainless steel 304 Conical Fermentor 50L Tank Fermenter with Chiller for home brewing
- Category: >>>
- Supplier: Shandong Innovative & Craft Brewing Equipment Co. Ltd.
Share on (1600664672115):
Product Overview
Description
Stainless steel 304 Conical Fermentor 50L Tank Fermenter with Chiller for home brewing
Most brewery installations in restaurants, bars, and hotels used microbreweries. MICET microbreweries are installing at the customer's company turn-key solution. Micet has reached cooperation with many breweries around the world. We can design and manufacture professional containers and systems for breweries, cellar equipment, and other complex breweries. Micet has decades of experience in beer brewing, manufacturing sanitary stainless steel systems, and integrated automation and control systems.
Product Advantages
1. We can customize the equipment design as per customer brewing method and brewing beer types can make beer highest to 33 Plato.
2. All Construction uses high-quality SUS 304 food-grade stainless steel, all pipes are SUS304, perfect 3mm inner shell and 2mm outer shell.
3. All tanks are equipped with specially designed jackets to ensure heating and cooling efficiency. Both cone top and shell bottom have jackets, exchanging areas are big enough.
4. The headspace of our tanks is much bigger, the total volume does not include the cover headspace.
5. 100% TIG welding process to weld the tank, jackets welding are all full welding by water, uniform dimpled cooling jacket to ensure no leaking and long life, welds passivated!
6. Our polishing is overall mirror polishing, polishing 6 times to make Ra 0.4um mirror finish, can clean 360° without dead ends.
7. Jacket testing 12 hours with air and water, jacket testing pressure is 5Bar, internal shell testing pressure is 4Bar, and before packing we will also have 48hours of water testing.
8. Strict quality control and process inspection & testing system, which all the testing records will show on our data late with the tanks shipping, with checking the list and serial numbers to track.
9. We insist on a high-end product line to manufacture our tanks, all components like chiller, exchanger, steam boiler, and Schneider/ABB electronics control systems all adopt international brands to ensure quality and convenient after-sales.
Product Parameters
Output/Brew | 5HL | 8HL | 10HL | 15HL | 20HL | 25HL | 30HL | 35HL | 50HL | ||||||||
Brew/Week | 2~6 | ||||||||||||||||
Output/Week | 10~30HL | 16~48HL | 20~60HL | 30~90HL | 40~120HL | 150~300HL | 180~360HL | 210~420HL | 240~360HL | ||||||||
Area Request | ＜45㎡ | ＜60㎡ | ＜70㎡ | ＜90㎡ | ＜120㎡ | ＜140㎡ | ＜150㎡ | ＜180㎡ | ＜150㎡ | ||||||||
Brew master | 1 | 1 | 1-2 | 1-2 | 2-3 | 2-3 | 3-5 | 3-5 | 3-5 | ||||||||
Material | Interior Shell: SUS304; TH=3mm; Exterior Shell:SUS304; TH=2mm / red copper | ||||||||||||||||
Heating | Electric/Steam/Direct fire for optional | ||||||||||||||||
Voltage | 3 phase/380(220, 415,440...)v/50 (60)Hz | ||||||||||||||||
Brewery Equipment Configuration
Milling System | Malt Miller | 300-500 kg/h | 1 pc | ||
Auger (option) | Ability is 1,000-1,500 kg/h | 1 pc | |||
Hopper(option) | Volume is 0.5m³, SUS 304 with pre-masher | 1 pc | |||
Brewhouse system | Mash Tun / Lauter Tank | Volume is 1000L, with false bottom, grant, raker with motor | 1 pc | ||
Kettle / Whirlpool Tank | Volume is 1000L, electric heating | 1 pc | |||
HLT Water Tank | Volume is 2000L, electric heating | 1 pc | |||
Includes plate heat exchanger, wort pump, motors, hops filter, yeast adding tank, oxygen device and pipelines | |||||
Fermentation system | Fermenters | Volume is 1000L or 2000L (double batches) | 6 pcs | ||
BBT (option) | Volume is 1000L or 2000L (double batches) | 2 pcs | |||
Racking arm, spunding valve, pressure gauge, carbonation stone, sample valve | |||||
Cooling system | Glycol tank | Volume 1000L or 2500L | 1 pc | ||
Cold water tank (option) | Volume 2000L, cooled by glycol tank | 1 pc | |||
Chiller | 5HP, Copeland | 2 pc | |||
Cleaning system | CIP | 50L two tanks, heated by electric, with pump and trolley | 1 pc | ||
Controlling system | Control cabinet | PLC touch screen or PID controller | 1 pc | ||
Product Show

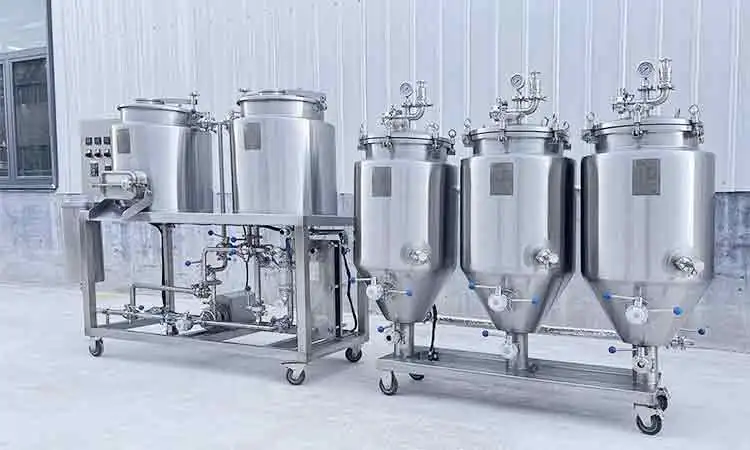

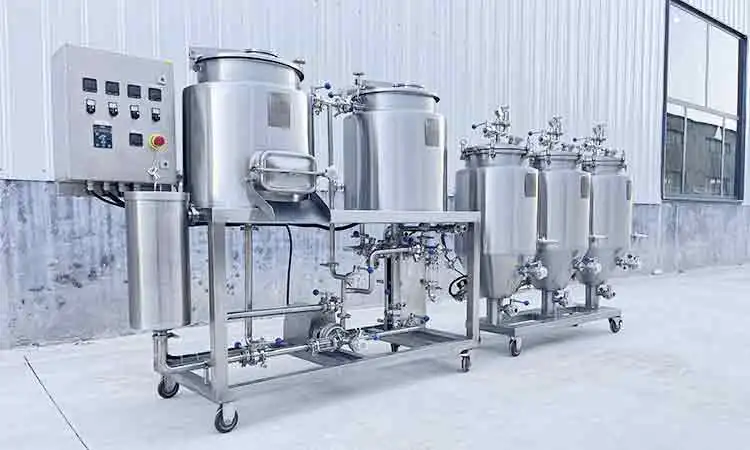

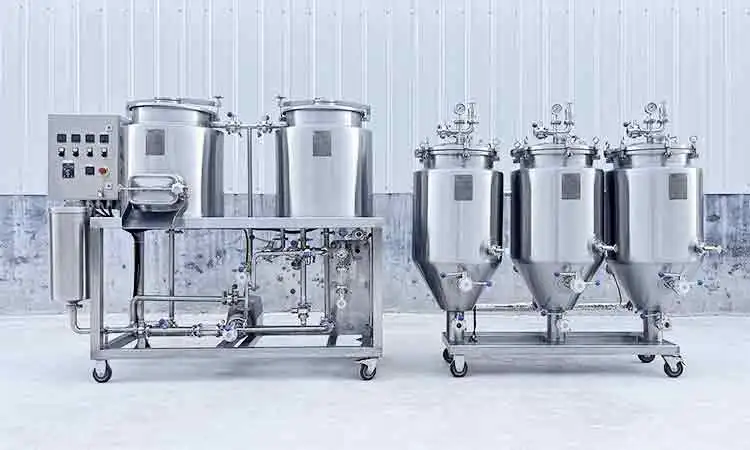

Brewing System:
Packing & Shipping
FCL shipping
1. All piping mark numbers before shipping. Meanwhile, In order to help customers to install easily, we will provide a whole process piping installation diagram as per the installation sequence.
2. All the accessorizes for brewhouse and fermenting will be counted and packed separately.
3. Each of our ports will have a lid in case the dust goes inside during shipping. For packing, the stand tank will be fully packed in case of any salt corrosion on the sea, for horizontal tanks, tanks will be packed by a steel frame on the skid and the legs will be fixed by a thread in case of any moving during transportation.
Our Service
1. Micet provides a turnkey solution from project consulting, benefit analysis, space layout design, 3D rendering, production site, equipment design, manufacturing, installation, commissioning, training, and other one-stop services.
2. Micet provide installation and debugging service at a service fee (100usd) per day;
3. Micet factory marks all piping with numbers, solve any questions during your installation.
4. Micet technician will train the brewer to produce qualified craft beer.
5. Micet provides installation and maintenance manual book, piping installing layout.
6. Sales&engineers could be keeping 24 hours online for service;
7. Micet provides a 3-year warranty on tanks sold with manufacturing defects from the factory. Micet provides a 1-year warranty on tank accessories, pumps, electronic components.
8. Any extra spare parts required, send and deliver immediately.
Project Cases
Our Company
Company Profile
Micet always adheres to the spirit of craftsmanship (quality), elite culture (talent), and innovation consciousness (research and development) as the competitiveness of enterprise development. We focus on high-end product lines and insist on craftsman spirit, perform strict quality control and process testing in production to ensure that customers have good expectations for equipment and on-time delivery.
Certification
Our factory adopts 5S management, professional and strict inspection and testing process, each order will have an inspection record from materials checking, production progress, finished product to delivery and packing,.etc. Each system will have 4 times inspections, including materials come in, production process, testing, finished product inspection before shipping, our goal is to mostly control the quality to reduce the client's trouble even good after-sale!
Customized design
We can not only design the brewhouse as per the client's brewing requirement and beer types but also provide the CAD & 3D design drawing, including P&ID process, vessel drawing, piping connection, and brewery layout.
Quality assurance
Insist on high-end products line, adopts high Standard design and global brand components, etc., Our welding is all full welding by water, uniform dimpled jackets to ensure no leaking and long life, all welds undergo welds passivation! Our polishing is overall mirror polishing without any welds left.
How does Micet do quality control?
Micet will have at least 4 times inspections for each order, including materials come inspection, production process control, finished production inspection, and full line testing and inspection before shipping to ensure the final product will meet the client's requirements.
How to choose brewhouse equipment?
Brewhouse system selection for purchasing beer equipment there are about basically four types including 2 vessel brewhouse, 3 vessel brewhouse, and 4 vessel brewhouse. The combination type can be chosen depending on the client's budget, space size, local brewing process. We will also recommend according to old clients' experiences and different country brewing features.
How long is the delivery time?
1. The manufacturing time is 40 working days and will be enforced as soon as receiving the deposit.
2. The technical files (layout, drawings, etc) confirmation time shall not be included in the manufacturing time.
What is your payment term?
1. T/T transfer, 40% advance payment for start production, after paying 60% balance payment for shipping.
2. Paypal or trade assurance is available.
What is your warranty term?
Main machine guarantee for three years we'll provide free repairing. If anywhere goes wrong during. During this period accessories and electronic components will have a one-year free warranty. Anything is broken during the warranty. The replacements will be sent immediately and get within. Provide daily maintenance and technical services.
