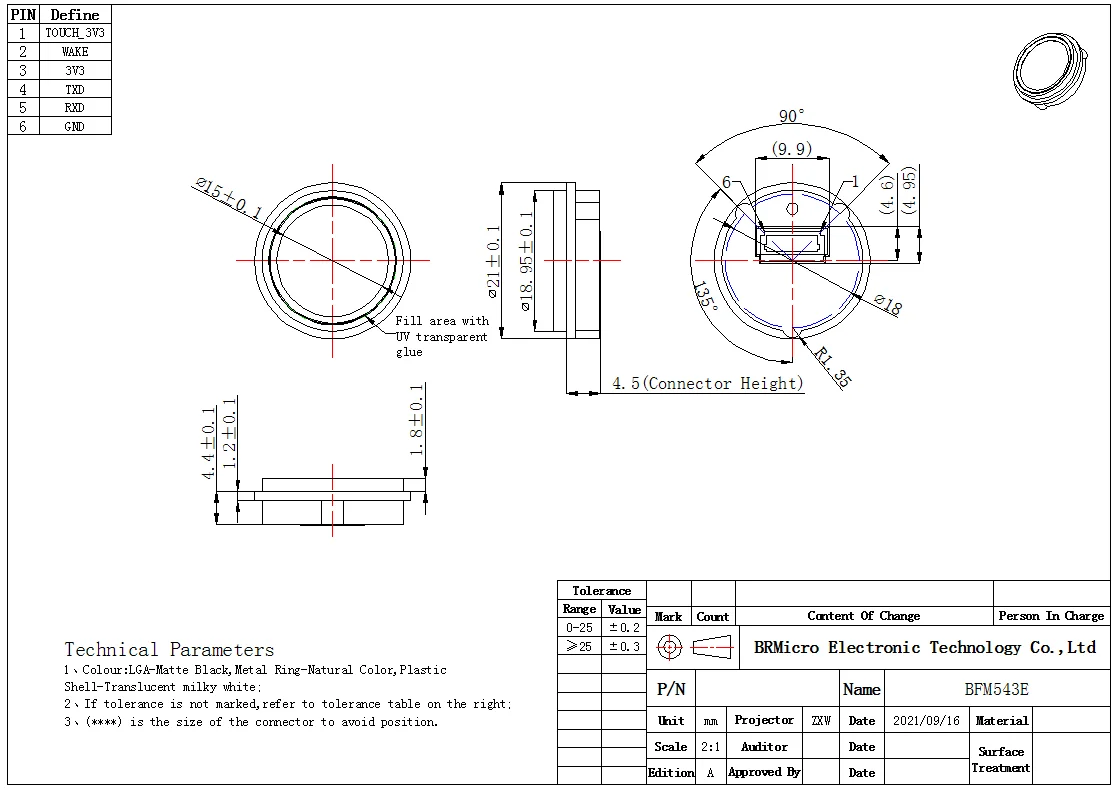

BFM543E Capacitive biometric usb flash device elevator home electronic door lock with fingerprint scanner module
- Category: >>>
- Supplier: Jiangsu Bongrong Microelectronics Co. Ltd.
Share on (1600664685598):
Product Overview
Description
Products Description
Pixel array | 160*160 |
Module Size | Diameter 21mm |
Window Size | Diameter 15mm |
Operating current: Sampling mode | 3.3V <40mA |
Acquisition speed | 30 fps |
Fingerprint template capacity | 100 pieces |
Data connect | USART |
Power on time | Less than 100ms |
Interface | RS232 TTL（6pin, 1.0mm pitch） |
Baud rate | 115200bps |
Storage temperature | -40℃ - 85℃ |
Operation temperature | -20℃ - 55℃ |
Relative humidity | 0% - 85% |
FAR | <0.001% |
FRR | <1.5% |
Fingerprint feature extraction time | 200ms |
1:N Compare Time | 500ms |
Touch Effective output level | Low effective |
Supported operating system | Embedded Android，Linux，WinCE and Windows OS |
