Best Selling Factory Low Price Small Size 80kw 100kva Water Cooled Diesel Generator With Chinese Famous Brand WEICHAI Engine
Best Selling Factory Low Price Small Size 80kw 100kva Water Cooled Diesel Generator With Chinese Famous Brand WEICHAI Engine
Best Selling Factory Low Price Small Size 80kw 100kva Water Cooled Diesel Generator With Chinese Famous Brand WEICHAI Engine
Best Selling Factory Low Price Small Size 80kw 100kva Water Cooled Diesel Generator With Chinese Famous Brand WEICHAI Engine
Best Selling Factory Low Price Small Size 80kw 100kva Water Cooled Diesel Generator With Chinese Famous Brand WEICHAI Engine
Best Selling Factory Low Price Small Size 80kw 100kva Water Cooled Diesel Generator With Chinese Famous Brand WEICHAI Engine
Best Selling Factory Low Price Small Size 80kw 100kva Water Cooled Diesel Generator With Chinese Famous Brand WEICHAI Engine

Best Selling Factory Low Price Small Size 80kw 100kva Water Cooled Diesel Generator With Chinese Famous Brand WEICHAI Engine

Share on (1600664691293):


Price:$4,400.00 - $4,900.00

Quantity:


Product Overview

Description

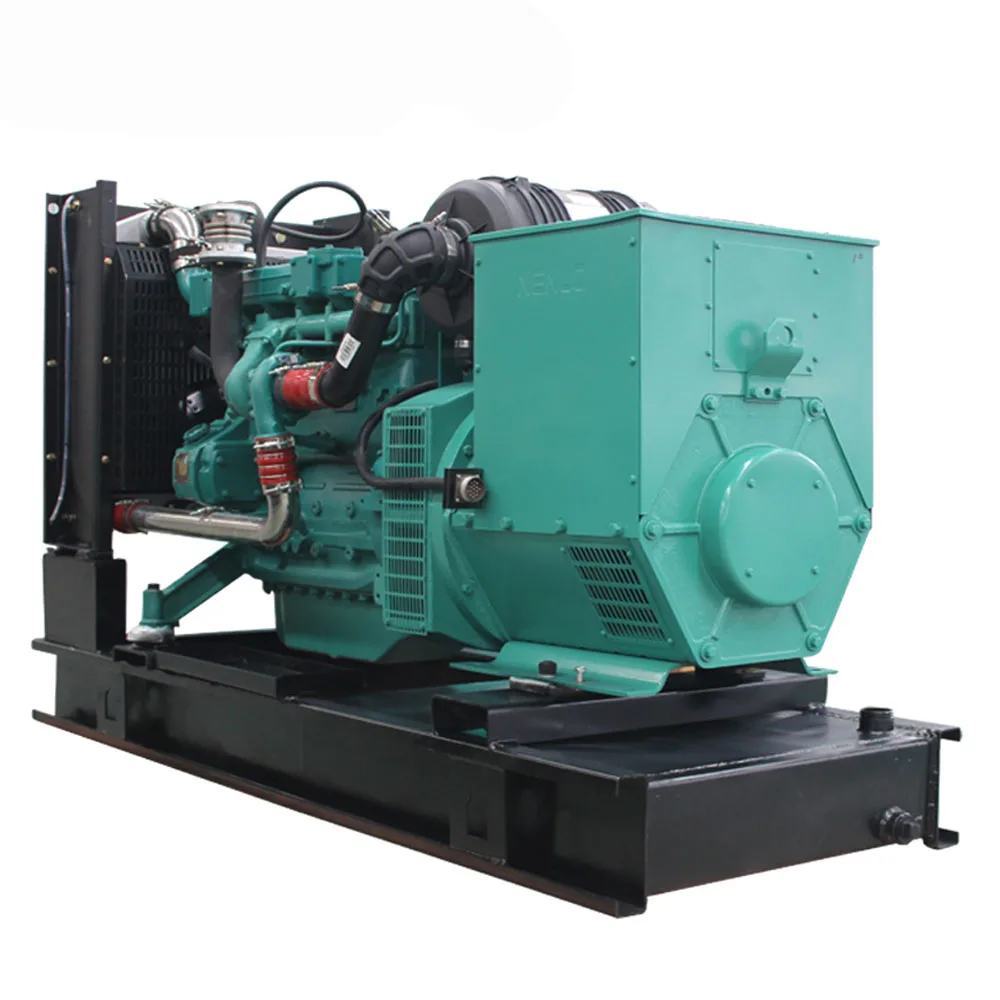

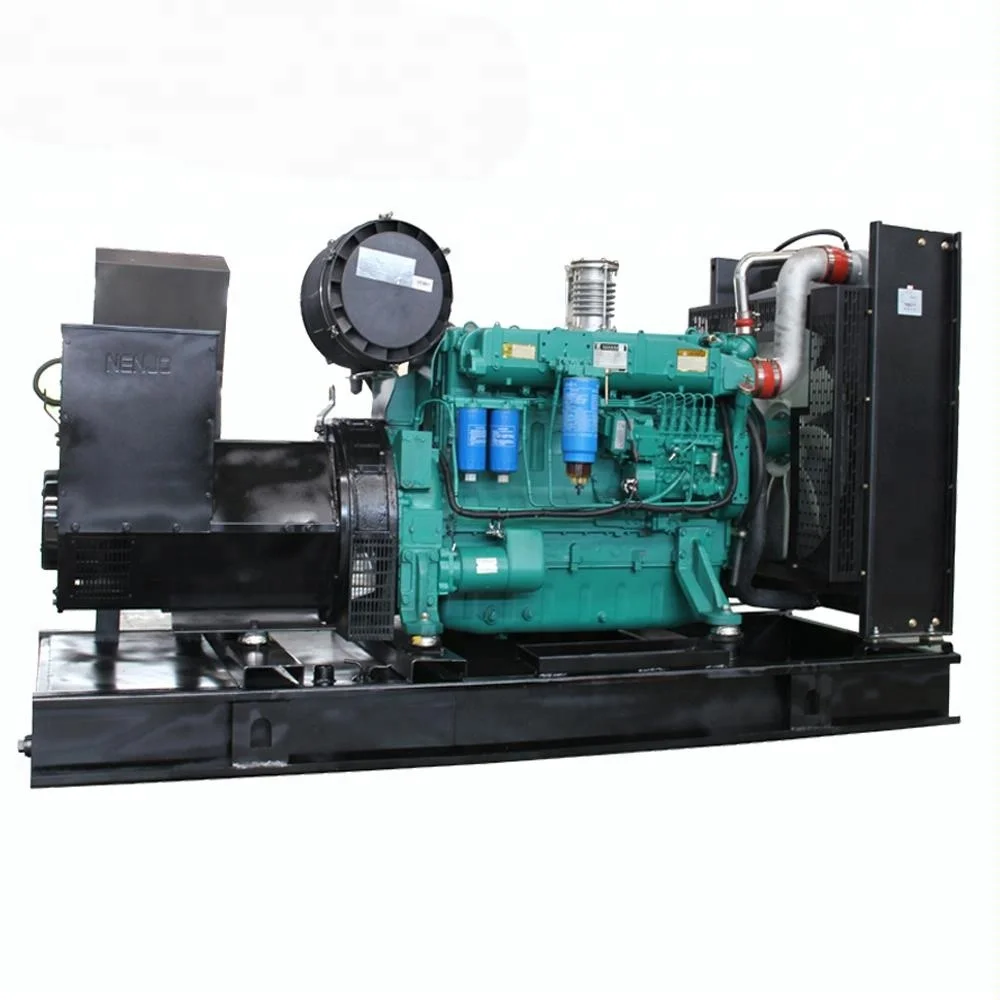

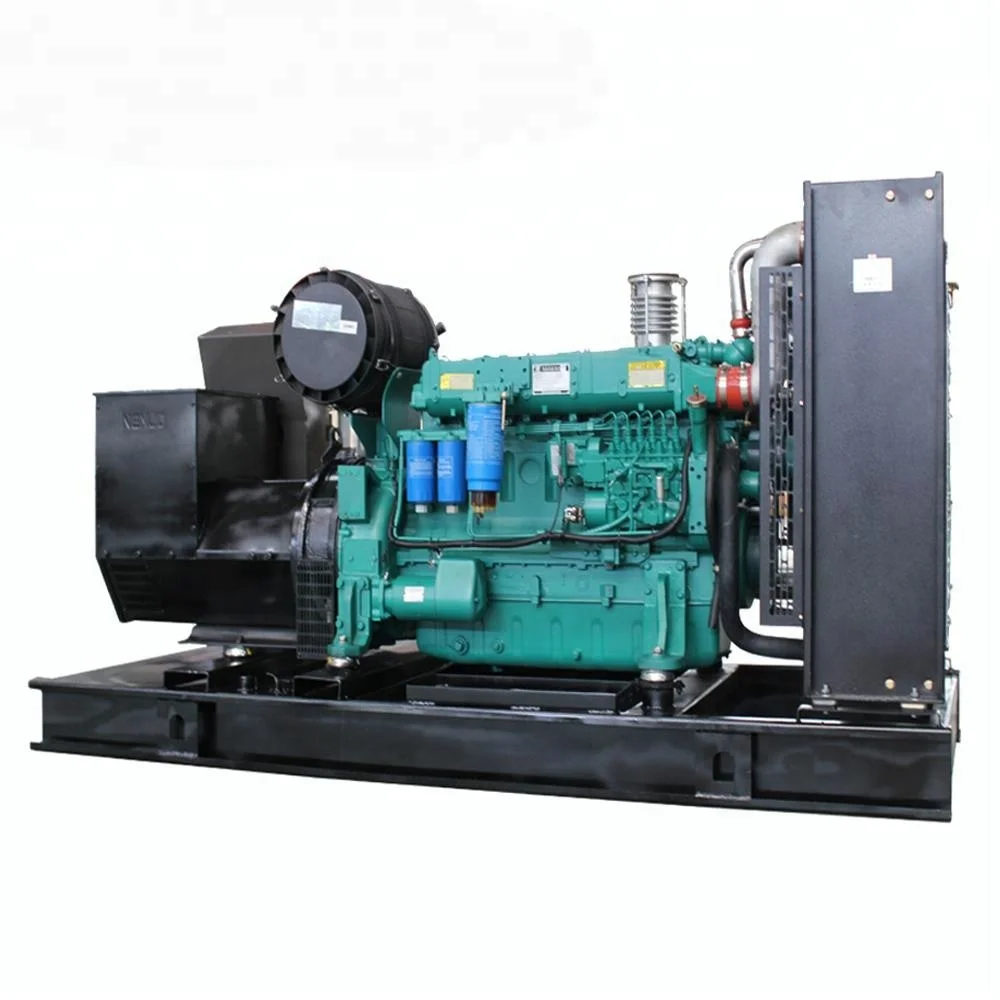

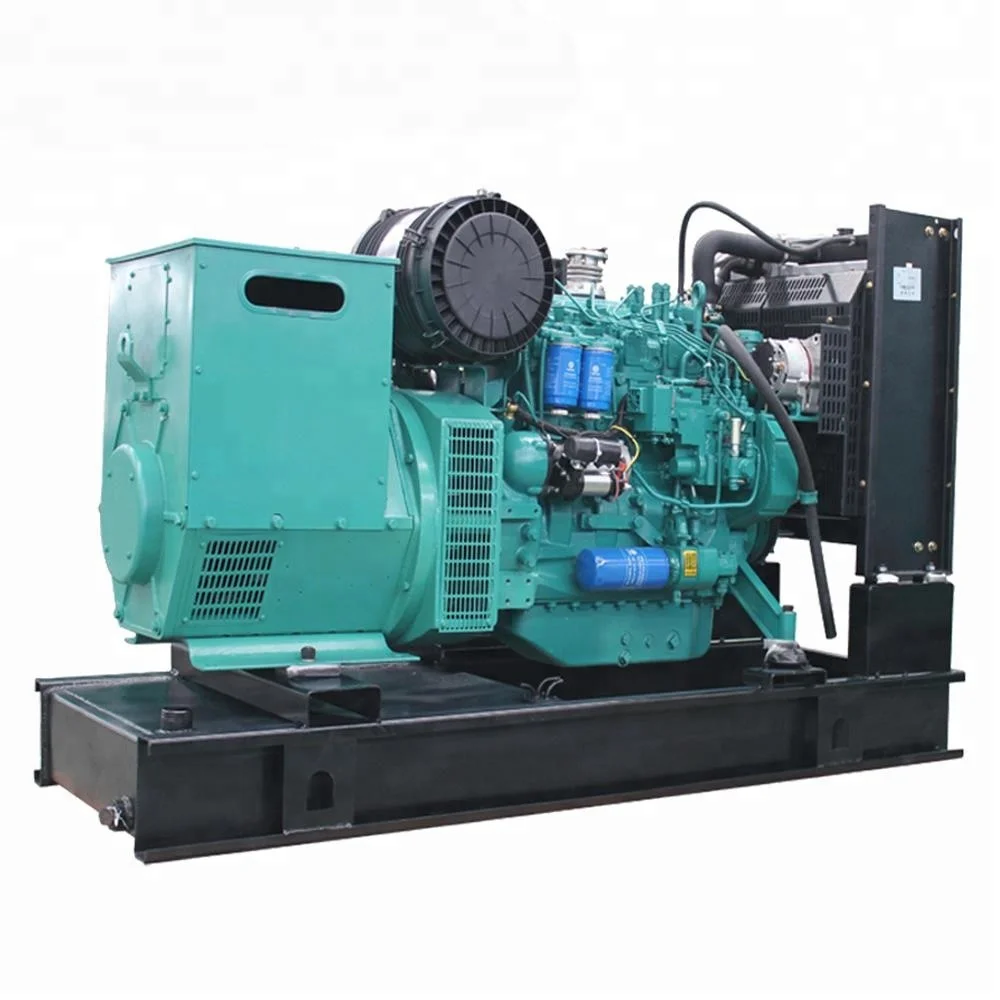

Best Selling Factory Low Price Small Size 80kw 100kva Water Cooled Diesel Generator With Chinese Famous Brand WEICHAI Engine


                                                              Diesel Generator Set Data Sheet
Generator Model
GF80WP
Power
80kw/100kva
Rated Voltage
220V
Frequency
50HZ
Power Factor
0.8(Lagging)
Dimension(L*W*H)
2200*820*1550mm
Weight
1150kg
                                                                          Diesel Engine Data Sheet
Brand
WEICHAI
Model
WP4D100E200
Number of Cylinder
6
Speed
1500RPM
Cycle
Four Stroke
Cooling Method
Water Cooling
Bore*Stroke
105*130mm
Speed Governor
Electronic
Power
100kw
Lubrication oil Capacity
10L
Fuel Consumption
198g/kw.h
Starting Method
24V Electrical Starting
                                                                                Alternator Data Sheet
Brand
Hengtong
Model
HTI-80
Power
80kw/100kva
Connecting Type
3 Phase and 4 Wires
Number of Bearing
Single
Protection Grade
IP23
Insulation Class
H
Exciter Type
Brushless, Self-excited, AVR Controller
Altitude
≤1000M
                                                                                          Controller
Optional Controller Brand
Smartgen/Deepsea/ComAp etc.


Factory and Workshop






Control System


Manual Controller
- A current, Voltage, Frequency simulative meters;
- An oil pressure, a water thermometer and indicator lights;
- 4 additional protection functions are provided optional;
- Start/ stop manually.
Automatic controller
Brand: Smartgen, ComAp or Deepsea
- Control with AMF module;
- Static battery charger;
- Emergency stop push button;
- Basic protection function, etc.


ATS Control System(Suyang, Aisikai, Schneider，ABB)
- Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine BottProvide start signal to automatic control system;
- Control the generator set to run with no load until the temperature of the engine is balanced and lowered. Stop running
automatically;.
- Changeover between the mains supply and power generated by gen-set;
Synchronous Parallel Controller
Brand: Smartgen, ComAp or Deepsea
- Manual/auto parallel system generators;
- Automatic start/stop of the gen-set, ATS(Auto Transfer Switch) control with perfect fault indication and protection function;
- IP55 waterproofness level;
- Can control engine heater, cooler and fuel pump;
- Metal fixing clips enable perfect in high temperature environment, etc..


Silent Canopy Details


-Compact structure with high-strength chassis;
-Easy operation and maintenance, Low cost;
-Excellent performance damping system;
-Compliance with international electrical safety standards of electrical system;
-8 hours base tank;
-High-performance maintenance-free batteries with isolation switch
-40-50℃Radiator;
-Top lifting, Forklift bottom hole design, easy to transport;
-Industrial muffler;
-Noise reduction structure,Low noise;
-Convenient power output interface;
-IP56 (control system)
-Customized design for user




Assembing Process




Packing & Shipping






Global service




Installation and Test Generator in Sri Lanka
Installation and Test Generator in Russia


Customer Visiting






Exhibition shows


Middle East Energy 2020, Dubai.
Machine and Electricity 2019,Vietnam.




Certificate(CE,ISO,CSA, CCS etc.)
