Seoul Viosys High Power UV LED Coating Crime Inspection Curing Printing SVC SMD 6868 4Chip 395nm UVA LED
- Category: >>>
- Supplier: Zhuhai Tianhui Electronic Co. Ltd.Zhuhai Ltd.
Share on (1600664705162):
Product Overview
Description

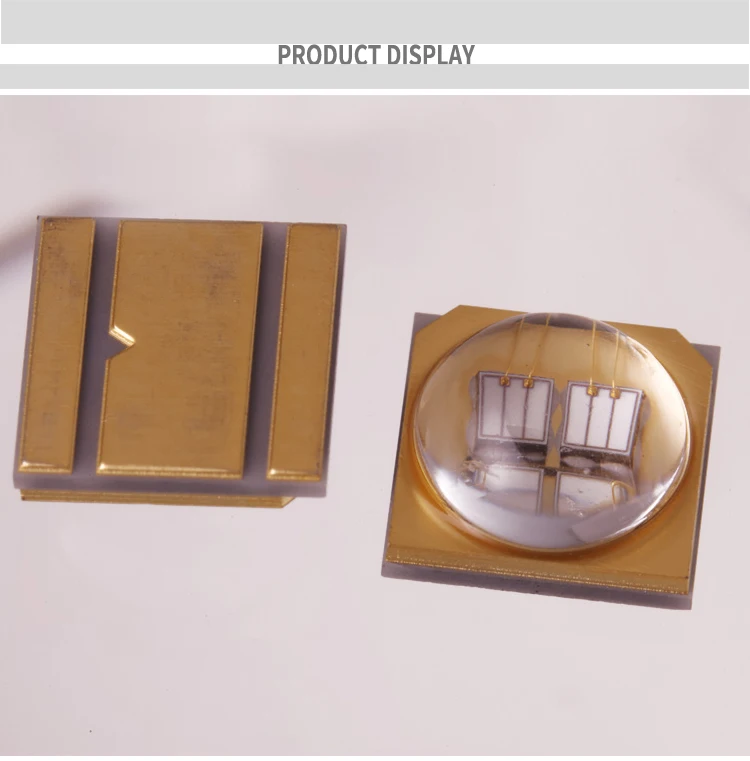

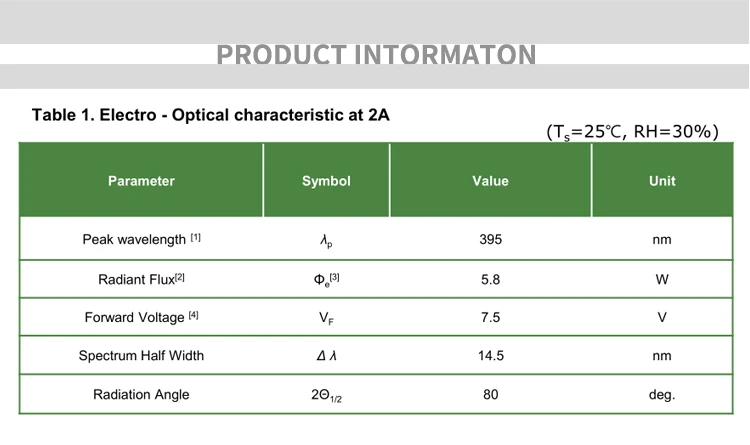

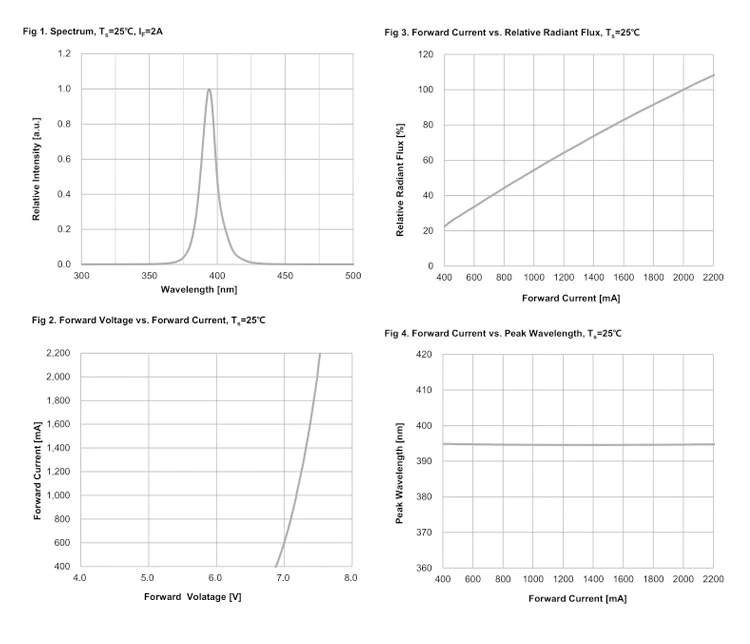

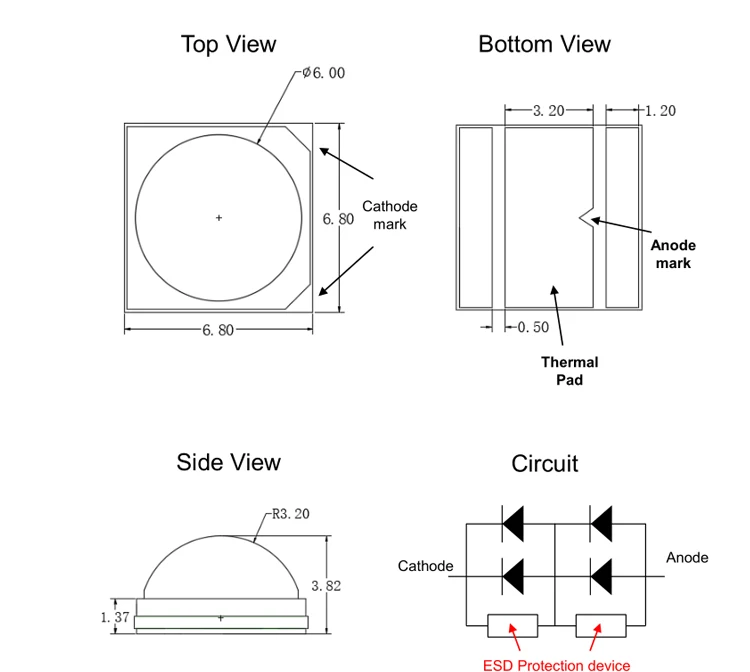

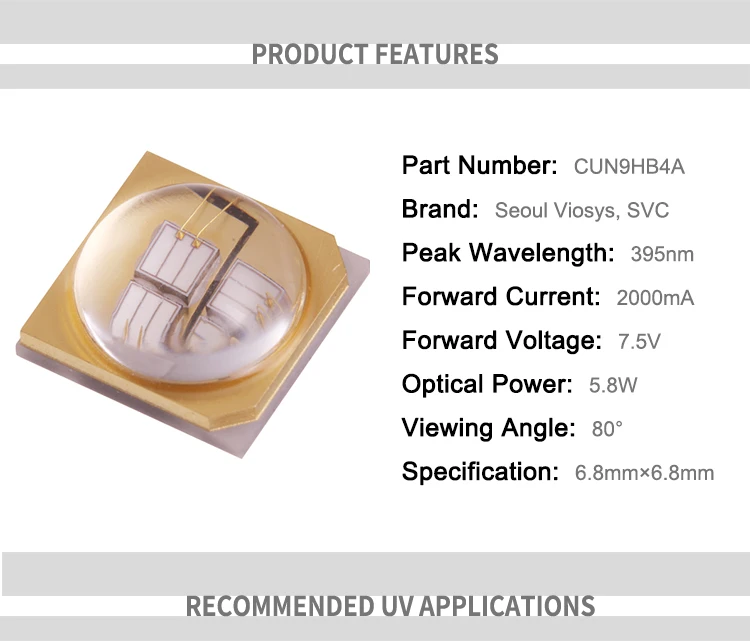

Seoul Viosys High Power UV LED Coating Crime Inspection Curing Printing SVC SMD 6868 4Chip 395nm UVA LED
340nm
340nm Deep UV LED Products
| Part Number | Product Image | Product Packaging | Peak Wavelength | Output optical Power | Application |
| CUN4GF1B |  | SMD3535, Quartz glass lens, 250mA, 3.8~4.8V Viewing angle: 115° Aluminium Nitride Ceramics | 340~347nm | 30~70mW@250mA | Medical detection, Biochemical detection, Blood detection and analysis, Reagent detection, Molecular diagnosis, Viarus analysis, Analysis instrument |
| CUD49H1A |  | Metal DIP TO39, Quartz glass lens, 20mA, 3.5~4.5V Viewing angle: 5.1° | 340~347nm | 1.0~2.0mW@20mA | Medical detection, Biochemical detection, Blood detection and analysis, Reagent detection, Molecular diagnosis, Viarus analysis, Analysis instrument |
275nm/310nm
275nm/310nm Deep UV LED Products
| Part Number | Product Image | Product Packaging | Peak Wavelength | Output optical Power | Application |
| CUD7GF1A |  | SMD3535, Quartz glass lens, 40~60mA, 5.0~7.5V Viewing angle: 120° | 270~278nm | 3.0~6.0mW@40mA 4.0~8.0mW@50mA 5.0~9.0mW@60mA | Sterilization/disinfection medical products, Water and air purification, Medical inspection analysis, DNA detection and identification |
| CUD7GF1B 1W |  | SMD3535, Quartz glass lens, Viewing angle: 125° | 270~278nm | 10.0~18.0mW@100mA 14.0~22.0mW@150mA 18.0~26.0mW@200mA | Sterilization/disinfection medical products, Water and air purification, Medical inspection analysis, DNA detection and identification |
| CUD7GF2B 3W |  | SMD3535, Quartz glass lens, 350mA, 7.3V Viewing angle: 120° | 270~278nm | 30mW@350mA | Sterilization/disinfection medical products, Water and air purification, Medical inspection analysis, DNA detection and identification |
| CUD73F4A 5W |  | SMD5050, Quartz glass lens, 300mA, 10.0~15.0V Viewing angle: 120° | 270~278nm | 50~100mW@300mA | Sterilization/disinfection medical products, Water and air purification, Medical inspection analysis, DNA detection and identification |
| CUD1GF1A |  | SMD3535, Quartz glass lens, 20~40mA, 5.0~7.5V Viewing angle: 120° | 310±5nm | 1.0-2.5mW@20mA 1.5-3.5mW@30mA 2.0-4.5mW@40mA | Skin treatment(Vitiligo&Psoriasis), DNA detection, analysis and identification, Genetic engineering, Fluoroscopy detection, Physiotherapy instrument(Vitamin D supplement), Plant growth, Pet lamp |
| CUD1GF1B |  | SMD3535, Quartz glass lens, 100mA, 5.0~7.0V Viewing angle: 120° | 310±5nm | 4.0~12.0mW@100mA | Skin treatment(Vitiligo&Psoriasis), DNA detection, analysis and identification, Genetic engineering, Fluoroscopy detection, Physiotherapy instrument(Vitamin D supplement), Plant growth, Pet lamp |
UVA 340-400nm
RECOMMENDED UV APPLICAELONS
Printing and Glue Curing / Printing Ink Curing / Plant Grouth Light Source / Mosquito and
Insect Trapping /Biological Reagent / Fluorescent Lighting / Currency Counting and
Verification Equipment /Fluorescent Detection of Currency Verification / Flaw Detection /
Jewelry and Jade Detection / MedicalDetection / Biological Reagent /Beauty and Nail
Enhancement / Purple Flashlight LED......
