Product Overview
Description
Product Description
Overview | ||||||||
Yeacomm NR330-Q LTE 5G Gateway supports NR (SA&NSA), TDD-LTE and FDD-LTE cellular network, it comes with 1x1Gigabit WAN/LAN port, 1x1Gigabit LAN port and 2.4G/5G dual-band WIFI6. This device is suitable for home and commercial scenarios that require rapid deployment of WIFI hotspots and wired broadband networks, it brings you high speed WiFi wherever you want. | ||||||||
High Performance Processor
MTK7621 high performance dual-core CPU ensures the high speed processing
performance.
performance.
Ultra-fast 5G speed up to 3.47Gbps
It supports 5G/4G/3G full networks and SA&NSA modes. Built-in 6 cellular antennas ensure the best signal is received wherever it is placed.
Super-fast WiFi up to 1.8Gbps
Yeacomm NR330-Q 5G CPE supportsWiFi6 and the WiFi speed is up to 1.8Gbps (1200Mbps on 5Ghz and 573Mbps on 2.4Ghz).
Efficient Heat Dissipation
High conductivity materials, streamlined shape, top chimney design and cooling fan greatly improve the heat dissipation effect and ensure long time high-speed and stable operation.
Aesthetic Design and Portable Size
The aesthetic appearance makes NR330-Q 5G CPE fit your surroundings nicely and neatly, portable size brings you the
high-speed internet wherever you want
high-speed internet wherever you want
Plug and Play
The device could automatically fix network problems in real-time without manually restarting or reconfiguring the network, makes it easier to access the Interne.
specification

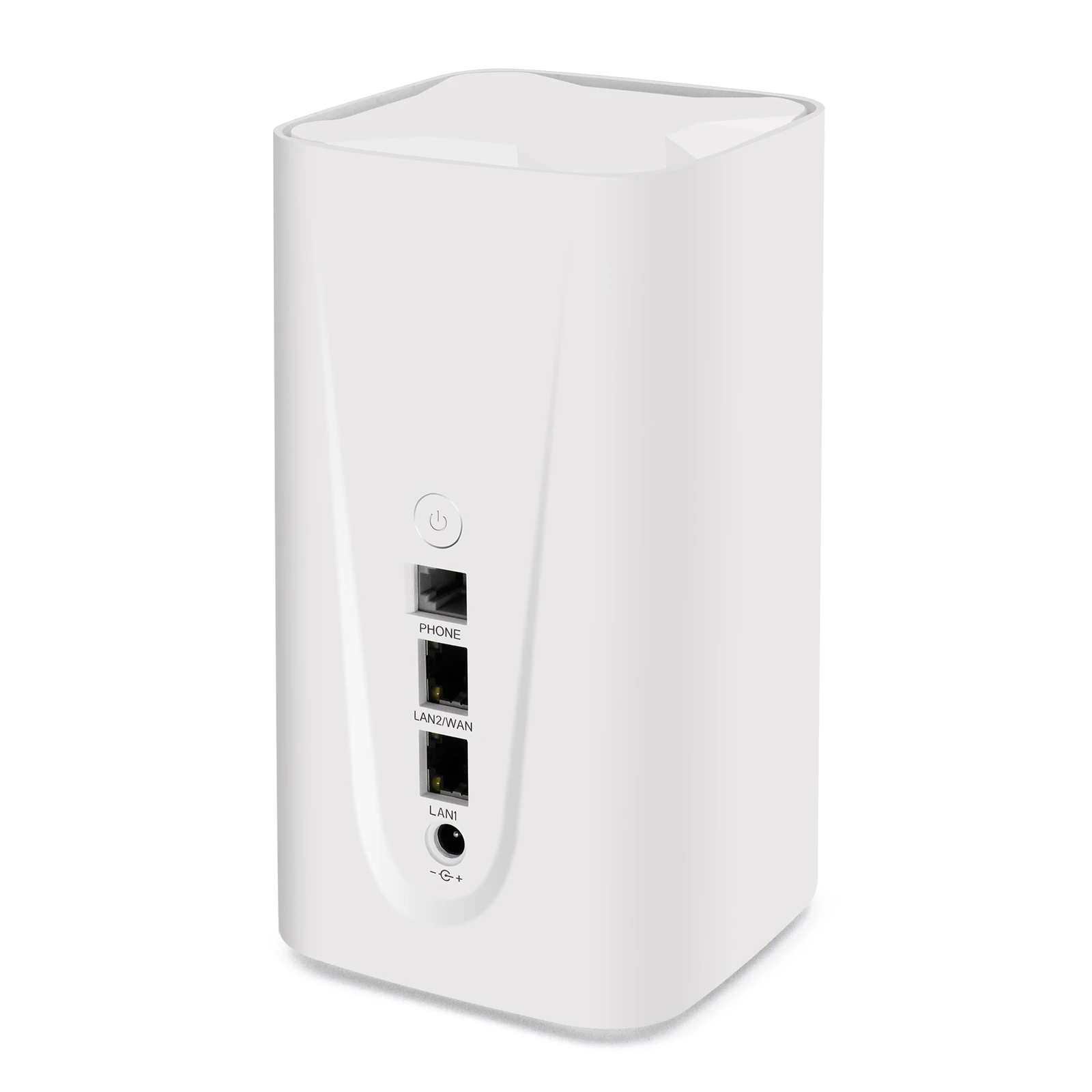

Interfaces | ||
LAN/WAN Port | 1 x 1Gigabit Ethernet (RJ45), auto MDI/MDIX | |
LAN Port | 1 x 1Gigabit Ethernet (RJ45), auto MDI/MDIX | |
Phone Interface (Optional) | 1 x RJ11 port | |
Indicator | Signal, 5G, 4G, WIFI, Power | |

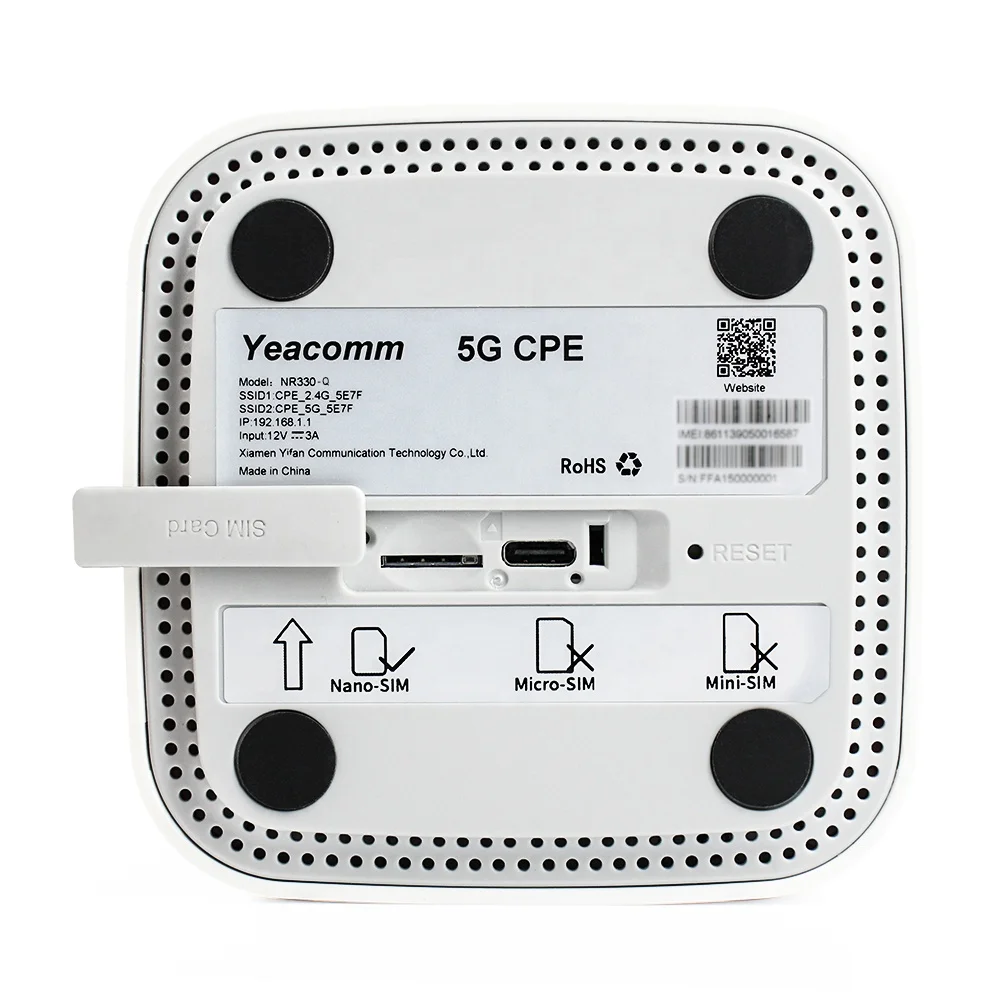

SIM/UIM Card | Signal, 5G, 4G, WIFI, Power | |
Power Interface | Three-core DC locomotive power socket, built-in power reverse protection | |
USB Port | Type C 2.0 | |
Reset Button | Reset the parameters to default setting | |
Cellular Parameters | ||||||||
Frequency Band | Standard Version: 5G NR: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75 /N76/N77/N78 LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE TDD: B38/B40/B41/B42/B43 WCDMA B1/B5/B8 Optional Version : 5G NR: N1/N2/N3/N5/N7/N8/N12/N20/N25/N28/N38/N40/N41/N48/N66/N71/N77 /N78/N79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29 /B30/B32/B66/B71 LTD-TDD: B34/B38/B39/B40/B41/B42/B43/B48 LAA:B46 WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 | |||||||
MIMO | 5G NR: DL 4×4 MIMO,UL 2×2 MIMO LTE: DL 4×4 MIMO | |||||||
Theoretical Bandwidth | 5G NR: DL 3.47Gbps,UL 900Mbps LTE: DL 1.6Gbps (CAT19),UL 211Mbps (CAT18) | |||||||
WIFI Parameters | ||||||||
WIFI Protocol | IEEE802.11 a/b/g/n/ac/ax (WIFI 6) | |||||||
WIFI Frequency Band | 2.4GHz+5GHz | |||||||
Theoretical Bandwidth | 5GHz 4x4MIMO 11ax, 1.2Gbps 2.4GHz 4x4MIMO 11ax, 0.573Gbps | |||||||
Channel Bandwidth | 20MHz, 40MHz, 80MHz | |||||||
Hardware | ||||||||
CPU | MTK7621 CPU@880MHz,Dual-core | |||||||
5G Chipset | Qualcomm SDX62 or SDX55 | |||||||
Flash | 128MB | |||||||
DDR3 | 512MB | |||||||
Software | ||||||||
Network Status | Signal strength Network type(5G/4G) SIM card status, Wi-Fi Status, LAN Status | |||||||
System Status | Mobile parameters, APN/DHCP/Wi-Fi information, Memory details, Version/Device information | |||||||
Internet Settings | Network mode setup, Data switch, Roaming setup | |||||||
APN Setup | APN name, Nat Switch on APN bear, PDP(IPV4/IPV6/IPV4V6), MTU size | |||||||
SIM Card | PIN Management SIM card Authentication | |||||||
DHCP Setup | Enable/disable DHCP server Configure DHCP IP Pool Configure DHCP Lease Time | |||||||
Static Route | Route Setup on WAN/LAN interface | |||||||
DDNS | Support | |||||||
Band Lock | Support | |||||||
PCI Lock | Support | |||||||
Cell Lock | Support | |||||||
Carrier SIM Lock | Support | |||||||

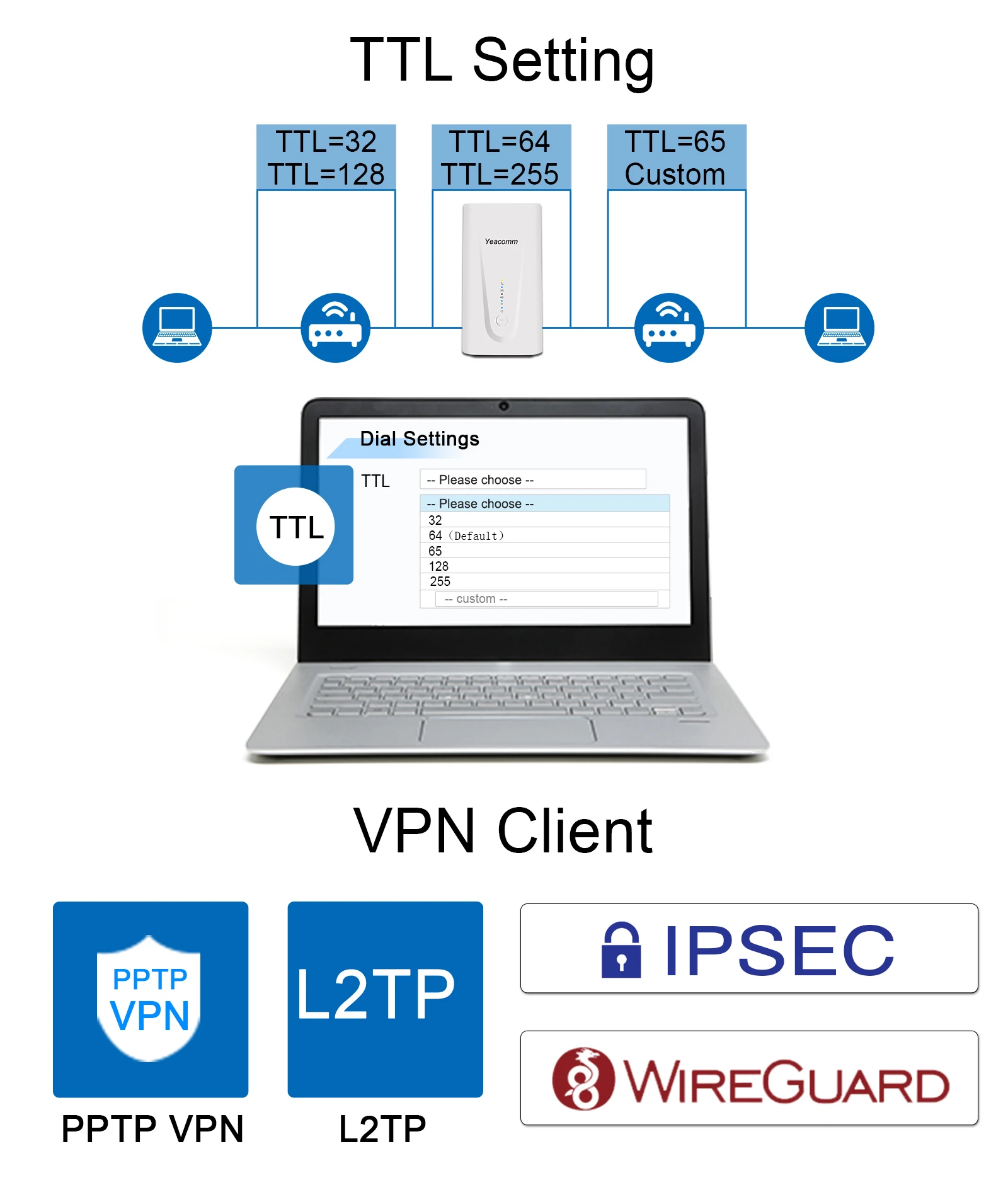

VPN | PPTP, L2TP, IPSEC | |||||||
