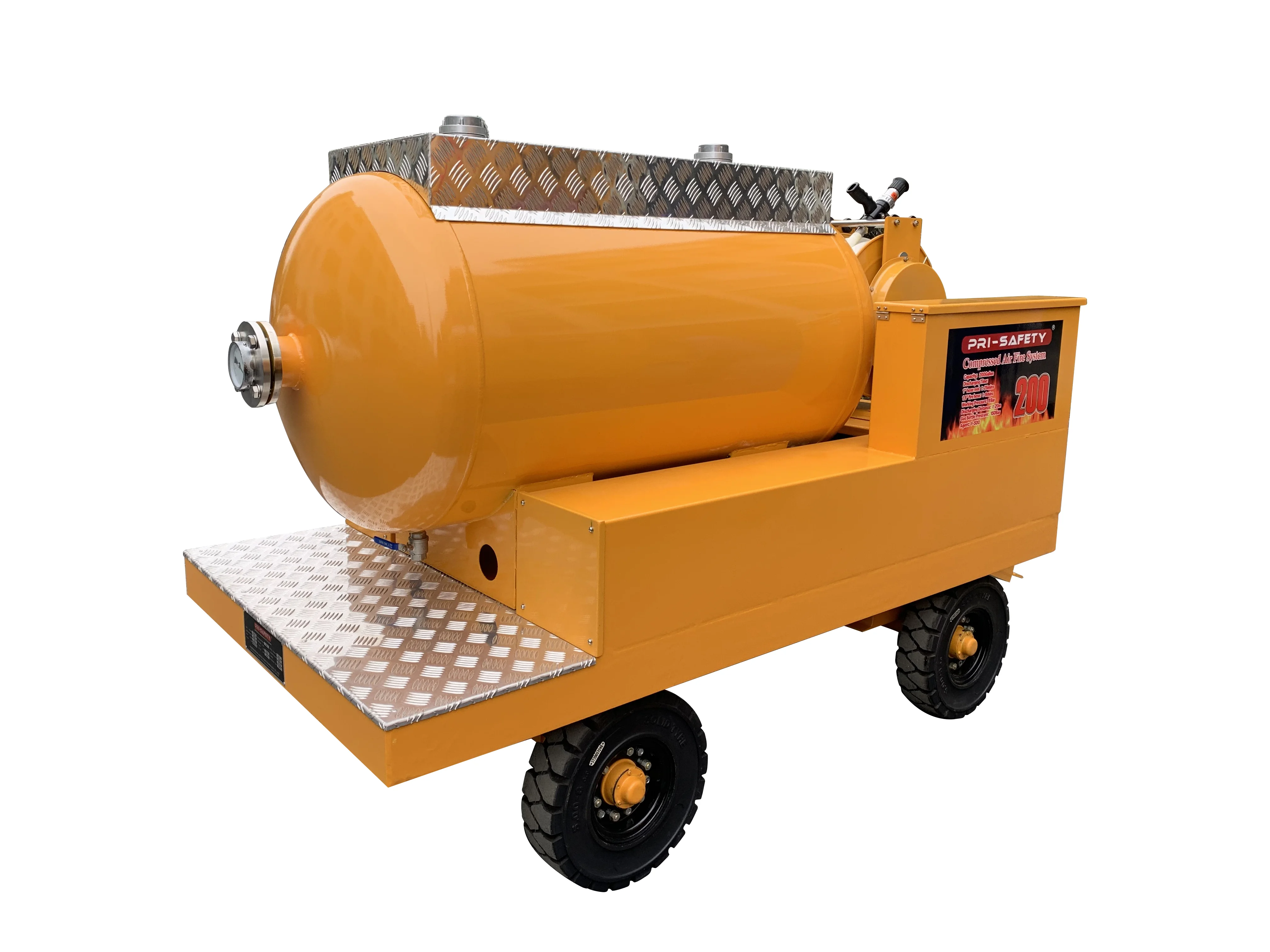

Firefighting with Compressed Air Foam Systems 200Gallon
- Category: >>>
- Supplier: Hangzhou Pri-Safety Fire Technology Co. Ltd.
Share on (1600664725286):
Product Overview
Description
Product Description

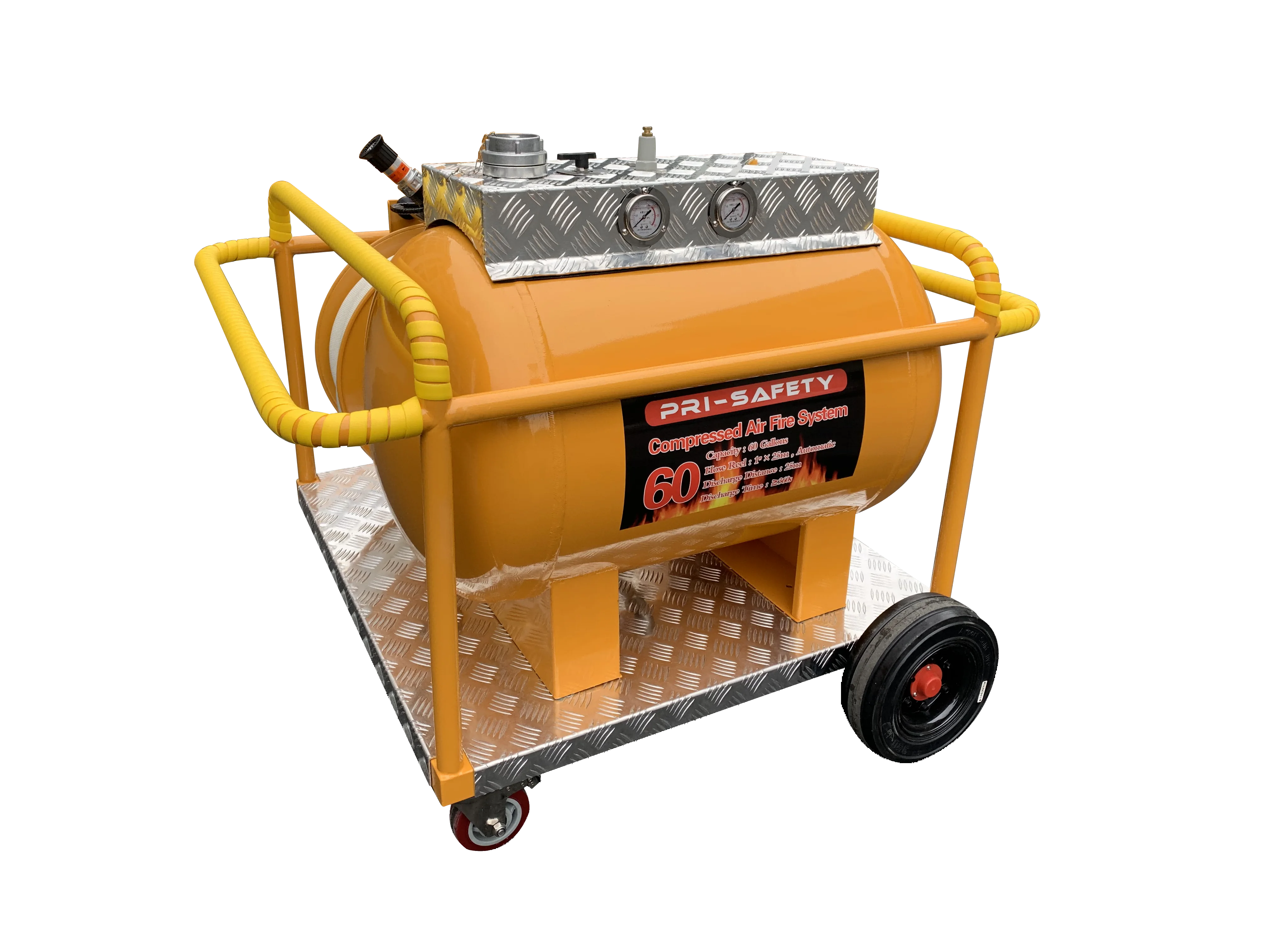

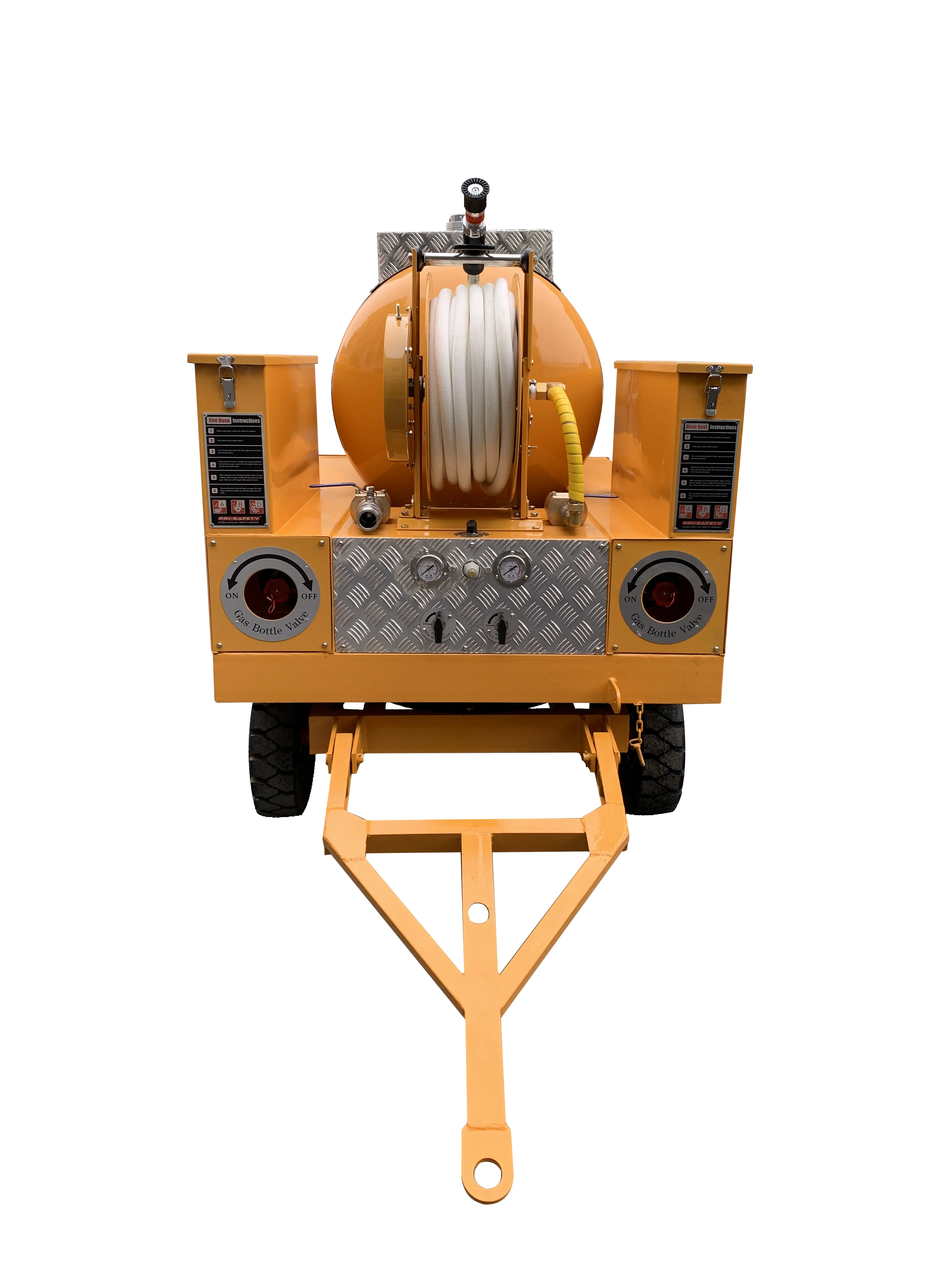

Compressed Air Foam (CAF) Systems
Compressed air foam systems use a superior fire retardant foam to put out fires effectively in a short time.
When a fire breaks out, the system releases a foam over a large area which coats the fire, cooling it and cover the surface of flammable material to prevent re-ignition.The superior foam in the extinguishing medium reduces the surface tension so that the foam agent can penetrate deeper into the flammable material and achieve a better quenching effect.
CAFS suppresses fires quickly from an excellent throw distance with less damage to the area. Compressed Air Foam Systems is ideal to a much smaller area than alternative solutions, greatly decreasing your infrastructure requirements
When a fire breaks out, the system releases a foam over a large area which coats the fire, cooling it and cover the surface of flammable material to prevent re-ignition.The superior foam in the extinguishing medium reduces the surface tension so that the foam agent can penetrate deeper into the flammable material and achieve a better quenching effect.
CAFS suppresses fires quickly from an excellent throw distance with less damage to the area. Compressed Air Foam Systems is ideal to a much smaller area than alternative solutions, greatly decreasing your infrastructure requirements
and cost.
The systems are suitable for offshore oil and gas facilities, heliports and helidecks, small or large rapid response Vehicles, fuel pumping and storage locations,mining, marine vessels and boats, racetracks, fracking and frac tank protection, airports, forestry, and parking garages etc.
Product Features
• Foam to coat large areas incredibly quickly
• prevent re-ignition- foam sticks to flammable material
• prevent re-ignition- foam sticks to flammable material
• Rapid smothering of flames through oxygen deprivation
• Extensive extinguishing agent quantity
• Reduced environmental impact-limiting water damage
• More cost-effective option
• Quick discharge-put out fires wirh less damage

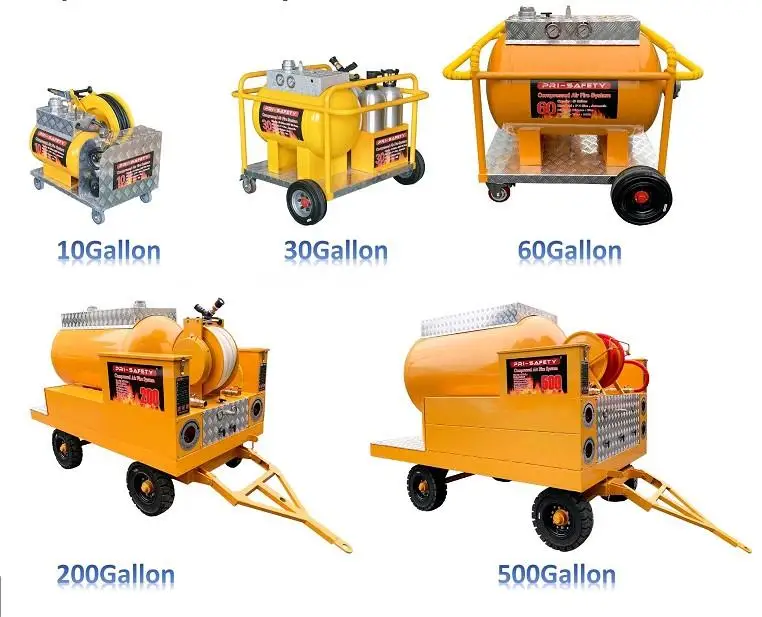

Specification
Items | 10Gallon | 30Gallon | 60Gallon | 200Gallon |
Premix Tank Volume (L) | 38L | 120L | 235L | 760L |
Discharge Nozzle | ½” | 1" | 1" | 1“ hose reel and 1.5” fire hose |
Discharge Rate (L/min) | 16L/min | 32.5L/min | 35L/min | ＞35L/min |
Discharge Distance (M) | 15M | 23M | 23M | ＞23M |
Aluminum Air Cylinder | 2units x 7L | 2units x 13L | 2units x 13L | 2units x 80L |
Automatic Fire Hose Reel | ½”x25M | 1"x25M | 1"x25M | 1"x25M |
Pressure Relief Valve | ≥ 12Bar | ≥ 12Bar | ≥ 12Bar | ≥ 12Bar |
Discharge time (s) | 150s | 220s | ≥400s | 1” hose reel: ≥25mins 1.5” fire hose: ≥8mins |
Size （LxWxH）(MM) | 760x550x680 | 1170x1220x1040 | 1270x1320x1140 | 2400x1220x1760 |
Weight (Loaded/Empty) (KG) | 121kg / 76kg | 180kg / 315kg | 220kg / 450kg | 810kg/1570kg |
Application
• Offshore oil and gas facilities
• Heliports and helidecks
• Small or large rapid response Vehicles
• Heliports and helidecks
• Small or large rapid response Vehicles
• Fuel pumping and storage locations,
• Mining, marine vessels and boats
• Mining, marine vessels and boats
• Racetracks, fracking and frac tank protection
• Airports, forestry, and parking garages
• Airports, forestry, and parking garages

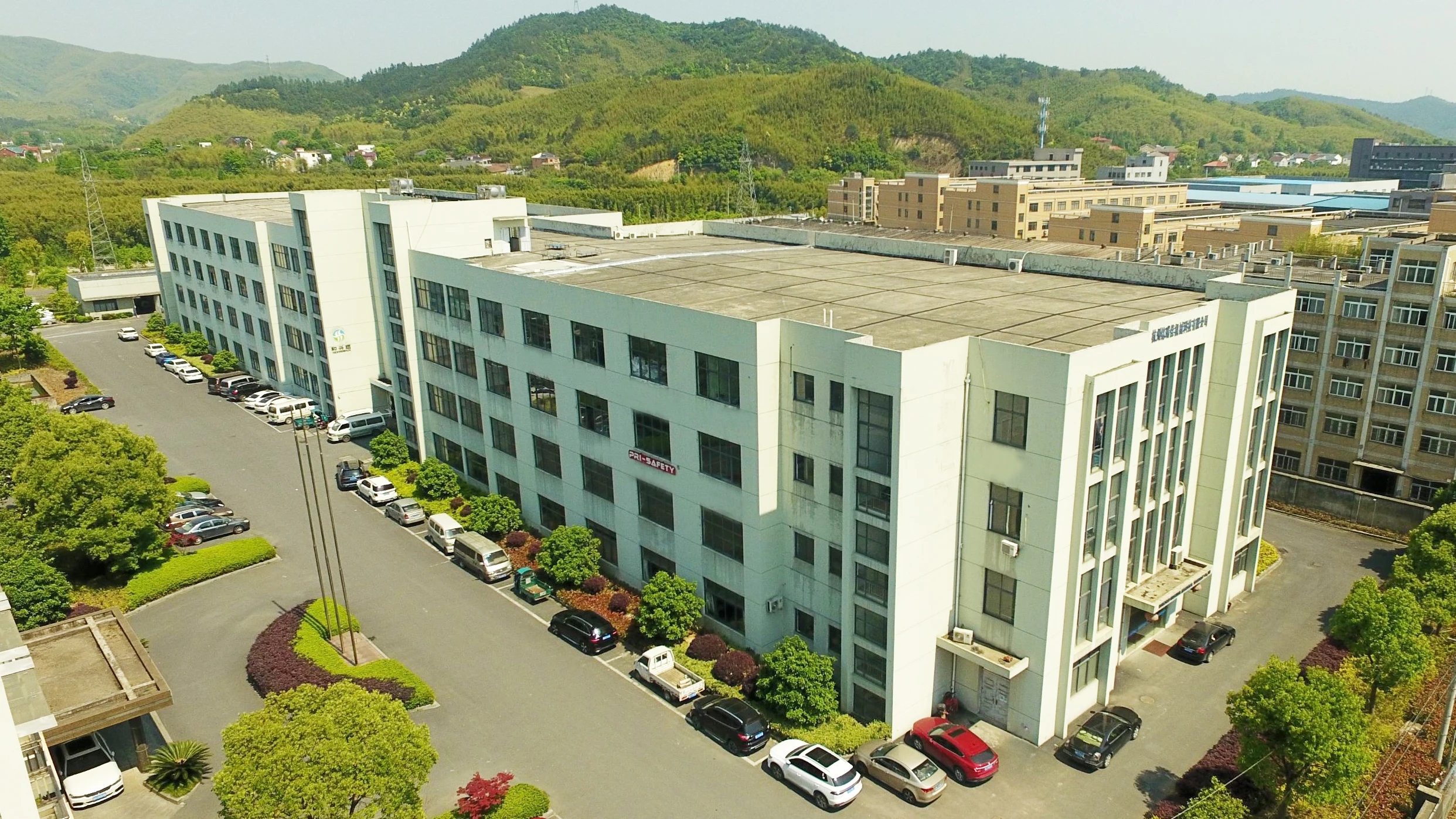

Company Profile
HANGZHOU PRI-SAFETY FIRE TECHNOLOGY.CO.,LTD., established in 1997,is a tech enterprise, specializing in the manufacturing ,R&D of fire fighting products and automatic fire suppression systems with over 20 years experience.
Our main products are automatic fire suppression systems,including kitchen fire suppression systems, vehicle suppression fire systems, electric equipment fire suppression systems, mining machine suppression fire systems, boat and yacht fire suppression systems, oil truck fire suppression systems, compressed foam fire systems (CAFS), tube type automatic fire suppression systems.
What’s more,we also provide cooking oil pan stick type fire extinguisher, throwing fire extinguishers, conventional fire
extinguishers and customized fire fighting products etc. Our products have been widely sold to overseas market-Europe, Middle East, America, south America, Africa, and Asia, etc. Most of our products have achieved key certifications including
CE,EN3,EN671,MED,etc.Each product will be tested and inspected before packing.
PRI-SAFETY aims to provide high performing fire protection systems and excellent services to our customers.Our technical team has been working on the innovation of fire fighting products so that your property and valuables are protected from fire hazards. PRI-SAFETY is the fire protection company you can trust.
What’s more,we also provide cooking oil pan stick type fire extinguisher, throwing fire extinguishers, conventional fire
extinguishers and customized fire fighting products etc. Our products have been widely sold to overseas market-Europe, Middle East, America, south America, Africa, and Asia, etc. Most of our products have achieved key certifications including
CE,EN3,EN671,MED,etc.Each product will be tested and inspected before packing.
PRI-SAFETY aims to provide high performing fire protection systems and excellent services to our customers.Our technical team has been working on the innovation of fire fighting products so that your property and valuables are protected from fire hazards. PRI-SAFETY is the fire protection company you can trust.
Workshop
Packing & Delivery
•Each products will be tested and inspected before packing-quality assurance.
•environment friendly packaging -to help your business go green.
•professional ,convenient and efficient packaging-to protect your goods well.
•environment friendly packaging -to help your business go green.
•professional ,convenient and efficient packaging-to protect your goods well.
