Price:$265.00 - $275.00
Price in USD:Details

Quantity:


Product Overview

Description











Hardware
CPU
Octa-core Qualcomm SDM450 1.8GHz
GPU
Adreno 506
RAM
2GB （4GB optional）
Internal Memory
16GB （64GB optional）
External Memory
Micro SD card ( T-FLASH card), max 128GB
Main Camera
Rear 16 MP，autofocus camera with flash

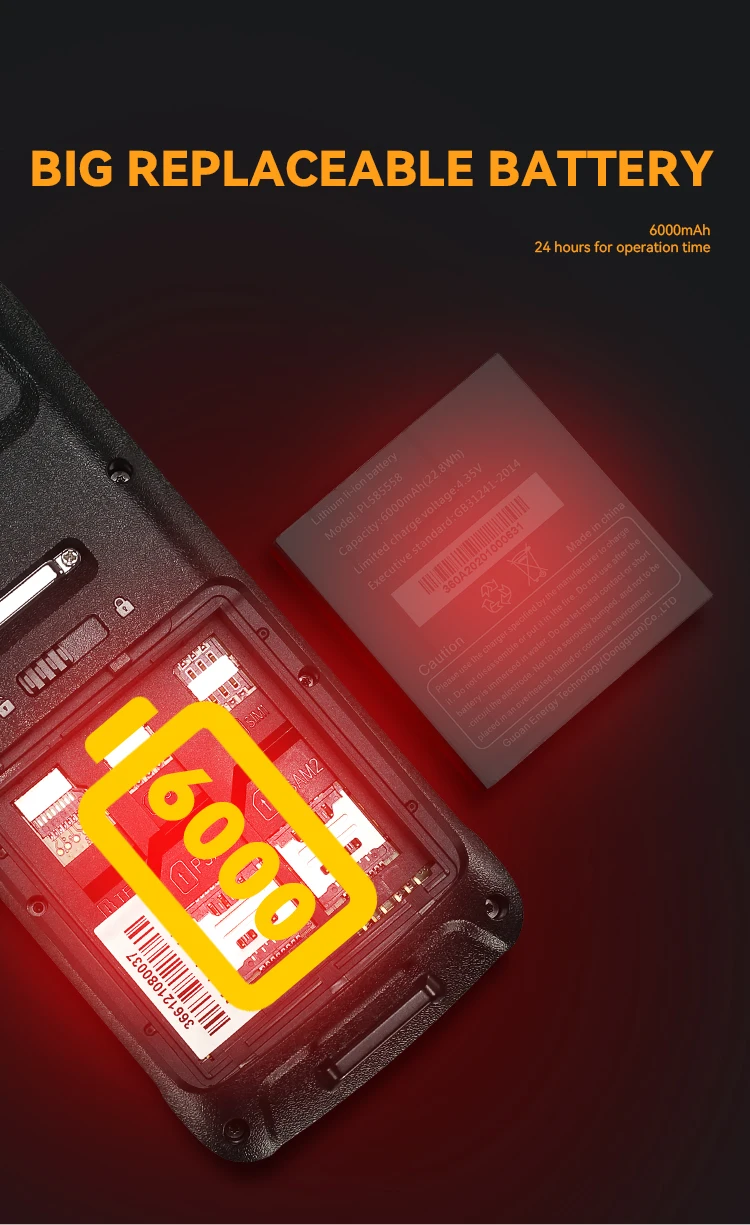

Battery
3.8V，6000mAh(removable)

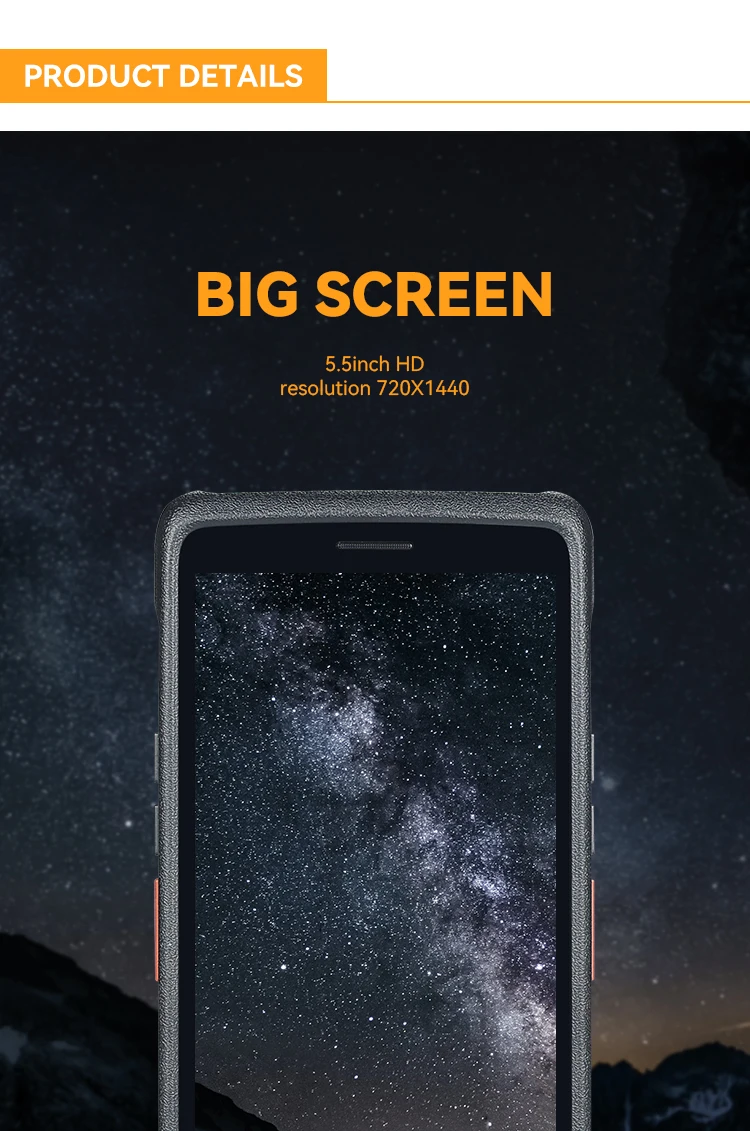

Display
5.5 inch IPS HD screen 450nit, respectively rate (720 * 1440)
Touch Panel
Corning's third-generation Gorilla Glass, capacitive screen, multi-touch, support wet hands, glove operation Use anti-oil stain and anti-fingerprint coating


IO/Sensor/Navigation
Expansion Slots

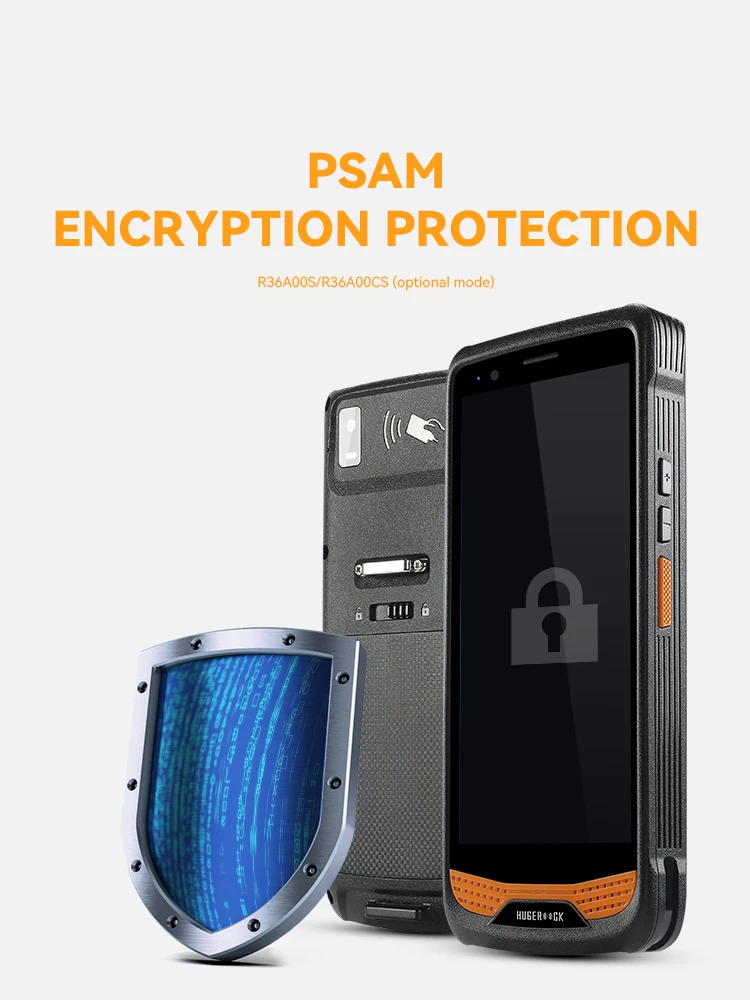

Nano-SIM card*2, TF card*1 ,PSAM*4
TF Card
Expansible through TF, support 128GB

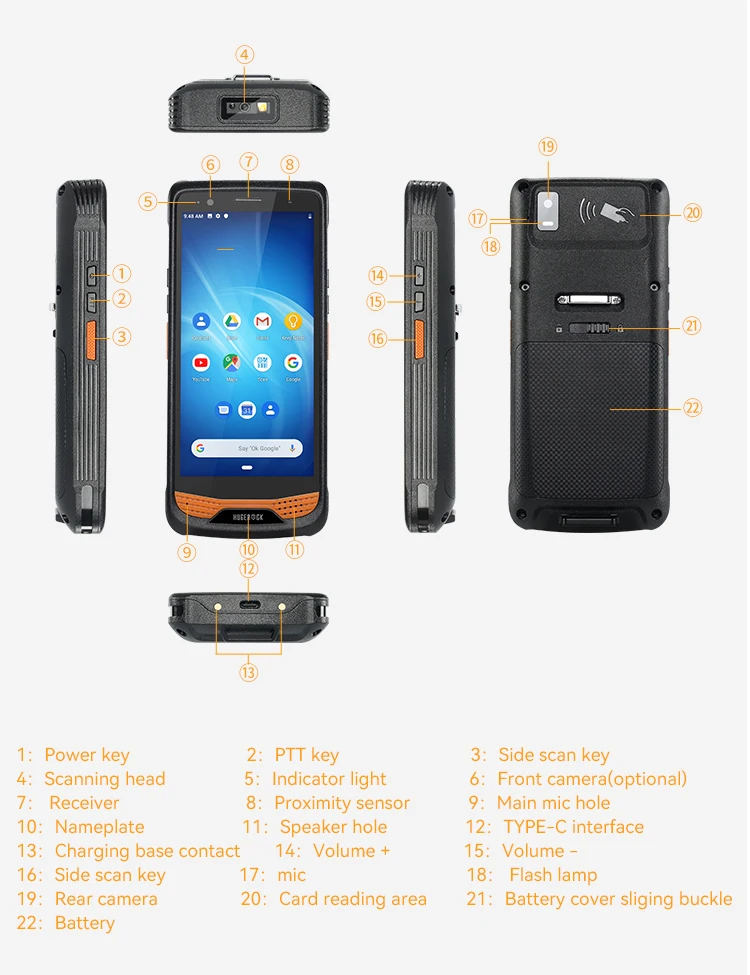

keyboard
Side buttons: Power button、SCAN button*2、Volume button、PTT button Screen virtual button: Back、Menu、HOME
Data interface
USB 2.0 Type-C , support OTG
Direction Sensor
Support
Gravity sensor
Support
Magnetic Field Sensor
Support
Motion sensor
Support
Rotation Vector
Support
Light-sensor
Support
Acceleration sensor
Support
Charger
5.0V 2A-10W
Navigation
Integrated GPS + GLONASS + Beidou positioning, support APGS


Appearance
Size

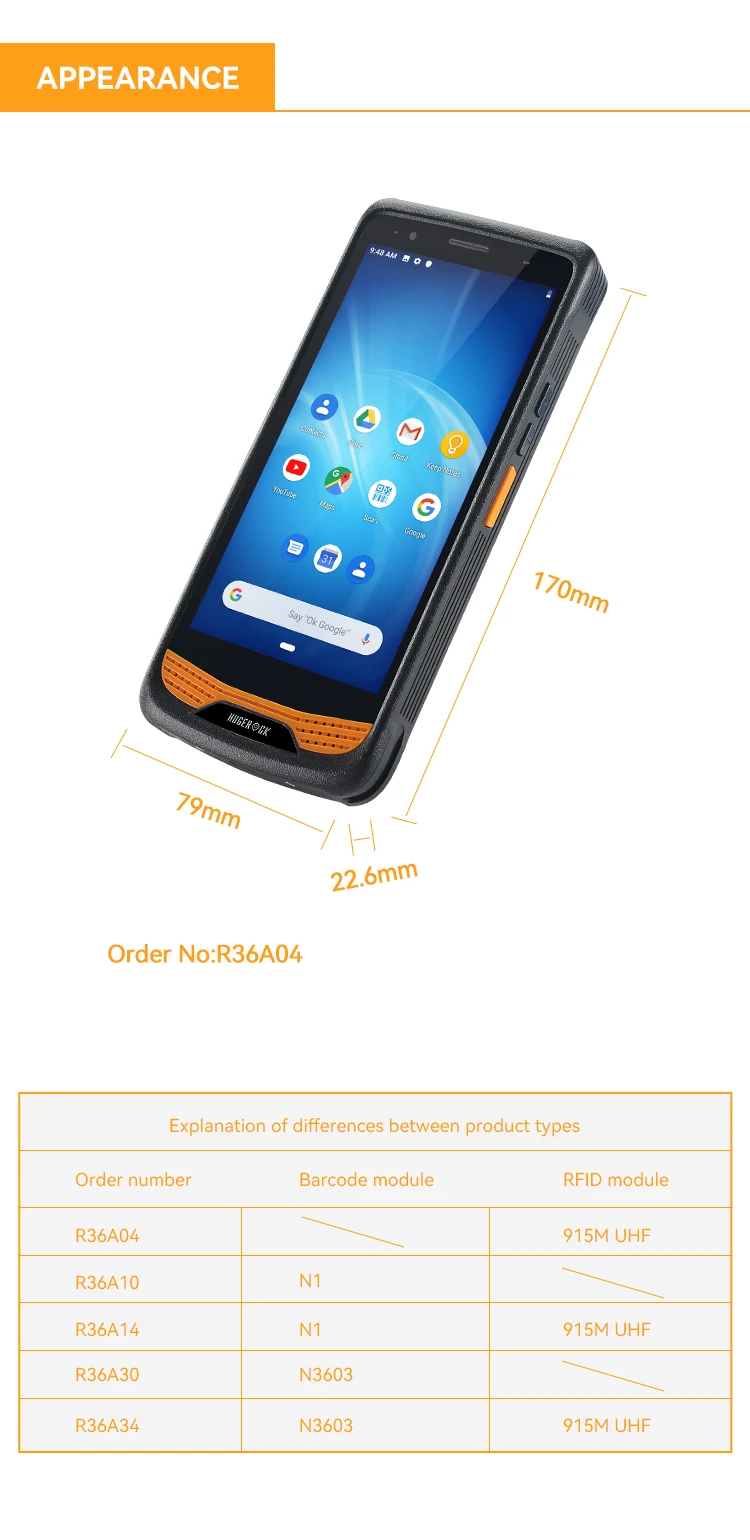

170*79*22.6mm（L×W×H）

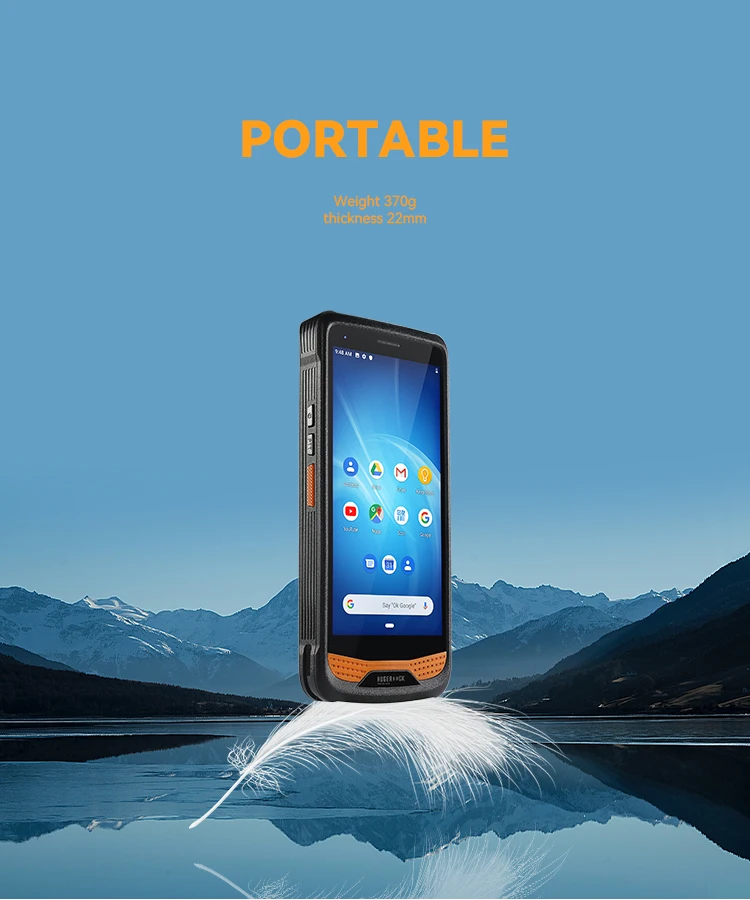

Weight
370g
Color & Material
Black


Communications & Networking
Phone Call
GSM/GPRS /TD-SCDMA/WCDMA
EUR&AP VER（Standard）
GSM：B2/B3/B8
WCDMA: B1/B5/B8 TD-SCDMA (B34/B39), CDMA:BC0、EVDO(BC0)
TDD-LTE: （B38/39/40/41） FDD-LTE: （B1/3/5/7/8/20）
NA&SA VER（Options）
TDD-LTE: B3/4/5/4/7/12/13/17/28b WCDMA: B2/4/5
JPN VER（Options）
TDD-LTE: B1/3/8/9/19/26/28 WCDMA: B1/8/9/19
WI-FI

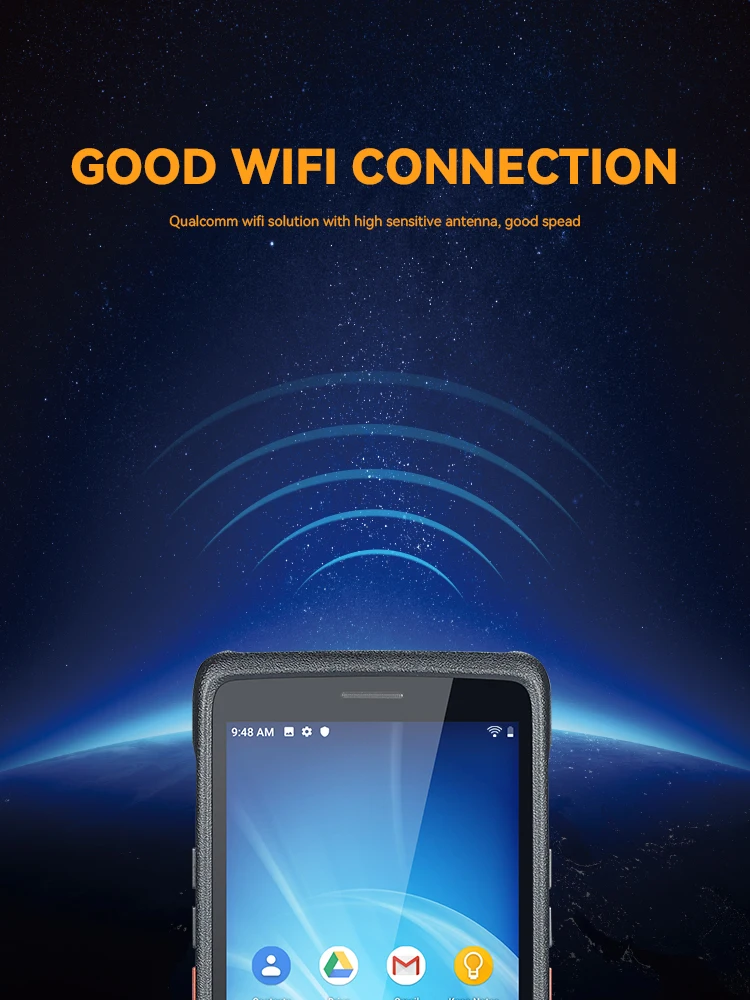

Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac
BT
4.0 BLE


Industrial & Reliability Design
Shake-proof
1-19Hz/1.0mm; 19-200Hz/1.0g
Dropproof /IK
MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05

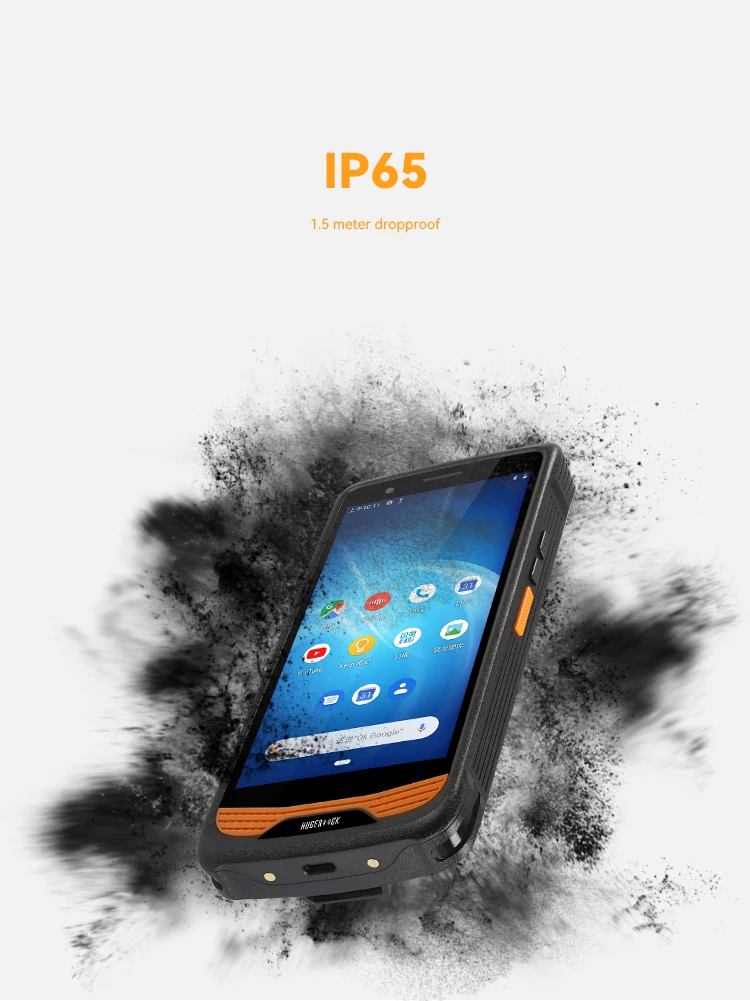

Waterproof
Class 5 ( IEC 60529 )
Dustproof
Class 6 ( IEC 60529 )
Drop specification
Within the operating temperature range, all 6 sides can withstand the impact of multiple drops to the concrete floor from a height
of 1.2 meters
Rolling test
Continuously rolling 1,000 times at 1.6 feet/0.5 meters, the 6 contact surfaces still run stably after rolling, reaching IEC
rolling specifications
Static Protection
±8KV air discharge, ±4KV contact discharge
Reliability
MTBF>5000h；MTTR<0.5h
Operating temperature
-10°C to 50°C
Storage Temperature
-40°C to 70°C
RH
5% to 95% (No condensation)
Operating Altitude
Max: 4,500 m（15,000 feet）


Certification/OS/Software
Language
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian,
Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc
OS
Andriod 9.0
SDK
Software Development Kit
Development language
Java
development tools
Eclipse/Android Studio


Package/Warranty terms/OEM
Warranty
12 months
OEM/ODM
Support
Package

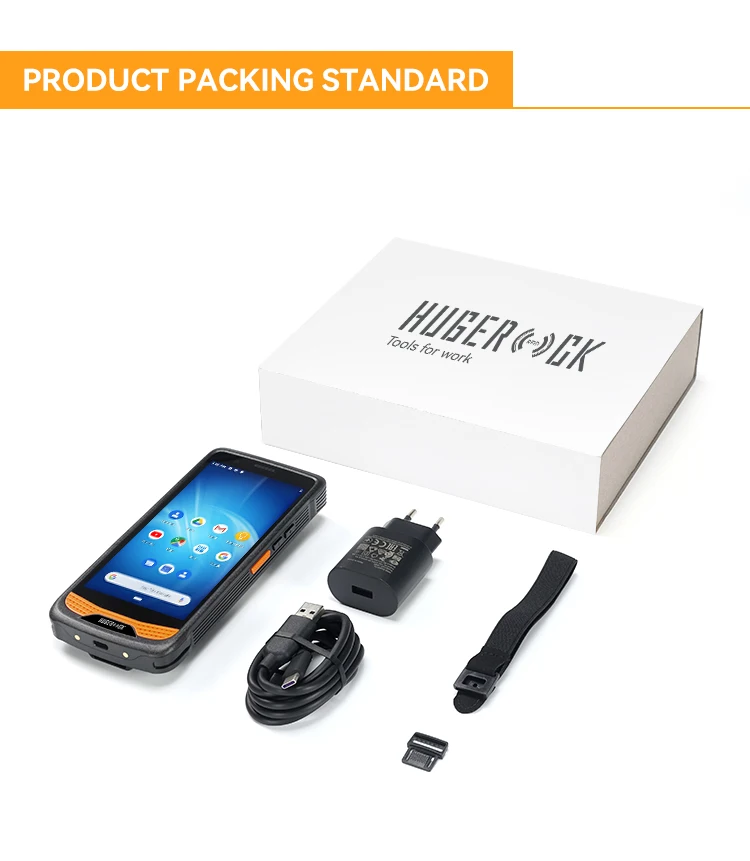

Power adapter*1、USB data line*1、Charging machine*1 、Battery*1




Sub Camera
8.0MP


LF RFID data collection
125K LF ID Module
LF RFID，125K
134 LF RFID Module
LF RFID，134k Animal module

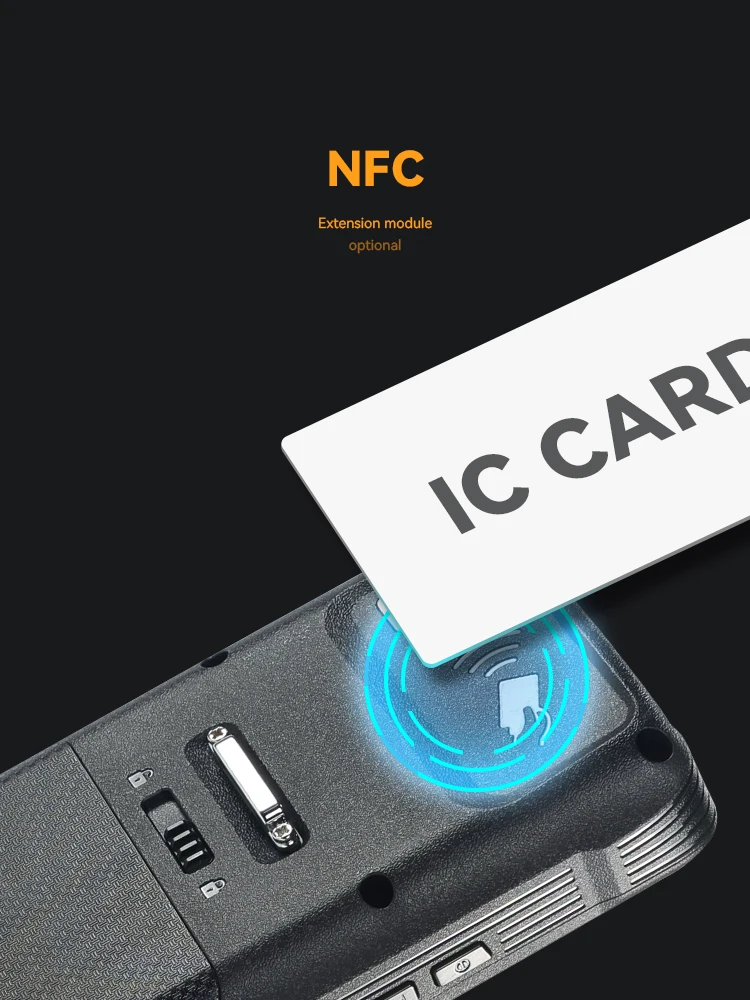

HF RFID/NFC
Frequency
13.56MHz
Protocol standard
ISO14443A/B,ISO15693，NFC
Label standard
M1(S50、S70)、CPU、NFC
Read-write distance
2-5cm

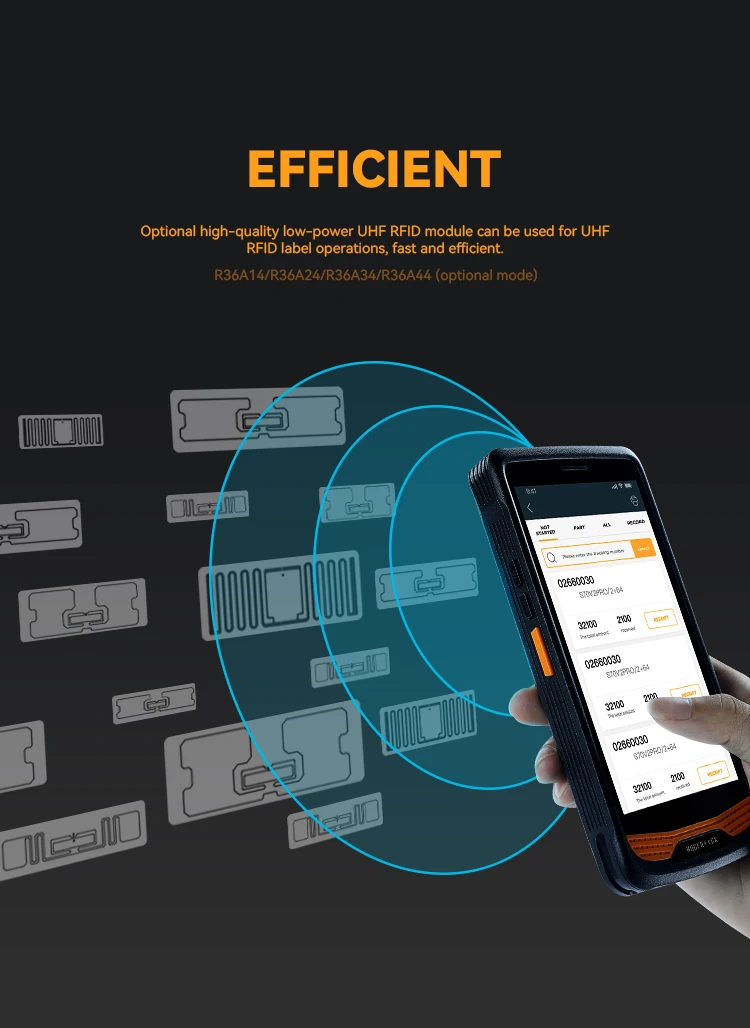

UHF RFID data collection
Frequency
FCC (United States) 902-928MHz;
ETSI (Europe) 865-867MHz;
SRRC-MII (China) 840-845MHz, 920-925MHz
protocol
EPC Class 1 Gen 2(ISO 18000-6C)
Reading distance
>= 1 meters, using 2dBi ceramic antenna, depending on the size of the electronic tag
Label reading rate
>= 50tags/s

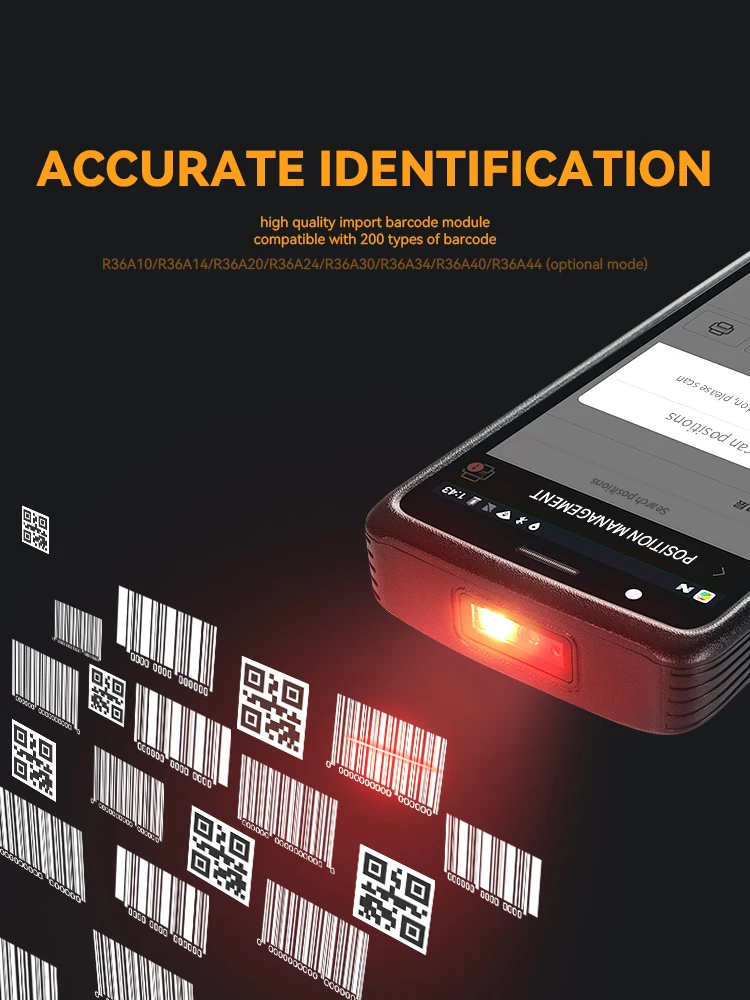

Data Collection
Scanning engine
Newland N1，Minde M5600，Honeywell 6603/3603
1D
UPC/EAN,Code128，Code39，Code93，Code11，Interleaved 2 of 5，Discrete 2 of 5，Chinese 2 of 5，Codabar，MSI，RSS,ETC
2D
Code39，Code128，PDF417，MicroPDF417，DataMatrix，Composite，RSS,TLC-39，QR code，Micro QR code，Aztec，MaxiCode，Postal Code；US PostNet，US
Planet，UK Postal，Australian Postal，Japan Postal,etc.


































Q :Are you manufacturer?

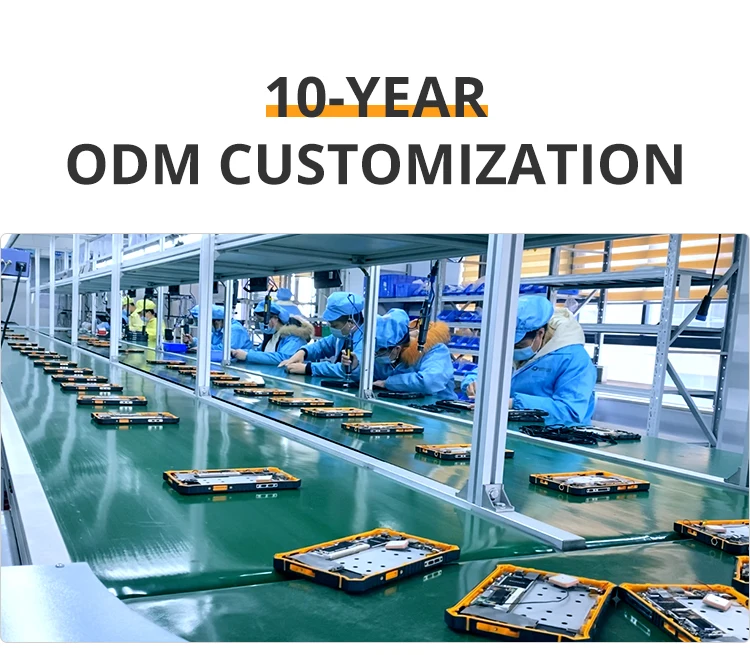

A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.

Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.

Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.

Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.

Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance

Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.

Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.

Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.

Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.

Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences
