Brand New Sealed 2960 L Series switches WS C2960L 48PS LL Gigabit Ethernet Switches
- Category: >>>
- Supplier: Henan Zhanshuo Information Technology Co. Ltd.
Share on (1600664736934):
Product Overview
Description
Product Description
Product Description

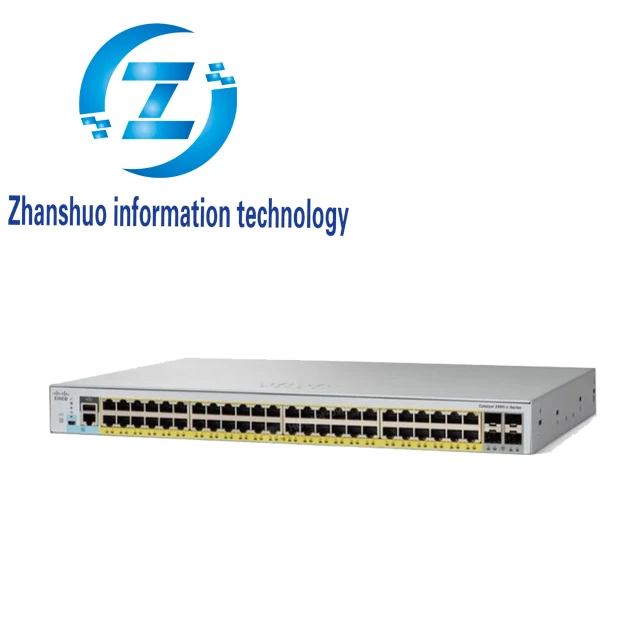

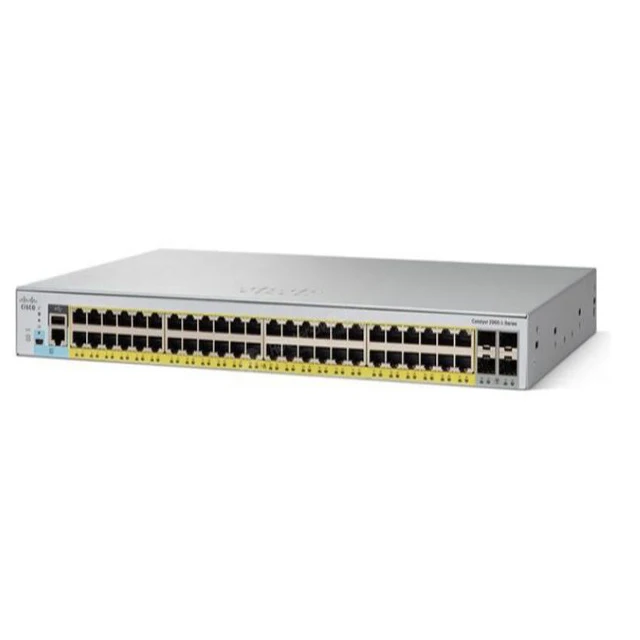

WS-C2960L-48PS-LL offering 48 x GigE PoE+ ports, 4 x 1G SFP and LAN Lite, is one of the Cisc Catalys t 2960-L Series Switches.
These 2960-L switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2
accessfor branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to
lower total cost of ownership, they enable secure and energy-efficient business operations with a range of Cisc IOS Software
features. There is an Asia Pacific Part number: WS-C2960L-48PS-AP. It is the same as the WS-C2960L-48PS-LL.
These 2960-L switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2
accessfor branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to
lower total cost of ownership, they enable secure and energy-efficient business operations with a range of Cisc IOS Software
features. There is an Asia Pacific Part number: WS-C2960L-48PS-AP. It is the same as the WS-C2960L-48PS-LL.

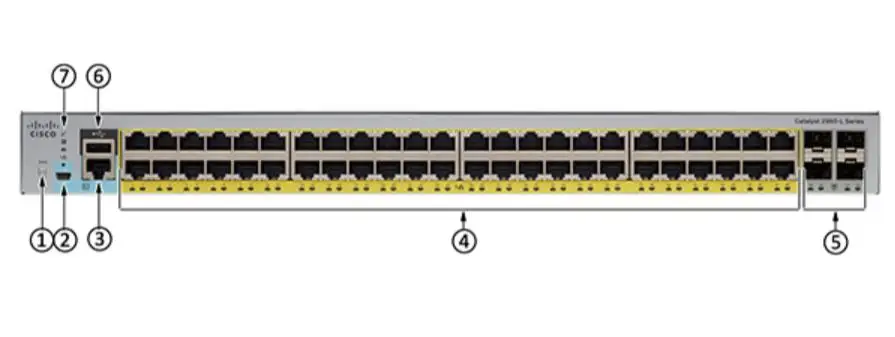

① | Mode button |
② | USB mini-Type B (console) port |
③ | RJ-45 Console Port |
④ | 48 x 10/100/1000 PoE+ ports |
⑤ | SFP module slots |
⑥ | USB Type A port |
⑦ | System LEDs |
Compare to Similar Items
able 2 shows the comparison of WS-C2960L-48PS-LL and WS-C2960L-48TS-LL.
Model | WS-C2960L-48PS-LL | WS-C2960L-48TS-LL |
IOS | LAN Lite | LAN Lite |
Forwarding bandwidth | 52 Gbps | 52 Gbps |
Switching bandwidth | 104 Gbps | 104 Gbps |
10/100/1000 Ethernet Ports | 48 | 48 |
Available PoE Power | N/A | 370W |
Uplink Interfaces | 4 x 1G SFP | 4 x 1G SFP |
WS-C2960L-48PS-LL Specification | ||
Configurations | ||
10/100/1000 Ethernet Ports | 48 | |
Uplink Interfaces | 4 SFP | |
Available PoE Power | 370W | |
Fanless | N | |
Dimensions (H x D x W) | 1.73 x 11.5 x 17.5 in. (4.4 x 29.2 x 44.5 cm) | |
Net Weight | 10.25 lb (4.65 kg) | |
Console Ports | ||
RJ45 Ethernet | 1 | |
USB mini-B | 1 | |
USB-A port for storage and Blueto0th console | 1 | |
Memory and Processor | ||
CPU | ARMv7 800 MHz | |
DRAM | 512 MB | |
Flash memory | 256 MB | |
Performance | ||
Forwarding bandwidth | 52 Gbps | |
Switching bandwidth | 104 Gbps | |
Forwarding rate (64-byte L3 packets) | 77.38 Mpps | |
Unicast MAC addresses | 8K | |
Maximum active VLANs | 64 | |
VLAN IDs available | 4094 | |
Maximum STP instances | 64 | |
Maximum SPAN sessions | 1 | |
MTU-L3 packet | 9198 bytes | |
Jumbo Ethernet frame | 10,240 bytes | |
MTBF in hours (Data) | 1,370,769 | |
MTBF in hours (PoE) | 437,970 | |
Environment | ||
Operating temperature | ||
Up to 5,000 ft | 23ºF to 113ºF (–5ºC to 45ºC) | |
Up to 10,000 ft | 23ºF to 104ºF (–5ºC to 40ºC) | |
Operating altitude | 10,000 ft (3000m) | |
Operating relative humidity | 5% to 90% at 40ºC | |
Storage temperature | –13º to 158ºF (–25º to 70ºC) | |
Storage altitude | 15,000 ft (4500m) | |
Storage relative humidity | 5% to 95% at 65ºC | |
Storage altitude | Minimum ambient temperature for cold start is 0°C (32°F) | |
Electrical | PoE | |
Voltage (autoranging) | 110 to 220V AC in | |
Frequency | 50 to 60 Hz | |
Current | 0.37A to 0.64A | |
Power rating (maximum consumption) | 0.48 kVA | |
Power consumption (watts) 0% traffic 10% traffic 100% traffic Weighted average | 68.4 81.6 81.9 77.3 | |
Safety and Compliance | ||
Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 | |
EMC: emissions | 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A | |
EMC: immunity | EN55024, CISPR24, EN300386, KN24 | |
Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU | |
Telco | Common Language Equipment Identifier (CLEI) code | |
U.S. government certifications | USGv6 and IPv6 Ready Logo | |
Connectors and Interfaces | ||
Ethernet interfaces | 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling | |
100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling | ||
1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling | ||
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling | ||
Indicator LEDs | Per-port status: link integrity, disabled, activity, speed, and full duplex | |
System status: system, PoE, and link speed | ||
Console cables | CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 | |
CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors | ||
Power | Use the supplied AC power cord to connect the AC power connector to an AC power outlet | |
