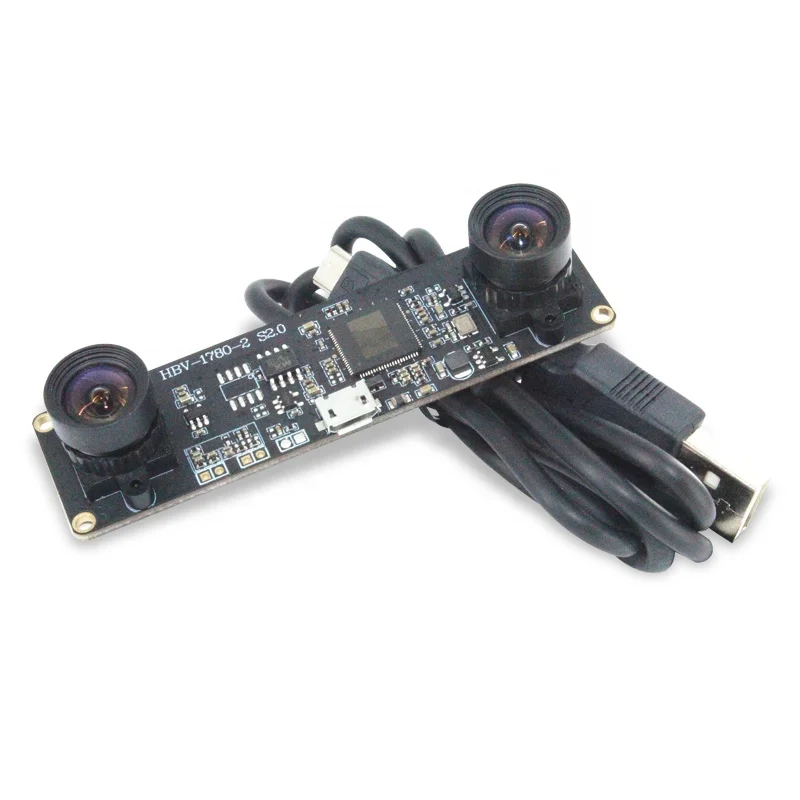

New Arrive 1Mp High Definition 2560*720 Dual Lens 3 Depth OV9327 Sensor synchronous CMOS Camera Module

Product Overview

Description

Module No.	HBV-1780-2 S2.0

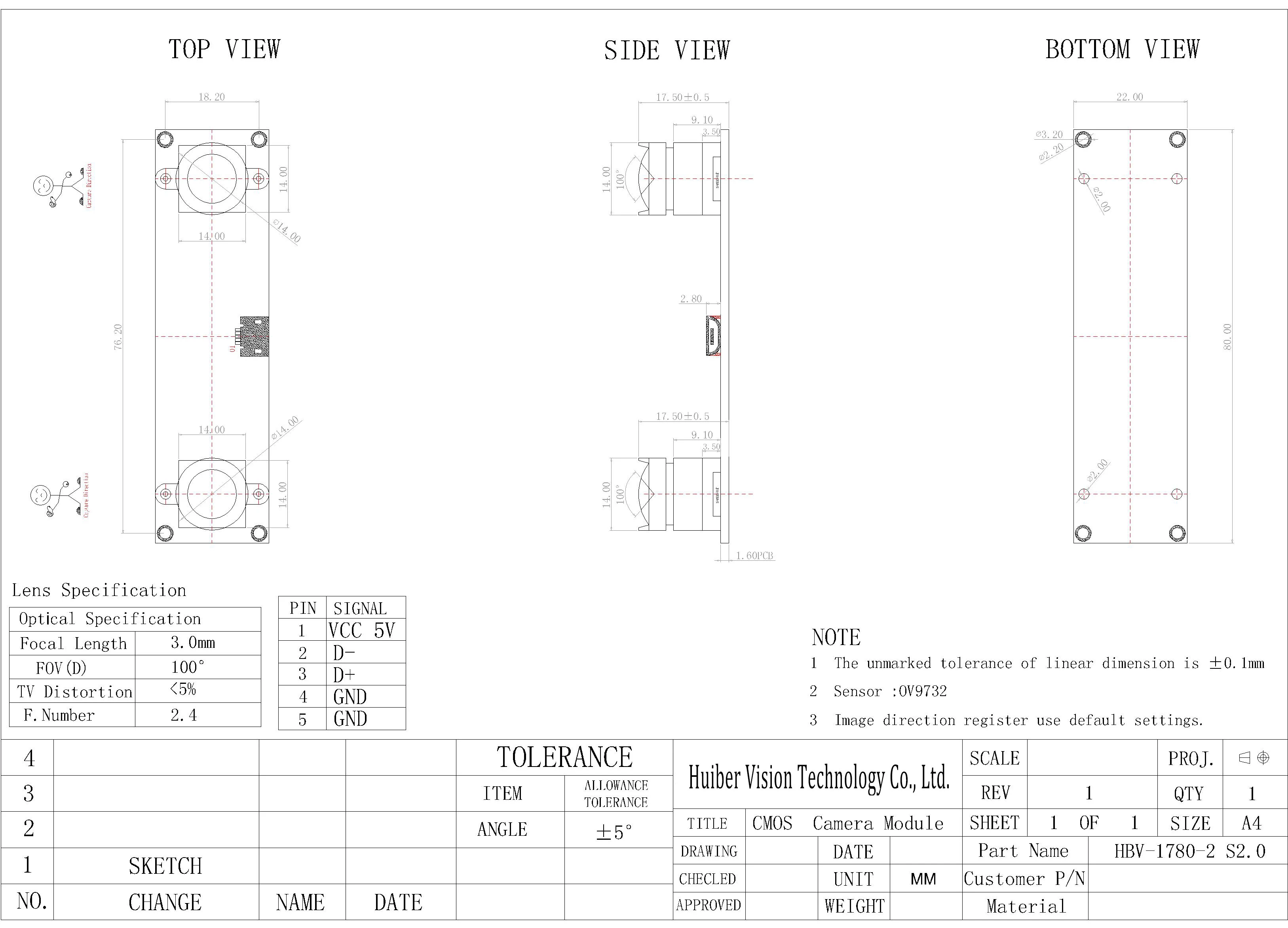

Module Size	80mm × 22mm × 17.5mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	850 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9732 (1/4” )
Seneor Package	CSP,Bare Die
Maximum resolution	2560*720
Sensitivity	2066mV /(lux-sec)
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS
	MJPEG 640x240 30FPS / YUY2 640x240 30FPS
	MJPEG 640x480 30FPS / YUY2 640x480 30FPS
	MJPEG 1280x480 30FPS / YUY2 1280x480 15FPS
	MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS
	MJPEG 2560x720 30FPS / YUY2 2560x720 5FPS
FOV	100°
Certifications	FCC/CE/ROSH

1.Are you camera module manufaurer?

Yes, we are a professional usb camera module manufacturer and our compnay was established in 2013

year



2. Do you supply OEM/ODM service?

Yes, we can supply OEM/ODM service, we also can customize the camera module according to your

requirement.



3. Do you provide samples?What's the MOQ?

Samples are provided, but not free.Some of our products provide a drop shipping service, and some

products have a minimum order of 100 /500pieces



4. How to guarantee quality?

Always a pre-production sample before mass production,and final inspection and test before shipment



5: How to pay for order ?

you can pay by TT, Paypal, Escrow, Western Union



6. Does the camera module can work with Windows/Android/Linux system?

Usually the camera can work with Windows system with free driver, it is a play and plug camera

module, it can also work with some Andorid and Linux system with standard UVC protocol, it need to

be tested whether work with Android and Linux system.



7.Does the camera support OTG?

Most of our usb cameras support OTG function



8.Which software your usb camera module support?

Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer,

ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
