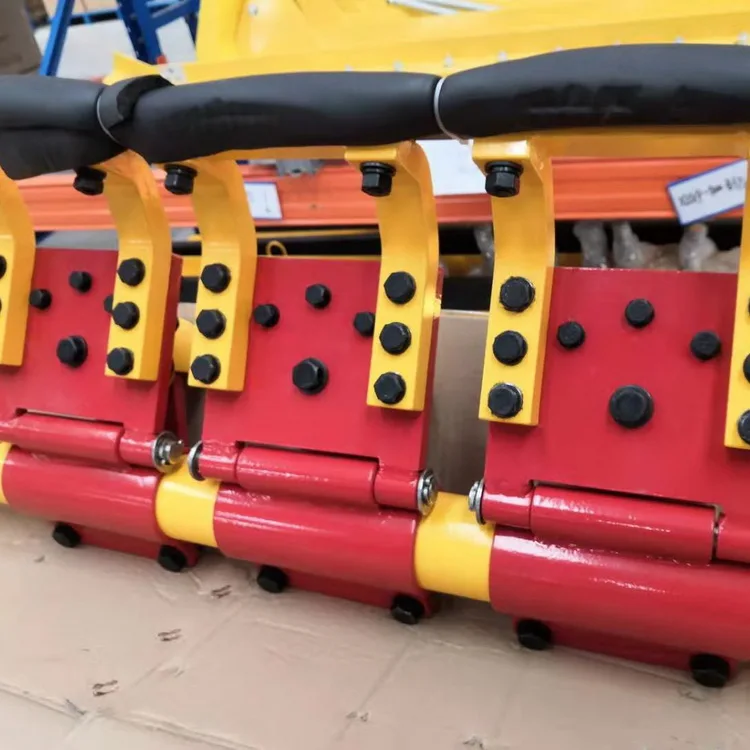

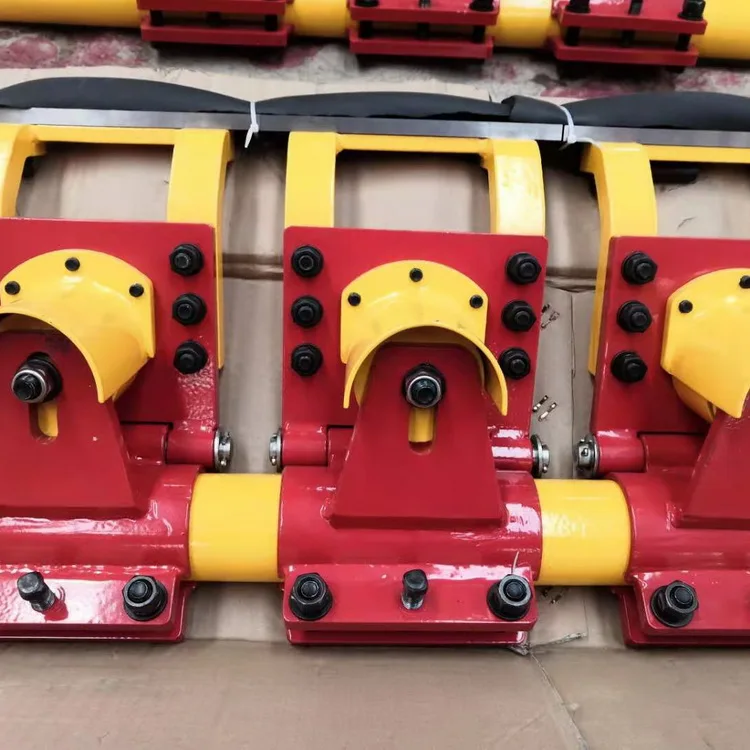

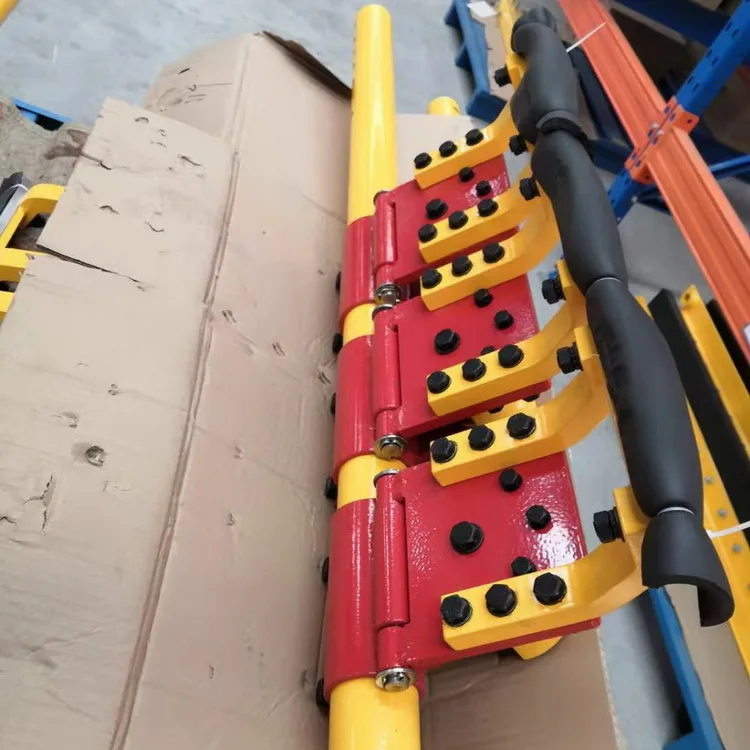

H Type Conveyor Belt Precleaner Scraper Tungsten Carbide Blade Belt Cleaners
- Category: Material Handling Equipment Parts >>>
- Supplier: Tangshan Xieli Conveyor Belt Transport Equipment Co. Ltd.
Share on (1600664764778):
Product Overview
Description
Recommend Products
Products Description
The belt cleaner can effectively wipe off the adhesive materials on the conveyor belt. Proper installation and maintenance of the belt cleaner can reduce the cost of material cleaning, reduce the downtime of the belt conveyor, and extend the service life of the belt and other conveyor components.
Characteristic

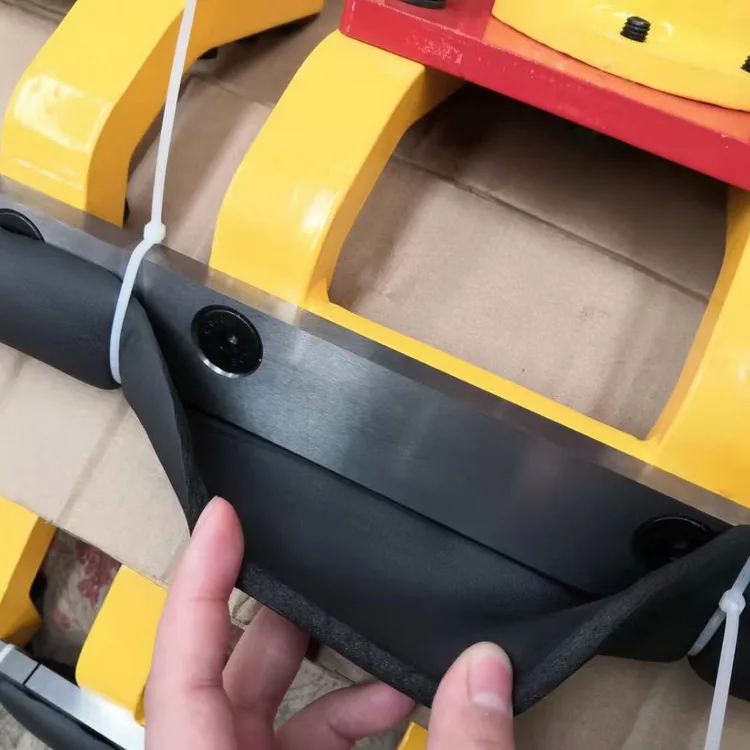

High performance carbide material blade: Wear resistance, corrosion resistance, don't damage to the conveyor belt;
Quick replacement of blade: Remove the retaining nut and can replace the new blade;
Fixed rod split design: Consisting of middle fixed rod and extension rod on both sides, the length of fixed rod can be adjusted;
Carbide belt cleaner | ||||||||
Model | Belt width(mm) | Maximum adjustable steel tube length(mm) | Blade length(mm) | NW/PC (kg) | ||||
XLH | 500 | 1300 | 400 | 34.45 | ||||
650 | 1450 | 600 | 39.32 | |||||
800 | 1600 | 600 | 44.65 | |||||
1000 | 2000 | 800 | 54.41 | |||||
1200 | 2200 | 1000 | 60.33 | |||||
1400 | 2400 | 1200 | 66.25 | |||||
1600 | 2600 | 1400 | 74.85 | |||||
1800 | 2800 | 1600 | 80.77 | |||||
2000 | 3000 | 1800 | 86.69 | |||||
Blade Material: Carbide | ||||||||
H Type Conveyor Belt Precleaner Scraper Tungsten Carbide Blade Belt Cleaners
