truck mounted concrete pump china concrete pump truck concrete pump truck self propelled
- Category: >>>
- Supplier: Xuzhou Asiaway Heavy Machinery Co. Ltd.
Share on (1600664772965):
Product Overview
Description
Product Description

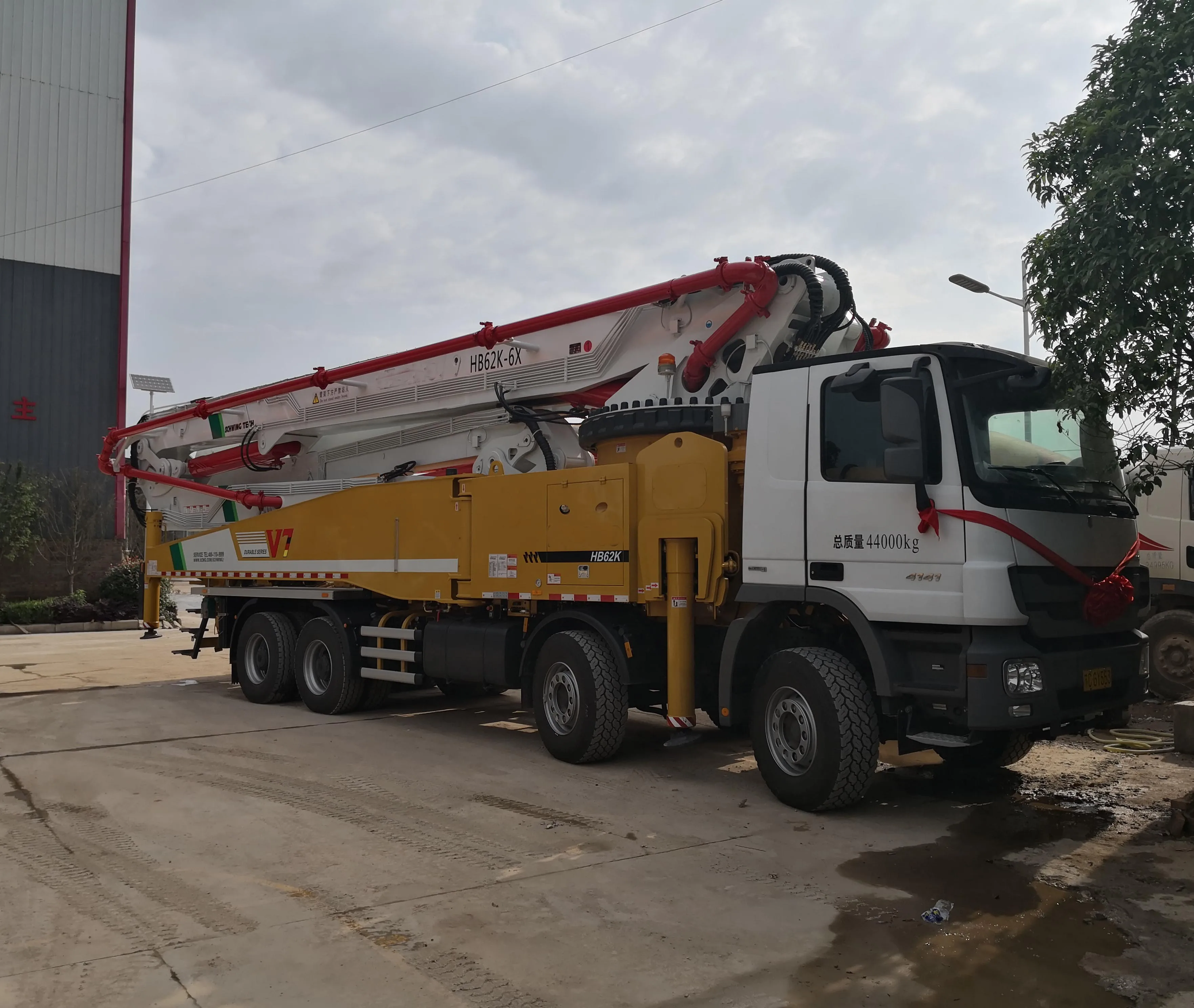

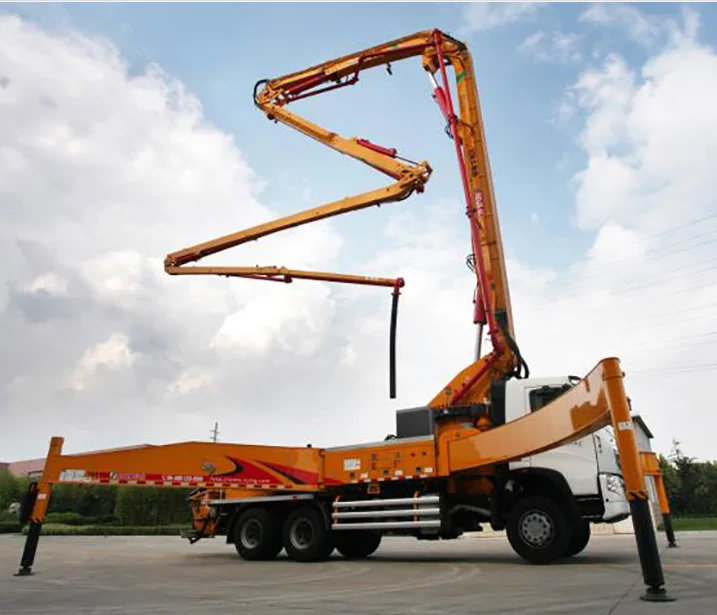

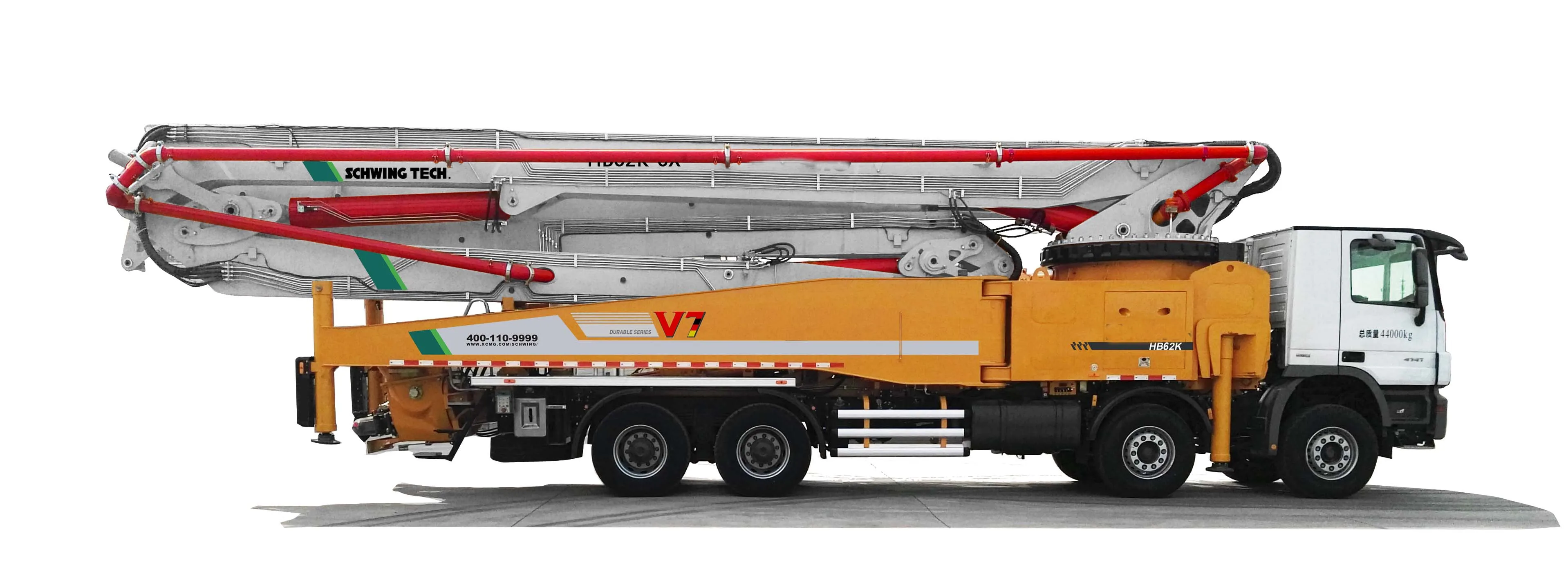

V7 series truck mounted concrete pump is a new generation equipment which is developed by SCHWING Germany technology.
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
* Large diameter (260 mm) Φ, large displacement (170 / hour) pumping systems.
* Material absorption can reach more than 85%. * Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller. * The actual pumping
efficiency is more than 5% higher than the conventional hydraulic control reversing system.
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
* Large diameter (260 mm) Φ, large displacement (170 / hour) pumping systems.
* Material absorption can reach more than 85%. * Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller. * The actual pumping
efficiency is more than 5% higher than the conventional hydraulic control reversing system.
Specification
Description | Unit | Parameter value | ||
Outline dimension | mm | 15200×2500×4000 | ||
Overall weight | kg | 49000 | ||
Chassis | Model | Actros4141 8×4 | ||
Manufacturer | ||||
Max. speed | km/h | 85 | ||
Max. grade-ability | % | 51.4 | ||
Wheelbase | mm | 2300+4000+1350 | ||
Engine | Model | OM501LA·IV/3 | ||
Max. power | kW | 305 | ||
Max. torque | N·m/(r/min) | 2000/1080 | ||
Displacement | L | 11.946 | ||
Emission standard | Eruo IV | |||
Pumping system | Theoretical output | m³/h | 170 | |
Concrete pumping pressure | MPa | 8 | ||
Theoretical pumping times | Time/min | 21~23 | ||
Delivery cylinder diameter ×stroke | mm | φ260×2200 | ||
Max. diameter of pumping concrete | mm | ≤40 | ||
Filling height | mm | 1540 | ||
Concrete slump range | cm | 8~23 | ||
Placing boom | Reach height | m | 61.1 | |
Reach depth | m | 43.6 | ||
Slewingradius | m | 55.9 | ||
Slewing angle | ° | ±270 | ||
Unfolding angle of the 1st section | ° | 90 | ||
Unfolding angle of the 2nd section | ° | 180 | ||
Unfolding angle of the 3rd section | ° | 180 | ||
Unfolding angle of the 4th section | ° | 240 | ||
Unfolding angle of the 5th section | ° | 210 | ||
Unfolding angle of the 6th section | ° | 90 | ||
Stabilizer span | Longitudinal span of stabilizer | mm | 12125 | |
Transverse span of front stabilizer | mm | 12125 | ||
Transverse span of rear stabilizer | mm | 12200 | ||
Others | Lubrication method | Automatic lubrication | ||
Control method | Manual/remote control | |||
Volume of water box | L | 1000 | ||
Product packaging

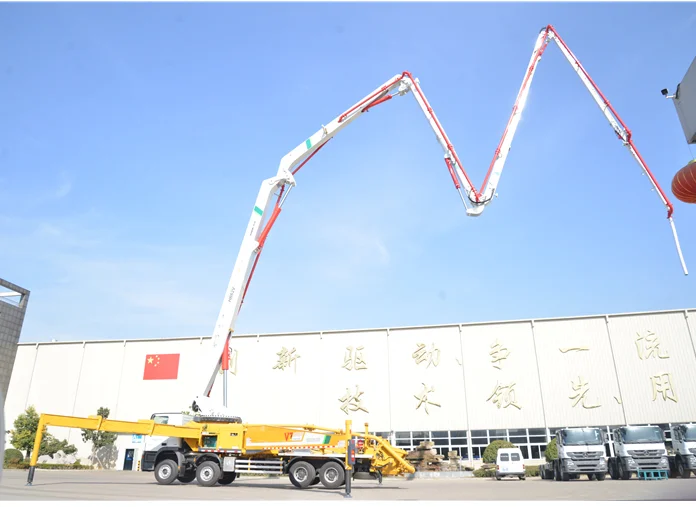

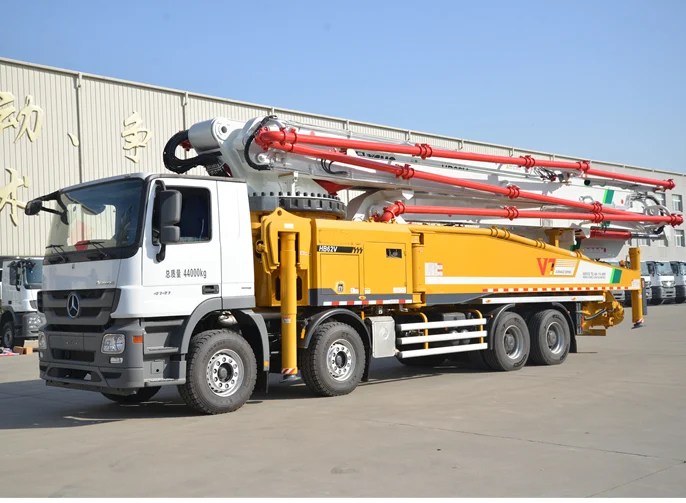

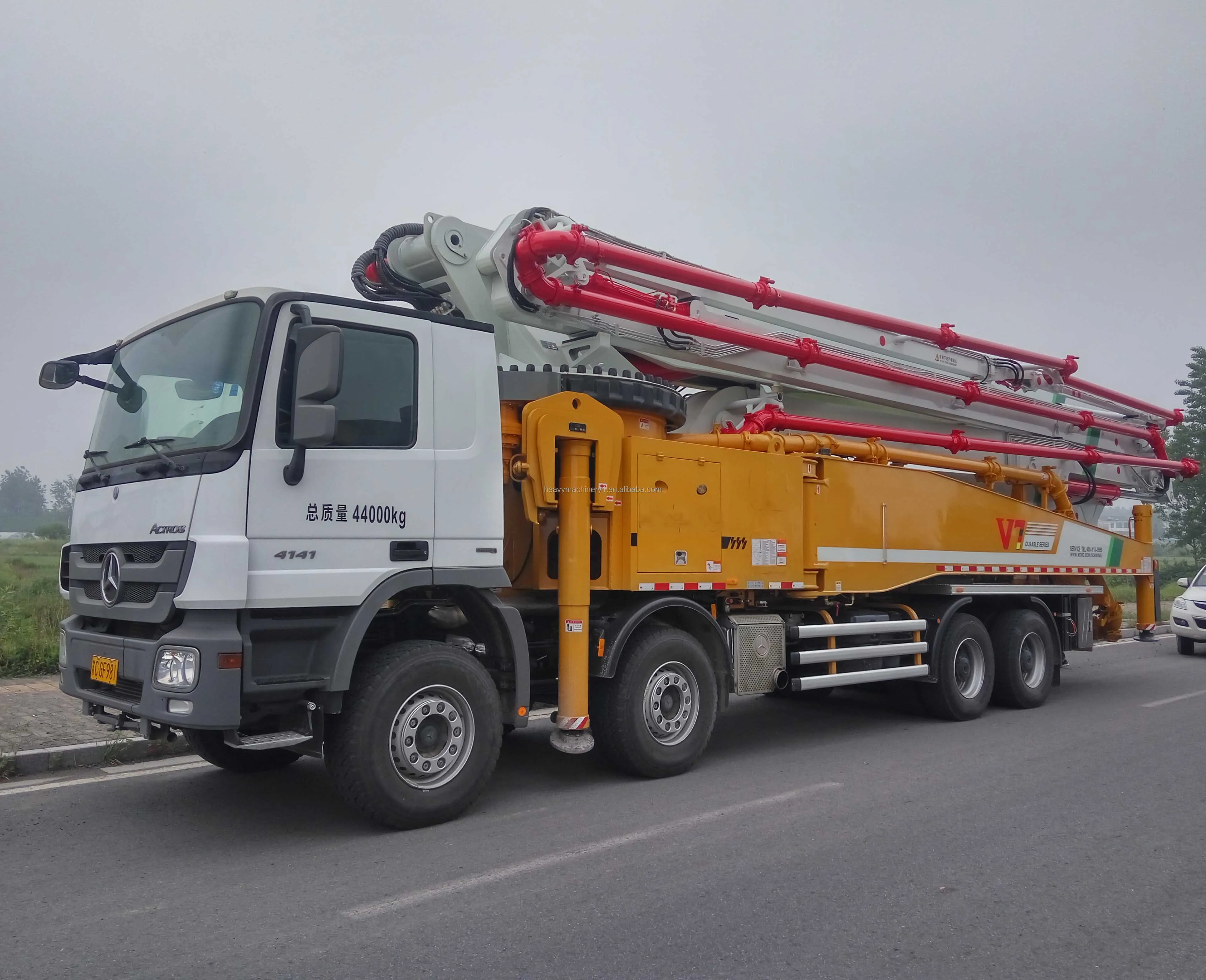

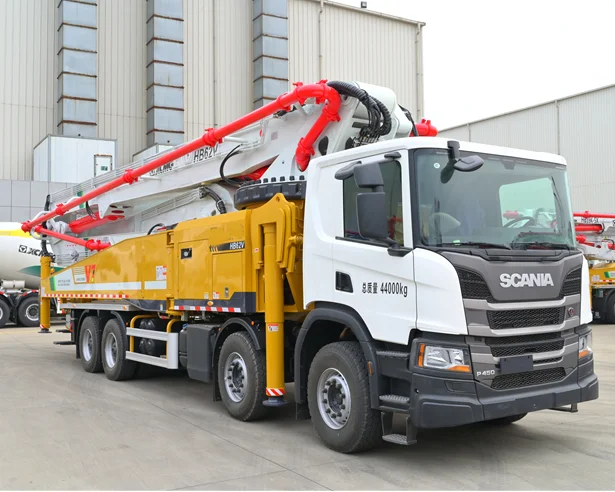

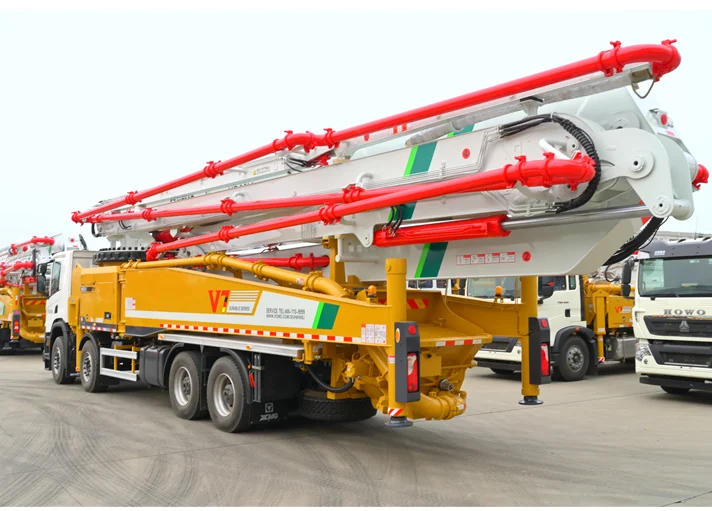

PRODUCTS SHOW
