Hot sales ZS series of ZS1,ZS2,ZS3,ZS4,ZS5 hydraulic manual multi way directional valve,sectional reversing control valve

Product Overview

Description

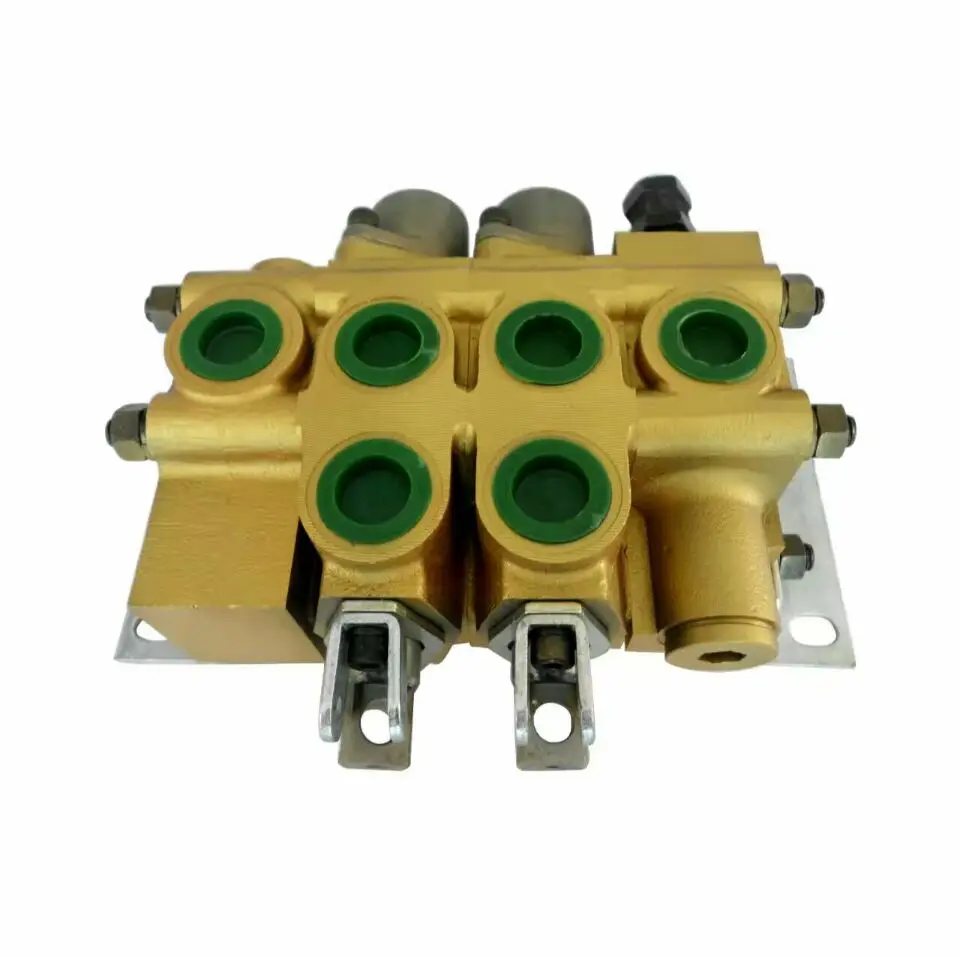

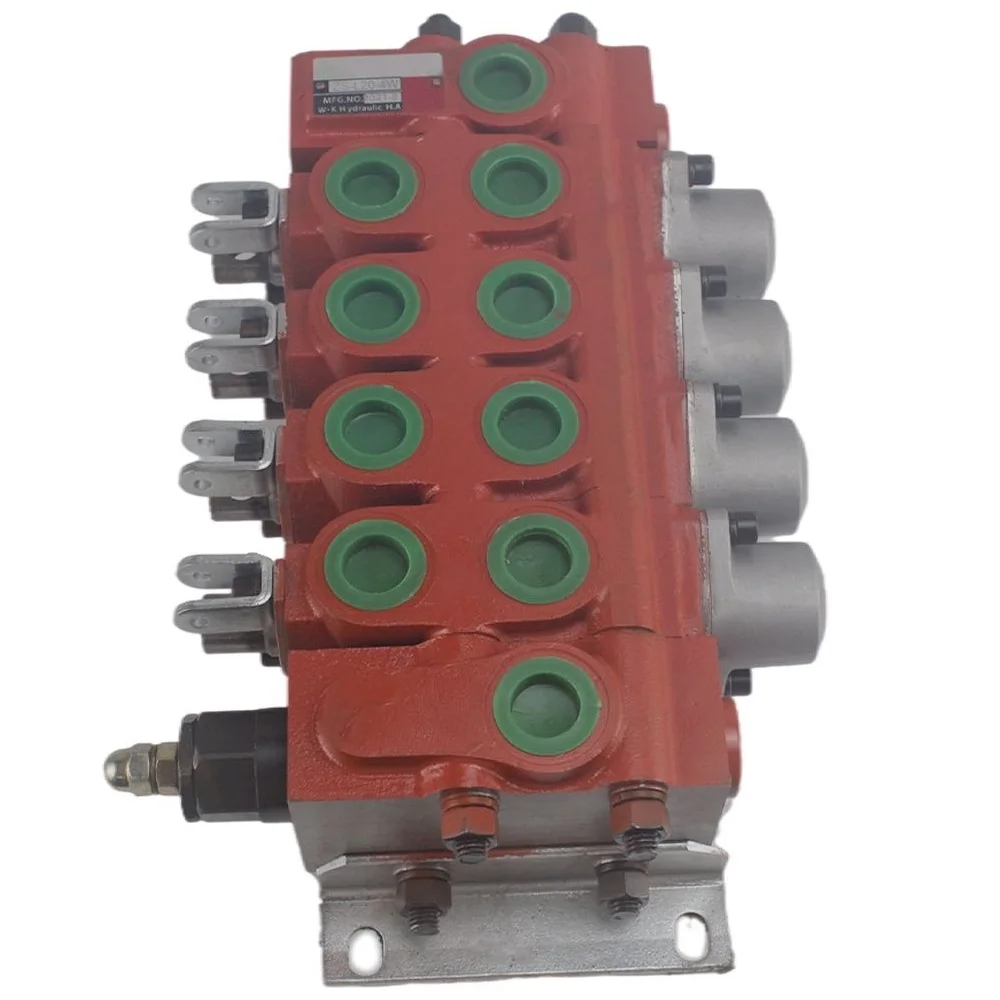

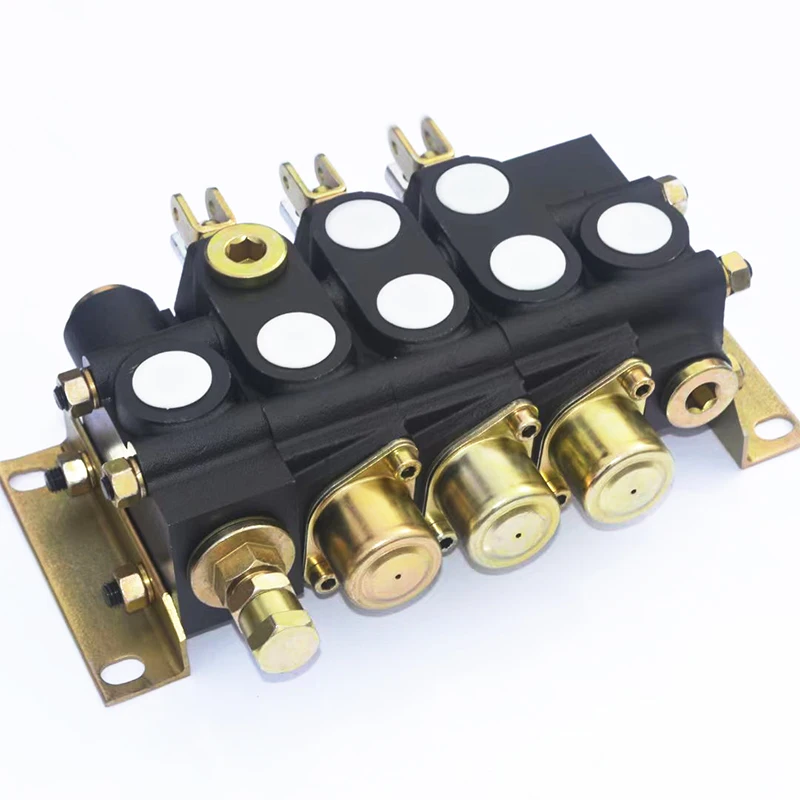

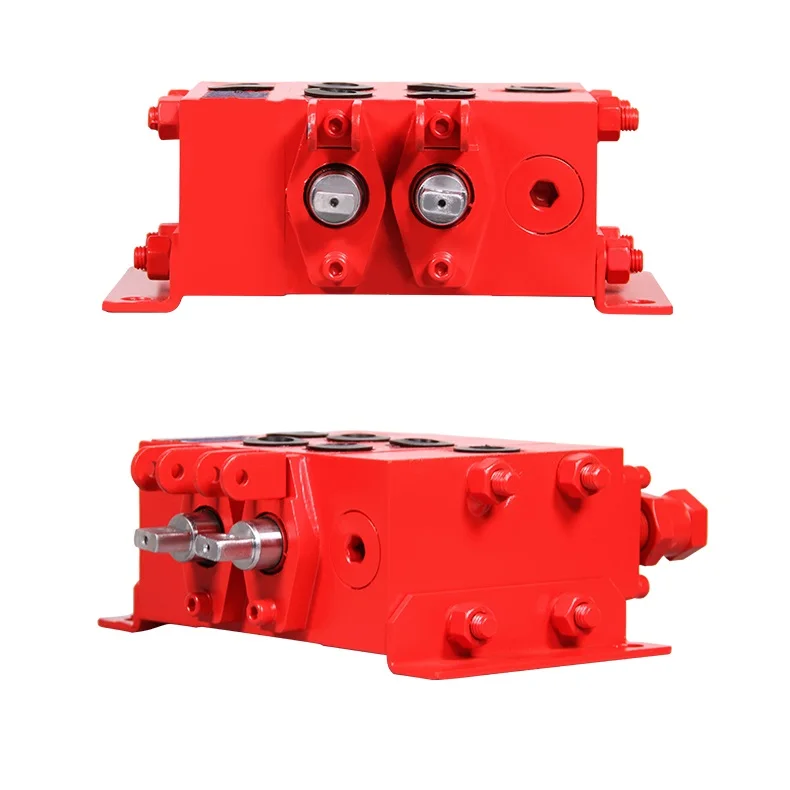

Hot sales ZS series of ZS1,ZS2,ZS3,ZS4,ZS5 hydraulic manual multi-way directional valve,sectional reversing control valve,forklift hydraulic valve

1. It is used for direction change of hydraulic fluid

2. Carry out integrated control for many actuators

3. Consist of several directional valves,safety valves and some additional valves

4. Features high working pressure, compact structure,little leakage, high performance and reliability

5. Widely applicable for hydraulic systems of engineering machinery, mining machinery, lifting transporation machinery and agricultural machinery etc.

6. The ZS series multiple directional valve have a check valve in each piece

7. Also can install overload valve or supplemental valve between any work chamber and returning chamber, as per customer's requirements.

8. The circuit can be parallel, serial or composite type

9. There are several spool functions, positioning and returning modes and control modes.

10. Oil can be fed to other mechanism through interim valve block or external port.

11. Very competitive price

12. 1 year of warranty

13. Short delivery time



Some models for your reference:

ZS-L101E-5OT	ZS4-L15E-YT	ZS-L10-YT-000	ZSL10-YT-30
ZS1-L20E-T1	ZS1-L20E-T2	ZS1-L20E-T3	ZS1-L20E-T4
ZS-L20-YT-0	ZS-L20-YT-0T	ZS-L20E-YT-0	ZS3-L25E-OT
ZS4-L25E-OT	ZS4-L15E-YW	ZS3-L10E-7OT	ZS5-L20E-2OW
ZS4-L10E-OT	ZS4-L10E-OW	ZS4-L15F-NT	ZS4-L15F-NW
ZS2-L20E-OW	ZS2-L25E-OT	ZS1-L10E-T/0	ZS1-L25E-AOO
ZS4-L25F-20T	ZS1-L10E-8OT	ZS1-L10E-6OT	ZS1-L10E-2OT
ZS3-L10F-AT	ZS3-L10F-AW	ZS3-L10E-T/0	ZS3-L25E-AOO
ZS5-L20E-OW	ZS5-L20-4OT	ZS5-L20-3OT	ZS5-L20-AT



Technical Specifications:
