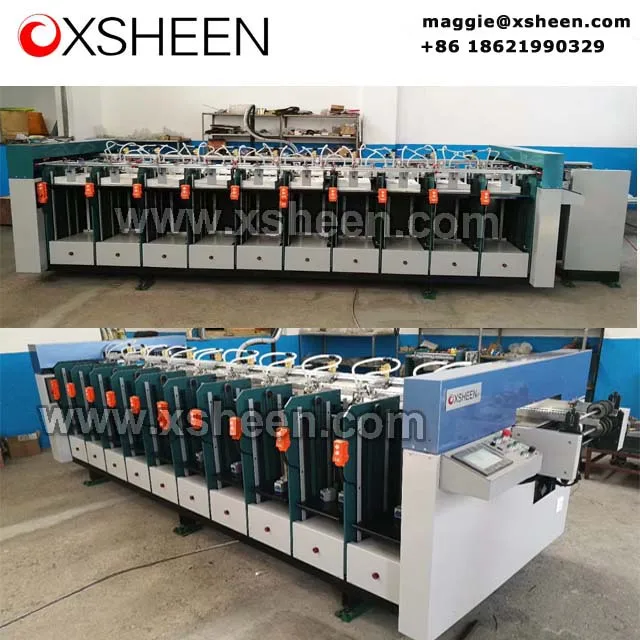

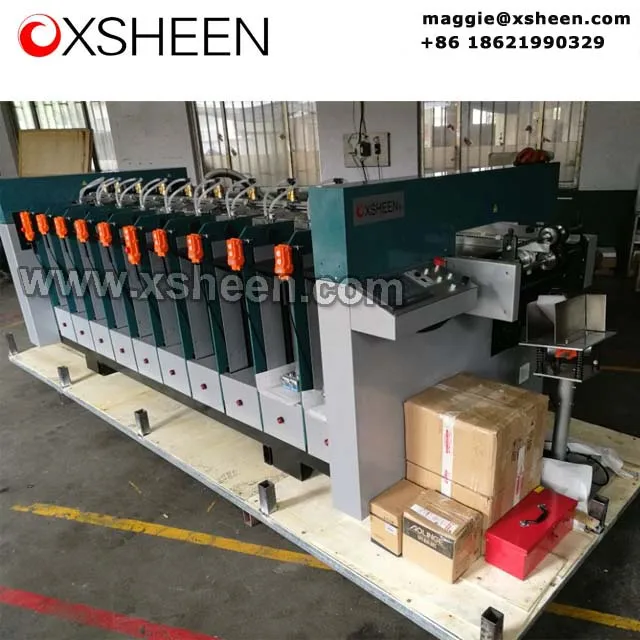

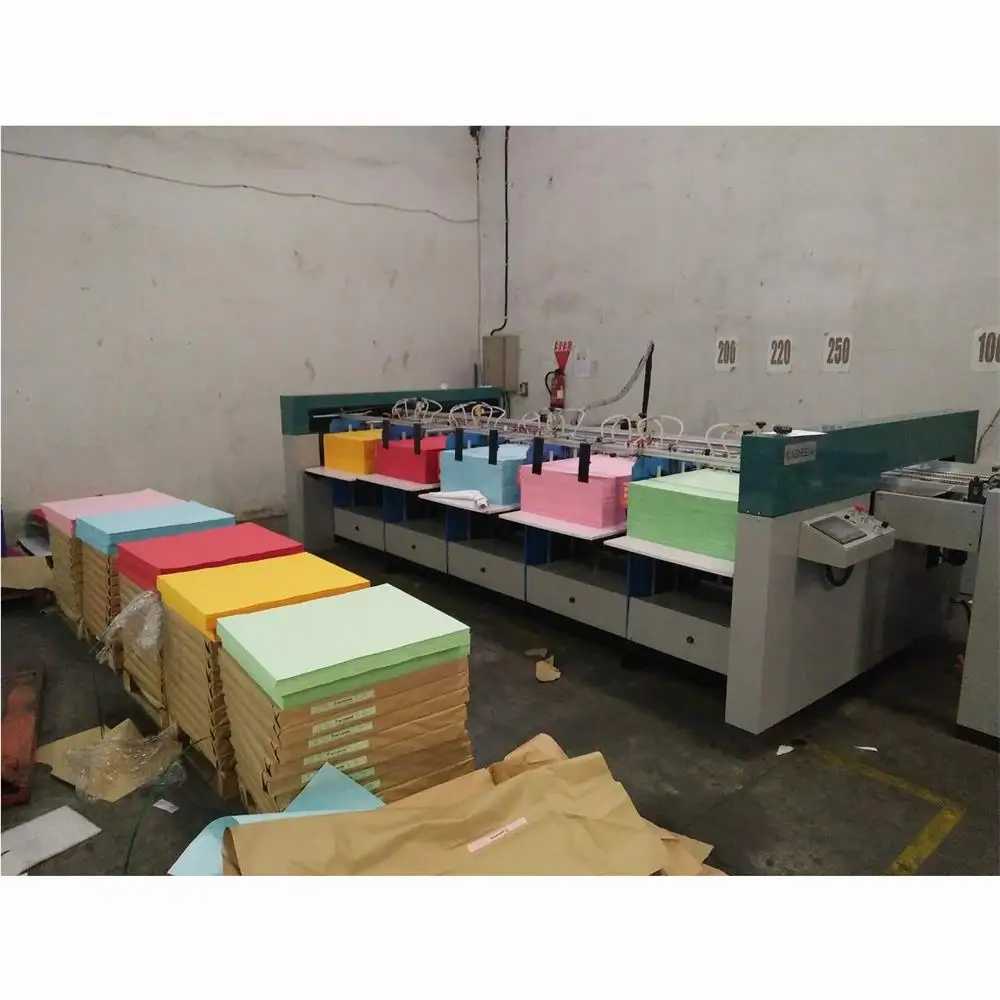

our collator sorting machine can work properly for NCR, CCP, bill paper too

Product Overview

Description

our collator sorting machine can work properly for NCR, CCP, bill paper too

1.The automatic paper collating machine has compact structure, small footprint. It can be customized to more pages collating without affecting the collating speed.

2. Advanced PLC touch screen control

3. Paper feeding in vertical direction and paper carried in horizontal direction by accurate timing belt conveying device. Paper are collected by vibration to ensure the tidiness of final collated pages.

4. Equipped with highly advanced paper detection device such the missing page be automatically filled, double sheet alarm device etc

5. The book sewing part or book stitching part is optional.



Technical data

Model	XH-XP4-440	XH-XP6-560	XH-XP14-650
Max. paper size	440*300mm	560*400mm	650*450mm
Min. paper size	297*210mm
Paper thickness	30-1000GSM
Max .loading height	450mm
Max. speed	2000 sheets/hour
Power	380V 50Hz 5.5kw	380V 50Hz 6.8kw	380V 50Hz 10kw
Dimensions	3200x1700x1300mm	3800x1400x1300mm	8500x1900x1400mm
Weight	800kg	1000kg	1700kg

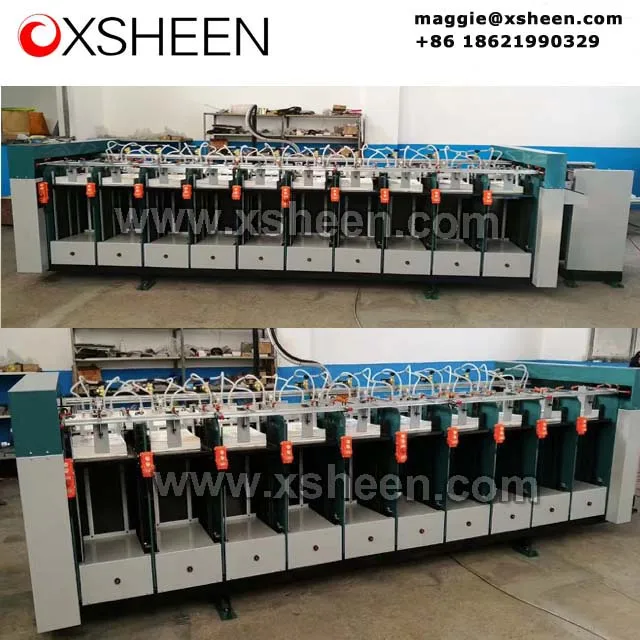

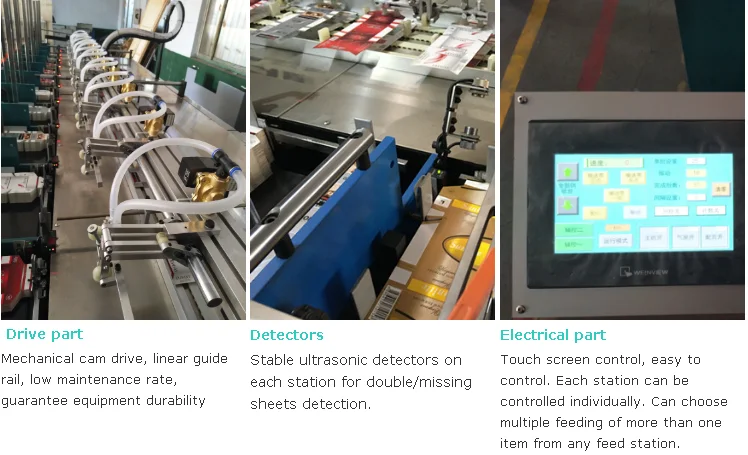

Machine details

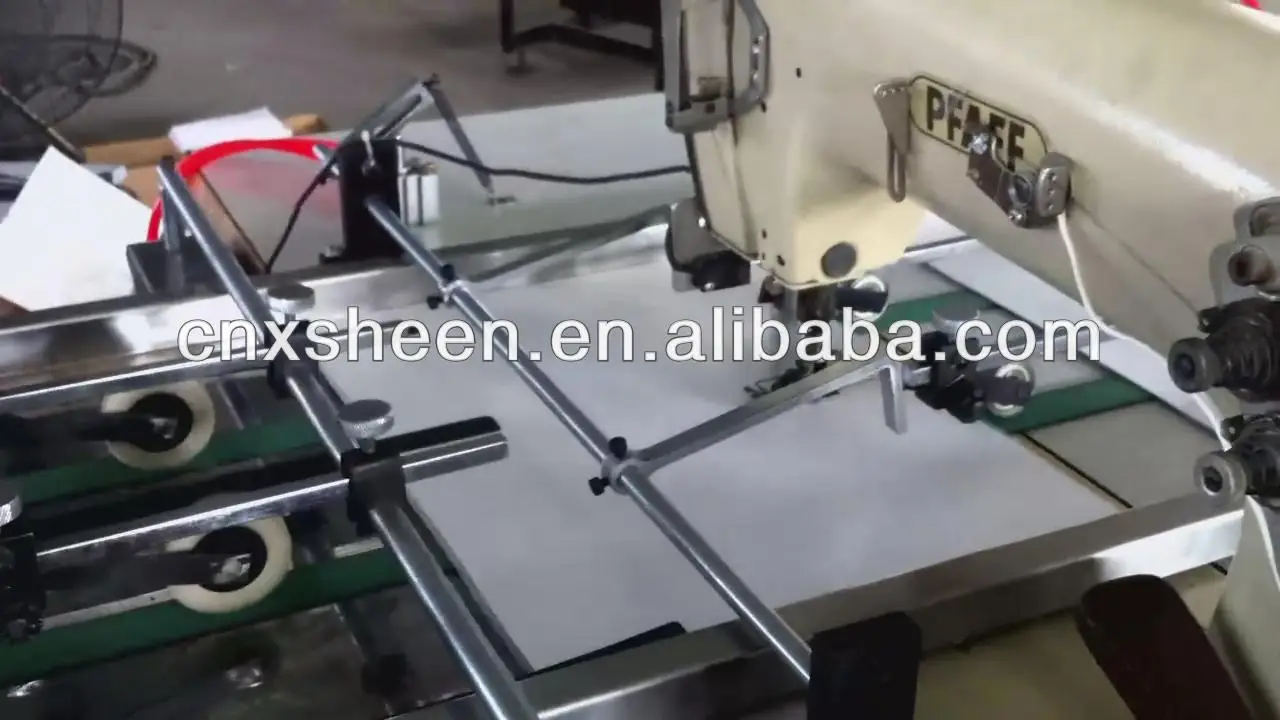

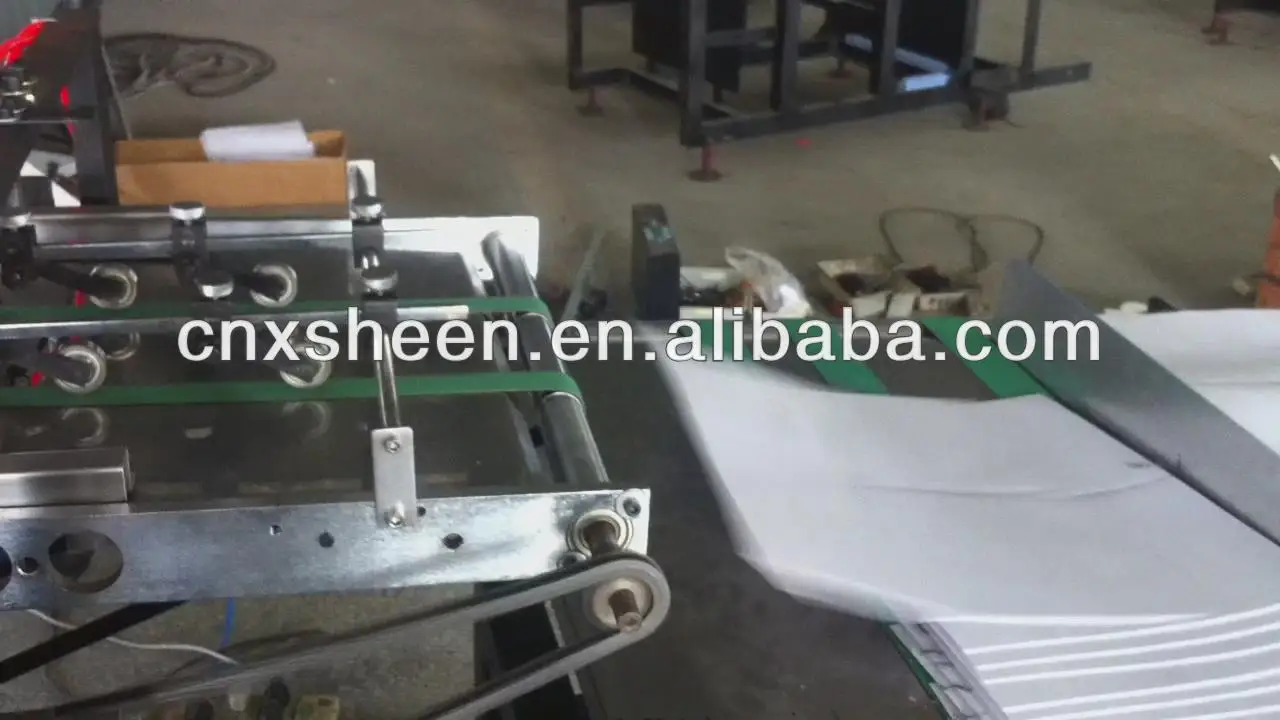

Notebook sewing machine in working



Sewing part or stitching part is optional

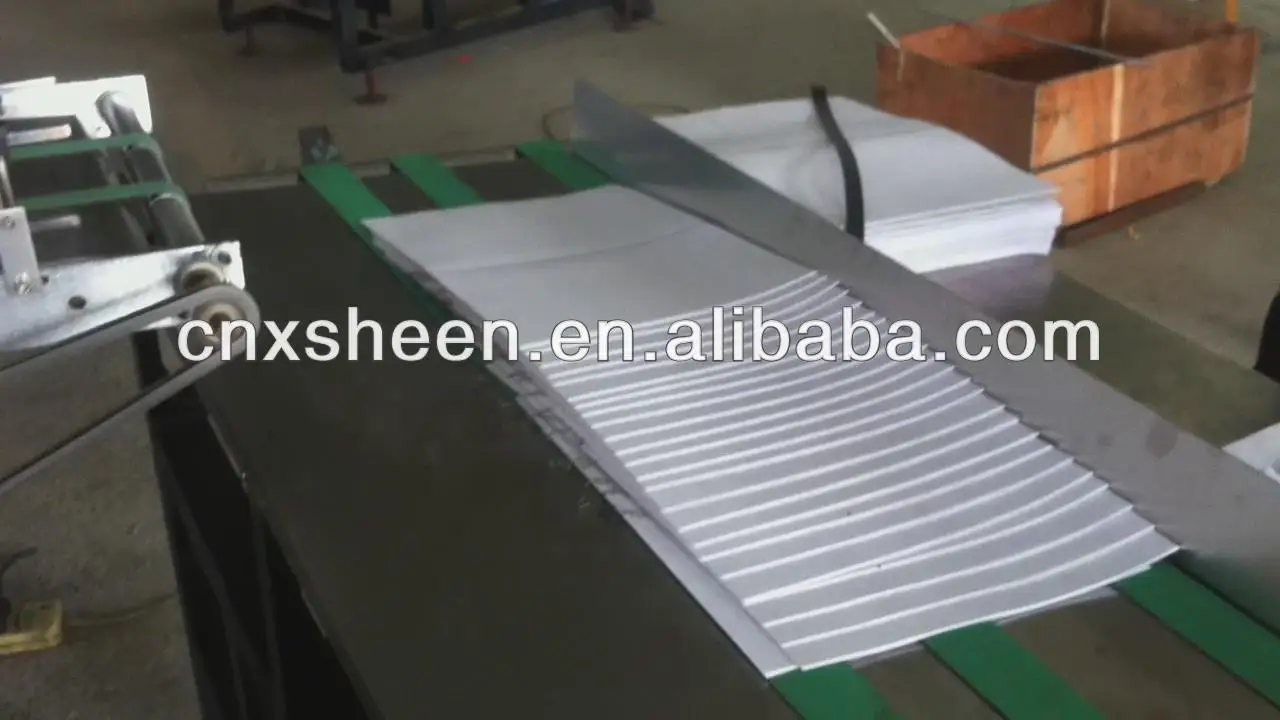

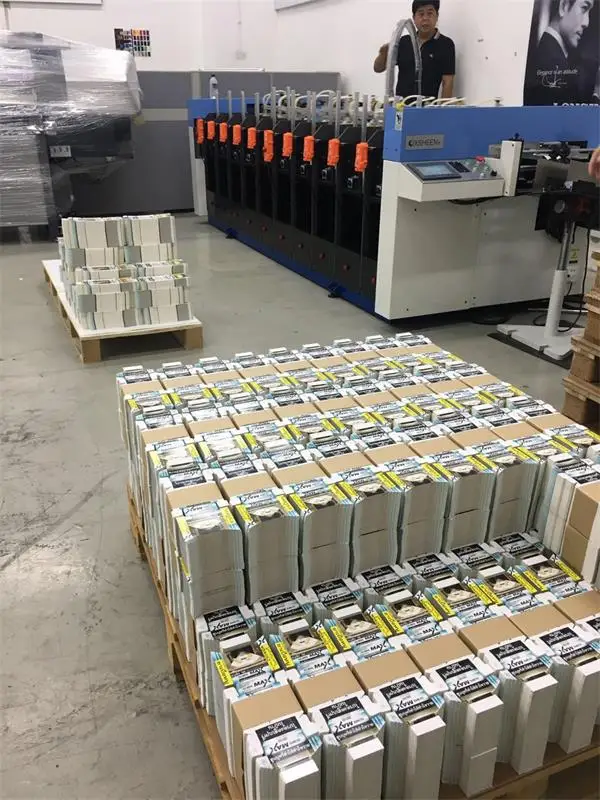

Final book



About XSHEEN Technology:













Why choose us:
1,We take part in many exhibitions in different countries every year,offering professional notebook sewing machine and having a good repution all over the world.

2,We pay great attention to the quality and technology improvements and we provide the high-quality machine with competitive price.

3,We are an professional manufacturer ,we have all range of digital printing products,office products available.

4. We have best after-sales service backing up.

We can offer :

1, deliver 3-5 days after receiving the payment .

2, using guide and offer technology support.
