Product Overview

Description



Products Description




Model Name
EP06-A PCIE
UE-Category
 LTE-A Cat6 Module
Dimensions
30.0 × 50.95 × 3.95 mm
Form Factor(Package)
PCIE
Frequency Bands
LTE-FDD
B2/B4/B5/B7/B12/B13/B25/B26/B29/B30/B66
Frequency Bands
LTE-TDD
/
Frequency Bands
2 × CA
B2+B2/B5/B12/B13/B29;
B4+B4/B5/B12/B13/B29;
B7+B5/B7/B12/B26;
B25+B5/B12/B25/B26;
B30+B5/B12/B29;
B66+B5/B12/B13/B29/B66
WCDMA
B2/B4/B5
Supply Voltage
3.1 ~ 4.4 V, typ. 3.3 V
Operation temperature
-35 °C to +75 °C
Embedded Software
GNSS Driver
Android 4.x/5.x/6.x/7.x/8.x/9.x
Android RIL
Android 4.x/5.x/6.x/7.x/8.x/9.x/10.x
USB Driver
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x/5.x/6.x/7.x/9.x
NDIS
Windows 7/8/8.1/10
Data Transmission
LTE-FDD
300 (Downlink)/50 (Uplink)
LTE-TDD
226 (Downlink)/28 (Uplink)
DC-HSPA+
42 (Downlink)/5.76 (Uplink)
WCDMA
384 (Downlink)/384 (Uplink)
Firmware update
via USB
Interfaces
USB 2.0/3.0 × 1, PCM × 1, I2C × 1, (U)SIM × 2 (1.8/3.0 V)
Embedded GNSS
GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
Region
North America


Product description:

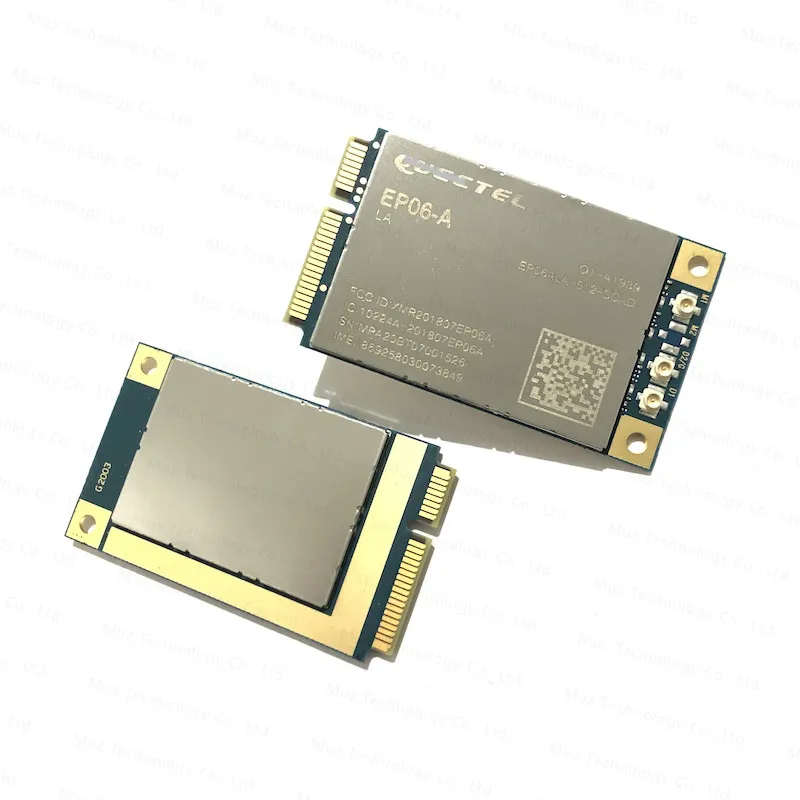

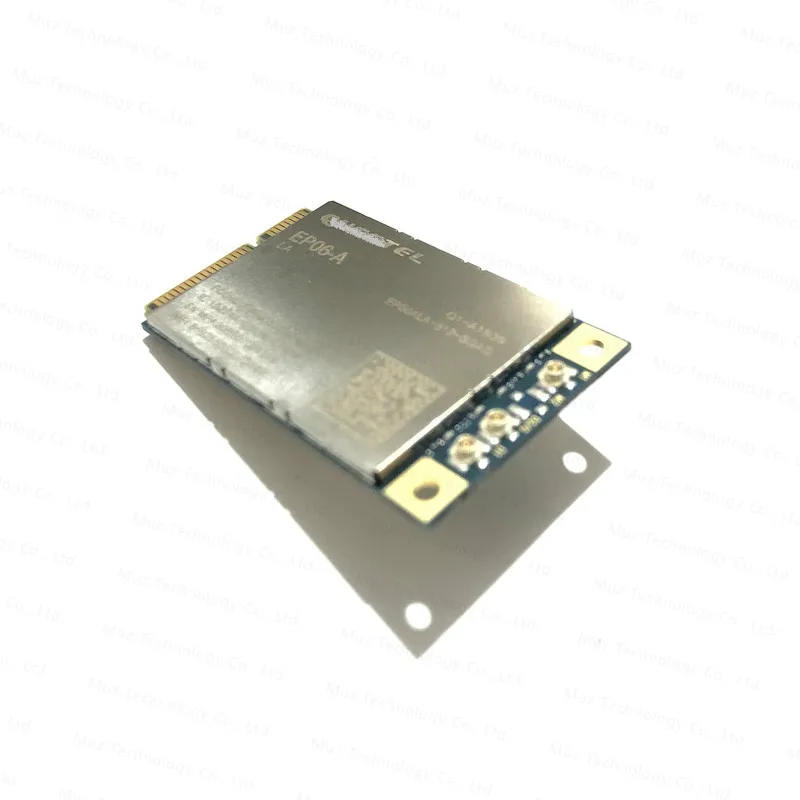

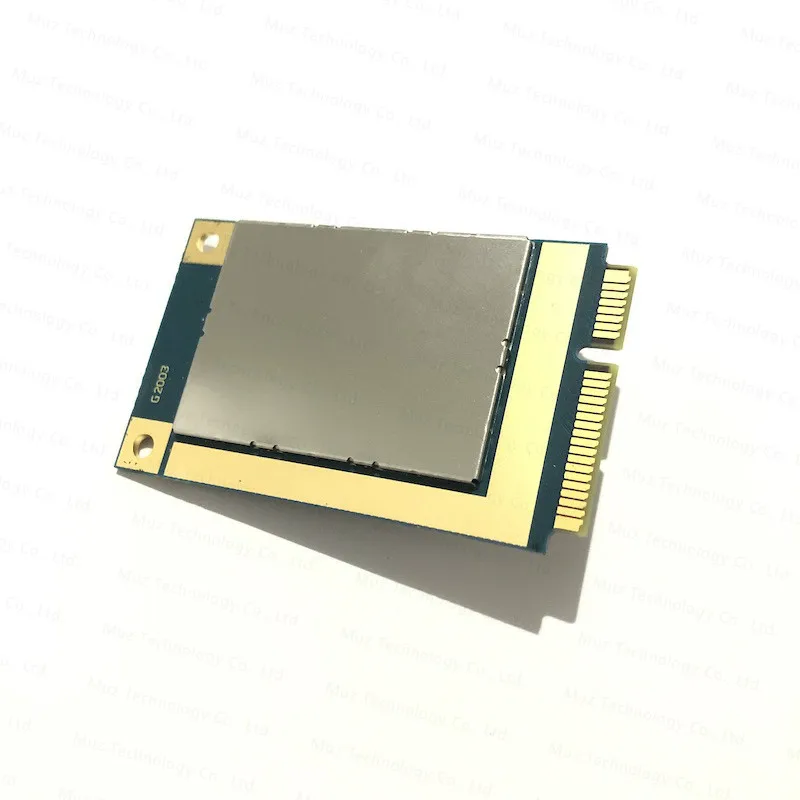

The EP06-A is an LTE-A category 6 module in a standard PCI Express® Mini Card form factor measuring 30.0mm × 50.95mm × 3.95mm, which meets the 3GPP Release 11 standard. The module can perform data communication in a plurality of network modes including LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA. The EP06-A is optimized for use in North America.

The EP06-A delivers maximum downlink rates of 300Mbps and uplink rates of 50Mbps under LTE, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. The module also supports IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the optional multi-constellation GNSS receiver greatly simplifies product design, and provides quicker, more accurate and dependable positioning.

A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, and Android) allow the module to serve a wide range of IoT applications including industrial routers, home gateways, set top boxes, industrial PDAs, rugged tablet PCs, and digital signage.
